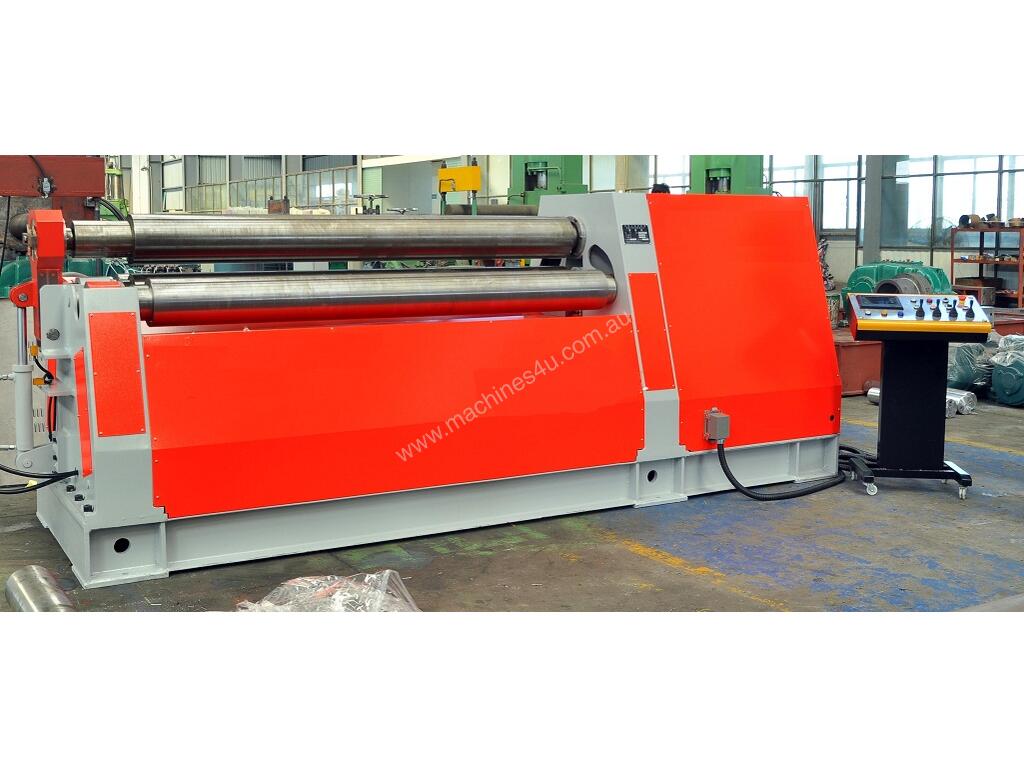

Features
• Suitable for medium ~ heavy plate production of cylinders and varying radiused parts
• Bottom pinching roll with hydraulic positioning (top and down movement)

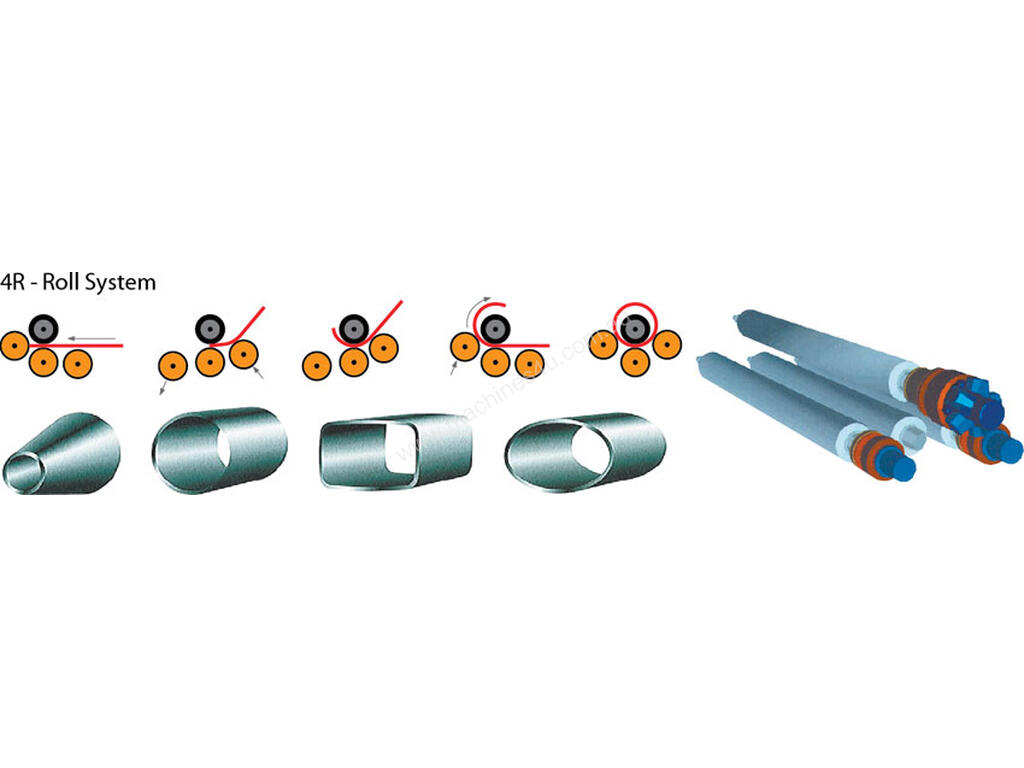

• Two lateral rolls with double pinch pyramid action (bottom pinching and lateral rolls with balancing system to guarantee perfect parallelism and high quality production)
• Top roll is driven by a hydraulic motor coupled to the planetary gear box (equipped with overload protection system) - lateral side rolls are driven - bottom roll is idle (free)
• Digital displays (3pcs) are provided for locating setting of roll positions

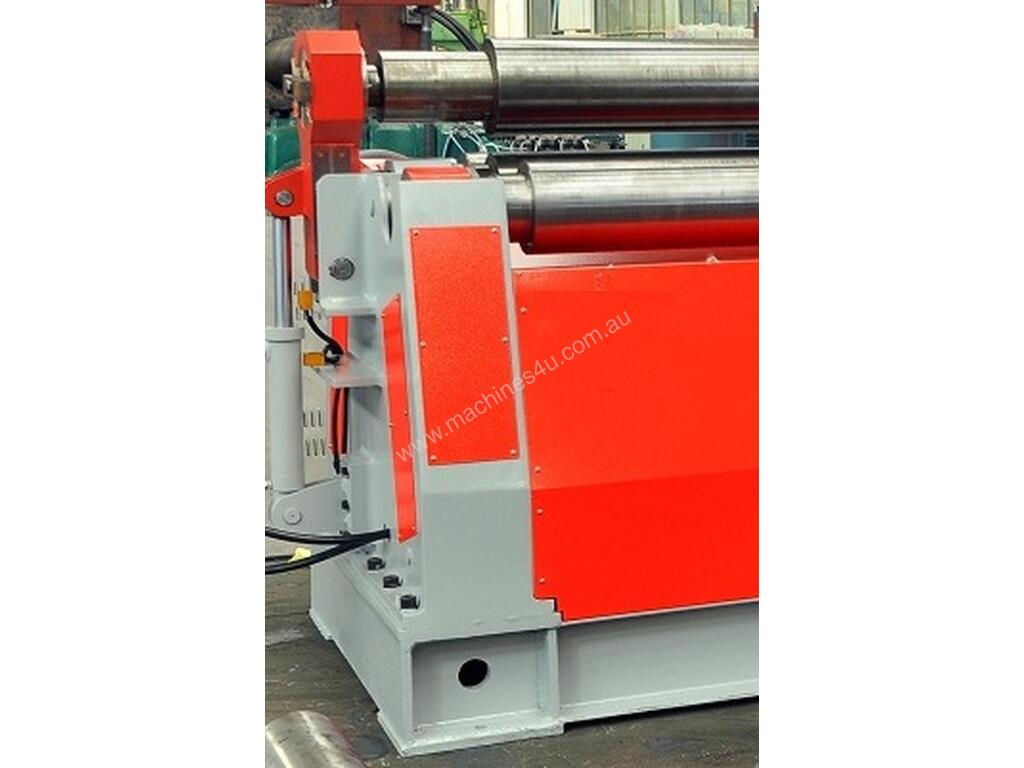

• Hydraulic drop end for ease of cylinder removal
• Steel welded heavy frame construction, thermally stress relieved

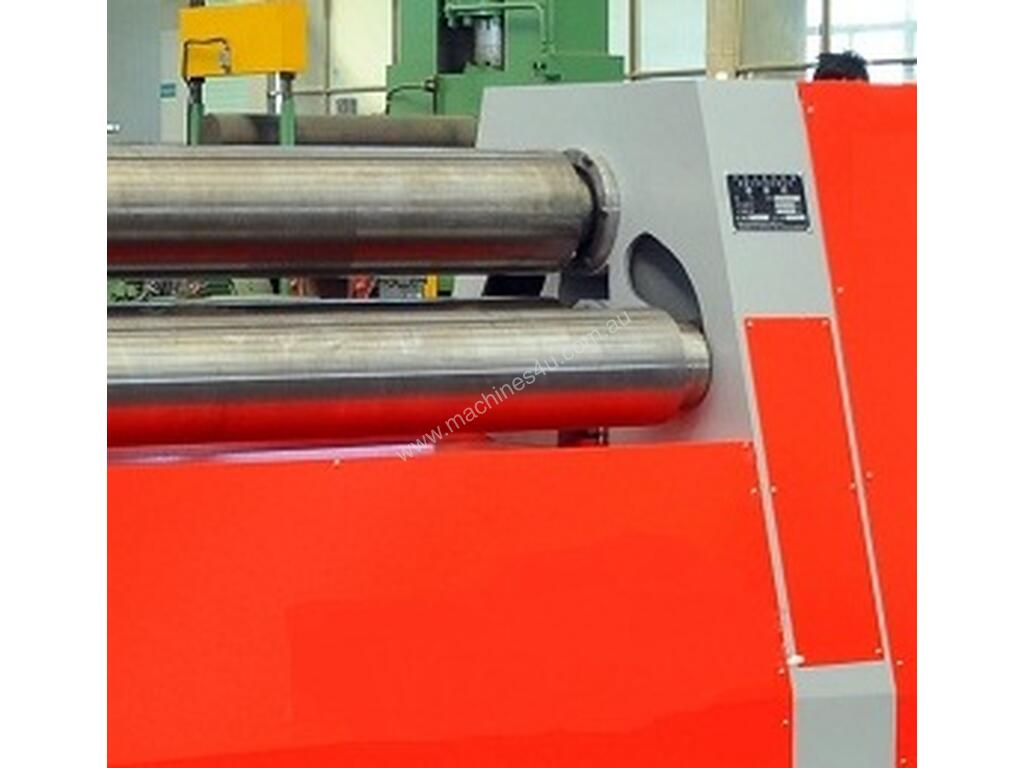

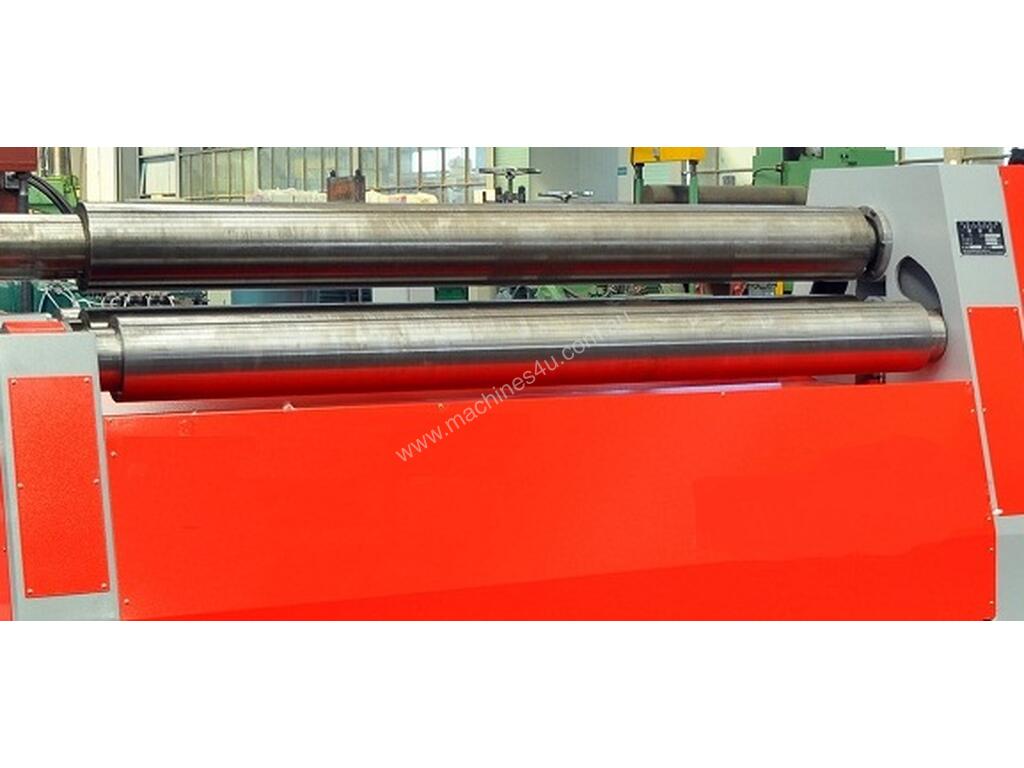

• Induction hardened rolls are of high tensile carbon steel forgings, Conical bending device
• CE approved and quality electrical and hydraulic components.
• Hardened Rollers
• Hydraulic drop end
Models Available As Follows - If You Have A Specific Application - Please Call
• 2500mm x 12mm
• 3100mm x 12mm
• 2500mm x 16mm
• 3100mm x 16mm
• 2500mm x 20mm
• 3100mm x 20mm
• 2500mm x 25mm
• 3100mm x 25mm
• 2500mm x 30mm
• 3100mm x 30mm
• 2500mm x 50mm
• 3100mm x 50mm
We also offer NEW Steelmaster Sheetmetal / Plate Curving Rolling Machines.
When looking for a quality Sheetmetal / Plate Curving Rolling Machine, look no further than Steelmaster Industrial. Steelmaster Industrial’s Sheetmetal / Plate Curving Rolling Machines offer the Metalworker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Sheetmetal / Plate Curving Rolling Machines in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Sheetmetal / Plate Curving Rolling Machines consists of simple bench mounted manual machines through to heavy duty plate rolling machines. Depending on your needs we have the model for you, starting with our cost effective manual machine to our large motorized models.
Manual Hand Operated Sheetmetal Rolling Machines
With several models to choose from our manually operated machines offer great value out of any of the Sheetmetal / Plate Curving Rolling Machines. These models range from our bench mounted 305mm wide roller through to our 1300mm x 75mm slip roller complete with stand. Also fitted are swing out top rolls, wire grooves and adjustable pinch roller. Quality cast frames and well appointed – you will not be disappointed!
Motorized Sheetmetal & Plate Rolling Machines
Steelmaster Industrial offer one of the best selections of Sheetmetal / Plate Curving Rolling Machines around. From our electric powered 1300mm slip rollers to our heavy duty “S” Series Single Pinch Pre Bend Rollers with Digital Display & Power Pinch. Our Sheetmetal / Plate Curving Rolling Machines have been fitted up to offer you the best selection of features and come standard with safety e stops to ensure all round safe operation.
For More information on any of these machines, go to our website or contact a Steelmaster industrial Rep
