40 Position Multifix Style E5 Quick Change Tool Post

NEW: 40-Position Multifix Style E5 Quick Change Tool Post Kit
Upgrade your lathe precision and efficiency with this high-quality E5 series Quick Change Tool Post (QCTP) system. This "Multifix" style 40-position design allows for instantaneous tool changes with a guaranteed repeat accuracy of 0.01mm, significantly reducing setup time for complex machining jobs.
Product Overview
Model: E5 (Size E)

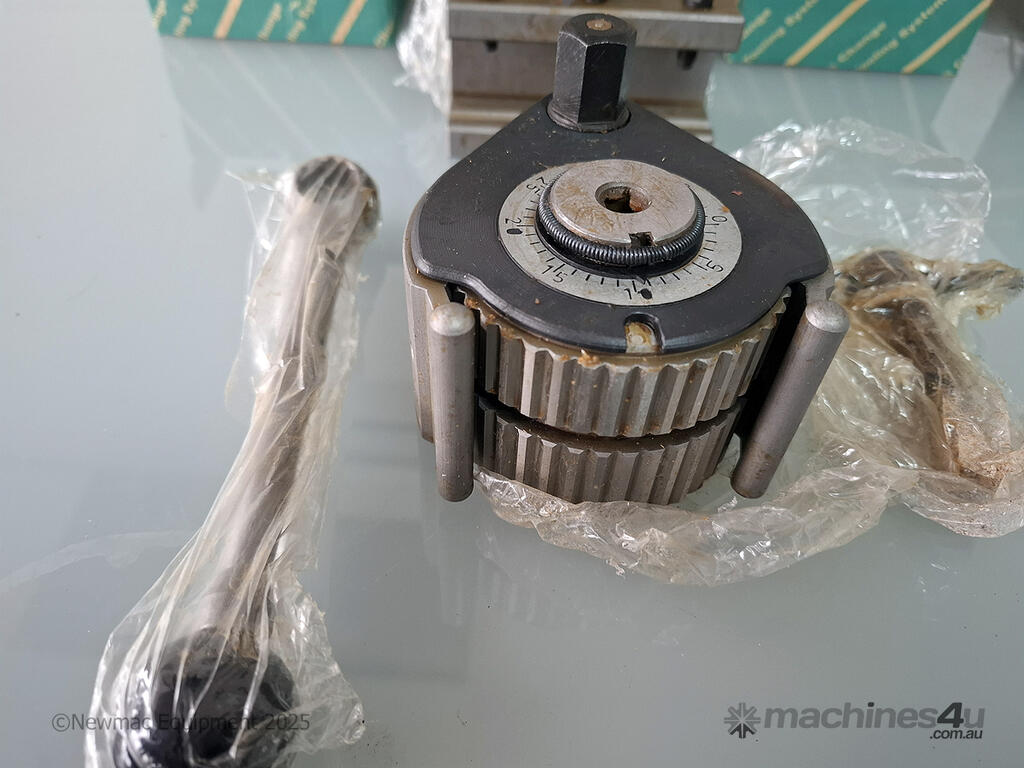

Style: 40-Position Serrated Spline (Swiss-type design)
Condition: New
Suitability: Ideal for lathes with a 200mm – 400mm swing and a centre height of 100mm – 200mm.

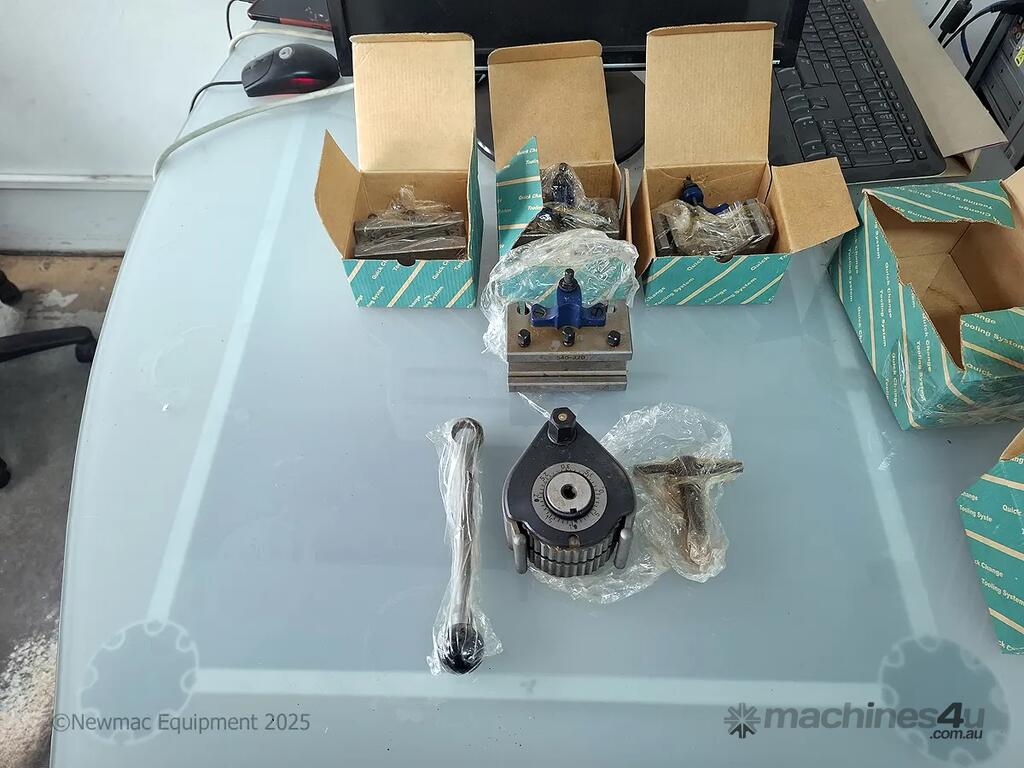

Complete Kit Includes:

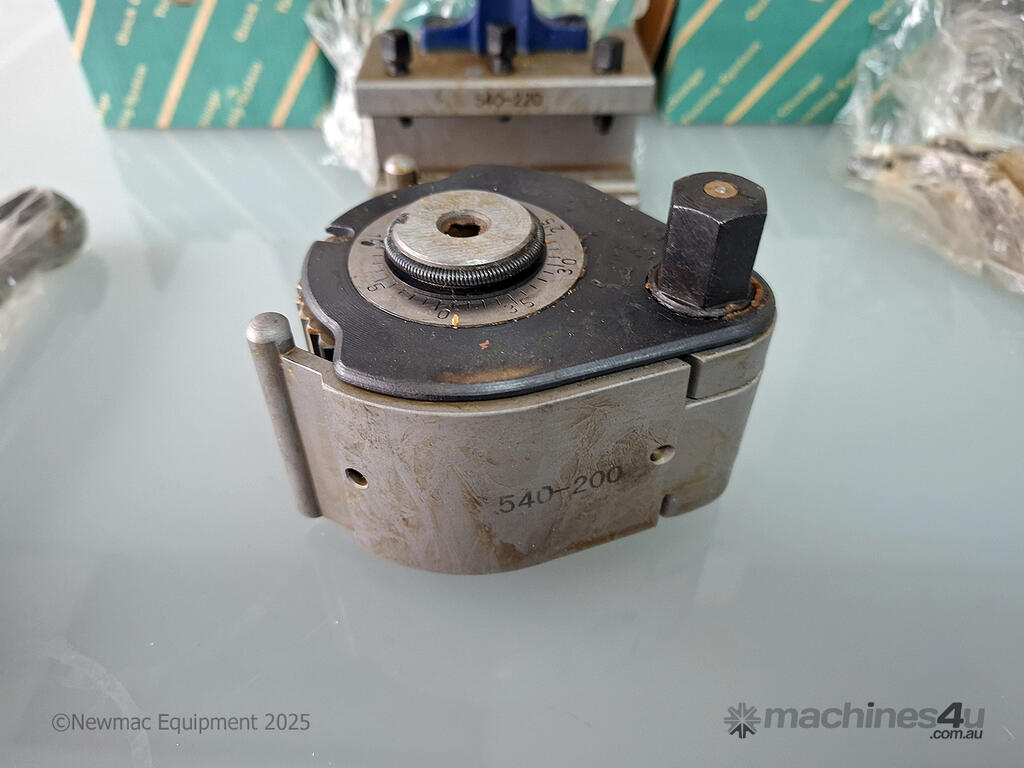

1 x -Position Main Tool Block

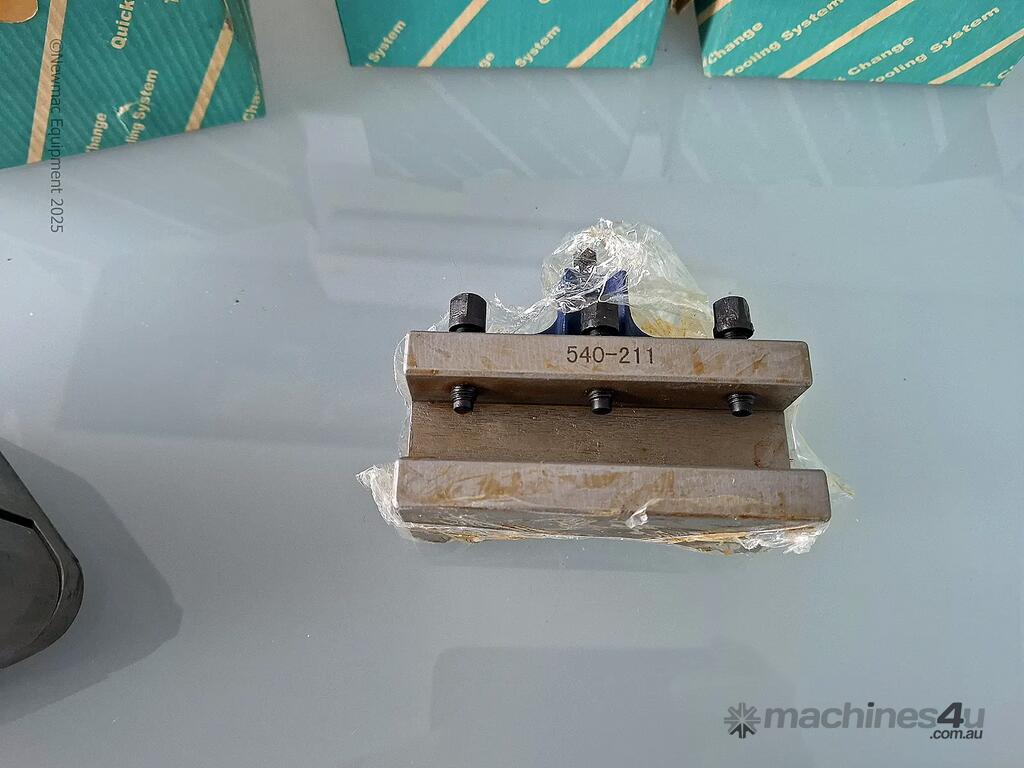

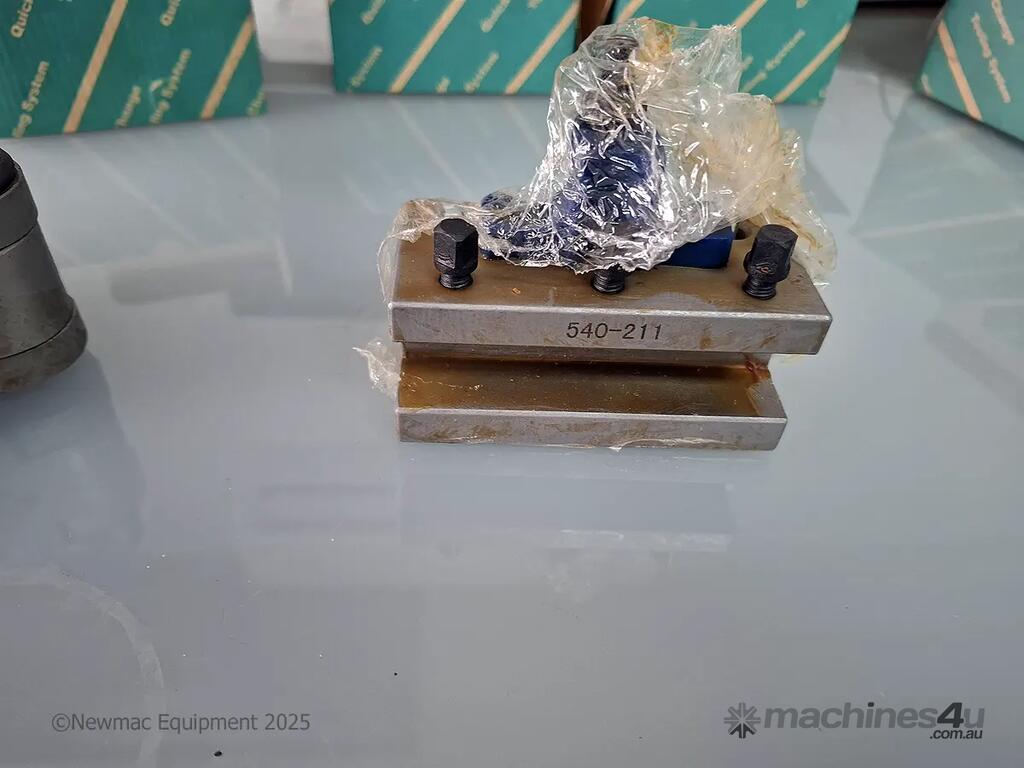

3 x 540-211 Standard Tool Holders (for square-shank turning tools)

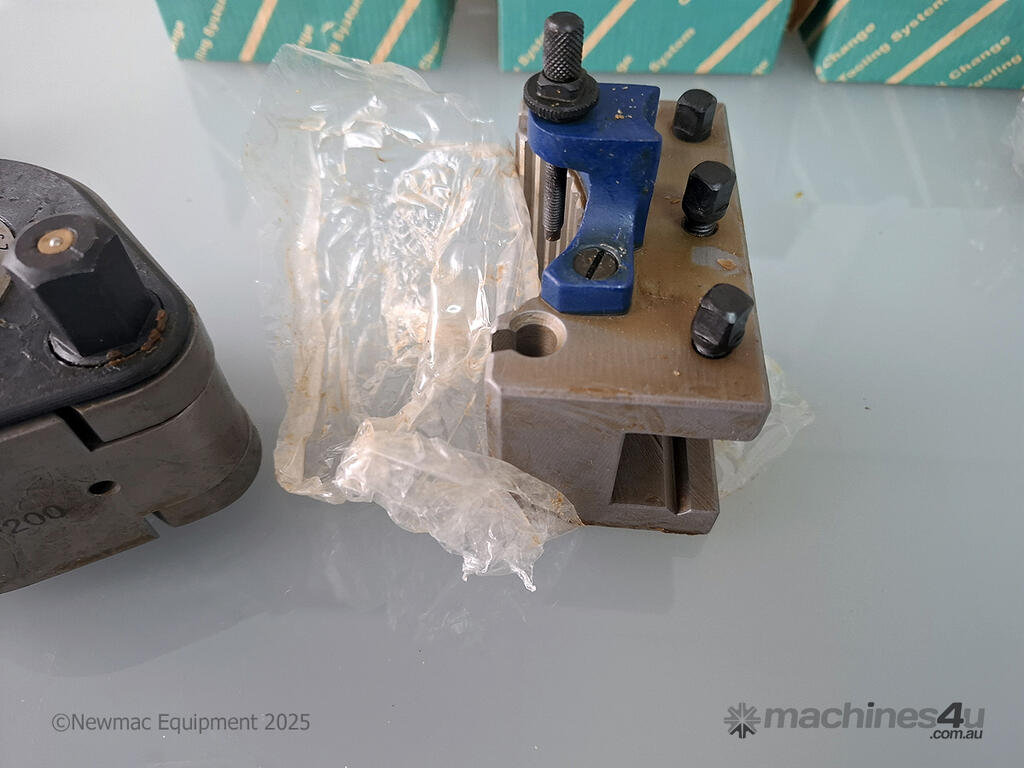

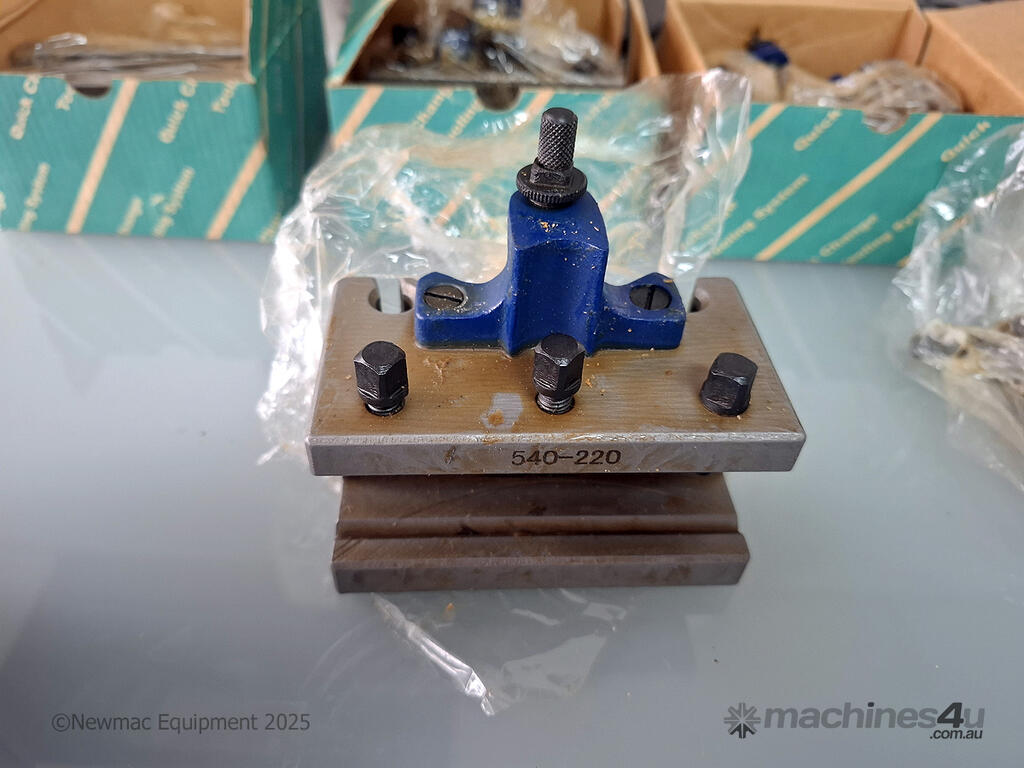

1 x 540-220 Specialized Tool Holder (designed to accommodate boring bars)
Tooling and accessories as shown in the product photos.
Technical Specifications
Feature Specification
Model E5
Lathe Centre Height 100 – 200 mm
Lathe Swing 200 – 400 mm
B (Height) 12 mm
C (Width) 66 mm
D (Diameter) 132 mm
H (Adjustable Range) 32 – 52 mm
h (Block Height) 68 mm
S (Shank Size) 20 mm
T (Shank Size) 20 mm
Number of Holders 4 Holders Included
Nett Weight 6.2 kg
Key Benefits
Extreme Versatility: 40 different index positions allow for precise tool angling without moving the tool post.
Rigid Construction: High-grade steel construction ensures maximum rigidity under heavy cutting loads.
Time Saving: Set your tool heights once using the integrated adjustment screws and switch between tools in seconds.
