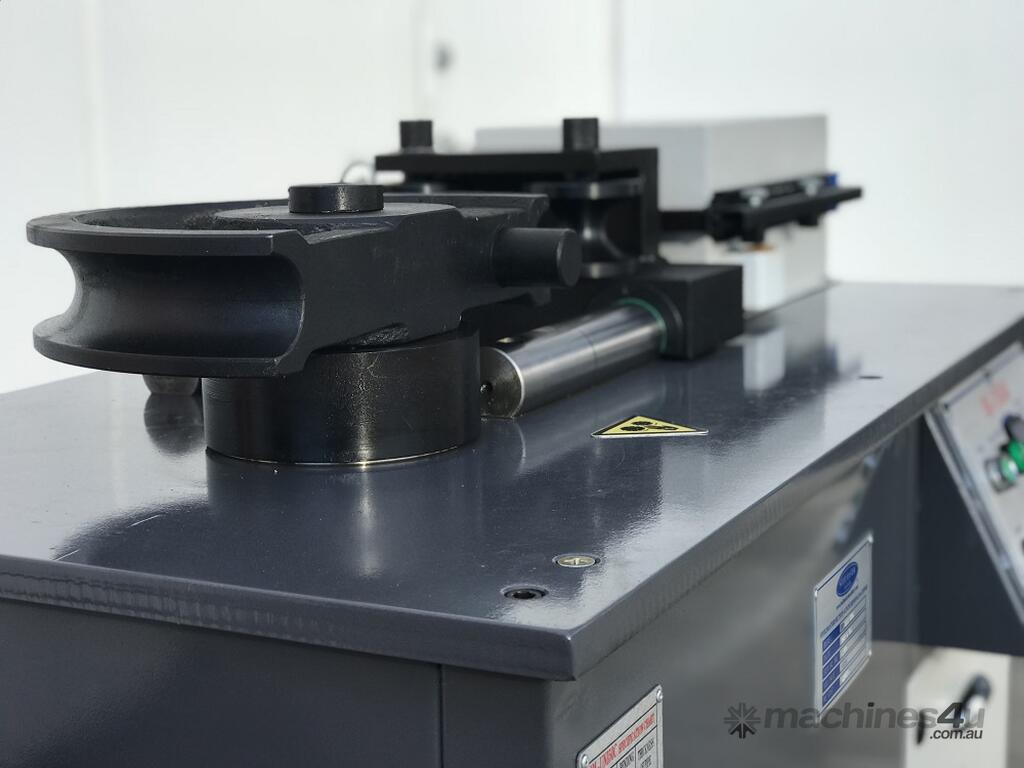

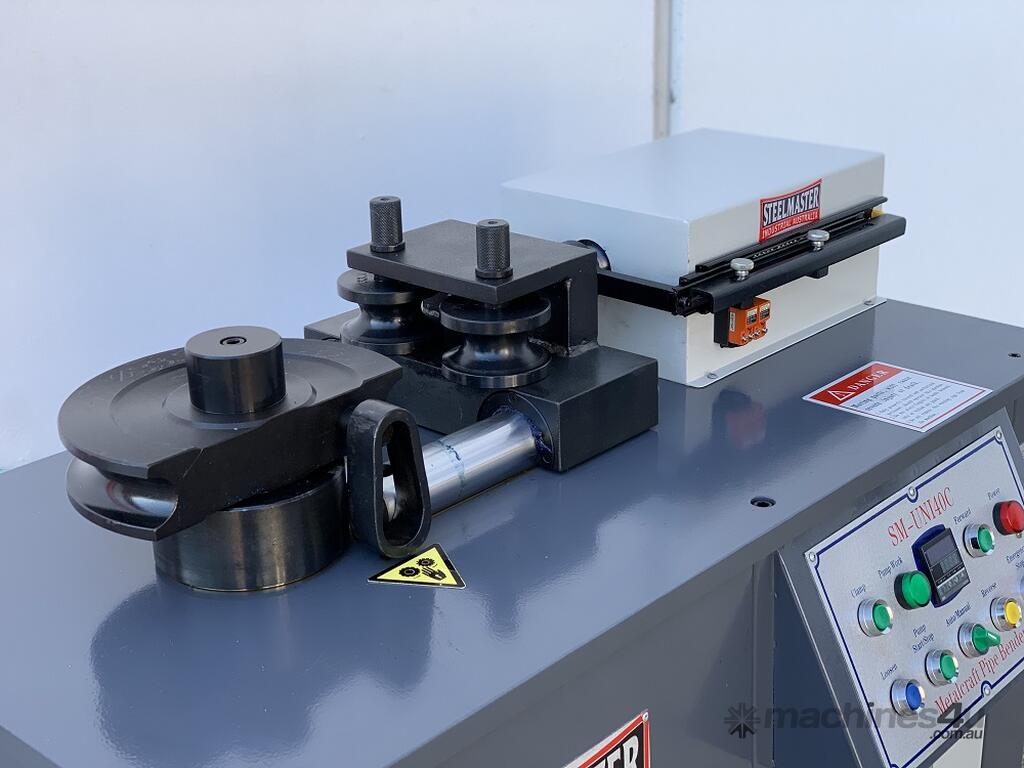

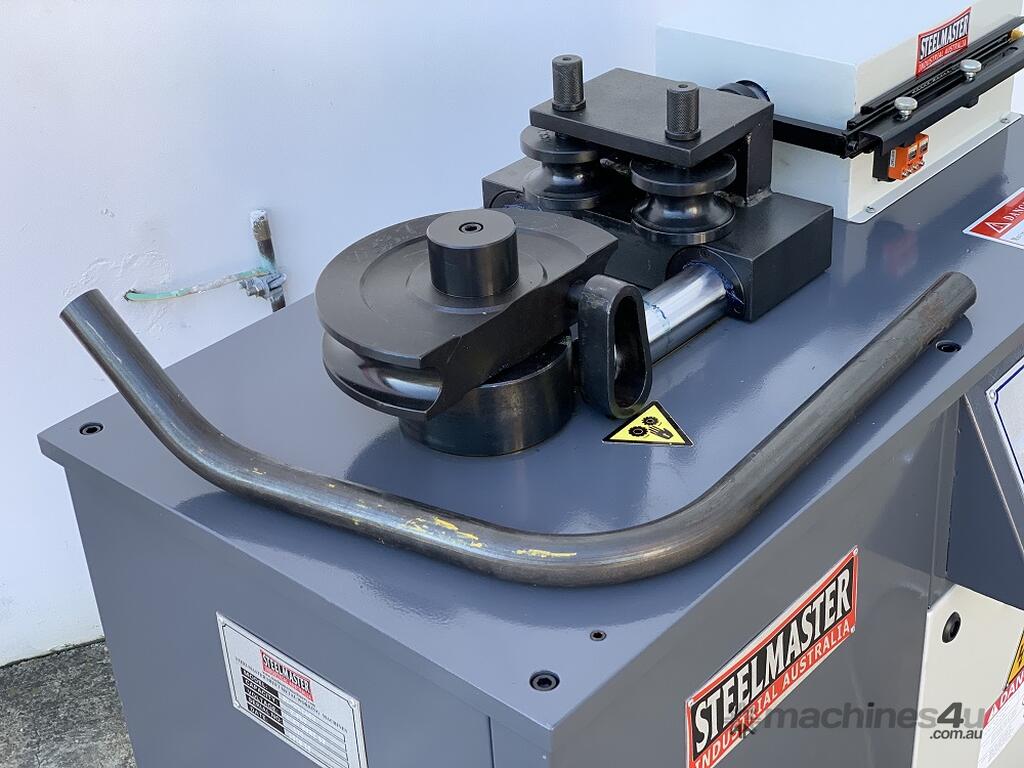

40mm Tube & Pipe Bender with 4 Sets Tooling FREE, Digital Angle Setting & Hydraulic Clamping

CURENTLY $900.00 OF THE LIST PRICE OF $8850.00 + GST

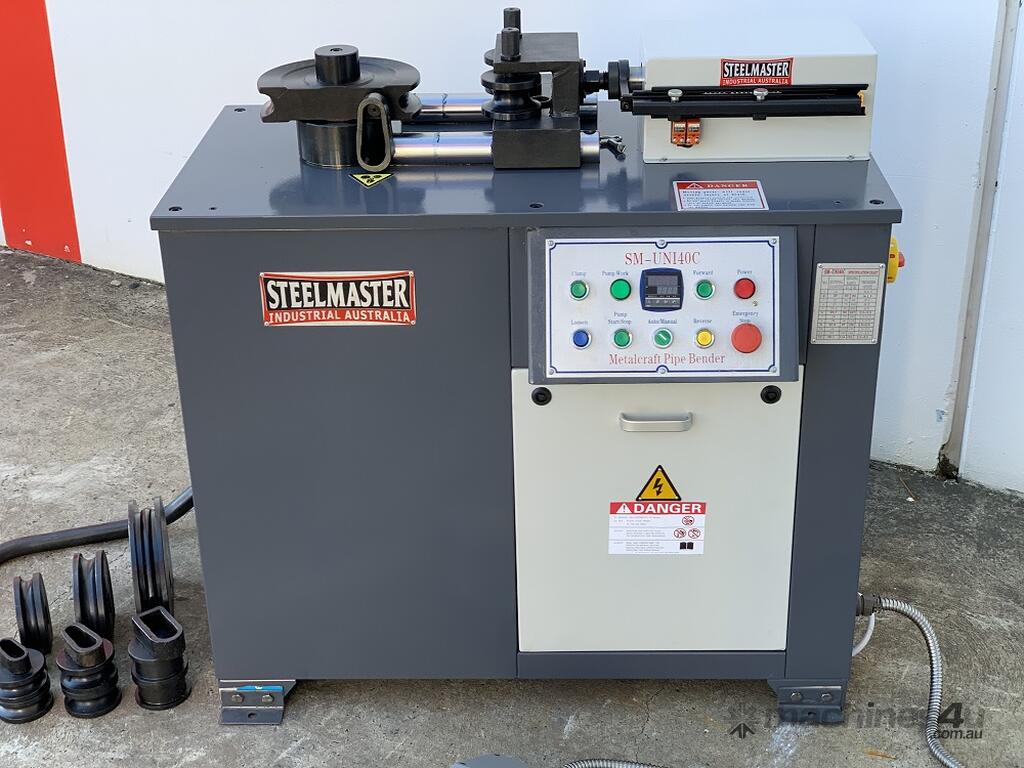

Tube & Pipe Bender. SM-UNI40C: - 40mm Capacity complete with 4 Sets of Tooling, Hydraulic Clamping, Digital Angle Setting, 21.3mm (15NB), 26.9mm (20NB), 33.7mm (25NB) & 32mm Square Included, 3Kw V

Description
At last! A Heavy Duty Motorized Tube & Pipe Bender with Tooling at a Great Price.
With a Simple Digital Angle Setting Feature Or Manually Set.
After Years of Frustration, We Have Developed Our New Full Hydraulic Tube & Pipe Bender with Tooling That Won’t Break The Bank.
With 3 Sets of NB Pipe & 1 Sets of Square - This is a Winner – Heaps of other tooling available off the shelf in Tube & Pipe sizes.
Please note that there is a O.D x wall thickness x bending radius guideline to be adhered to.

Features:
• 40mm Mild Steel Capacity.
• Heavy Duty Steel Plate Construction.

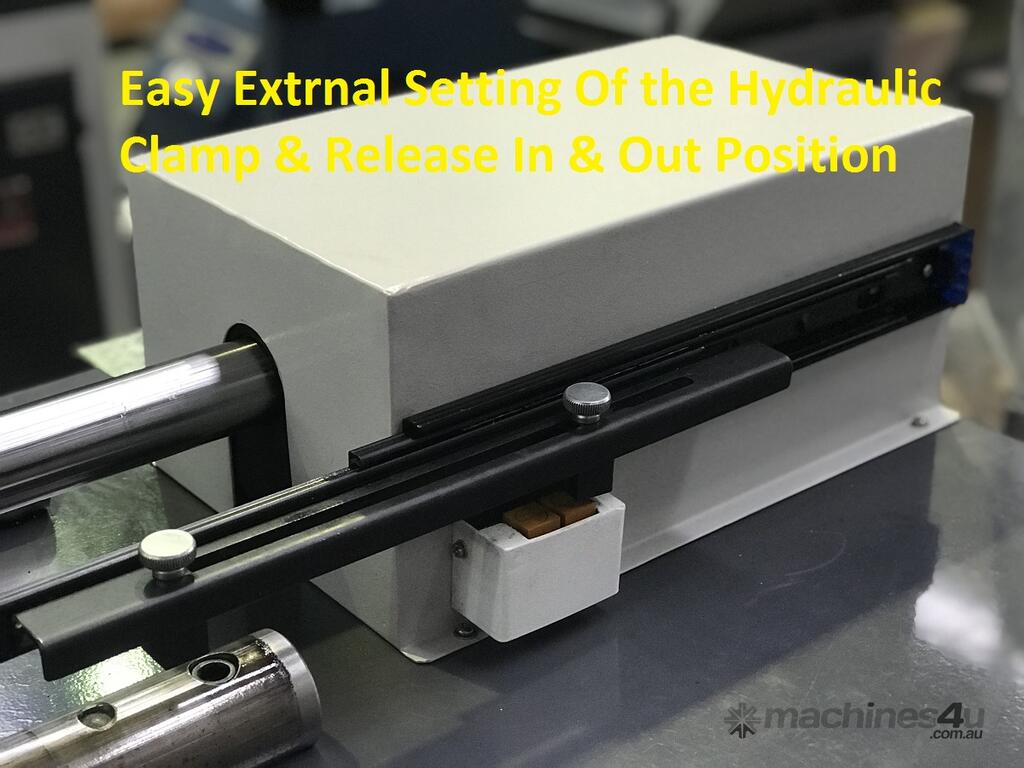

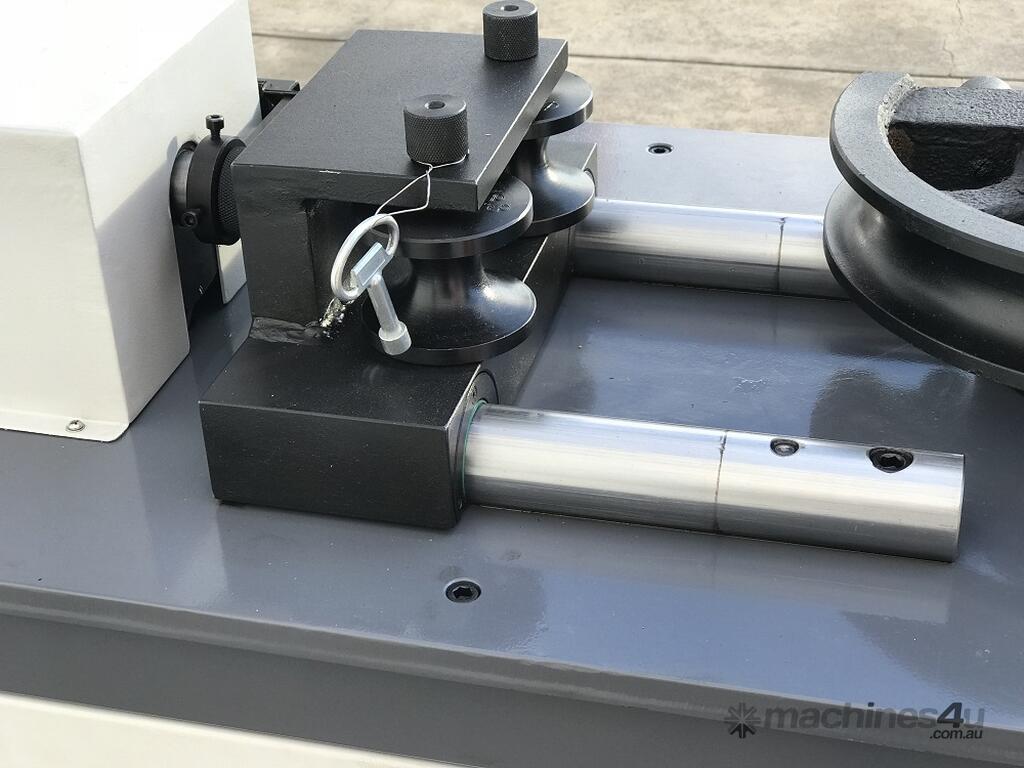

• 40C Model Fitted With Hydraulic Clamping.

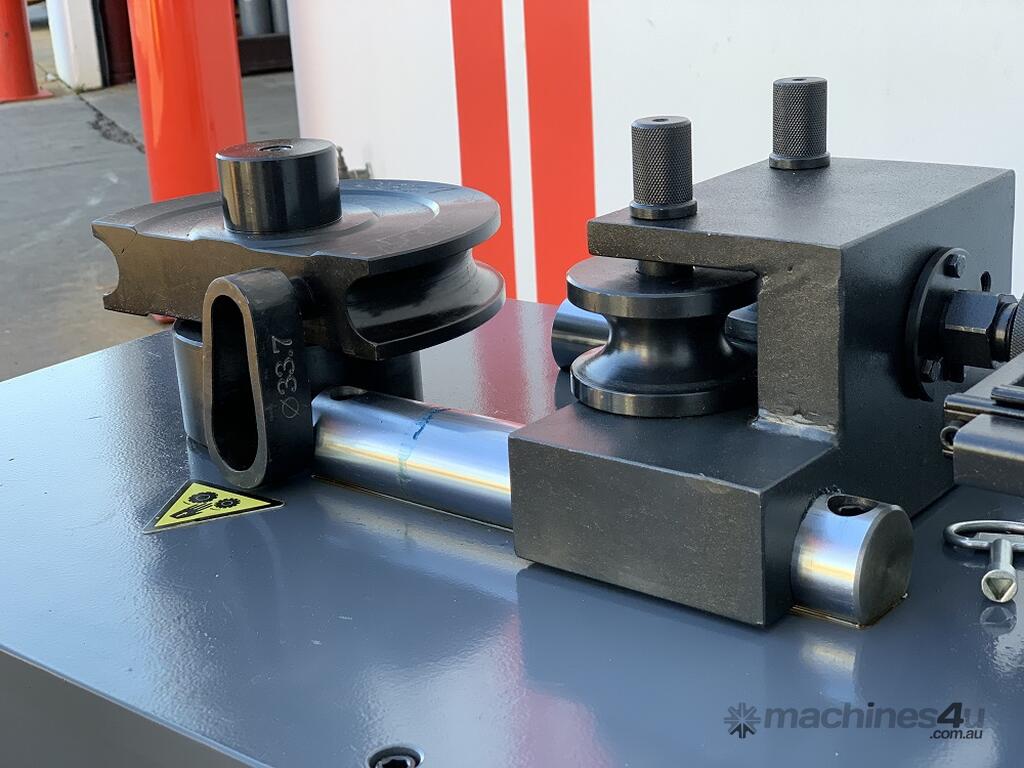

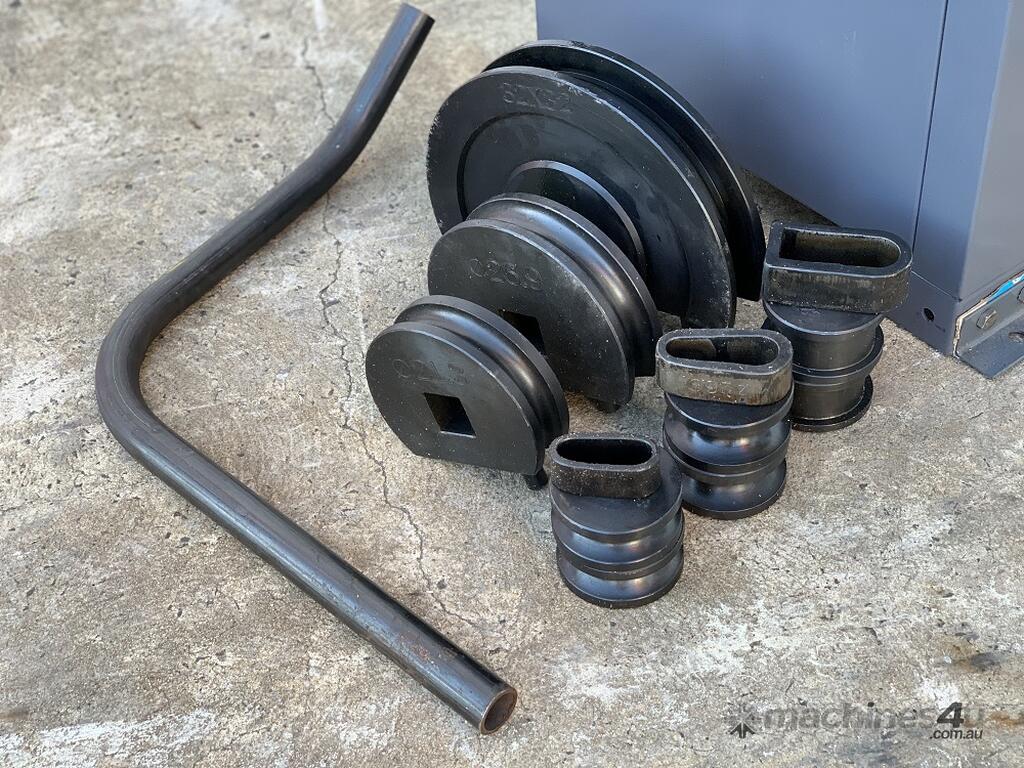

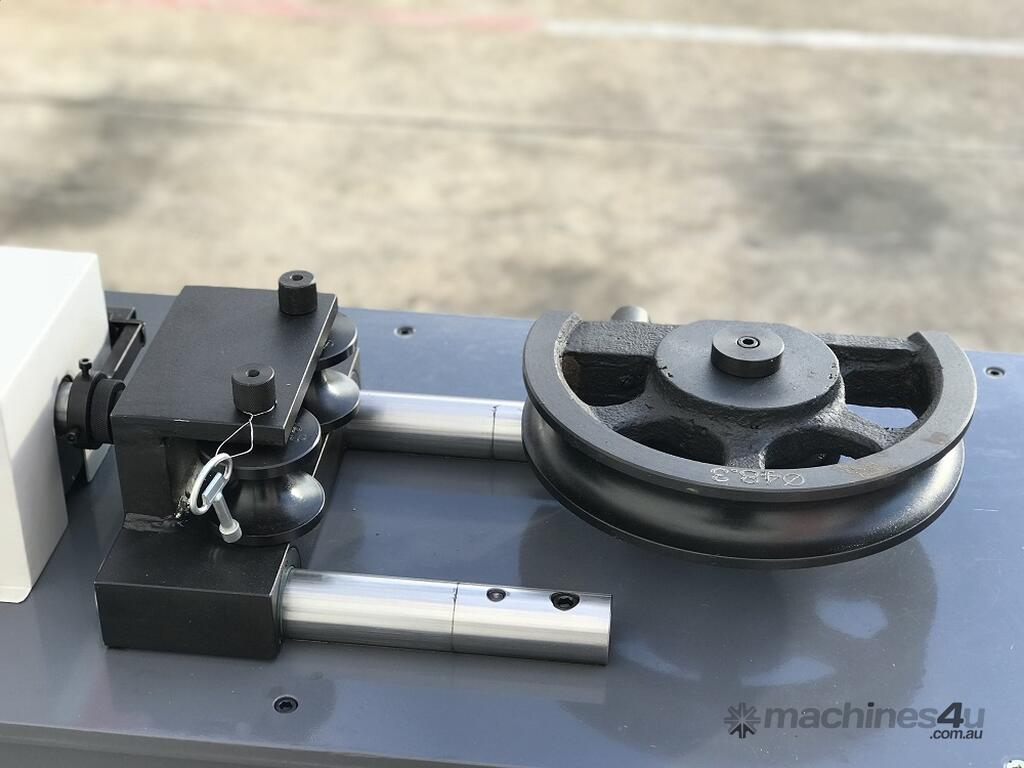

• 4 Sets Tooling Included comprising.
• Round Formers: 21.3mm (15NB), 26.9mm (20NB), 33.7mm (25NB)
• Square Formers: 32mm
• Many Other Tooling Selections In Stock

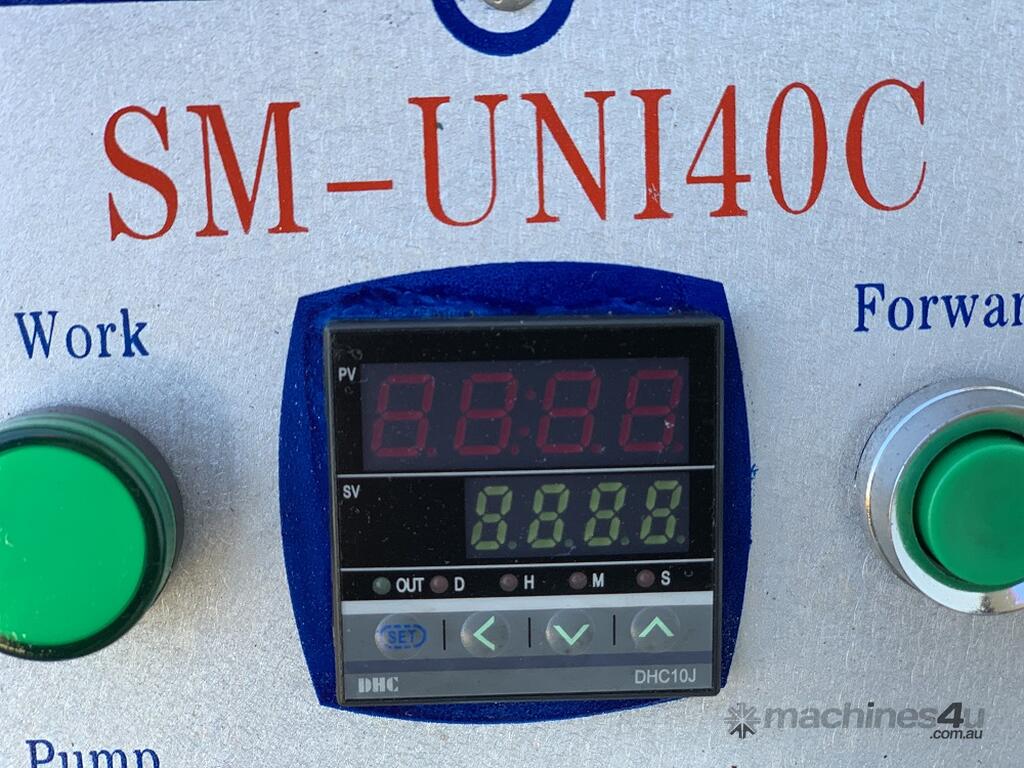

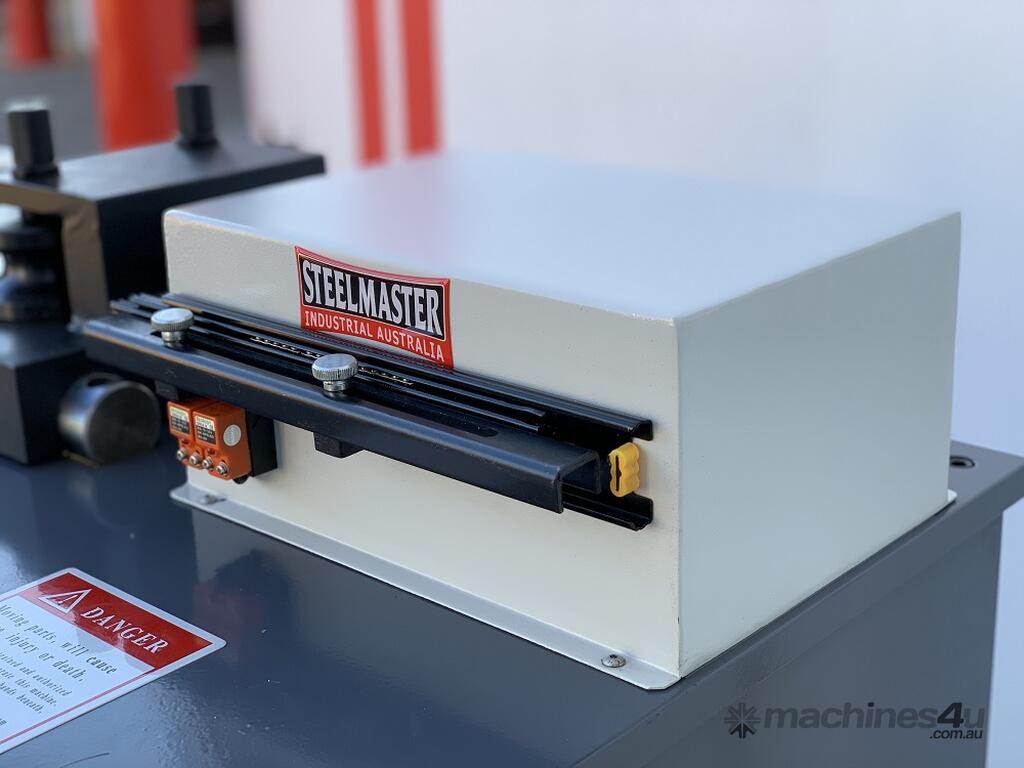

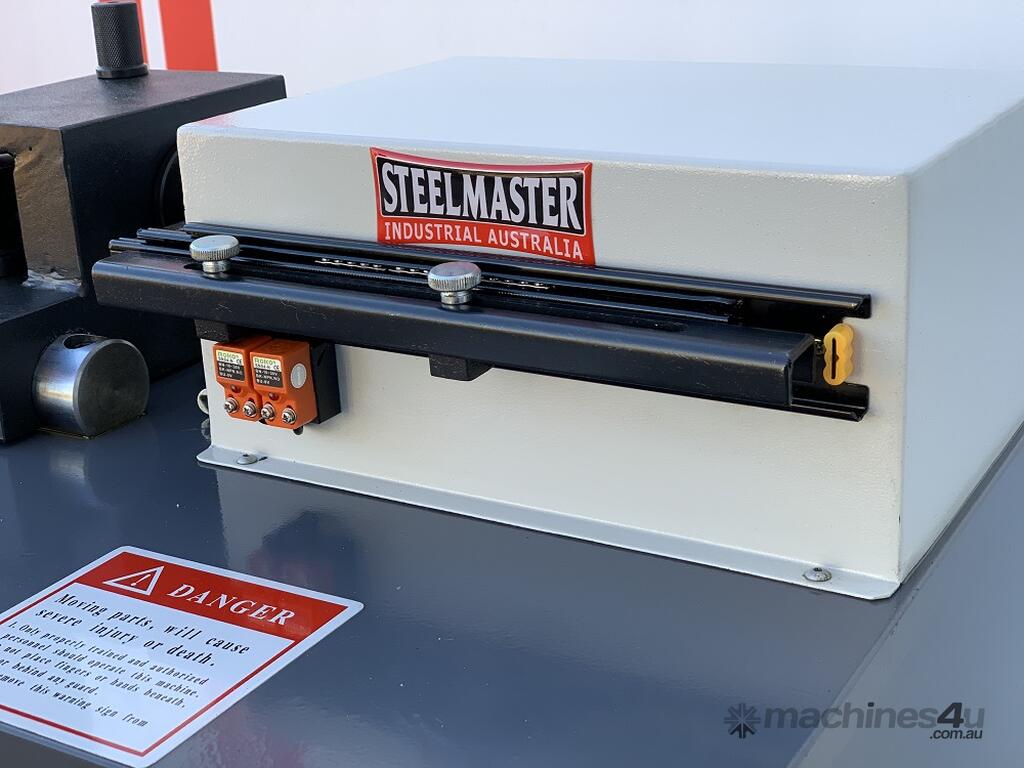

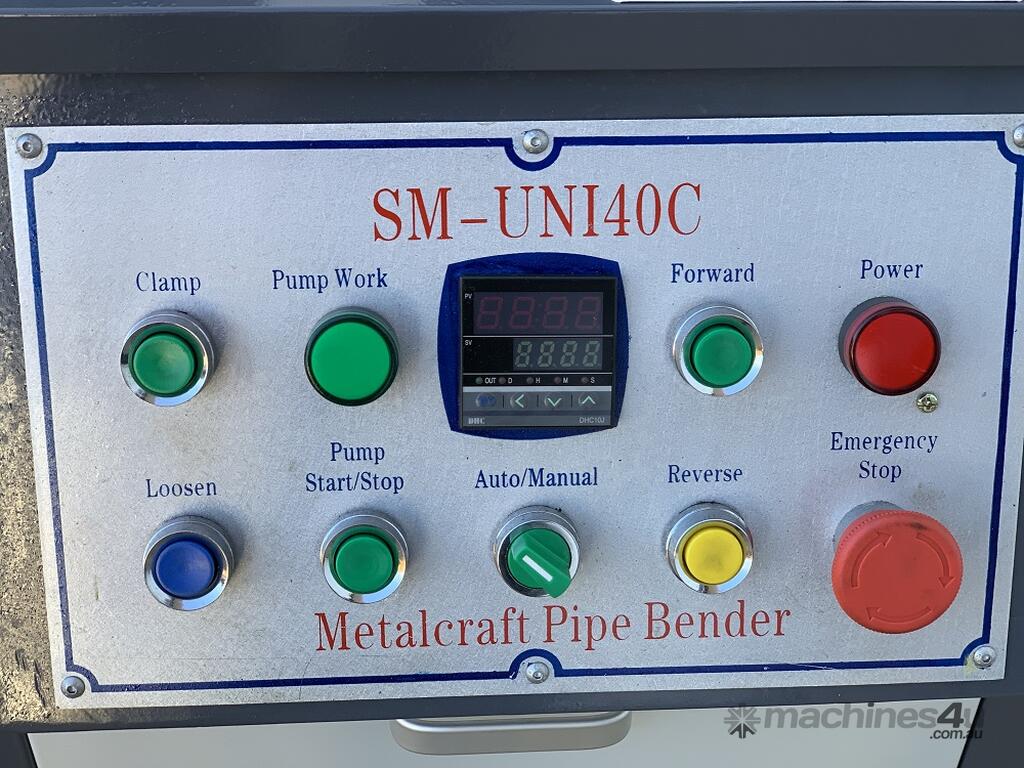

• Easy Set Digital Angle Controller in Auto or Jobbing.

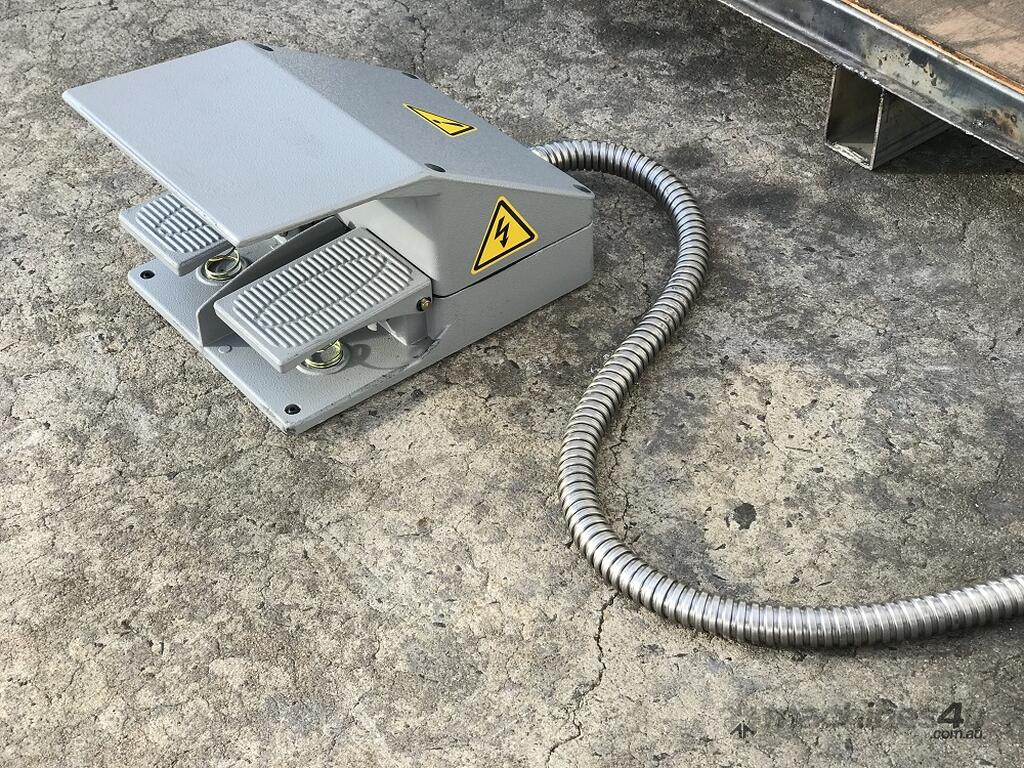

• Twin Foot Pedal Operation.
• Includes Sturdy Cabinet with Storage Area.

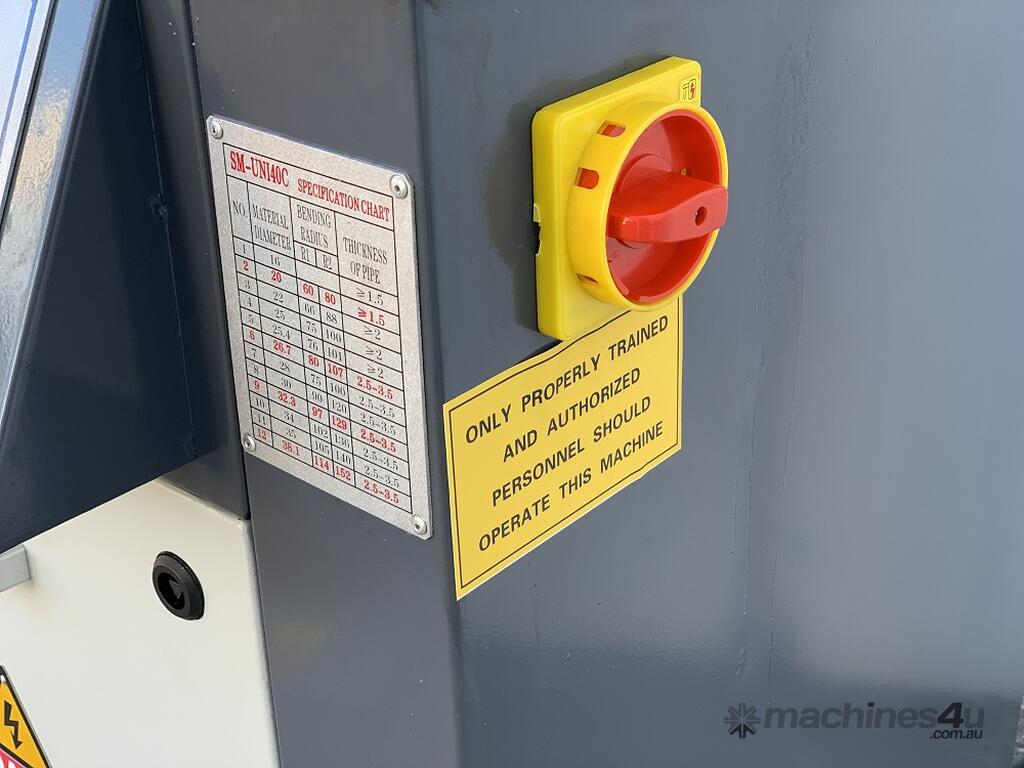

Technical Features:
-Mild Steel Tube - Pipe – 16mm x 2-3mm
-Minimum Centre Line Radius – 48mm

-Mild Steel Tube - Pipe – 18mm x 2.5-3mm
-Minimum Centre Line Radius – 54mm

-Mild Steel Tube - Pipe – 20mm x 2.5-3mm
-Minimum Centre Line Radius – 60mm

-Mild Steel Tube - Pipe – 25 x 2.5-3mm
-Minimum Centre Line Radius – 75mm

-Mild Steel Tube - Pipe – 26mm x 2.5-3.5mm
-Minimum Centre Line Radius – 78mm

-Mild Steel Tube - Pipe – 30mm x 2.5-3.5mm
-Minimum Centre Line Radius – 90mm

-Mild Steel Tube - Pipe – 32mm x 2.5-3.5mm
-Minimum Centre Line Radius – 96mm

-Mild Steel Tube - Pipe – 34mm x 2.5-3.5mm
-Minimum Centre Line Radius – 102mm

-Mild Steel Tube - Pipe – 35mm x 2.5-3.5mm
-Minimum Centre Line Radius – 105mm

-Mild Steel Tube - Pipe – 38mm x 2.5-3.5mm
-Minimum Centre Line Radius – 114mm

-Mild Steel Tube - Pipe – 40mm x 2.5-3.5mm
-Minimum Centre Line Radius – 120mm

Technical Data Snap-Shot
-40mm x 3.5mm bending capacity
-0 ~ 180 bending range – One Shot!
-shipping dimensions - 1200mm x 750mm x 1300mm
-power - V 3Kw
-approx weight: 350kg
