Description

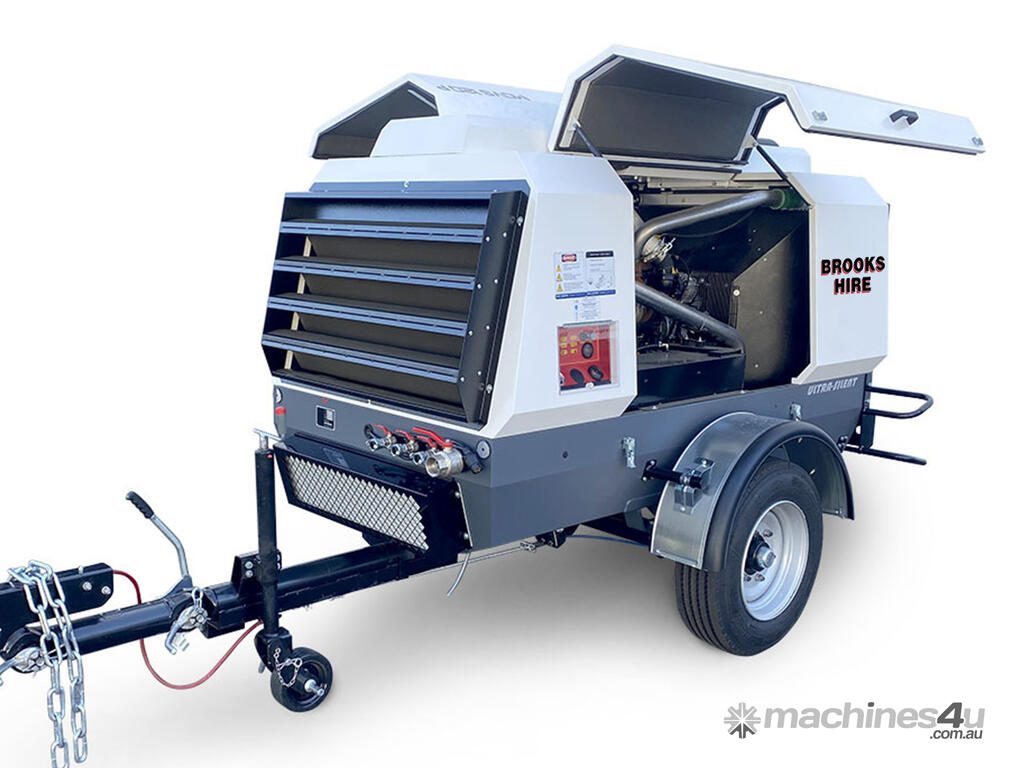

ROTAIR MDVN 120 P7 Portable Diesel Air Compressor
The new modern and streamlined look of ROTAIR portable compressors with compact dimensions for handling ease, whilst at the same offering high performance levels. Build tough and reliable for the demanding Australian conditions. 50c ambient for extreme operating conditions.
FEATURES
“Intelligent System”- enables a pre-heating of the engine without overloading it, the air end will start working only when the perfect conditions are reached.
Fuel Saving System- when the compressed air is not required, the system allows to compress air at a much lower thus saving fuel consumption significantly. Up to 20% in fuel saving!
SPECIFICATIONS
Free Air Delivery (Lt/min) - 12,000
Free Air Delivery (CFM) - 423
Operating Pressure (bar) - 7
Operating Pressure (psi) - 102
Transmission Motor-Screw Unit - Direct Drive
Engine Make - Perkins 1104D-E44TA
Aftercooler
Aspiration - Turbo
Cooling System - Water
No. Engine Cylinders - 4
Engine Power (Kw) - 97
Engine Power (Hp) - 132
Max Engine (RPM) - 2,200
Min Engine (RPM) - 1,600
Length (with drawbar) - 4,535mm
Width - 1,980mm
Height - 2,137mm
Weight (with brakes) - 2,000kg
