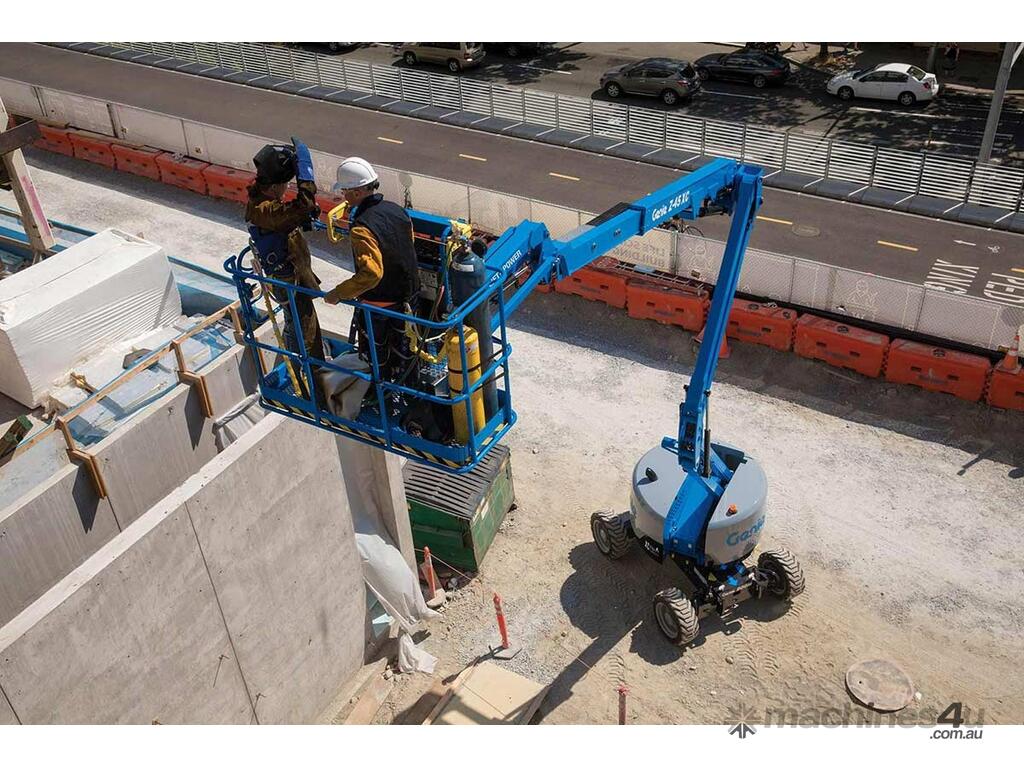

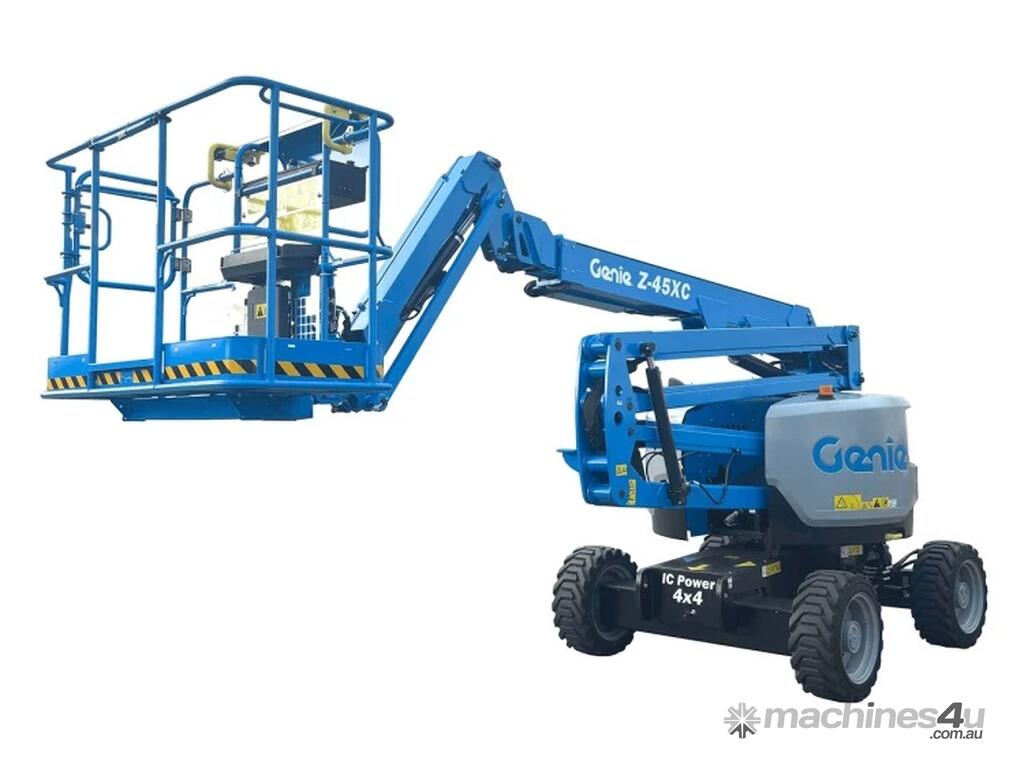

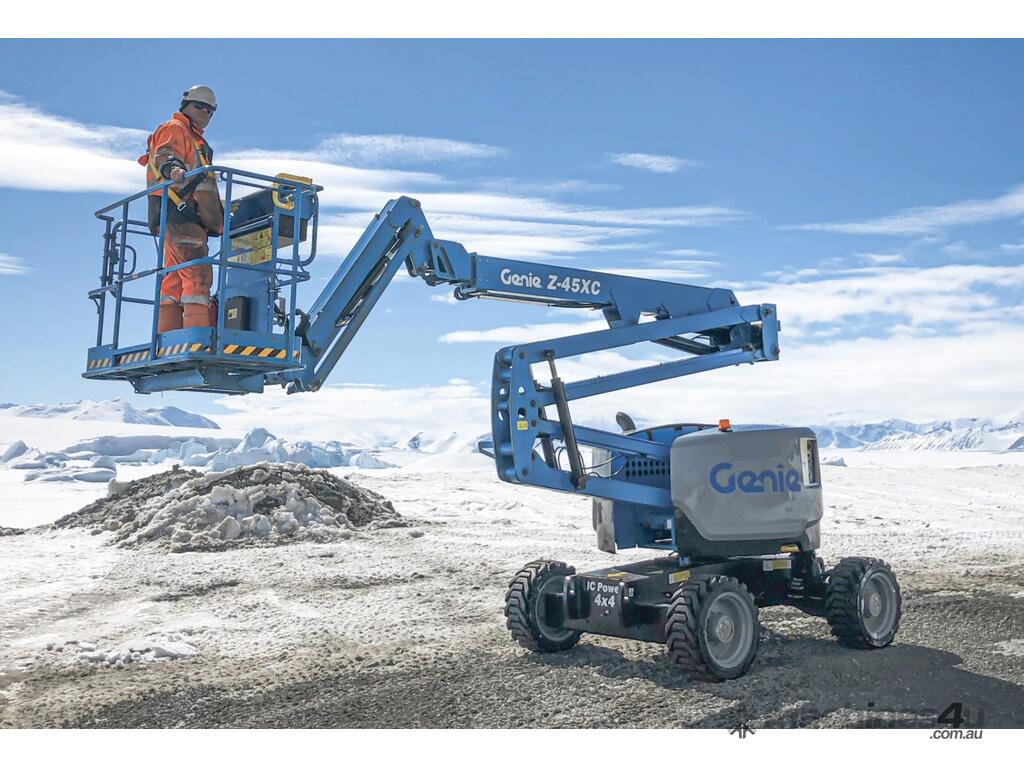

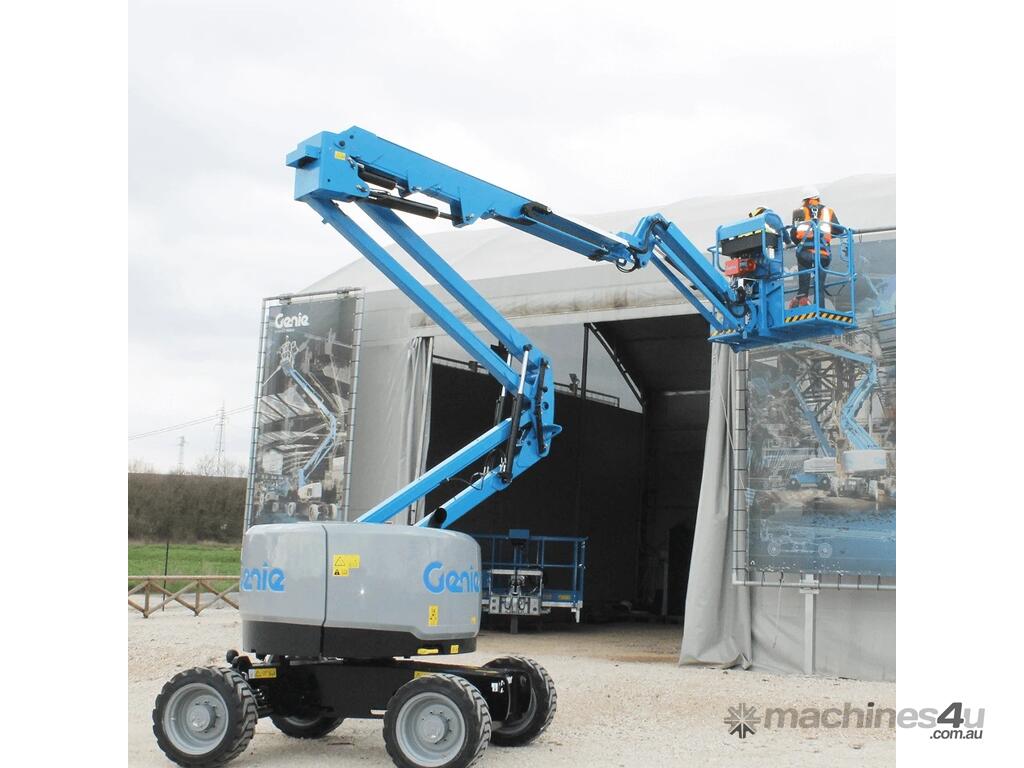

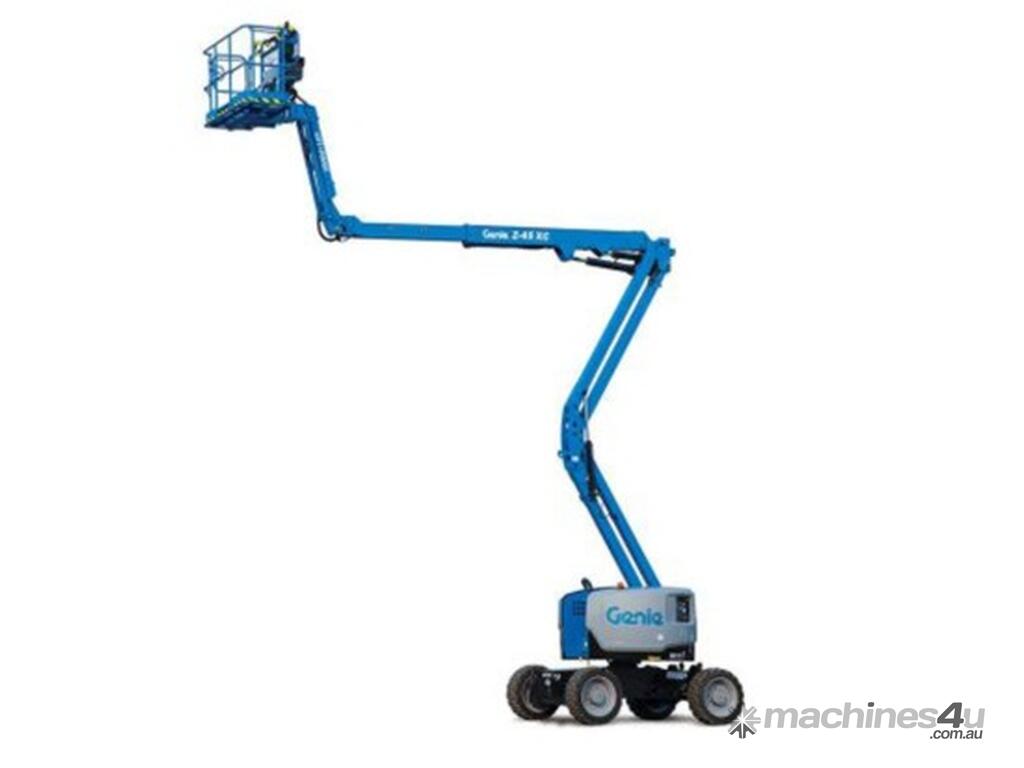

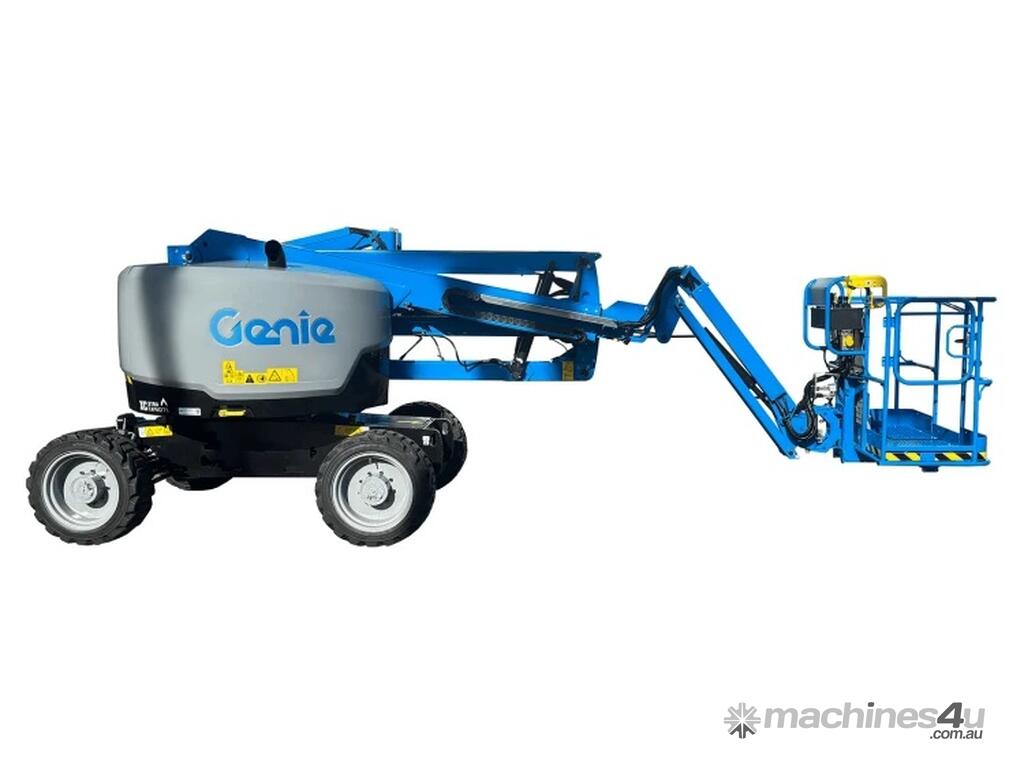

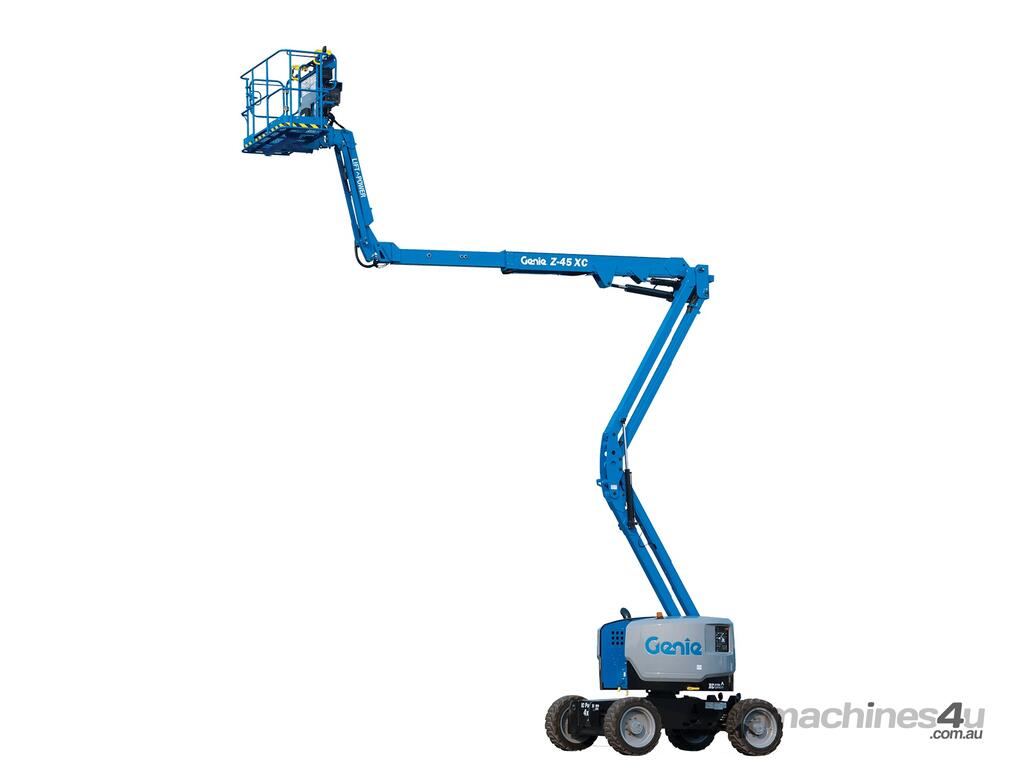

The Genie® Z®-45 XC™ - 45FT 4WD Diesel articulating boom is the redesigned Xtra Capacity™ version of the popular rough-terrain Genie Z-45/25J RT diesel powered articulating boom. It can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to its dual lift capacity.
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Dual lifting capacity: unrestricted platform capacity of 300 kg (660 lb) and restricted capacity of 454 kg (1,000 lb)

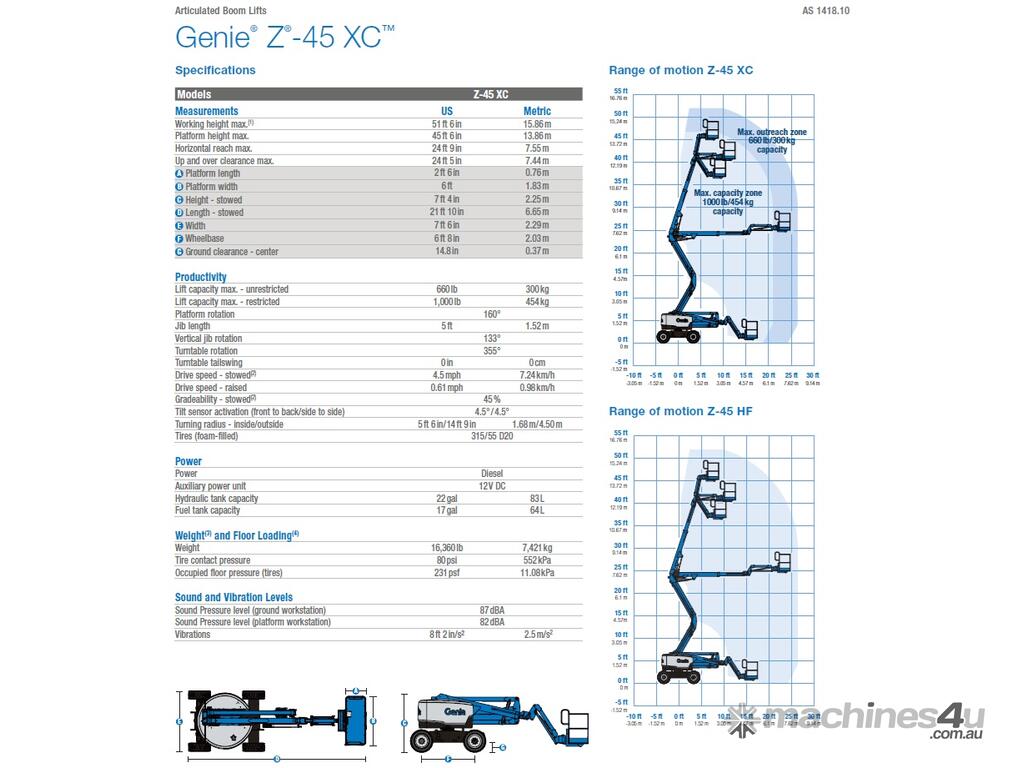

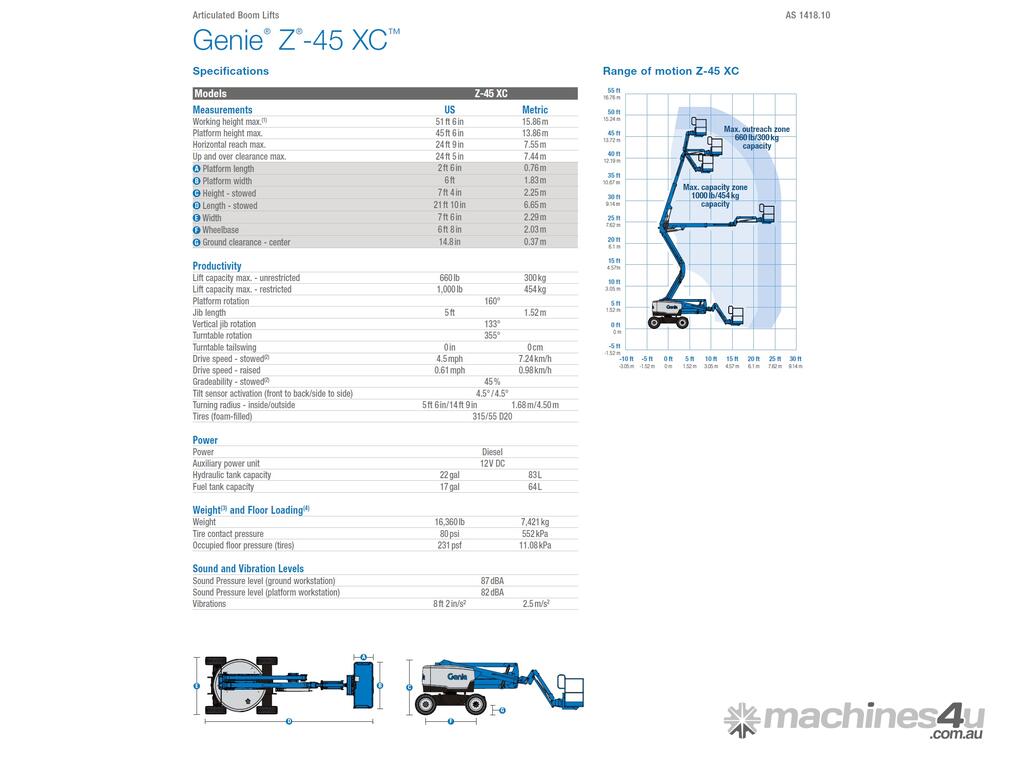

Specifications
Working height max. 15.86 m
Platform height max. 13.86 m
Horizontal reach max. 7.55 m
Up and over clearance max. 7.44 m
Platform length 0.76 m
Platform width 1.83 m
Height - stowed 2.25 m
Length - stowed 6.65 m
Width 2.29 m
Wheelbase 2.03 m
Ground clearance - center 0.37 m
Lift capacity max. - unrestricted 300 kg
Lift capacity max. - restricted 454 kg
Jib length 1.52 m
Vertical jib rotation 133°
Turntable rotation 355°
Turntable tailswing 0 cm
Drive speed - stowed 7.24 km/h
Drive speed - raised 0.98 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 4.5° / 4.5°
Turning radius - inside/outside 1.68 m / 4.50 m
Tires (foam-filled) 315 / 55 D20
Power Diesel
Auxiliary power unit 12 V DC
Hydraulic tank capacity 83 L
Fuel tank capacity 64 L
Weight 7,421 kg
