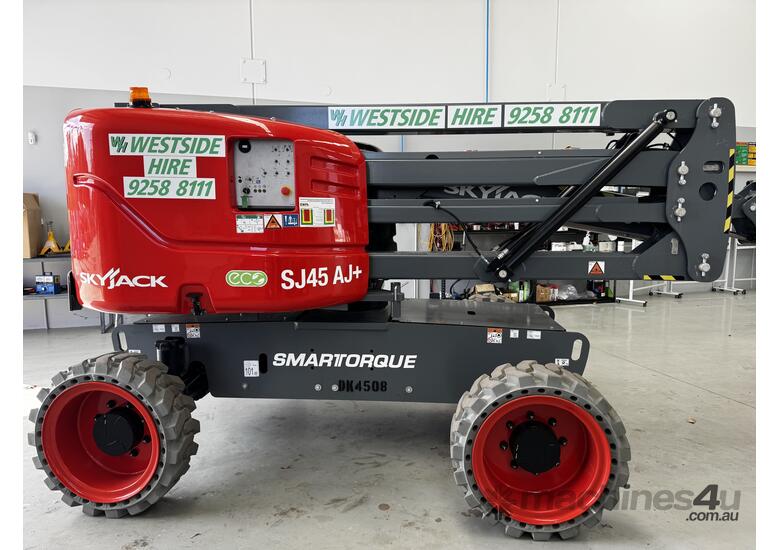

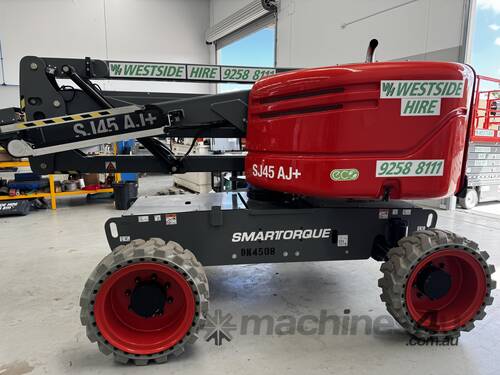

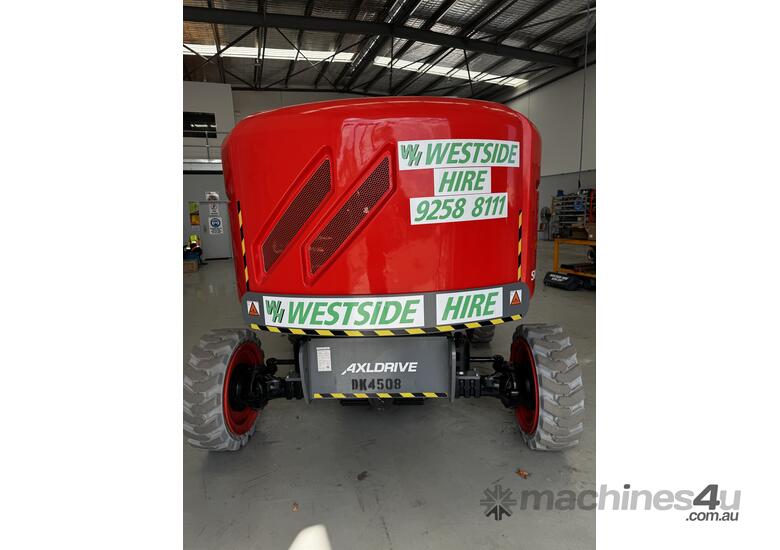

45ft (15.5m) Diesel Knuckle Boom Lift - Hire

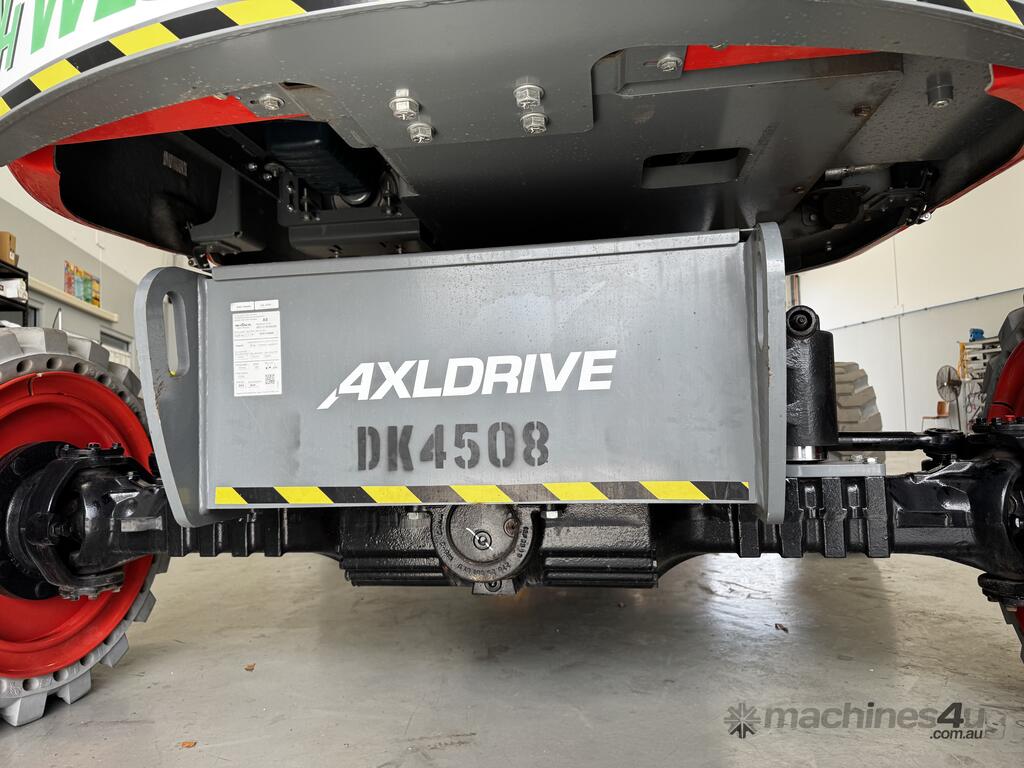

The brand new 45AJ+ Skyjack Diesel Knuckle Boom Lifts are in a league of their own with their extra platform capacity of 300kg and unmatched All Terrain ability with a diff locking system there's not much these units can't do. With Special features such as Smart Torque, AxlDrive, SkyRiser and many more, these units will revolutionise your efficiency on the job site.


Work Height 51’ (15.54 m)
Platform Height 45’ (13.72 m)
Up and Over Height 24’ 5.25” (7.45 m)

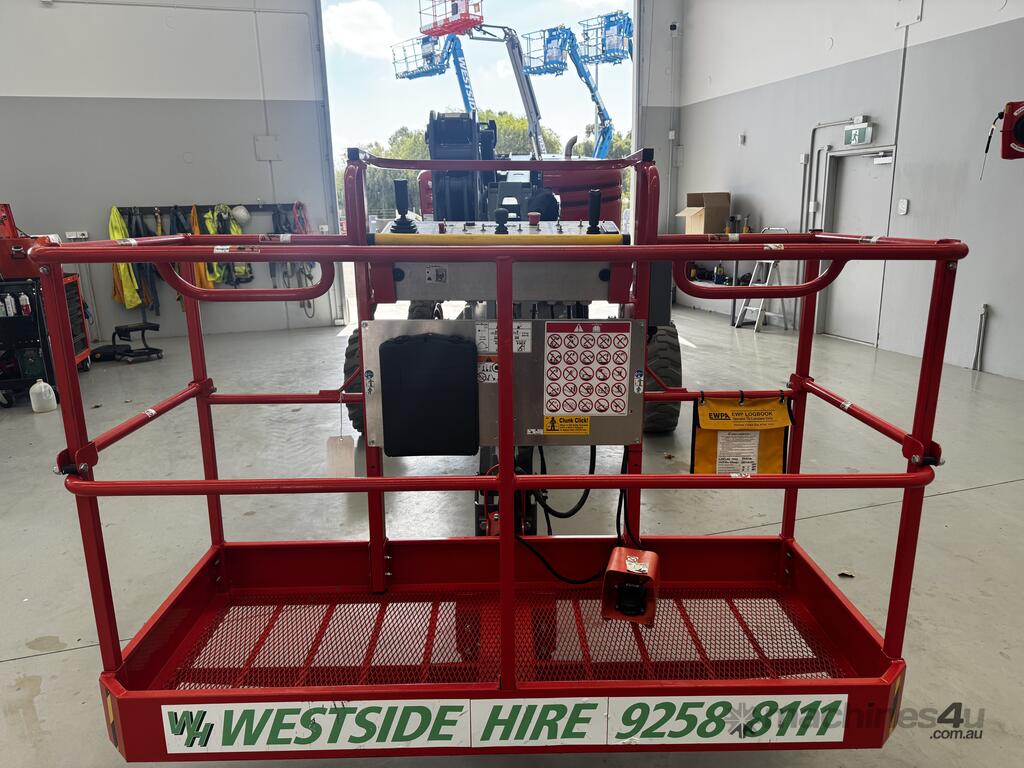

Platform Size 30” x 72” (0.76 x 1.83 m)
Stowed Width 7’ 6” (2.29 m)
Tailswing 2’ (0.61 m)
Stowed Height 6’ 9” (2.06 m)
Transportation Height 7’ 1” (2.16 m)
Stowed Length 19’ 8” (6.00 m)
Transportation Length 15’ 7” (4.75 m)
Ground Clearance 15.25” (0.39 m)
Wheelbase 6’ 8” (2.03 m)
Rotation 355° NC
Platform Rotation 170°
Jib Length 4’ 8” (1.40 m)
Jib Range +/- +70° / -75°
Weight 11,920 lbs (5,407 kg)
Gradeability 40%
Turning Radius (Inside) 4’ 11.25” (1.50 m)
Turning Radius (Outside) 14’ 3” (4.34 m)
Axle Oscillation 5” (12.70 cm)
Drive Speed (High speed) 2.5 mph (4.0 km/h)
Capacity 660 lbs (300 kg)
Horizontal Reach 22’ 9” (6.93 m)
Maximum # of Persons 2 (at max wind rating)
Wind Rating 28 mph (12.5 m/s)

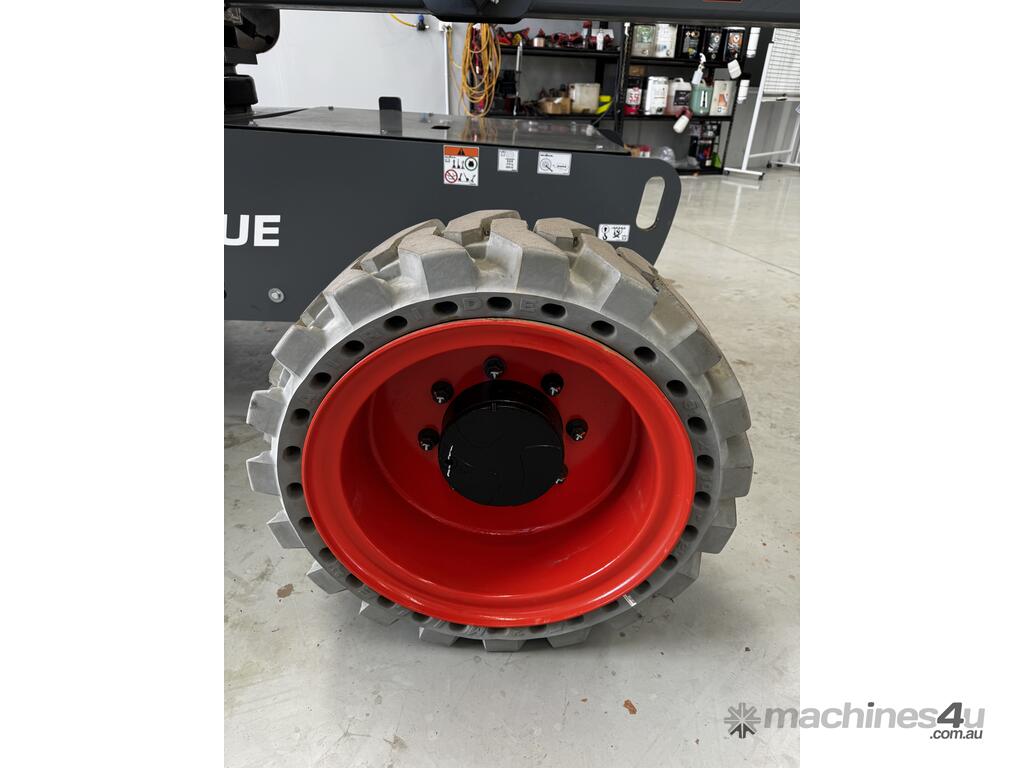

Tire Type Solid
Tire Size 10 x 31
Diesel Engine Kubota D1305 - 24.8 HP (18.5 KW)
Fuel Tank 17 gal. (64 L)
Hydraulic Reservoir 24 gal. (91 L)
