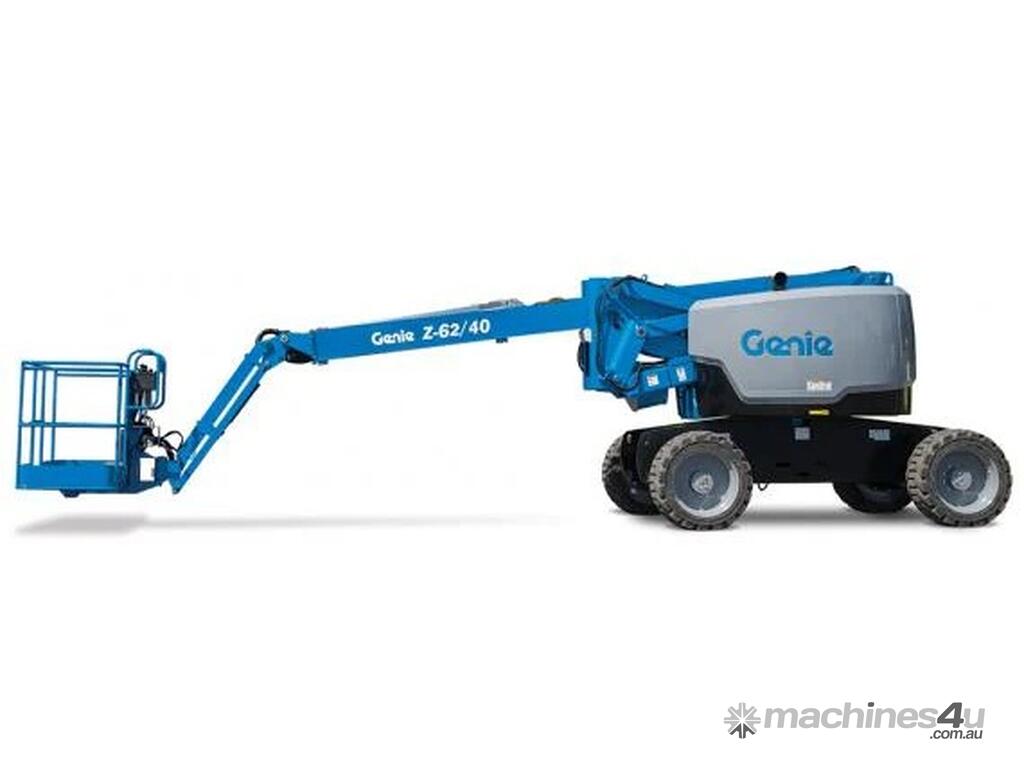

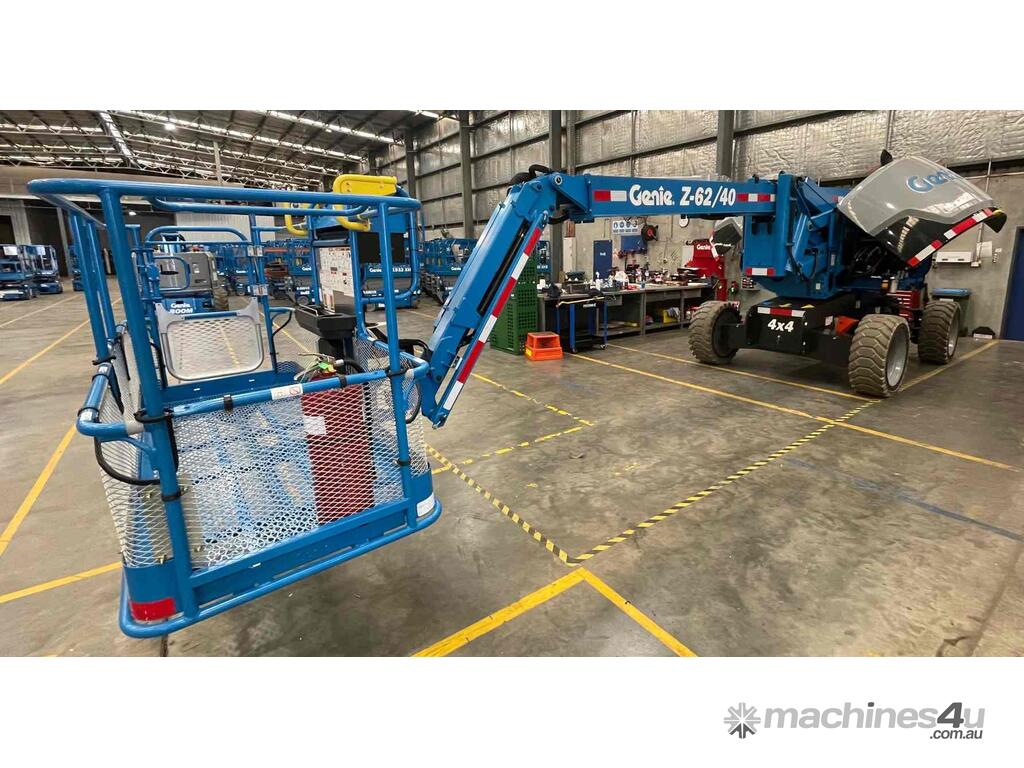

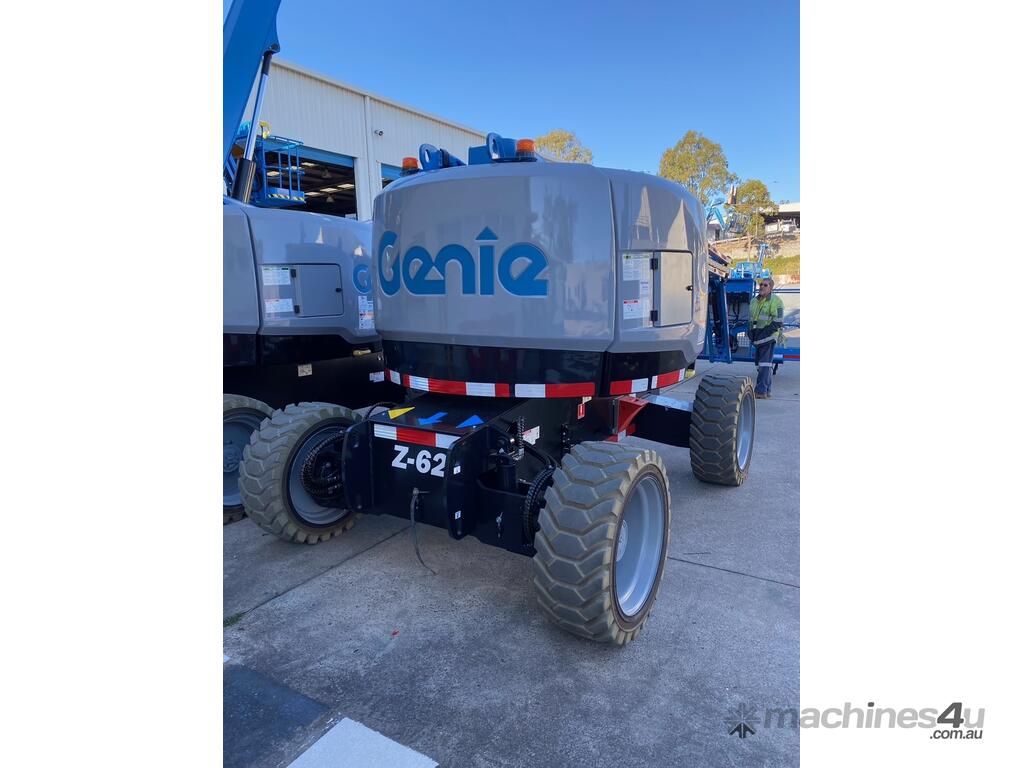

62FT DIESEL 4WD KNUCKLE BOOM LIFT GENIE ALL TERRAIN CHERRY PICKER

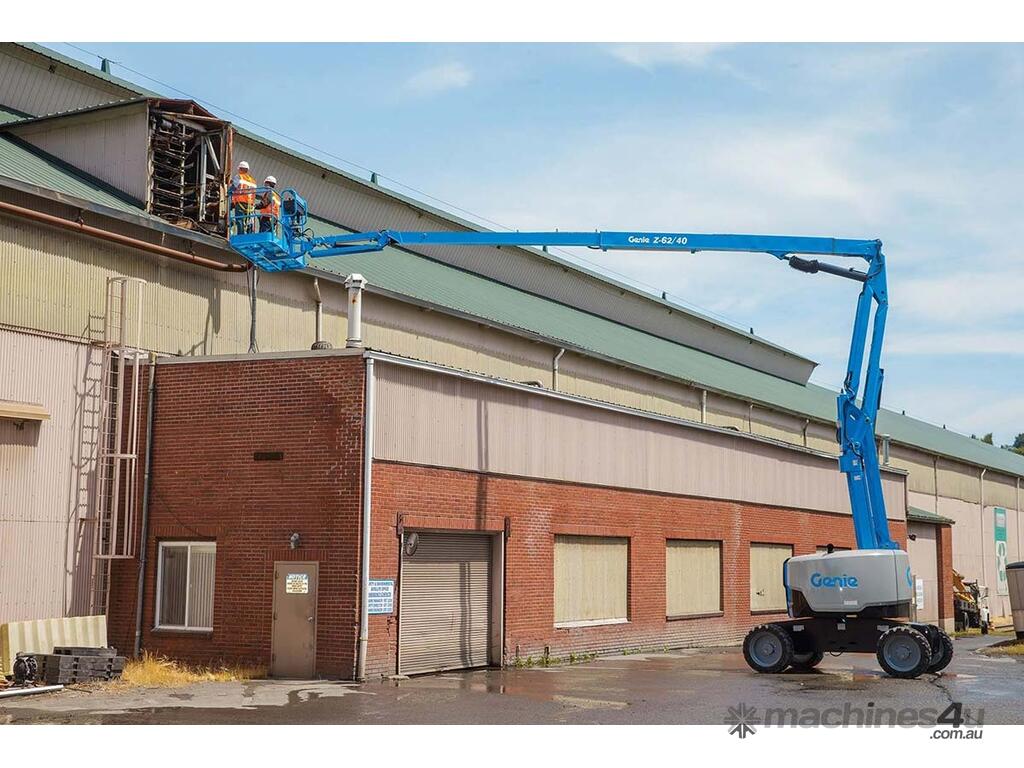

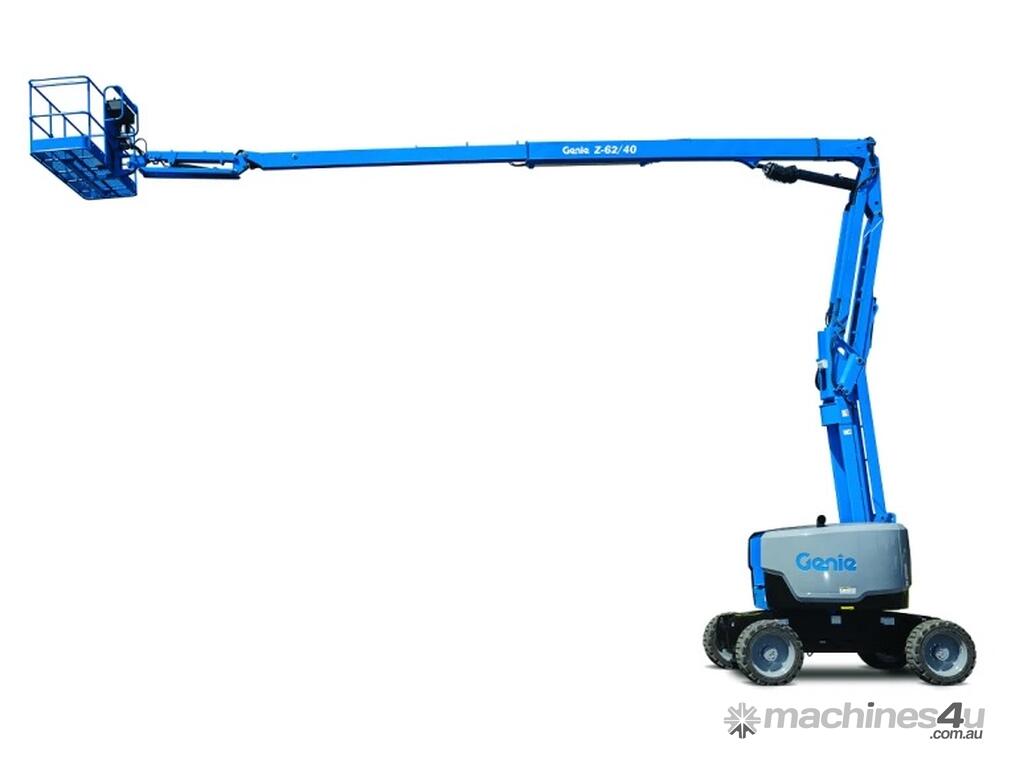

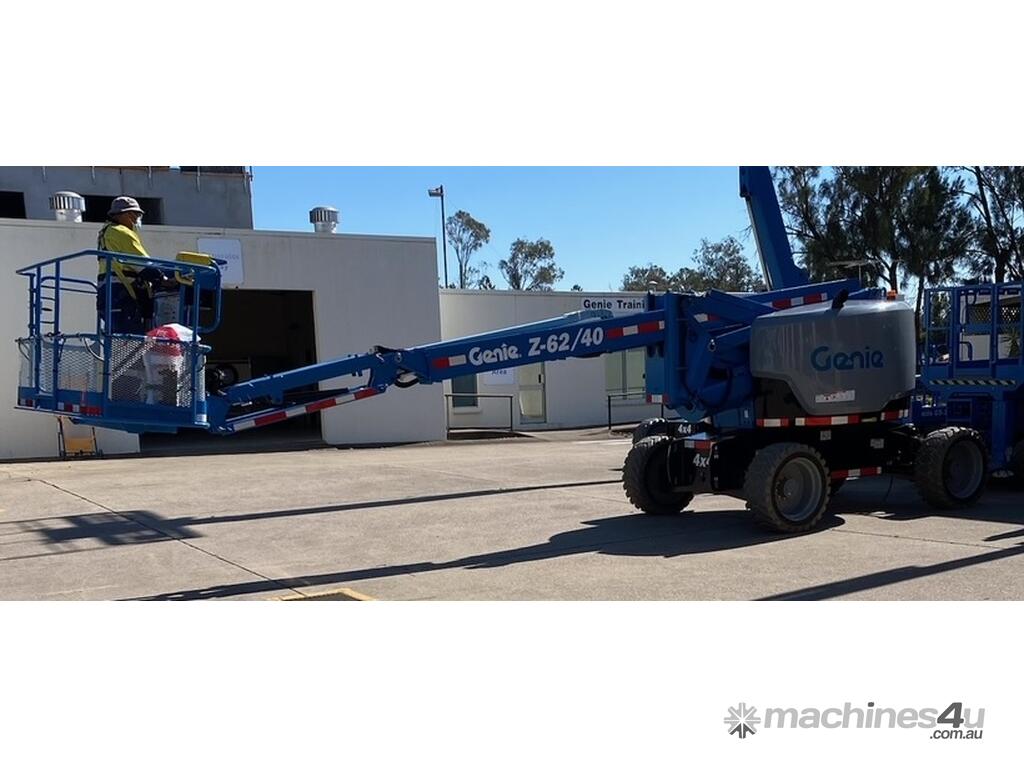

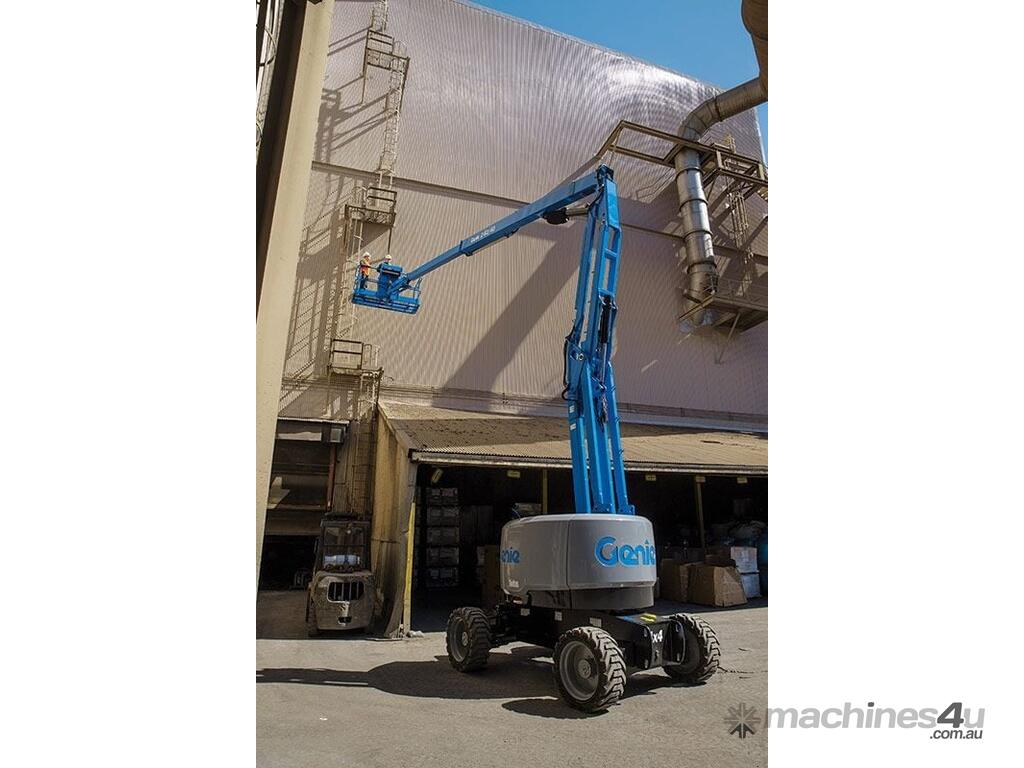

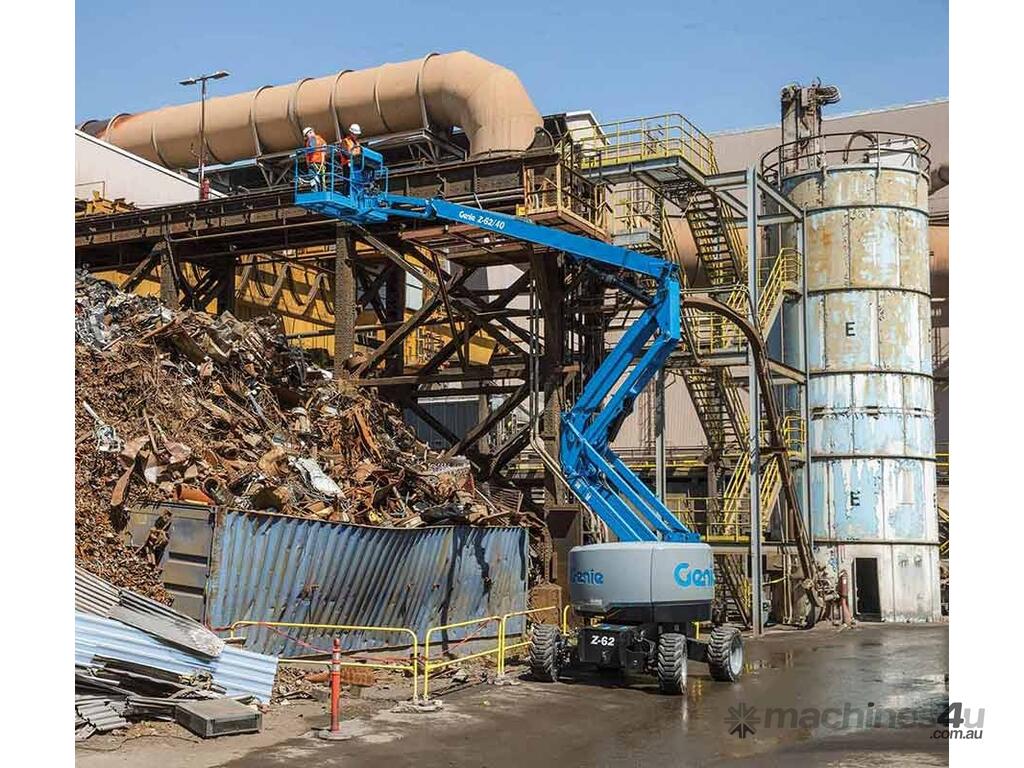

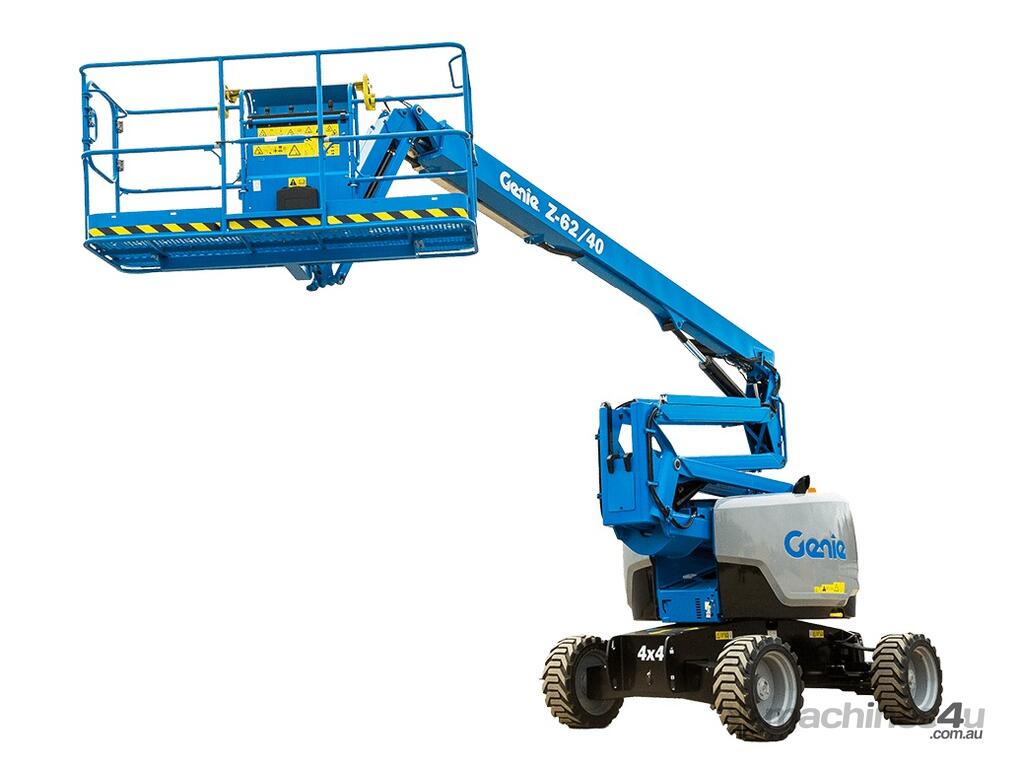

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with rough terrain capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.
Overview

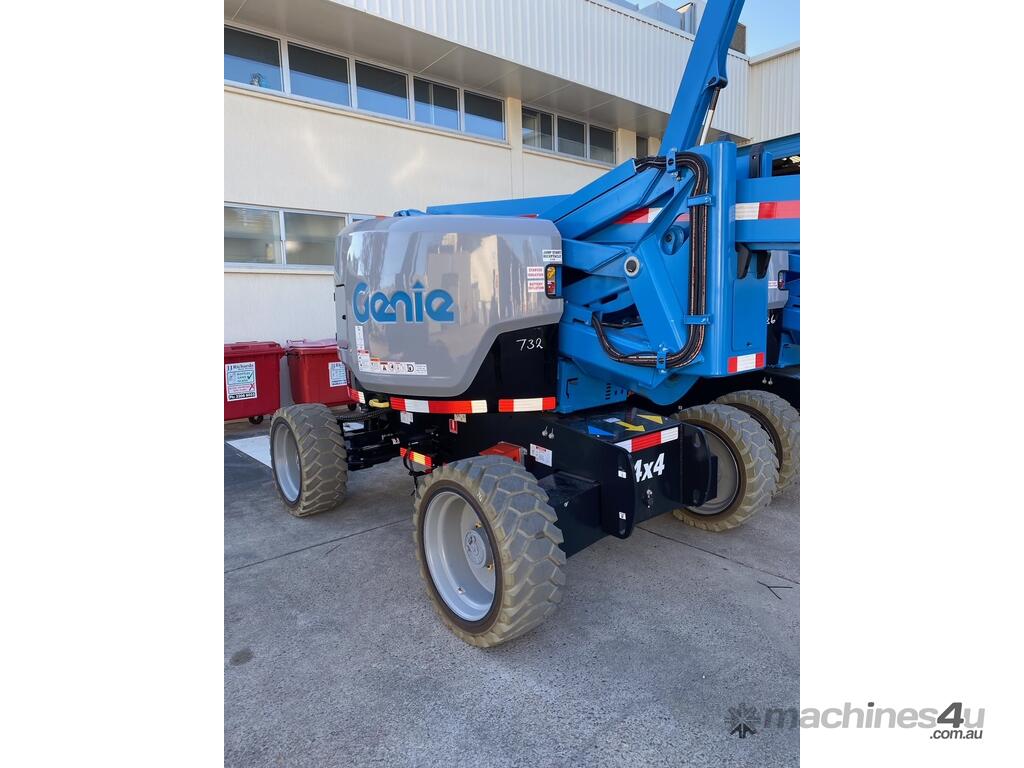

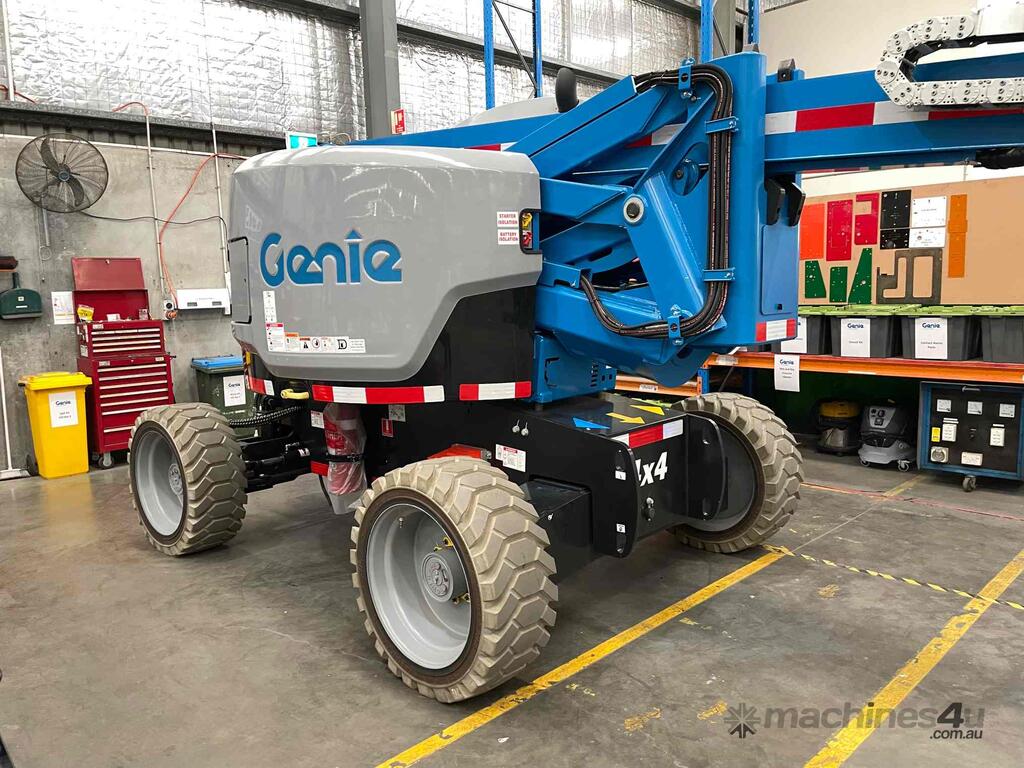

• Full-time active oscillating axle helps maintain traction on rough terrain

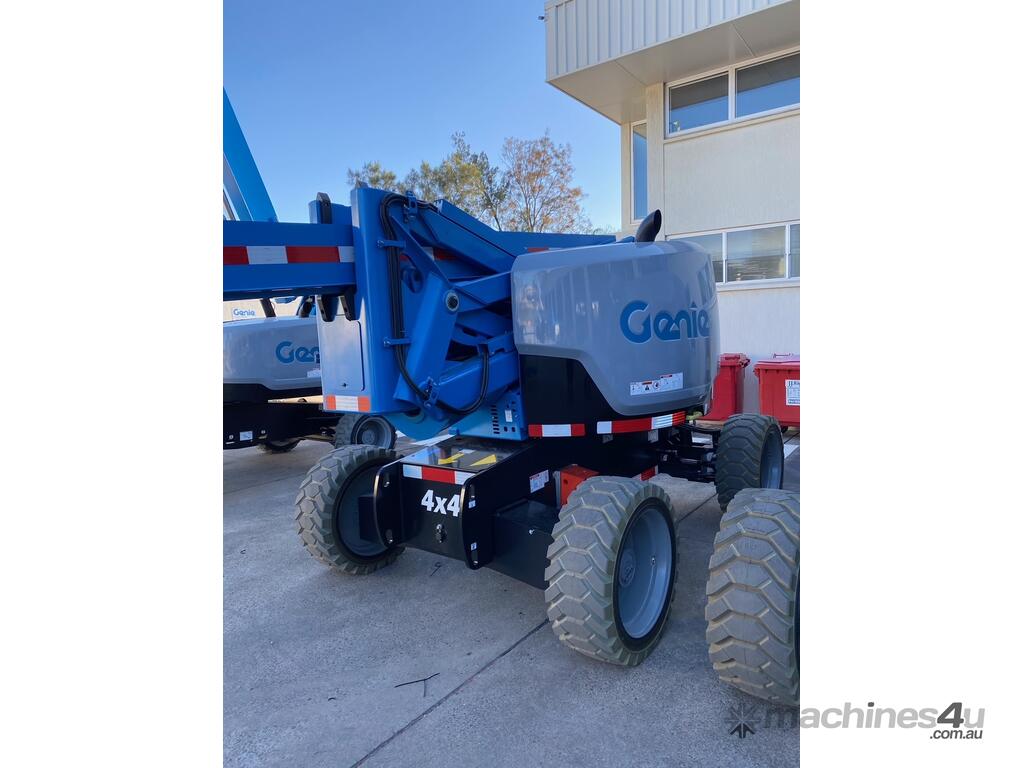

• 4WD and 45% gradeability for superior terrainability

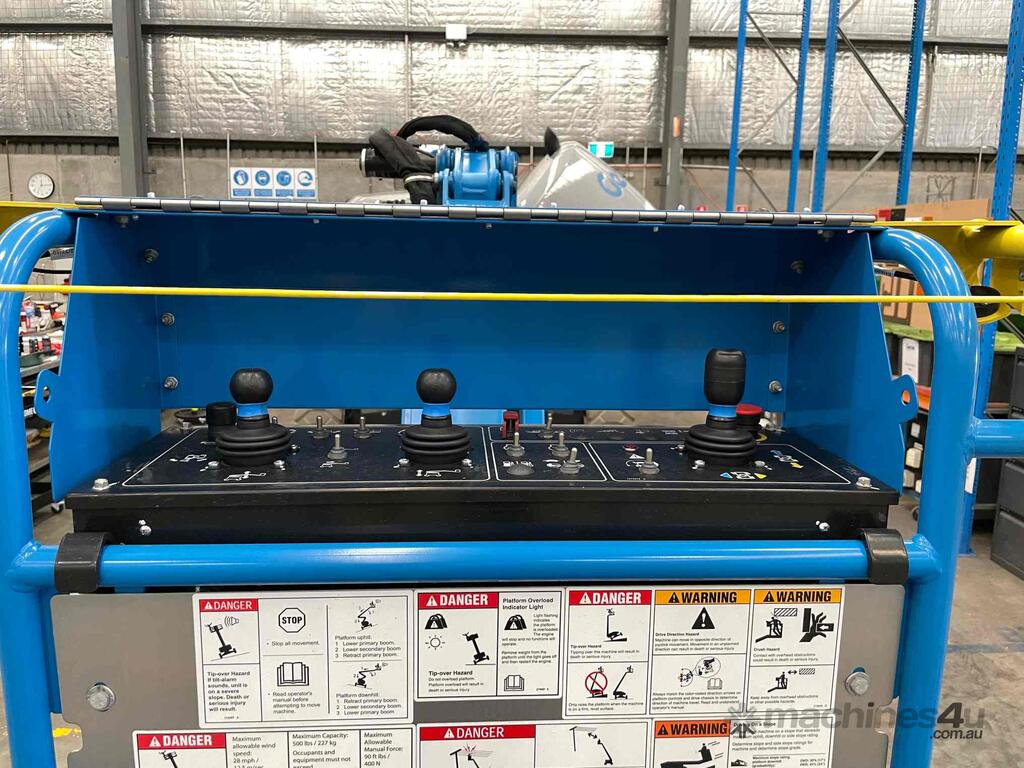

• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

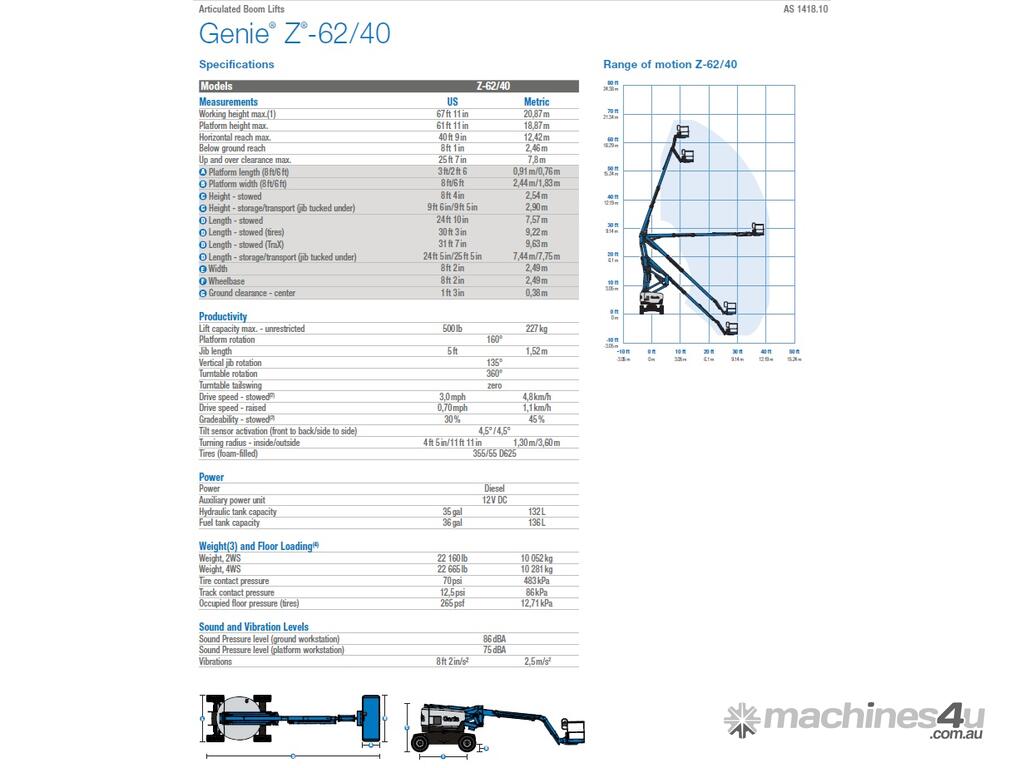

Working height max. 20,87 m
Platform height max. 18,87 m
Horizontal reach max. 12,42 m
Below ground reach 2,46 m
Up and over clearance max. 7,8 m

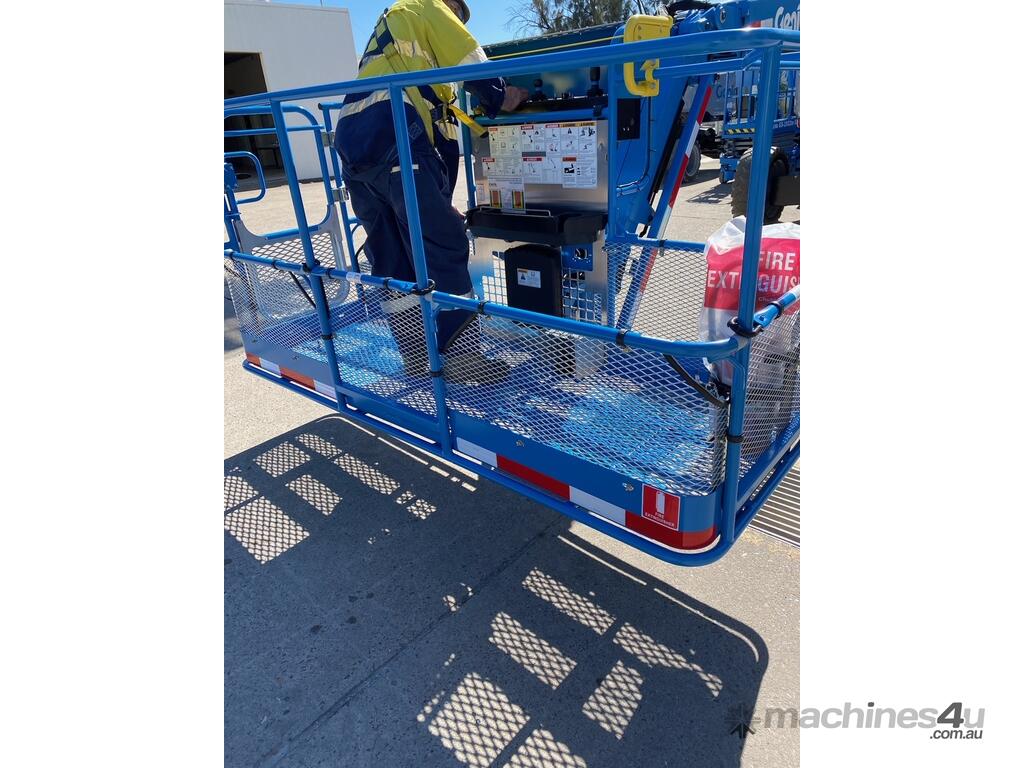

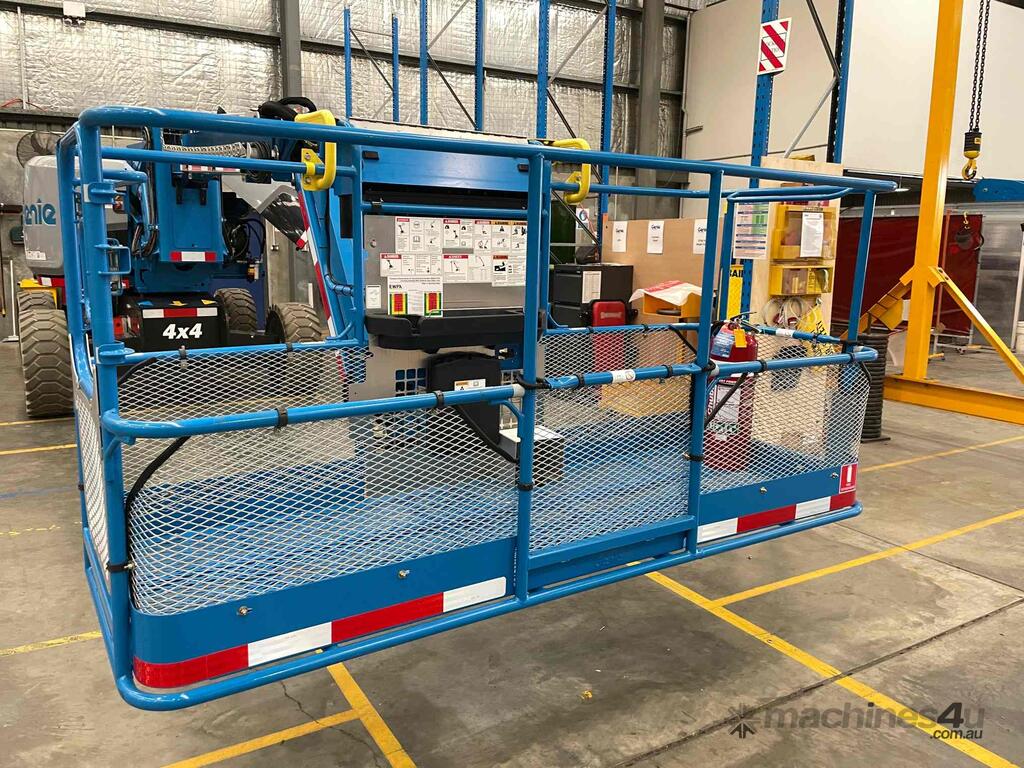

Platform length (8 ft/6 ft) 0,91 m / 0,76 m
Platform width (8 ft/6 ft) 2,44 m / 1,83 m

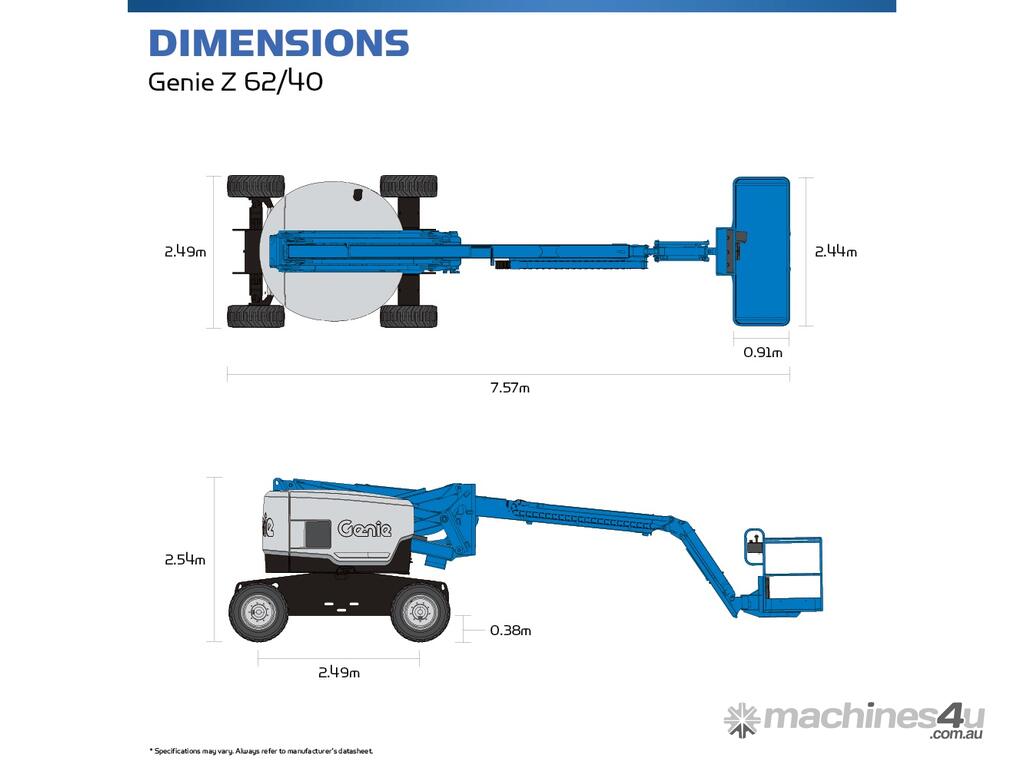

Height - stowed 2,54 m
Height - storage/transport (jib tucked under) 2,90 m
Length - stowed 7,57 m
Length - stowed (tires) 9,22 m
Length - storage/transport (jib tucked under) 7,44 m / 7,75 m
Width 2,49 m
Wheelbase 2,49 m
Ground clearance - center 0,38 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 160°
Jib length 1,52 m
Vertical jib rotation 135°
Turntable rotation 360°
Turntable tailswing zero
Drive speed - stowed 4,8 km/h
Drive speed - raised 1,1 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 4,5° / 4,5°
Turning radius - inside/outside 1,30 m / 3,60 m
Tires (foam-filled) 355 / 55 D625

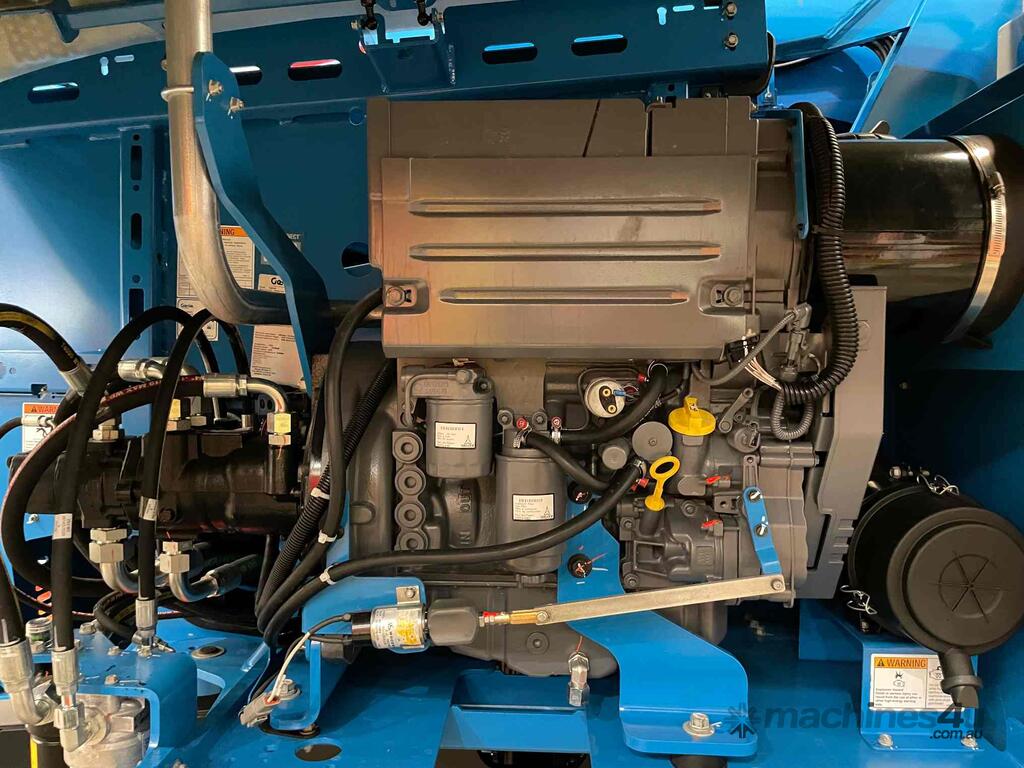

Power Diesel
Hydraulic tank capacity 132 L
Fuel tank capacity 136 L
Weight, 10 052 kg
Tire contact pressure 483 kPa
