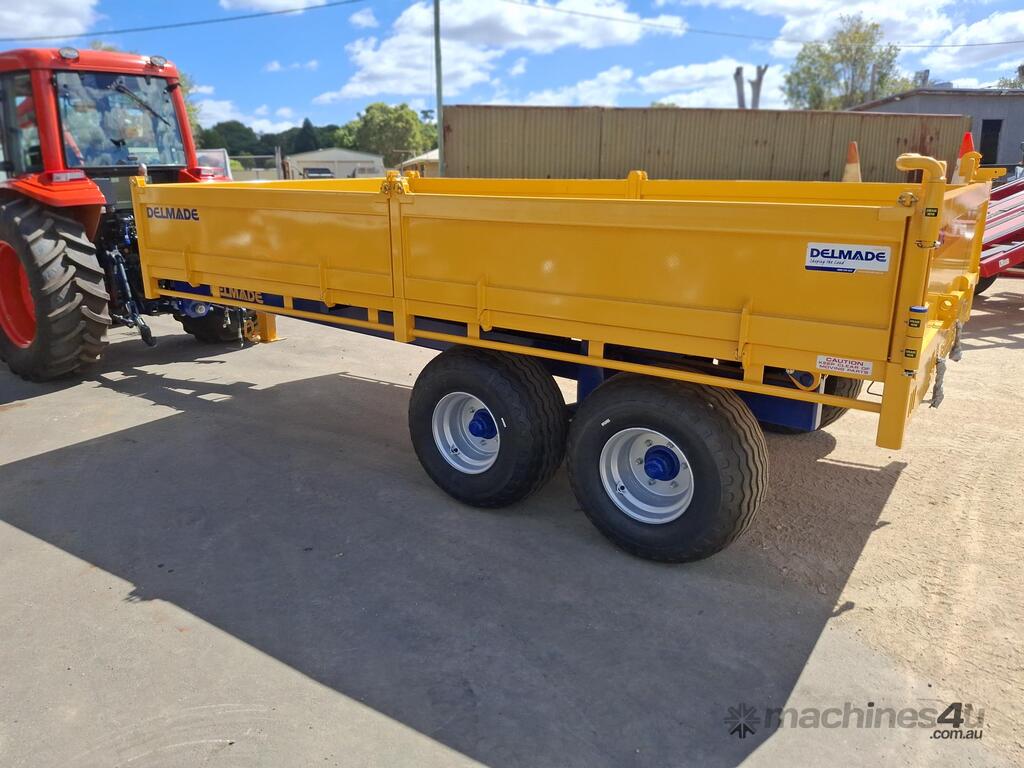

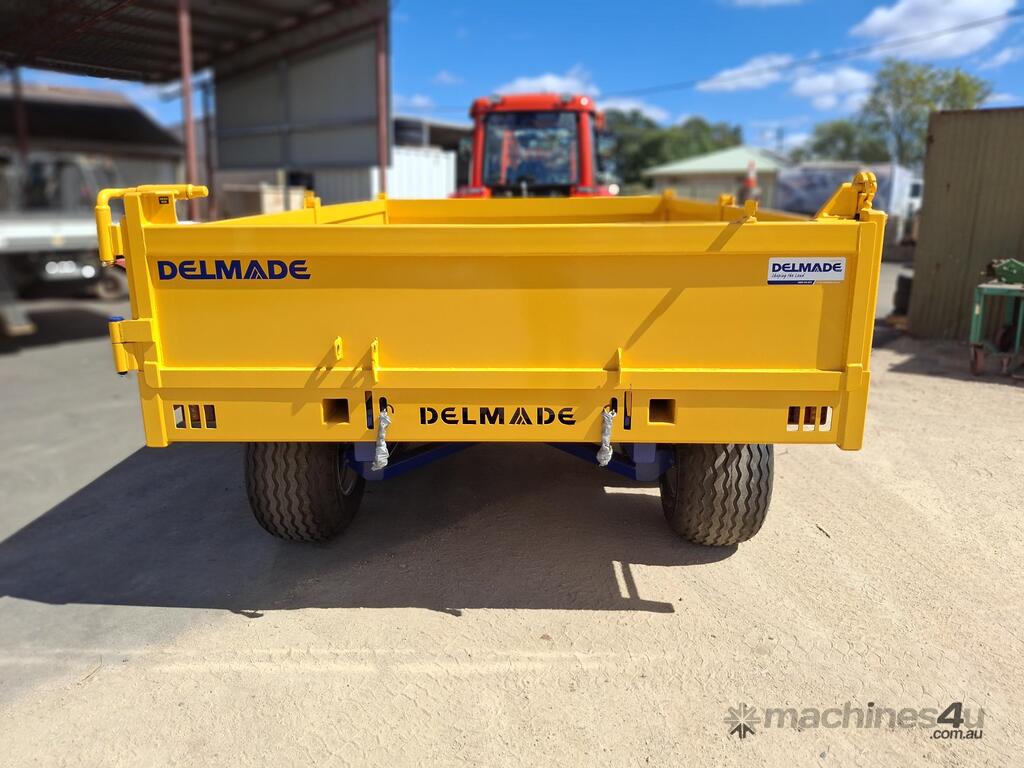

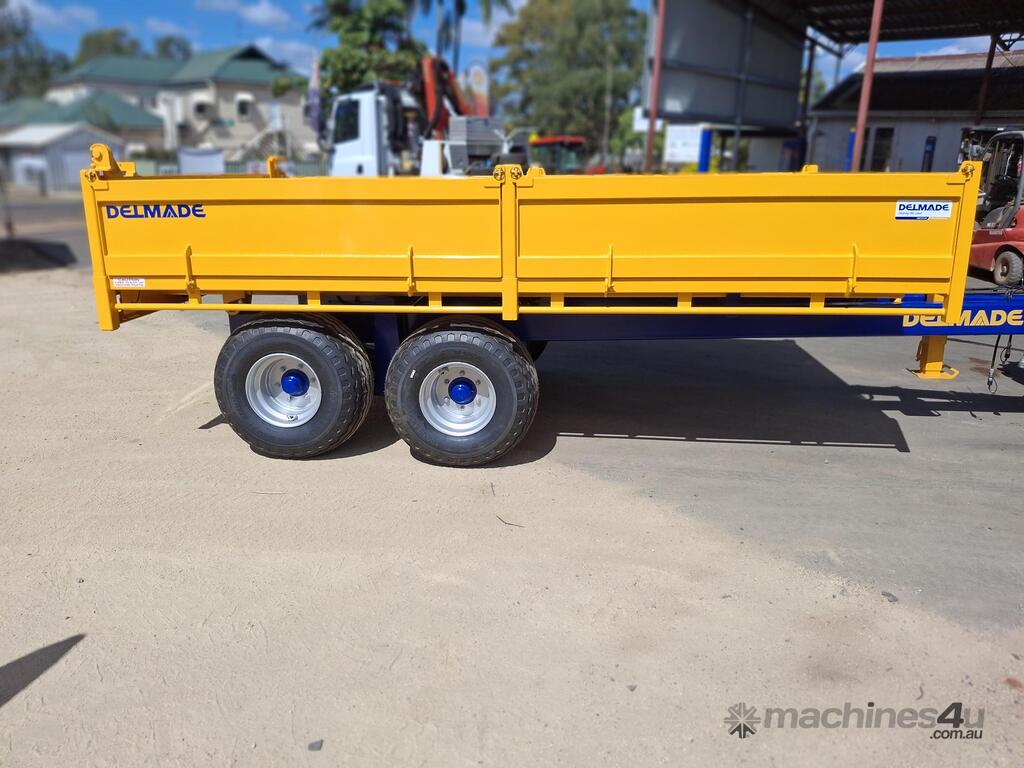

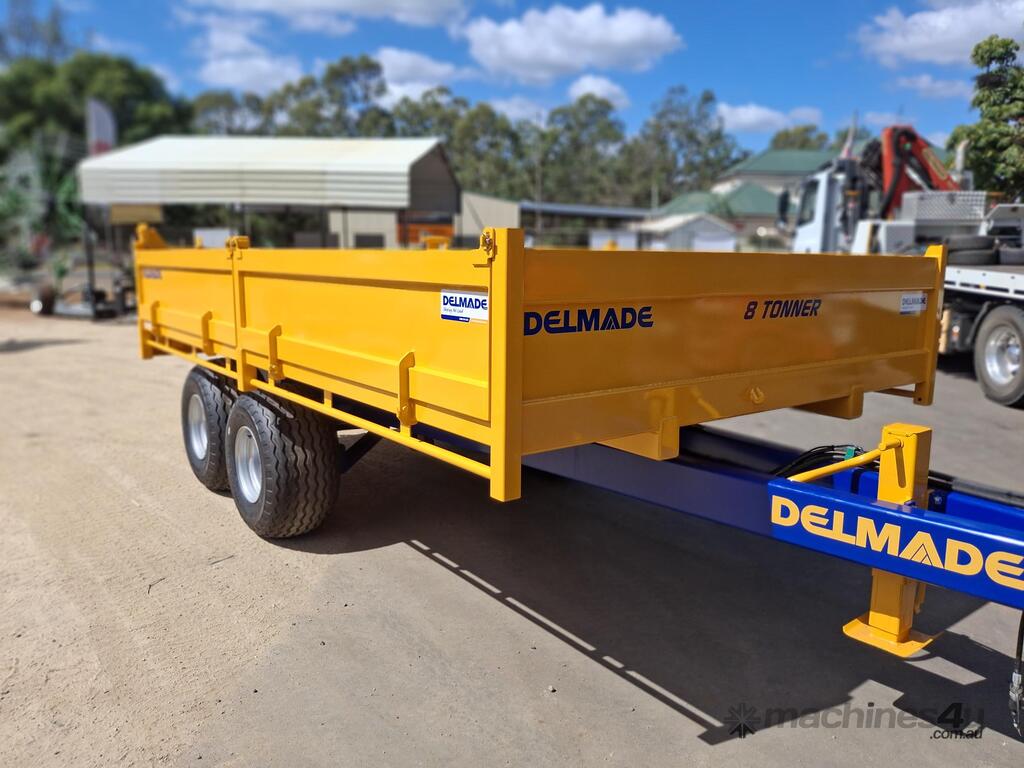

8 Tonne Tipping Trailer

The 8 Tonner Delmade Tip Trailer is a super heavy duty monster. Designed with superb inbuilt strength to easily achieve its tonnage rating. Tasmanian made to suit tough Tasmanian conditions. The Delmade 8 Ton Trailer features a walking beam oscillation system with a tandem axle and flotation tyres, ideal for use in any terrain. The unit can be spec'd up with a two way tailgate, 3' Hay Extension or Aluminium Ramps for carting heavy machinery.

Designed for performance in all conditions, this durable unit has unlimited uses on the farm and a wide range of specifications to suit every situation. It comes standard with Road Lights, Hydraulic Tail Latch and gravel spreading chains. An extremely versatile investment offering strength, durability and value for money and the Delmade 8 Ton will handle any task thrown its way, from gravel to rocks, silage to sheep, the heavy duty unit will outperform in every situation.

Features & Benefits
Australian built, extra heavy-duty, built to last
Removable sides and tailgate – allow versatility and a choice of options
Hydraulic Tail Latch
Steel Floor 6mm
Adjustable H.D. Pole Support (hydraulic option)
Walking beam tandem axle for difficult terrain
Tailgate – top-mounted pivot hinge
Tie rails – ensures the heaviest loads can be secured

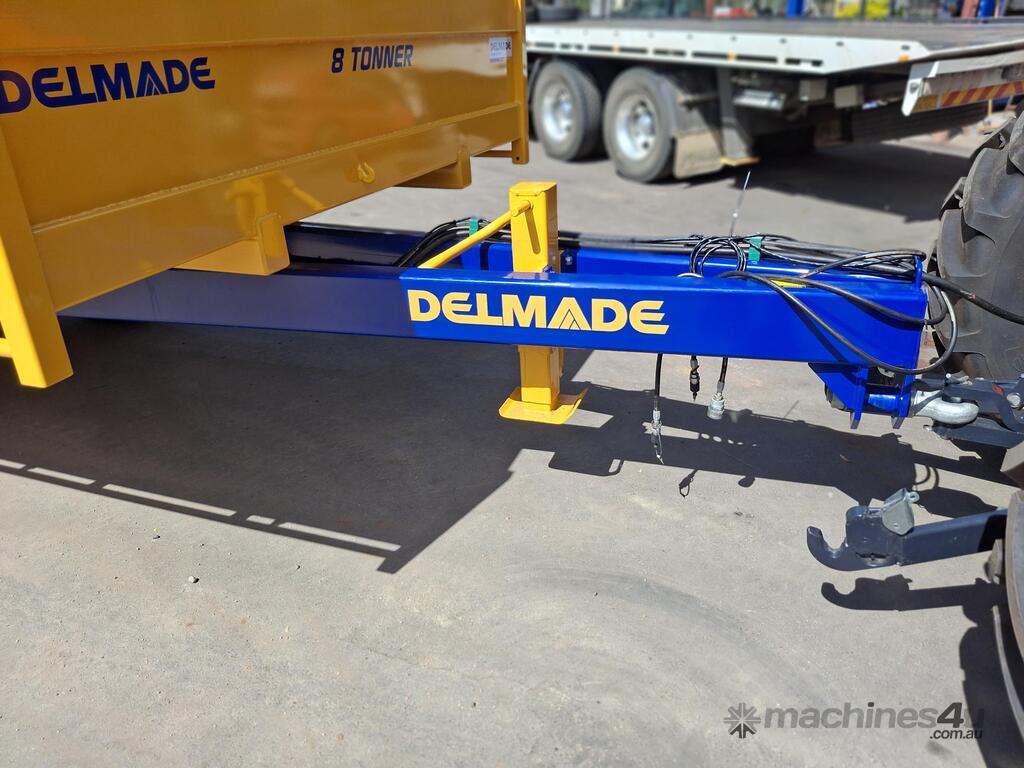

Swivel tow eyelet – security in difficult conditions
Large flotation tyres for field conditions

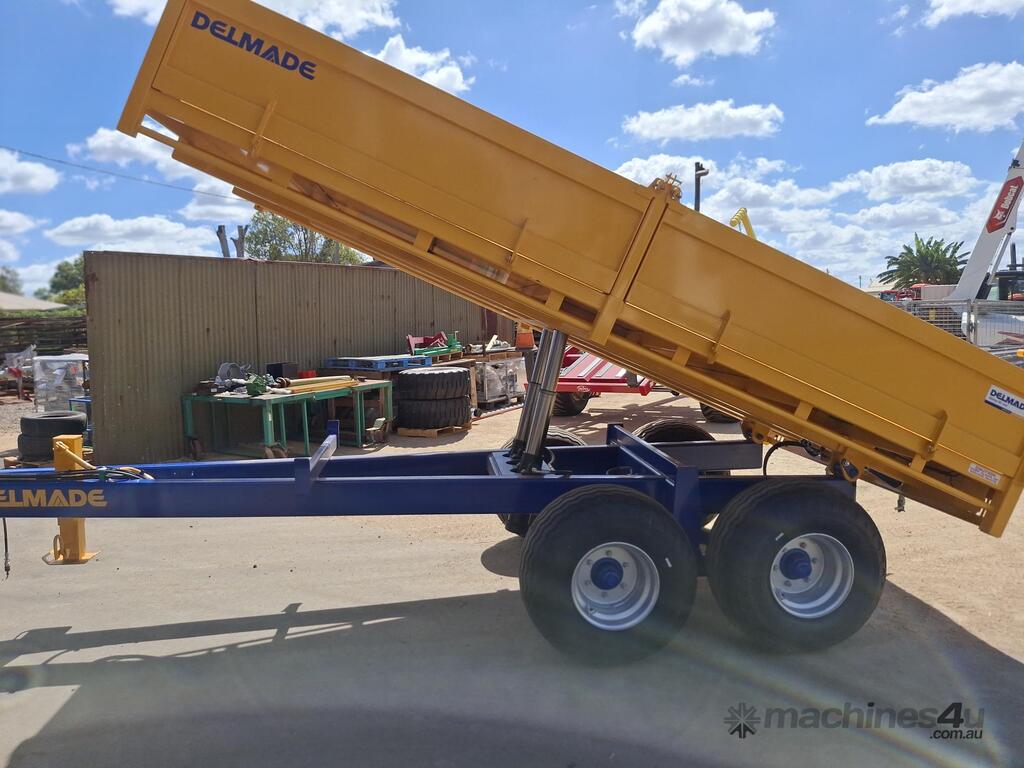

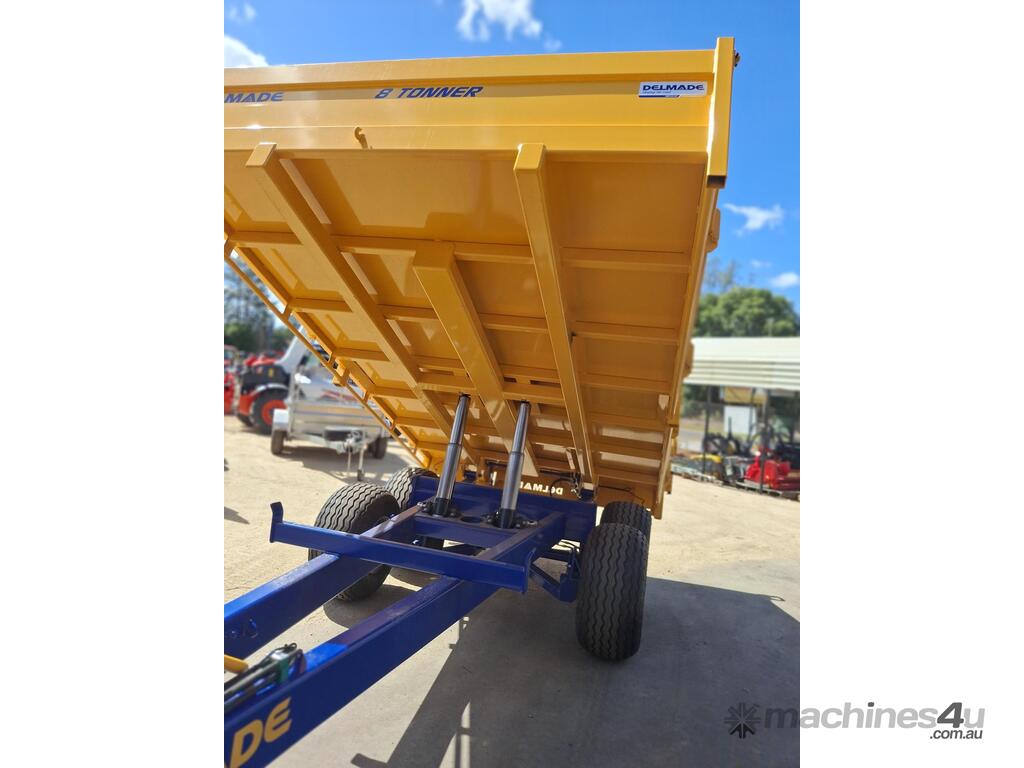

Multi-Stage 2 Cylinder – Hydraulic Ram
Hydraulic Brakes
Gravel Spreading Chains
Road Lights
Powder Coat Finish
Options
Hydraulic Jack Stand
Two way Tail Gate
3' Hay Extensions
Aluminium Ramps
3PL Trailer Quick Hitch
Specifications
Specifications 8t Model
Deck Size (mm) 2550(W) x 4300(L)
Side Height (mm) 500
Transport Width (mm) 2652
Total Weight (kg) 2879.36
Chassis Specs (mm) 200x100x9 RHS
Deck Thickness (mm) 6
Axle Style & Size Tandem - 70 mm
Tyres / Wheels 400/60-15.5
Hydraulic Ram System 2 x Multi Stage
Towing Eye Swivelling - 52 mm
Tip Angle (o) 54
Required Oil Capacity (L) 17.6
Brakes
Road Lights
