80FT DIESEL 4WD KNUCKLE BOOM LIFT GENIE ALL TERRAIN CHERRY PICKER

80FT DIESEL 4WD KNUCKLE BOOM LIFT GENIE ALL TERRAIN CHERRY PICKER

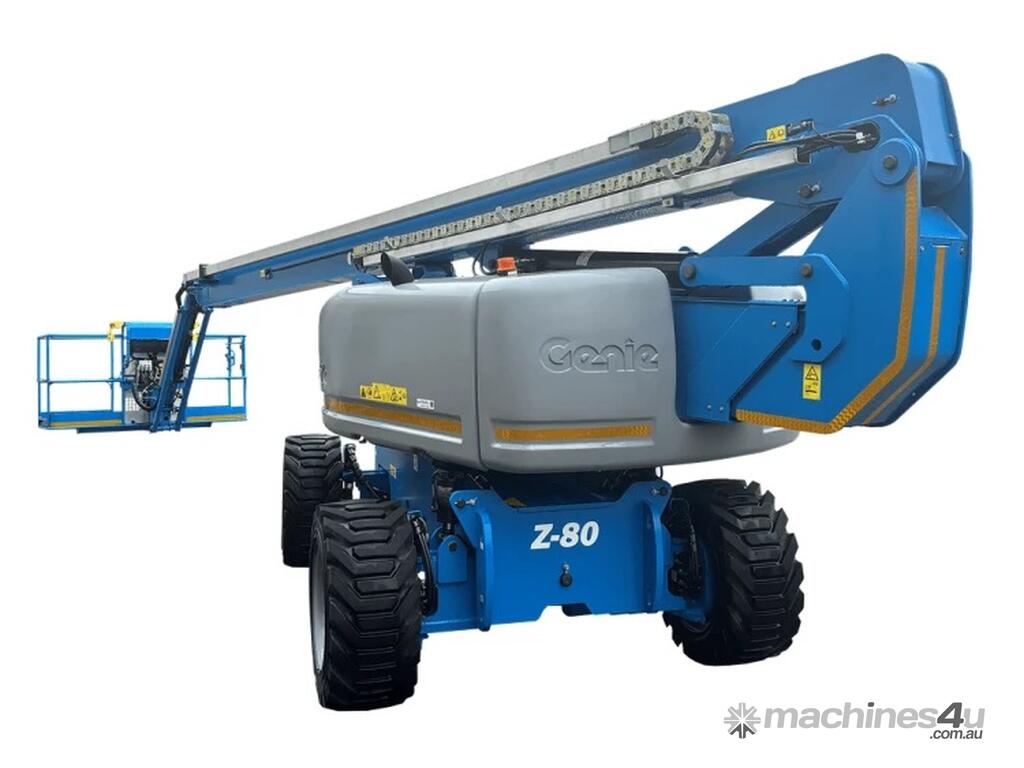

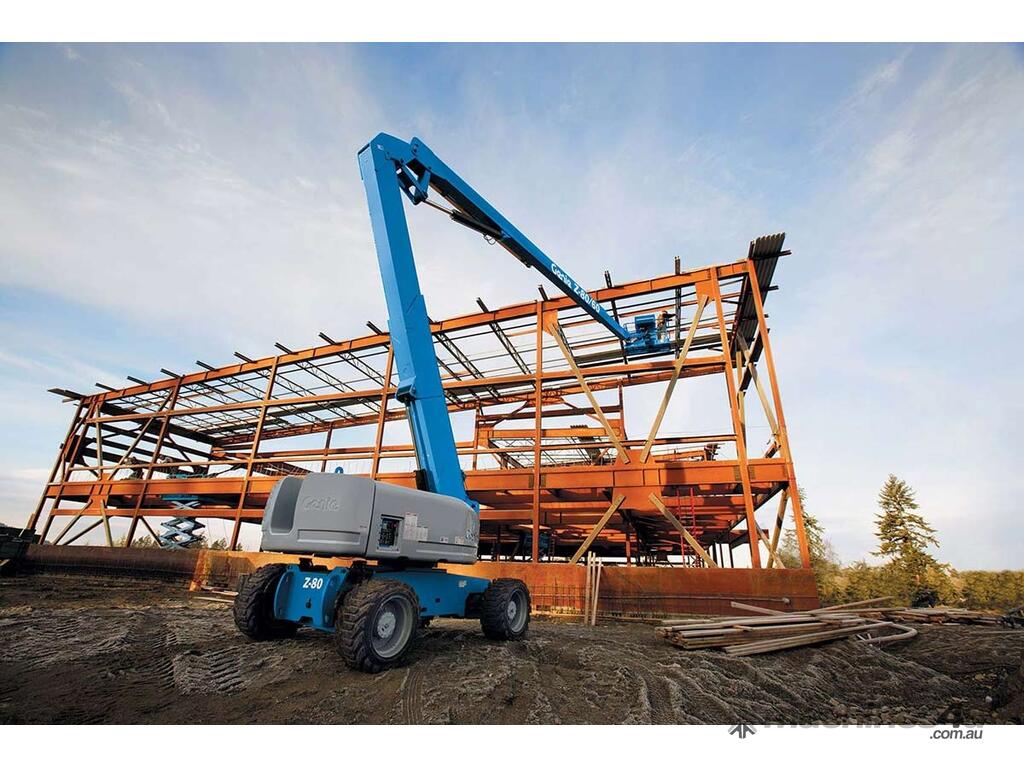

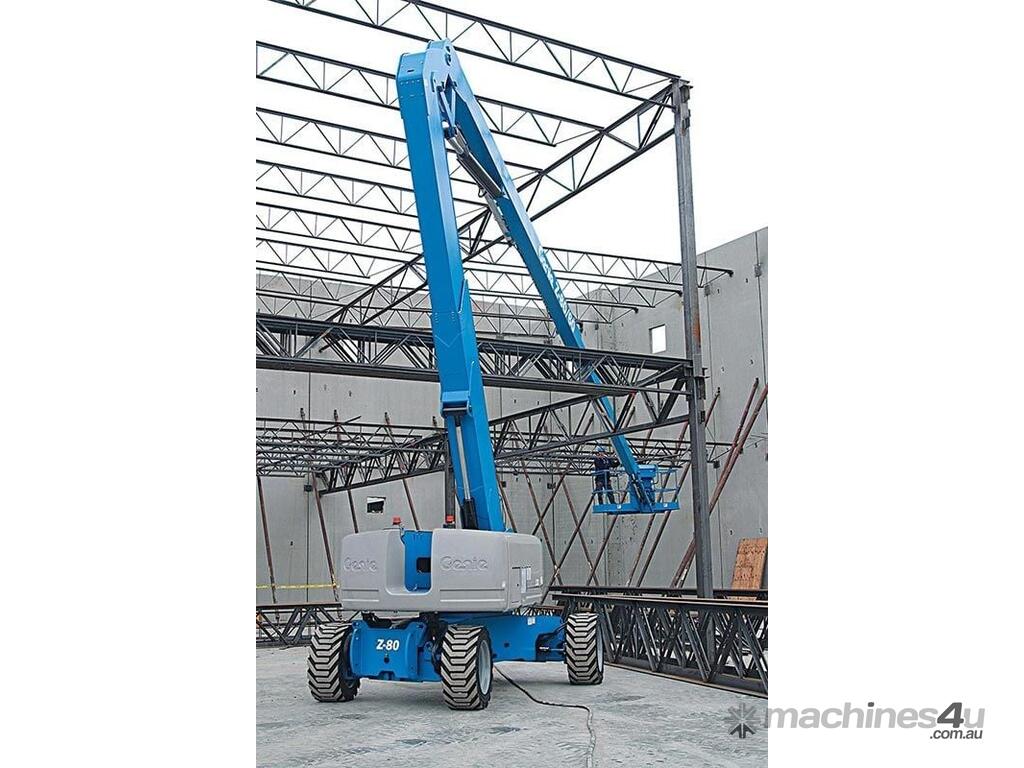

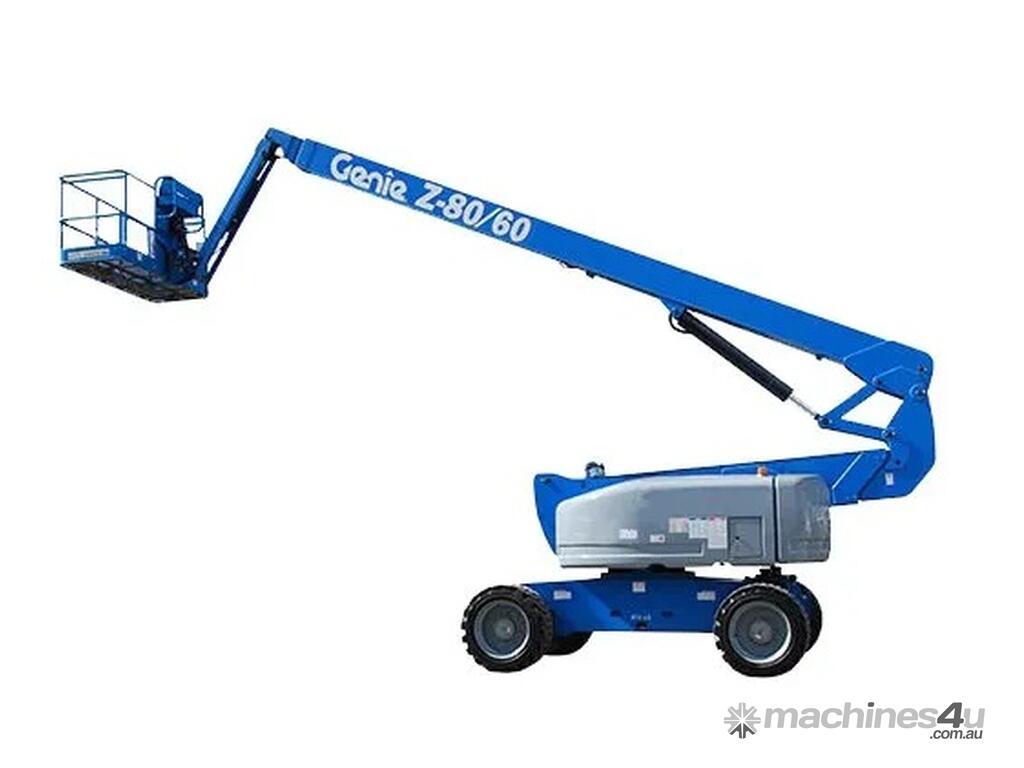

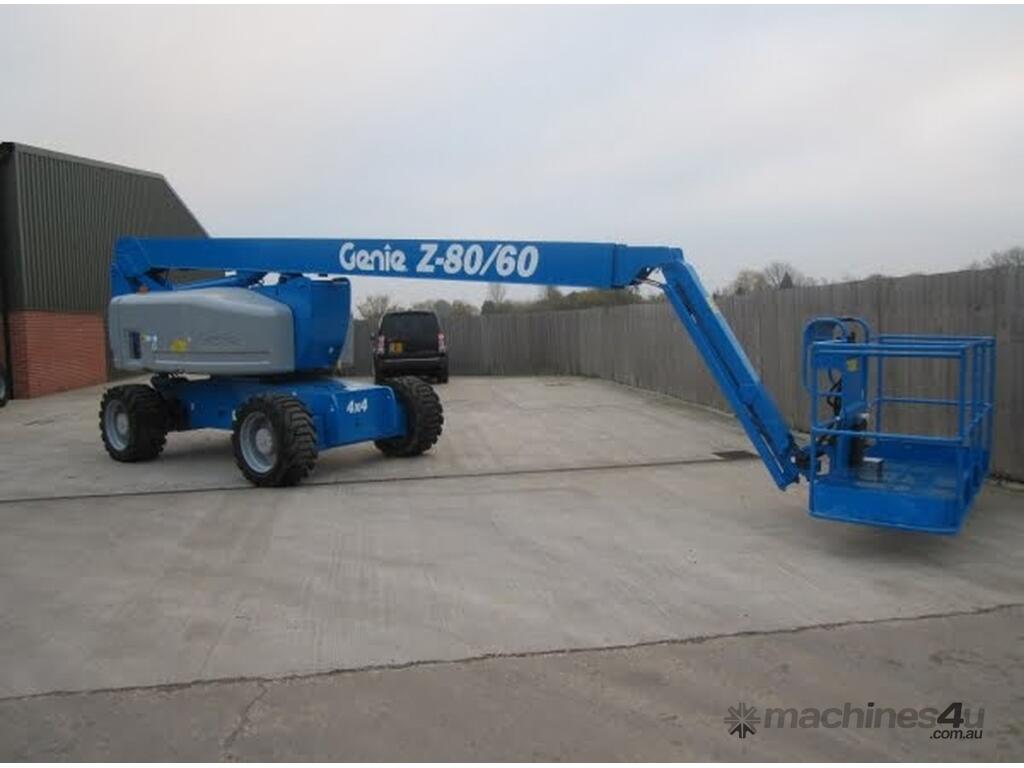

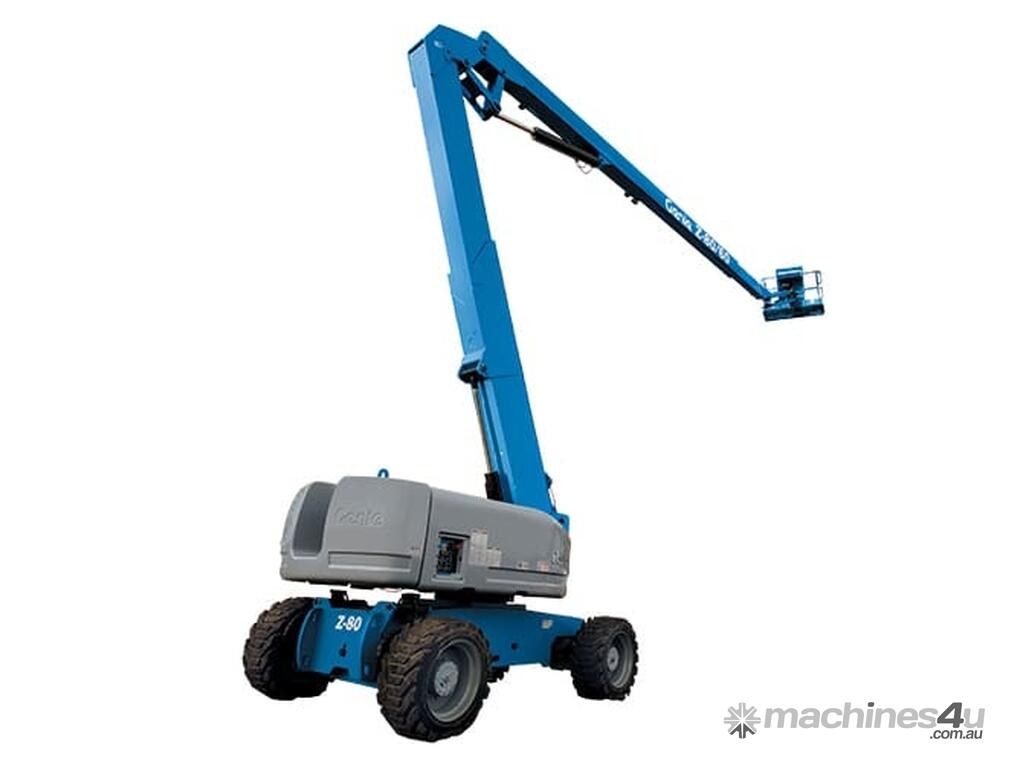

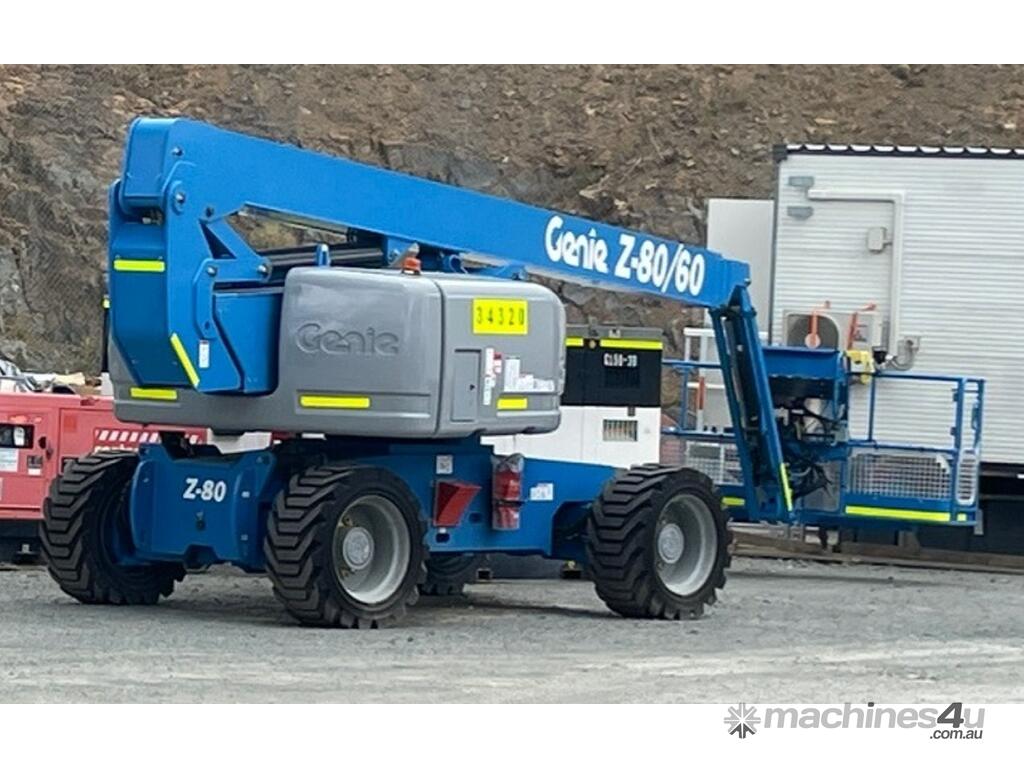

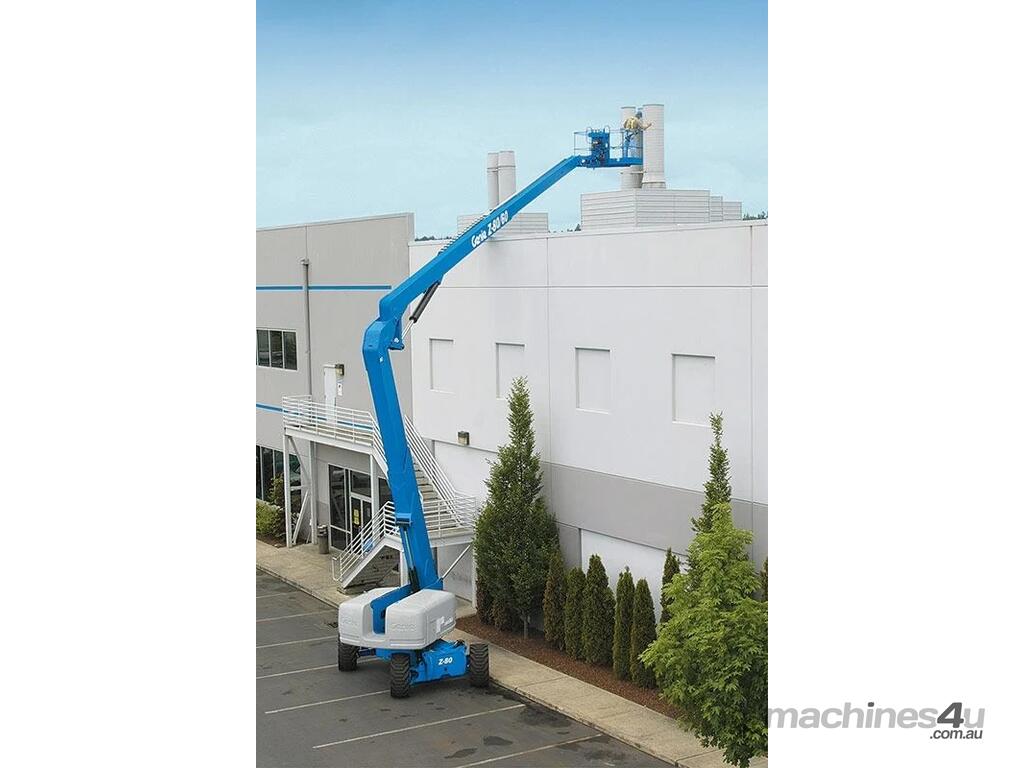

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Overview

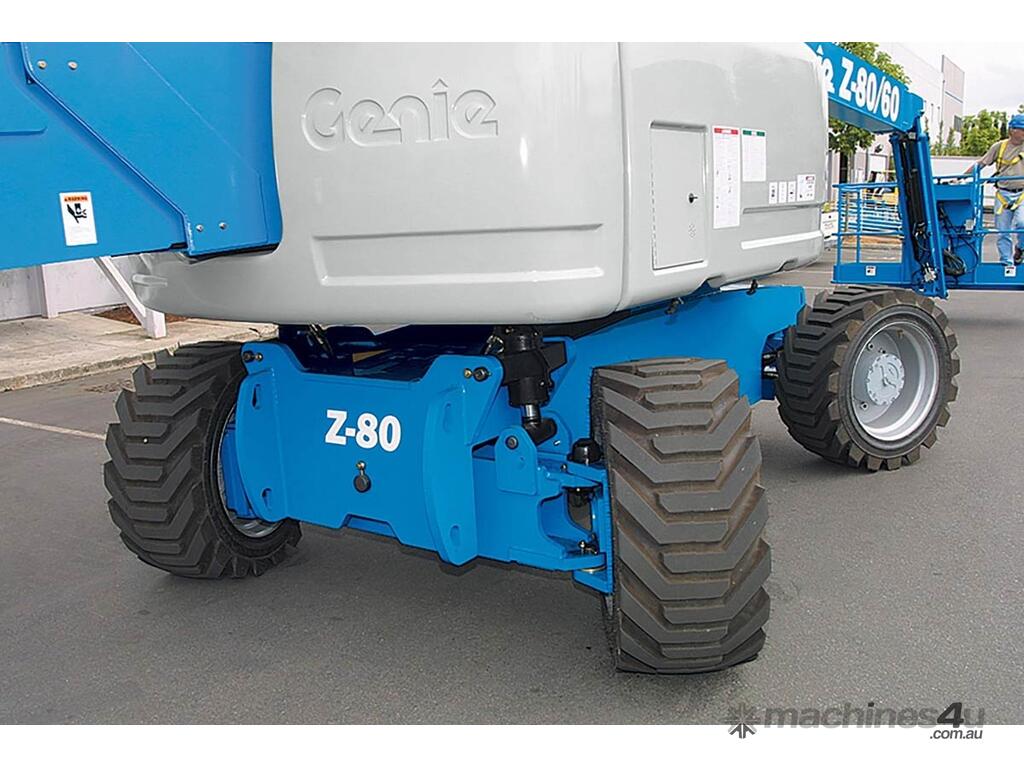

• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and full-time positive traction for a smooth ride on rough ground conditions

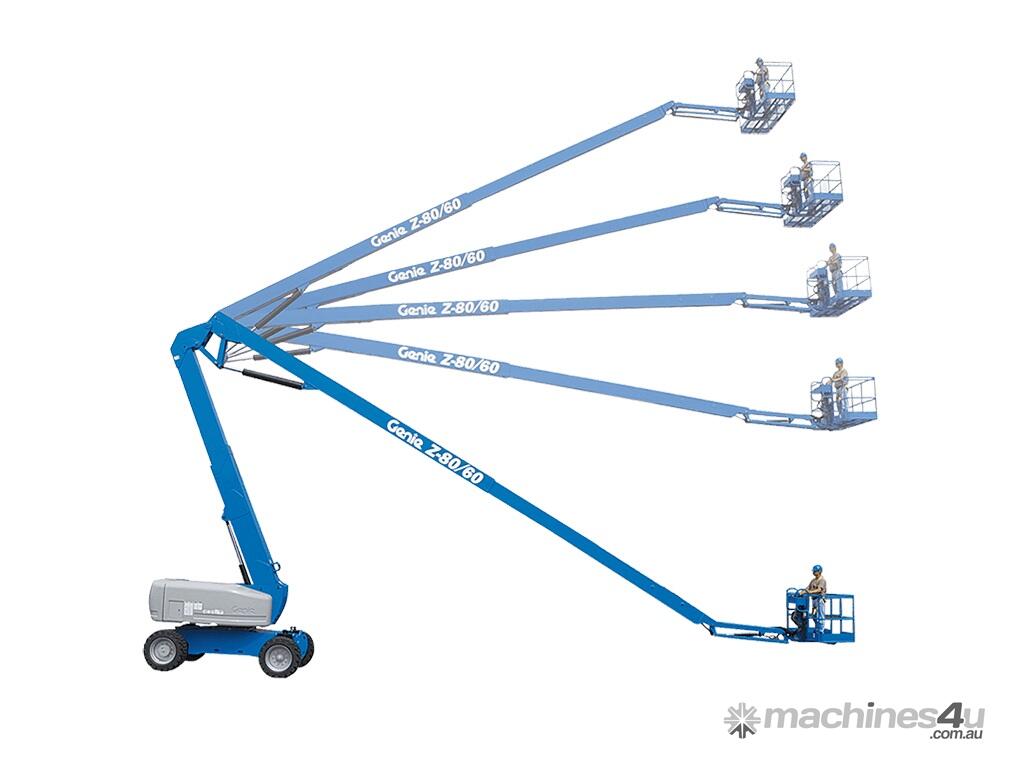

• Reverse-articulating secondary boom with 8.83 m (29 ft) of up and over reach and zero front arm swing

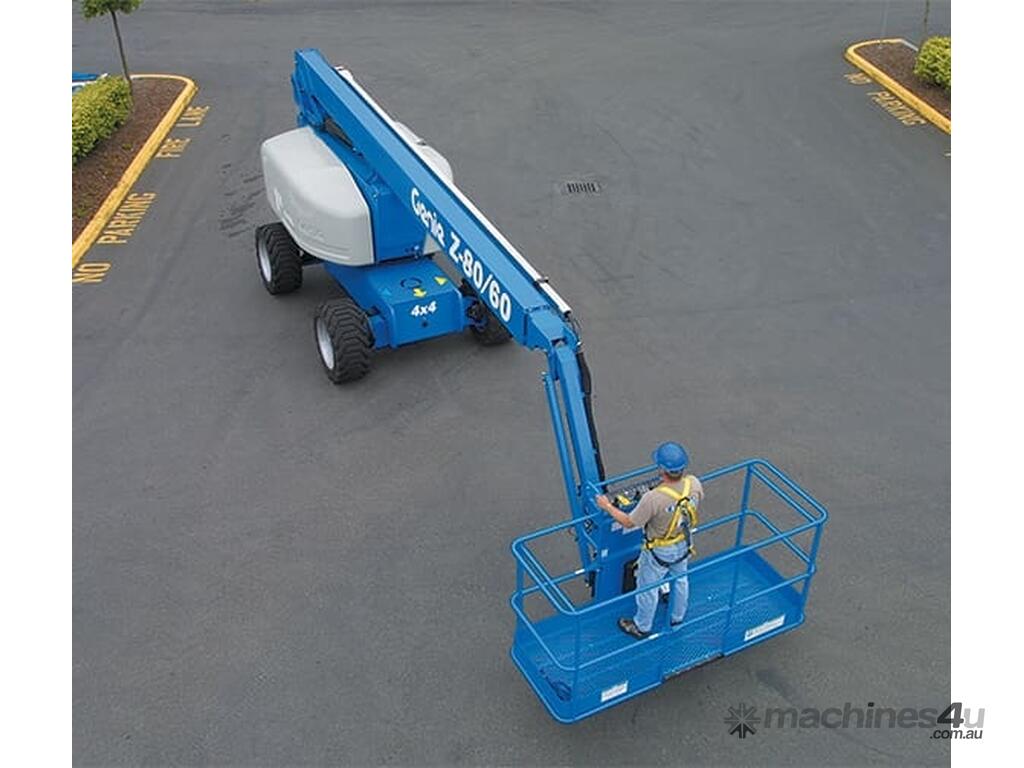

• 1.83 m (6 ft) articulating jib with a 135° vertical rotation to accurately position workers

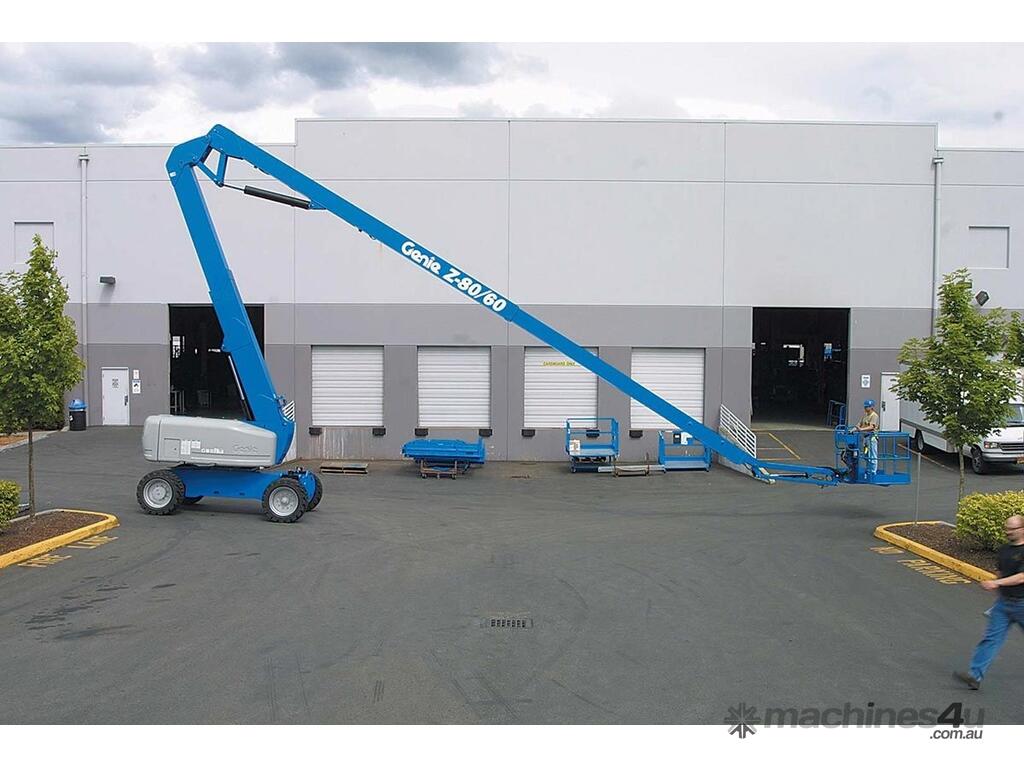

• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

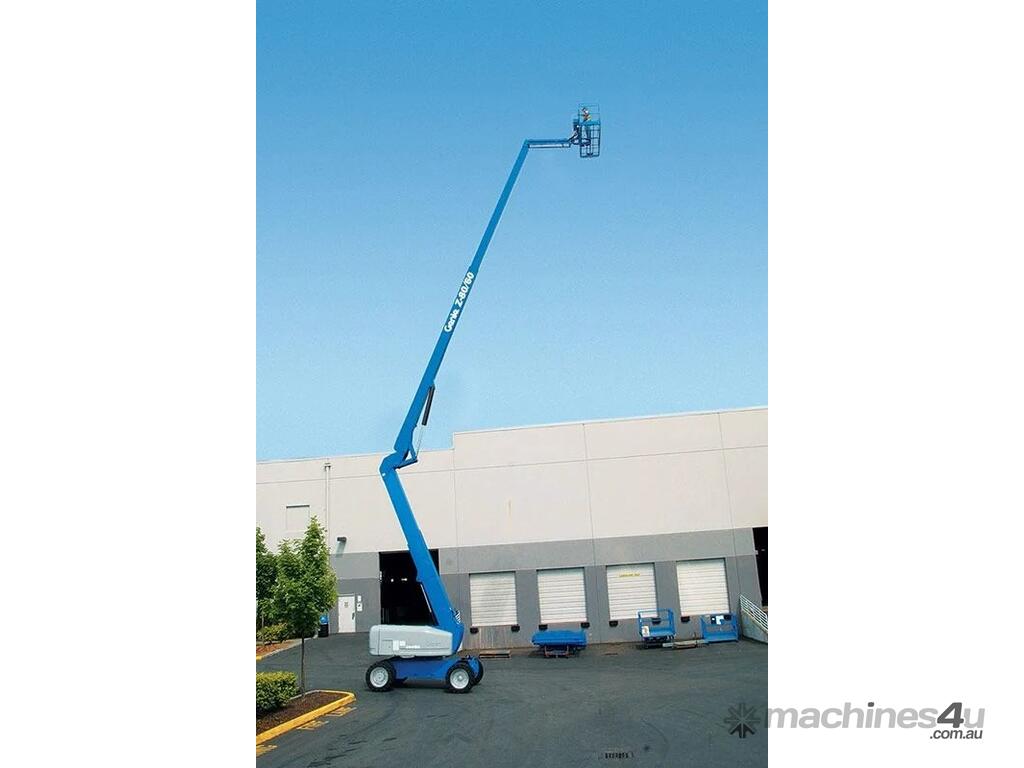

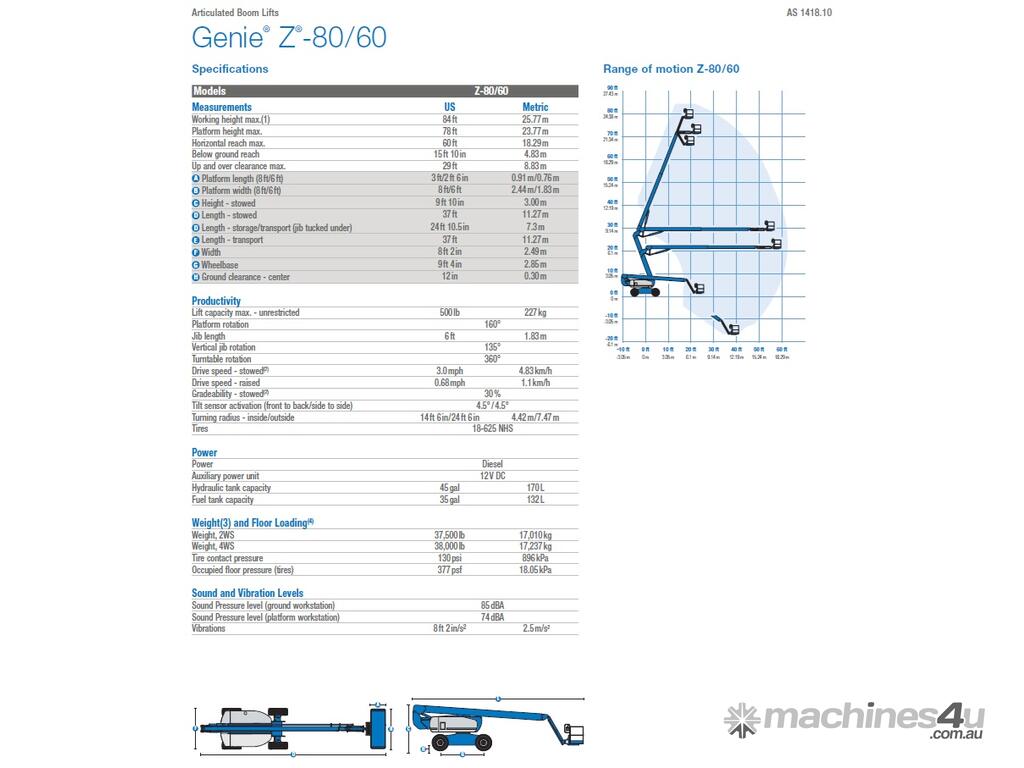

Working height max. 25.77 m
Platform height max. 23.77 m
Horizontal reach max. 18.29 m
Below ground reach 4.83 m
Up and over clearance max. 8.83 m
Platform length (8 ft/6 ft) 0.91 m / 0.76 m
Platform width (8 ft/6 ft) 2.44 m / 1.83 m
Height - stowed 3.00 m
Length - stowed 11.27 m
Length - storage/transport (jib tucked under) 7.3 m
Length - transport 11.27 m
Width 2.49 m
Wheelbase 2.85 m
Ground clearance - center 0.30 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 160°
Jib length 1.83 m
Vertical jib rotation 135°
Turntable rotation 360°
Drive speed – stowed 4.83 km/h
Drive speed – raised 1.1 km/h
Gradeability - stowed 30 %
Tilt sensor activation (front to back/side to side) 4.5° / 4.5°
Turning radius - inside/outside 4.42 m / 7.47 m
Tires 18-625 NHS
Power Diesel
Hydraulic tank capacity 170 L
Fuel tank capacity 132 L
Weight 17,237 kg
