ACRA MACHINERY -Jorns JB Slitter Folder

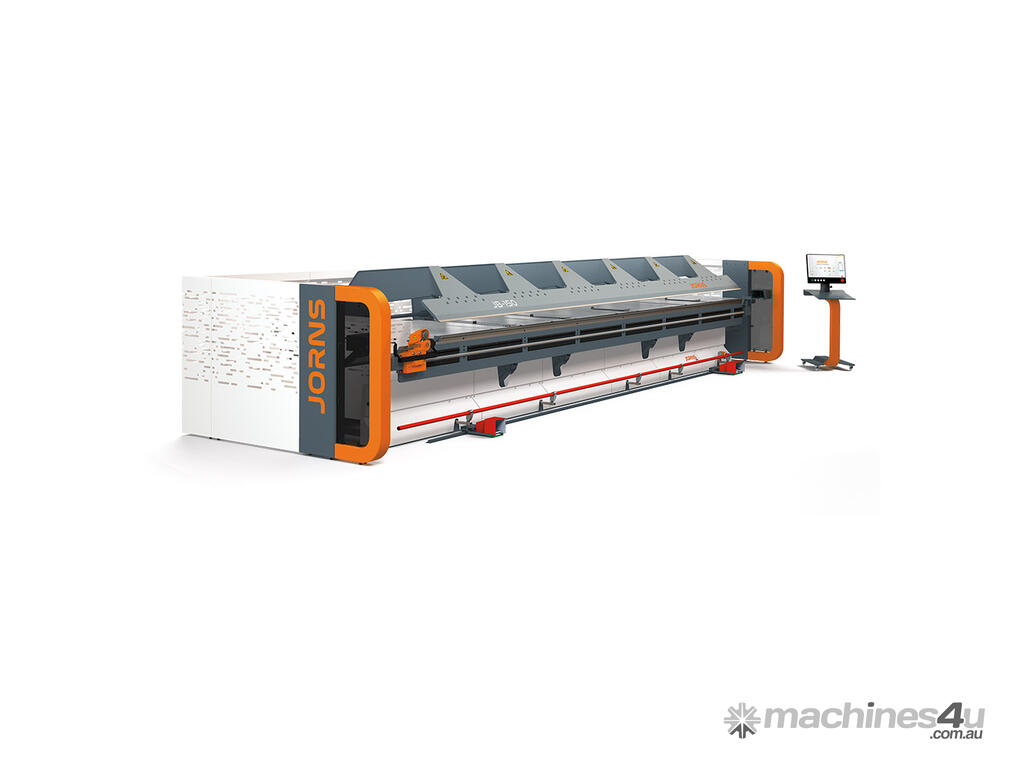

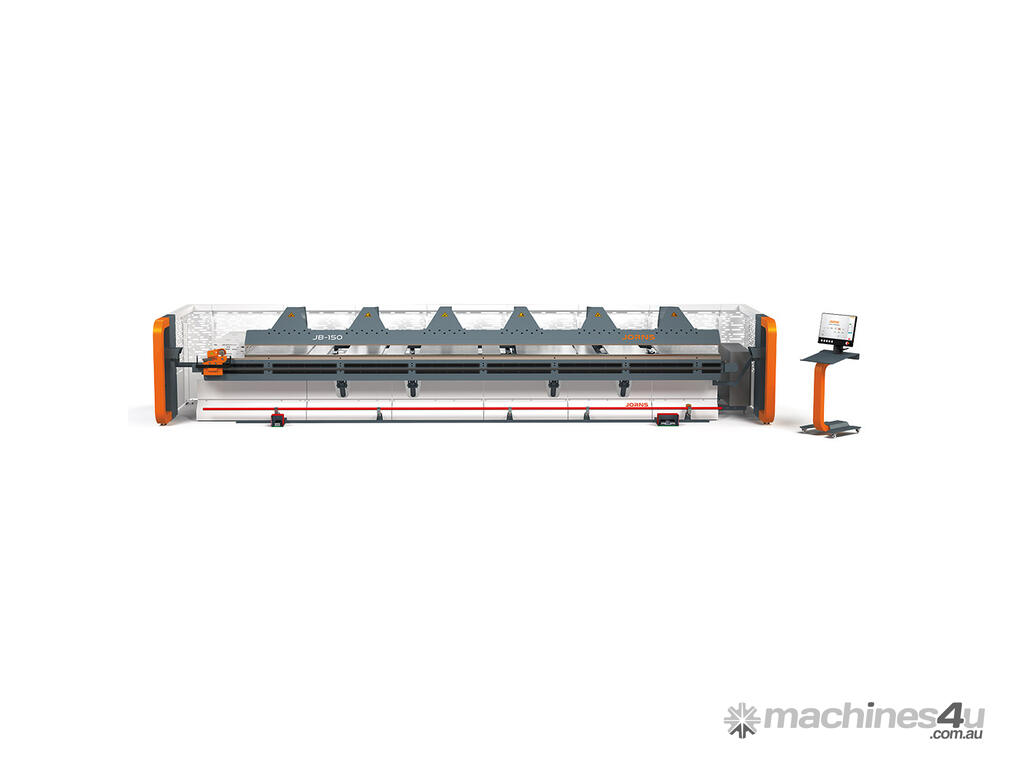

The semi-automatic Jorns JB bending machine can be configured in lengths from 3.2 to 12.2 meters and with a bending capacity of up to 3 mm thick steel sheet. It offers you flexibility – not only in terms of clamping tools.

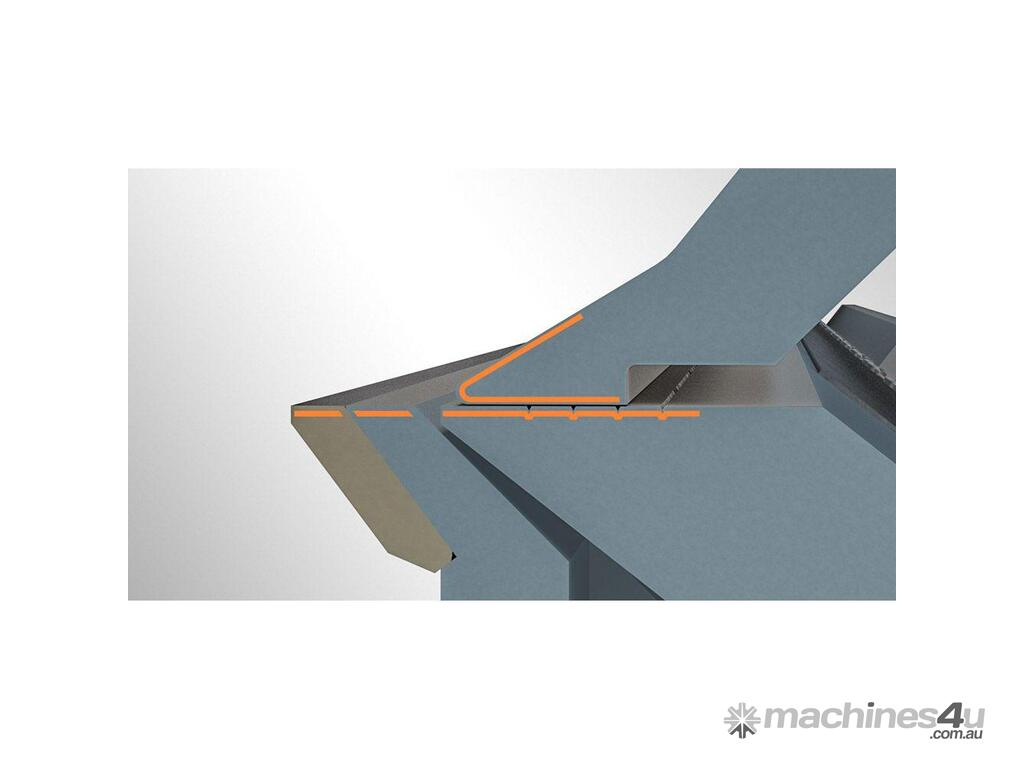

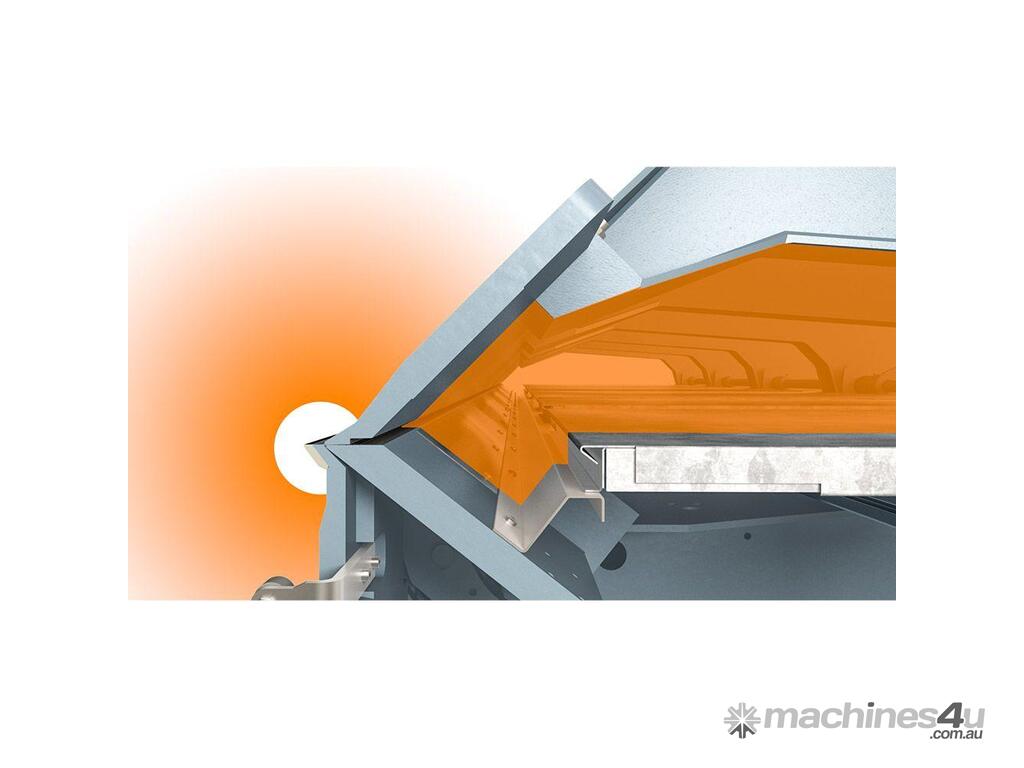

The clearance in front of and behind the clamping tool offers above-average space: This allows you to produce bent profiles with maximum efficiency on the Jorns JB bending machines . Furthermore, the use of servo technology and the laterally freely movable stop fingers enable maximum accuracy and flexibility for bending profiles parallel, conical, or pluggable.
The successful bending results and subsequent assembly of your profiles are largely due to the consistent calculation of the development and stop positions using the "bending reduction according to DIN 6935" method, the intuitive graphical programming, the high angular accuracy, and the uniformly closed drip edges. Ultimately, with the JB, you gain time – for greater project freedom and new ideas.

JC100 graphics controller: with multi-nesting function

This control system forms the basis of your entire bending machine's equipment. It is responsible for the very high dimensional and angular accuracy and ensures exceptionally fast results from sketch to profile; automatic springback compensation is integrated. The advantage: profile samples are no longer required during the work process – the first result is immediately accurate and precise.
The multi-nesting function will be particularly useful if, for example, you want to produce a multi-section conical bending profile that is longer than the maximum processing length of your bending machine. Using this function, you can define the planned profile in sketch mode. The result consists of several bent parts that are connected by interlocking them.

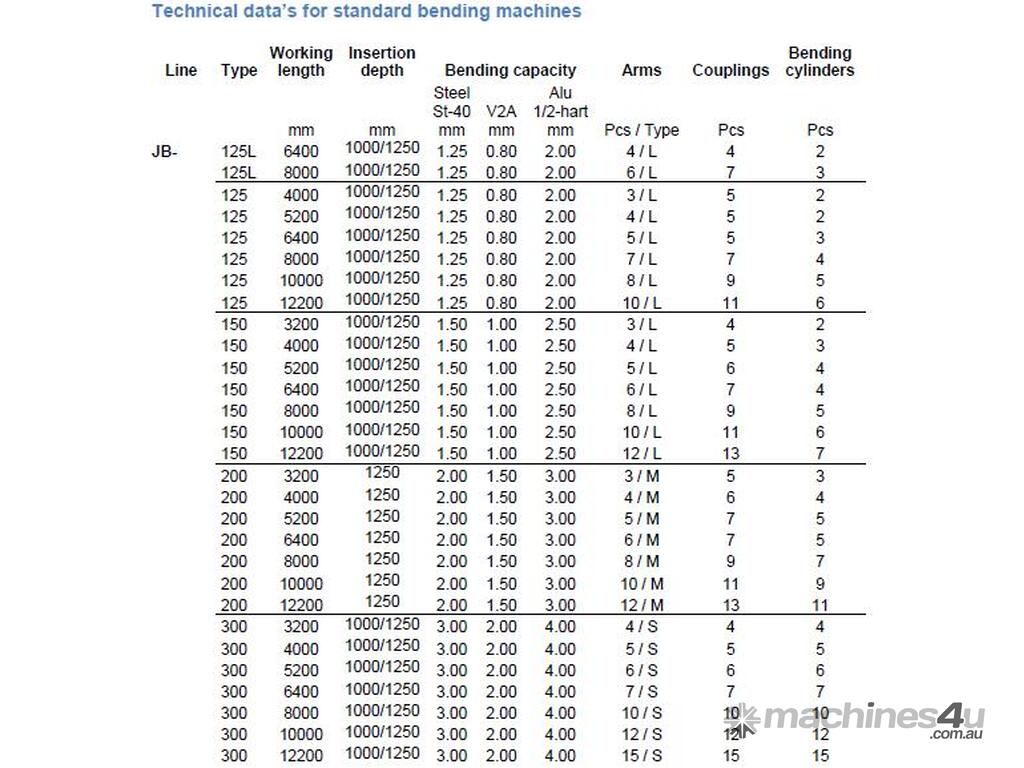

1.25mm – 3mm Bending Capacity
4000mm – 12200mm Bending Length

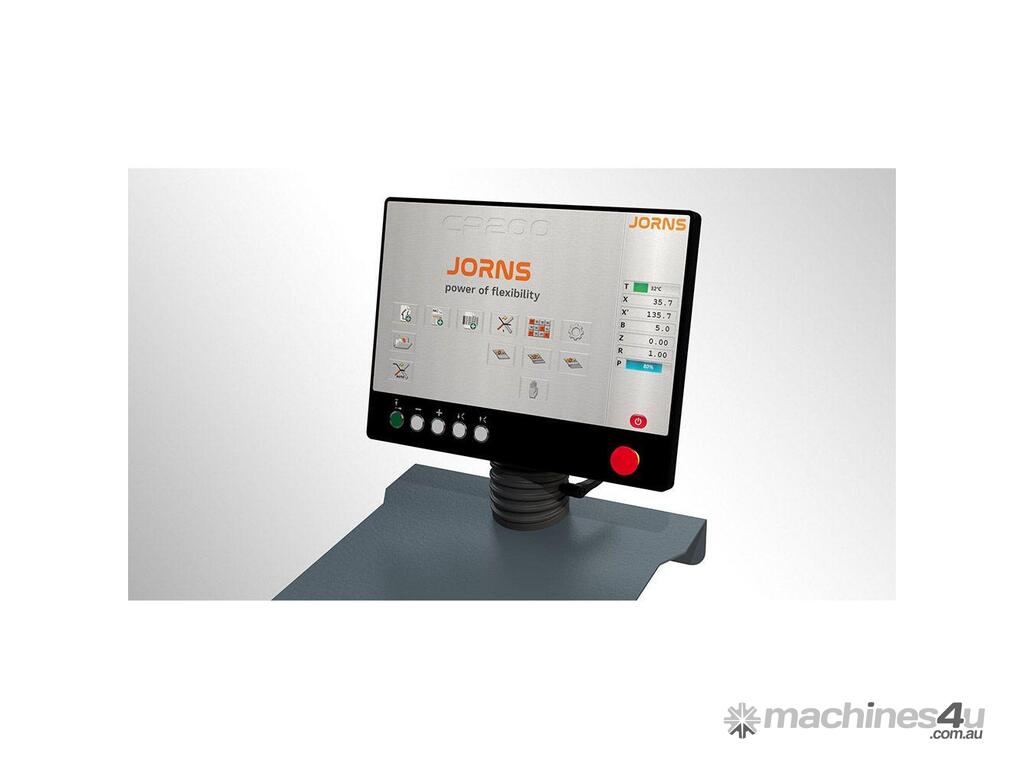

CP200 Graphic Control System
Additional SSD Card w/ Windows & Machine Image Duplicate

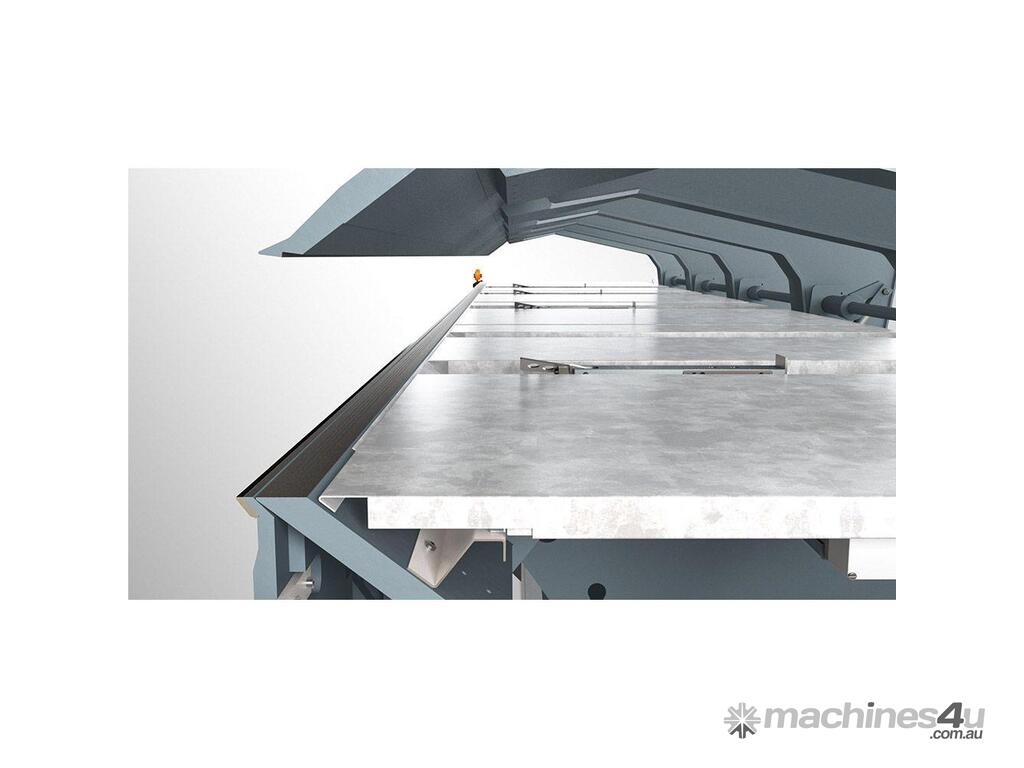

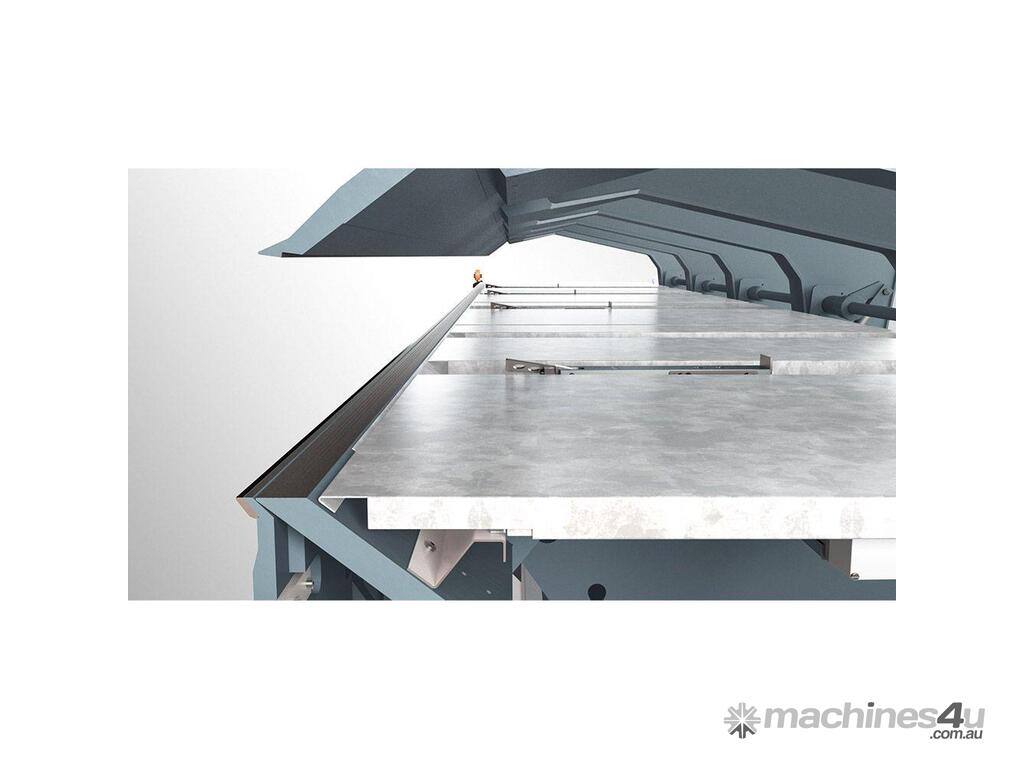

Automatic Parallel Back Gauge System
Detachable Hydraulic Shear (750mm/s)

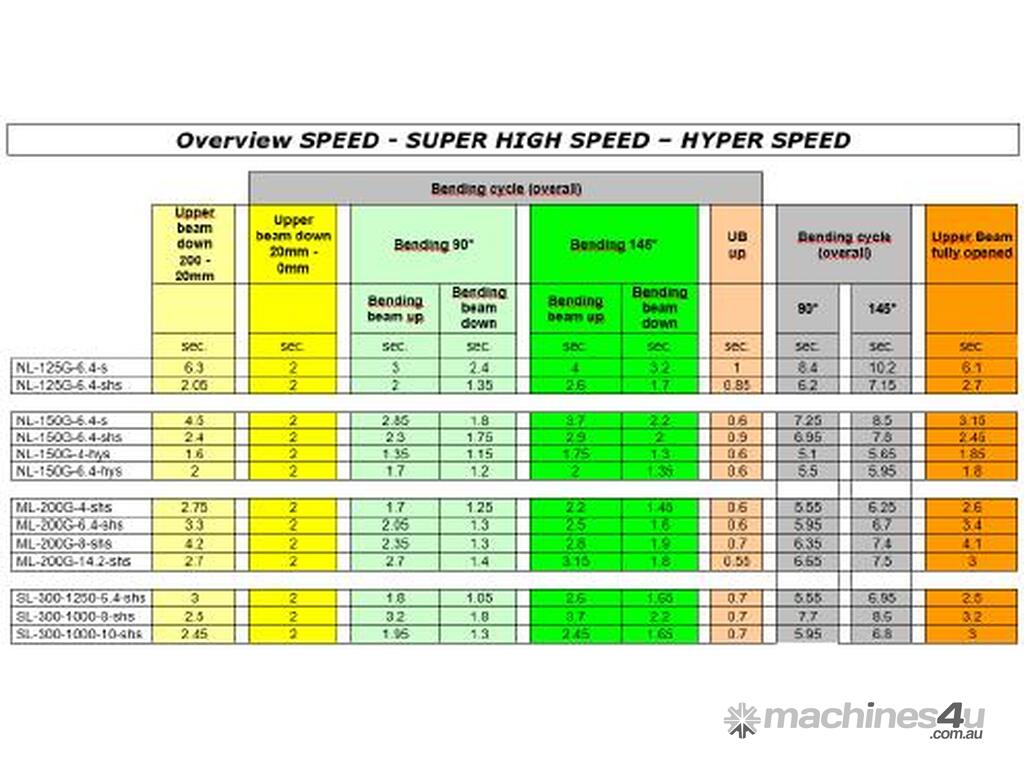

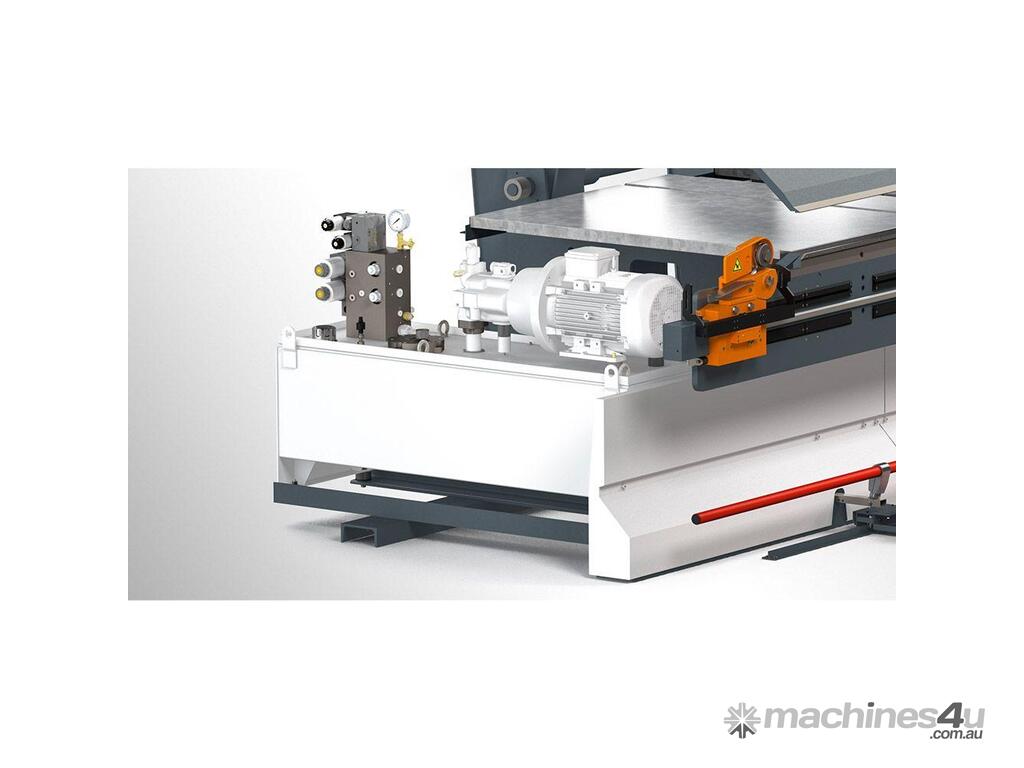

Super-High-Speed Hydraulic Unit w/ Cooling System (20% Faster than standard system)

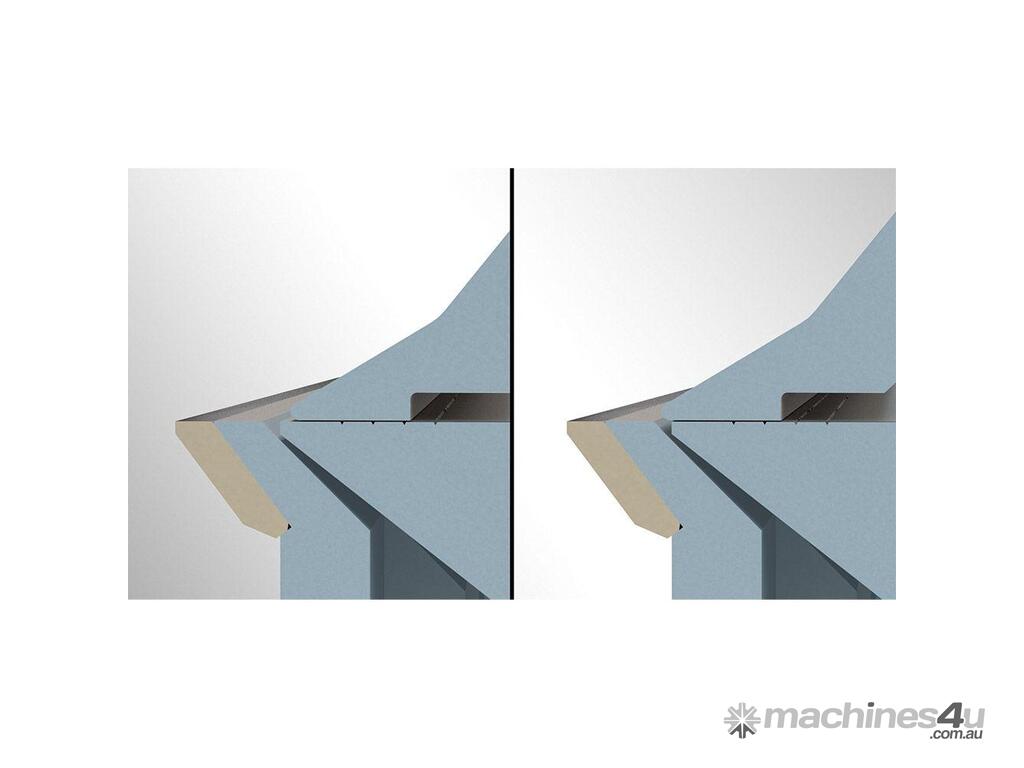

Geometry “F”
Hydraulic Material Thickness Adjustment
LED Light
Swiveling Arm Control
Additional License Key for Offline Programming
Single-Line Bar Code Scanner
Automatic Conical Back Gauge System

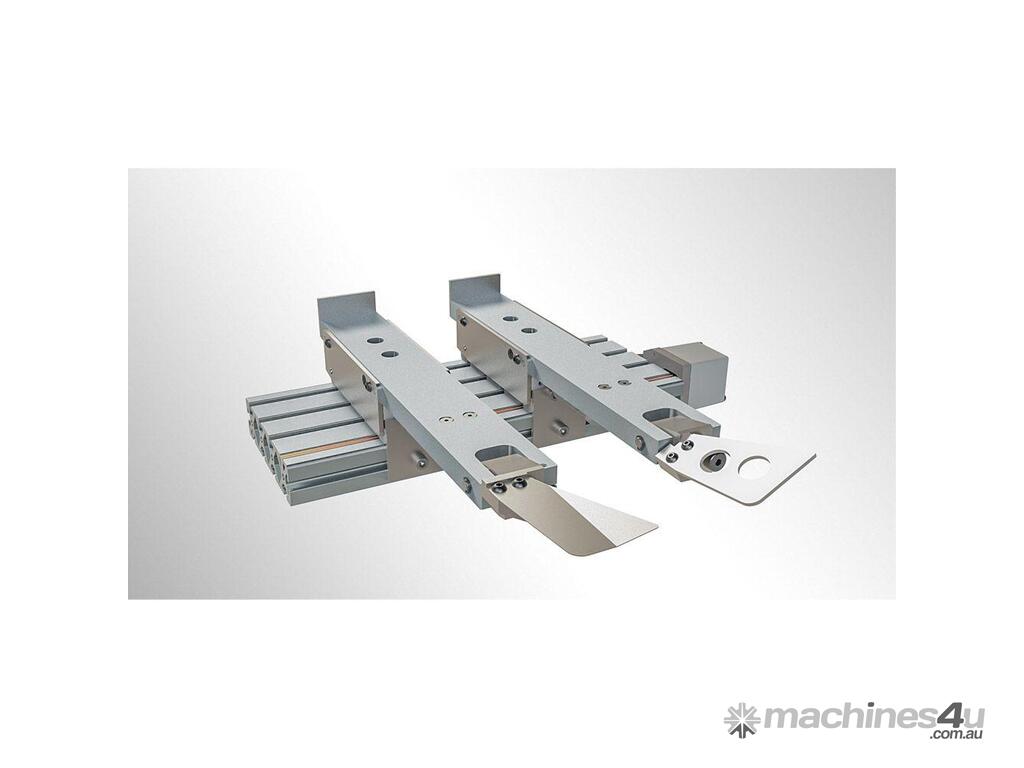

Additional Back Gauge Finger
Short Part Back Gauge Additions

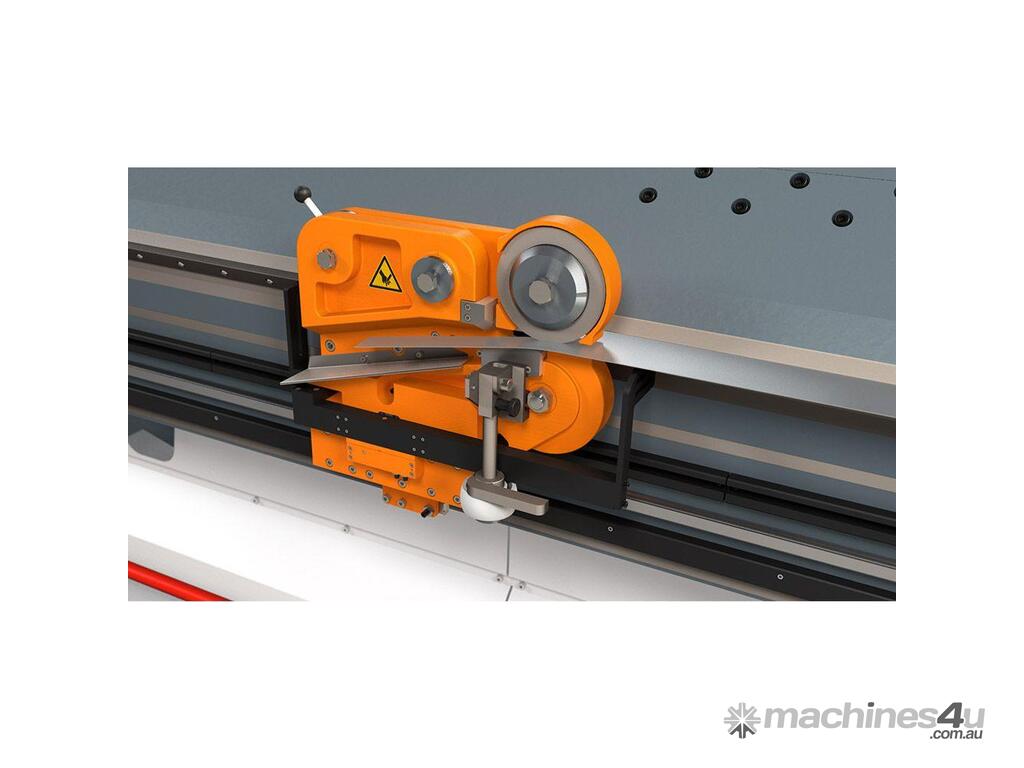

Electric Shear (1500mm/s)
Hyper-Speed Hydraulic System (30% faster than the standard system)
Oil Heater for Hydraulic Unit
Laser-Hardened Tooling
Automatic Material Thickness Adjustment

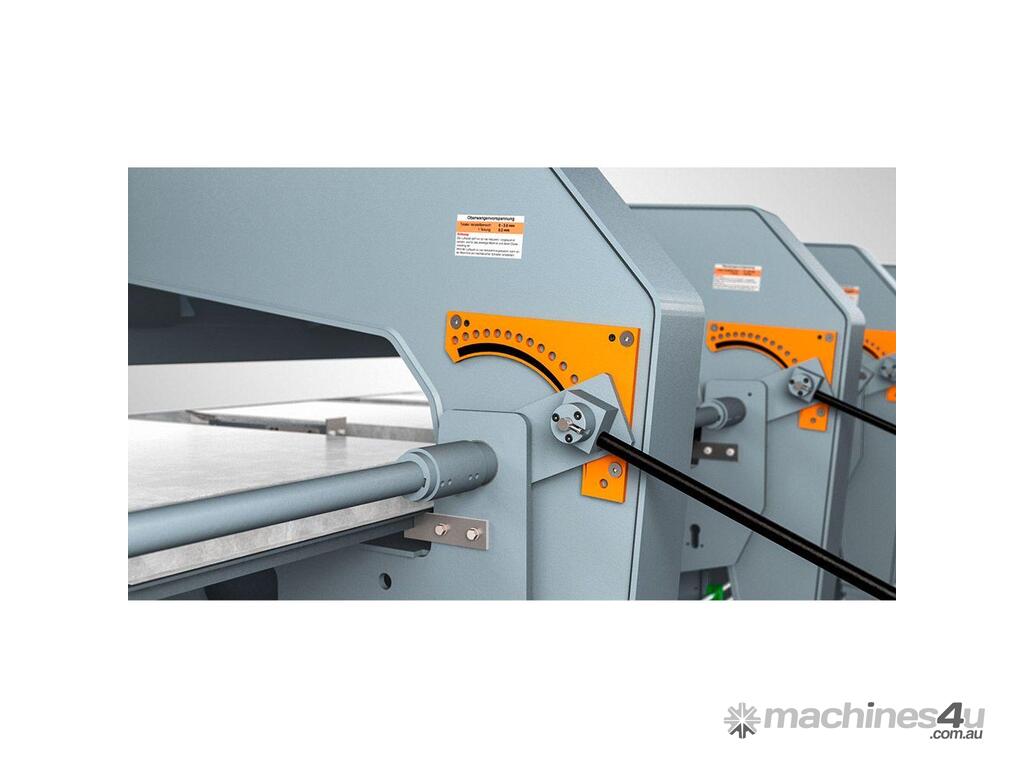

Upper Beam Pre-Tension

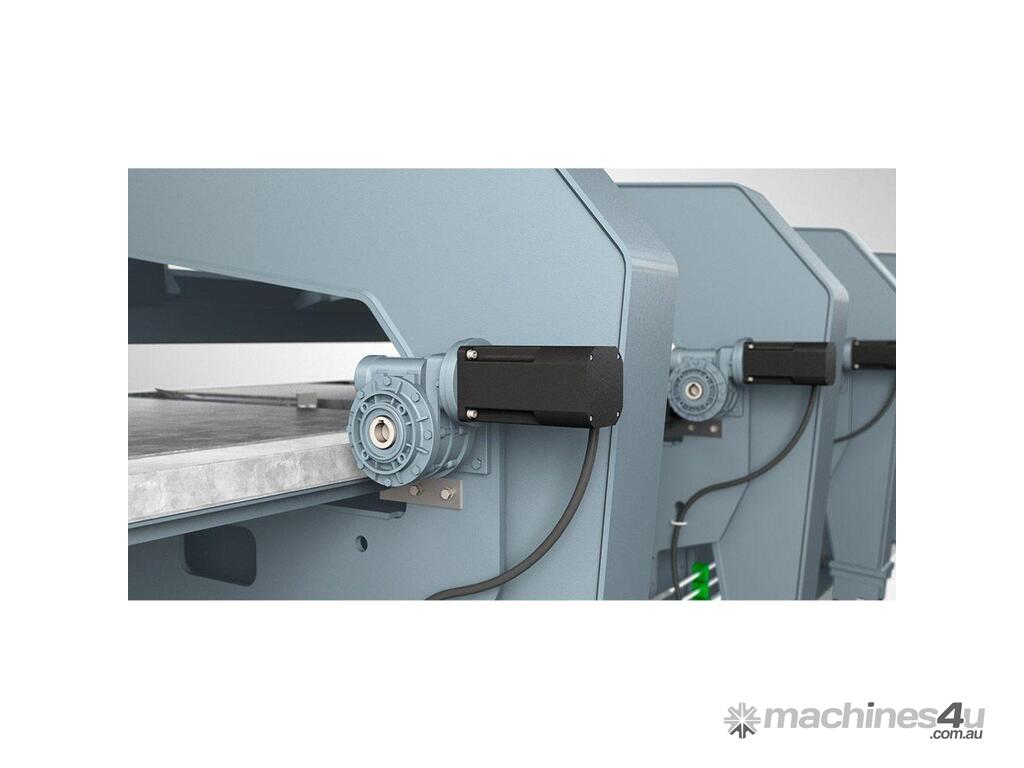

Automatic Dynamic Crowning
Dynamic Positioning

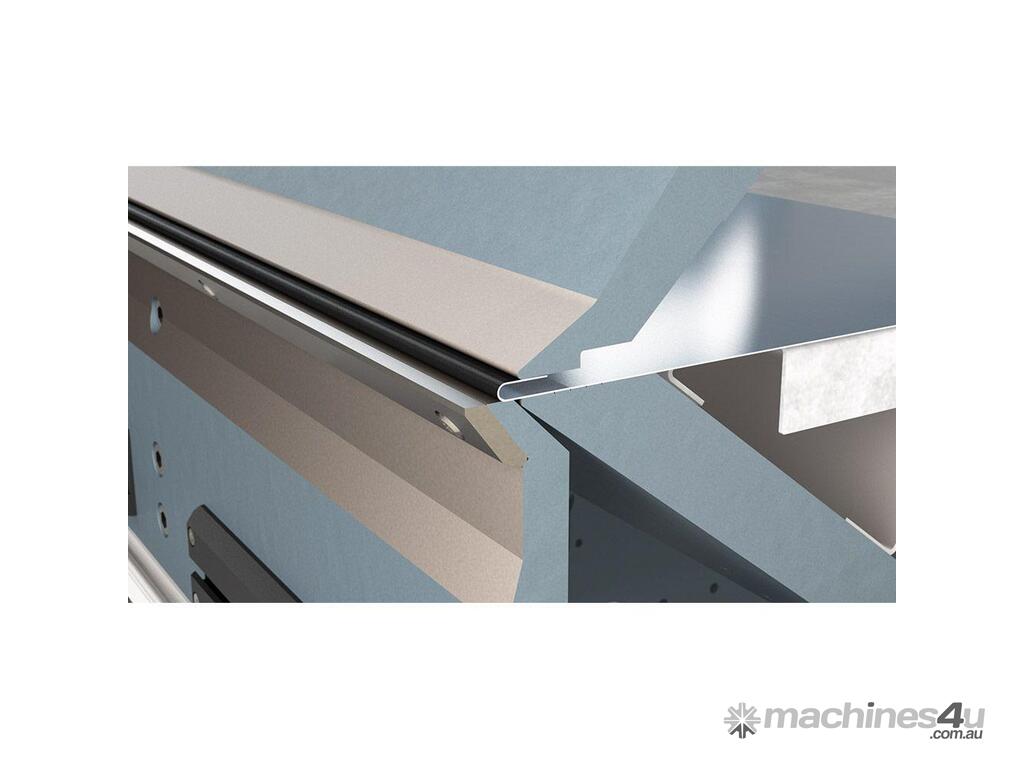

Hem Pre-Tension
Cutting Table
Manual Table Shears
Support Arms
