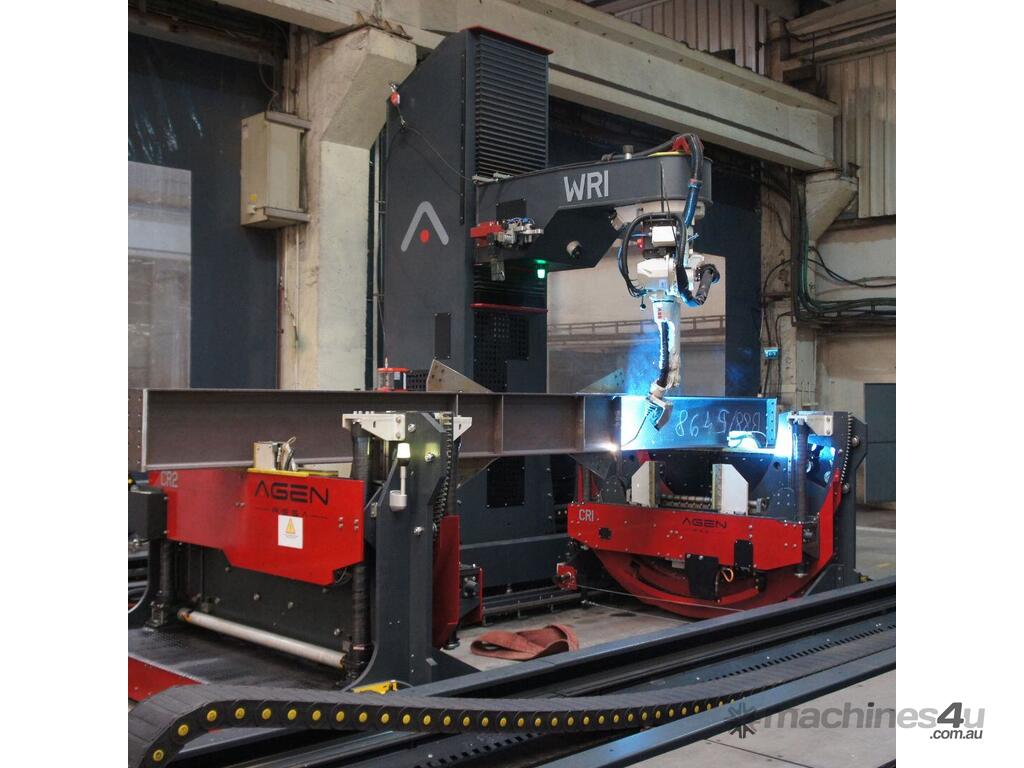

The AGEN RSSA Trio is the flagship model of the AGEN line, engineered for maximum throughput. By utilising a triple-robot configuration, the system allows for simultaneous fitting and dual-side welding. It is designed for 24/7 "lights-out" manufacturing, capable of handling massive structural profiles with zero human intervention during the assembly cycle.
Key Technical Specifications:

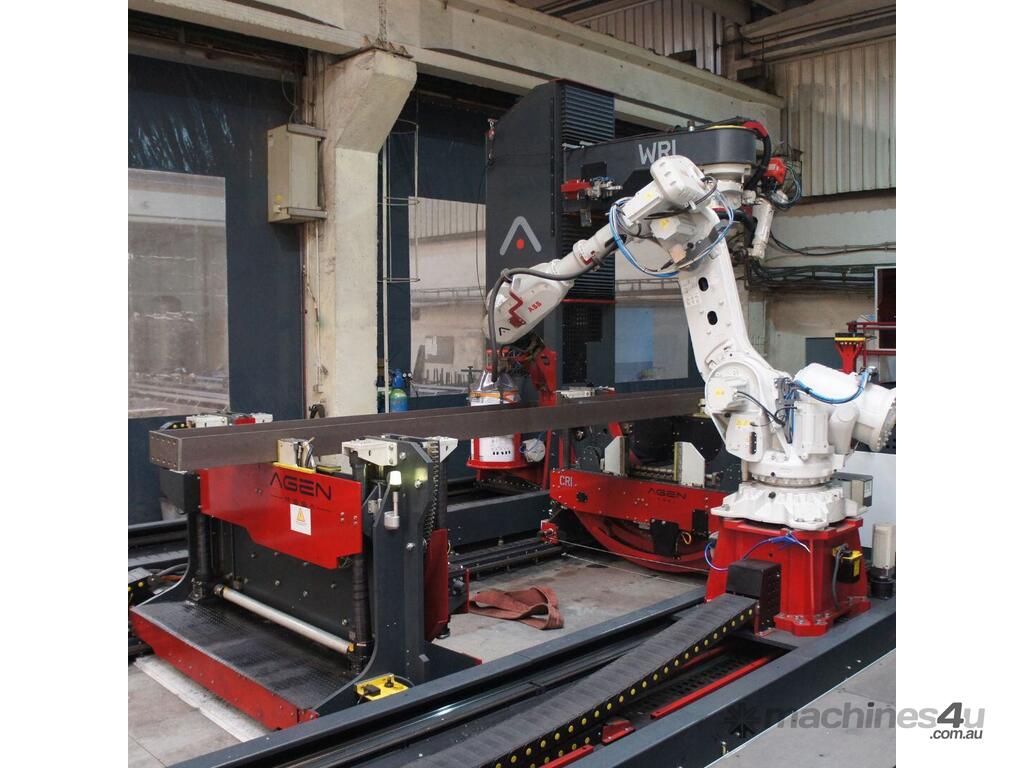

Configuration: 3 Industrial Robots (1x ABB Handling/Fitting, 2x ABB Welding)
Performance: Dual welding robots work simultaneously to cut cycle times by up to 50% vs. the Duo model.
Duty Classes: * LD (Light Duty): 4 Ton / 700mm profiles; HD (High Duty): 6 Ton / 1,100mm profiles; XD (Extra Duty): 6 Ton / 300kg Plate Handling Capacity.
Welding Power: 2x Fronius 500A Water-Cooled Systems (Sync-capable).
Track System: Dual 18-meter linear tracks for full-length beam access.
Precision: Total system tolerance of ± 1.50mm across 12+ meters.
Traceability: Integrated ESAB Weld Cloud for every single joint.
Top 5 "Trio" Advantages:

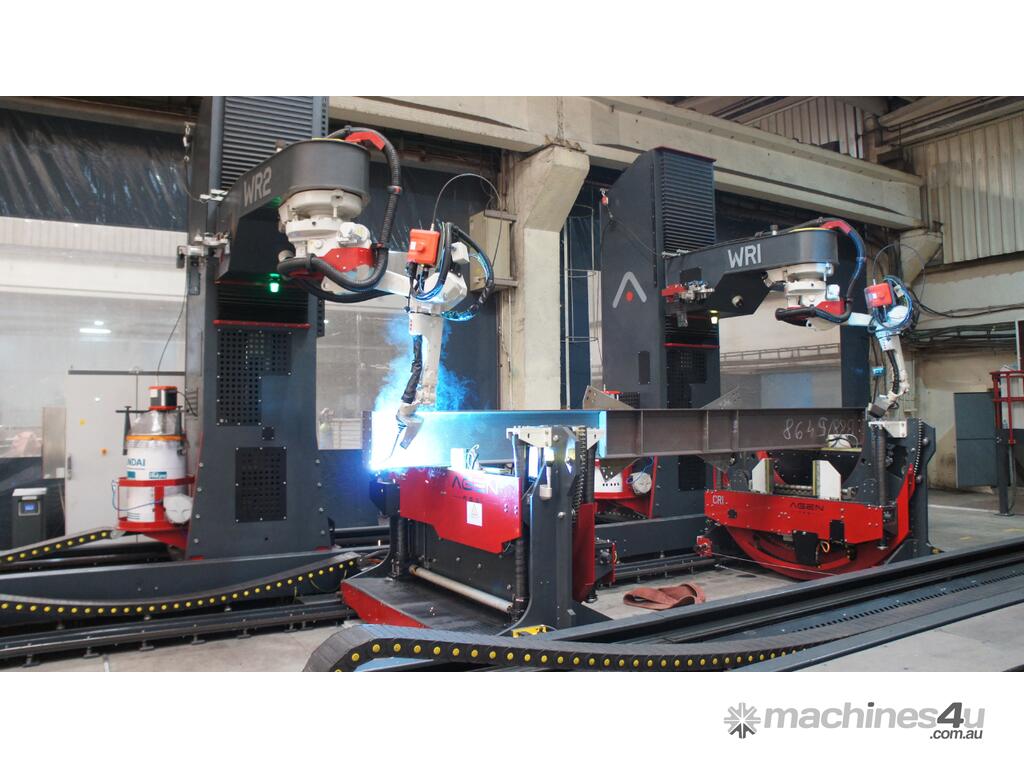

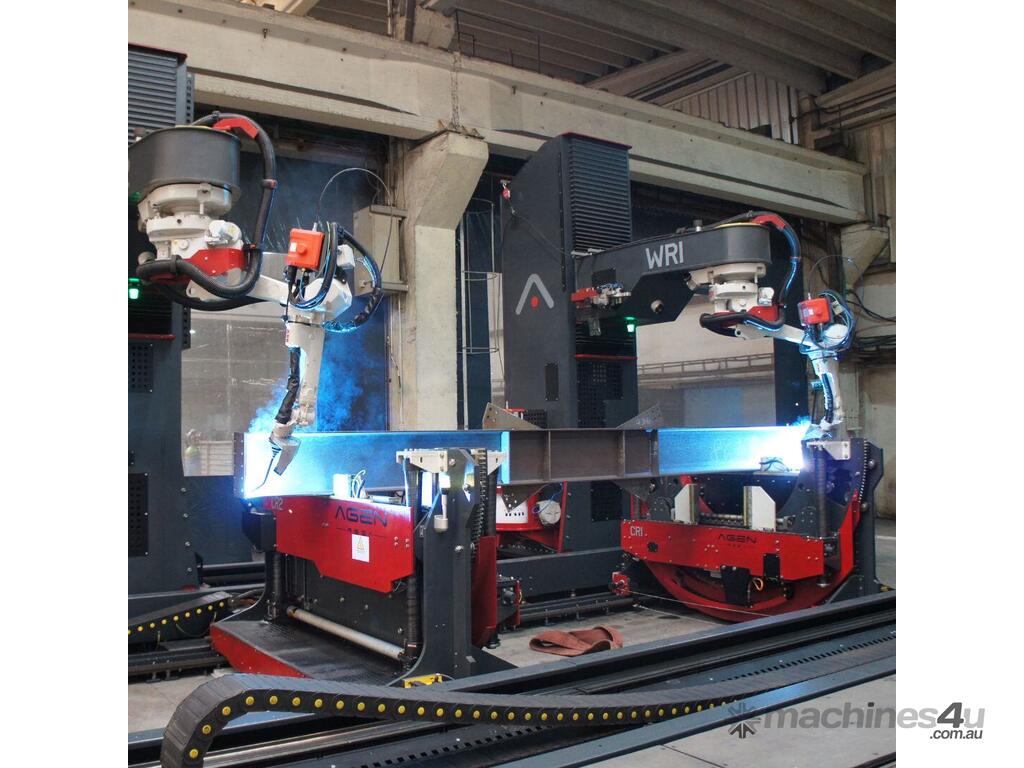

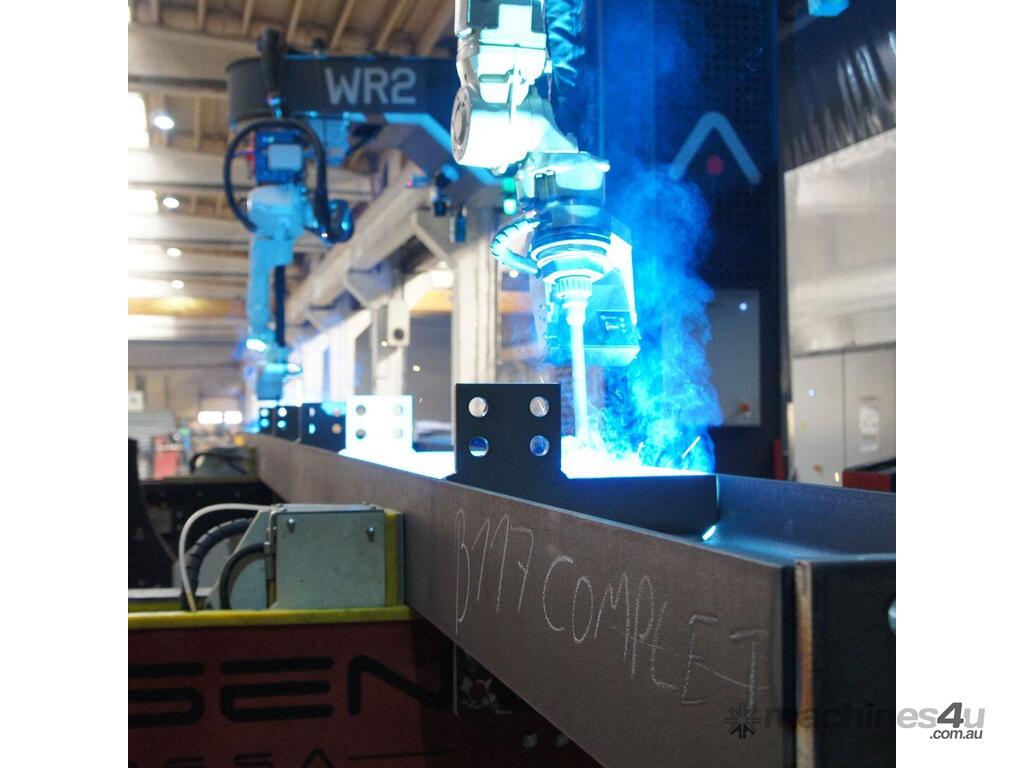

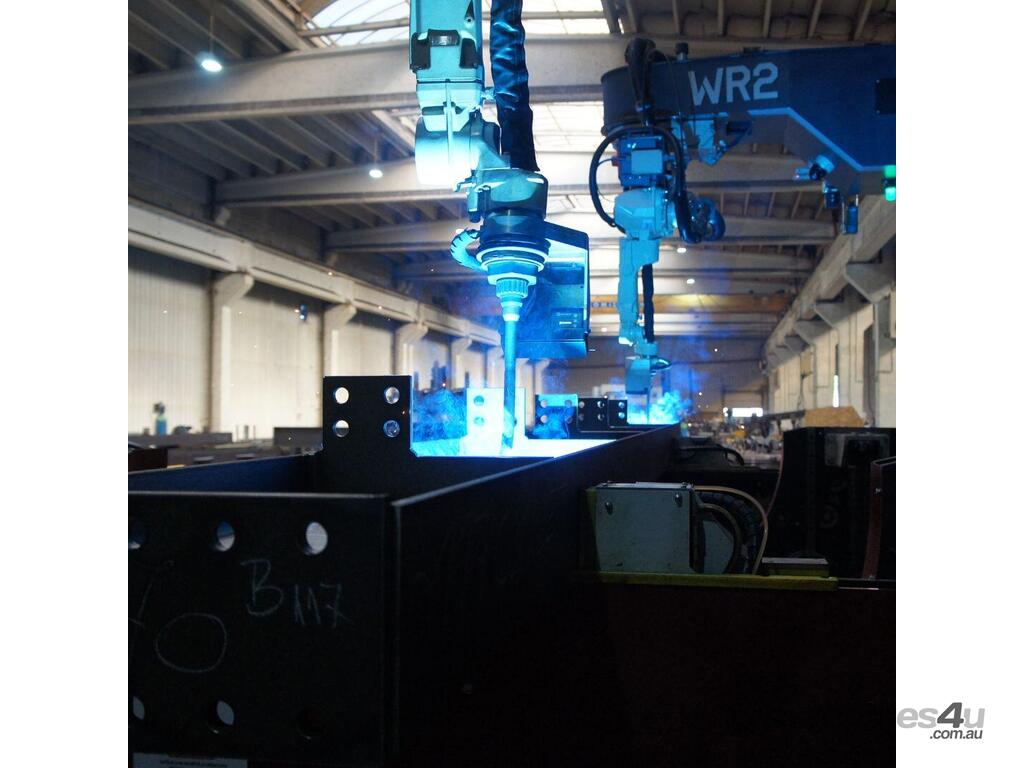

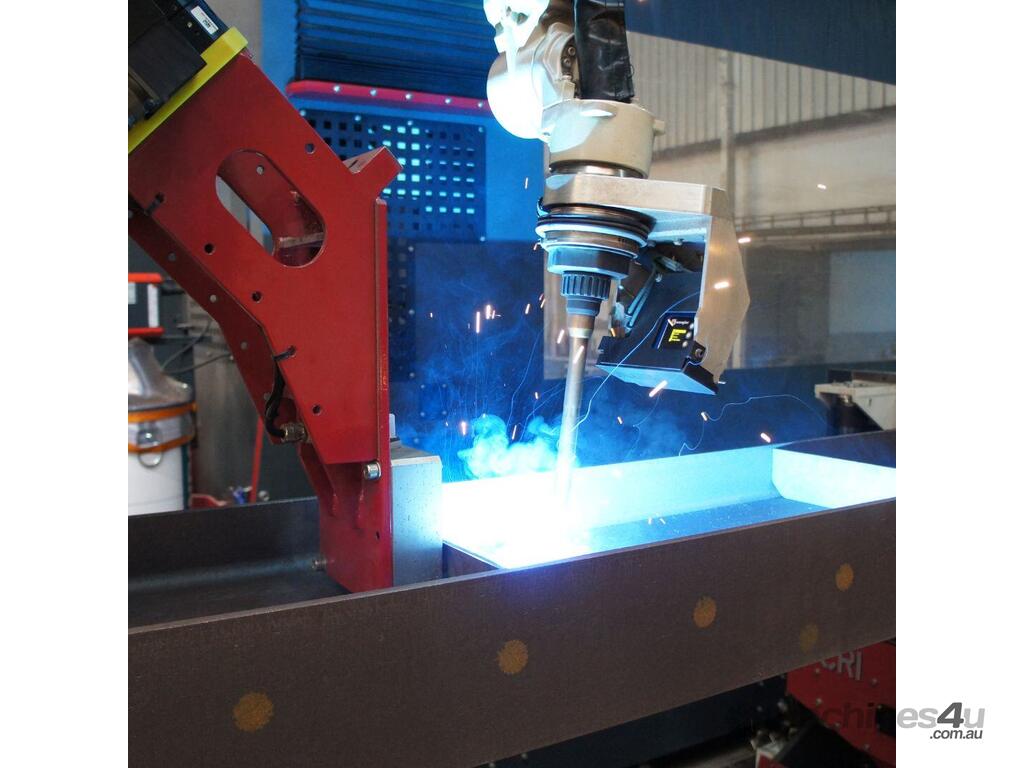

Parallel Welding: Two robots welding the same beam simultaneously doesn't just double speed—it balances heat distribution, reducing beam camber and distortion.

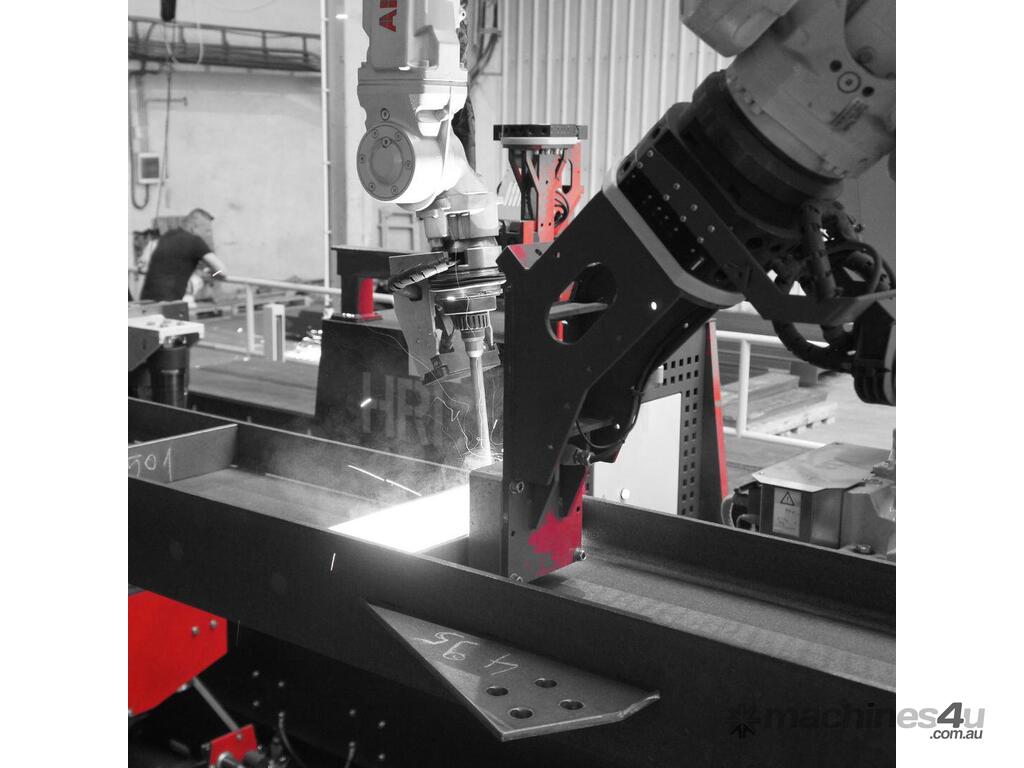

Zero-Idle Workflow: The fitting robot never waits. As soon as a part is tacked, the fit-robot moves to the next station while the two welders finish the heavy fillet work.
Massive Plate Capacity: The XD model’s 300kg handling capacity allows the Trio to assemble heavy bridge girders and skyscraper columns that usually require overhead cranes and teams of fitters.
True Autonomous Manufacturing: Fully integrated with AgenQ software, allowing "Tekla-to-Robot" workflow. No manual coding or "teaching" the robot paths.
Multi-Shift Reliability: Designed for 3-shift operation. While your competitors are sleeping, the Trio is churning out high-margin structural steel.
Contact Specialist Machinery Sales today for a technical consultation and to see how the AGEN RSSA Trio integrates into your current workflow.
