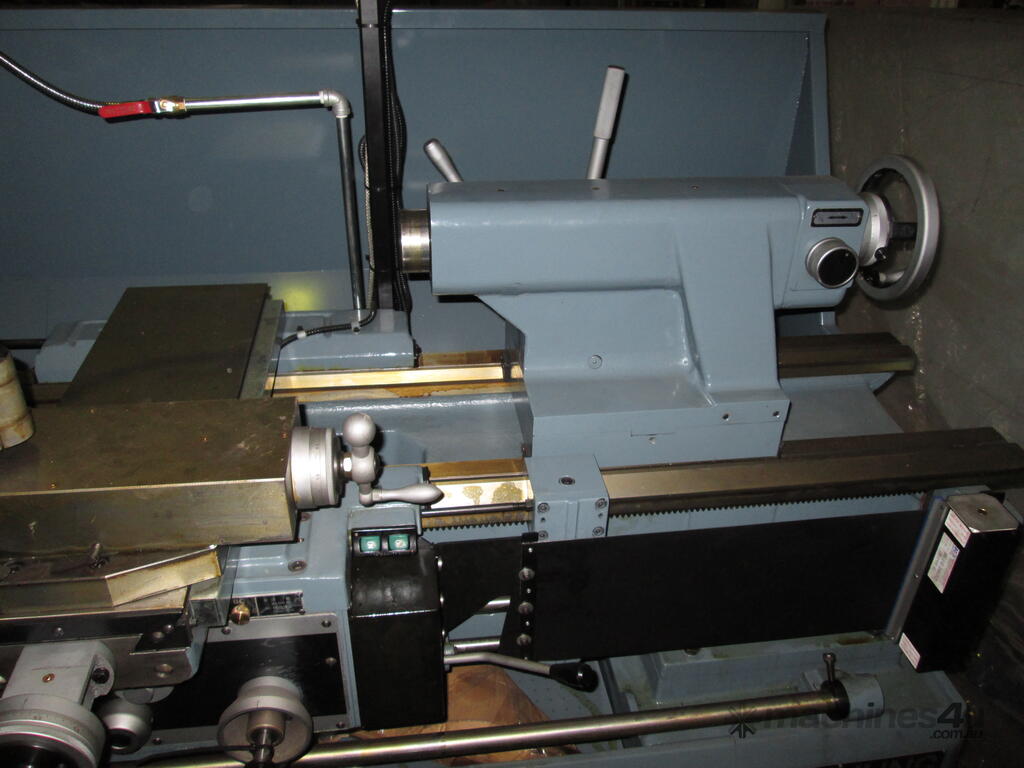

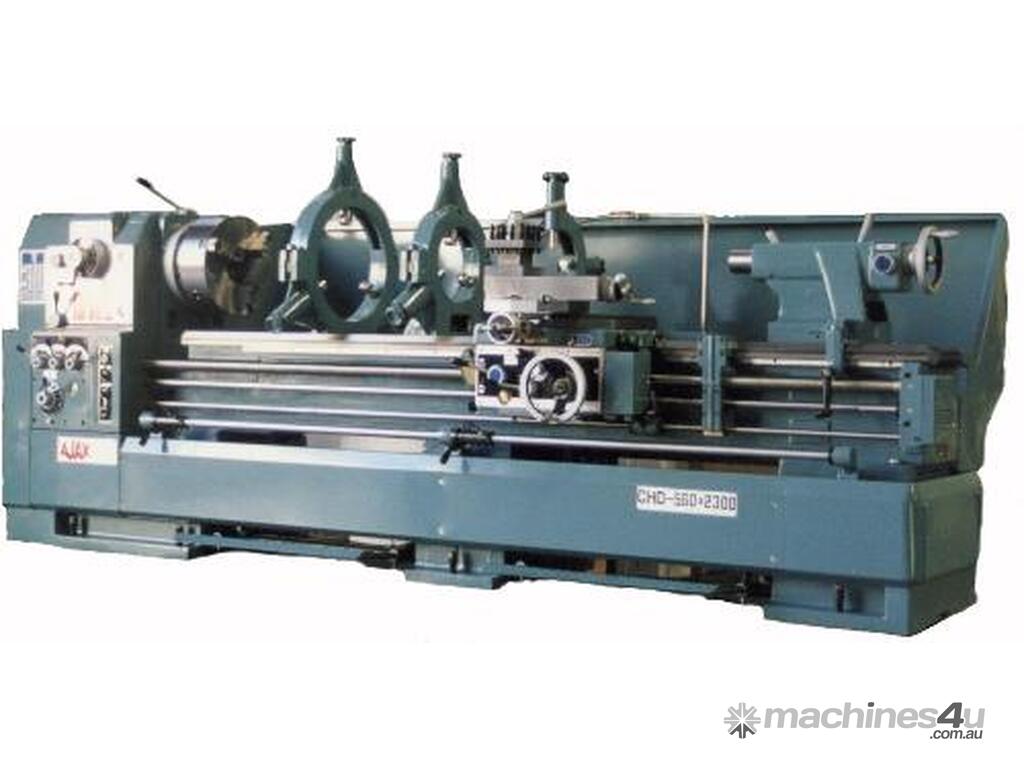

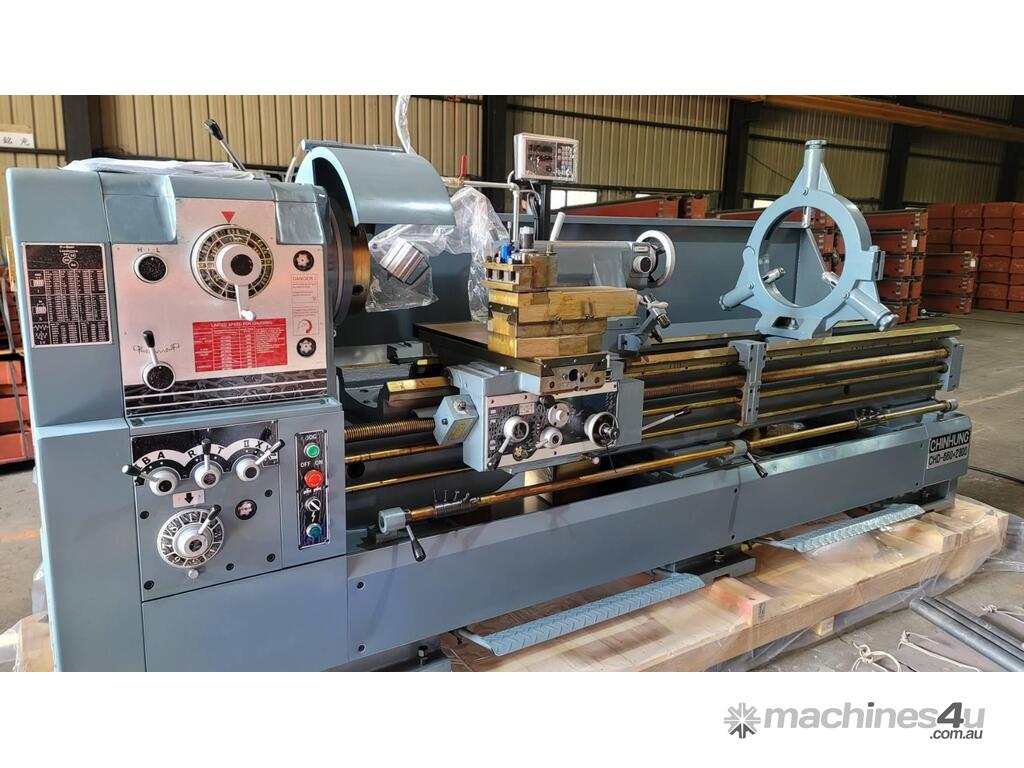

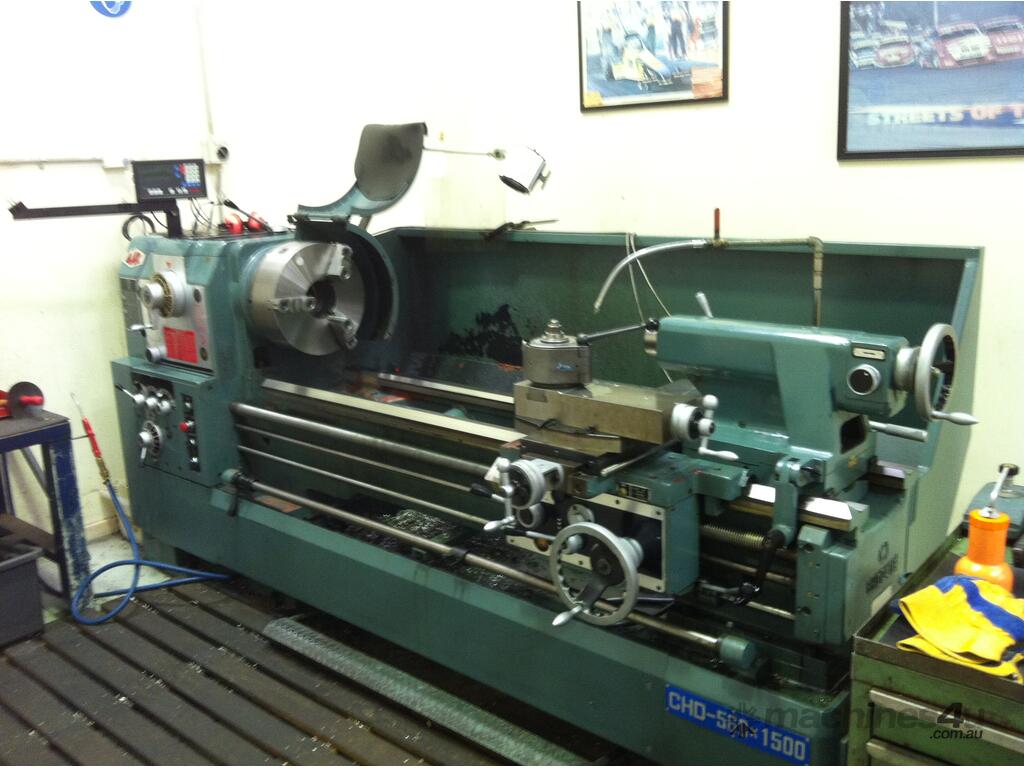

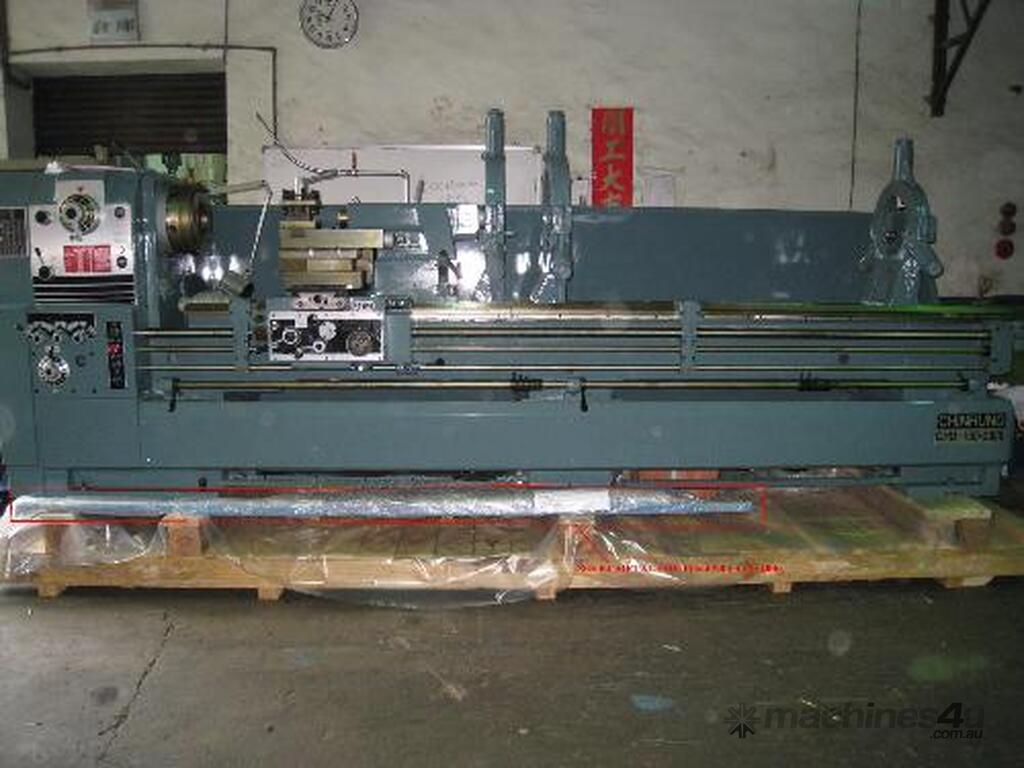

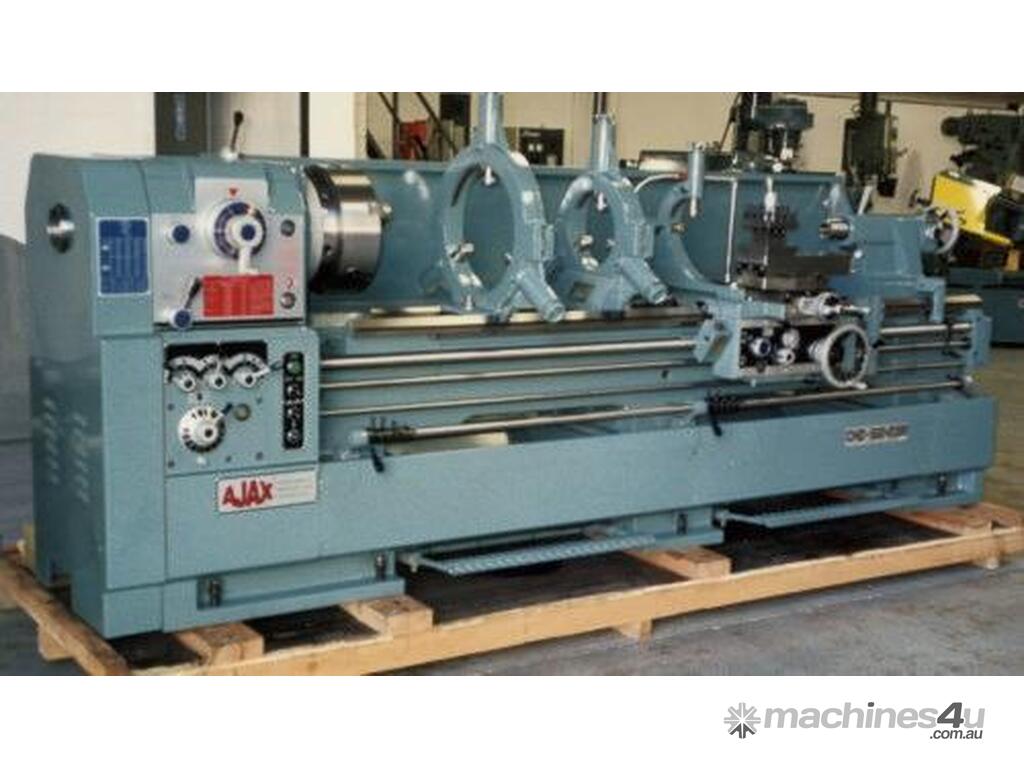

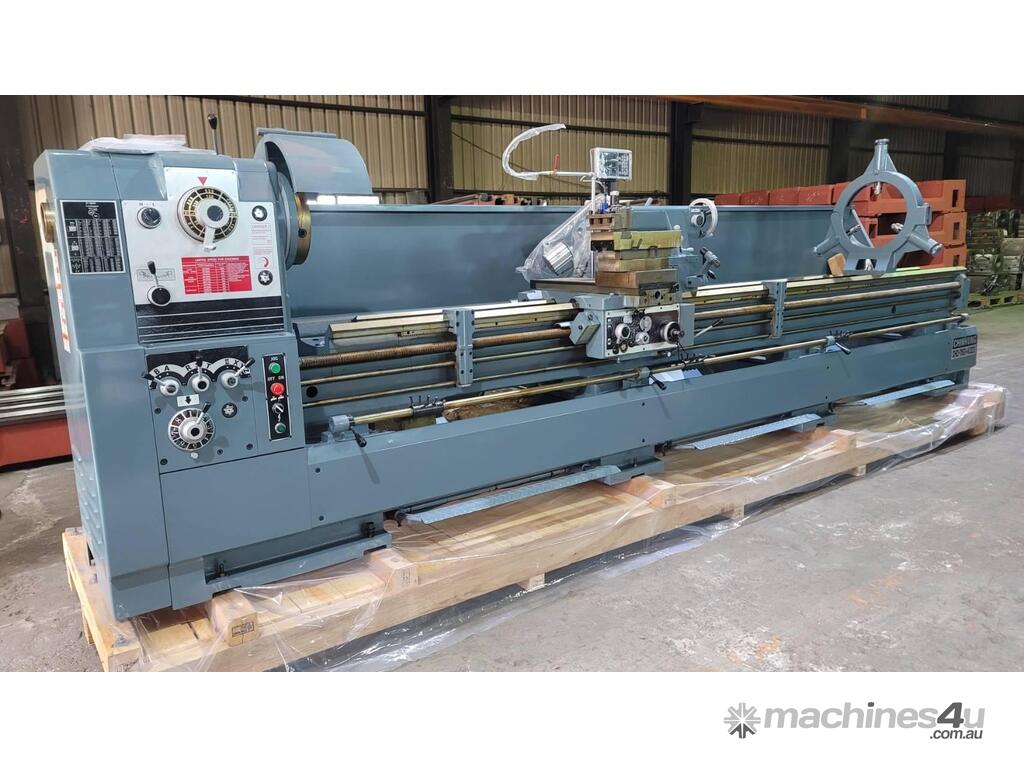

      AJAX Chin Hung 560mm Swing High Quality Lathes

      GRAFTON, NSW
      Play Video
      • +17
      Play Video
      Contact Seller
      Ask for Price
      Contact this seller for accurate pricing

      Finance Repayment Calculator

      Get a quote from our independent finance provider
      View Instant Finance Quote
      Specifications
      Condition:
      New
      Type of Sale:
      Quoted to Customer Spec
      Year:
      Not specified
      Make:
      Ajax
      Model:
      CHD-560
      Member Since: Jun 2009
      Gold Member
      Listings: 386
      Sellers stock ID:
      JP015

      Description

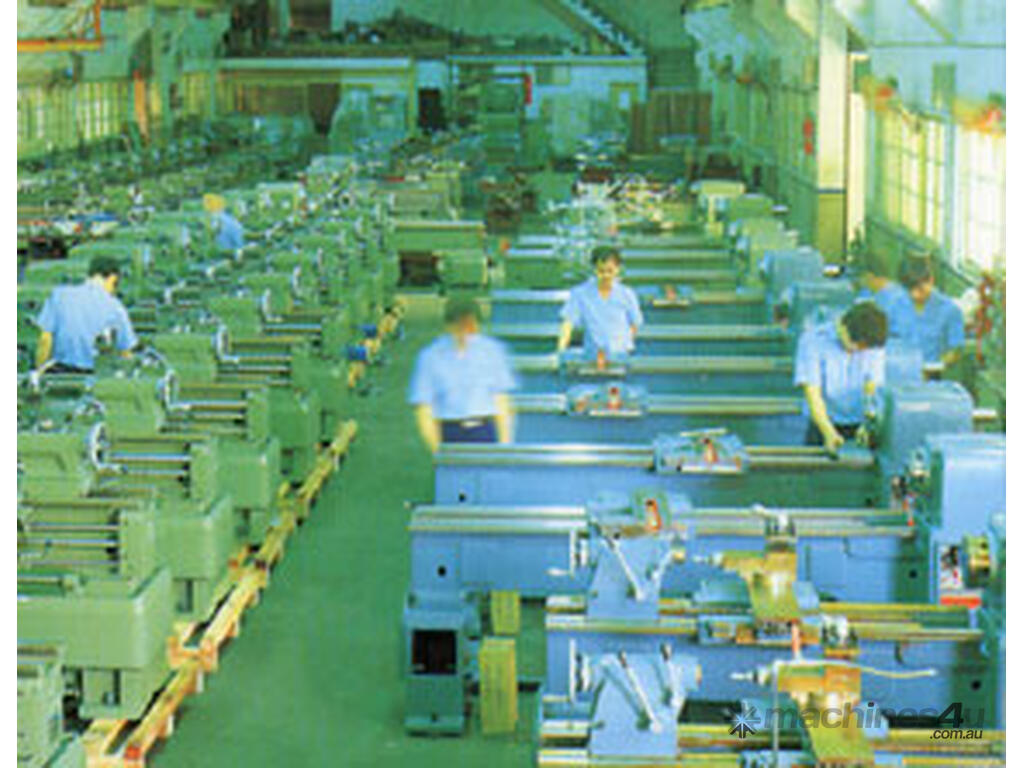

      Chin Hung Machinery of Taiwan was established in 1968 and has manufactured the AJAX Kinwa range of metal working lathes since 1973.

      Imported into Australia for over 30 years and there are now hundreds of these high quality engine lathes in operation in precision engineering shops, tool makers, training facilities and Government and scientific organizations around Australia.

      AJAX and KINWA offer a superior level of quality and finish to many other comparable lathes on the market.

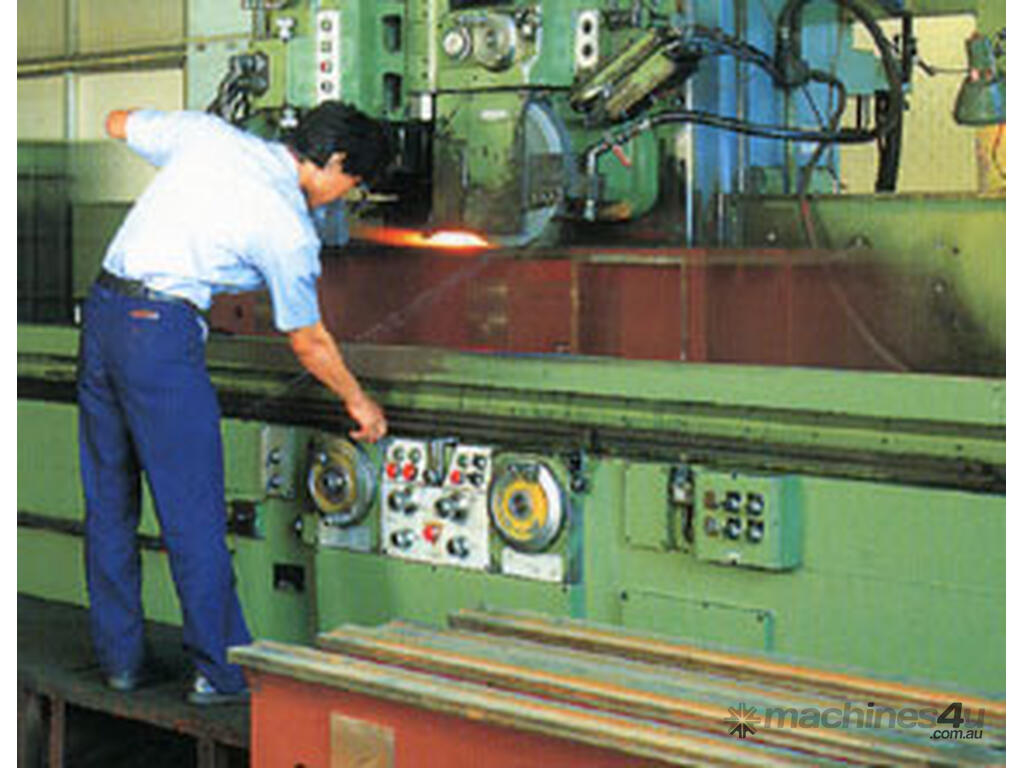

      Manufactured in Taiwan under strict adherence to ISO9001 and CE Standards, the AJAX provides a very high level of accuracy, performance, finish and longevity at a realistic price.

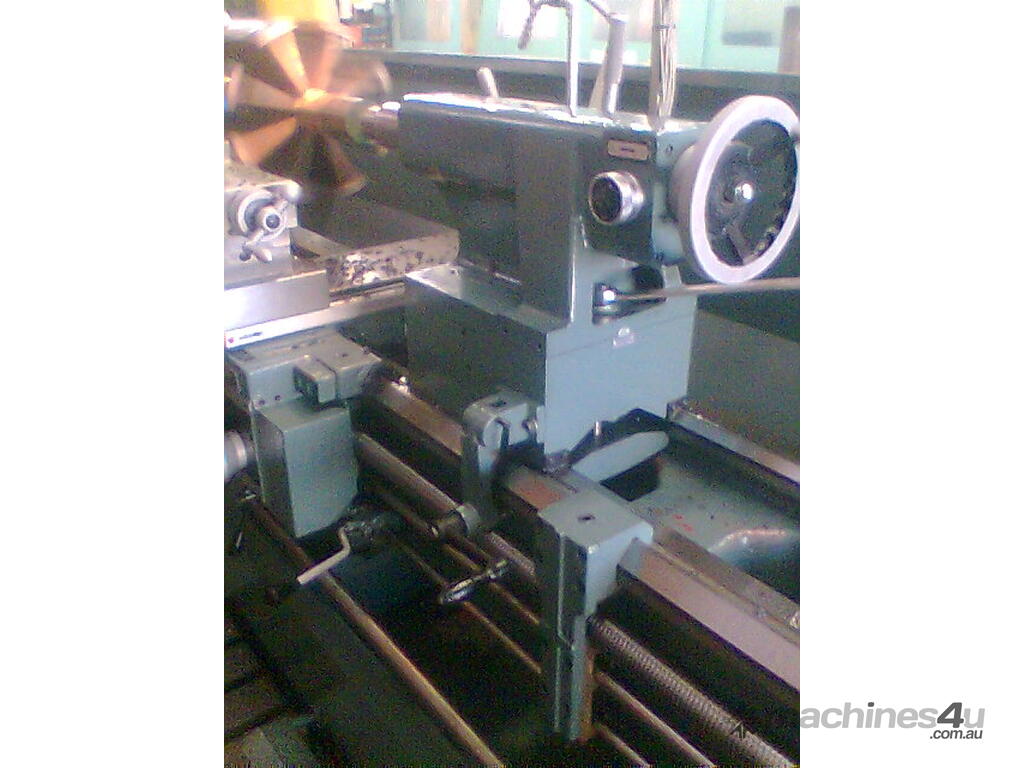

      The CHD560 offers usable features like 105mm spindle bore, 2 fixed steady rests, rapid traverse to the saddle and large direct mount D1-11 chucks (380mm 3-jaw & 500mm 4-jaw).

      If you are looking for a heavy duty precision centre lathe then you must consider the AJAX Chin Hung.

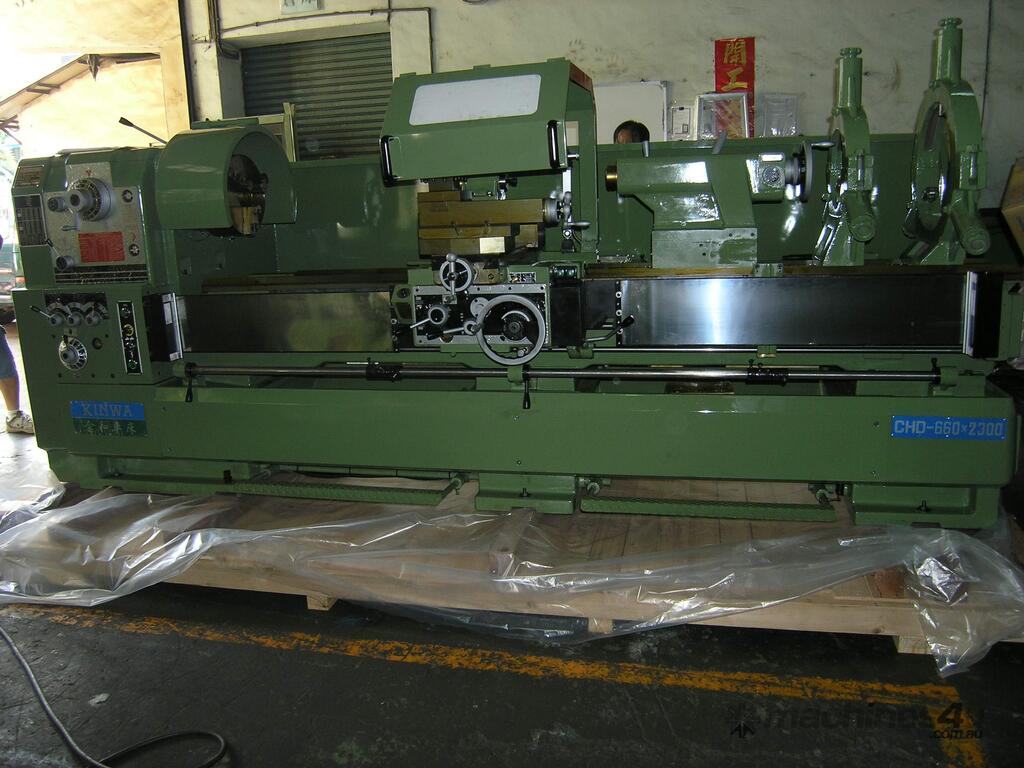

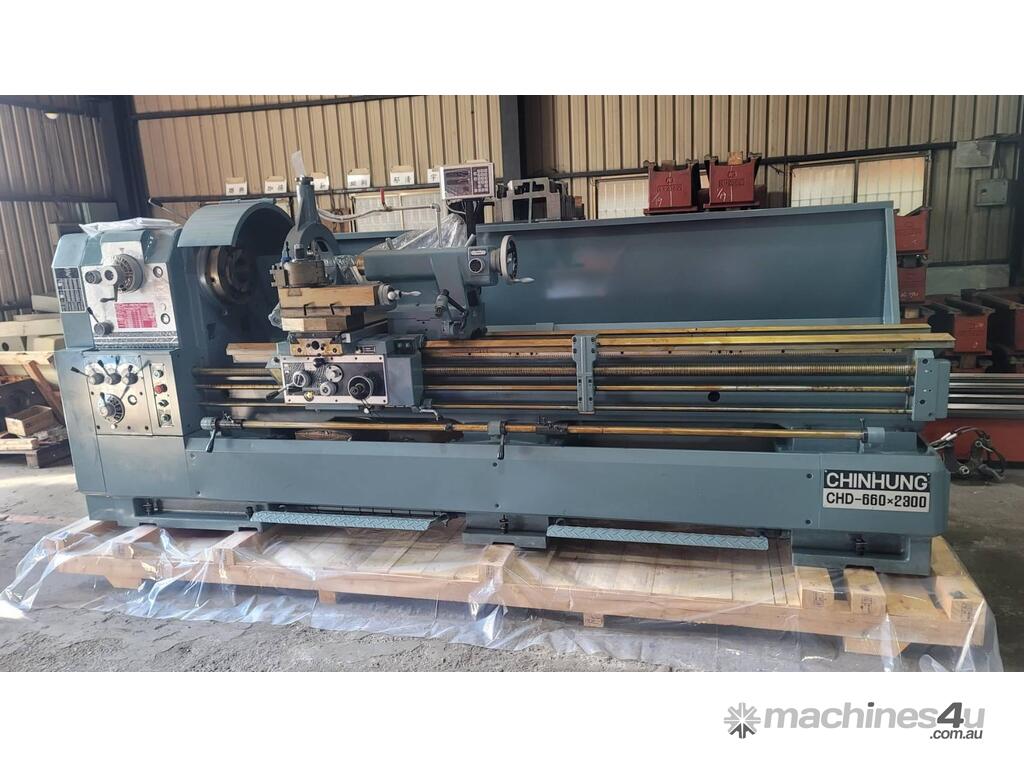

      Also available in 660mm and 760mm swing.

      CHD 560 Capacity:
      Swing over bed 560mm
      Swing over cross slide 340mm
      Swing in gap 797mm
      Gap in front of face plate 270mm
      Width of bed 400mm
      Compound slide travel 242mm
      Stroke of cross slide 400mm

      Spindle:
      Spindle Bore 104mm
      Spindle type D1-11”
      Taper of spindle & centre MT7 x MT5
      Spindle speeds (rpm

      Thread & Feeds:
      Number of feeds 36
      Range of longitudinal feeds 0.037-1.04mm per rev (P=6mm)
      Range of cross feeds ½ x longitudinal feeds
      Leadscrew diameter x pitch 45 x 6mm
      Range of inch threads (TPI
      Range of metric threads (39) 0.2 -14mm pitch

      Tailstock:
      Quill stroke 178mm
      Quill diameter 75mm
      Quill taper MT No.5

      Motor:
      Main drive motor 15HP
      Coolant pump motor 1/8HP

      Delivery, service and support Australia wide. CNC Machinery Sales has a highly skilled team of in-house Service Engineers servicing all States and Territories as well as our international clients.

      We also provide machinery break down repairs, scheduled maintenance, machine relocation and operator training in urban and remote locations Australia wide and internationally.

      Please call for more information.
      Read more

      Share
      • Facebook
      • Email a Friend
      Share this listing
      Facebook
      Twitter
      Email
      Copy Link
      Print
      Report

      Finance Repayment Calculator

      Get a quote from our independent finance provider
      View Instant Finance Quote
      Message Seller
      Contact Seller ******2622 Show number
      For convenience revealing this phone number will share your contact details with each other
      CNC Machinery Sales Australia Pty Ltd
      Gold | Member Since: Jun 2009
      Show Phone Number
      Email Seller
      Location & Trading Hours
      CNC Machinery Sales Australia Pty Ltd
      Gold | Member Since: Jun 2009
      CNC Machinery Sales Australia est. 1989 has grown to one of the largest suppliers of conventional and CNC machine tools in Australia. One central number 1300 262 622 will connect you with our technical sales and national in-house service team. We provide a comprehensive and competitive range of: - CNC Machinery - Conventional Machinery - Portable Machine Tools - Sheet Metal and Fabrication Equipment - Accessories and Tooling - Spare Parts - National Machine Tool Repairs & Maintenance
      Read More
      Buyers Choice Award winner
      Visit Website
      View (386) Listings

      Location

      Sales Dept in your State

      24 Swallows Rd,Grafton,2460

      More from this seller
      2013 Doosan Puma-400LB CNC Lathe
      7 1
      2013 Doosan Puma-400LB CNC Lathe

      Used POA

      Doosan Puma-400LB CNC Lathe Year of manufacture 2013 Max cutting diameter 550mm ....

      NSW

      View
      Stock Special 2500 x 3000mm AJAX CNC Lathe
      4
      Stock Special 2500 x 3000mm AJAX CNC Lathe

      New POA

      AJAX 4 Guideway Heavy Duty CNC Lathe Swing over cross-slide 1940mm Full-length C....

      NSW

      View
      Quoted to Customer Spec
      Large Shaft Capacity Five Bed Way CNC Lathes
      20 1
      Large Shaft Capacity Five Bed Way CNC Lathes

      New POA

      Special bed design to keep the rigidity of flat bed CNC lathe with the no interf....

      NSW

      View
      2018 Doosan Puma GT3100L CNC Lathe
      11 1
      2018 Doosan Puma GT3100L CNC Lathe

      Used POA

      Doosan Puma GT3100L CNC Lathe Date of manufacture February 2018 Cutting diameter....

      NSW

      View
      Quoted to Customer Spec
      AJAX 460mm x 1400mm Conversational CNC Lathe
      14 1
      AJAX 460mm x 1400mm Conversational CNC Lathe

      New POA

      AJAX 460mm swing Teach In style CNC lathes offers the very best combination of t....

      NSW

      View
      AJAX 360mm Swing Flat Bed Teach-In CNC Lathes
      6 1
      AJAX 360mm Swing Flat Bed Teach-In CNC Lathes

      New POA

      AJAX FEL1440ENC 360mm swing Taiwanese Teach In style CNC lathes offer the very b....

      NSW

      View
      AJAX 510mm Swing Taiwanese CNC Lathes
      4
      AJAX 510mm Swing Taiwanese CNC Lathes

      New POA

      AJAX 510mm Teach In style CNC lathes offer the very best combination of the powe....

      NSW

      View
      KINWA Heavy Duty CNC Lathes 1.5M up to 2.5M swing
      17 1
      KINWA Heavy Duty CNC Lathes 1.5M up to 2.5M swing

      New POA

      KINWA CL78 Heavy Duty CNC Lathes with 1500mm swing standard up to 2500mm swing o....

      NSW

      View
      Kinwa   Gang Type CNC Lathes
      5 1
      Kinwa Gang Type CNC Lathes

      New POA

      KINWA CL Series Gang Type CNC Lathes 320mm or 420mm swing 150mm or 350mm turning....

      NSW

      View
      2011 Hyunda Wia SKT-400LC CNC Lathe
      5
      2011 Hyunda Wia SKT-400LC CNC Lathe

      Used POA

      Hyunda Wia SKT-400LC CNC Lathe Date of manufacture June 2011 Max cutting diamete....

      NSW

      View
      Quoted to Customer Spec
      900 swing High Quality KINWA CNC Lathes
      20 1
      900 swing High Quality KINWA CNC Lathes

      New POA

      KINWA Chin Hung CL58 CNC Lathes with 900mm swing over the bed optional 1000mm , ....

      NSW

      View
      2012 Hankook Protec-13N x 3000 CNC Lathe
      19 1
      2012 Hankook Protec-13N x 3000 CNC Lathe

      Used POA

      Hankook Protec-13N x 3000 CNC Lathe Year of manufacture 2012 Swing over bed 1300....

      NSW

      View
      2001 Hankook Dynaturn 1700mm x 8000mm CNC Lathe
      5
      2001 Hankook Dynaturn 1700mm x 8000mm CNC Lathe

      Used POA

      Hankook Dynaturn 1700mm x 8000mm CNC Lathe Year of manufacture 2001 Swing over b....

      NSW

      View
      Refurbished WMW Niles 2M ×10M Heavy Duty CNC Lathe
      10
      Refurbished WMW Niles 2M ×10M Heavy Duty CNC Lathe

      Used POA

      Refurbished WMW Niles 2M 10M Heavy Duty CNC Lathe Swing over the bed 2,000mm Swi....

      NSW

      View
      2008 Hwacheon MEGA 100x5000 CNC Lathe
      7
      2008 Hwacheon MEGA 100x5000 CNC Lathe

      Used POA

      Hwacheon MEGA 100x5000 CNC Lathe Year of manufacture 2008 Swing over bed 1080mm ....

      NSW

      View
      2010 Hwacheon MEGA 100x6000 CNC Lathe
      5
      2010 Hwacheon MEGA 100x6000 CNC Lathe

      Used POA

      Hwacheon MEGA 100x6000 CNC Lathe Year of manufacture 2010 Swing over bed 1080mm ....

      NSW

      View
      Hercules 1.8 x 6M Heavy Duty CNC Lathe
      8 1
      Hercules 1.8 x 6M Heavy Duty CNC Lathe

      Used POA

      Hercules 1.8 x 6M Heavy Duty CNC Lathe Year of manufacture 1980s, retrofitted wi....

      NSW

      View
      SNK (Japan) SR-250NC & BTA, CNC Lathe and BTA Deep Hole Machine
      14
      SNK (Japan) SR-250NC & BTA, CNC Lathe and BTA Deep Hole Machine

      Used POA

      SNK Japan SR-250NC BTA, CNC Lathe and BTA Deep Hole Machine Year of manufacture ....

      NSW

      View
      Visit Showroom
      Contact Seller
      Ask for Price
      Contact this seller for accurate pricing

      Finance Repayment Calculator

      Get a quote from our independent finance provider
      View Instant Finance Quote
      Message Seller
      Contact Seller
      ******2622
      Show number
      For convenience revealing this phone number will share your contact details with each other
      CNC Machinery Sales Australia Pty Ltd : 5, 24 Swallow Road, GRAFTON, NSW
      PDF's are only available to download for registered users.

      If you continue, Your name and phone number will be provided to the seller for a follow up call to discuss your requirements.

      Do you agree?

      Contact Seller

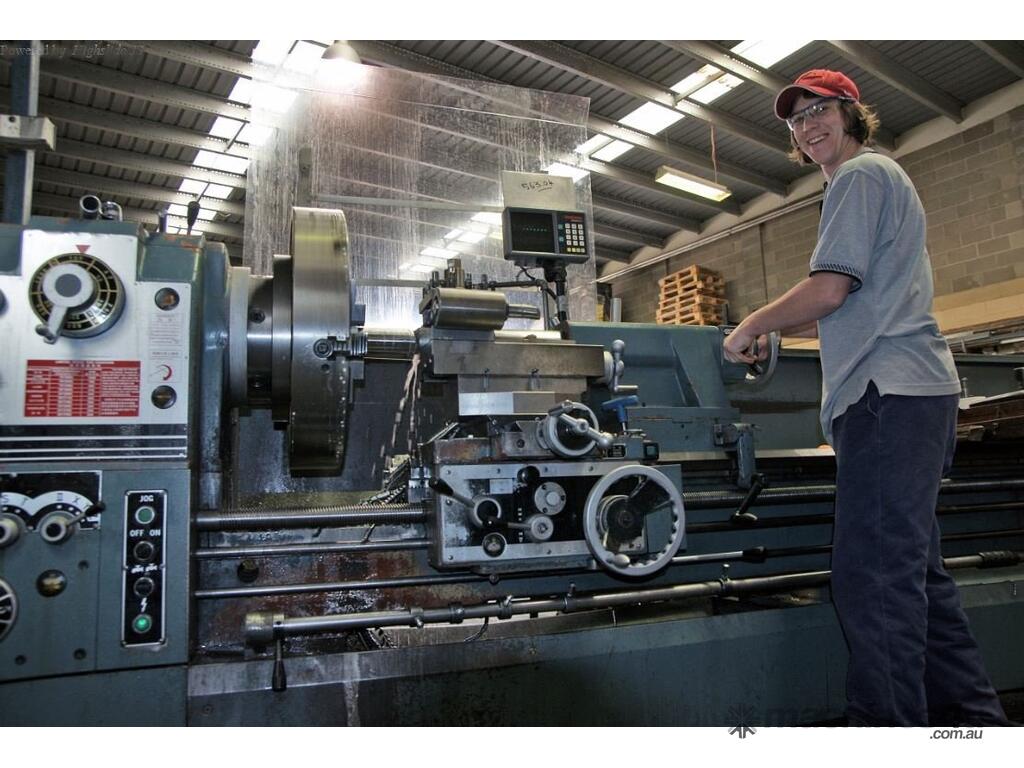

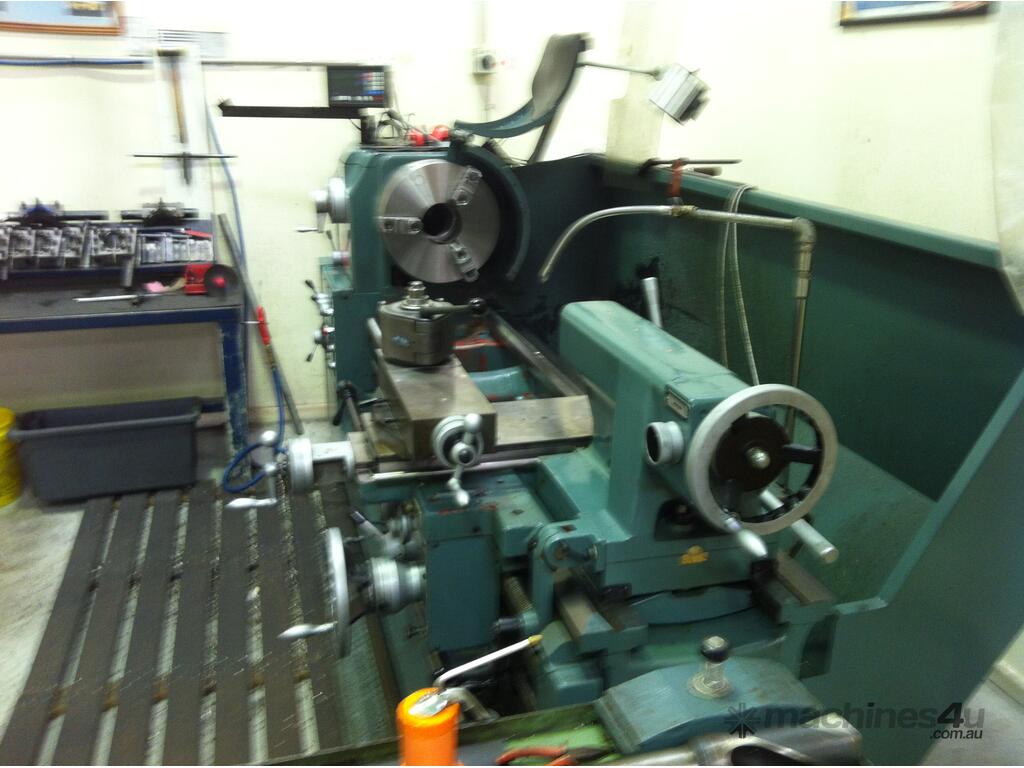

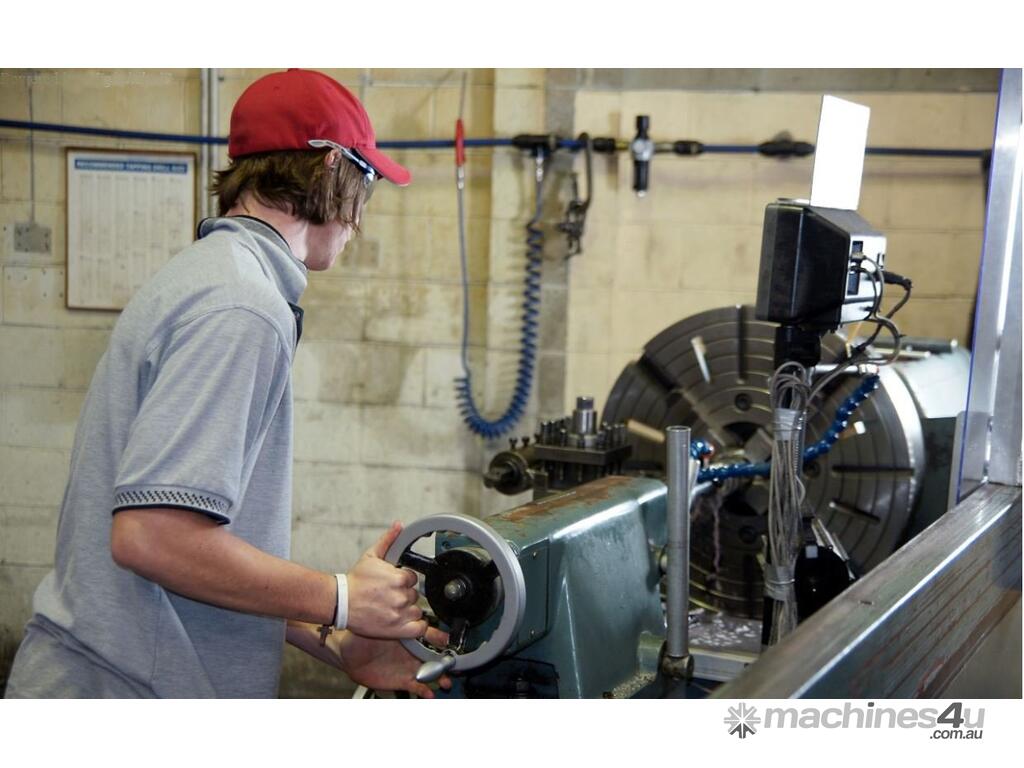

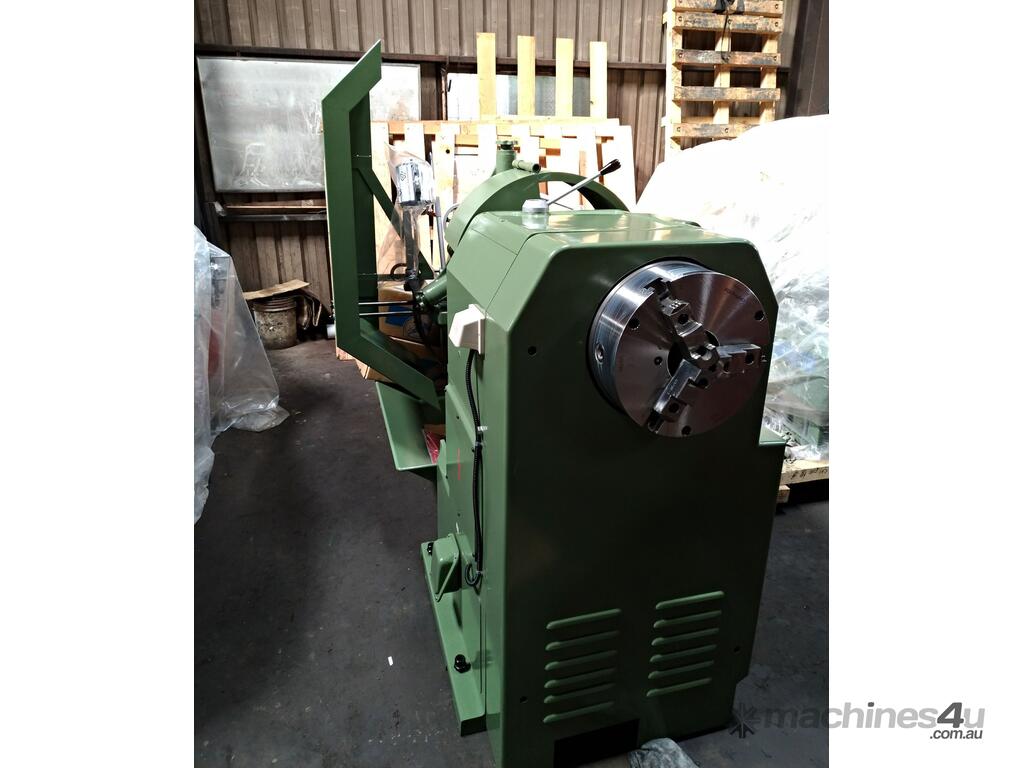

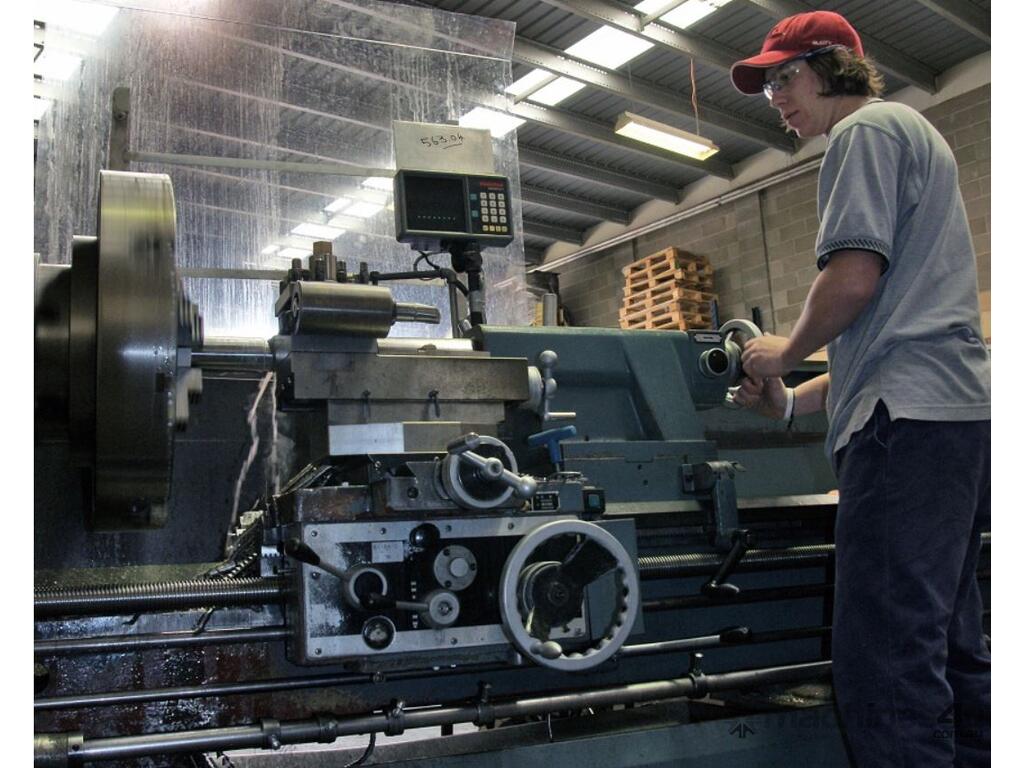

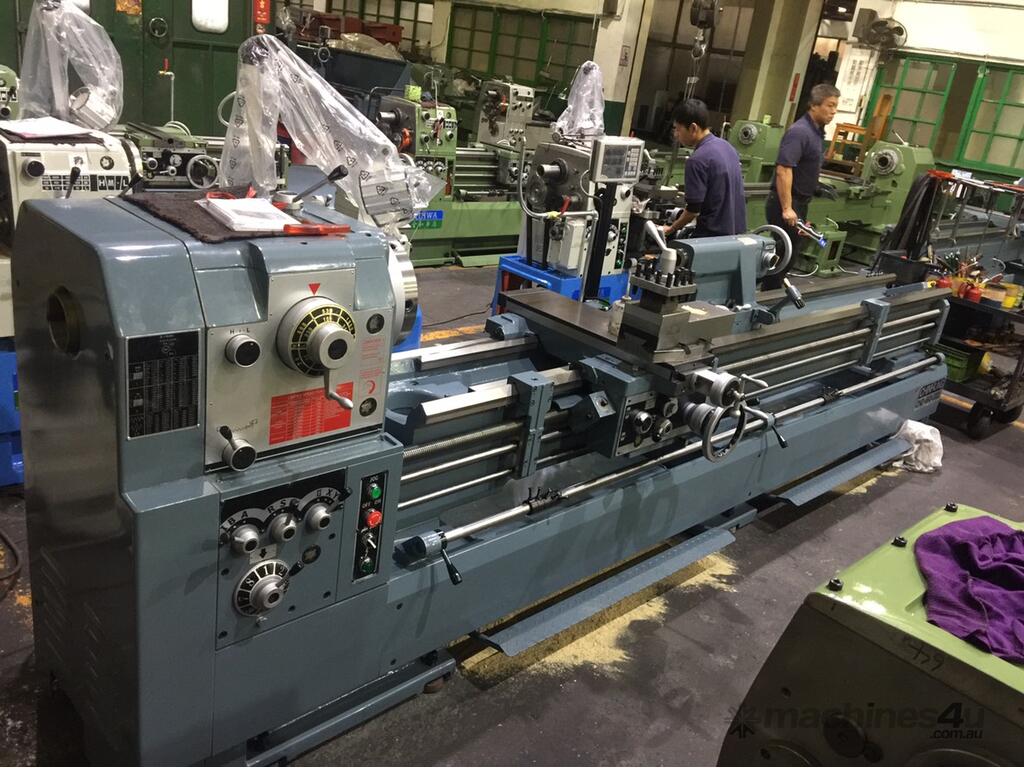

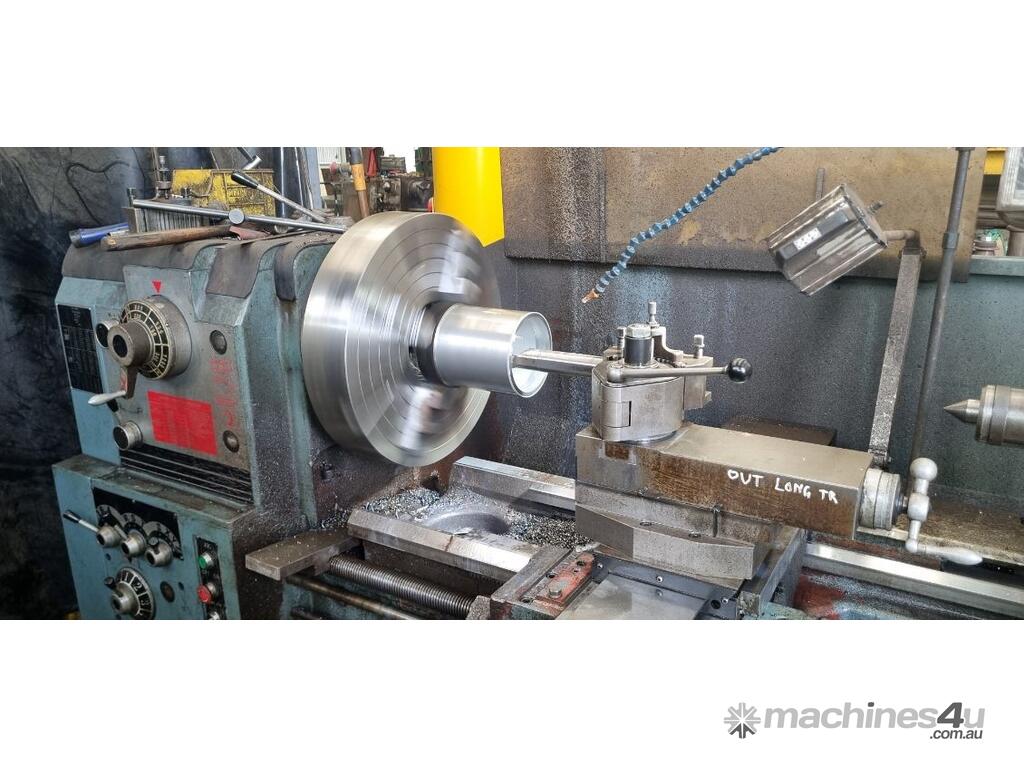

      AJAX Chin Hung 560mm Swing High Quality Lathes :      Ask for Price

      Call
      Email
      Weblink Terms and Conditions

      If you continue, Your name and phone number will be provided to the seller for a follow up call to discuss your requirements.

      Do you agree?

      Message Seller
      Subscribe to updates
      www.machines4u.com.au

      Receive Exclusive Deals & Competitions

      Join over 190,000+ members receiving exclusive deals, offers and competitions.

      Your email will not be shared or sold.

      About

      • Login | Register
      • Events
      • About Us
      • Testimonials
      • Success Stories

      Services

      • Buy Machinery
      • Hire Machinery
      • Sell Machinery
      • Dealer Pricing
      • Big Orange Report
      • Big Orange Daily

      Support

      • Seller Support
      • Help
      Rated 4.5 by 316 Customer Reviews

      Testimonials

      "Extremely pleased with response to ad, well exposed site."

      - John Feil

      Post an AdPost an Ad

      No Commissions

      • Terms of use
      • Privacy Policy
      • Sitemap
      • Machinemap
      •   ©2021
      To view this seller's website, Click the link below
