AJAX Taiwanese CNC Facing Lathes
Swing over the bed 1020mm or 1420mm
Swing over the cross slide 550mm or 950mm
Swing in the gap 1300mm or 1700mm
Spindle bore 105mm or 160mm
1. The machine is one single base with hi-rigidity rib structure design. Width of track 1200mm, width of base 1550mm, is the best choice for machining large diameter plates.
2. Three support on the spindle and inspected by dynamic balancing, it can afford heavy workpieces. The spindle gearbox is suitable for heavy cutting and has 3-step hydraulic automatic speed shifting.

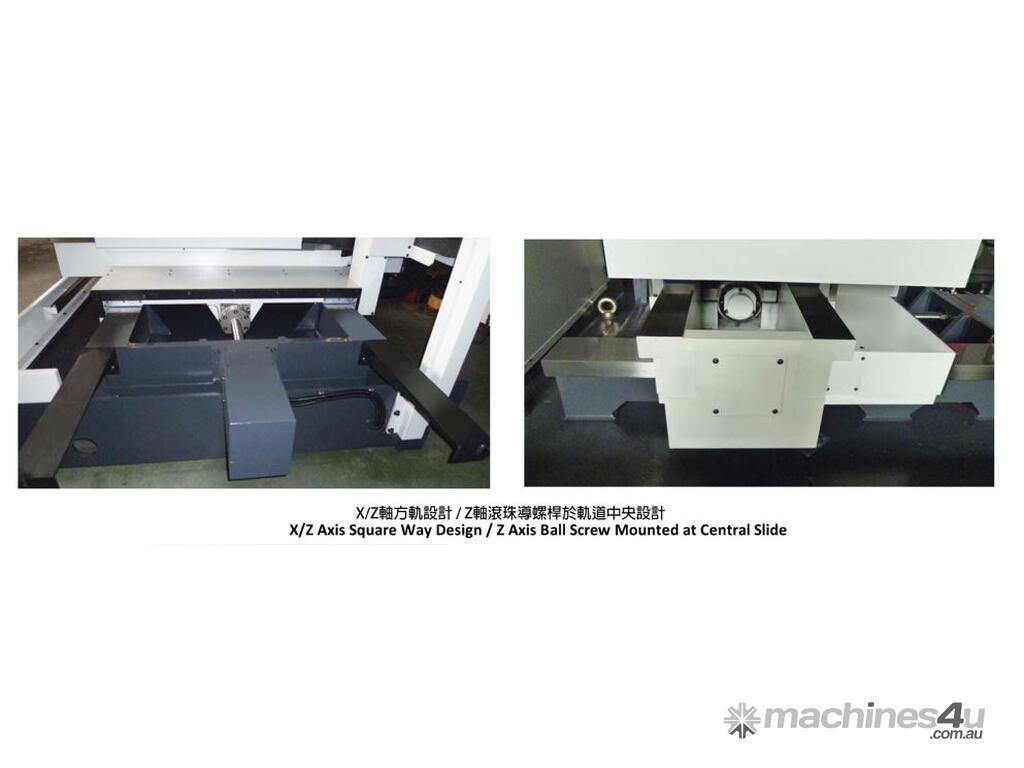

3. Z-axis is box guide way, and Z axis lead ball screw sets on the middle of guide way. The carriage is coated with Turcite-B which provides low friction & vibration and ensures smooth movement & accuracy.

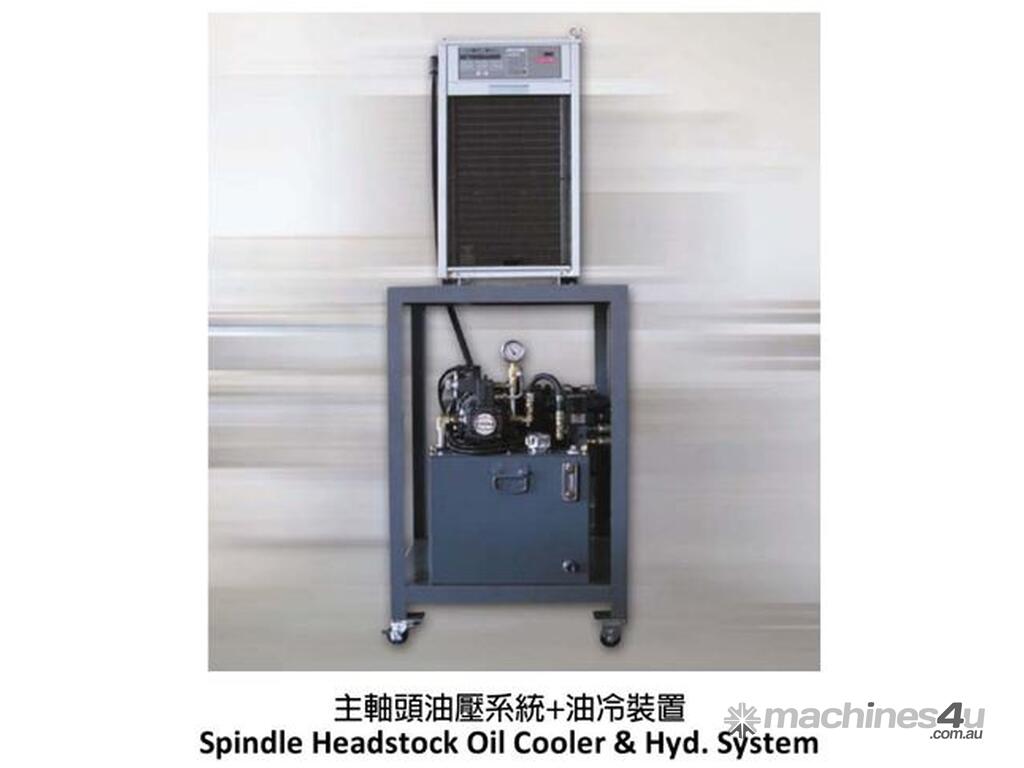

4. The central lubricating system lubricates the slide way & ball screw. The headstock is forced lubricating & oil bathed combined and designed with oil cooler to reduce the temperature of oil to ensure spindle accuracy.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for additional information.
