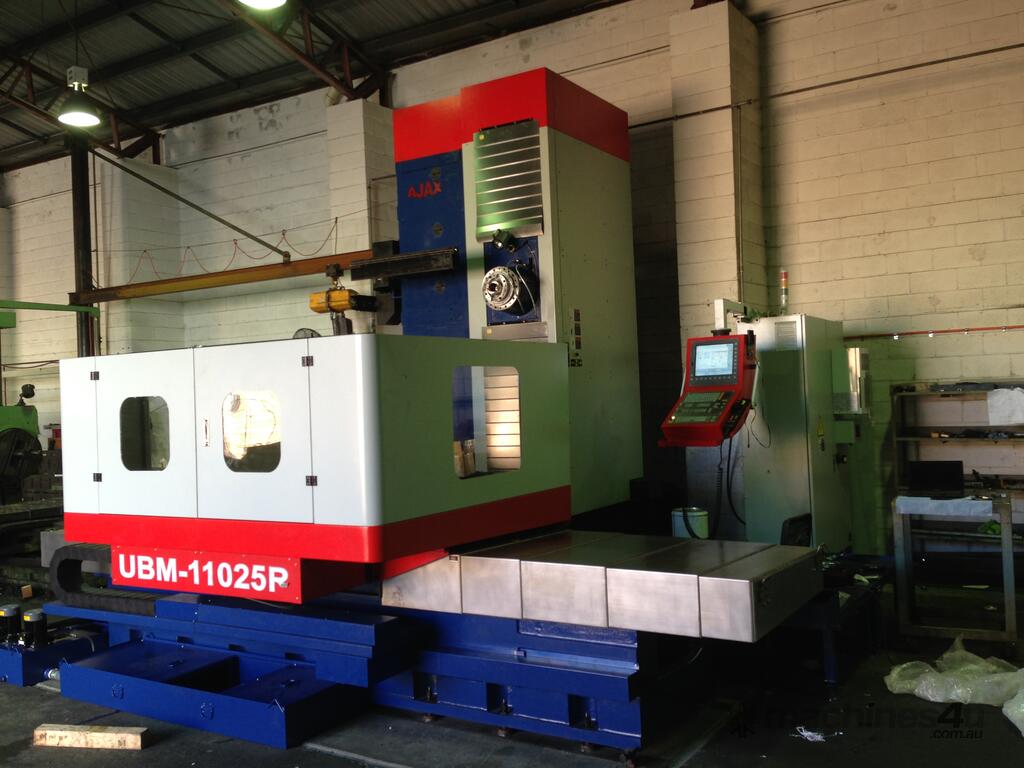

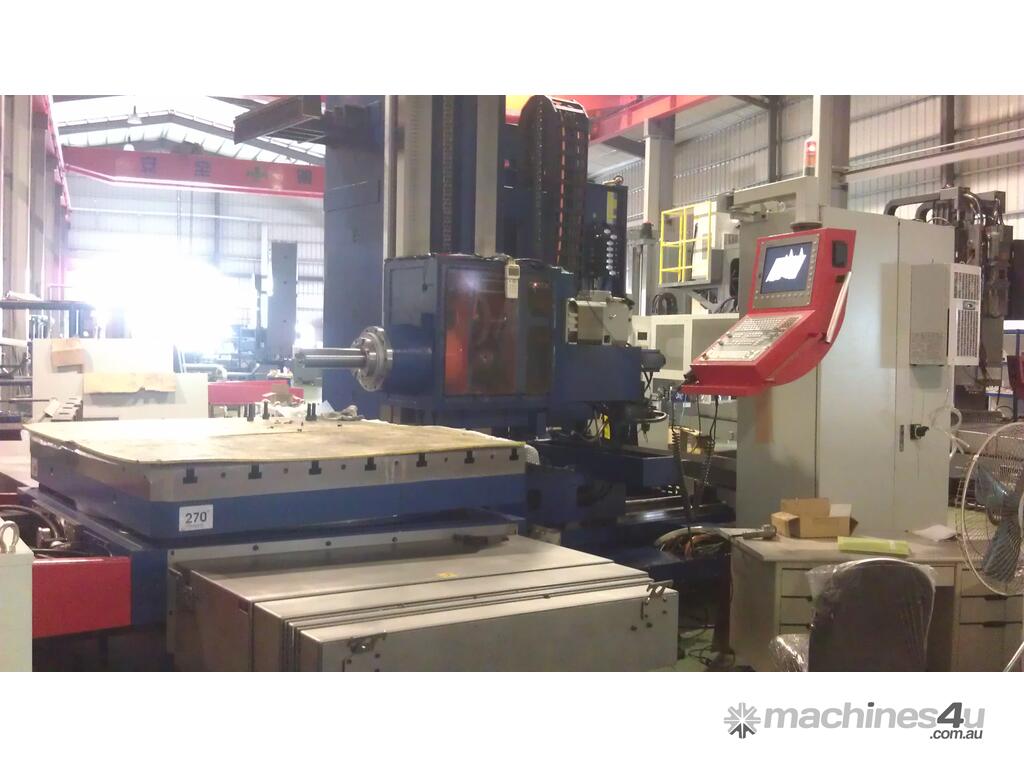

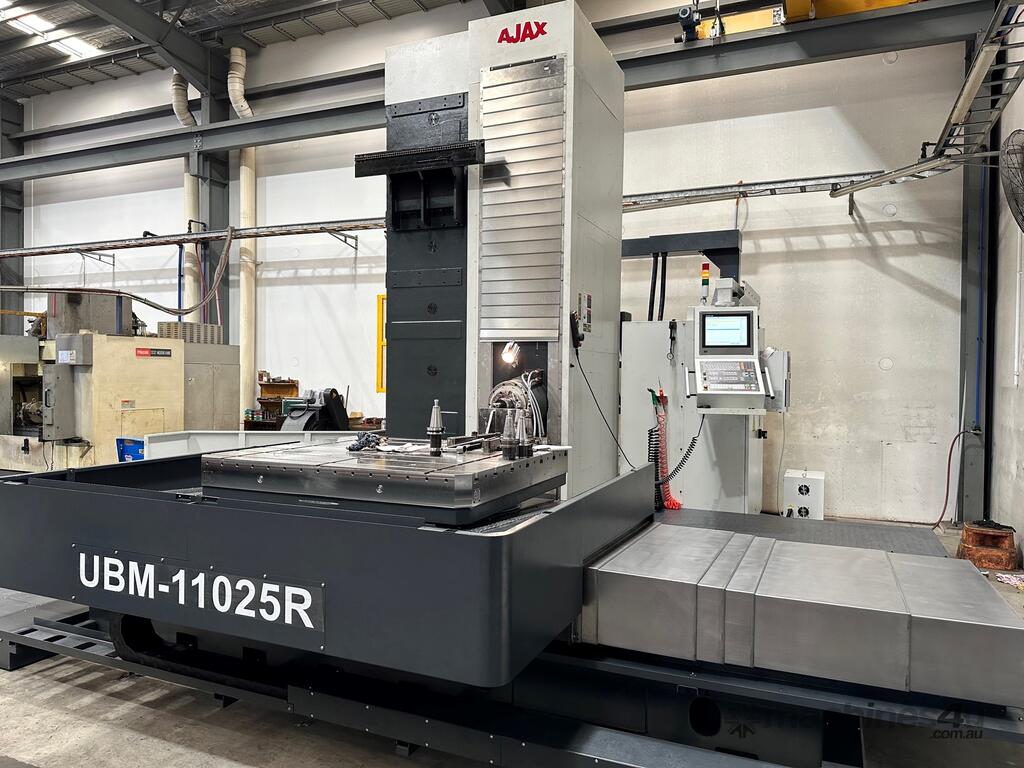

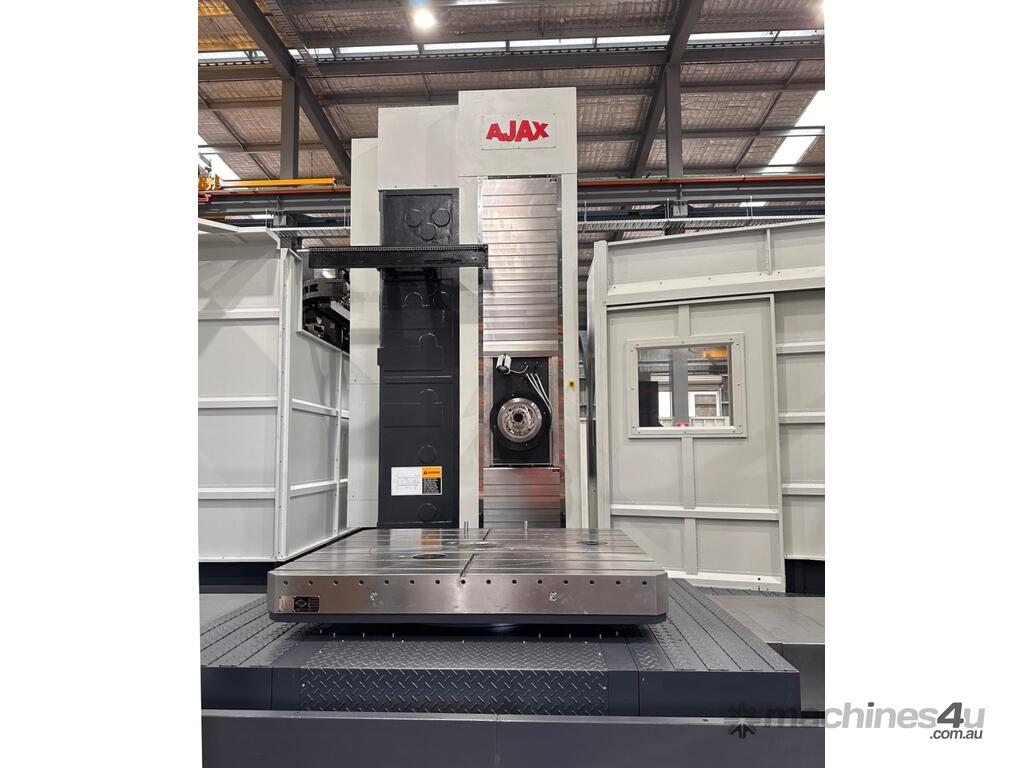

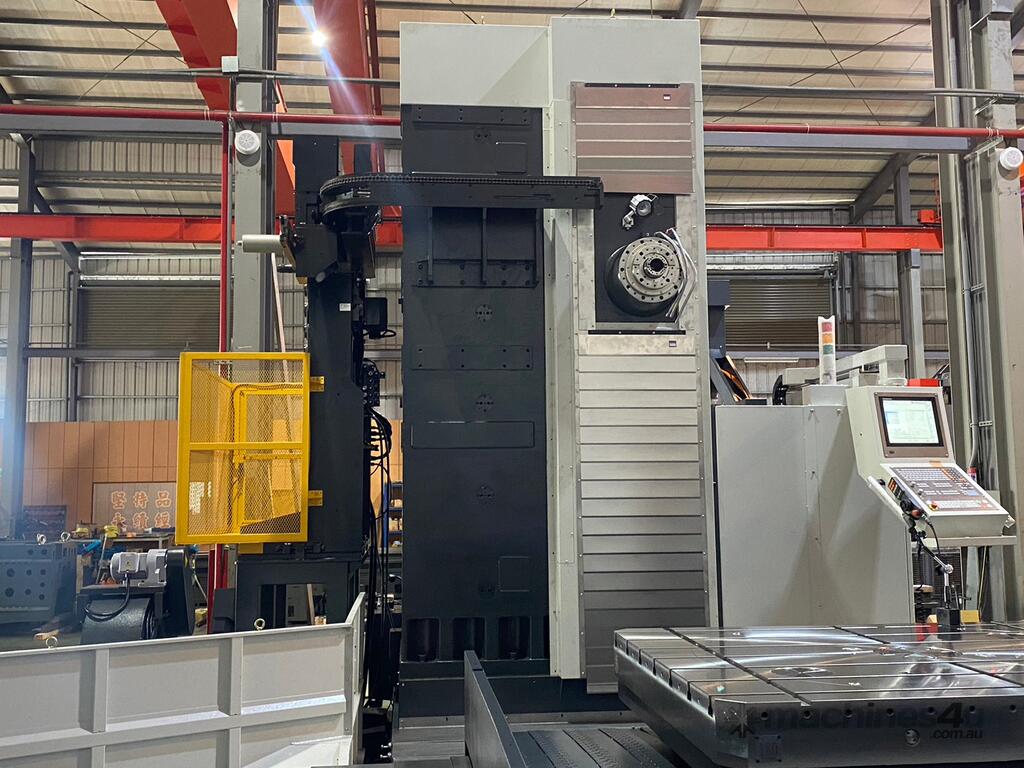

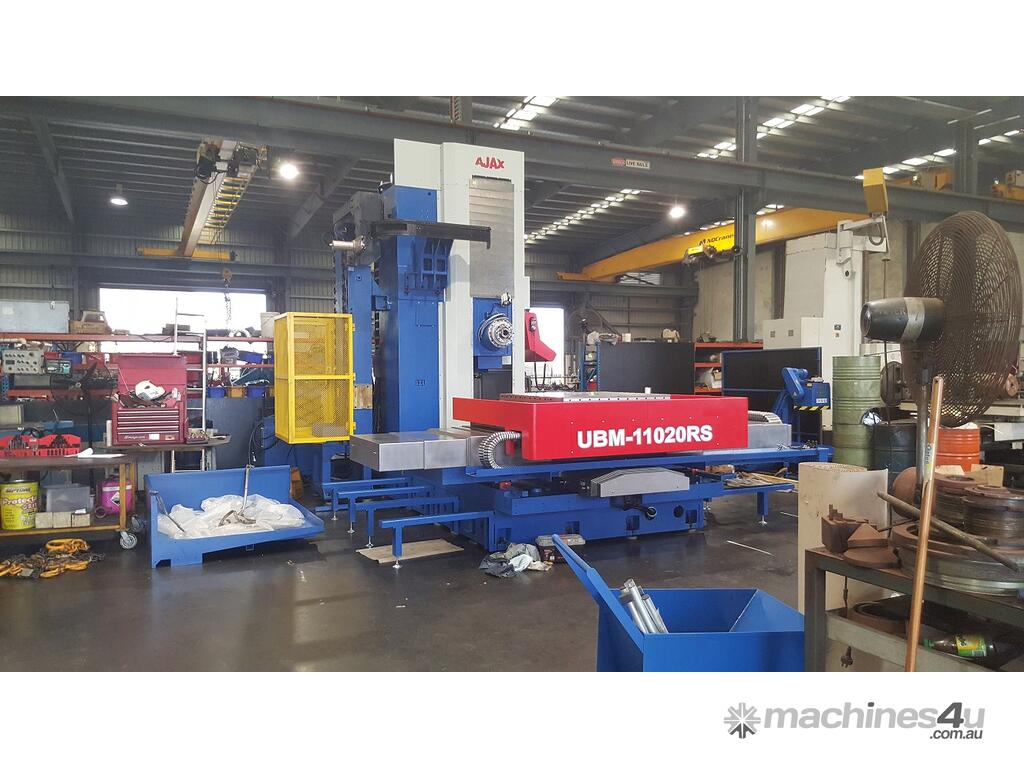

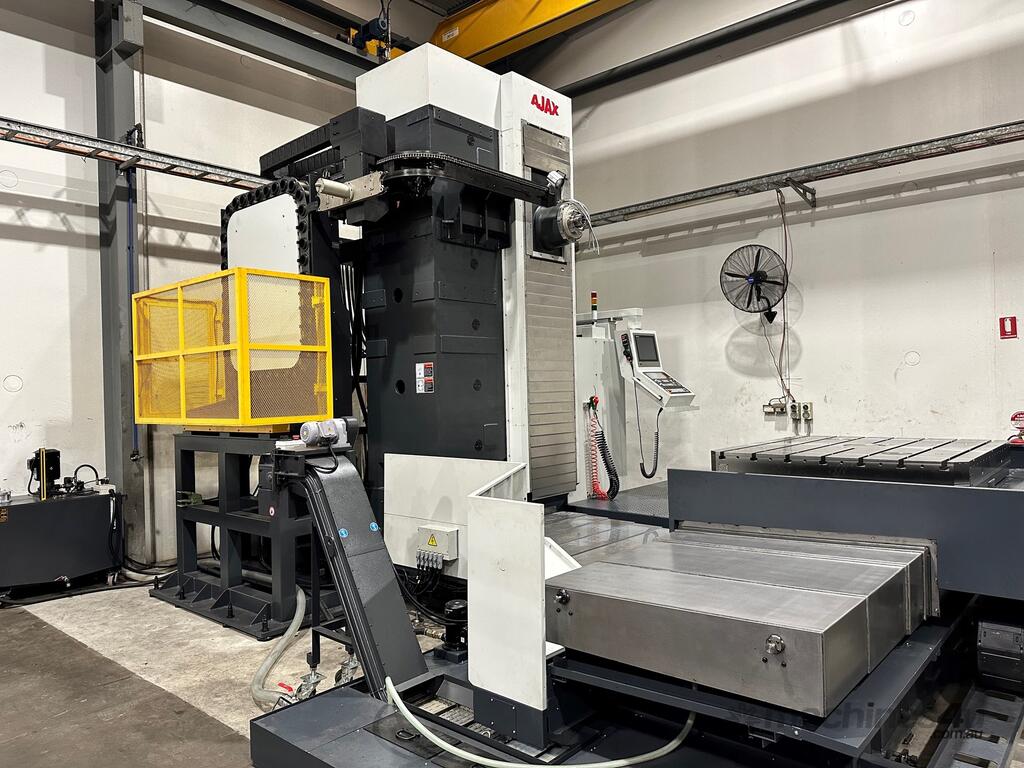

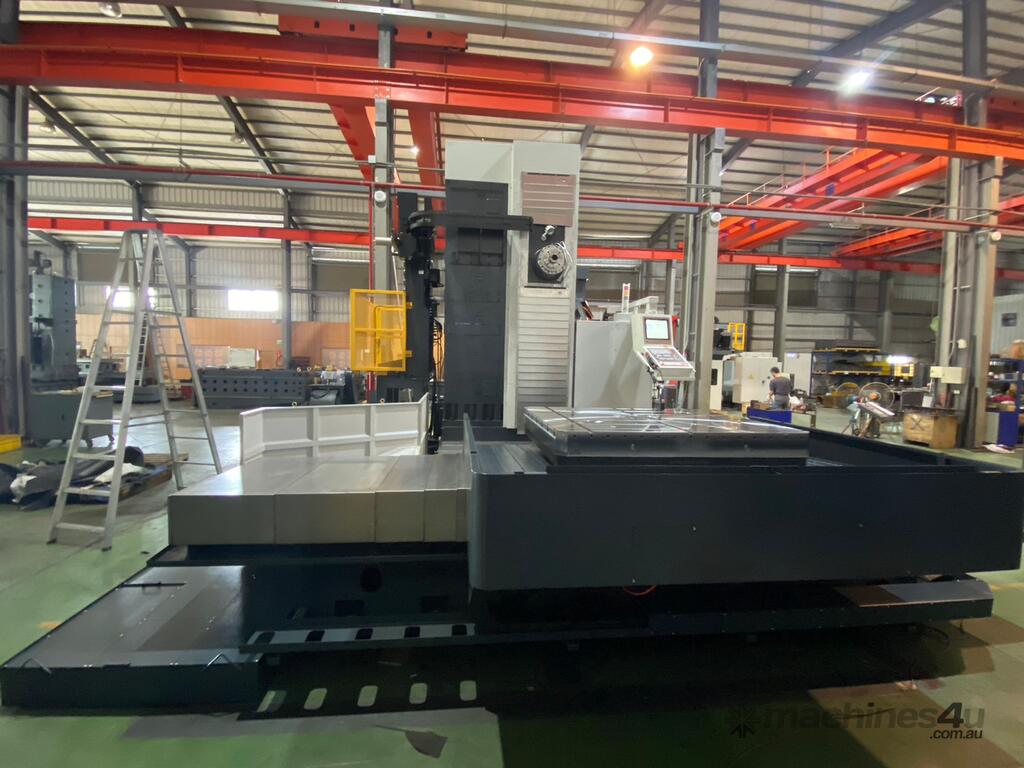

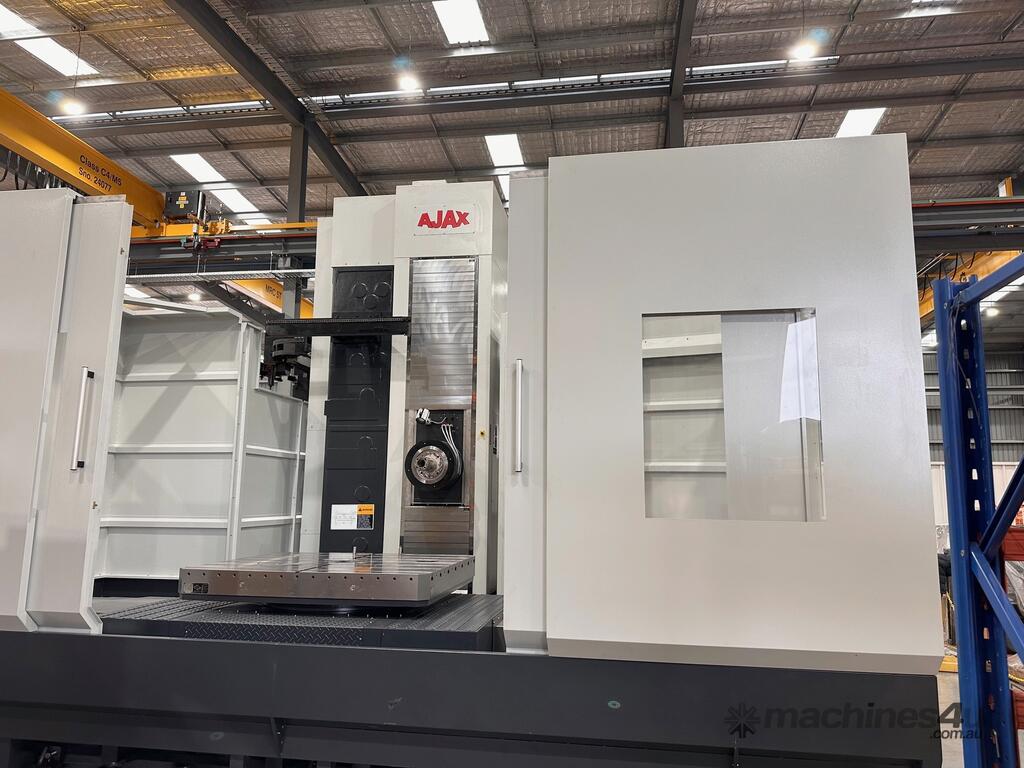

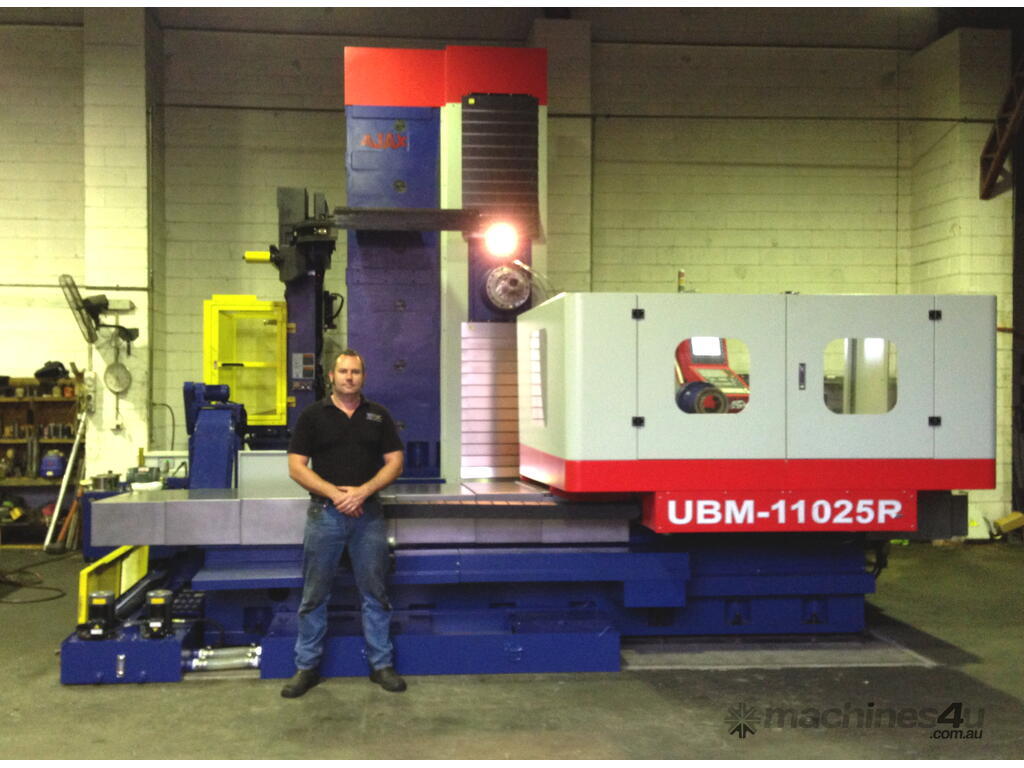

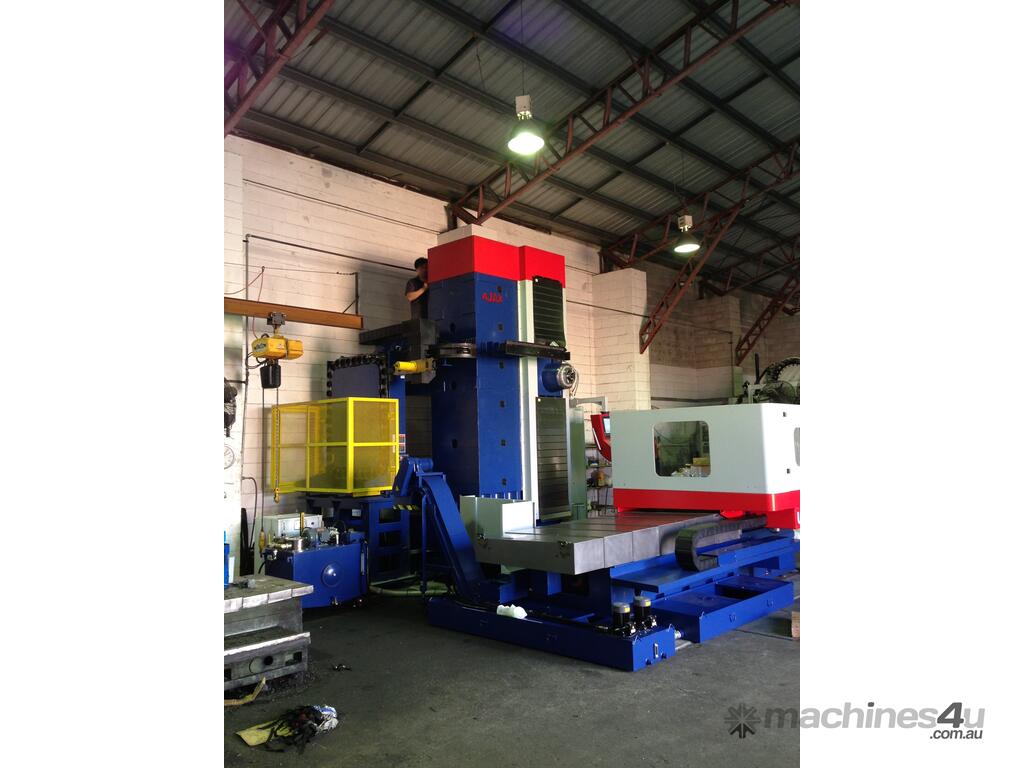

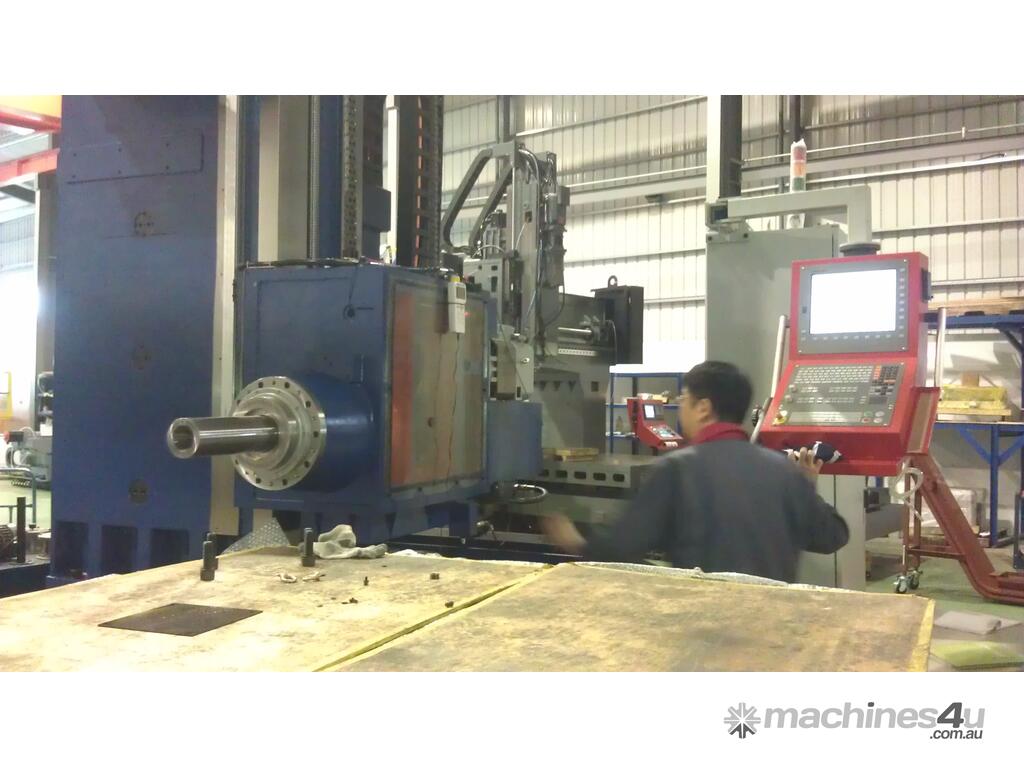

AJAX (Taiwan) CNC Horizontal Borers are available with travels up to 6200mm in X, 3500mm in Y, 2500mm in Z and 900mm in W. With 110mm, 130mm or 150mm spindles the AJAX range of CNC Horizontal Borers offer usable capacity for many applications in general or heavy engineering and mining support.
Manufactured in Taiwan to exacting standards, utilizing world renowned components from leading manufacturers in German and Japan.

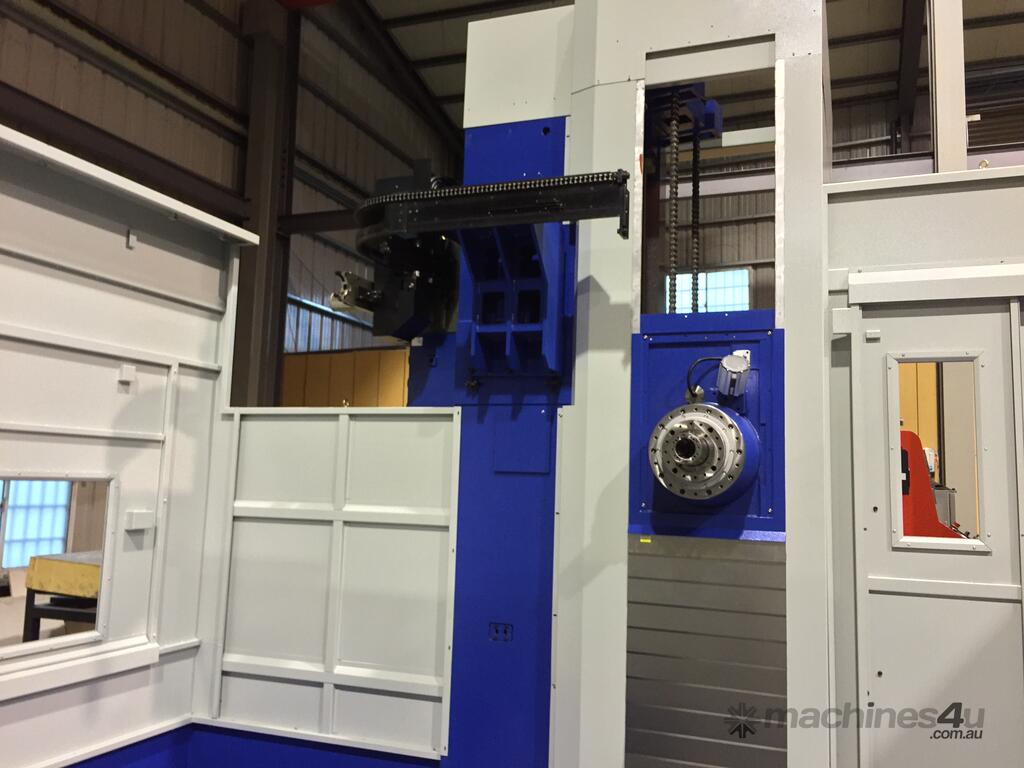

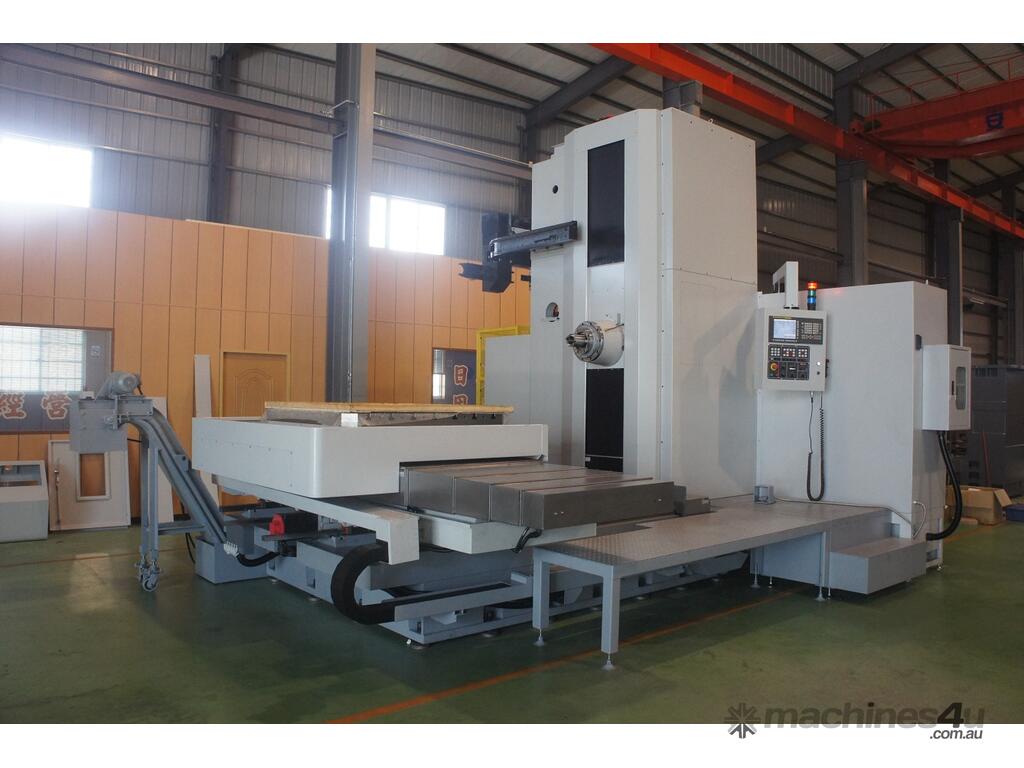

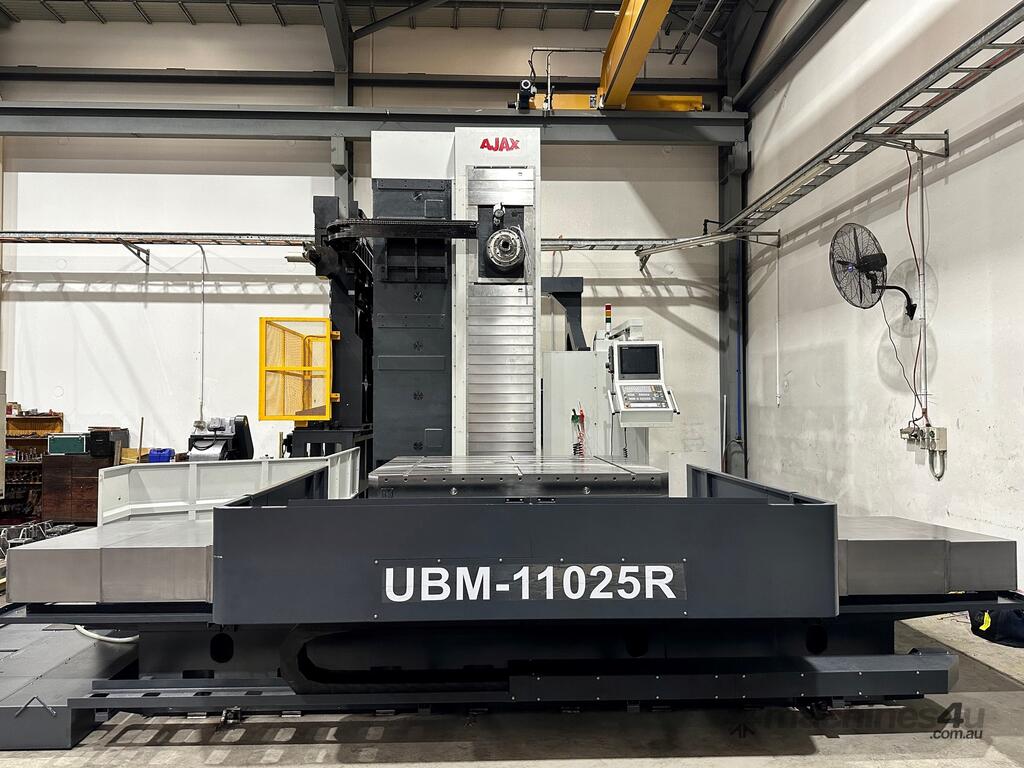

The AJAX is available in a fixed or traveling column T shaped design, developed to enhance rigidity and provide overall machining accuracy. X & Y slide ways are of a heavy duty box construction which is heat treated and precision ground.

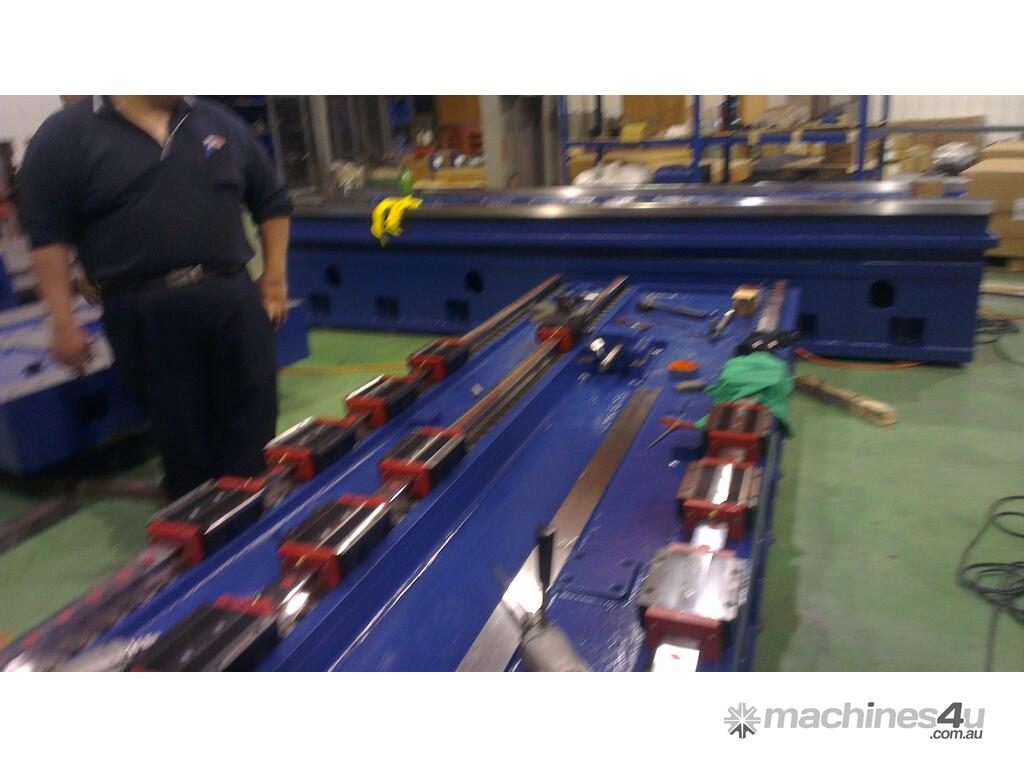

The Z axis utilizes four linear guides for fixed column machines and SCHNEEBERGER roller type
linear guide ways for the traveling column machines. This design ensures fast, smooth and accurate Z axis movement whilst maintaining a high level of rigidity.

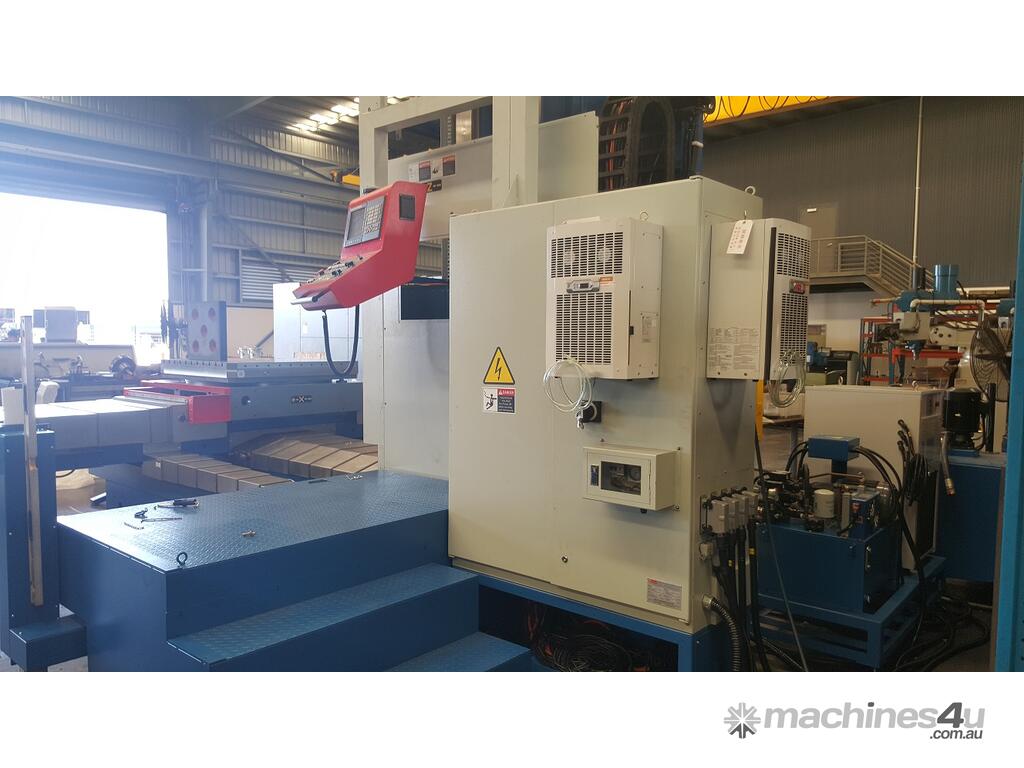

Available with either Fanuc or Heidenhain controls with linear scale feed back to X, Y & Z as standard providing an optimal level of accuracy.

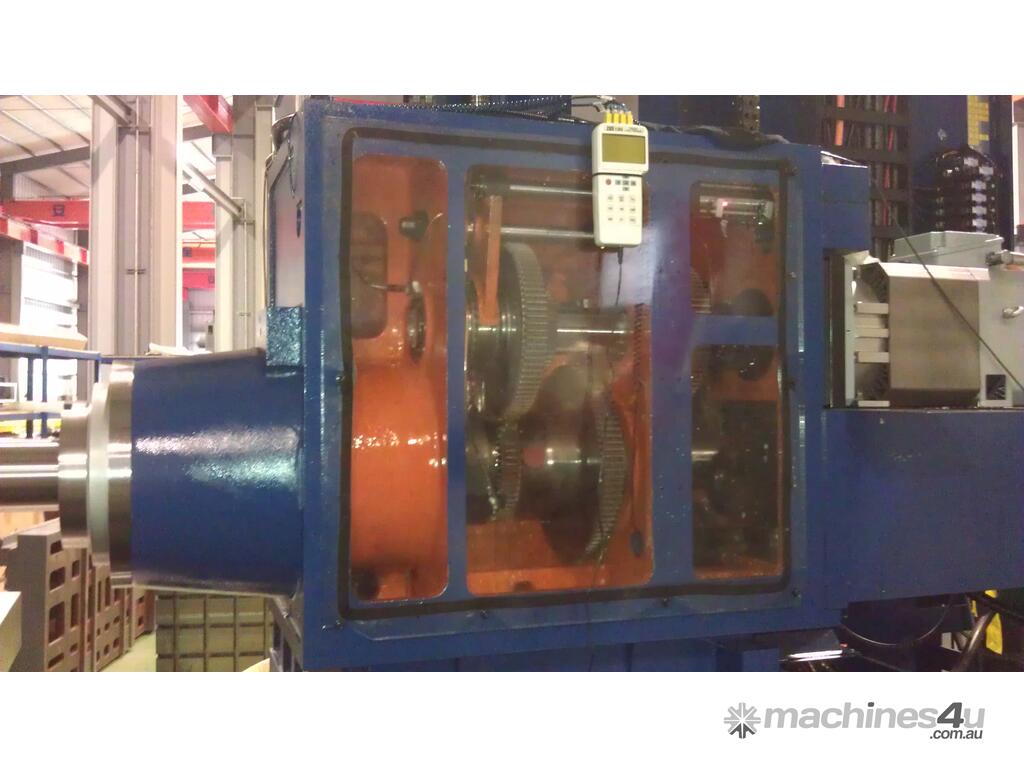

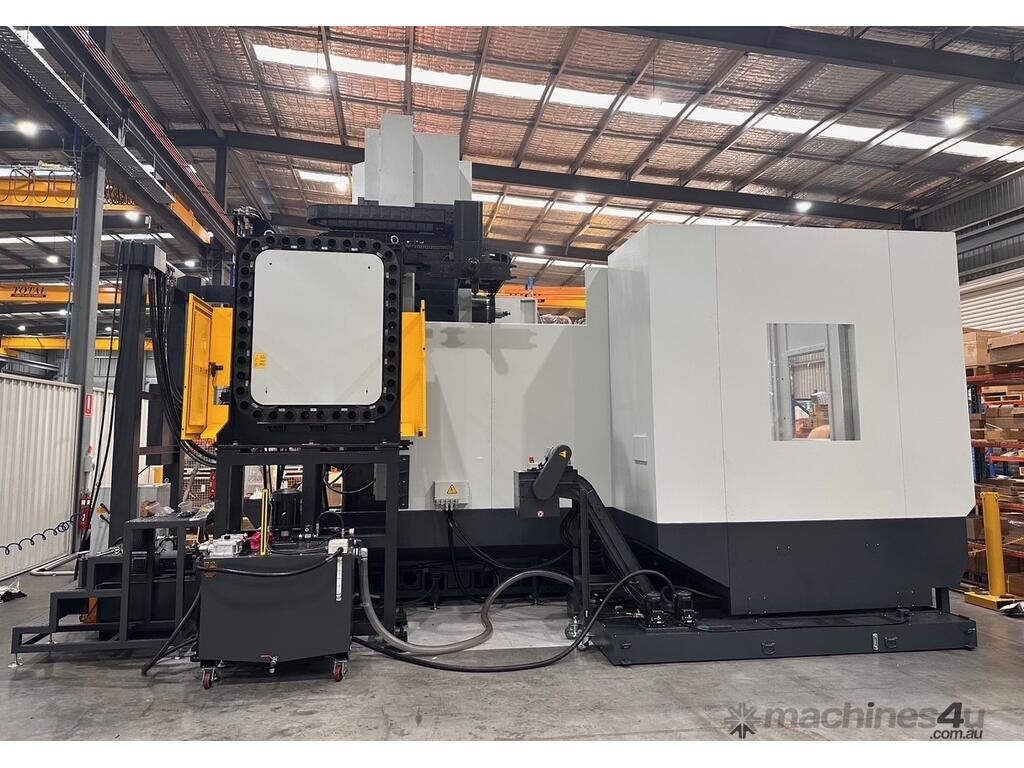

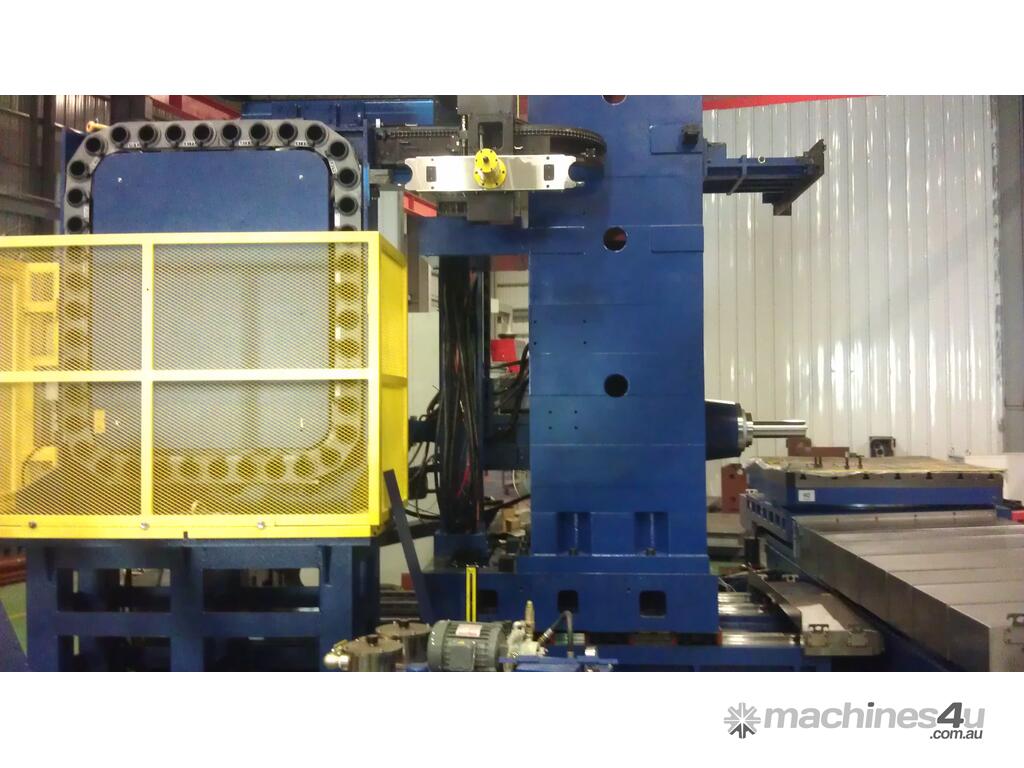

A wide range of options are offered to enhance productivity such as 110mm, 130mm or 150mm spindles, Automatic Tool Change systems capable of holding up to 90 Tools, various table size options, angle plates and blocks, boring and facing heads, angle milling heads, universal milling heads, CE Standard net guarding and more.
Delivery, commissioning, training and support available Australia wide. CNC Machinery Sales has a highly skilled team of in-house Service Engineers servicing all States and Territories as well as our international clients.
We also provide machinery break down repairs, scheduled maintenance, machine relocation and operator training in urban and remote locations Australia wide and internationally.
Please call for additional information.
