The EdgeBreaker 9000 is ARKU’s answer to the challenges of 3D sheet metal processing. It excels where others fail: deburring and edge-rounding parts with heights and depths (stampings, forms, and drawn parts). It provides 360-degree edge processing, ensuring that even the most intricate internal cutouts on a 3D component are safe and smooth to the touch.
Key Technical Specifications:
Process: Single-sided, Dry (Specialised for 3D/Formed components).
Technology: Adaptive Rotary Brush system for 360° coverage.
Material Thickness: Handles parts up to 50 mm in height variation.
Working Width: 1,300 mm.
Part Geometry: Ideal for stamped, louvred, and deep-drawn parts.
Control: Intuitive HMI with ARKU Wizard for automated parameter setting.
Tooling: Quick-change brush system for varied finishes.
Key Advantages:
True 3D Edge Rounding: The brushes are flexible enough to "wrap" around formed edges and reach into recessed areas, providing a consistent radius that wide belts can't touch.
Protects Surface Integrity: Unlike aggressive grinding belts, the 9000’s brushes remove the burr without thinning the base material or flattening your 3D stampings.

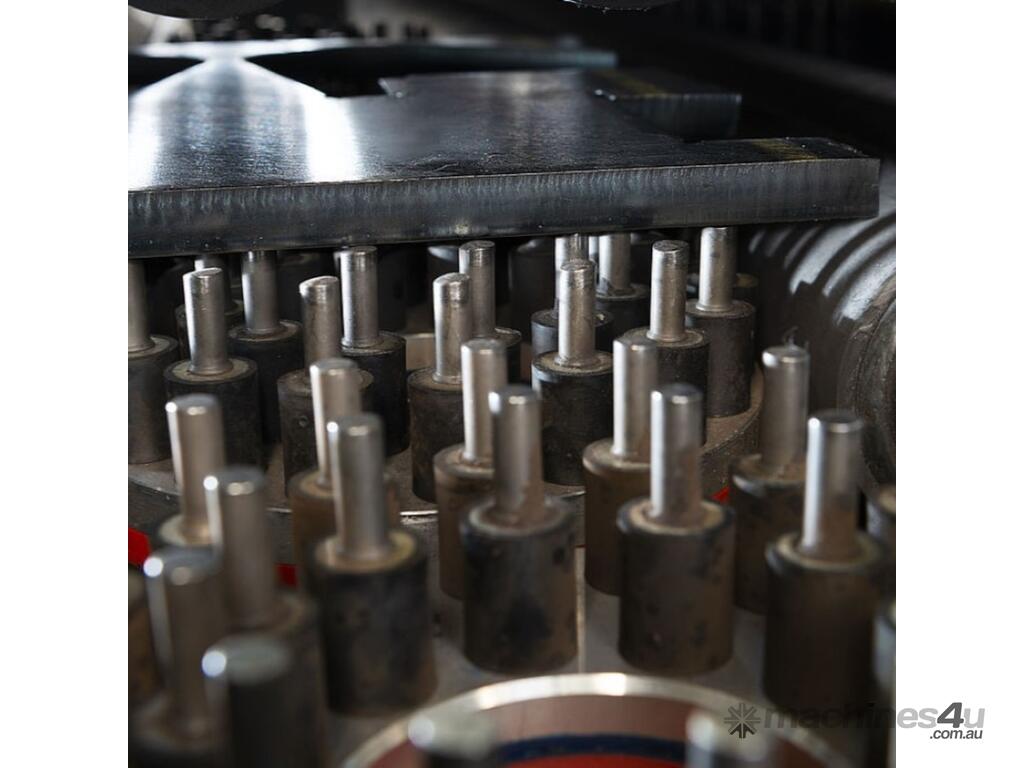

360-Degree Uniformity: The planetary motion of the brushes ensures that every edge of a complex cutout is rounded from all angles, eliminating "shadowing" or missed spots.
Process Small & Formed Parts: Equipped with a powerful vacuum table, the 9000 keeps lightweight or small 3D parts securely in place throughout the cycle.
Automated Setup: Save your job-specific settings in the HMI. When you switch from one 3D component to another, the machine adjusts in seconds, ensuring repeatable quality every time.
Contact Specialist Machinery Sales today for a technical consultation and to see how the ARKU Deburring Machine integrates into your current workflow.
