ACHILLES MACHINERY AUSTRALIA

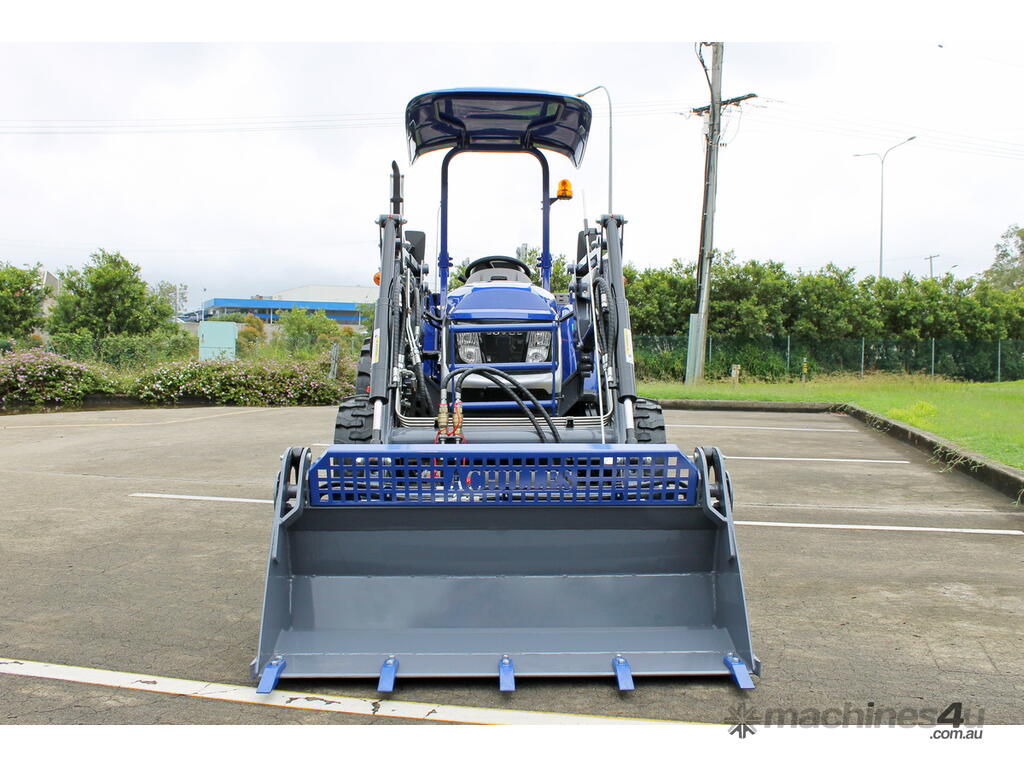

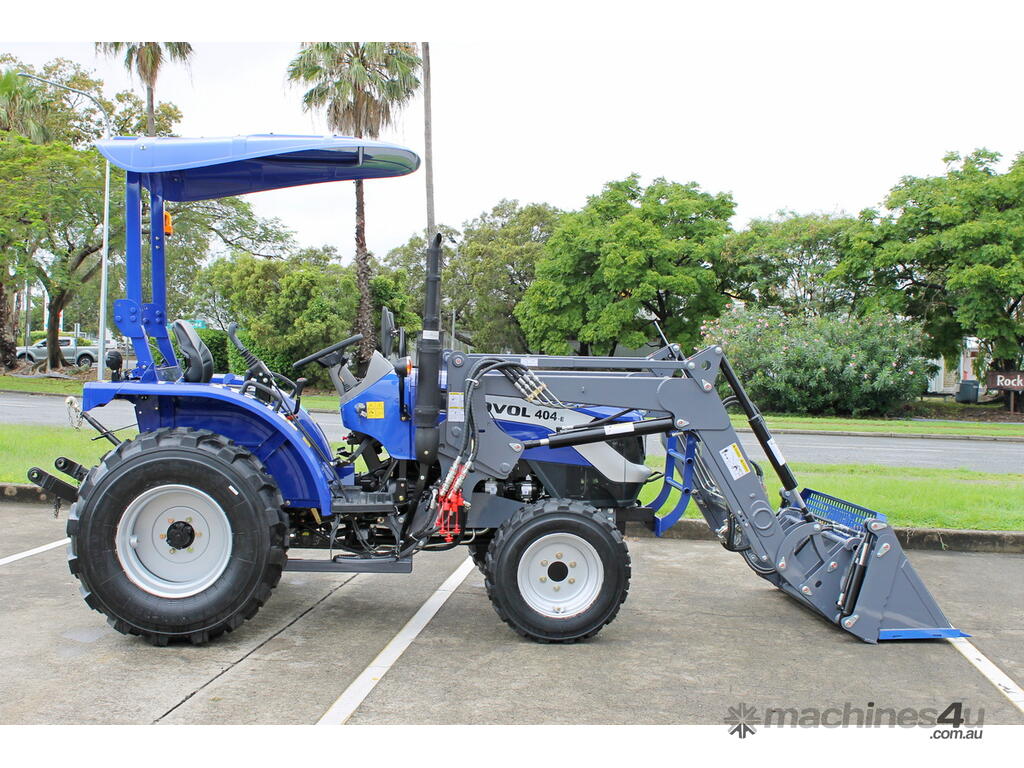

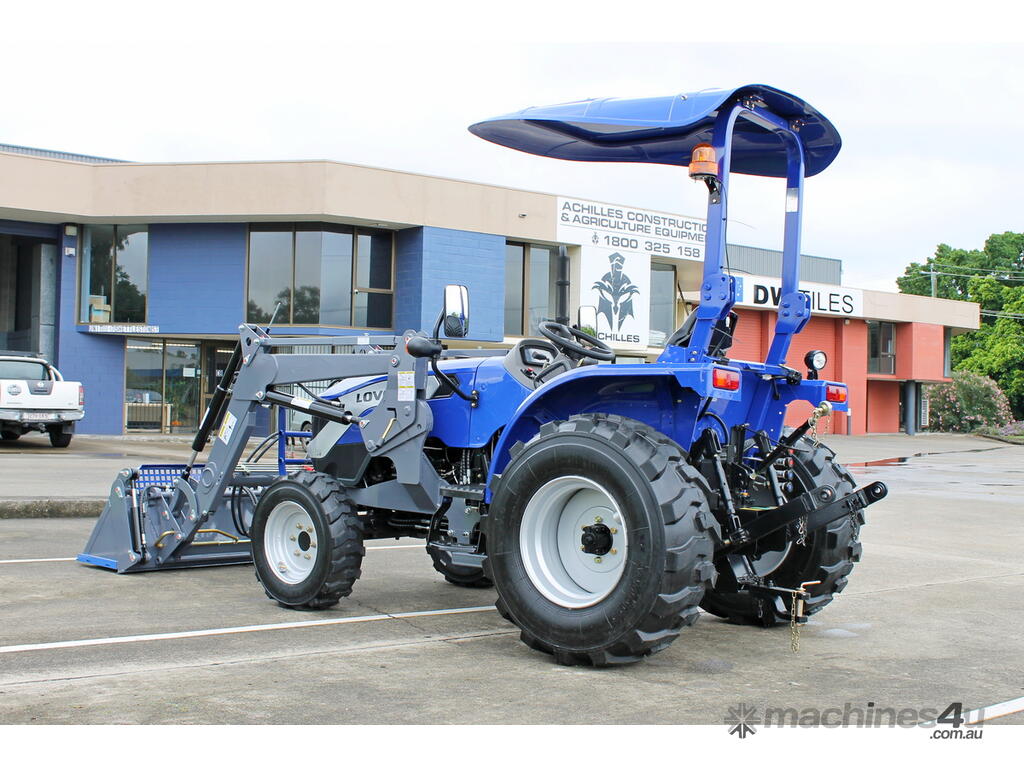

ACHILLES LOVOL 404 Tractor Combo

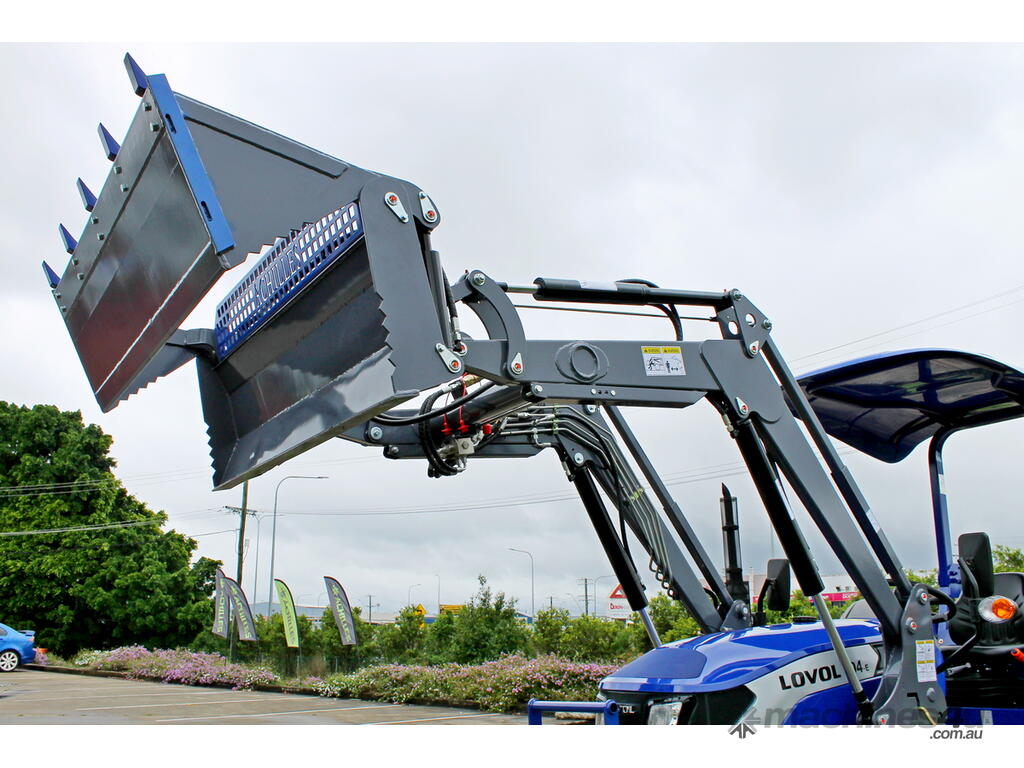

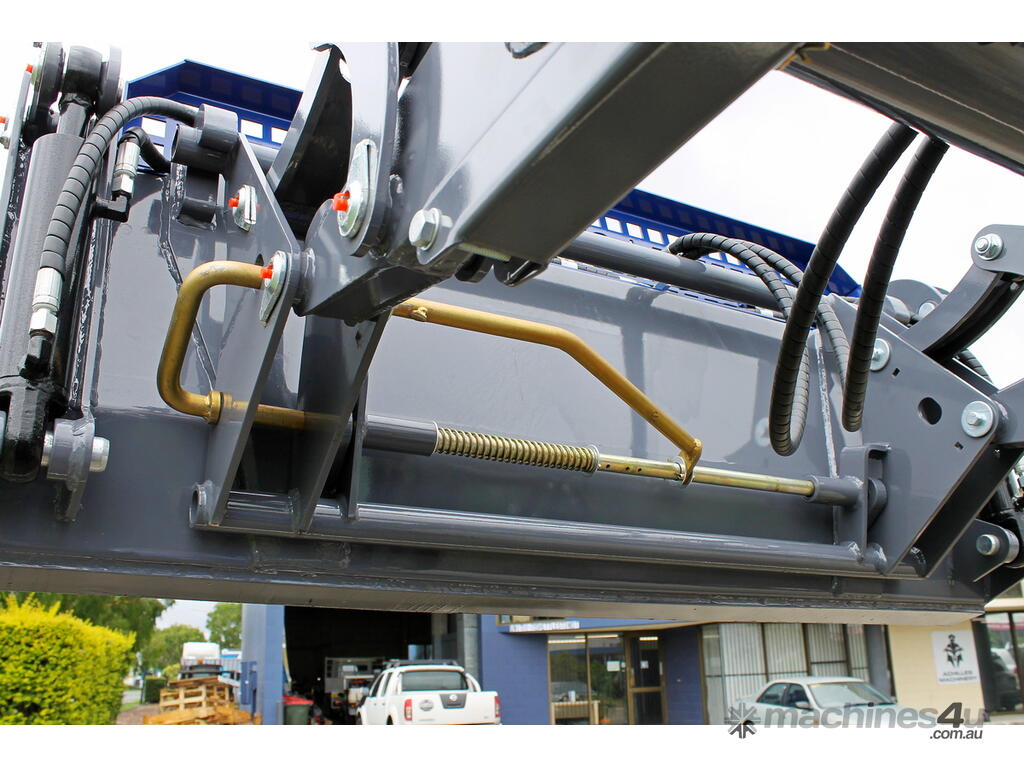

Including TZ04D 4in1 Front Loader, 2in1 Fork and 4Ft Slaher
Additional Implements are available for individual purchase
3-Year Warranty with Australian-Backed Parts
Euro-mount quick hitch system for easy attachment changes.
Durable cast-iron front and rear axles for long-lasting performance.
Excellent 4WD capabilities with a differential lock for better traction.
Additional hydraulic remote for extended functionality.
Easy adjustable rear wheel track
Premium seating with Grammer brand seats for enhanced comfort.
Fitted with industrial tires suitable for various working conditions.

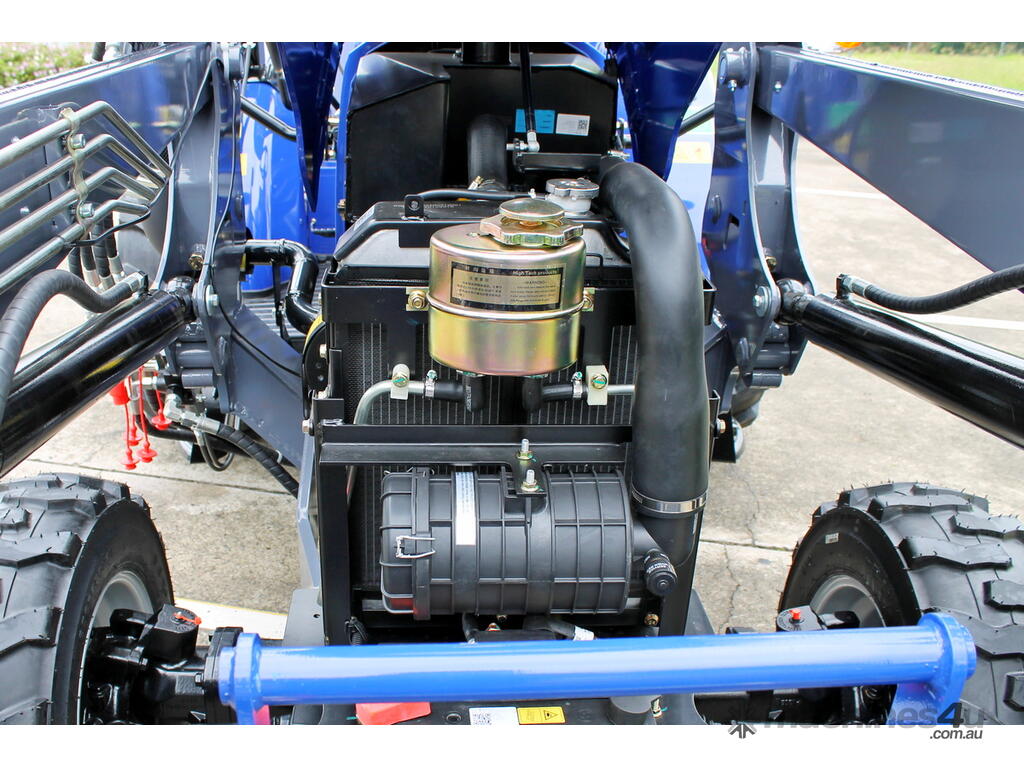

Engine Size
Engine Model LaiDong 4L23BT
Engine Gross Power 40HP
PTO Power 34hp 540/720r/min
No. of Cylinders 4
Rated Speed 2400RPM
Total Displacement 2.31CC
Fuel Tank Capacity 26L
Operations
Front End Load 600 KG
Transmission 8x8 Shuttle Shift
Gearbox Synchromesh
Clutch Dry, Dual Stage clutch
Differential Mechanical gear
Front Axle Bevel gear final drive
Rear Axle Heavy-duty Design with sliding Wheel hubs
4wd Front Wheel Assist
Hydraulics
Implement Flow Rate 19 L/min
Steering Flow Rate 12 L/min
Rear Remotes 2 Pairs
Linkage Standard Cat-1 Rear 3pl
Behind Hitch Point 720kg Lift 610mm
Dimensions
Overall Weight 2750KG
Overall Length 4900mm
Overall Width 1600-1800mm
Overall Height 2500mm
Ground Clearance 310mm
Front Tyre Size 260/70R16
Rear Tyre Size 280/85R24
