Athena 1090-BL EVO Tracked Scissor Lift

Utilising it's Patented Bi-levelling Undercarraige - The ALMACRAWLER Athena 1090-BL EVO Tracked Scissor lift will continually provide safe working solutions on steep inclinations, rough terrain, difficult to access areas as well as managing the standard tasks required by a Mobile Elevating Work Platform. This one unit can provide a working solution replacing many traditional approaches.

Equipped with an innovative bi-leveling technology and designed to perform up to 10 meters in working height, the 1090-BL EVO Bi-Energy scissor lift is designed using a unique approach first born by the creative minds of ALMCRAWLER of Italy.

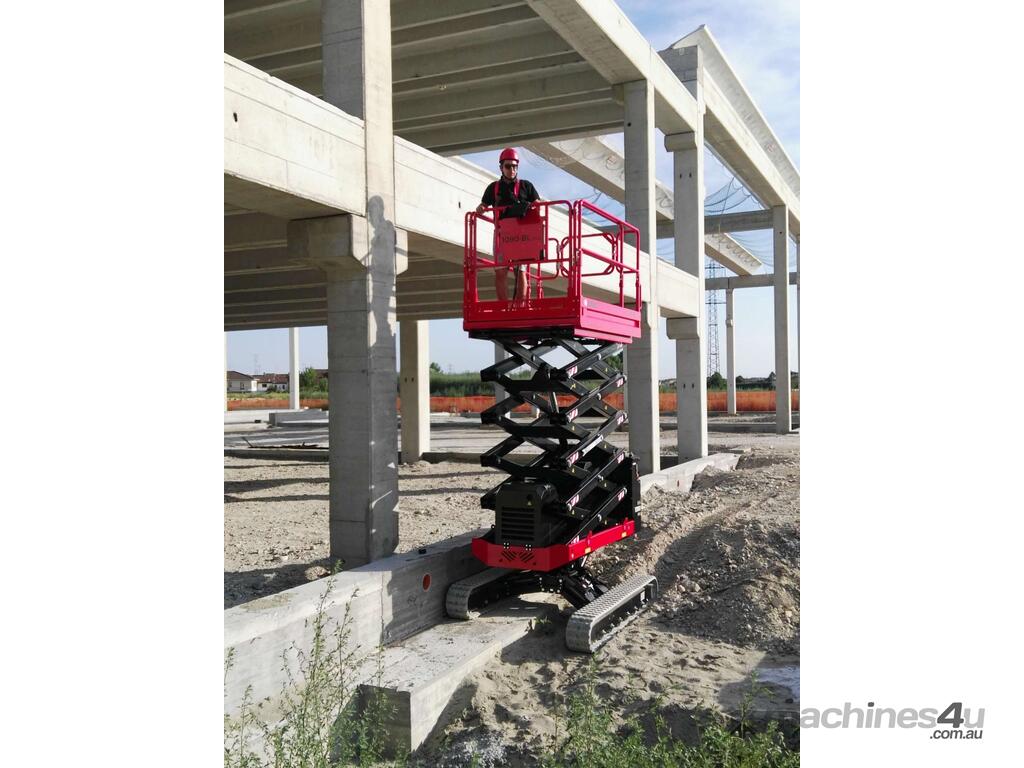

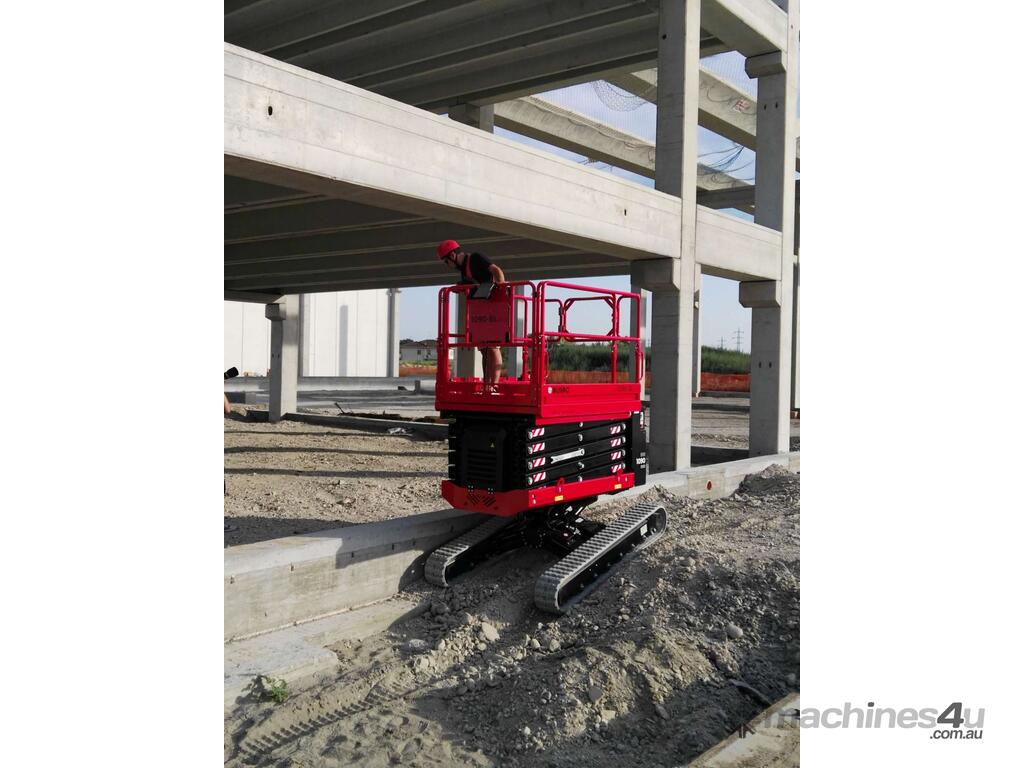

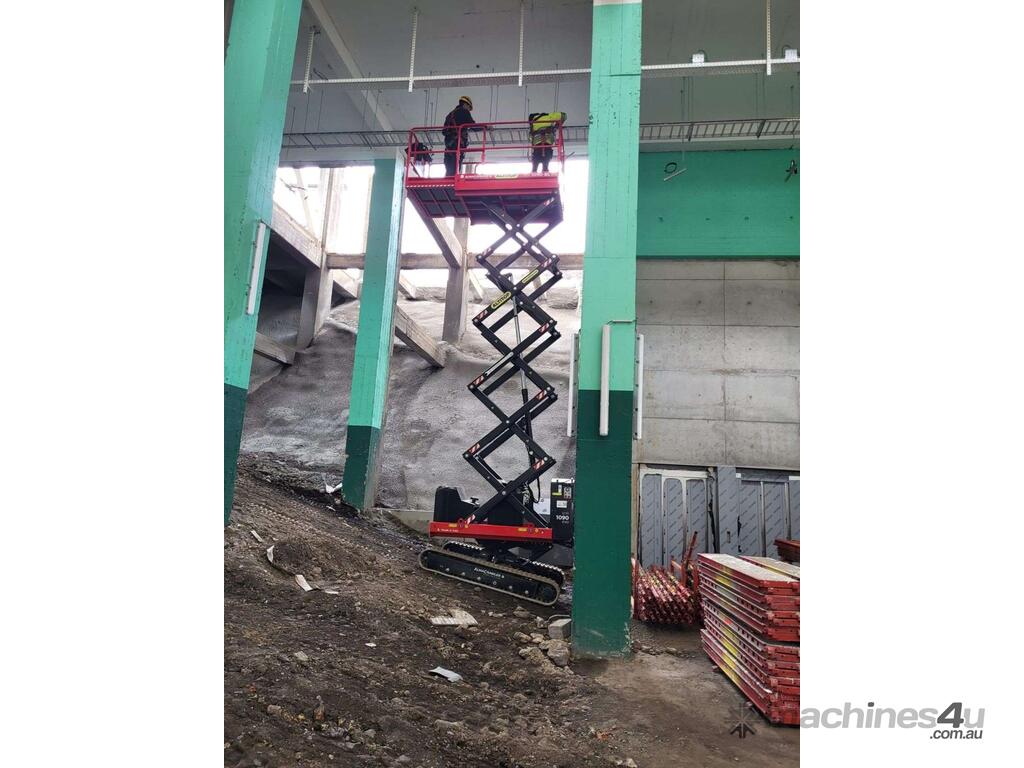

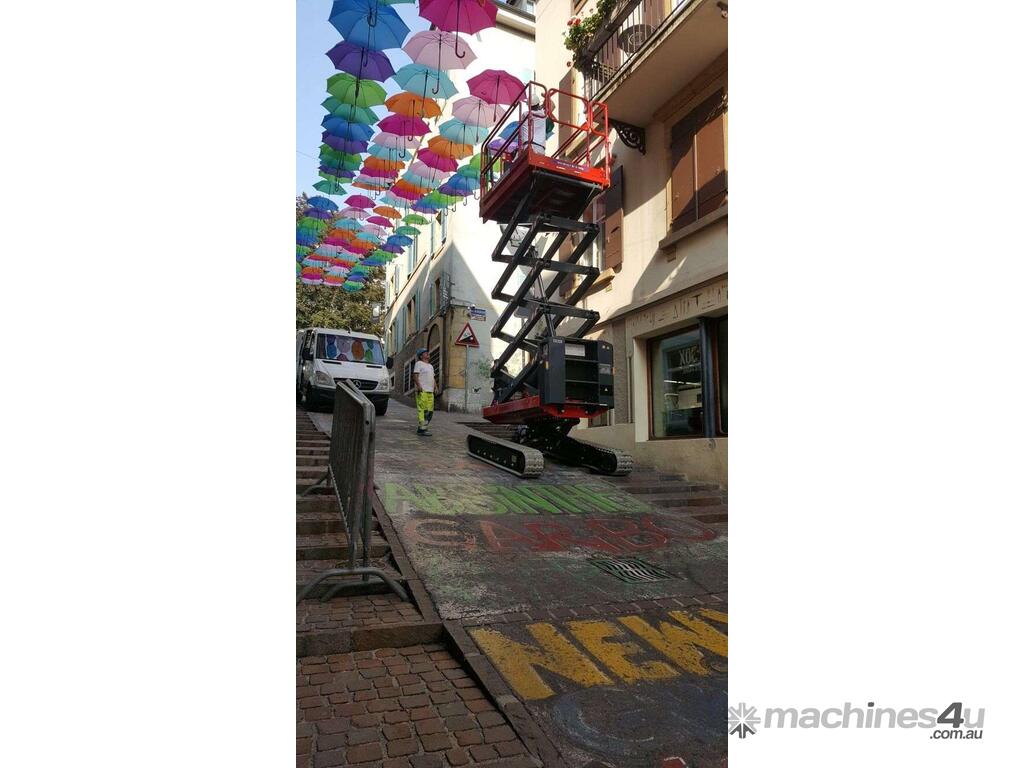

Traditionally steep inclinations on worksites were managed by fixed scaffolding. Exploiting the new technology of an Athena Bi-Levelling Scissor lift advances the speed of access in these positions, eliminating the requirement for fixed scaffolding in many instances. This using its automatic ability to overcome any type of slope up to 20 ° longitudinally and 15 ° laterally

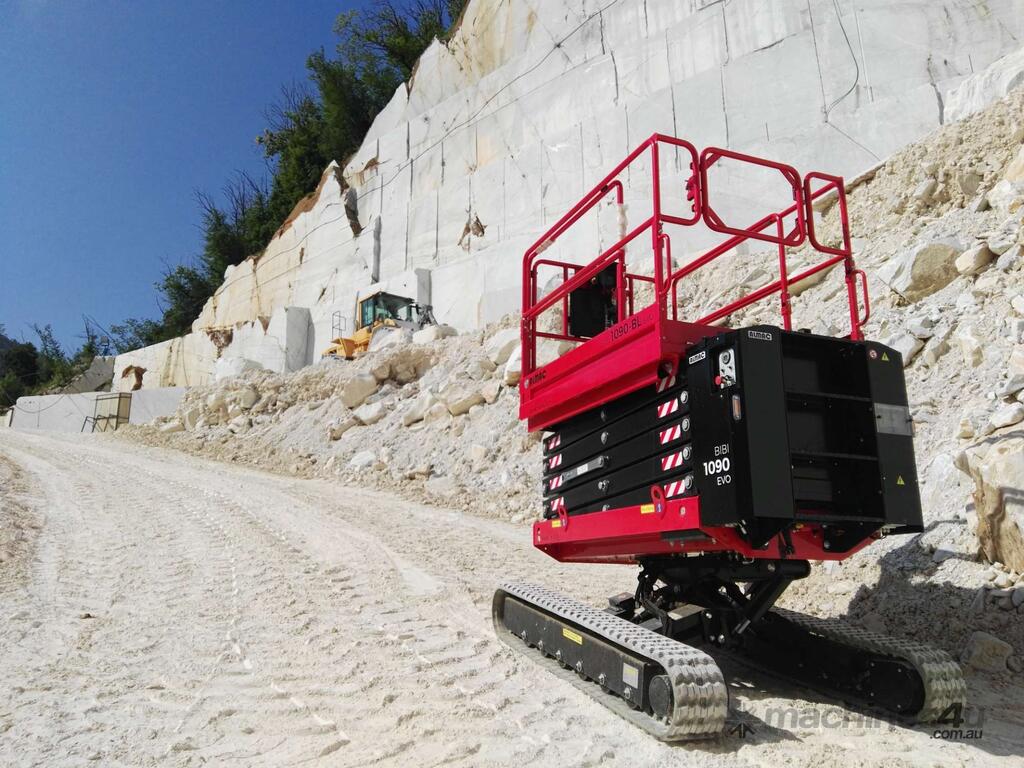

A tracked undercarriage provides the high traction required to maintain stability in many ground surfaces. It also provides a lower ground pressure point loading than traditional wheeled machines.

The EVO variant is equipped with a Water-Cooled Kubota Z602, world renowned as a highly reliable workhorse diesel engine. The machine also has an Optional 240v Electric Motor, allowing the machine to operate in full capacity whilst connected with 240v mains power supply.


Technical Specifications

Basket Capacity: 300 kg (2 operators)
Max Working Height: 10.0 m
Max Height Basket Floor: 8.0 m
Max Moving Height: 6.5 m

Power Options:
Main Power: Kubota Diesel Z602 (12.5 kW)
Optional Power: Lithium Power Pack 100Ah-48V
Other Optional Power: Available upon request
Accelerator: Automatic
Undercarriage: Dynamic Levelling System
Basket Levelling: Automatic

Levelling:
Longitudinal Levelling (Front): ±15°
Longitudinal Levelling (Rear): ±20°
Lateral Levelling: ±14°

Optional Features:
Power Generator: 220V, 1 kW
Electric Pump: 220V, 2 kW
Hydraulic Commands: Proportional
Dynamic Levelling System: Yes
Pro-Active Levelling System: Yes
Direction-Control System: Yes
Easy-Drive System: Yes
High-Speed Kit: Max speed 2.4 km/h
Ground Emergency: Yes
Control of Inclination: Automatic

Performance:
Gradeability: 25°
Side Slope: 21°

Dimensions:
Length: 2.28 m
Width: 1.46 m to 1.64 m
Minimum Height with Folded Railings: 2.09 m (1.75 m optional)

Weight:
Total Weight: 2900 kg
Compliance: EN 280: 2015
