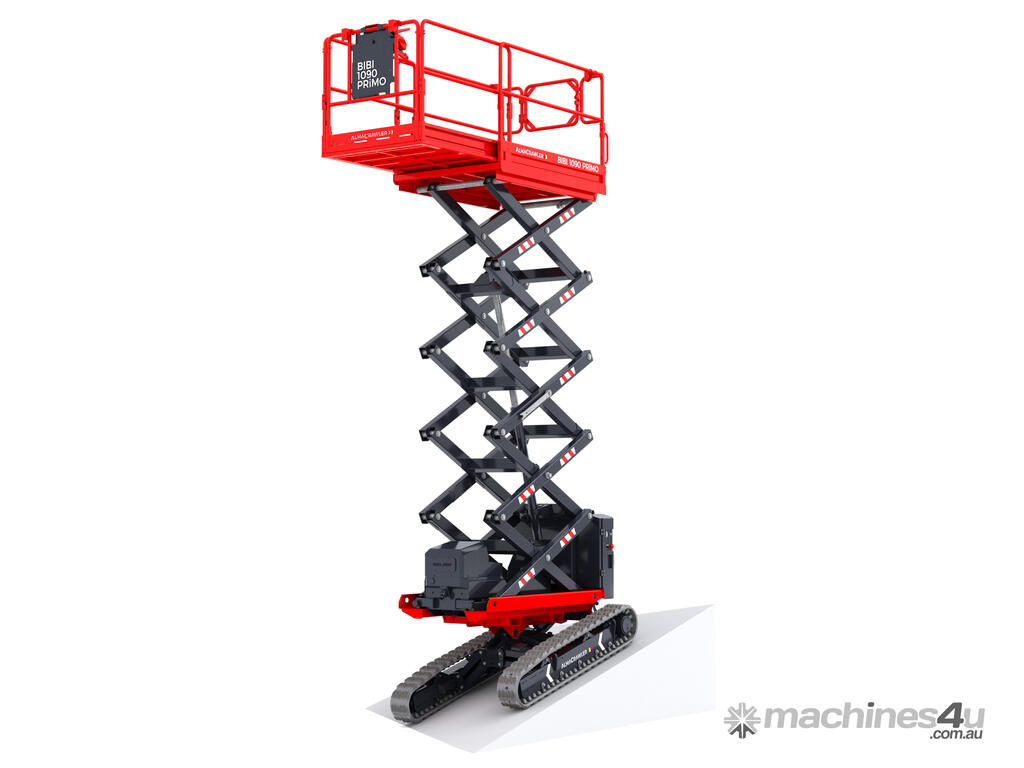

Athena 1090 PRiMO Tracked Scissor Lift

Building on a solid history of performance, the ATHENA 1090-BL PRiMO is the evolution of our 1090-BL range to now transisiton to fully electric - electric drive, whilst maintaining ALMACRAWLERS Patened Bi-Levelling Technology allowing this machine to work safely on inclines up to 20 degrees!

Increased ground speed is provided thanks to the newly designed electric drive motors. All round increased performance whilst eliminating exhuast fumes, engine noise and refueling onsite! Simple, accessible charging is provided by any standard 10a GPO.

Almacrawler offers the choice of two battery pack compositions:
- LTH 210Ah Lithium LiFeP04 Battery Pack
- ELC 180Ah Lead-Crystal Battery Pack
This caters for the personal preference of the buyer to suit their specific requirements.

The innovative self-propelled tracked scissor lift with a patented self-levelling technology, the ATHENA Line overcome s standard limits of traditional equipment.
With working heights of 10m, load capacity of 250kg to 300kg and the bi-levelling technology for up to 20° inclination, the 1090 PRiMO was designed for safety and productivity on the jobsite!

The 1090 PRiMO is the first ATHENA to feature the innovative EAS Anti-Entrapment System, a technology designed to prevent serious injury by stopping the unit but allowing space for the operator to safely remove himself. In addition, the ATS Automatic Track Tensioning System ensures that the tracks are correctly tensioned, eliminating the need for maintenance.

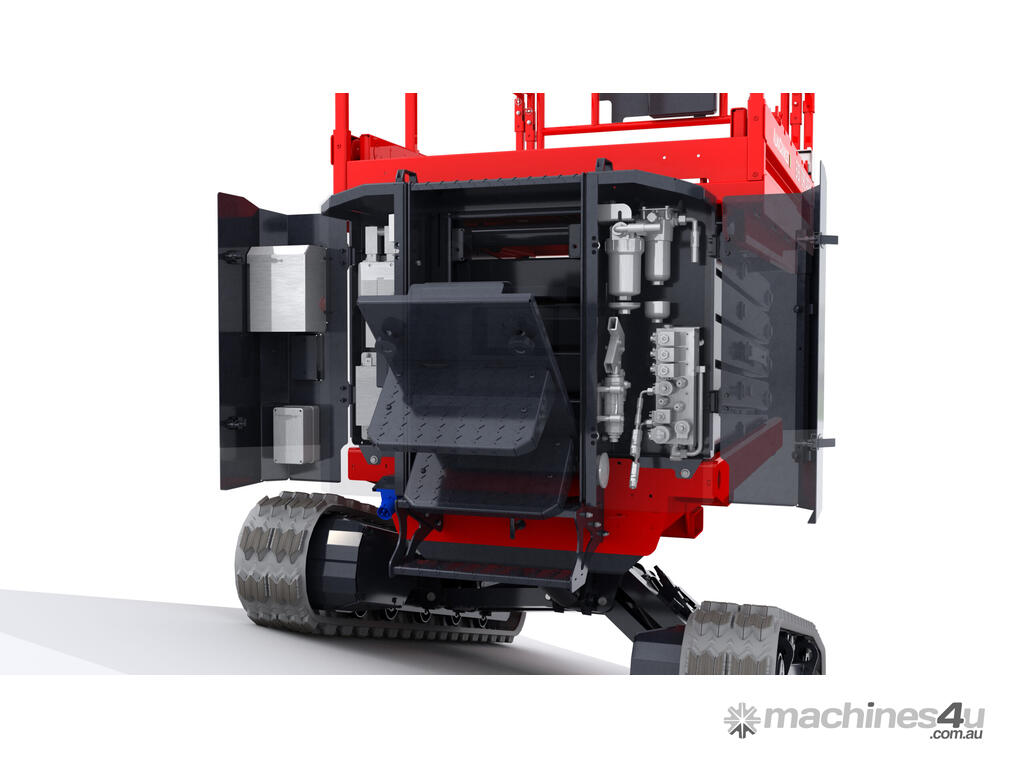

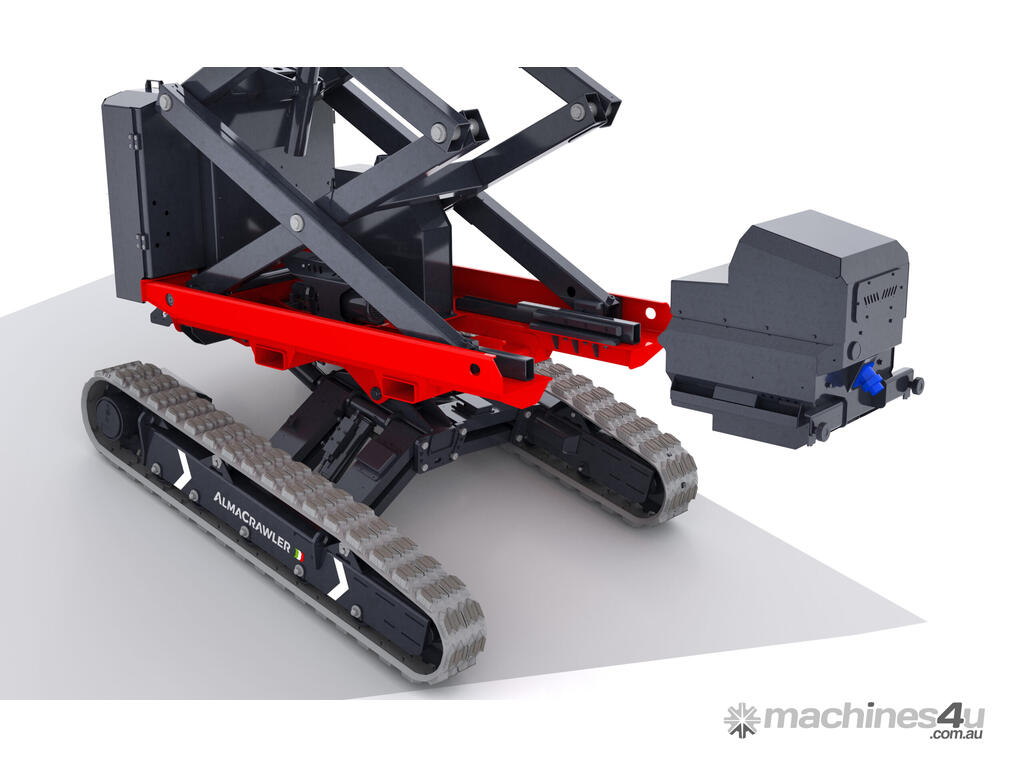

Infinite autonomy with our fully removable Power Pack with integrated forklift pockets, a new and innovative power option. Each unit can be easily substituted and taken for recharge off-site. Choose between interchangeable Lead Acid or Lithium battery packs!

The platform features a new design for easy maintenance.

Main features:

Fully electric
Electric drive
Infinite autonomy thanks to removable and interchangeable battery pack
Anti-Entrapment System
Easy maintenance thanks to new design
Pockets for forklift forks
ATS System – Automatic Tensioning System

Technical data:
Basket Capacity: 300 kg (2 operators)
Basket Size: 1.80 x 1.30 m
Max Working Height: 10.0 m
Max Height Basket Floor: 8.0 m
Moving Height: 6.5 m

Undercarriage: Bi-Levelling
Basket Levelling: Automatic
Longitudinal Levelling (Front): ±20°
Longitudinal Levelling (Rear): ±15°
Lateral Levelling: ±14°
Max Speed: 4.5 km/h
Gradeability: 25°
Side Slope: 21°

Length: 2.35 m
Width: 1.46 m to 1.64 m
Min Height with Narrow Tracks (Folded Railings): 2.42 m (2.09 m)
Min Height with Wide Tracks (Folded Railings): 2.09 m (1.75 m)

Compliance: EN 280, ANSI, CSA, AS/NZS 1418.10 2025

Power: 2 Electric Motors – Total Power: 10.6 kW
Battery Charger: 85-270VAC 50/60Hz – Automatic Setting
Battery Power Pack: Lead Crystal / Lithium
Total Weight: 3130 kg / 2885 kg
