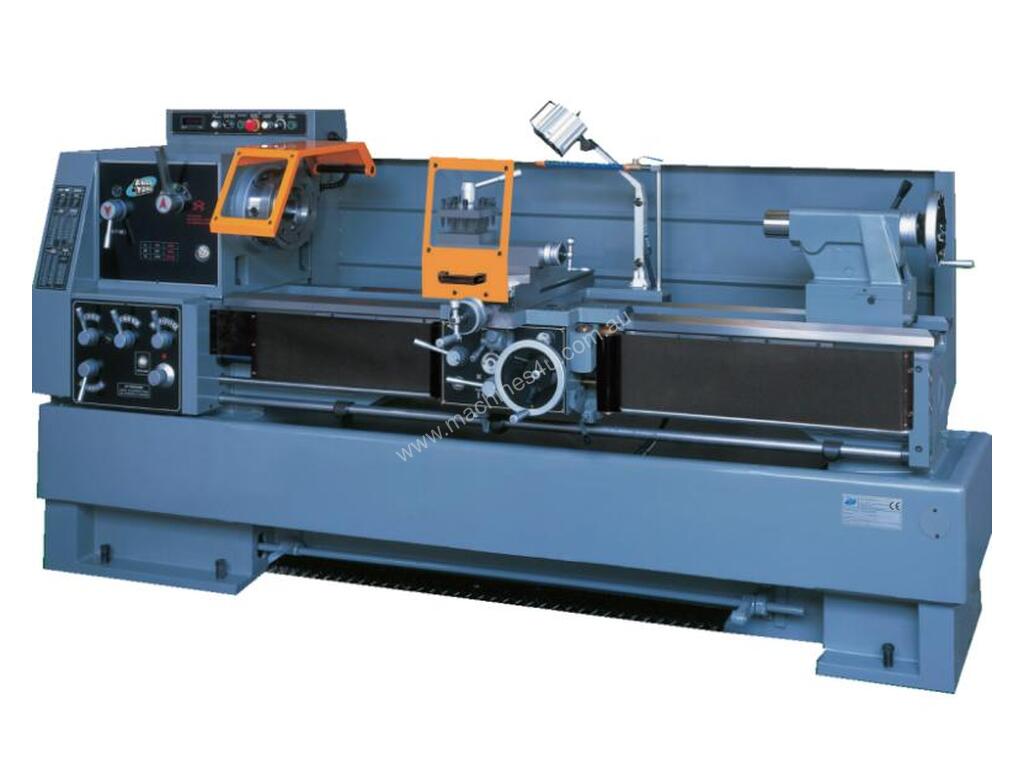

Annn Yang Precision Lathe DY-510

Annn Yang Precision Lathe Models Available:

DY-410
1000/1500mm

DY-510
1100/1600/2100mm

DY-660
1000/1500/2000/2500/3000/4000/5000/6000mm

DY-410
Distance between centers 1000 / 1500mm 1100 / 1600 / 2100 / 3100mm
Swing over bed 410mm 510mm
Swing over cross slide 230mm 320mm
Swing over gap 640mm 760mm
Height of center (over bed) 205mm 255mm

BED Width 305mm 330mm

HEADSTOCK
Spindle nose & bore D mm D1-8, 80mm / 102 (OPT.)
Spindle speed (rpm) L: 25 ~ 350 L: 15 ~ 300 L: 50 ~ 220
M: 70 ~ 1000 M: 50 ~ 650 M: 120 ~ 650
H: 180 ~ 2700 H: 140 ~ 2500 H: 220 ~ 1800
