Arbor Press AP-1 1 Tonne

HAFCO Arbor Press AP-1 1 Tonne
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P118

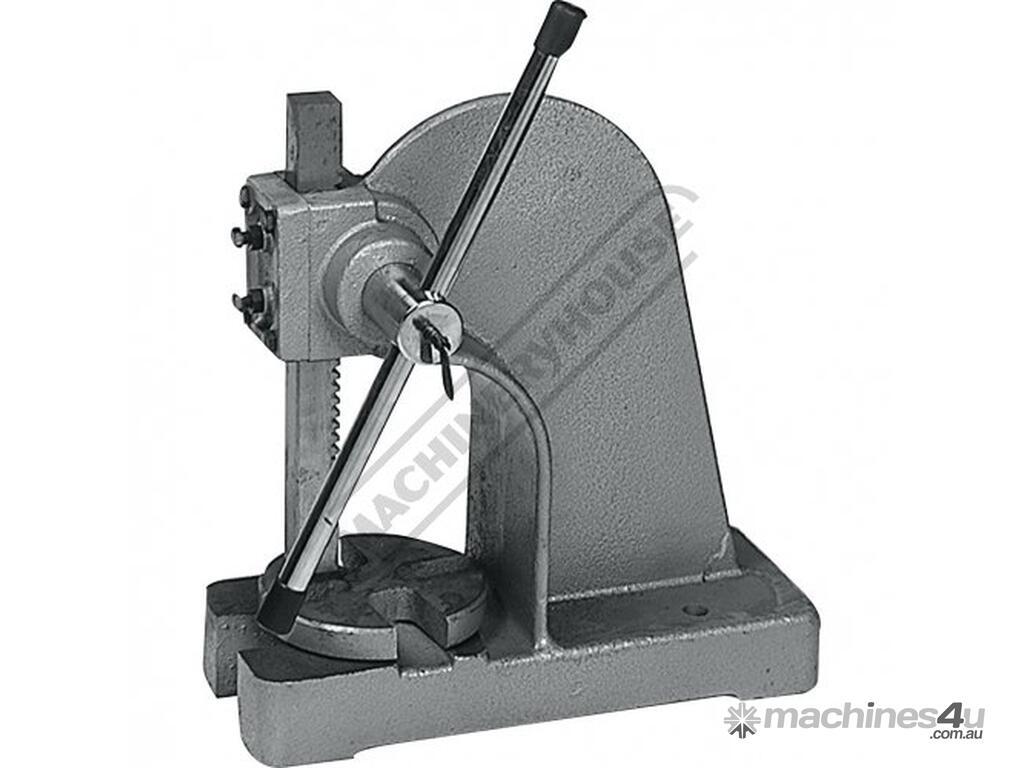

The HAFCO AP-1 1 Tonne Arbor Press is a compact, heavy-duty bench press designed for accurate pressing, assembly and repair work. Delivering 1 Tonne of pressing capacity, it features a robust cast iron frame for exceptional strength and rigidity, while the precision-machined 25 x 25mm square ram ensures accurate alignment and consistent results.

A smooth rack and pinion drive system provides controlled, effortless operation, giving you excellent feel and precision for a wide range of pressing applications. The 4-position rotating anvil, complete with multiple cut-out sizes, increases versatility and supports a variety of component sizes and jobs.

Ideal for pressing bearings, bushes, sleeves, pins, gears and other small components, the AP-1 is also well suited to keyway broaching, riveting, press fitting, component assembly, repair and general engineering maintenance. Compact and bench mountable using the pre-drilled mounting holes, it is the ideal addition to engineering workshops, maintenance departments, fabrication shops and serious DIY workshops.

Features:
Heavy-duty cast iron frame for maximum strength and long service life
1 Tonne pressing capacity
25 x 25mm square steel ram for accurate pressing
Rack and pinion drive system for smooth controlled operation
4-position rotating anvil with & 30mm cut-outs and slots for versatile workholding
143mm ram travel
97mm throat depth with 137mm maximum throat height
Bench mountable using pre-drilled Ø17mm mounting holes
Compact bench-mounted design with a 127 x 270mm footprint


Specifications:
ORDER CODE: P118
MODEL: AP-1
Capacity (Tonne): 1
Throat Depth (to Centre of Ram) (mm): 97
Throat Height (Min/Max - with / without Anvil) (mm): 117 / 137
Ram Size (mm): 25 x 25
Ram Travel (mm): 143
Table Slot Size (mm): 13, 17, 23, 30
Base Footprint (mm): 127 x 270
Nett Weight (kg): 17
