Arbor Press AP-3 3 Tonne

HAFCO Arbor Press AP-3 3 Tonne
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P120

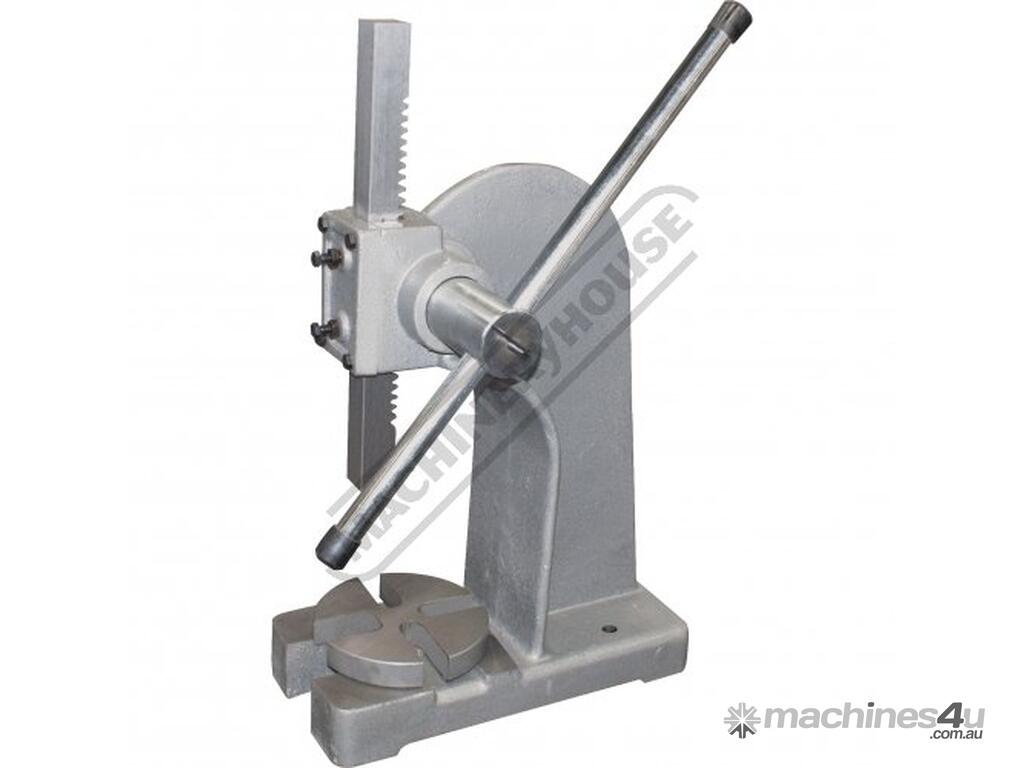

The HAFCO AP-3 3 Tonne Arbor Press is a compact, heavy-duty bench press designed for accurate pressing, assembly and repair work. Delivering 3 Tonne of pressing capacity, it features a robust cast iron frame for exceptional strength and rigidity, while the precision-machined 38 x 38mm square ram ensures accurate alignment and consistent results.

A smooth rack and pinion drive system provides controlled, effortless operation, giving you excellent feel and precision for a wide range of pressing applications. The 4-position rotating anvil, complete with multiple cut-out sizes, increases versatility and supports a variety of component sizes and jobs.

Ideal for pressing bearings, bushes, sleeves, pins, gears and other small components, the AP-3 is also well suited to keyway broaching, riveting, press fitting, component assembly, repair and general engineering maintenance. Compact and bench mountable using the pre-drilled mounting holes, it is the ideal addition to engineering workshops, maintenance departments, fabrication shops and serious DIY workshops.

Features:
Heavy-duty cast iron frame for maximum strength and long service life
3 Tonne pressing capacity
38 x 38mm square steel ram for accurate pressing
Rack and pinion drive system for smooth controlled operation
4-position rotating anvil with & 44mm cut-outs and slots for versatile workholding
307mm ram travel
163mm throat depth with 330mm maximum throat height
Bench mountable using pre-drilled Ø21mm mounting holes
Compact bench-mounted design with a 204 x 455mm footprint


Specifications:
ORDER CODE: P120
MODEL: AP-3
Capacity (Tonne): 3
Throat Depth (to Centre of Ram) (mm): 163
Throat Height (Min/Max - with / without Anvil) (mm): 300 / 330
Ram Size (mm): 38 x 38
Ram Travel (mm): 307
Table Slot Size (mm): 30 / 30 / 30 / 44
Base Footprint (mm): 204 x 455
Nett Weight (kg): 69
