Arbor Press AP-5 5 Tonne

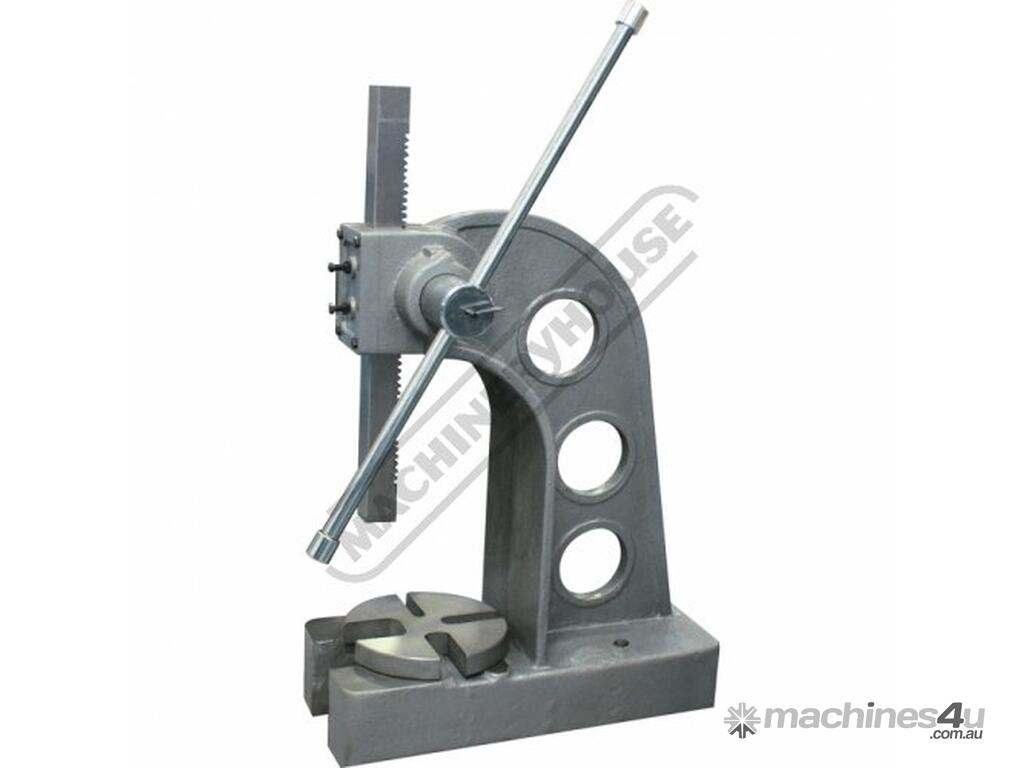

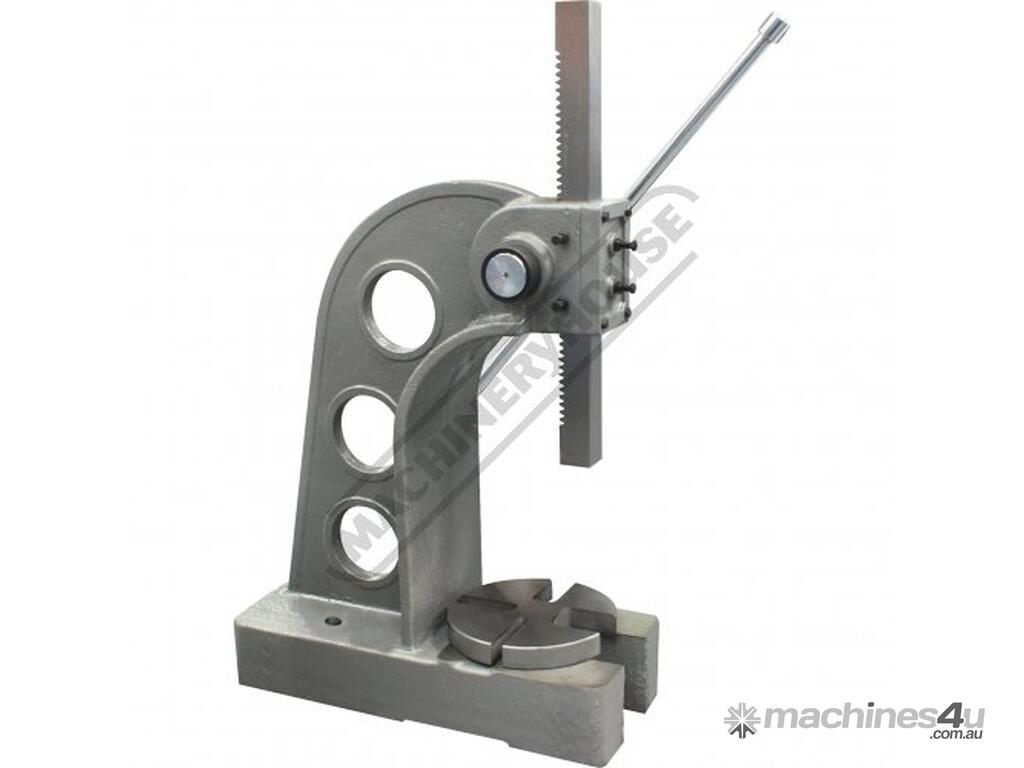

HAFCO Arbor Press AP-5 5 Tonne
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P1205

The HAFCO AP-5 5 Tonne Arbor Press is a compact, heavy-duty bench press designed for accurate pressing, assembly and repair work. Delivering 5 Tonne of pressing capacity, it features a robust cast iron frame for exceptional strength and rigidity, while the precision-machined 50 x 50mm square ram ensures accurate alignment and consistent results.

A smooth rack and pinion drive system provides controlled, effortless operation, giving you excellent feel and precision for a wide range of pressing applications. The 4-position rotating anvil, complete with multiple cut-out sizes, increases versatility and supports a variety of component sizes and jobs.

Ideal for pressing bearings, bushes, sleeves, pins, gears and other small components, the AP-5 is also well suited to keyway broaching, riveting, press fitting, component assembly, repair and general engineering maintenance. Compact and bench mountable using the pre-drilled mounting holes, it is the ideal addition to engineering workshops, maintenance departments, fabrication shops and serious DIY workshops.

Features:
Heavy-duty cast iron frame for maximum strength and long service life
5 Tonne pressing capacity
50 x 50mm square steel ram for accurate pressing
Rack and pinion drive system for smooth controlled operation
4-position rotating anvil with & 70mm cut-outs and slots for versatile workholding
480mm ram travel
243mm throat depth with 470mm maximum throat height
Bench mountable using pre-drilled Ø30mm mounting holes
Compact bench-mounted design with a 275 x 645mm footprint


Specifications:
ORDER CODE: P1205
MODEL: AP-5
Capacity (Tonne): 5
Throat Depth (to Centre of Ram) (mm): 243
Throat Height (Min/Max - with / without Anvil) (mm): 435 / 470
Ram Size (mm): 50 x 50
Ram Travel (mm): 480
Table Slot Size (mm): 20 / 30 / 40 / 70
Base Footprint (mm): 275 x 645
Nett Weight (kg): 160
