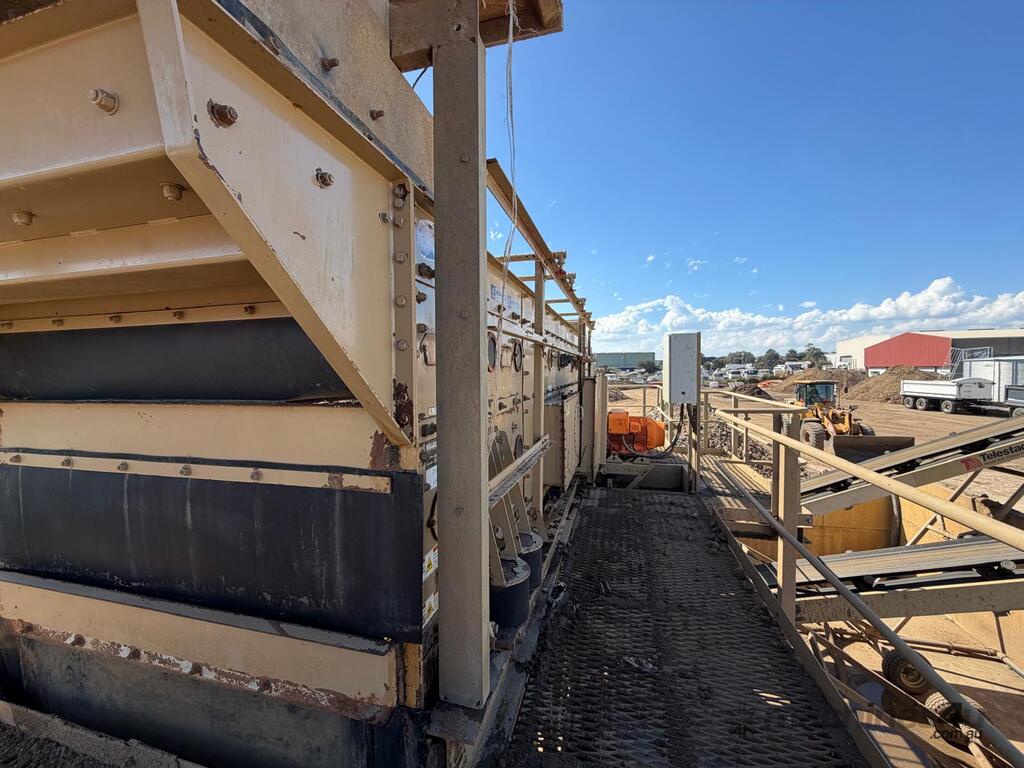

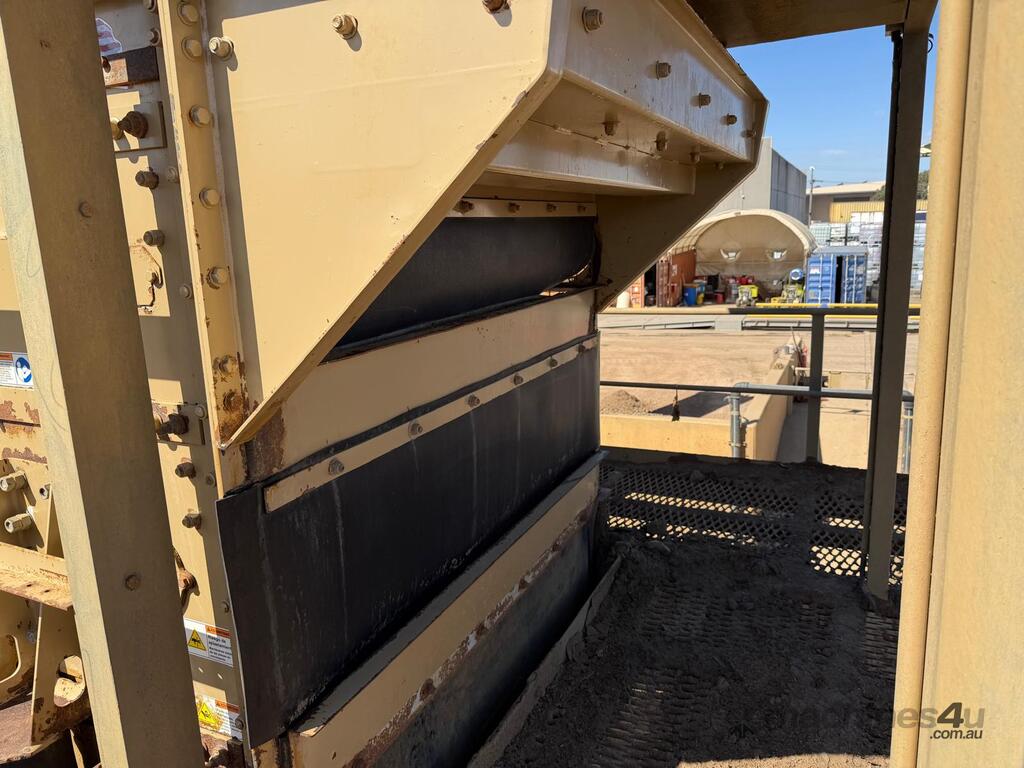

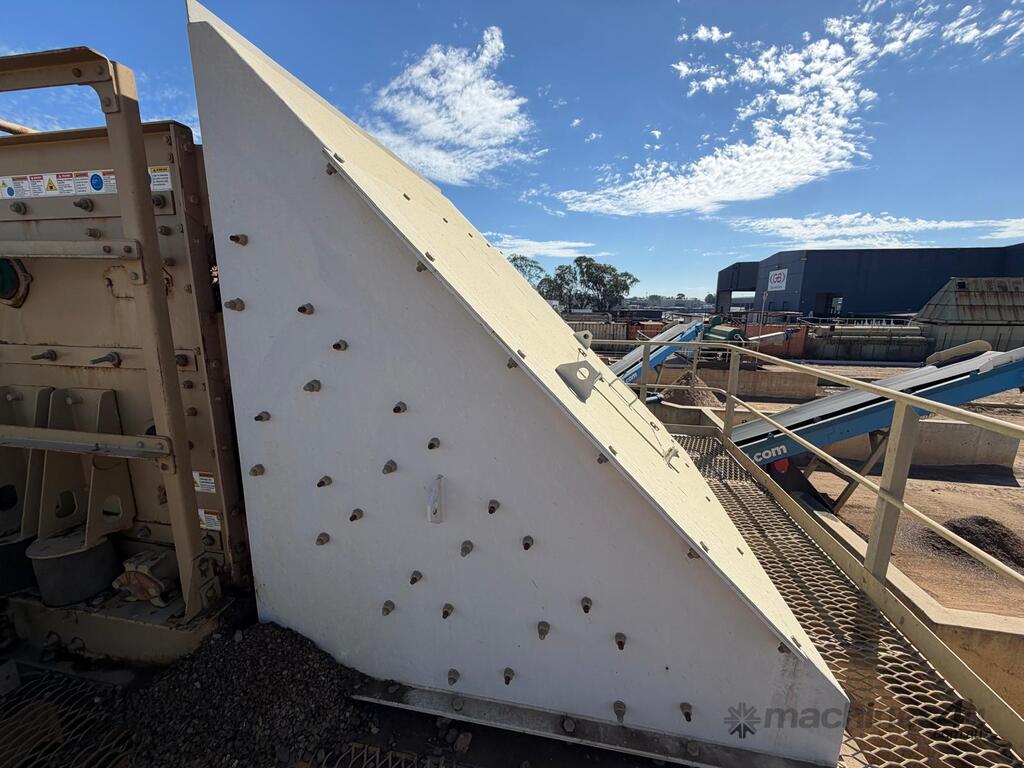

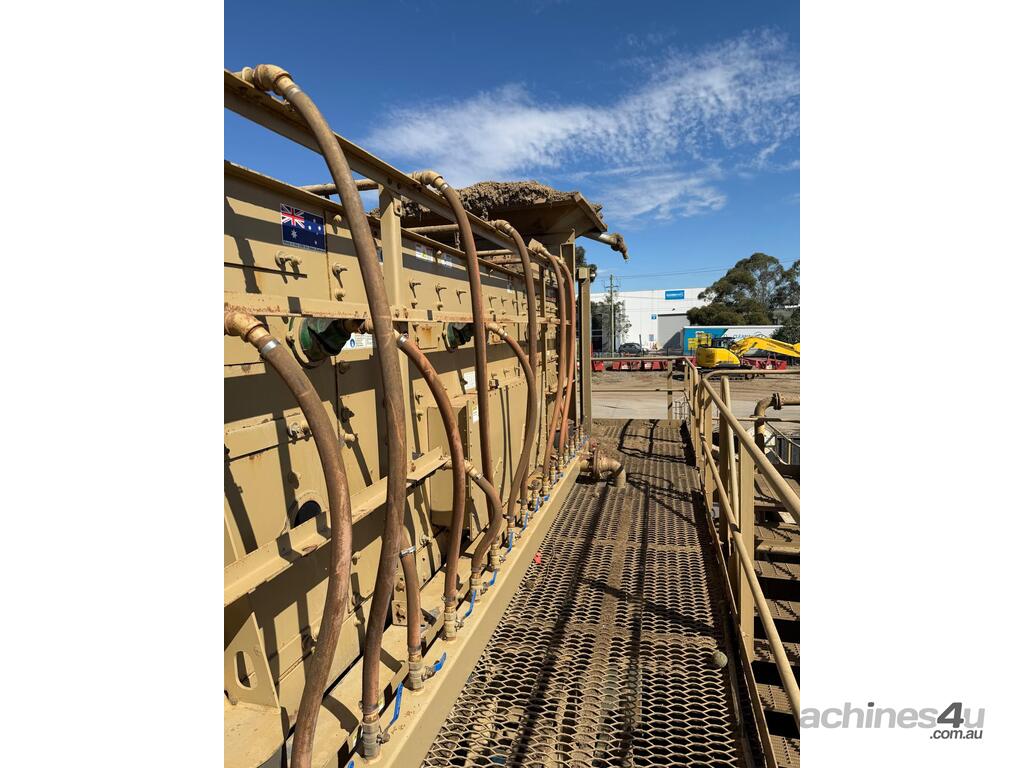

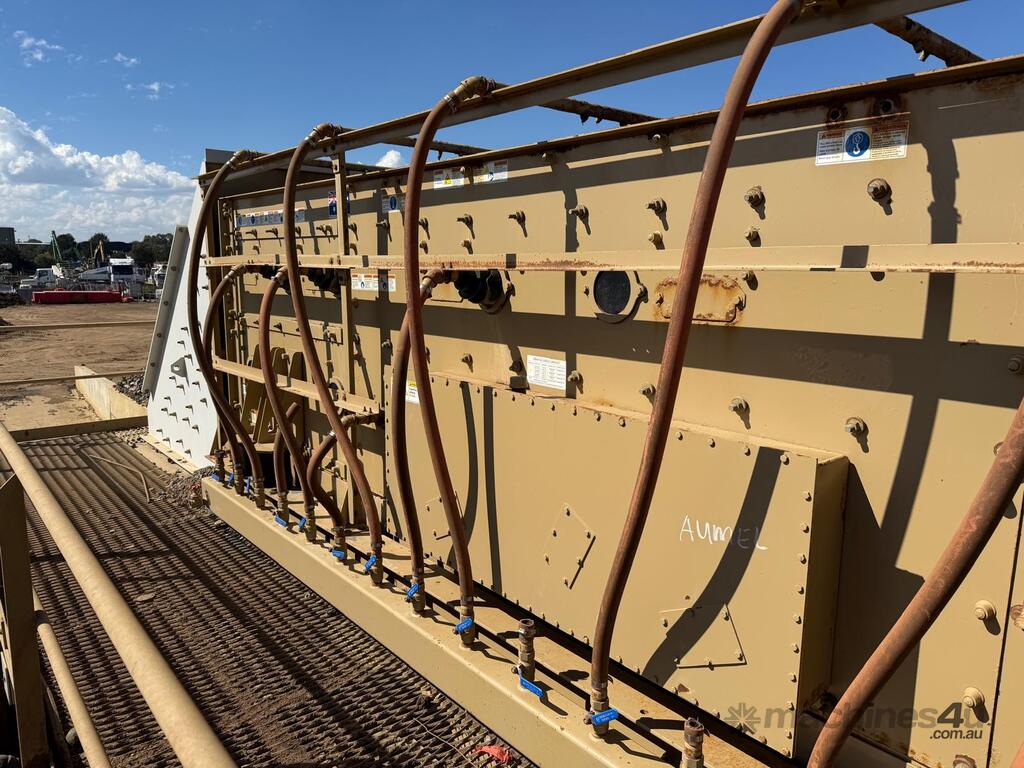

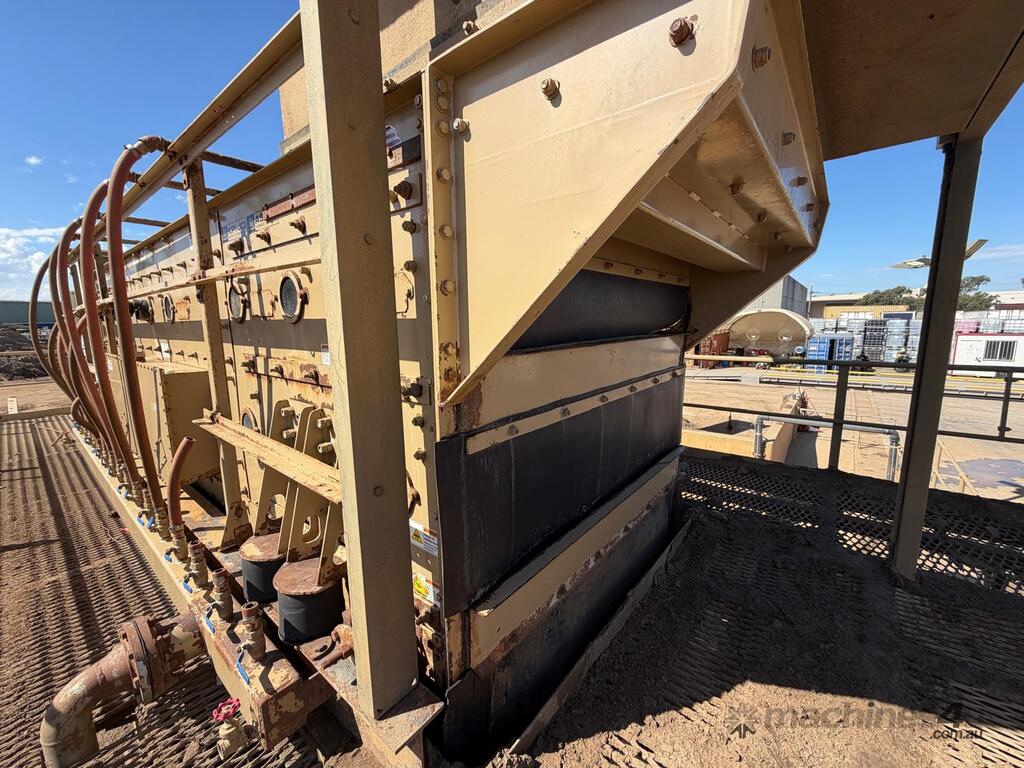

Used astec Wash Plant for sale - Astec LP Screen

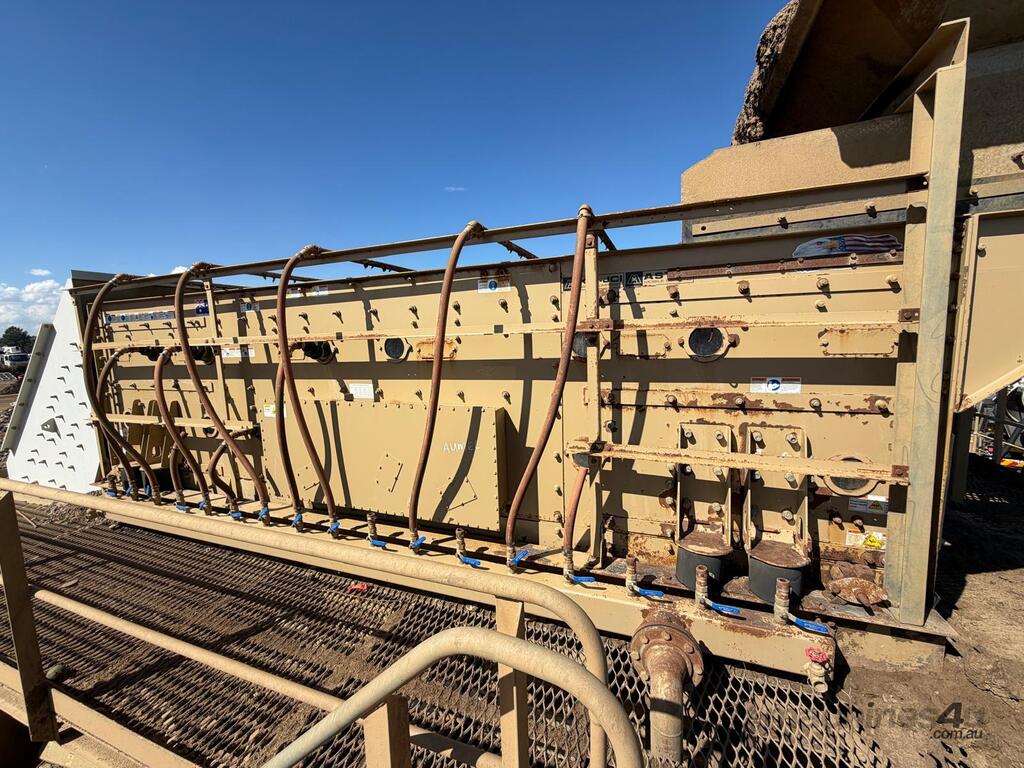

This Astec sizing screen was used at a NDD recycling facility.
Used primarily to size, separate and wash the rock at the front end of the plant.

ASTEC JCI 6203-32LP - LOW PROFILE HORIZONTAL SCREEN.

No Electric Motor,
Motor Mount,
V-Belts
V-Belt Guard.

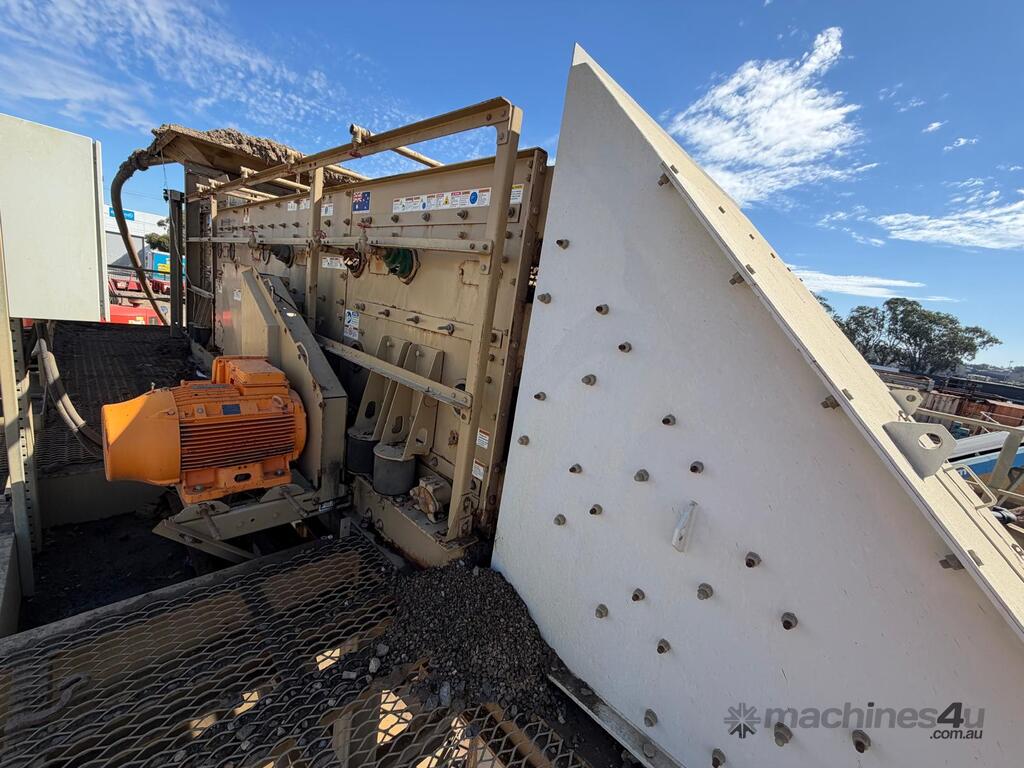

Right Hand Side Drive.
Side Plate Access Holes and Covers Drawplates, Bolts Washers, Nuts etc.
Single Crown Decks with Draw (Side) Plates (x30) & Fasteners.
24 .,

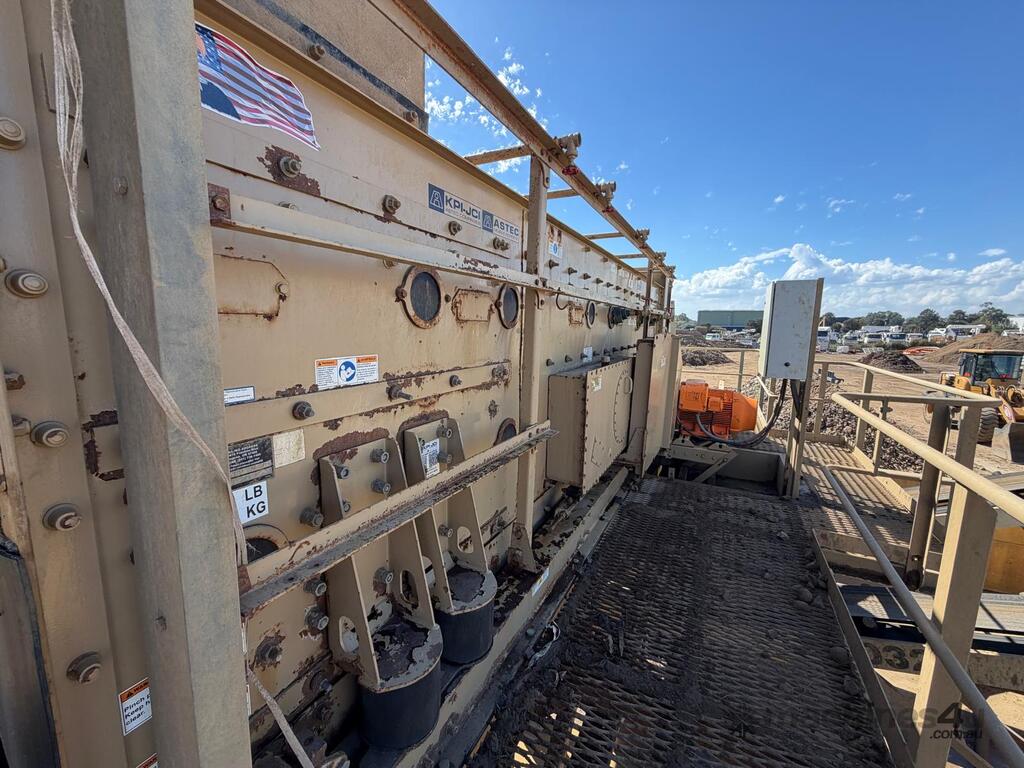

Rubber Springs, to reduce basket stress.
Base Plates for Rubber Springs (x4)
Snubber Assemblies (x4)
Shaft Assembly Location for even stroke pattern.
Utilizes keyless hub to shaft locking assembly system.
Superior load carrying double roll bronze cage spherical roller bearings.
Adjustable Stroke Length.
Operating Speed 675-875rpm.
Timing Bars (x2)
Stroke Adjustment Tool (x1)
Painted Astec Beige


Screen Media.
Top Deck 40mm Apt. x Poly 1220mm Long x 1880mm OH, 45 Degree Hooks.
Mid Deck 16mm Apt. x 5mm Poly 1245mm Long x 1880 OH & bands, 45 Degree Hooks with
25mm Overlap on One Side.
Bottom Deck 5mm Apt. x 2.5mm Poly 1245mm Long x 1880mm OH & Bands, 45 Degree Hooks
with 25mm Overlap on One Side.
JCI 620
