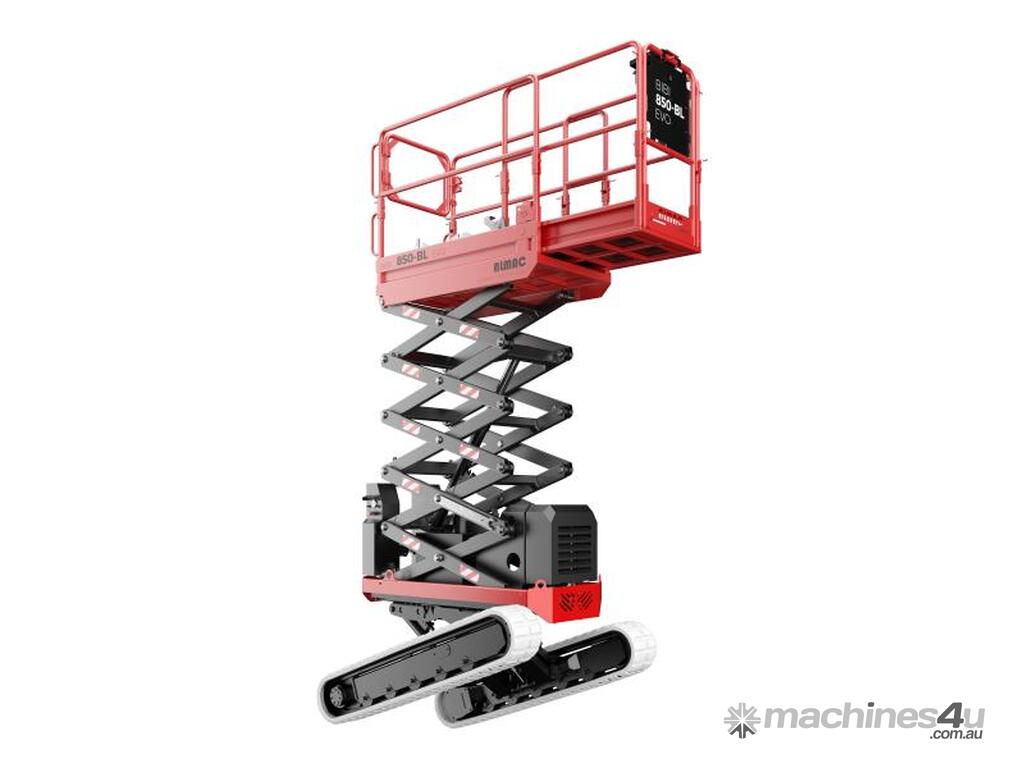

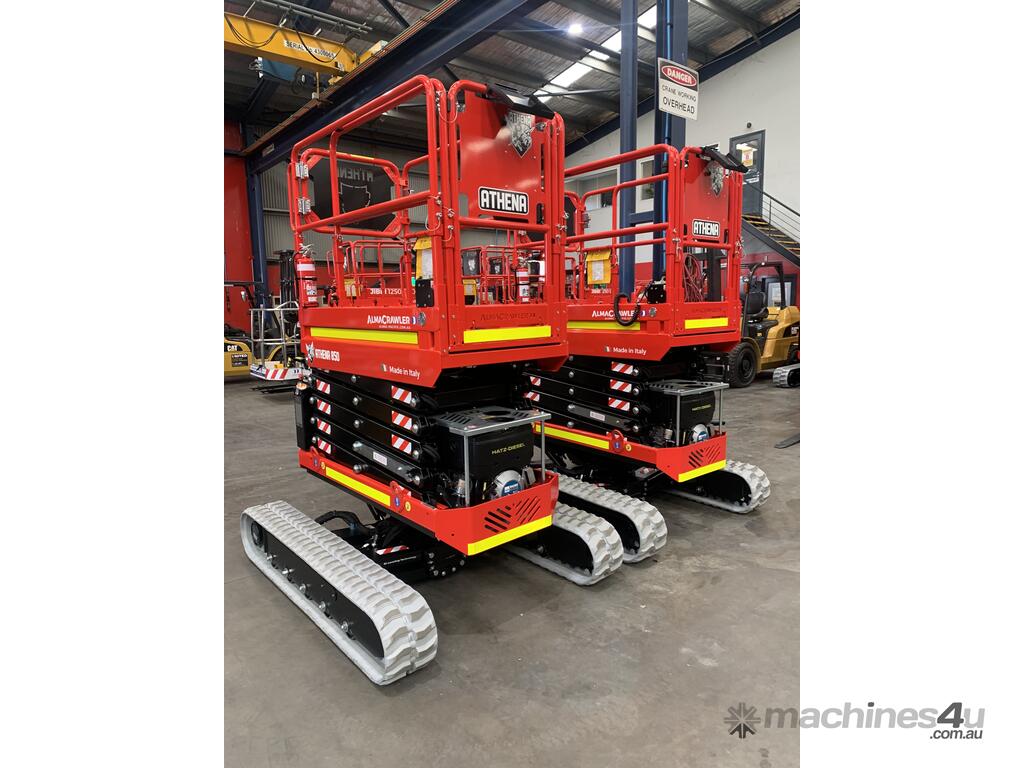

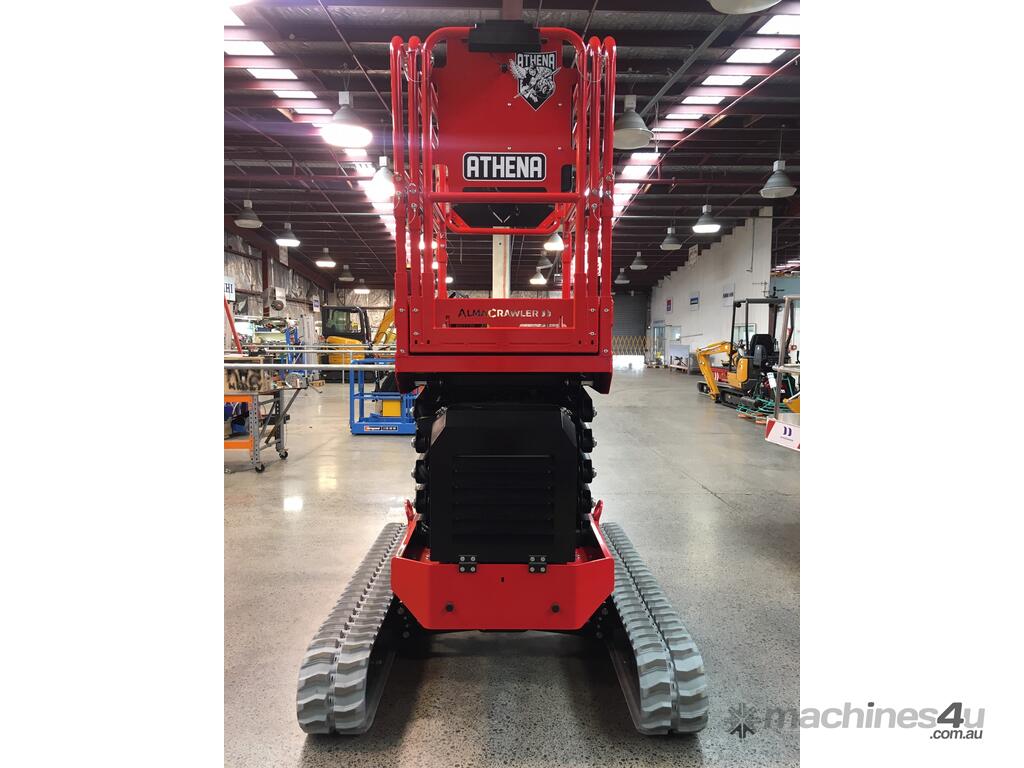

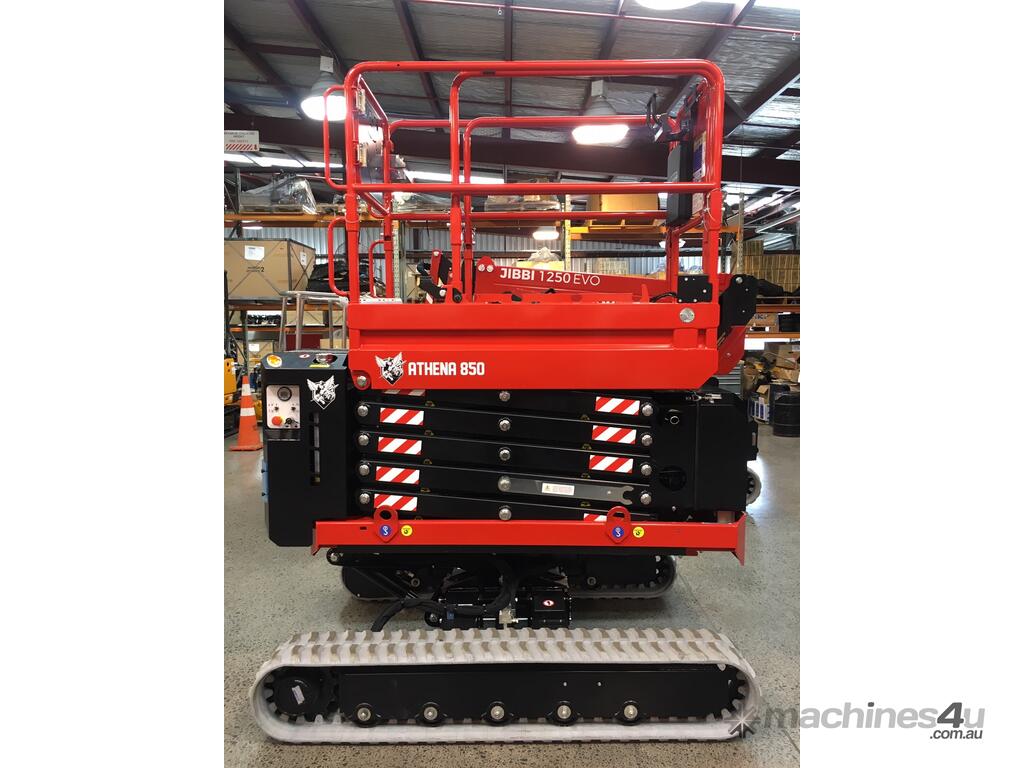

Athena 850-BL Bi-Levelling Tracked Scissor Lift

Utilising it's Patented Bi-levelling Undercarriage - The ALMACRAWLER Athena 850-BL Tracked Scissor lift will continually provide safe working solutions on steep inclinations, rough terrain, difficult to access areas as well as managing the standard tasks required by a Mobile Elevating Work Platform. This one unit can provide a working solution replacing many traditional approaches.

The 850-BL scissor lift provides a working height up to 7.90 meters. Equipped with the bi-levelling undercarriage, it is a high performing elevating work platform that keeps you mobile whilst safely working on steep inclines previously inaccessible in the MEWP sector. No requirement for deploying stabilisers keeps the machine mobile and increases productivity without the operator constantly packing up the machine to move a few meters.

Why should you use this model?

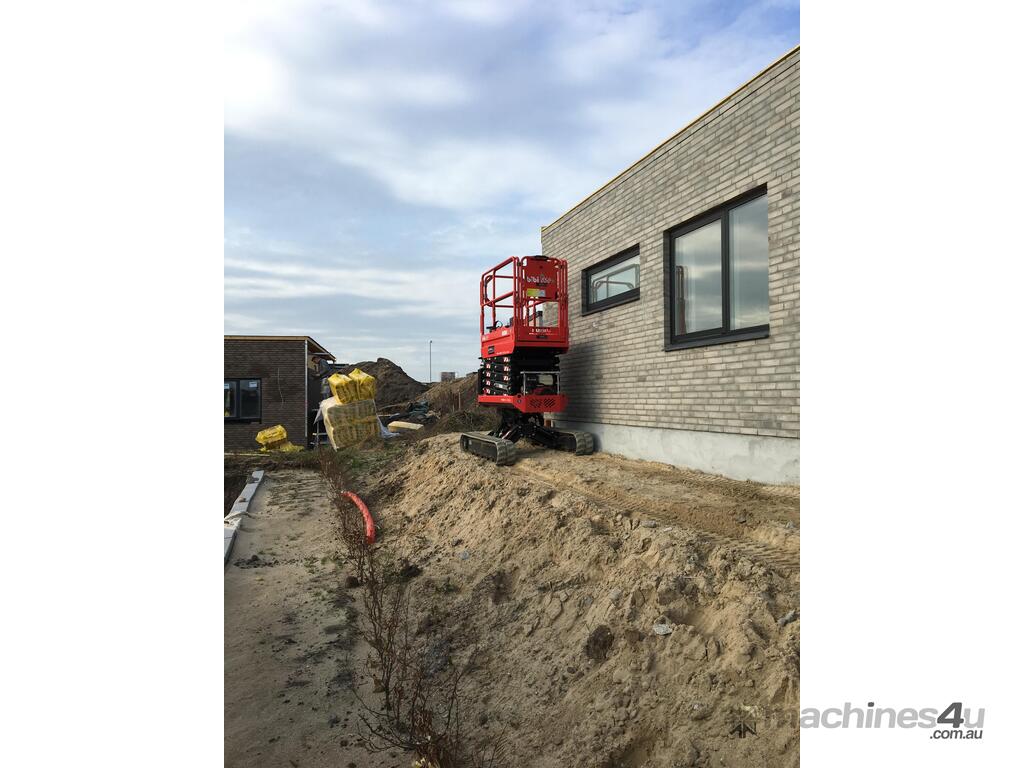

Traditionally steep inclinations on worksites were managed by fixed scaffolding. Exploiting the new technology of an Athena Bi-Levelling Scissor lift advances the speed of access in these positions, eliminating the requirement for fixed scaffolding in many instances. This using its automatic ability to overcome any type of slope up to 20 ° longitudinally and 15 ° laterally

A tracked undercarriage provides the high traction required to maintain stability in many ground surfaces. It also provides a lower ground pressure point loading than traditional wheeled machines.

Available in the choice of Petrol or Diesel main engine, there is also an optional 240v Electric Motor that can permit the machine use whilst connected to 240v mains power.

Technical Specifications

Basket Capacity: 250 kg (2 operators)
Max Working Height: 7.9 m
Max Height Basket Floor: 5.9 m
Moving Height: 6.1 m
Lateral Leveling for Moving at Heights: ±4°
Engine Options:
- Honda Petrol iGX390
- Hatz Diesel 1B40
OPTIONAL: Electric Motor: 220V-2kW
Accelerator: Automatic

Undercarriage: Bi-Levelling
Basket Leveling: Automatic
Longitudinal Leveling Front: ±16°
Longitudinal Leveling Rear: ±20°
Lateral Leveling: ±15°

Hydraulic Commands: Proportional
Direction-Control System: Yes
Easy-Drive System: Yes
Kit for High Speed: Max 2.20 km/h
Ground Emergency: Yes
Control of Inclination: Automatic
Gradeability: 25°
Side Slope: 21°

Length: 1.94 m
Width: 1.30 – 1.50 m
Minimum Machine Height with Folded Railings: 1.98 m
Total Weight: 1990 kg
Compliance: EN 280, ANSI, CSA, AS/NZS1418
