Athena 870 BL EVO Bi-Levelling Tracked Scissor Lift

Utilising it's Patented Bi-levelling Undercarraige - The ALMACRAWLER Athena 870-BL EVO Tracked Scissor lift will continually provide safe working solutions on steep inclinations, rough terrain, difficult to access areas as well as managing the standard tasks required by a Mobile Elevating Work Platform. This one unit can provide a working solution replacing many traditional approaches.

Born as an evolution of the already high-performing Athena 870-BL, the Athena 870-BL EVO model increases user efficiency and comfort utilising it's Dynamic & Proactive levelling systems.

- DYNAMIC LEVELLING: The automatic levelling system is constantly active as the operator is travelling at stowed height. This keeps the operator standing stable in a level platform on all inclinations up to 20 degrees. The system also reduces waiting time for the automatic levelling system to correct at the desired workspace, increasing productive time for the operator to spend at work.

- PROACTIVE LEVELLING: While the machine is travelling elevated, if the system detects a change in ground inclination, it can perform a static level whilst at height. This reduces the frequency the operator must return to stowed height to re-level the chassis of the machine. Again, increasing productive time of the operator but reducing the wait time of waiting on machine operations at the worksite.

What advantages does it offer?
AlmaCrawler designed and proposes in this section a high-performance tracked scissor, equipped with an extensible and retractable 1.2m wide and 2.35m long platform. The machine is equipped with a world renowned Kubota Z482 Water-Cooled Diesel engine, reducing operating noise and increasing power available for advanced automatic levelling systems.

Large work area (250 kg capacity and 2 operators)
Great stability even at high altitude
High maneuverability in all space conditions

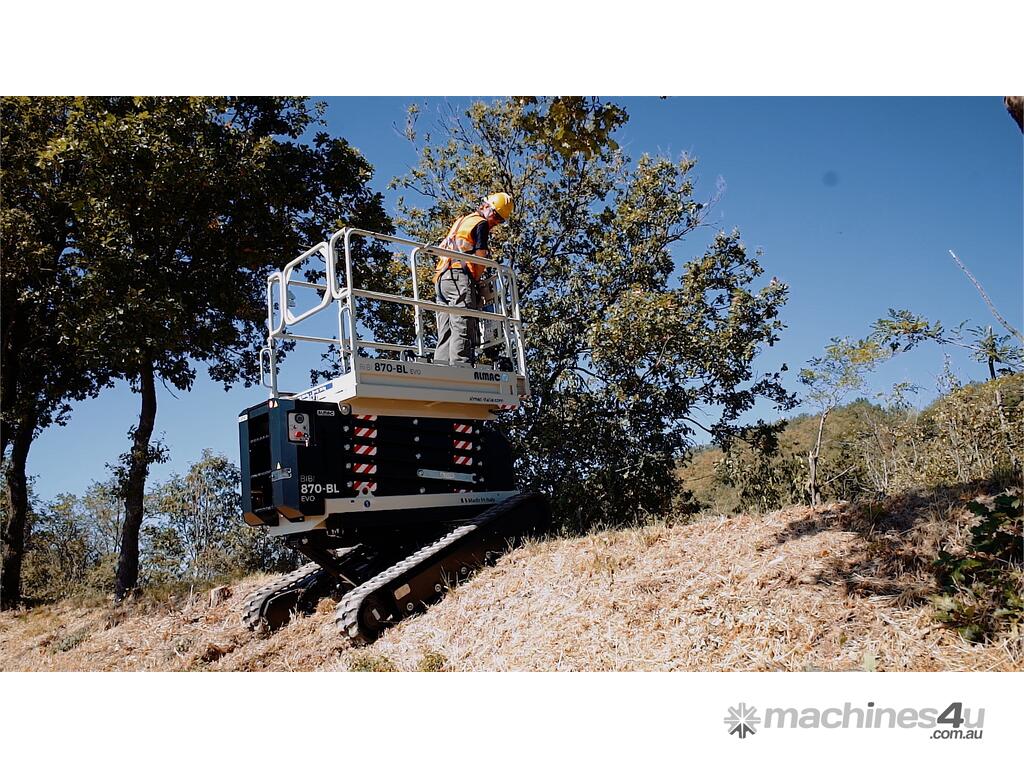

Ability to work in steep terrain or uneven surfaces (up to 20 ° longitudinally and 15 ° laterally)

Technical Specifications

Platform Capacity: 250 kg (2 operators)
Platform Size: 1.50 x 1.20 m
Max Working Height: 7.9 m
Max Height Platform Floor: 5.9 m
Moving Height: 6.0 m

Engine: Kubota Z482 Water-Cooled Diesel
Accelerator: Automatic
OPTION: Electric Pump: 220V-2.2kW

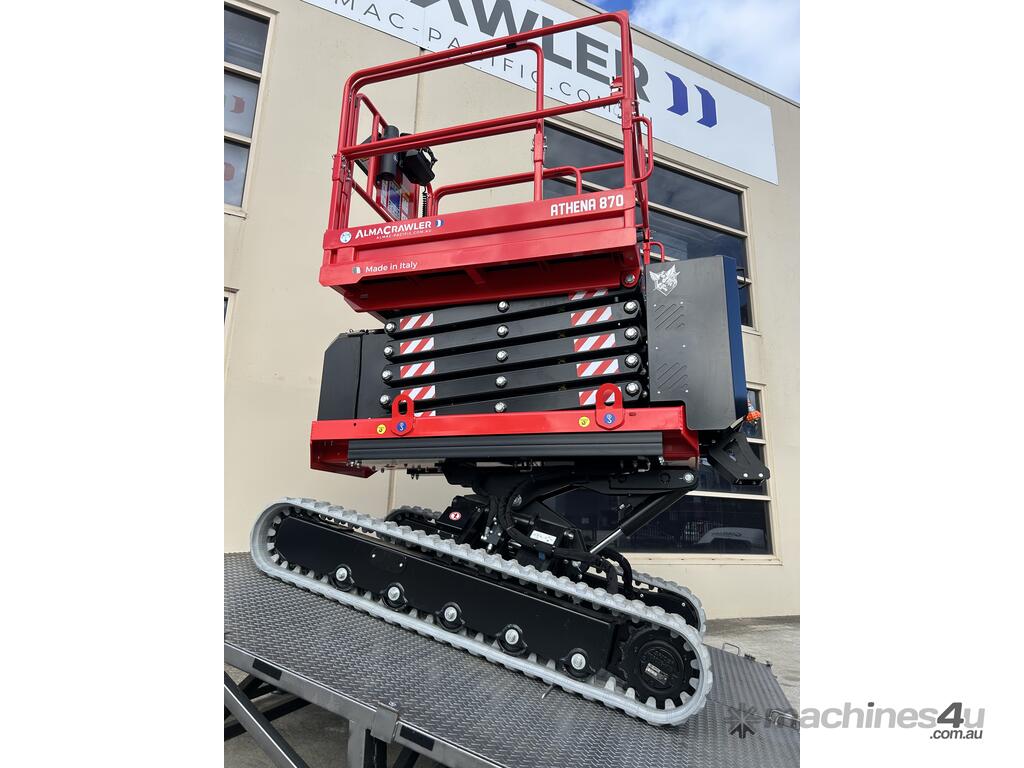

Undercarriage: Bi-Levelling
Platform Levelling: Automatic
Longitudinal Levelling (Front): ±16°
Longitudinal Levelling (Rear): ±20°
Lateral Levelling: ±15°

Hydraulic Commands: Proportional
Direction-Control System: Yes
Easy-Drive System: Yes
Kit for High Speed: Max 2.20 km/h
Ground Emergency: Yes
Control of Inclination: Automatic
Pro-active Levelling: –
Gradeability: 25°
Side Slope: 21°

Length: 1.94 m
Width: 1.30 – 1.50 m
Minimum Machine Height with Folded Railings and Narrow Tracks: 2.28 m (1.98 m)
Minimum Machine Height with Folded Railings and Wide Tracks: 1.98 m (1.68 m)
Total Weight: 2460 kg
Compliance: EN 280, ANSI, CSA, ASNZS1418
