Lift capacity 1,900 kg | Lift height 3.5 m | Engine power 56 hp | Drive speed 30 km/h | Made in Finland
The largest and most powerful Avant loader - powerful lift capacity and high lift height.

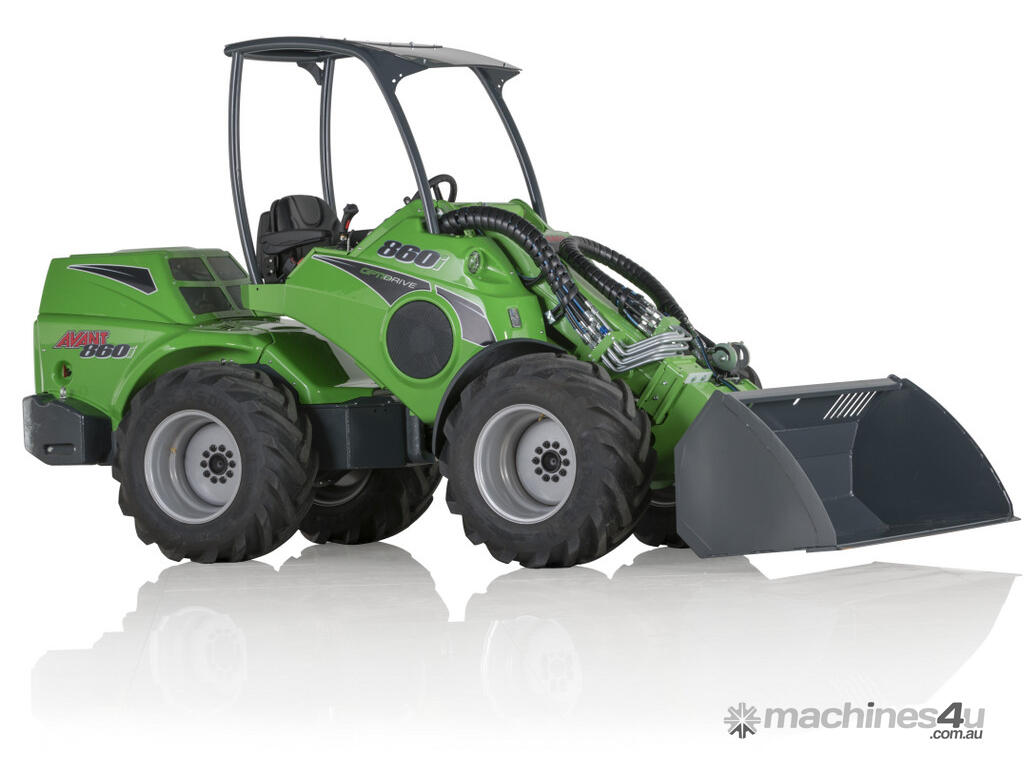

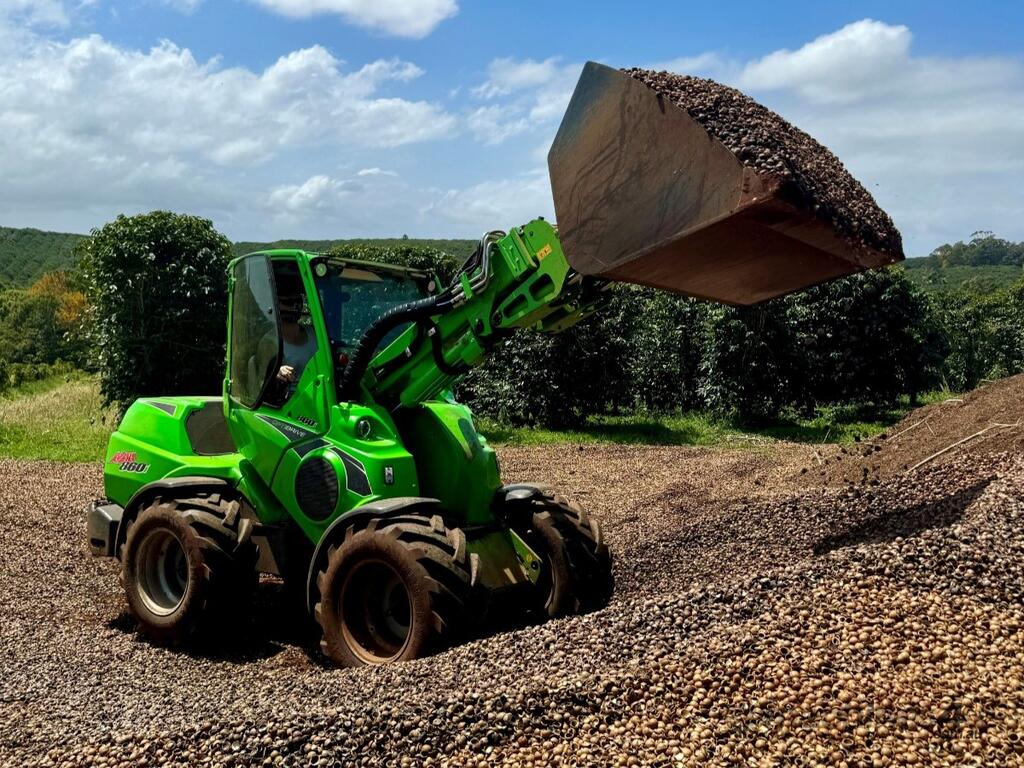

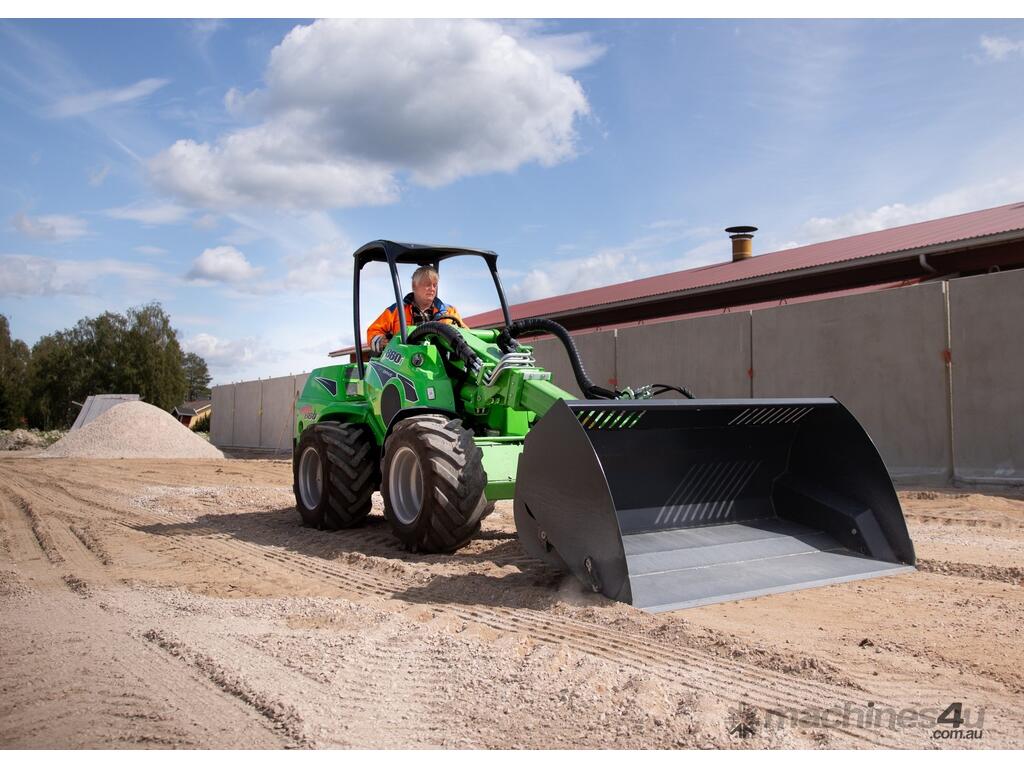

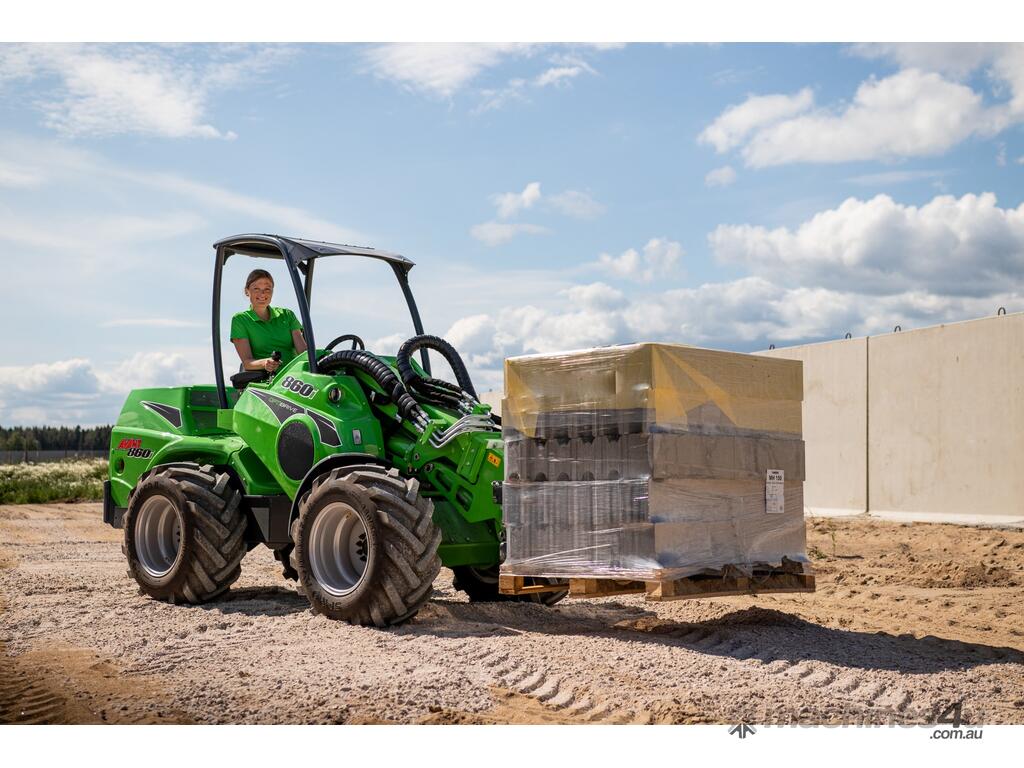

The Avant 800 Series is the flagship of the Avant loader range – offering the highest lift height and greatest capacity of any model. With a 1900 kg lift capacity, it easily handles heavy loads such as bricks or pavers, moves and loads heavy logs in the chipper, and loads trucks from one side without repositioning.

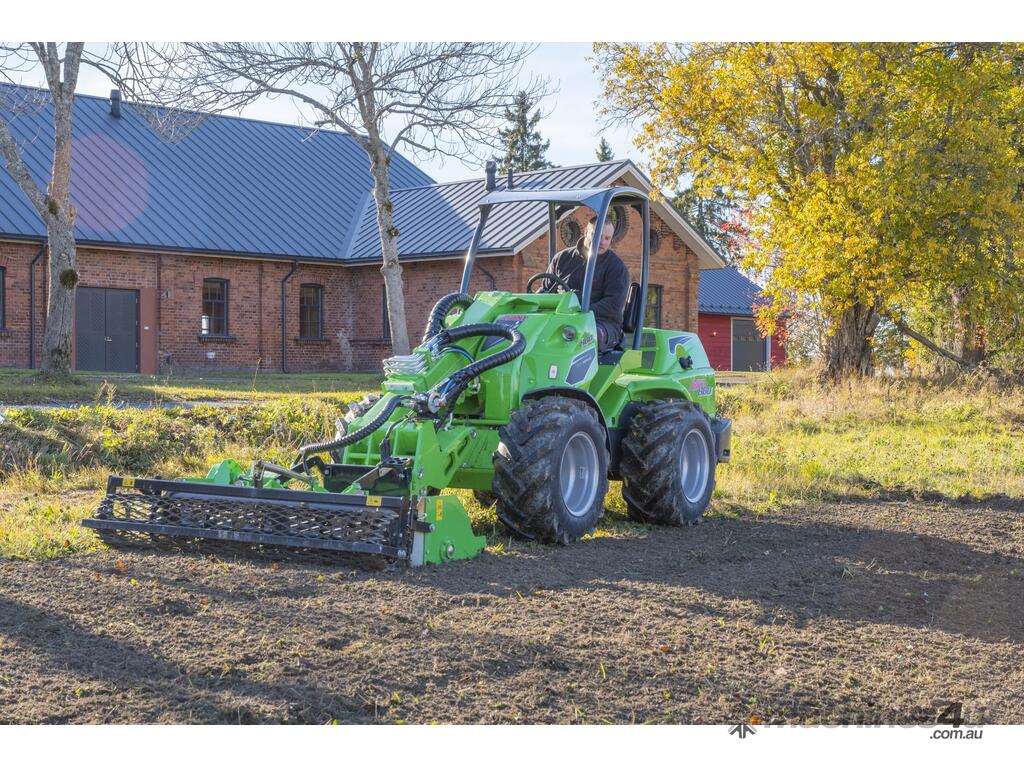

- Over 200 attachments available
- Options available to customise loader
- Telescopic Boom
- Hydraulic Parking Brake
- Boom self levelling
- Boom floating
- Two drive speeds
- Large 17" wheels as standard

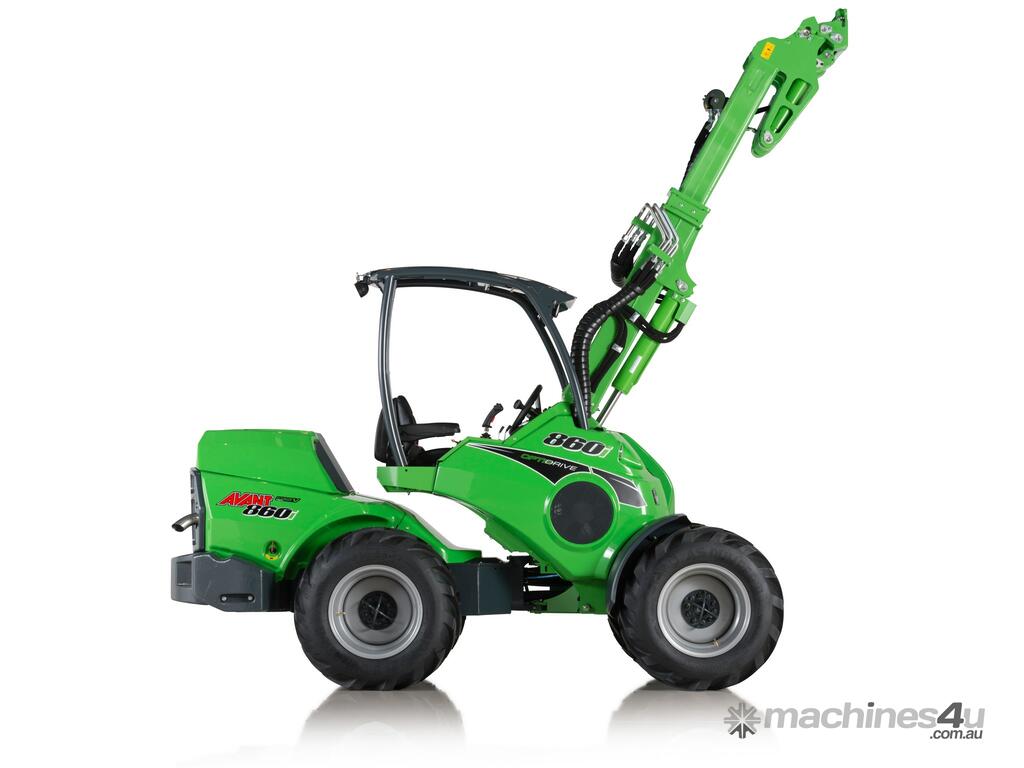

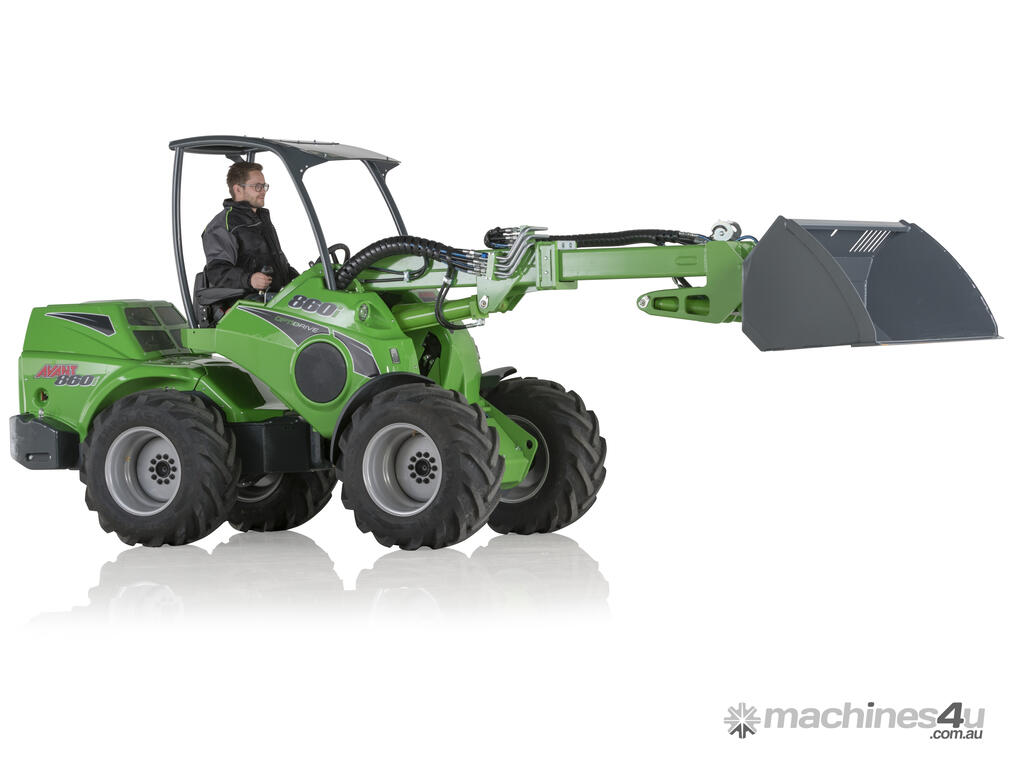

- Greater reach with Avant's signature telescopic boom
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
- Full suspension heated seat with seat belt and hand rests

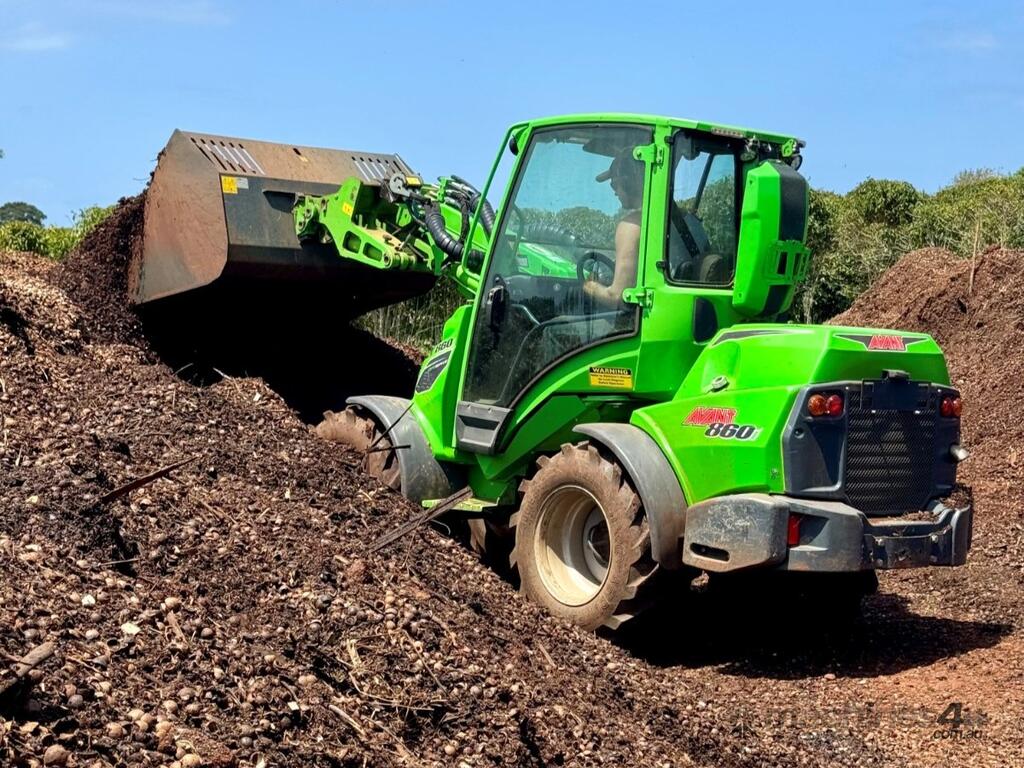

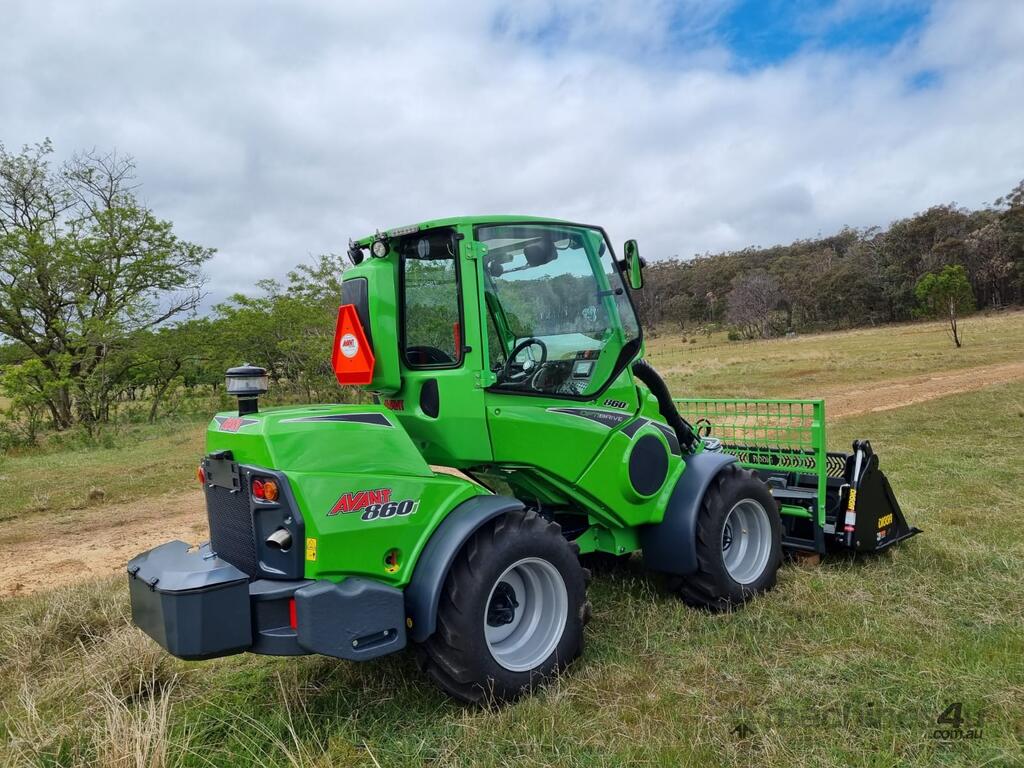

- Option new vibration insulated and low-noise level GT cab available
SPECIFICATIONS
- Length: 3395 mm
- Width (with standard wheels): 1490 mm
- Height (with standard wheels): 2200 mm
- Weight ROPS / GT: 2540 kg / 2690 kg
- Standard wheels: 380/55-17” TR
- Transmission, drive: Hydrostatic Avant Optidrive™
- Pulling force max: 1750 kp
- Drive speed max: 0 - 30 km/h
- Auxiliary hydraulics oil flow / pressure: 80 l/min / 225 bar
- Turning radius inside/outside: 1370 mm / 2990 mm

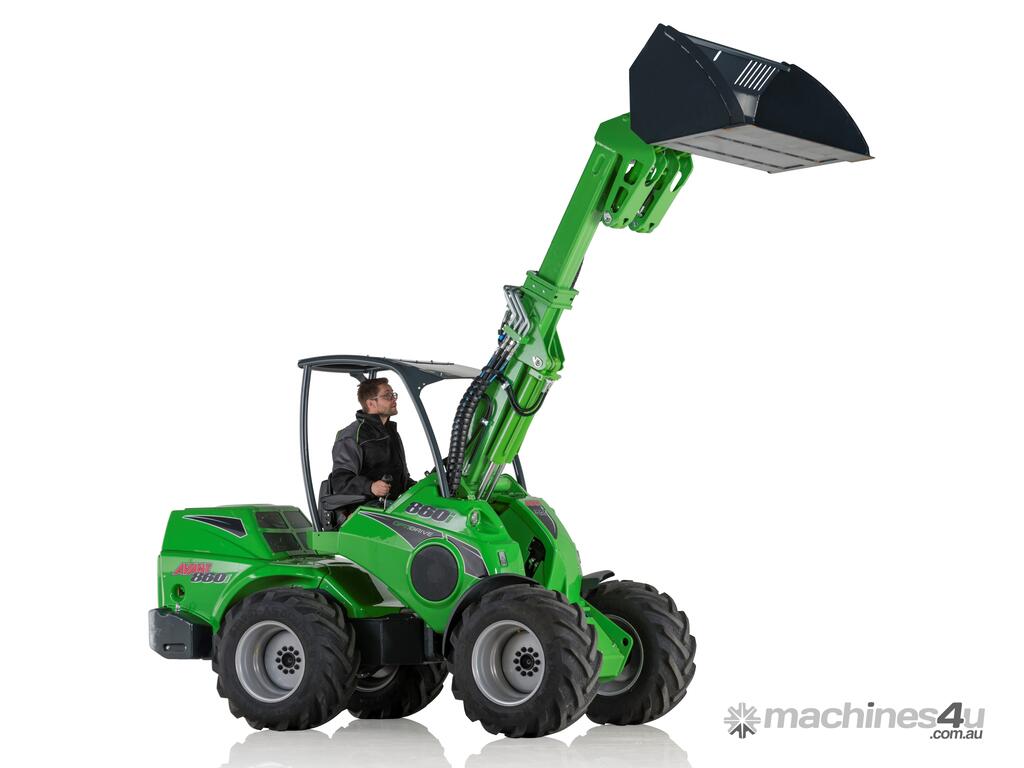

- Max. lifting height: 3500 mm
- Tipping load: 1900 kg
- Max. breakout force / 50 cm: 2200 kg
- Engine make and type: Kohler KDI 1903TCR
- Engine output (ECE R120): 42 kW (56 hp)
- Maximum torque: 220 Nm 1500 rpm
- Fuel: Diesel
Price is for machine only, Attachments sold separately
