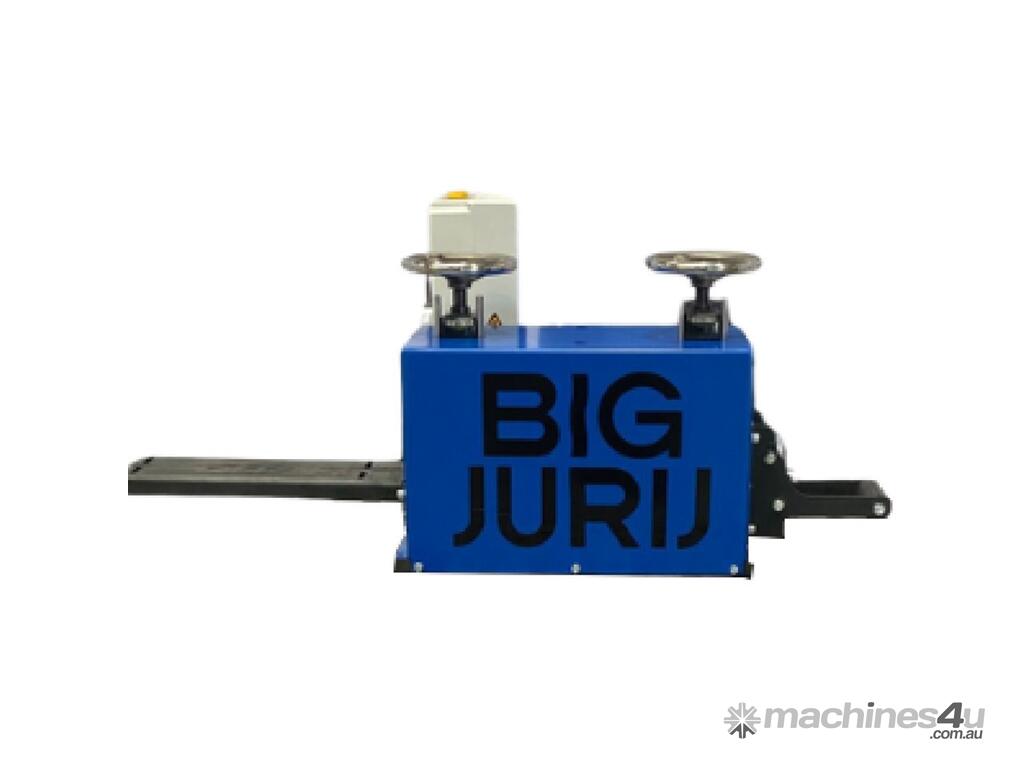

The BIG JURIJ Mini is a robust, cost-effective industrial straightening machine designed to streamline the processing of smaller metal sections. Engineered for simplicity, it allows a single operator—or even a workshop helper—to achieve professional-grade results. It is the perfect "secondary machine" to sit alongside your saw; as pieces are cut, they are straightened immediately, ensuring your assembly team always starts with perfect material.
Key Technical Specifications:
Capacity: Flat bars from 20 x 5mm up to 60 x 12mm.
Throughput Speed: Fixed at 15 m/min (one of the fastest in its class).
Operation: Manual adjustment via two precision handwheels.
Weight: Only 175–180 kg (portable and fits into any workshop corner).
Power: 400V / 16A connection.
Material Length: Handles pieces from 200mm to infinite length.
Top 5 "BIG JURIJ Mini" Advantages:
Non-Destructive Processing: Unlike hammering, the Mini uses smooth pressure. This maintains the material's yield strength and ensures zero surface marking, which is critical for architectural finishes.
Quiet & Ergonomic: It replaces the "bang-bang" of the anvil with a quiet, motorised flow. This significantly improves the workshop environment and reduces operator fatigue.
"Helper-Ready" Simplicity: You don't need your master fabricator to straighten steel. Once the handwheels are set for a batch, any staff member can feed the machine with 100% process reliability.
Massive Time Savings: Straightening a batch of 100 bars that used to take a full day now takes less than an hour. It effectively eliminates the most common bottleneck in railing production.
Small Footprint, High ROI: Occupying less than a square meter, this machine pays for itself by reducing labour costs and material waste on your very first major project.
Contact Specialist Machinery Sales today for a technical consultation and to see how the BIG JURIJ Mini integrates into your current workflow.
