The HD-765 Deburring Machine is built for fast, efficient, and high-performance deburring, polishing, cleaning, and grinding applications. Designed with a compact yet powerful structure, this machine delivers precise finishing results while protecting the integrity of the workpiece. Ideal for a wide range of materials and irregular-shaped components, the HD-765 improves productivity with simple operation and rapid processing times.
Key Features:

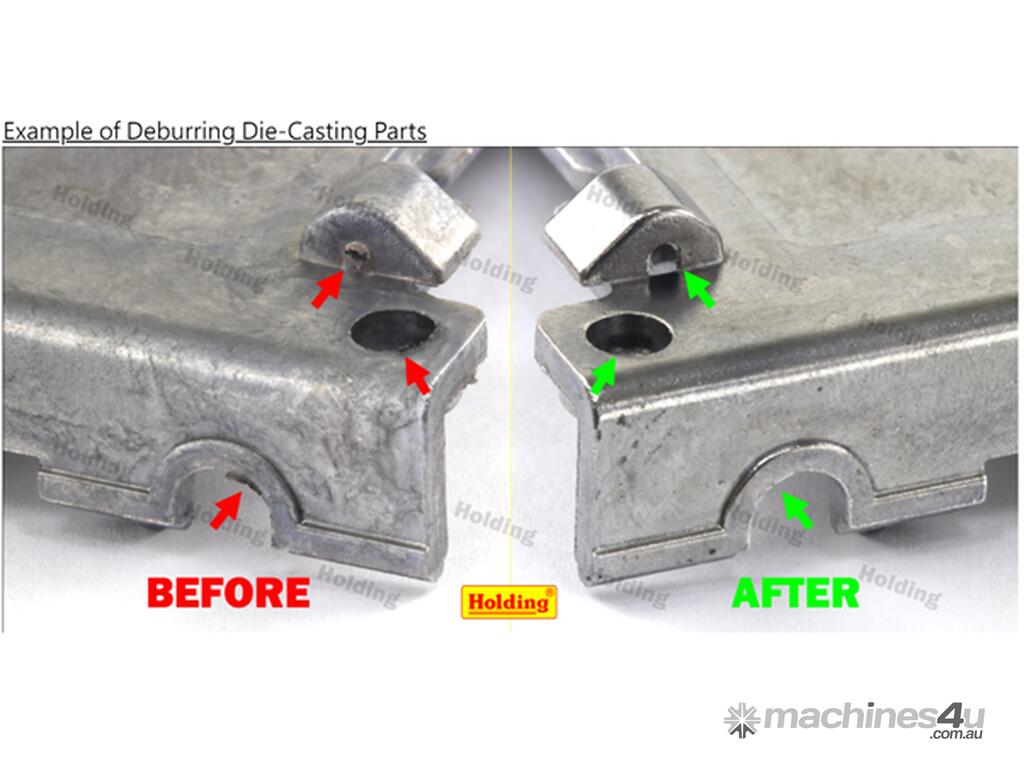

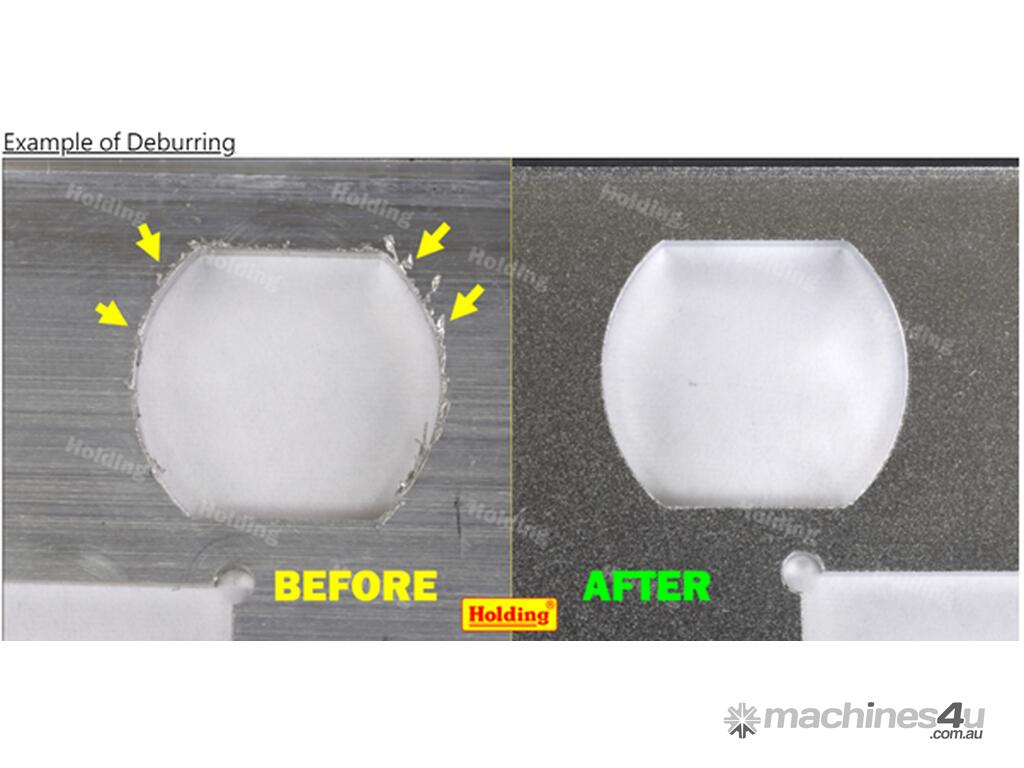

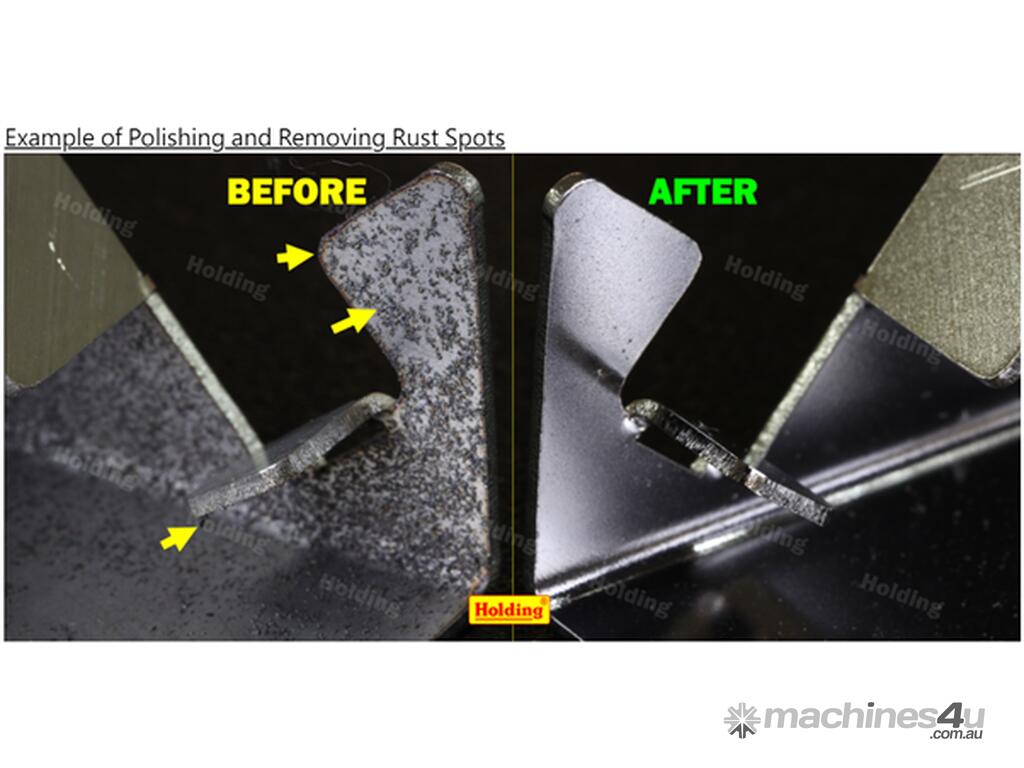

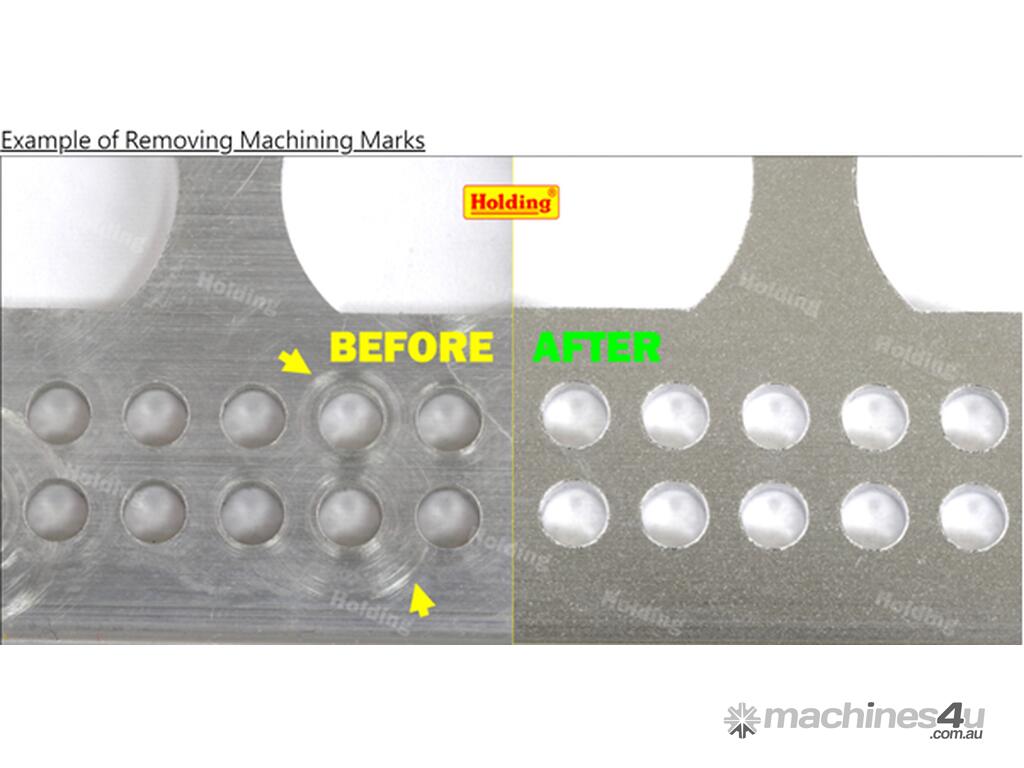

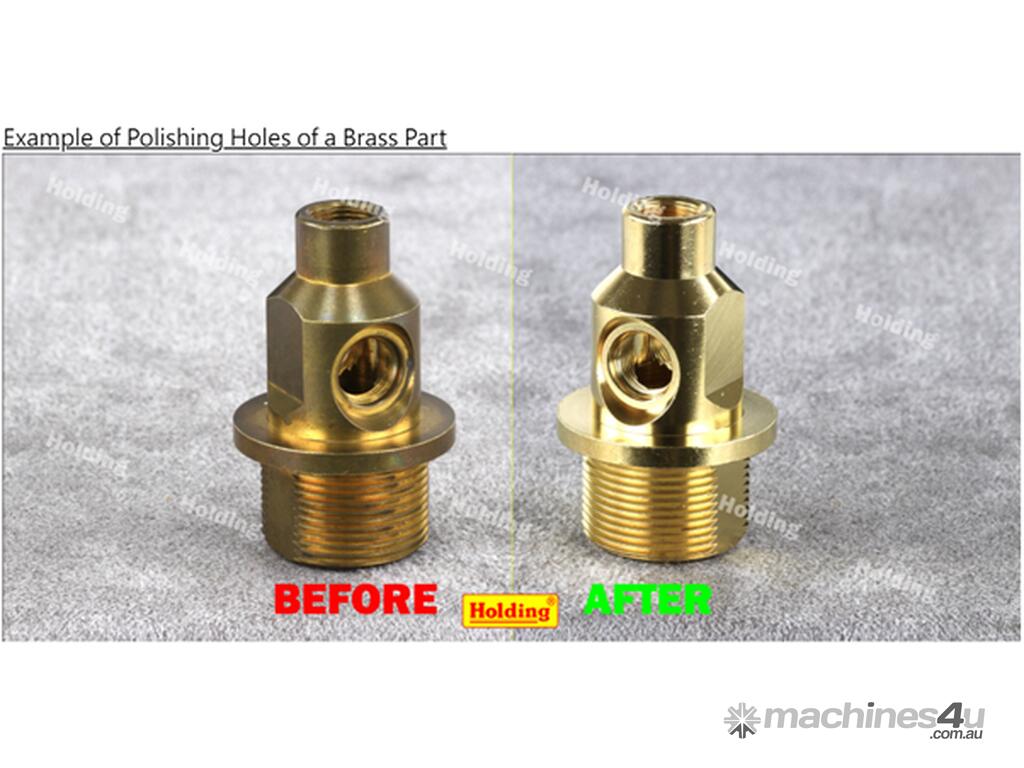

Irregular shaped parts can be deburred, polished, cleaned, and ground simultaneously

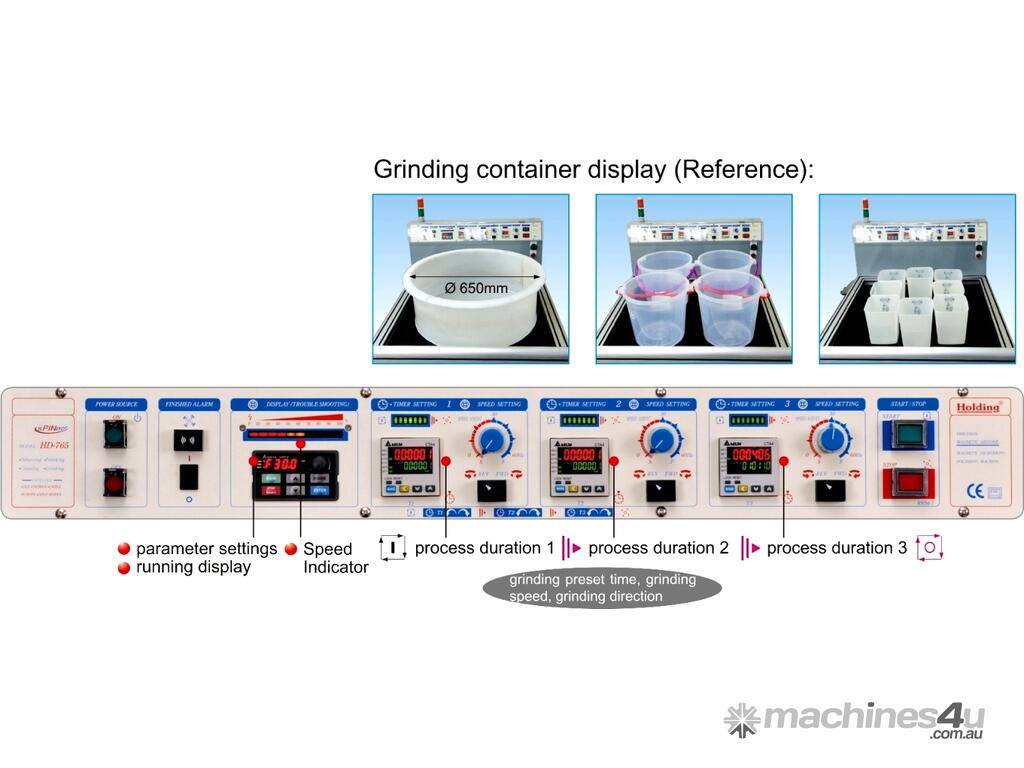

High-speed operation with simple and user-friendly controls
Workpieces are not deformed or damaged during processing
Maintains machining accuracy and surface quality
FAST processing completion within 5 to 20 minutes
Compact and reliable design for efficient workshop integration
Suitable for multiple material types and applications
Specifications:
Model
HD-765
Dimensions (L x W x H)
960 x 1000 x 1100mm
Tank Size
740 x 680mm
Container Size
Ø650 x 250mm
Power Supply
220 VAC
Machine Weight
150kg
Maximum Processing Capacity (Reference Value)
Copper / Stainless Steel / Aluminum / Zinc (Non-Magnetic Materials)
12kg
Iron / Steel / Stainless Steel (Magnetic Materials)
5kg
Standard Accessories:

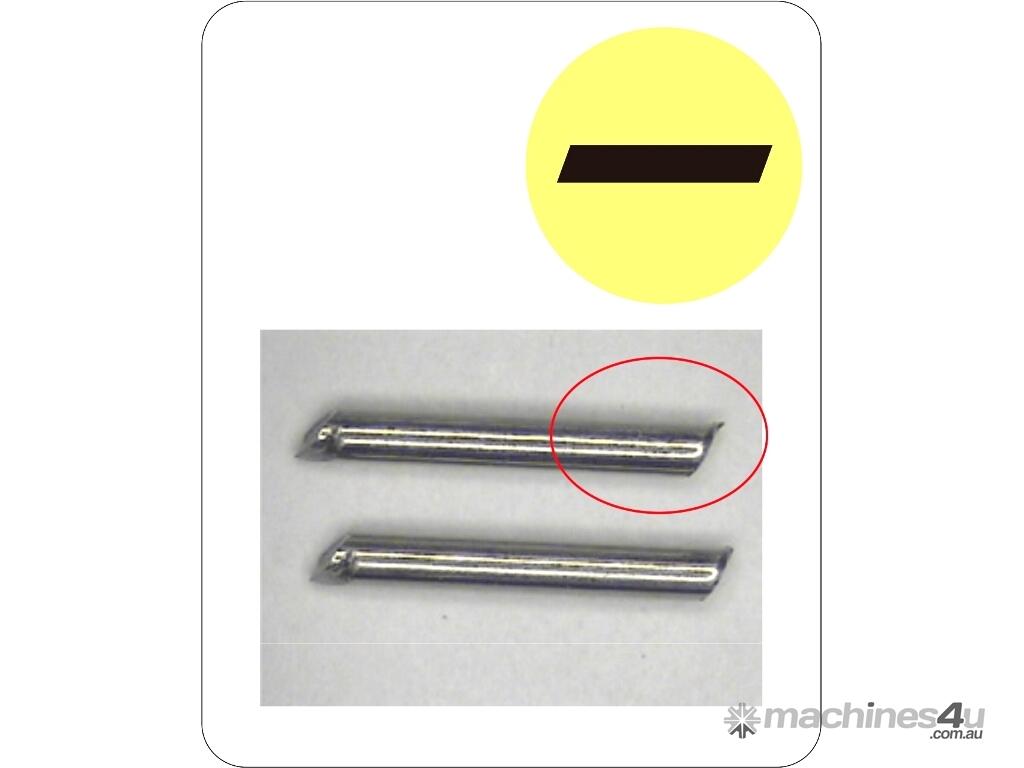

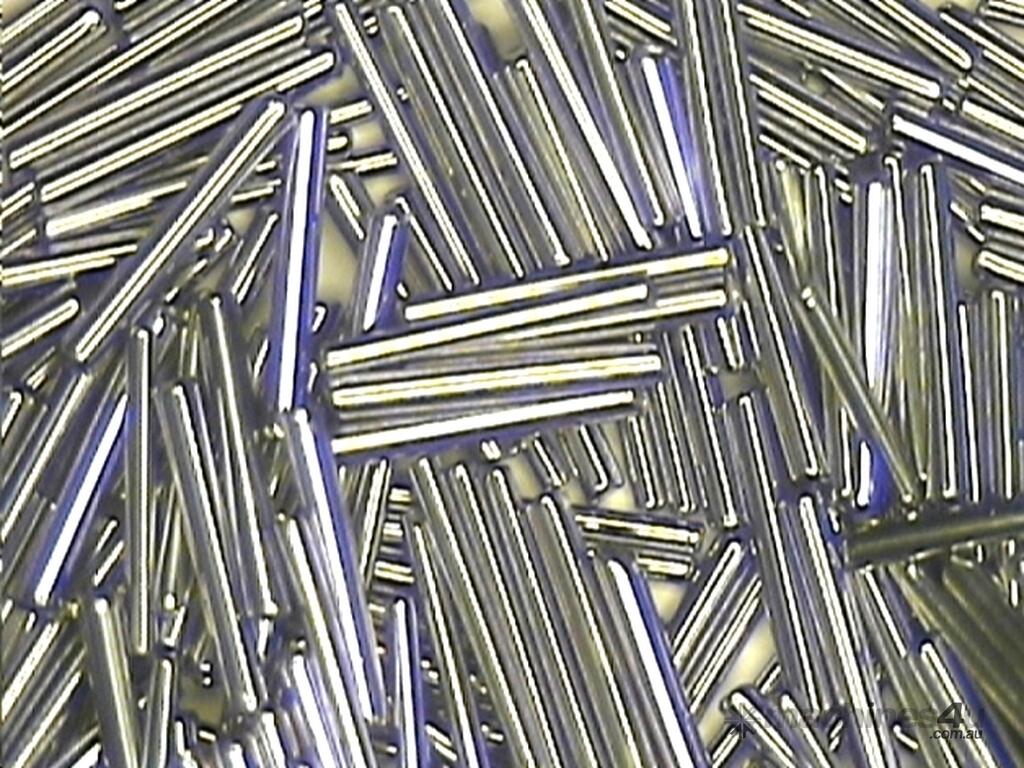

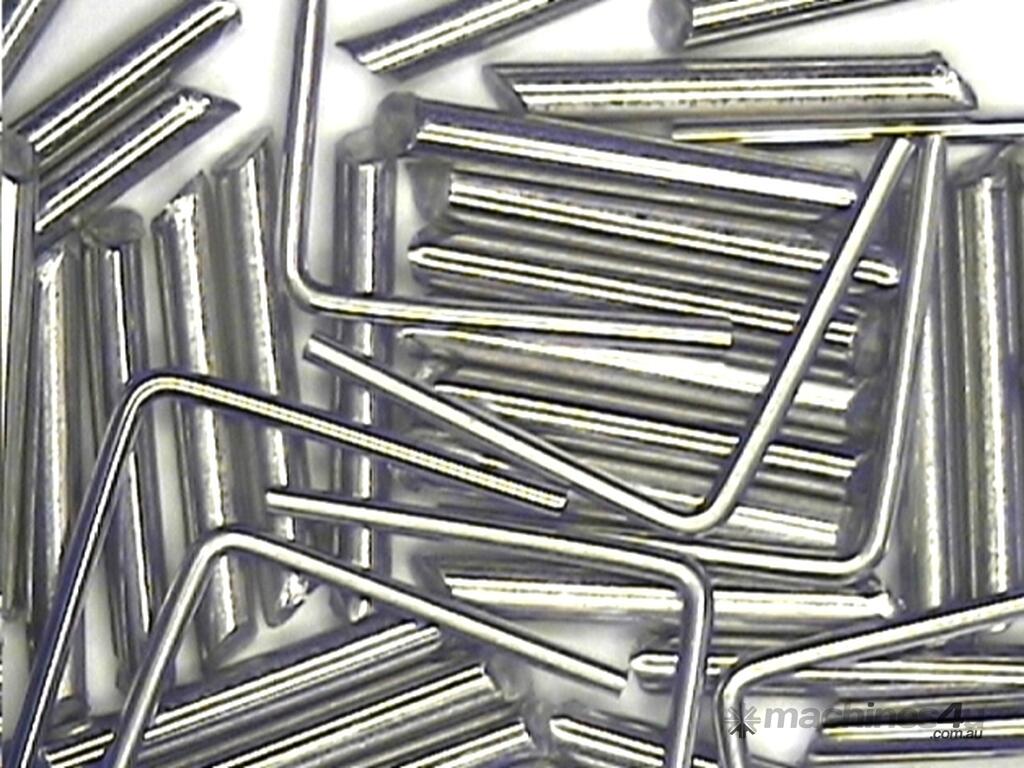

Stainless Pins – 12kg (Standard Dimension)

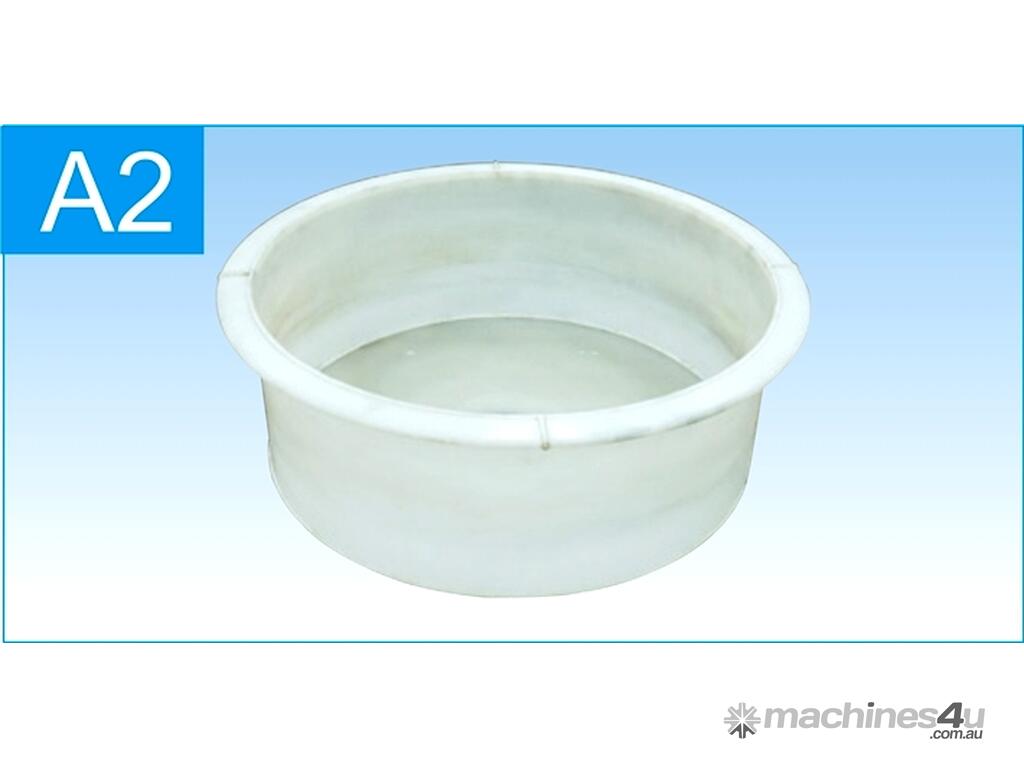

Plastic Containers – 2 Sets

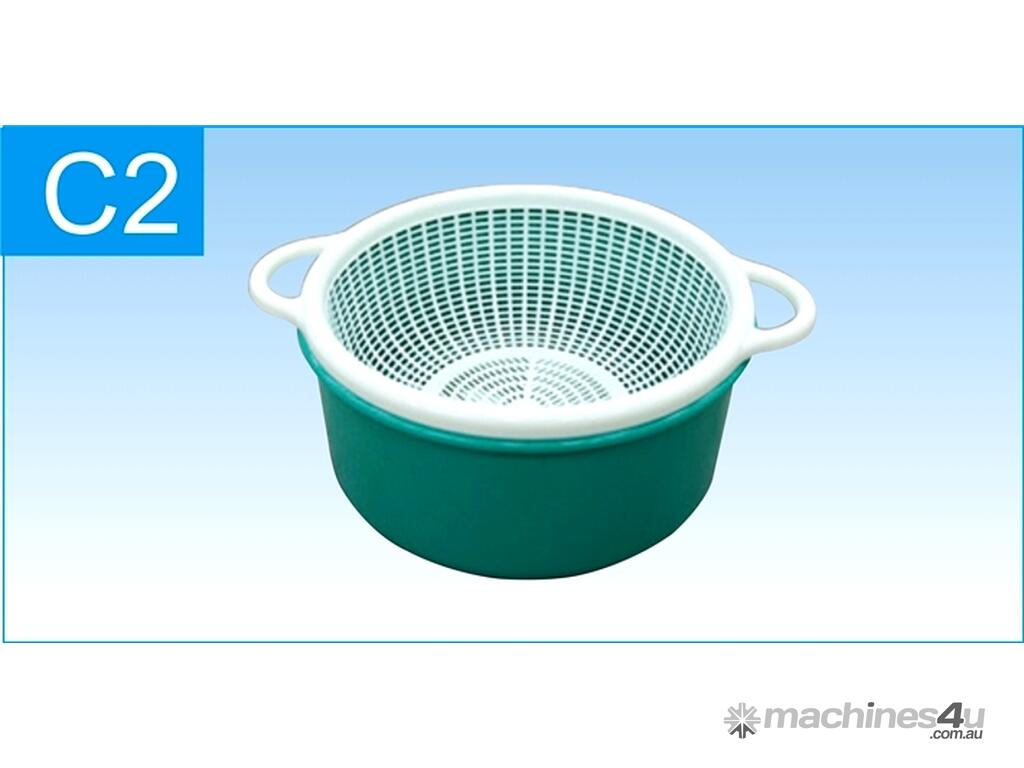

Separating Container – 1 Set
Magnetic Sleeve – 1 Set

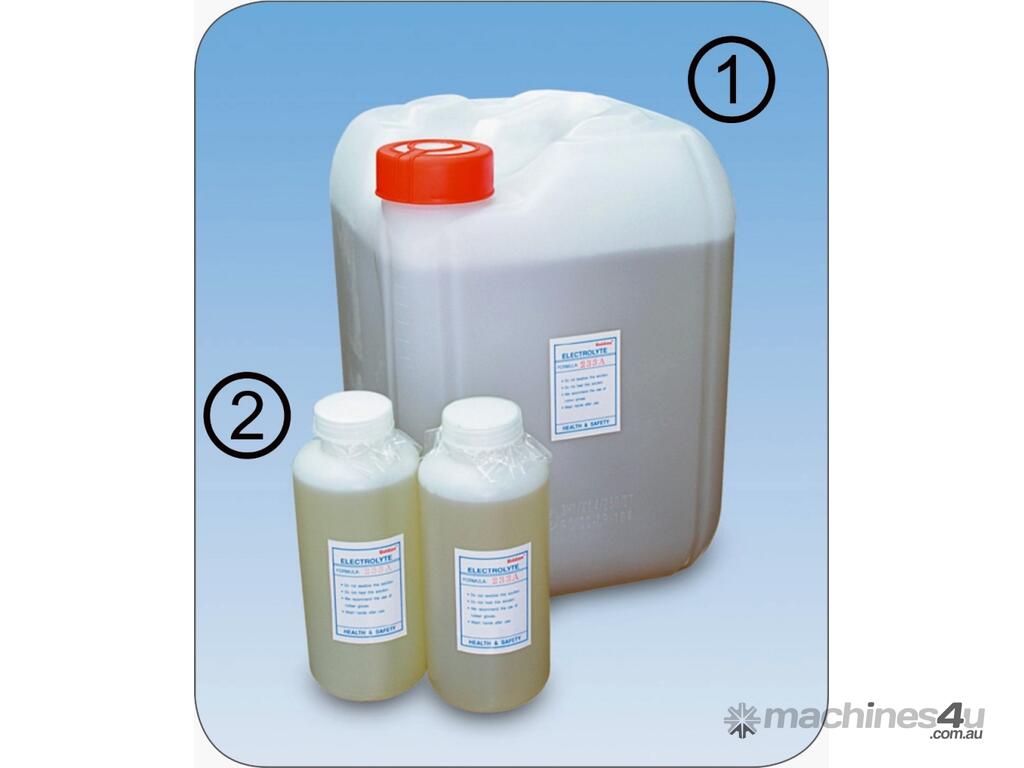

Grinding Liquid – 12,000cc
Operation Manual
Available on Request
Dimensions and detailed specifications
eBrochures
Barload Australia focuses on innovative design and advanced control solutions that improve manufacturing performance and operational efficiency. Contact us today to enhance your productivity and future-proof your manufacturing process.
