Basic 160 Butt Fusion Welder For PE Pressure Pipe

With the Basic 160, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 160 mm.

Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.

APPLICATION SECTORS
Industrial Energy Civil Engineering Water Gas Mining

APPLICATION MATERIALS
HDPE PP PP-R PVDF PB

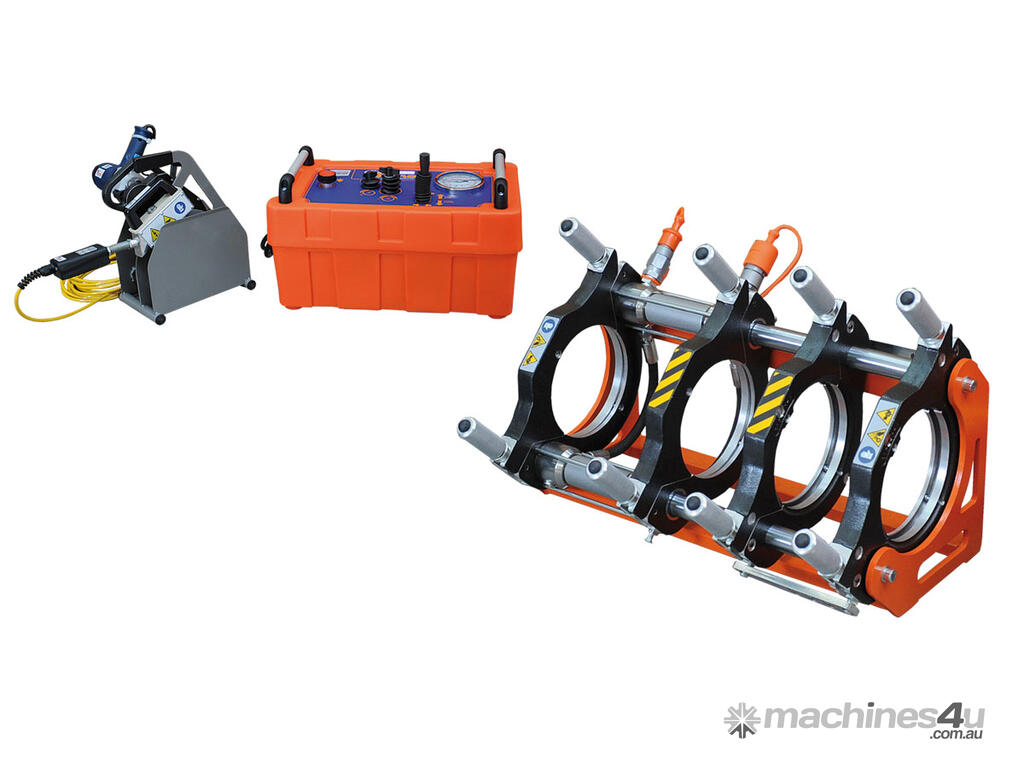

Clamps and cylinders
The machine body is robust and composed of a welded steel frame, four aluminum clamps, and two hydraulic cylinders with drip-free quick couplings.

Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.

Electrical Milling Cutter
Electrical Milling Cutter equipped with long-lasting blades, attachment system, on/off switch, safety microswitch and motor overload protection. PP-R pipe blades available on request.

Electro-hydraulic Gearcase
Contained in a protective box our electro-hydraulic gearcase will be precise and powerful, and able to always provide you with the best welding management effectiveness (also in "Dual Pressure" mode).

Drag bar
Configuring the Drag bar, Basic 160 easily welds fittings and flanges necks without any additional equipment.
Support

Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).

Power supply
Available in the 110 V or 230 V versions - Single Phase.

Working range 40 ÷ 160 mm; 1” IPS ÷ 5” IPS; 3” DIPS ÷ 4” DIPS

Power supply 110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz

Total absorbed power 2320 W (110 V); 2220 W (230 V);

Suggested power generator 3,5 ÷ 4kVA

Working temperature 180° ÷ 280° C (356° ÷ 536° F)

Outside temperature range -10° ÷ 40° C (14° ÷ 104° F)

Time to reach welding temperature < 20’

Dimensions Body machine (W x D x H) 606 x 365 x 375 mm (23.9 x 14.4 x 14.8 in)

Dimensions gearcase (W x D x H) 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in)

Weight Body machine 31 Kg (68 lb)

Weight standard composition 75 Kg (165 lb)
