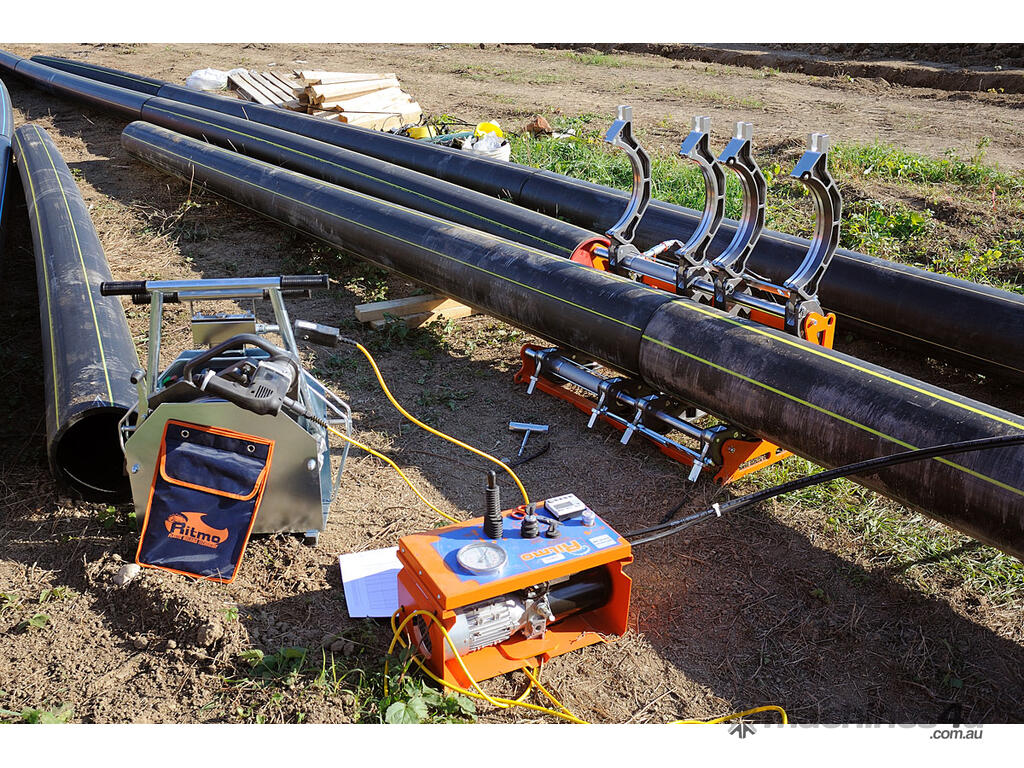

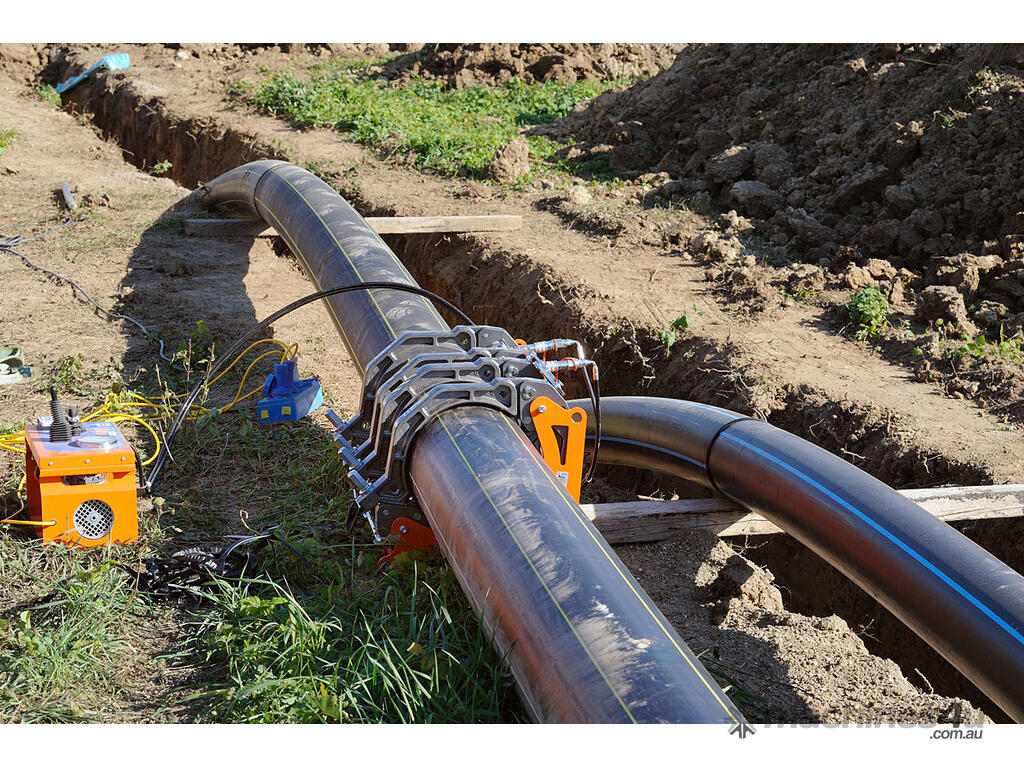

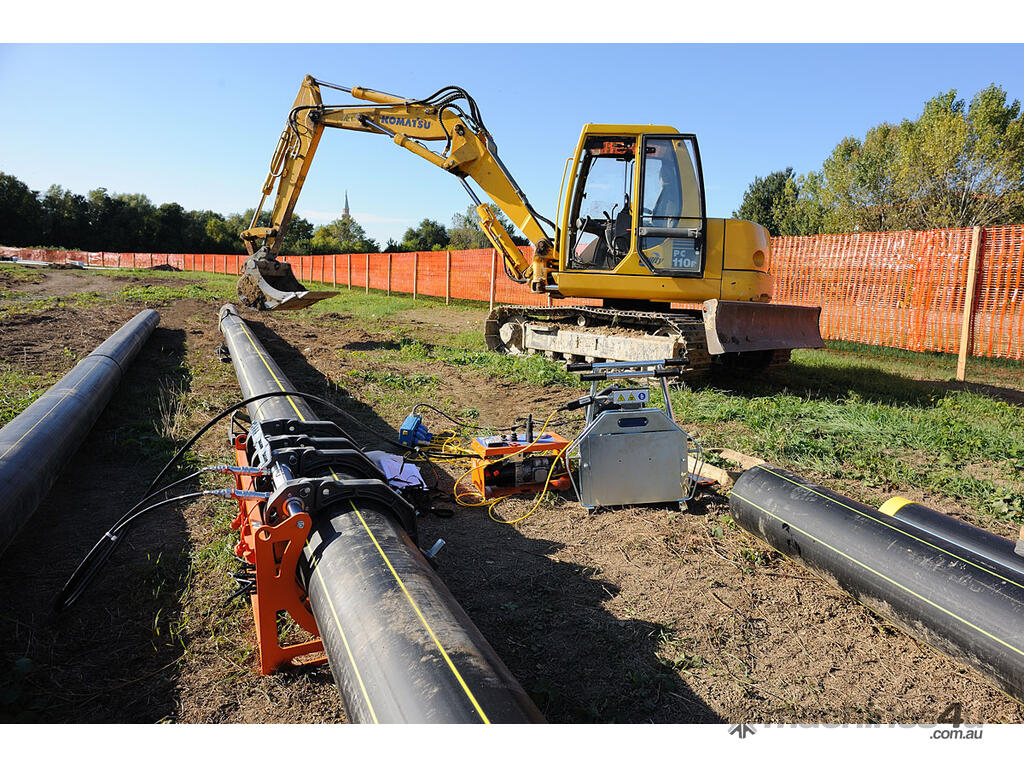

Basic 250 Butt Fusion Welder For PE Pressure Pipe

With the Basic 250, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 250 mm.

APPLICATION SECTORS
Water Gas Mining Industrial Energy Civil Engineering

APPLICATION MATERIALS
HDPE PP PP-R PVDF PB

Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.

Clamps and cylinders

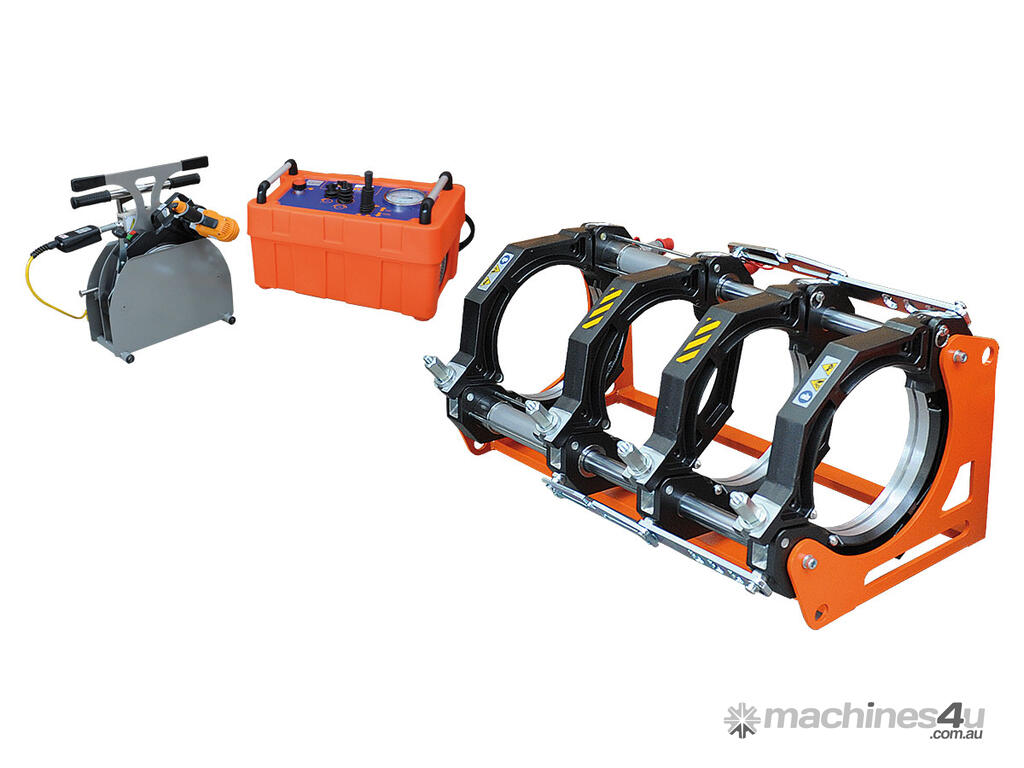

The machine body is robust and composed of a welded steel frame, four aluminum clamps, and two hydraulic cylinders with drip-free quick couplings.
SmartLock
The SmartLock system (Ritmo Patent) allows you to speed up welding preparation times without the use of any tools, with quick locking and release of inserts.
Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.
Electrical Milling Cutter
Electrical Milling Cutter equipped with long-lasting blades, attachment system, on/off switch, safety microswitch and motor overload protection. PP-R pipe blades available on request.
Electro-hydraulic Gearcase
Contained in a protective box our electro-hydraulic gearcase will be precise and powerful, and able to always provide you with the best welding management effectiveness (also in "Dual Pressure" mode).
Drag bar
Configuring the Drag bar, Basic 250 easily welds fittings and flanges necks without any additional equipment.
Detach device
The Detach device functions as the support for the heating plate, and with its mechanical action it triggers the detachment of the heating plate during the exchange phase, making your work easier.
Support
Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).
Power supply
Available in the 1230 V version - Single Phase.

TECHNICAL SPECS

Working range 75 ÷ 250 mm; 2” IPS ÷ 8” IPS; 3’’ DIPS ÷ 8” DIPS

Inserts with SmartLock Yes

Power supply 110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz

Total absorbed power 3420 W

Suggested power generator 5,5 ÷ 6 kVA

Working temperature 180° ÷ 280° C (356° ÷ 536° F)

Outside temperature range -10° ÷ 40° C (14° ÷ 104° F)

Time to reach welding temperature < 20’

Dimensions Body machine (W x D x H) 850 x 470 x 400 mm (33.5 x 18.5 x 15.7 in)

Dimensions gearcase (W x D x H) 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in)

Weight Body machine 63 Kg (138.9)

Weight standard composition 121 Kg (267 lb)
