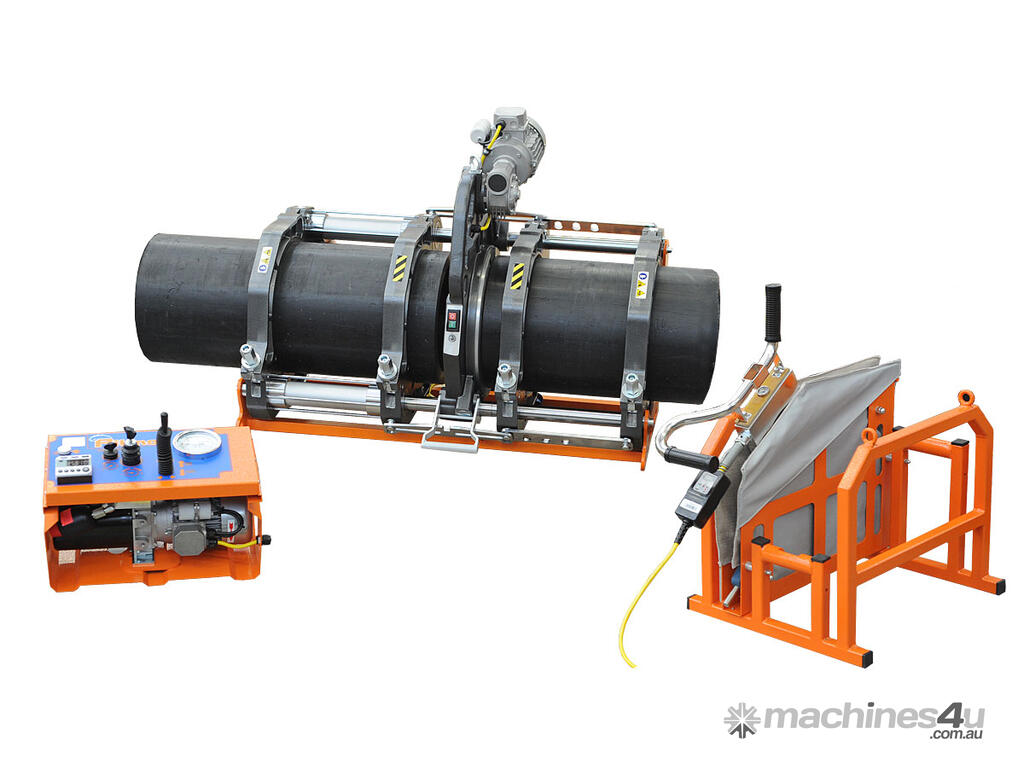

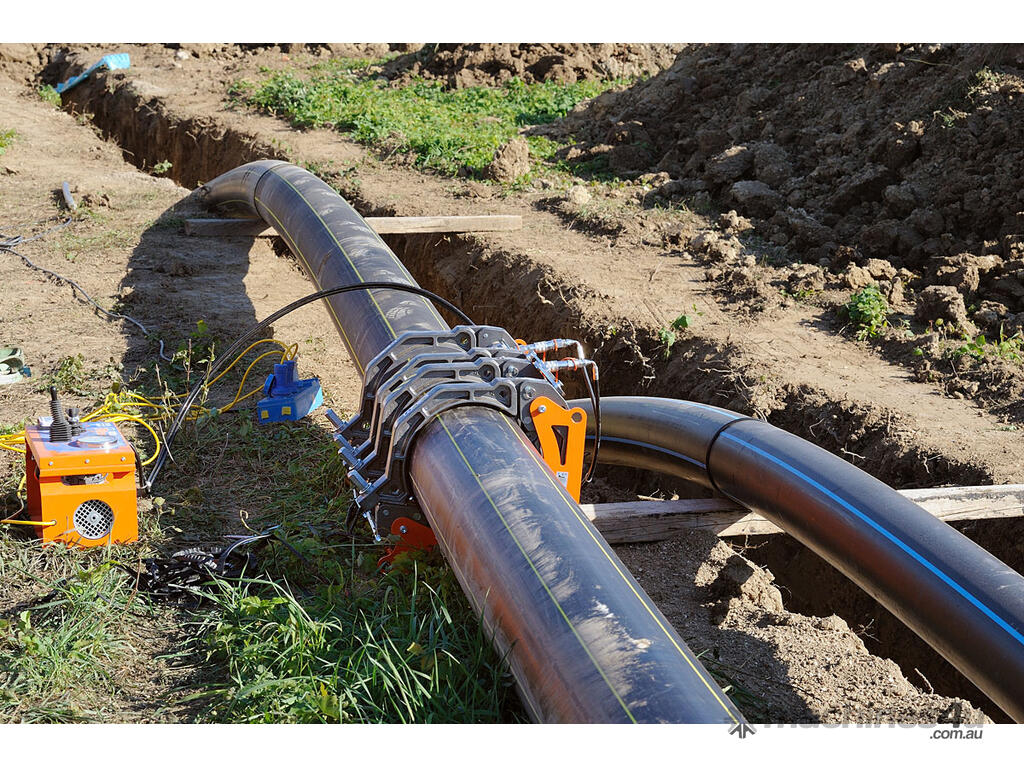

Basic 355 Butt Fusion Welder For PE Pressure Pipe

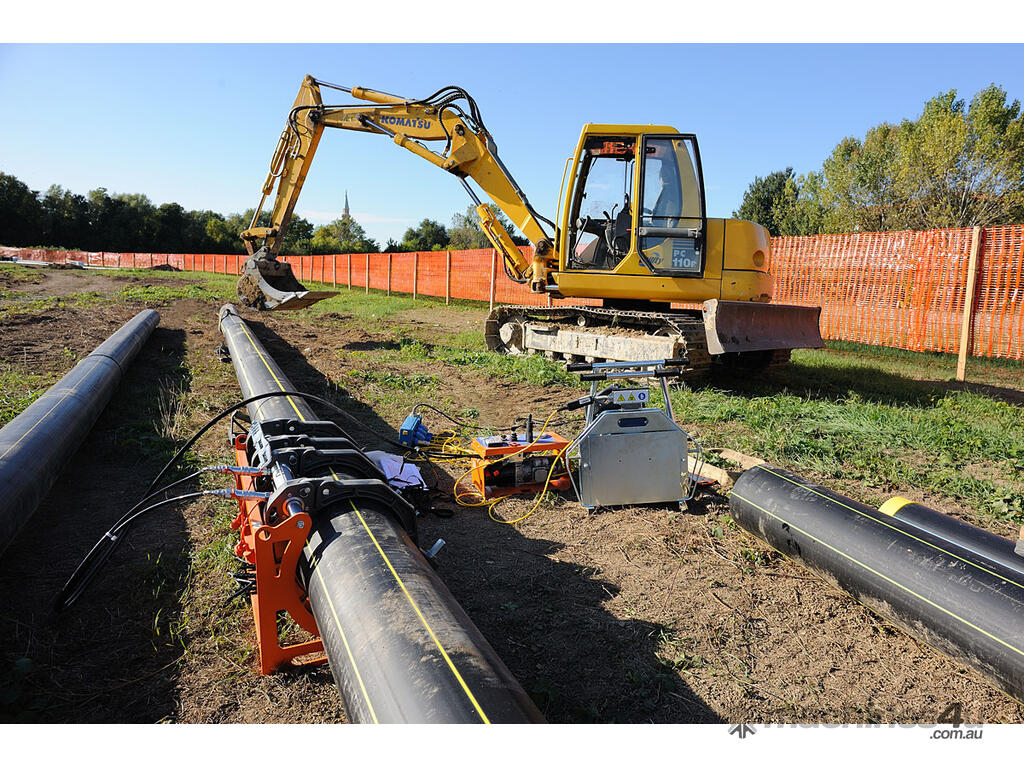

With the Basic 355, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 355 mm.

Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.

APPLICATION SECTORS
Civil Engineering Water Gas Mining Industrial Energy

APPLICATION MATERIALS
HDPE PP PP-R PVDF PB

Clamps and cylinders

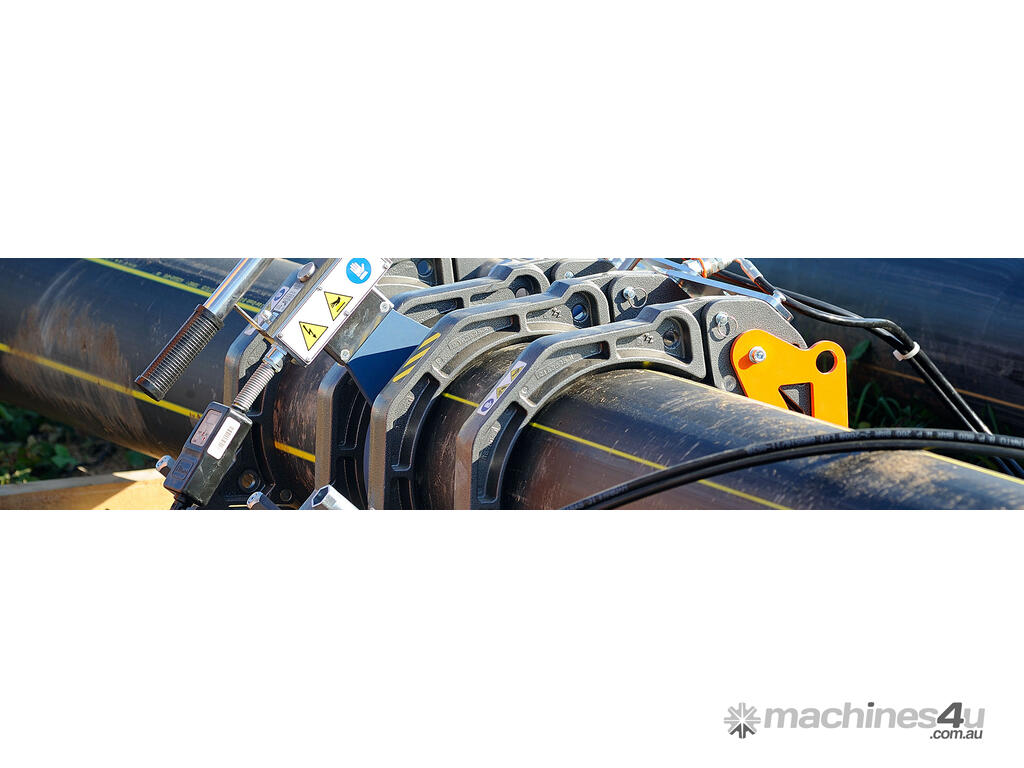

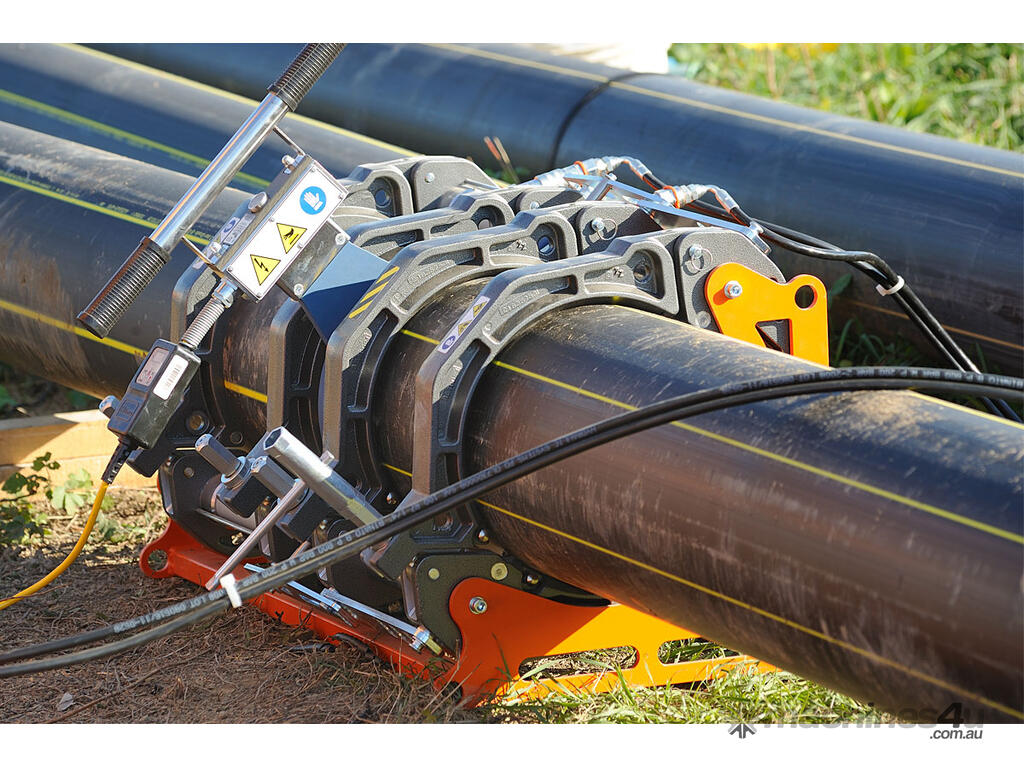

The machine body is robust and composed of a welded steel frame, four aluminum clamps, and two hydraulic cylinders with drip-free quick couplings.

SmartLock
The SmartLock system (Ritmo Patent) allows you to speed up welding preparation times without the use of any tools, with quick locking and release of inserts.

Master
The Master 250 mm adapter optimizes operating costs by allowing the use of Basic 250 model inserts.

Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.

Electrical Milling Cutter
Electrical Milling Cutter equipped with long-lasting blades, attachment system, on/off switch, safety microswitch and motor overload protection. PP-R pipe blades available on request.

Electro-hydraulic Gearcase
Contained in a protective box our electro-hydraulic gearcase will be precise and powerful, and able to always provide you with the best welding management effectiveness (also in "Dual Pressure" mode).

Drag bar
Configuring the Drag bar, Basic 355 easily welds fittings and flanges necks without any additional equipment.

Detach device
The Detach device functions as the support for the heating plate, and with its mechanical action it triggers the detachment of the heating plate during the exchange phase, making your work easier.

Support
Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).

Power supply
Available in the 110 V or 230 V versions - Single Phase.

TECHNICAL SPECS

Working range 125 ÷ 355 mm; 4” IPS ÷ 14” IPS; 4’’ DIPS ÷ 12” DIPS

Master Ø 250 mm Yes

Inserts with SmartLock Yes

Power supply 230 V Single Phase 50/60 Hz

Total absorbed power 5600/5950 W

Suggested power generator 8 ÷ 8,5 kVA

Working temperature 180° ÷ 280° C (356° ÷ 536° F)

Outside temperature range -10° ÷ 40° C (14° ÷ 104° F)

Time to reach welding temperature < 20’

Dimensions Body machine (W x D x H) 1077 x 510 x 715 mm (42.4 x 20 x 28 in)

Dimensions gearcase (W x D x H) 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in)

Weight Body machine 100 Kg (220.5 lb)

Weight standard composition 205 Kg (452 lb)
