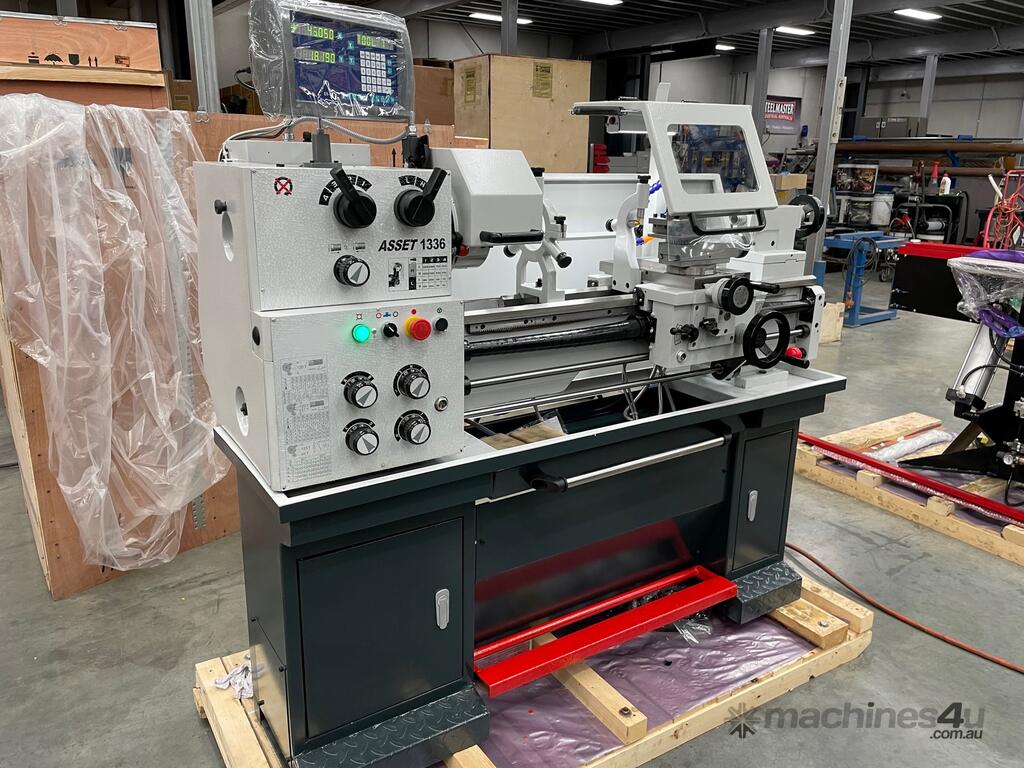

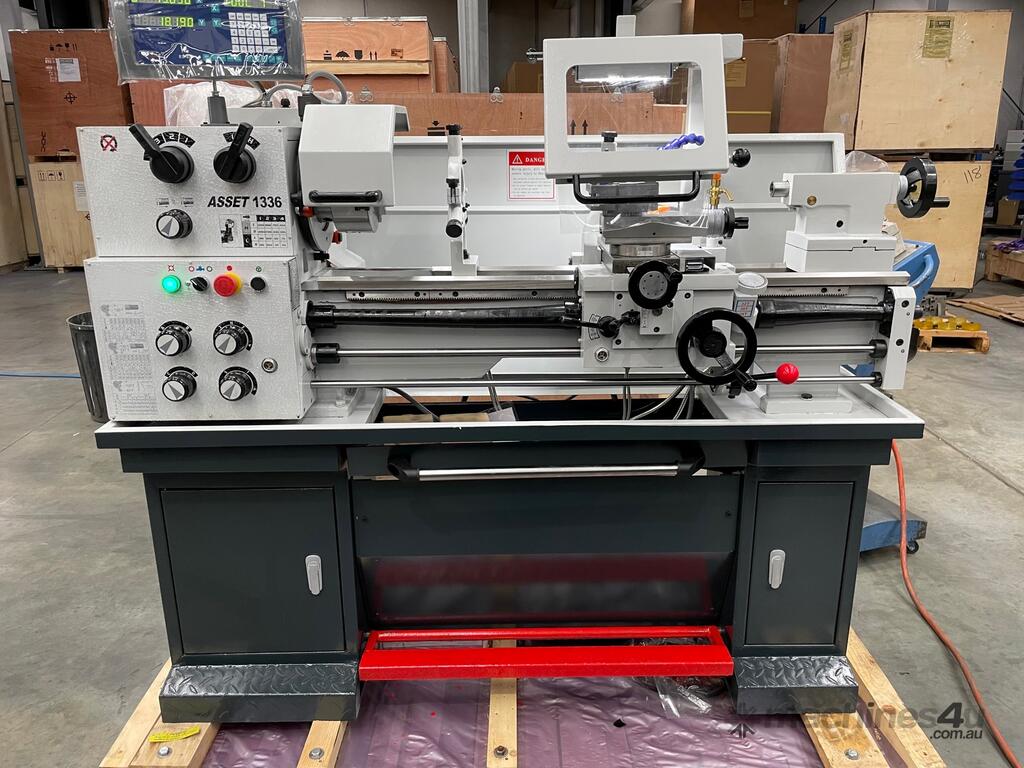

ASSET 1336 – EURO Precision Workshop Lathe. 925mm Centres, 330mm Swing, 38mm Bore, 2 Axis DRO, 3 & 4 Jaw Chucks, Quick Change Post, Faceplate, Steadies, 70-2000 Speed, Metric & Imp Threads. 240V.
• New Euro Model
• Haas Type / Multi Set Quick Change Tool Post & 3 Holders
• Pull Out Front Swarf Draw
• Twin Door Storage Cabinet
• Euro Type Tool Post Guard & LED Strip Light
• 3, 4 Jaw Chucks, Face Plate, Steadies & Much Much More!
• Pre Commissioned & Tested Prior to Shipping
Description
Our New Euro model offering a feature packed quality lathe which has rapidly become the favoured size of machine shops around the country!
This highly spec’d model is an excellent high precision machine that will become an indispensable part of your shop.
Features
? induction-hardened and ground cast iron bed and slide ways
? spindle holding camlock system
? 200mm 3 & 4 jaw chucks, faceplate, fixed & travelling steadies standard
? main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy
? huge thread cutting ranges - metric / imperial / DP & modular
? transversal adjustment of tailstock for taper cutting applications
? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

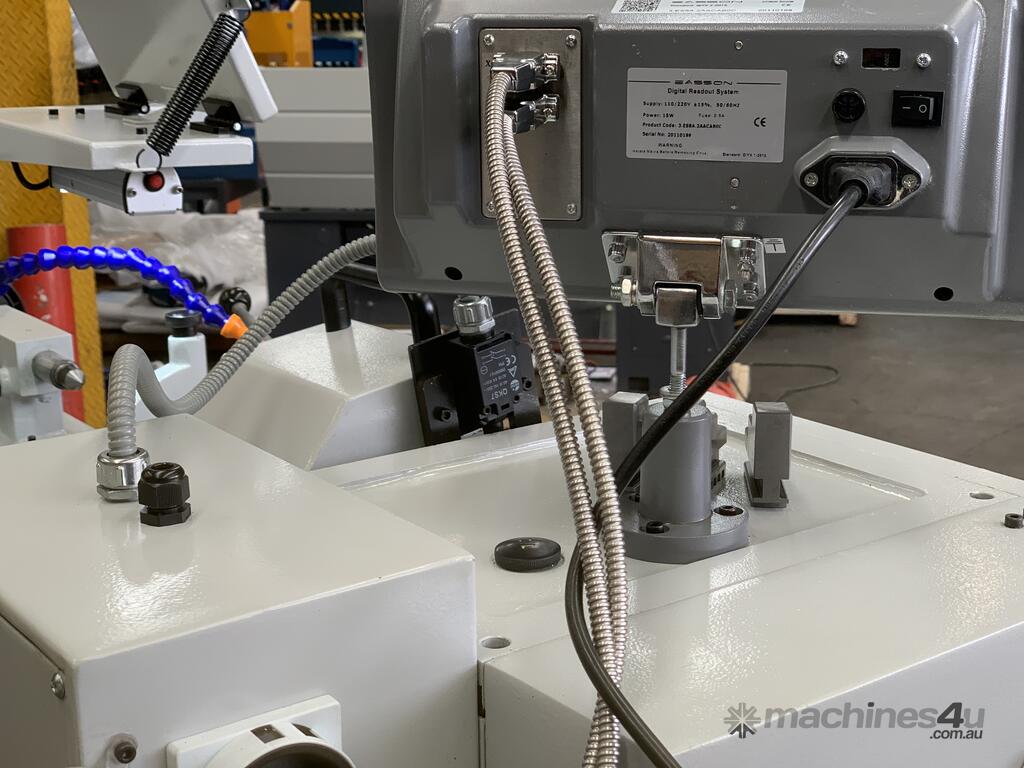

? 2 axis DRO fitted as standard
? safety covered lead screw

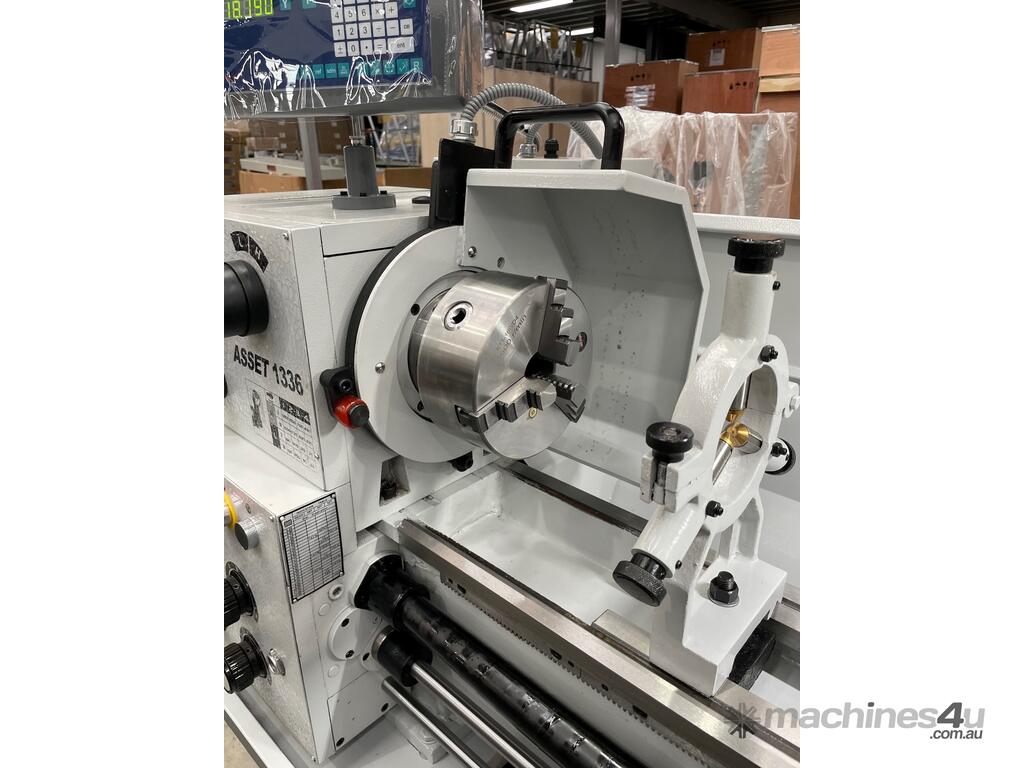

? safety interlocks on chuck guard, gear box and foot brake
? 240V / 15Amp - 2HP
? CE compliant
Technical Data Snap-Shot
?330mm swing over bed
?925mm bed length
?38mm spindle bore

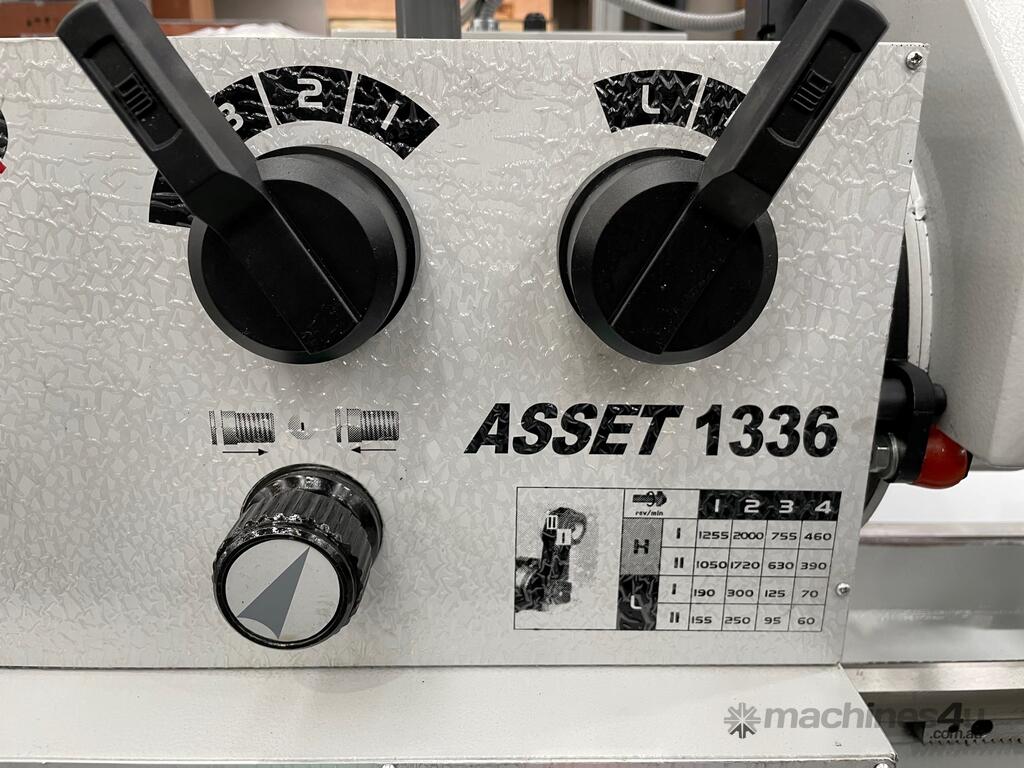

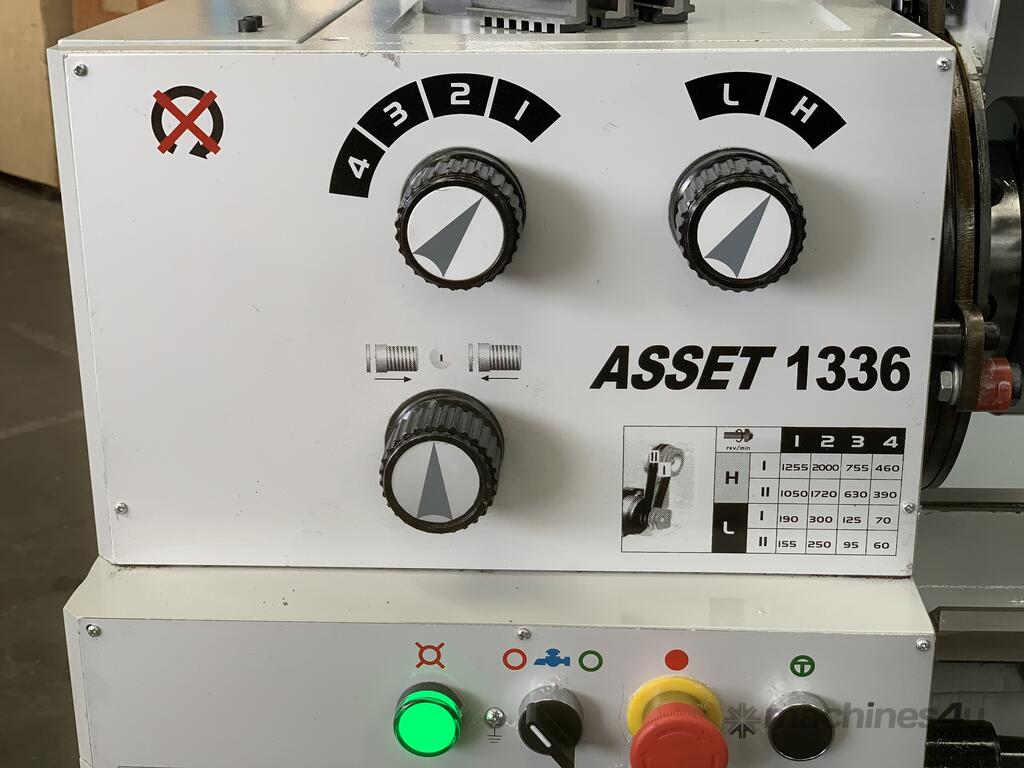

?speeds(8)-70/115/190/300/460/775/1255/2000

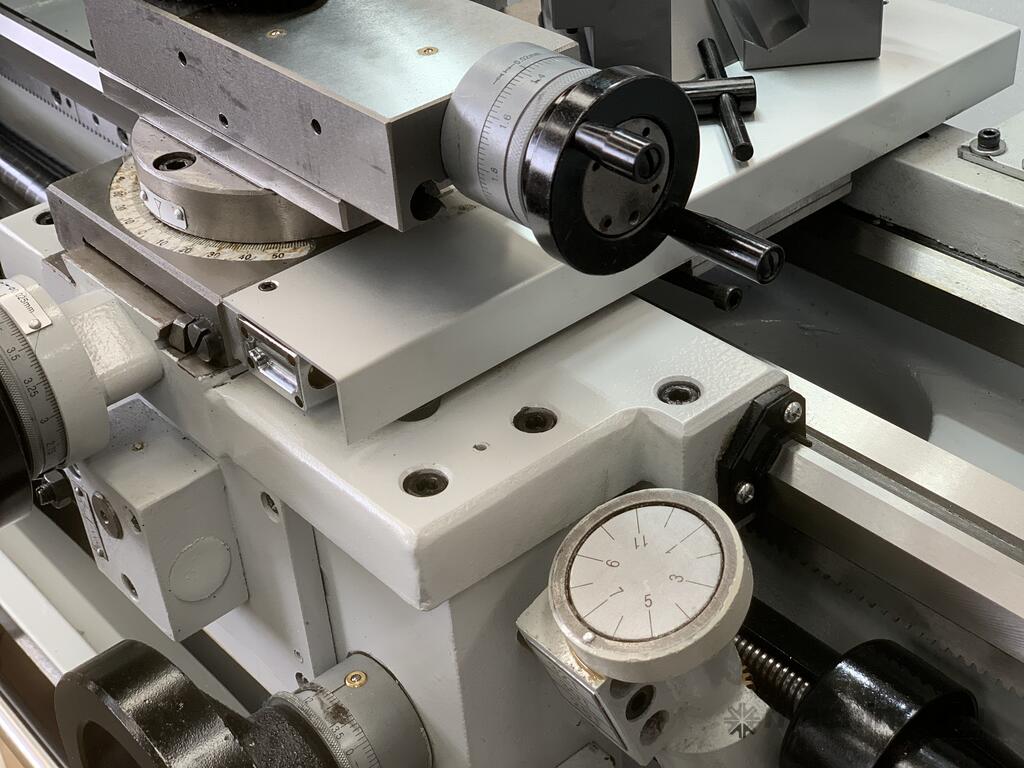

?160mm - cross slide travel
?88mm - top slide travel

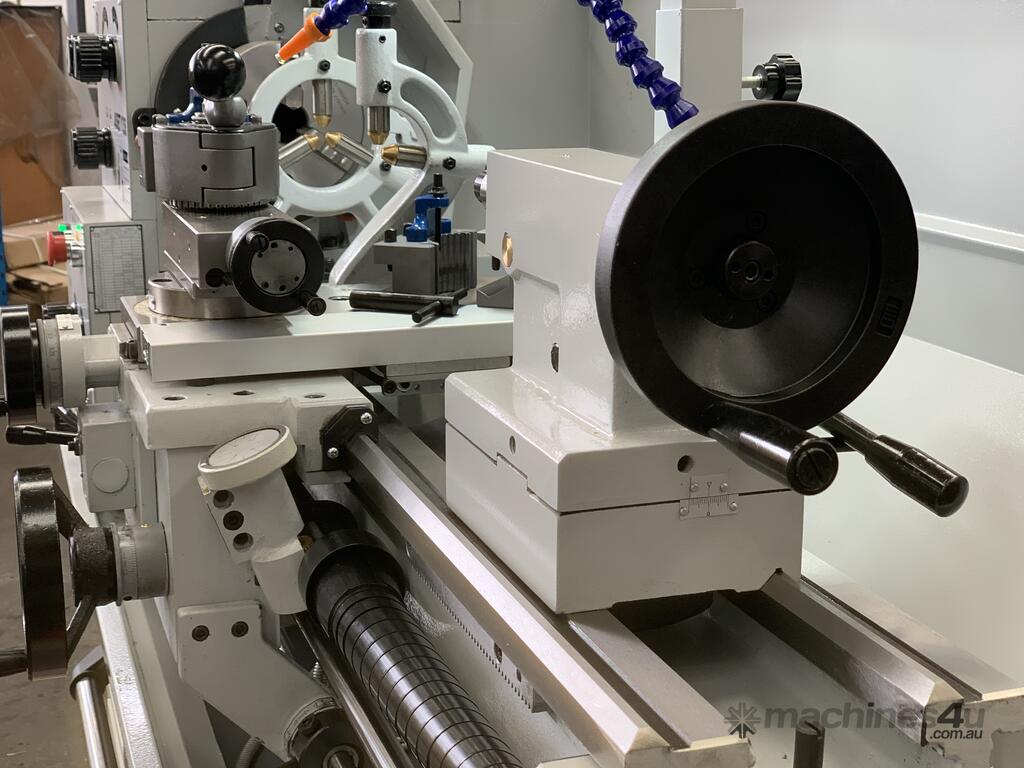

?110mm - tailstock travel
?32mm - tailstock diameter
?200mm - bed width
?MT3 tailstock taper

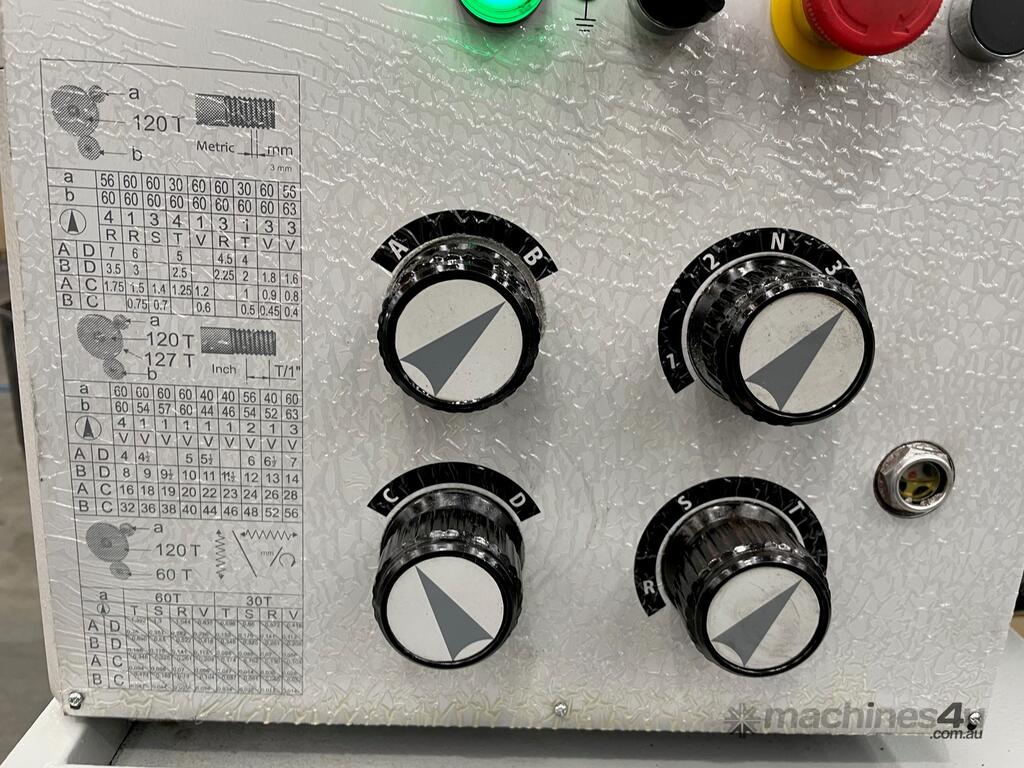

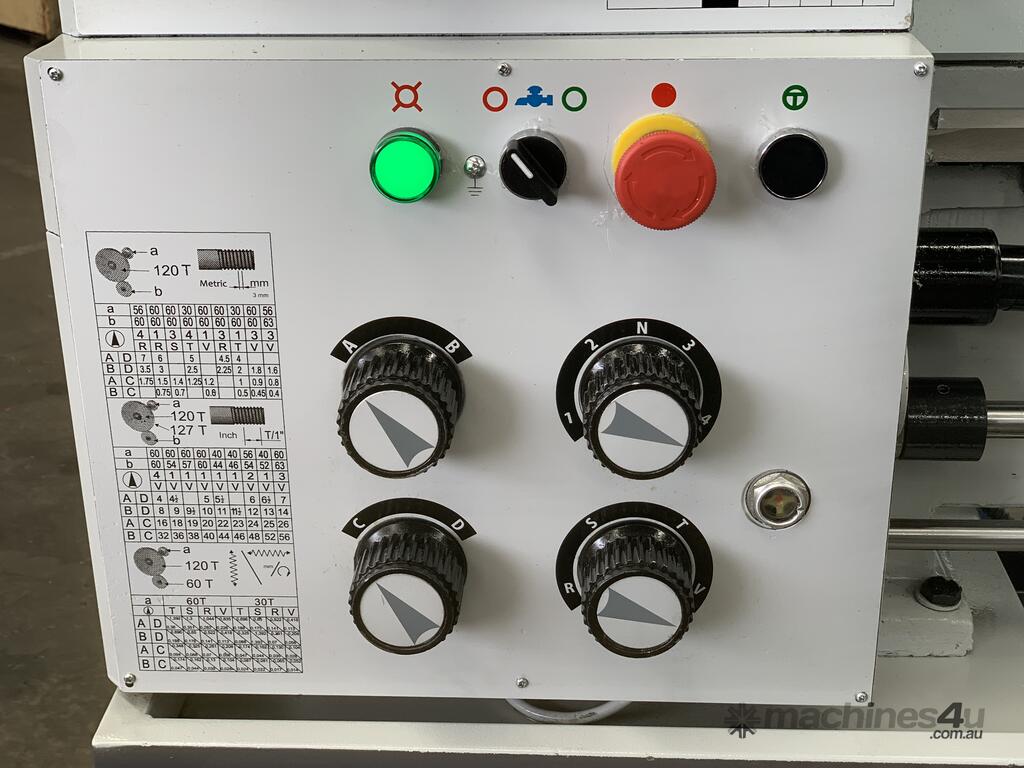

?Thread Cutting – Metric (mm) 0.4mm ~ 7.0mm – (26)
?Thread Cutting – Imperial (Inch) 56tpi ~ 4tpi – (32)
? metric leadscrew fitted
?160mm 3 jaw chuck
?200mm 4 jaw chuck
?250mm faceplate
?tools to suit - 16mm & 20mm
?D1-4 camlock

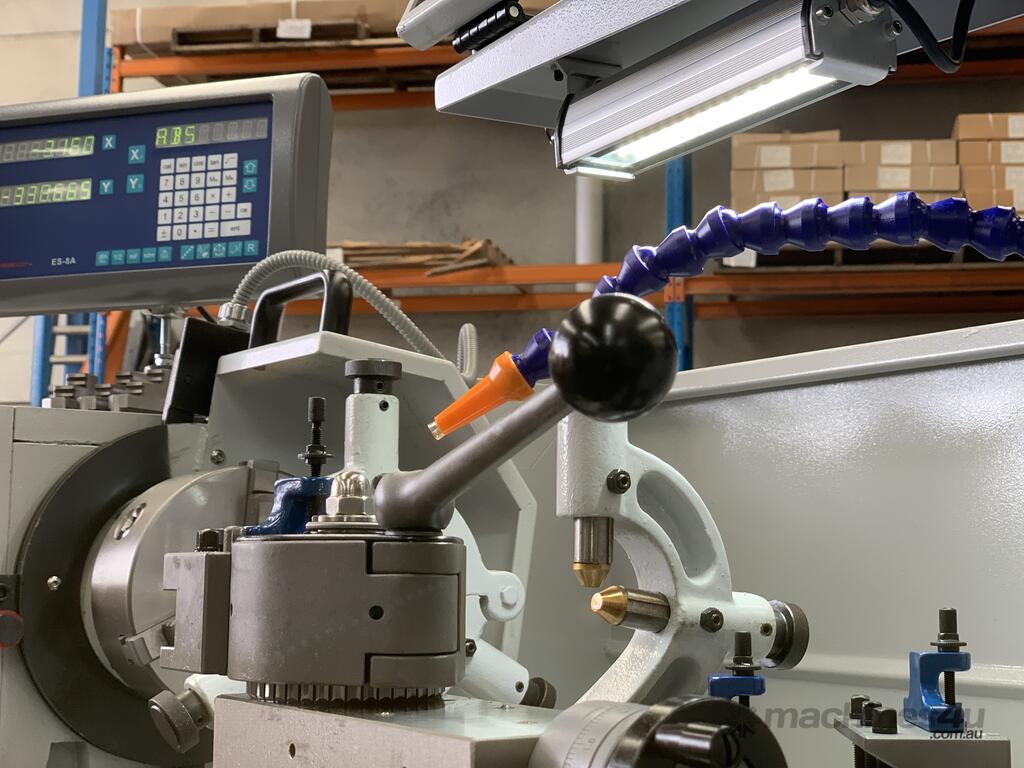

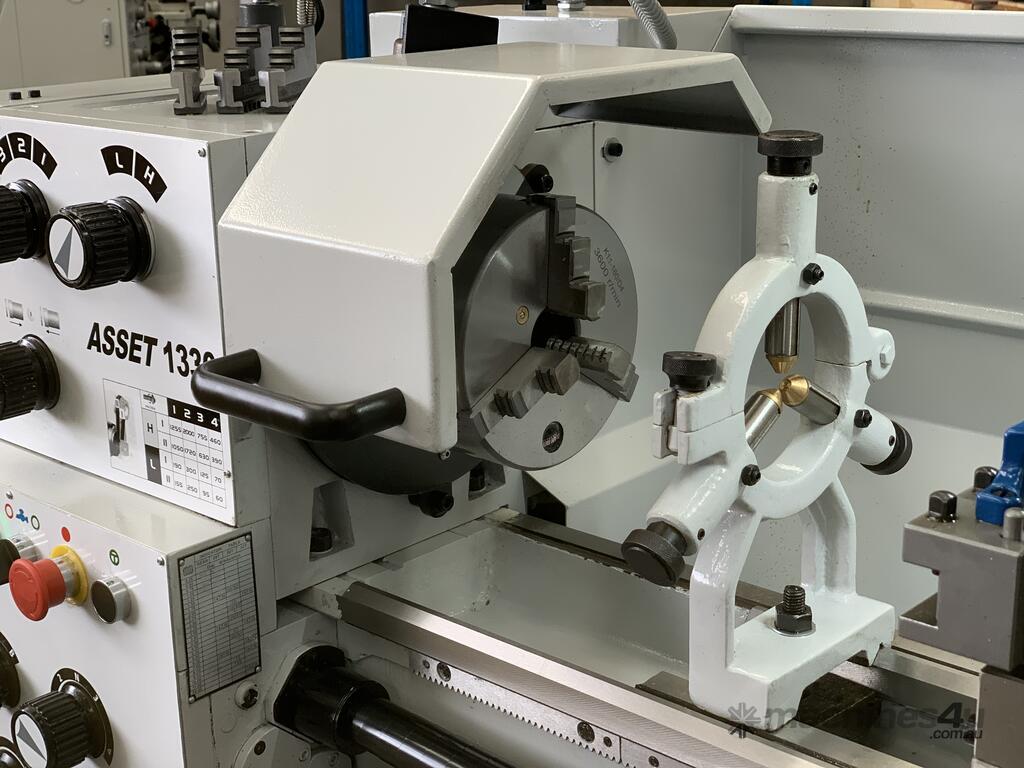

?fixed & travelling steadies
?Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

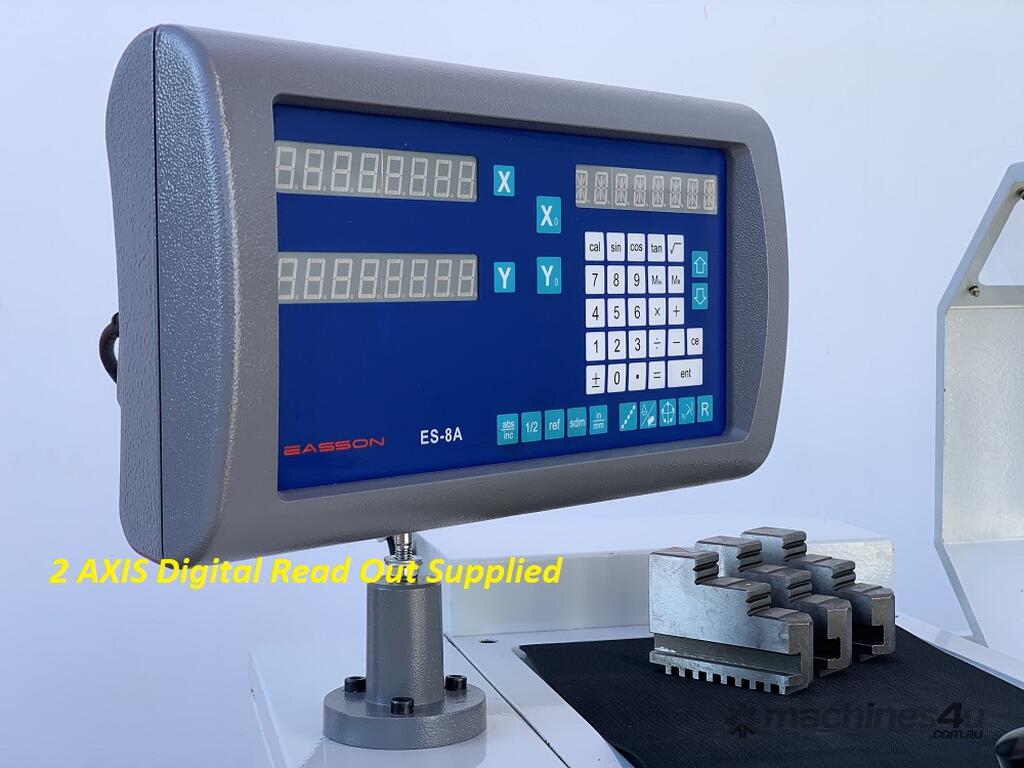

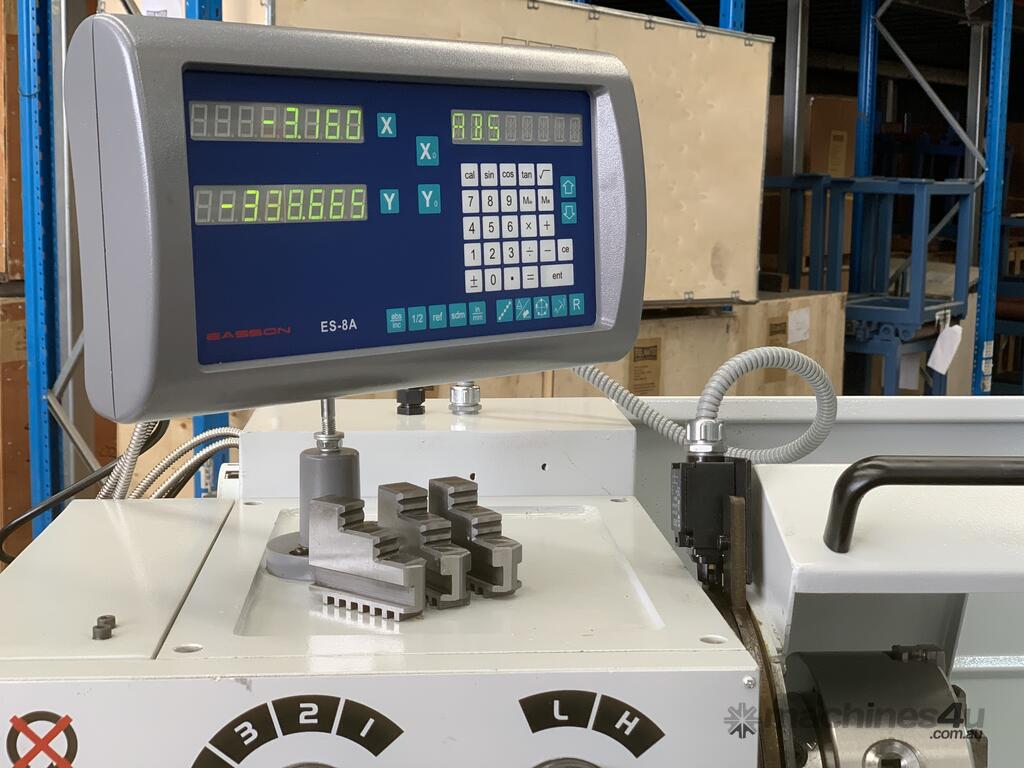

?2 axis digital read out fitted
?machine dimensions - 1570mm x 600mm x 1270mm (to headstock top)
?shipping dimensions - 1700mm x 740mm x 1410mm
?power - 240V 1.5Kw - 15 amp
?approx weight: 510kg
EQUIPMENT & ACCESSORIES SUPPLIED
Easson 2 axis DRO, 3 & 4 jaw chuck, multi set quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 x travelling steady, full length splash guard, covered leadscrew,
interlocked chuck guard, headstock cover.
*Video shows old model.
Recommended Add On Accessories
?12+0120 - Quick Change Holder: 200 Series. - Turning Tool.
?12+0119 - Lathe Live Centre Set - Assorted - MT3
?12+0733 – Part off block Kit, blade & 10 inserts to suit 16mm centre height. 3 x Tips Per Kit
?12+0605 – Turning Tool - Right Hand Screw Type Positive 90 Deg/16mm
?12+0611 - Turning Tool - Pin Type Negative 95 Deg/16mm
?12+0616 - Boring Bar - Screw Type Positive 95 Deg/12mm Dia
?12+3048 - 3 Piece Clamped Carbide Kit. 2 x 16mm Turning Tools & 1 x 12 mm Boring Bar.
?12+0973 - Threading Tool Kit - 16mm. 1 External Threading Tool 10 tips
?15+0187 - Coolant Mineral Based XDP-1000 5Lt Drum Metalium - Soluble - 20:1 Mix
?30+0115 - PM-33 Pivoted Mounts. 120mm Diameter, M12 x 100mm Stud Size, 330Kg Per Unit Load Capacity.
