Selling due to workshop downsizing — the machine is in excellent working order, this is purely a space decision.

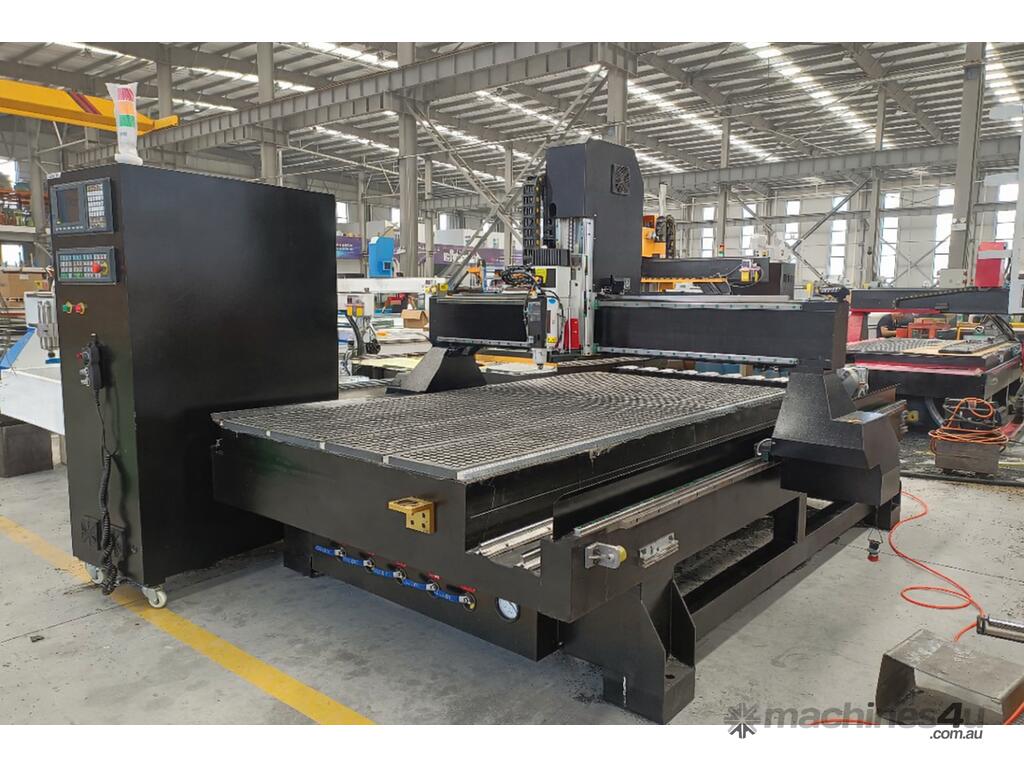

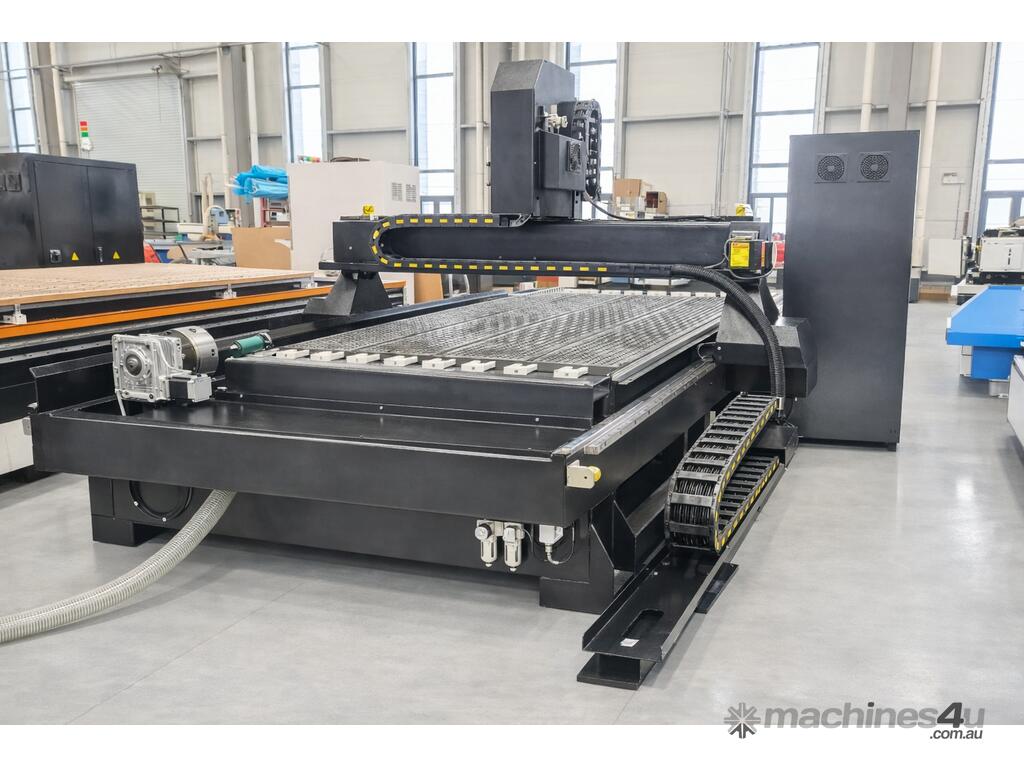

Imported new in 2023 from Jinan Blue Elephant CNC Machinery Co., Ltd. Lightly used and well maintained, all systems fully operational. CE and ISO 9001:2015 certified. Machine weight 1,500 kg.

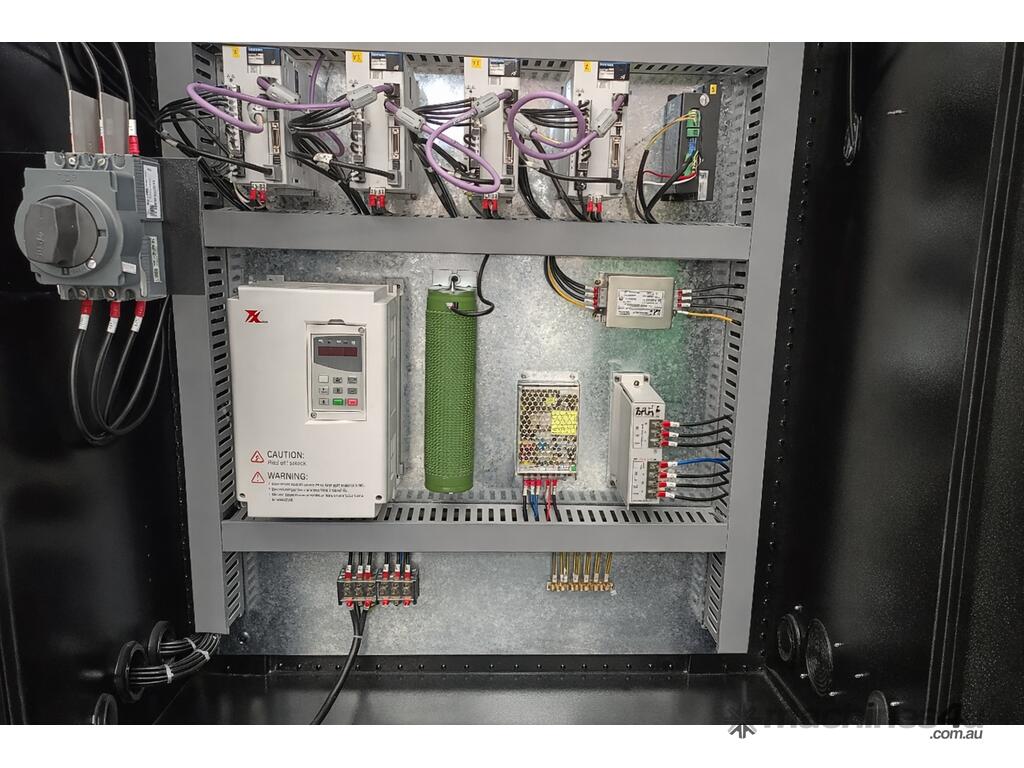

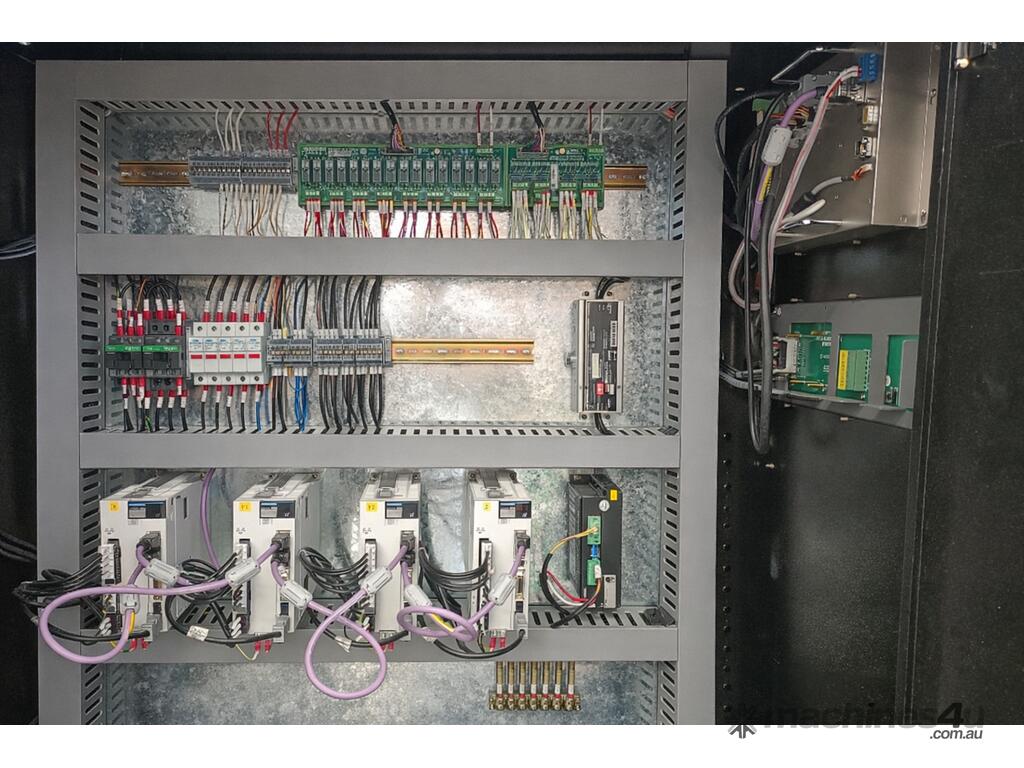

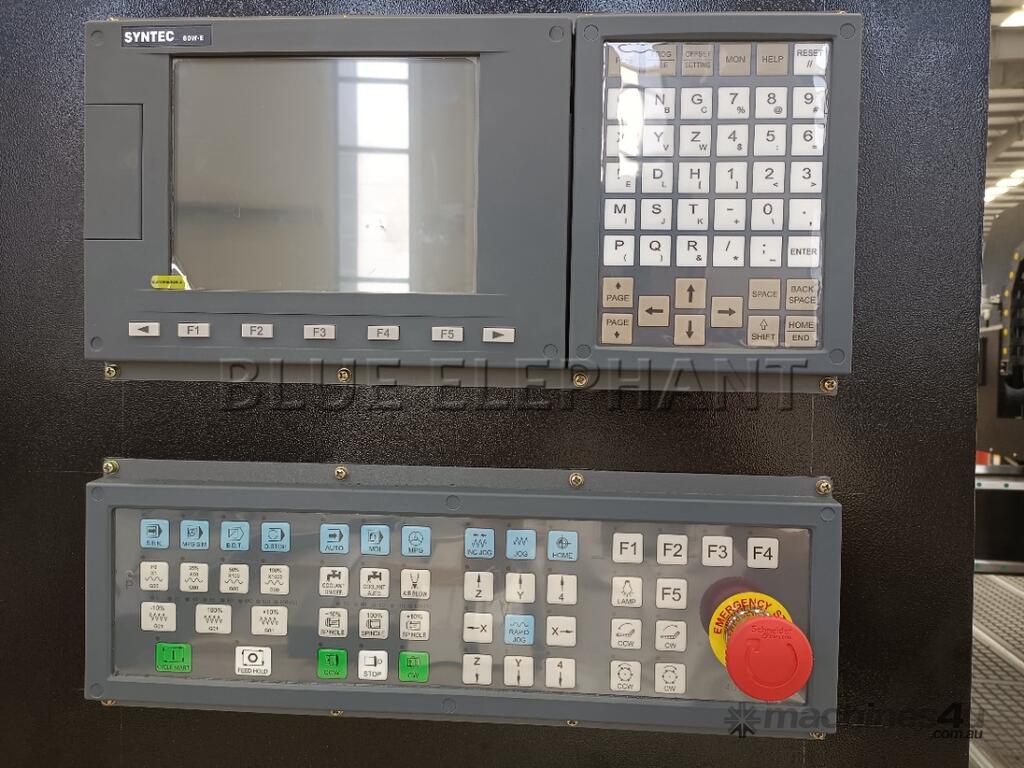

Specs: 1300×2500×200mm working area, 9kW HQD ATC air-cooled spindle (18,000 RPM, ISO30/ER32), Syntec 60WE control (M3 bus), 850W Yaskawa servo motors with Z-axis brake, 1kW Yaskawa drivers, Japanese SHIMPO reducers (×3), 11kW Fuling inverter, 8-position linear ATC, T-slot and vacuum table, Taiwan square linear guide rail (#25), helical rack & pinion X/Y, TBI ball screw Z-axis, auto tool sensor, auto lubrication, Schneider electrics, IGUS cable (CE/cUL).

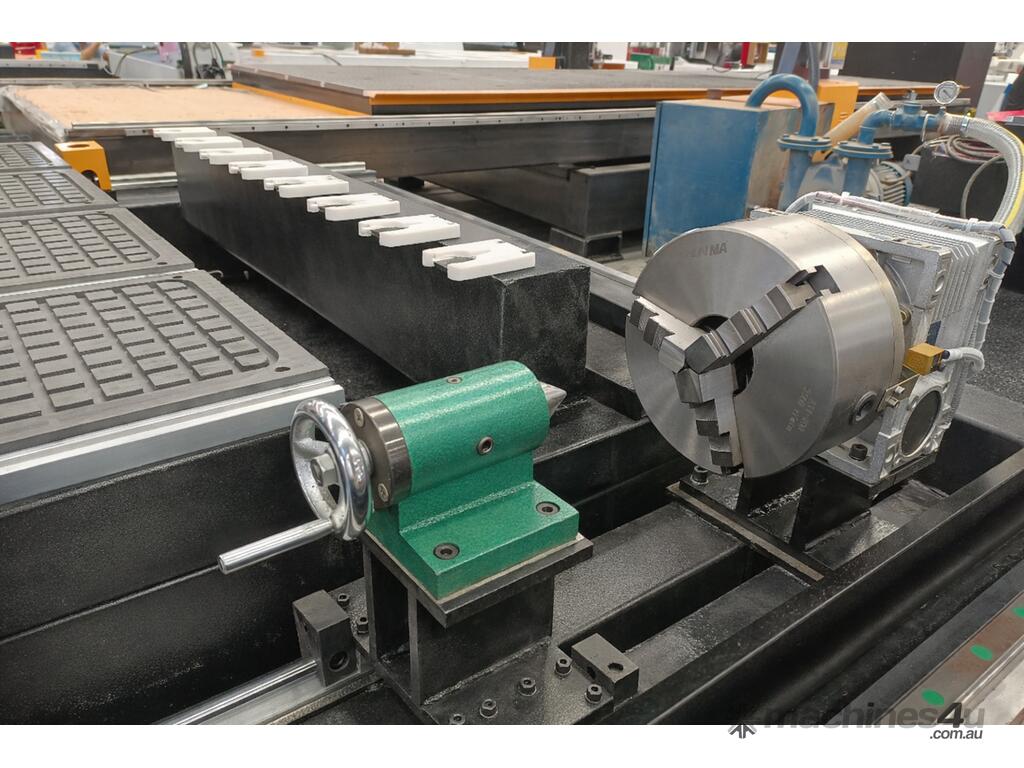

Included: 4th axis rotary device (200mm chuck, 2500mm between centres), 7.5kW air compressor, 5.5kW oil-free vacuum pump, 1.5kW double-bag dust collector with hood and pipes, 20kVA step-down transformer (415V-380V, Australian 3-phase ready), 8× ISO30 tool holders, assortment of cutters, collets and accessories and original documentation.
Perth pickup, buyer arranges transport.
