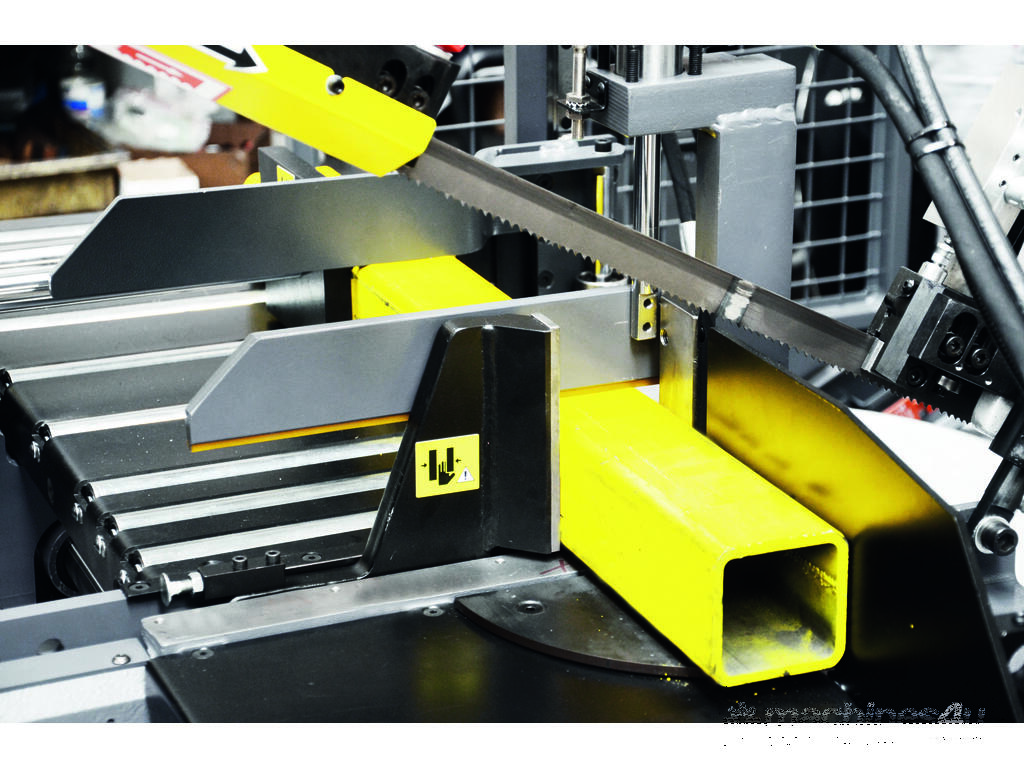

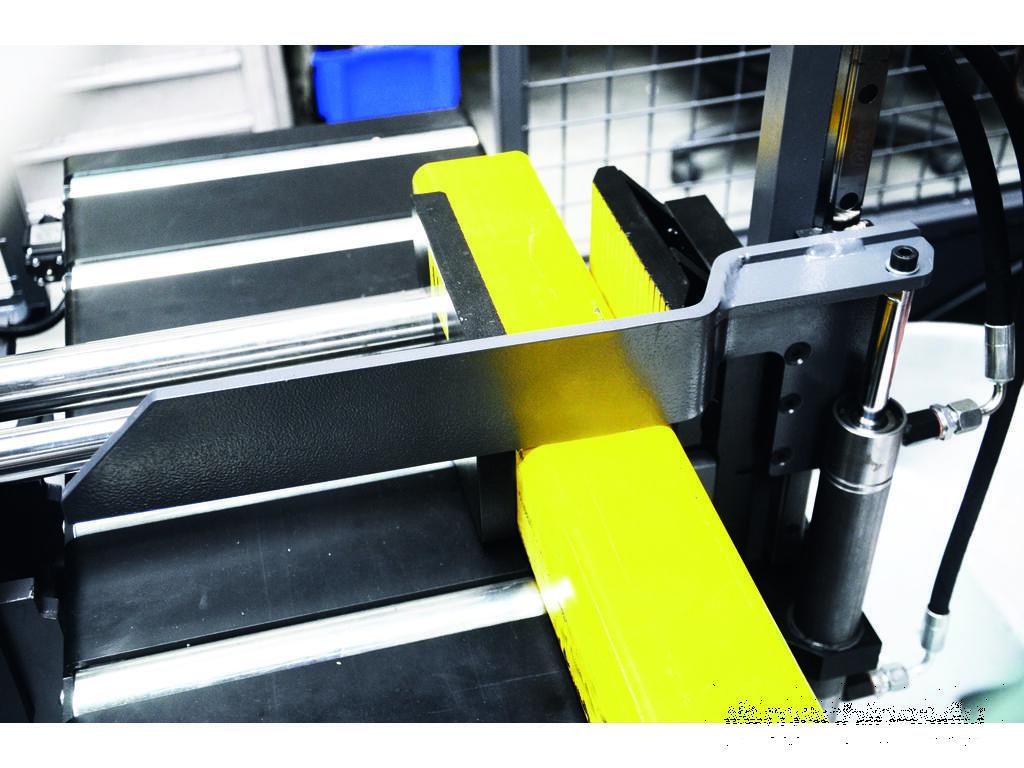

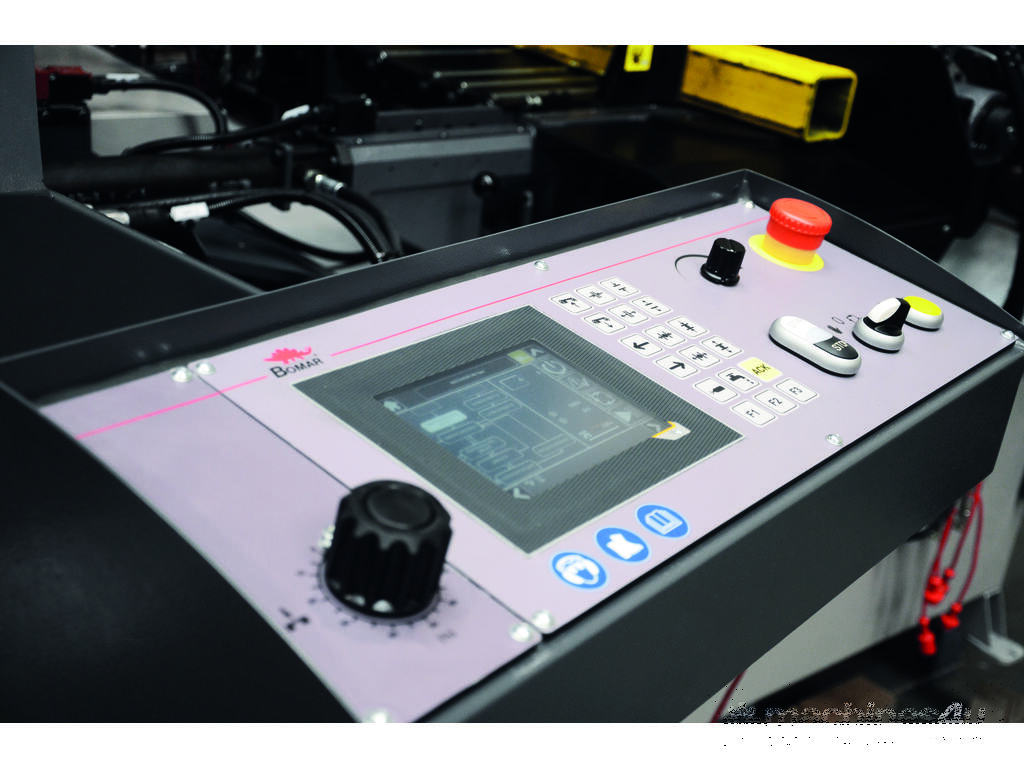

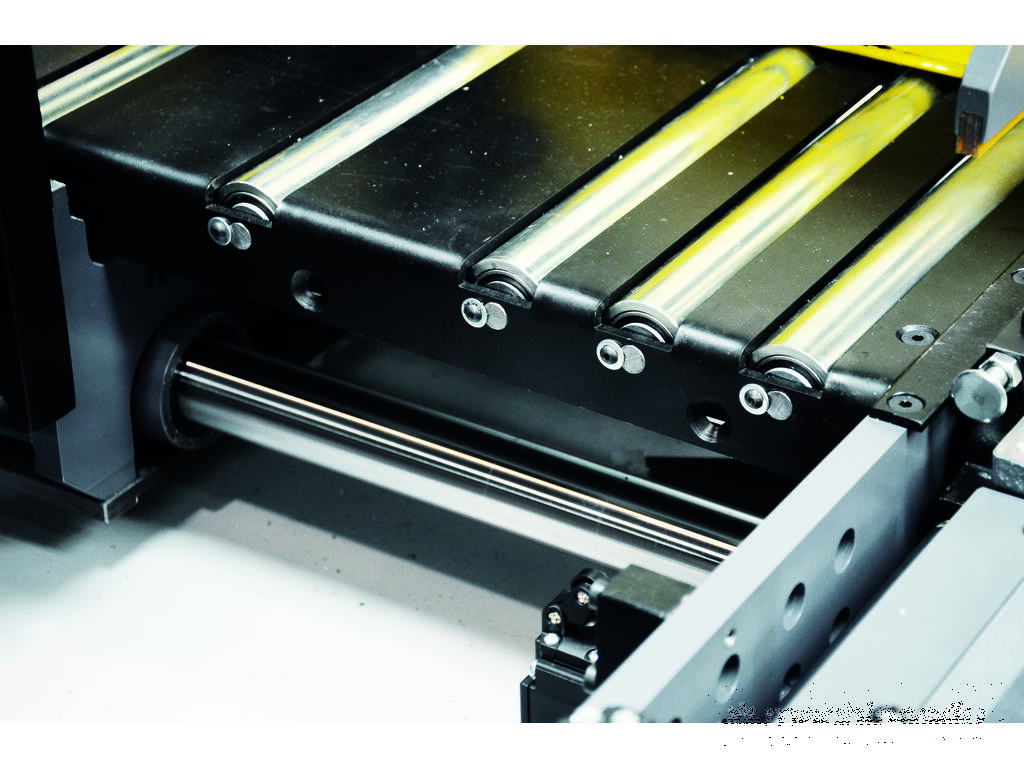

Bomar Ergonomic 320.258GANC is a powerful automatic band saw for angular cuts in the range of 0° - 60° with a heavy saw frame of vibration-proof cast alloy, with a powerful industrial engine and spiral gearing running in an oil bath. Precise hard metal saw band guides, saw head pivot embedded in pre-stressed conical bearings, a 27mm saw band and a synchronic swarf brush are the prerequisites for excellent cutting performance. The machine is equipped with an automatic cutting pressure regulation system. The feeding length is 600 mm in one step and it is measured by a linear measuring system with high resolution (precise piece lengths). The floating vice is guided by two hardened guides bars with linear ball-recirculating bearings. The consistent roller conveyor provides for simple material feeding and it is a safe basis also for short pieces. Angular cuts can be up to 45° in the automatic cycle, up to 60° in the semi-automatic mode. The performance of the hydraulic drive is so high that short auxiliary times can be achieved with the double pump and the proportional valve control. An advanced CNC control with simple dialogue-guided operation and a four-lines illuminated text display enable saving of several combinations of lengths and numbers as well as repeated feeds up to 6000 mm. The machine is prepared for the use of a broad range of accessories as roller conveyors and stops, minimum-amount lubrication system, Laser Liner, bundle-clamping device, smooth speed regulation are available, Machine is equipped with Laser Liner, Cut control unit, Wash down Gun as standard
