Brierley ZB32 Universal Precision Drill and End Mill Grinder

Drill grinding capacity: 3 mm to 32 mm
Point angle: 40 degree to 180 degree
Work-head tilting angle: 0 degree to 20 degree
Clearance angle: 0 degree to 18 degree
Brake motor: 0.37 kW
Grinding wheel size: Diameter 180 mm x 20 mm Width
Dish wheel size: Diameter 165 mm x 21 mm Width

- Complete with spare Cams, Diamond Wheel, Collets, etc.

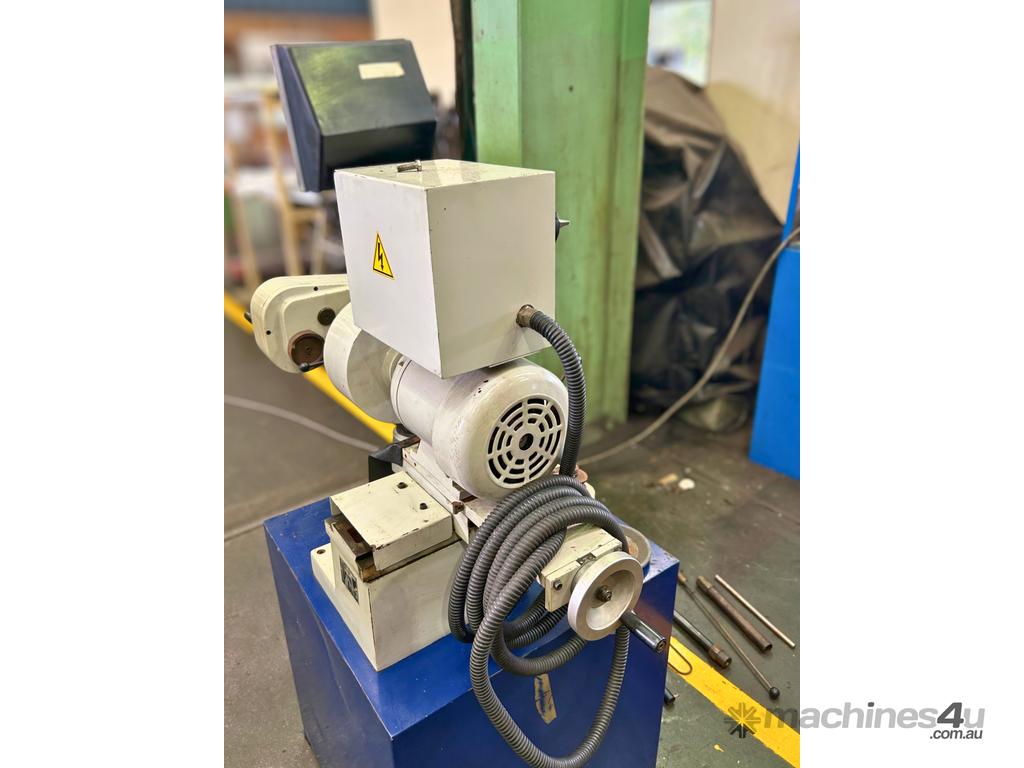

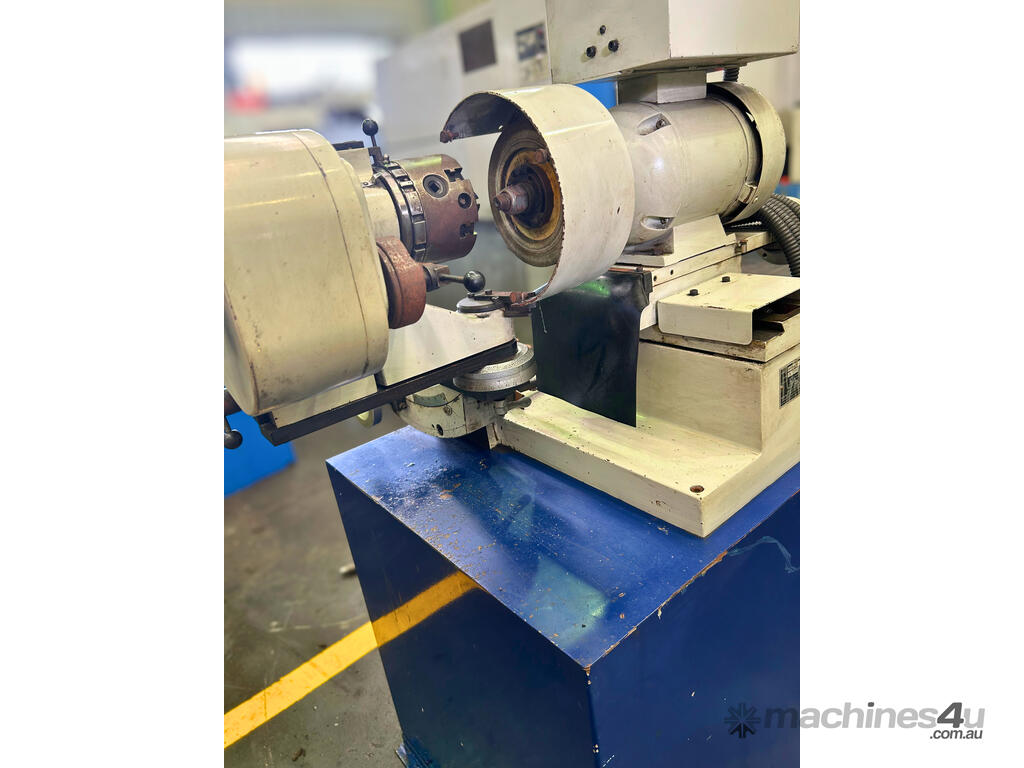

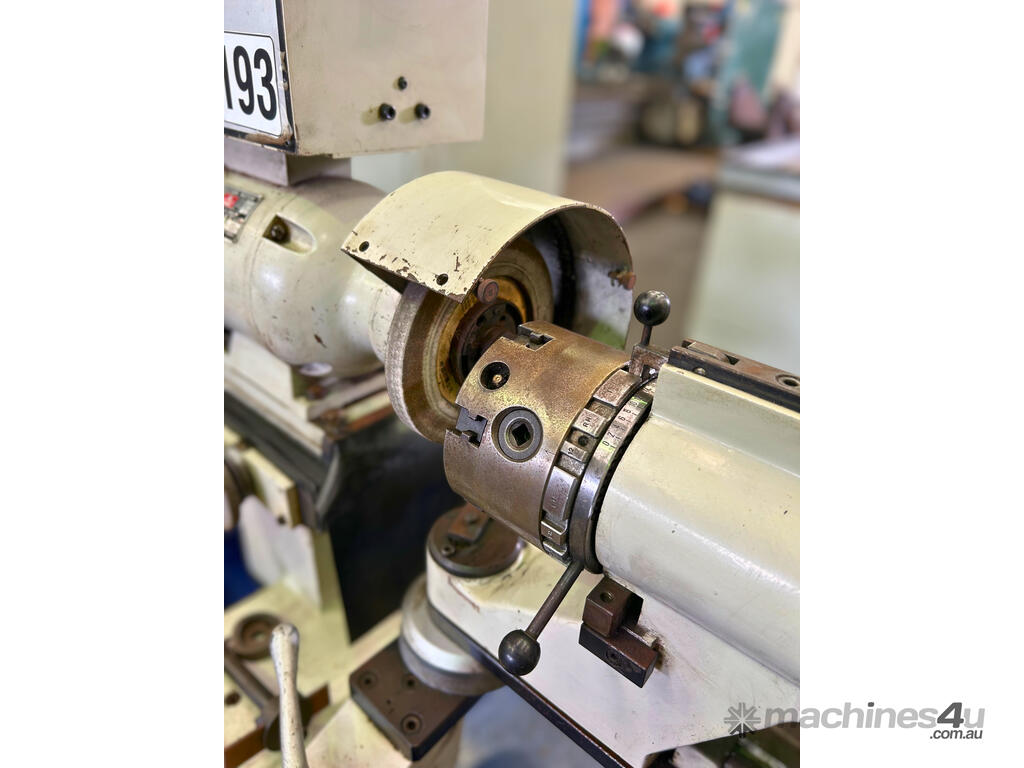

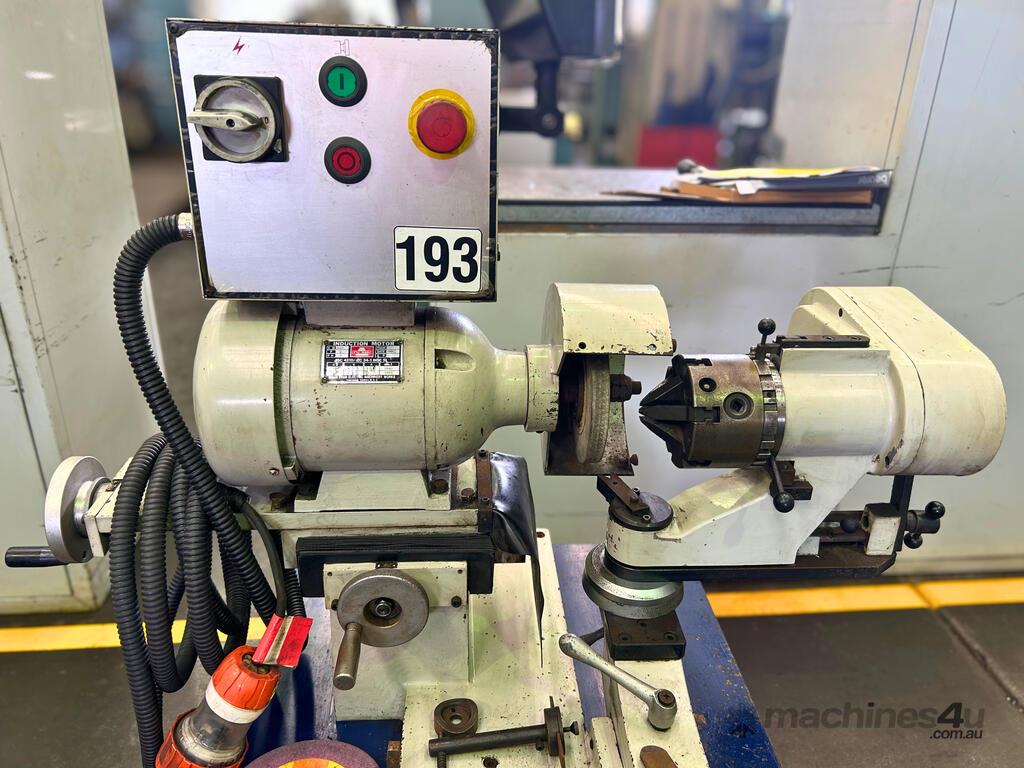

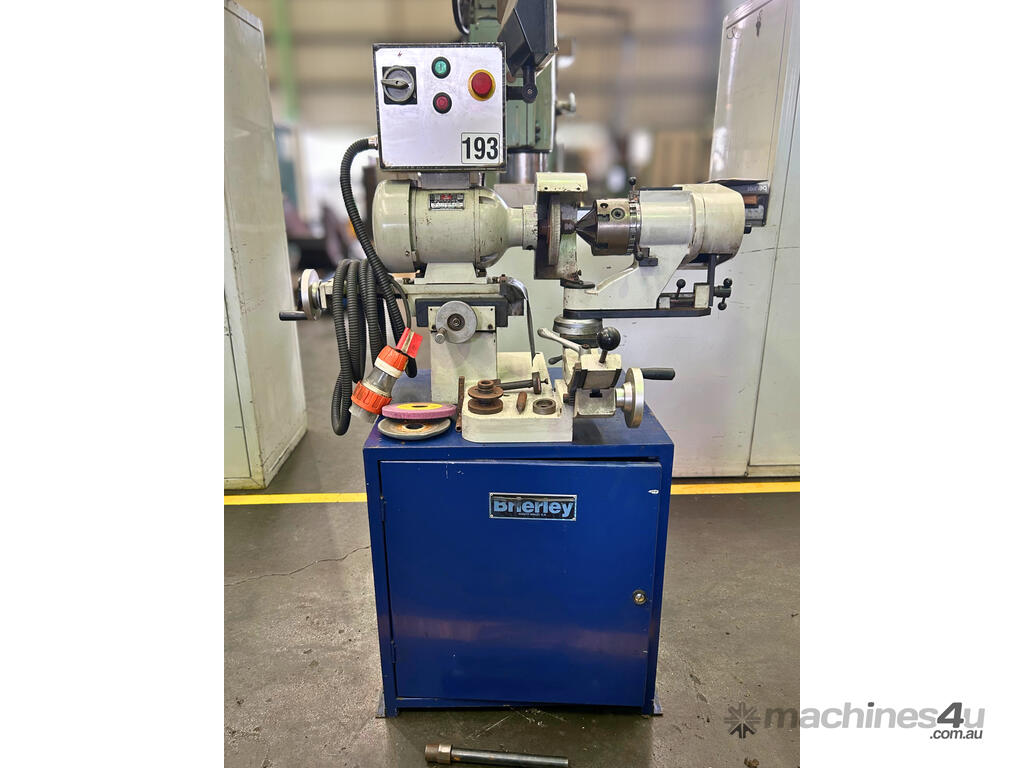

Brierley (England) make Universal Precision Drill and End Mill Grinder in excellent working condition. The model of the machine is ZB32 Universal and the Drill Grinding Capacity is from 3 mm to 32 mm. The machine is suitable for ordinary Twist Drills, Step Drills, Counter Sink & Counter Bore Drills, Core Drills, Multi-step Drills, Subland Drill, Straight Flute & Spiral Flute Taps, Point Grinding & Web Thinning, Four-Facet Point Drills, End Mills, etc. etc. The machine is complete with spare Cams, Diamond Wheel, Collets, Cams, and Radial Relief Grinding attachment.
