CASADEI BUSELLATO Double tilting blade panel saw

CASADEI BUSELLATO introduce their new Double tilt blade (+/-46 Degree tilt) panel saw. XENIA 40 MADE IN ITALY

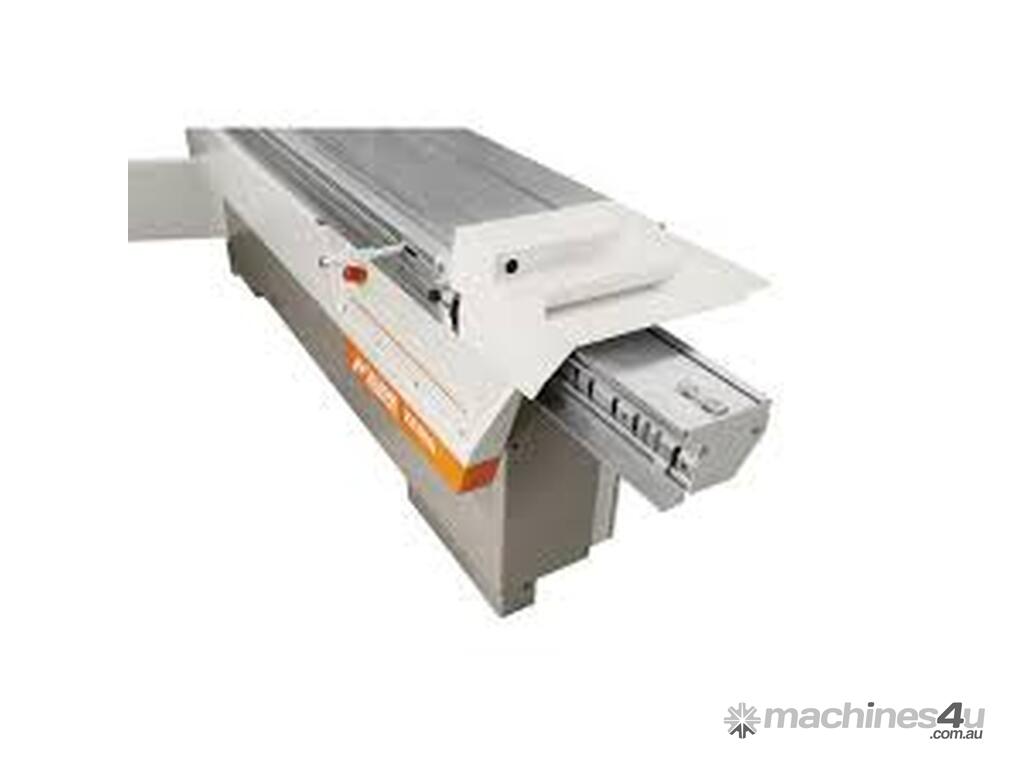

Sliding table panel saws XENIA 40X
Xenia 40X, circular saw with tilting blade +/-46°, is a complete machine in terms of equipment and with high technologies ensuring high quality squaring. The double inclination allows the realization of some inclined cuts even on delicate panels, that would not allow the processing on the covered panel side and on details with complex shapes.

Its technical characteristics and ergonomics make the Xenia 40X an ideal machine for small and medium-sized artisan companies.

Equipped with an over-hanging control panel, which ensures maximum ease of use and fast programming, the Xenia 40X circular saw is extremely flexible and performing.

ADVANTAGES
Flexibility: no limits for inclined cuts thanks to the double inclination of the saw blade that allows to process even complex shapes and covered panels.
Reliability: Sliding system of the carriage on prismatic guides in hardened and rectified steel for a smooth and precise long-lasting sliding.
Ergonomics: Controls on front side. Ergonomics and ease of use guarantee reduction of time and costs. The mobile control buttons on the head of the carriage are easily accessible and facilitate the use of the machine in any working position.
Sturdiness: machine frame of notable thickness and solid construction


• Ribbed cast-iron worktables

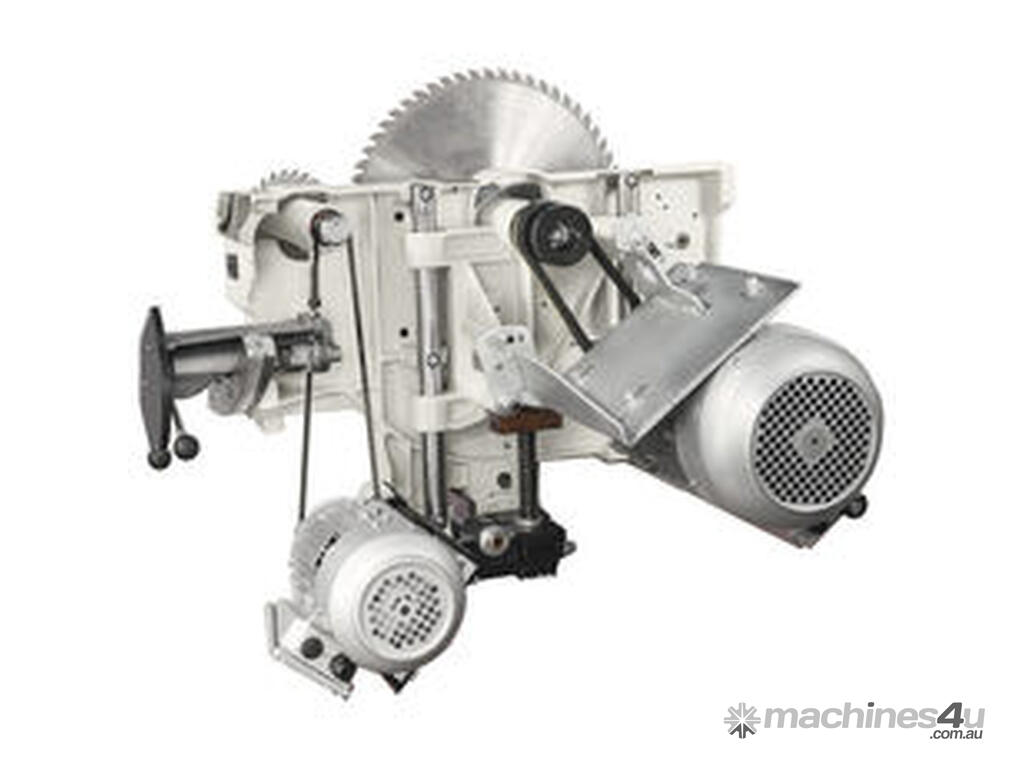

• Saw blade unit with cast-iron support, lifting on guides with cylindrical bars and tilting by high rigidity sliding side supports.
• Independently powered scoring unit with blade ø 160 mm and adjustment from outside.
• Anodized aluminum alloy carriage (dimensions 360x 3200 mm)
The high precision hardened steel guides are fixed on the carriage by means of mechanical bending system which allows
fast and precise movements

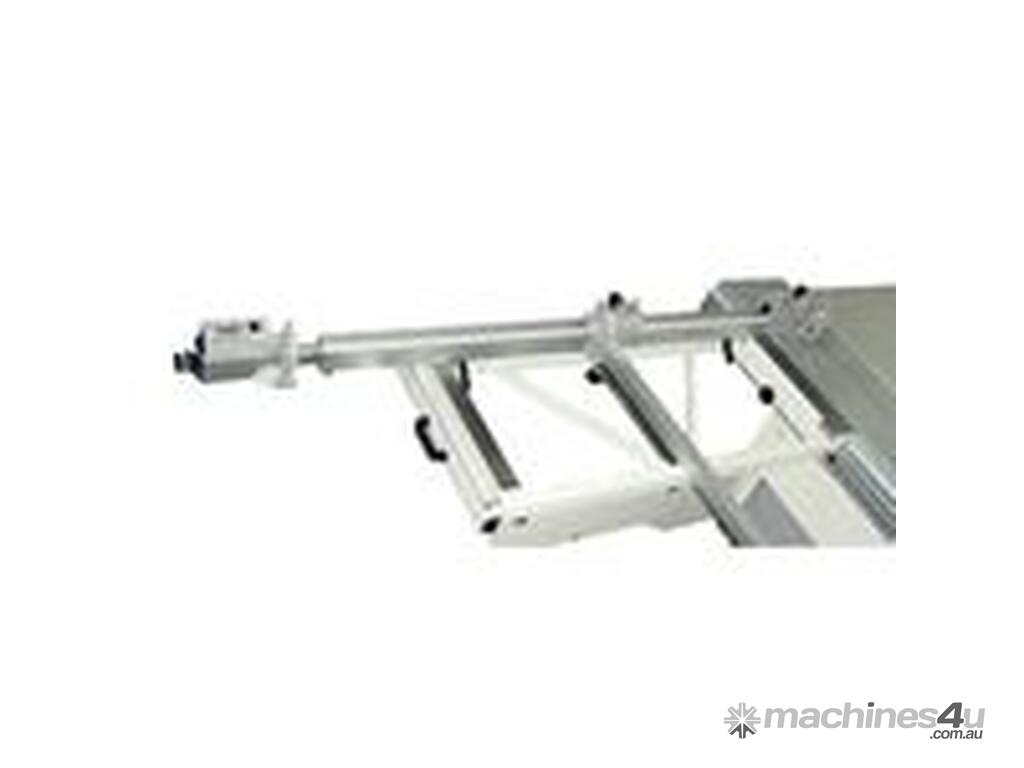

• Crosscutting support with dimensions 1200x650 mm. The device includes a telescopic fence tilted towards the operator with
2 Digital counter crosscut flip-over stops and eccentric clamping, one telescopic support and one idle roller to facilitate the
panel loading/unloading.

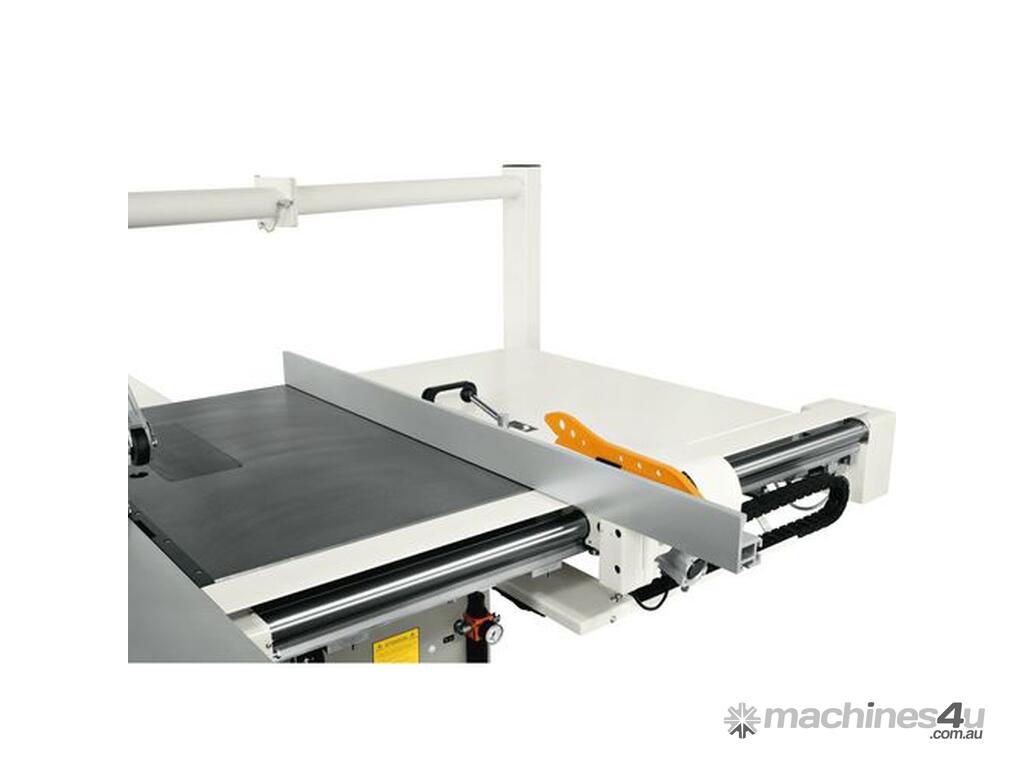

• Rip fence powered by Ballscrew from FOX 100 controller. 1270mm
. Eccentric clamp.
Main table with extension on outfeed side.
. Electronic control
“FOX 100” Programmer for motorised lifting and tilting of the saw blade unit setting of tool data with automatic correction of
the height quota with respect to the tilting quota
Working mode: manual, semi-automatic, automatic and possibility to memorize 99 programs
Additional functions: calculator and hour counter.
• Overload switch protection.
• Emergency pushbutton.
• Pad lockable main switch.
• Automatic star delta start on main motor.
