Figtek is a group of small niche Australian businesses that complement and support each other to create a vast array of solutions for all of its client’s needs.
In Taiwan we employee a group of exceptionally passionate and experienced engineers that source the most reliable and cost-effective parts from around the world. They now build to our specifications, for our local market. This way we know we can satisfy all of our customer’s needs. This means we now control the design and quality of what we import. We now import, service and support all of these machines Australia wide!

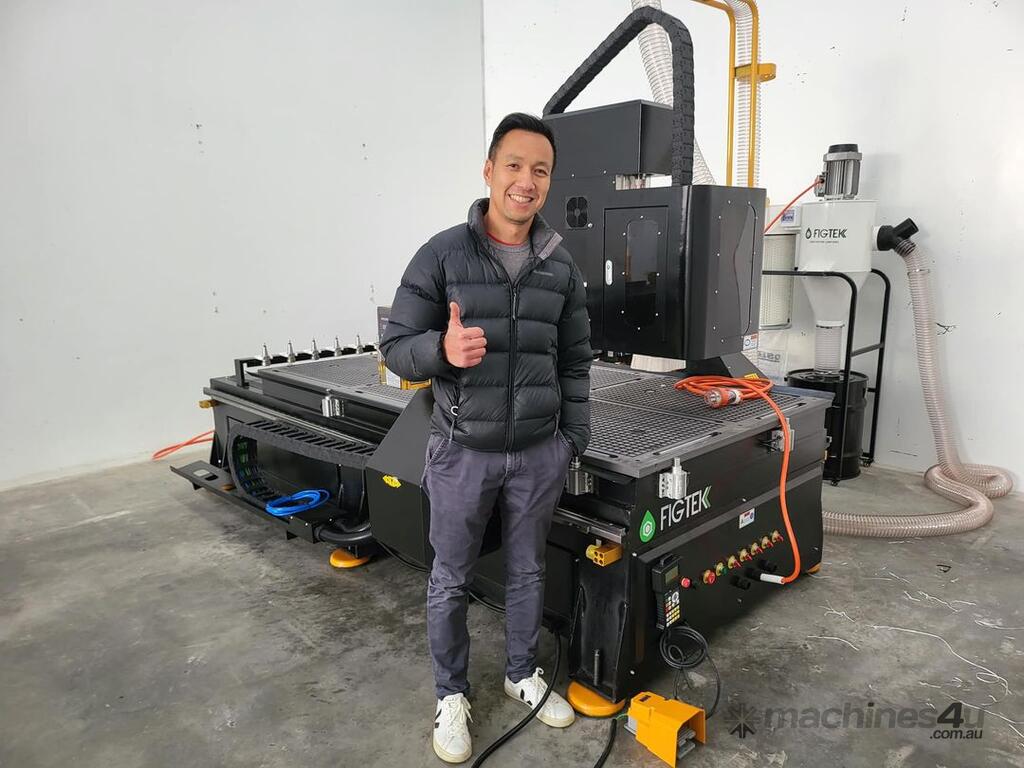

Note: This machine includes an Automatic Tool Changer.
Inclusion:
• Working area: 1300 x 2500 x 200mm

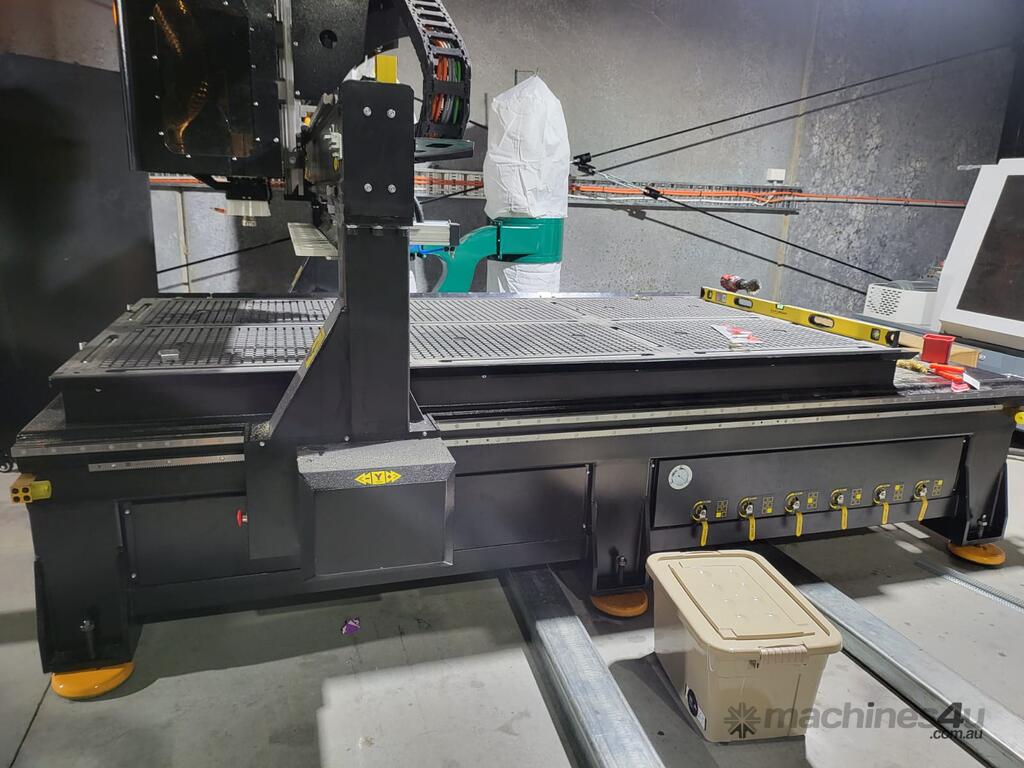

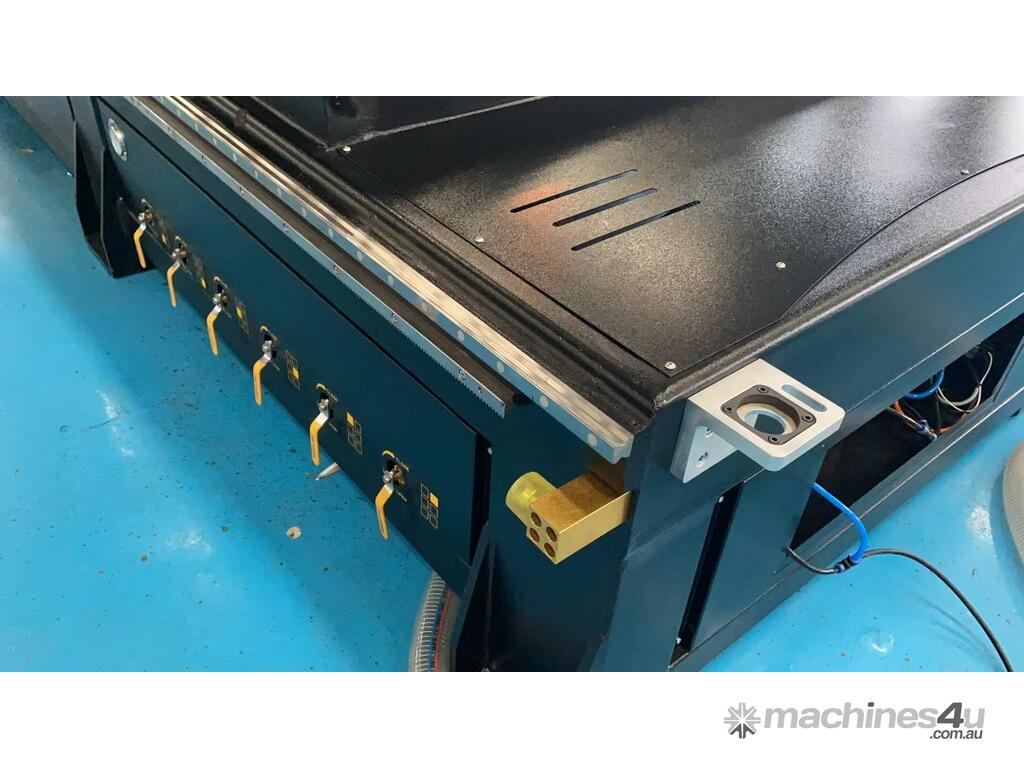

• Vacuum Bed and T-slot working table
• Vacuum pump

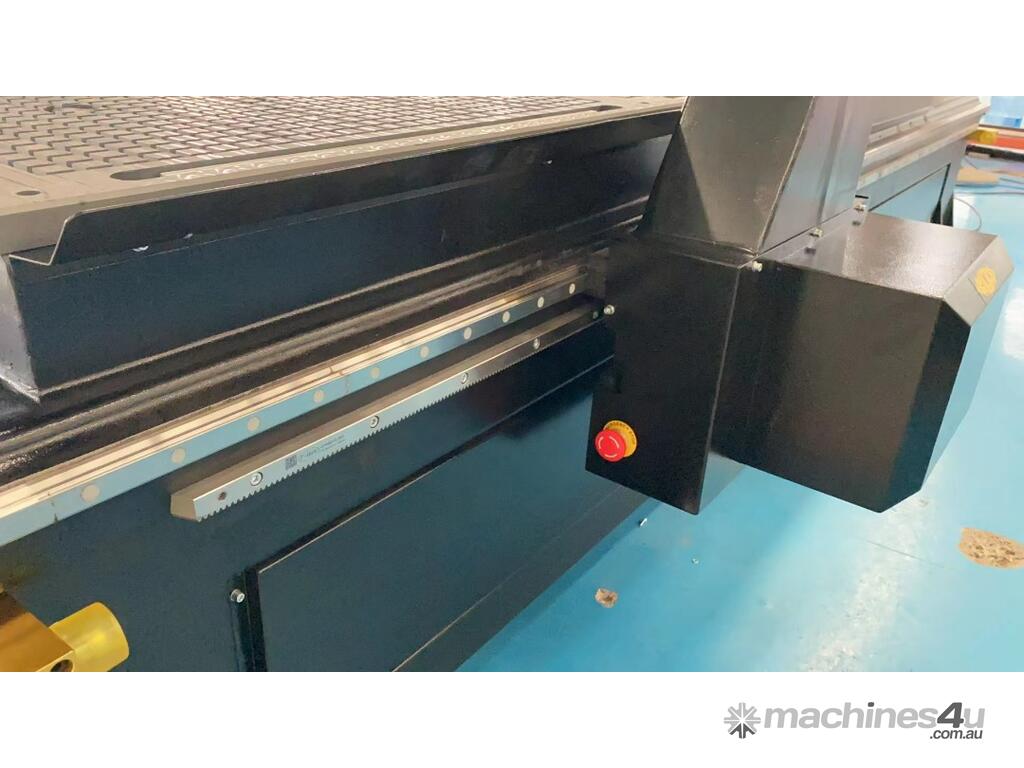

• 25mm Taiwan linear guide rails
• 9 kW Air Cooled Spindle
• NK105 handle controller with USB port
• Leadshine / Yaskawa servo motor and driver
• 5.5 KW Fuling inverter
• Welded machine structure
• Heavy-duty machine body
• 220V single phase or 3 Phase
• Automatic Oil Lubricant system

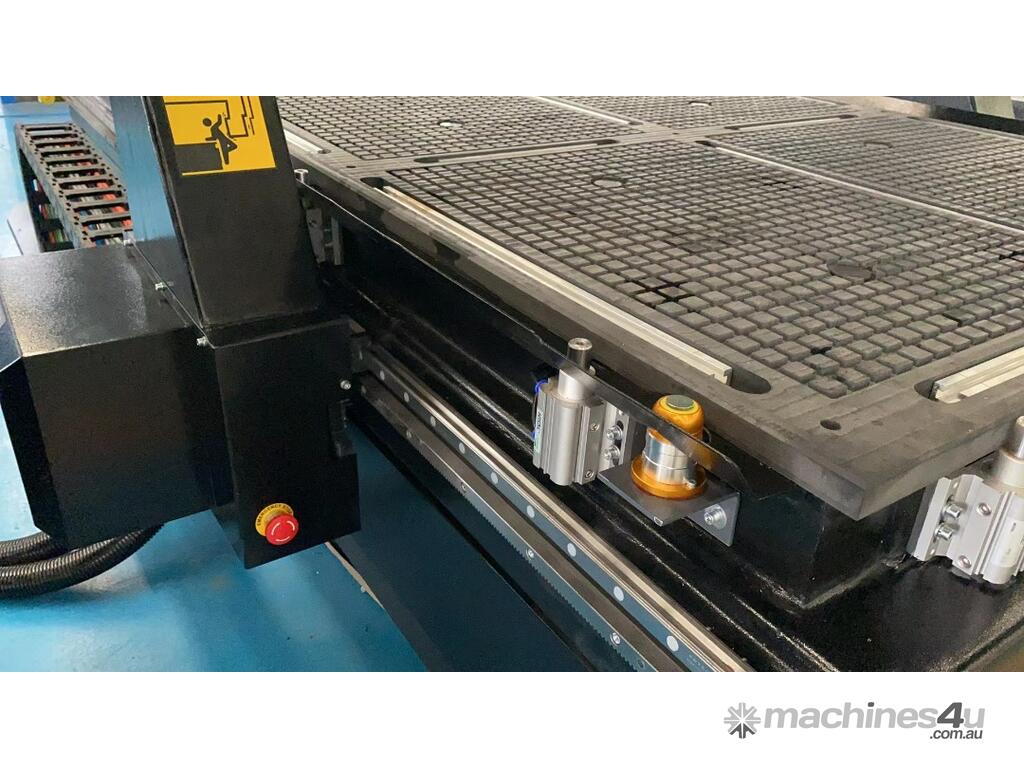

• Position Cylinder
• Foot pedal to control Position Cylinder
• Double Barrel dust collector * Extra $880
• Automatic Dust shoe
• Tool holder with different size collets

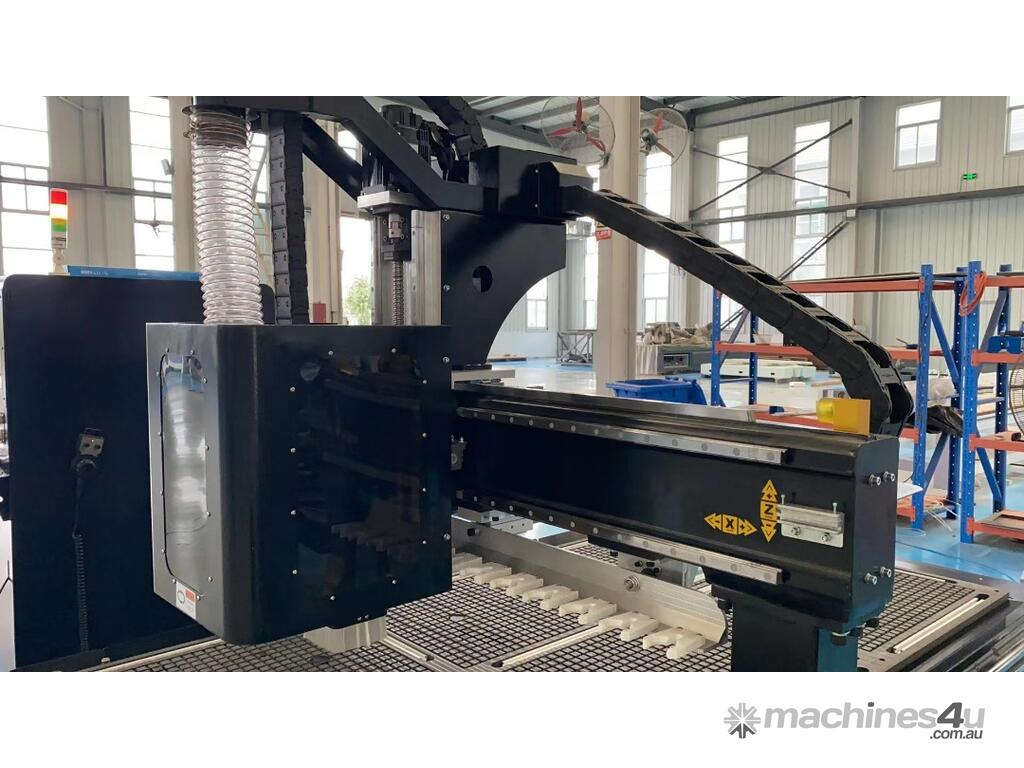

8-POSITION TOOL RACK:
• The ATC CNC machine includes an 8-tool rack in the rear of the machine
HAND-HELD NK105 CONTROLLER:
• The DSP hand controller is easy to operate
• It does not require additional connection to the computer
EASY MAINTENANCE:
• Effectively prevent dust come into the inside of machine
• Longer lifespan of machine’s mechanical parts
APPLICATIONS:
• Wooden furniture: doors, windows, chairs, tables
• Plate processing: stairs, epoxy resin, insulation parts
• Decorate industry: acrylic, PVC, MDF, soft and plastic metals
Software Compatible with our CNC Routers:
• Fusion 360
• ArtCam
• AutoCad
• EnRoute
• Cadmate
• Aspire
• VCarve Pro
• Mozaik
• CAD Vision and much more
Services we provide:
• We offer installation and training
• We deliver machines anywhere in Australia
• We also commission it to ensure the machine is performing as it should at your factory.
• We also ensure calibration is done
• We train and up-skill you on how to use the machine and software on-site
The Facts:
• We build the machines from scratch
• Wired to Australian Standard
• All machines undergo heaps of testing and calibration
• Engineers with over 30 years' experience
• Plug and Play option available - Ask us what's this about
• We import to the customer - Out of the container and to you.
Why Buy Our ATC Router?
• Australian Local Support
• Only the best quality parts used
• Engineers with over 15 years of experience
• Custom built to your specifications
• 3 Year Australian warranty – Only if installation package is chosen
