Solid State Efficiency and Reliability
Now you can have solid state fiber laser efficiency and reliability in a system that
delivers up to 4kW of extremely high-quality laser beam to the cutting head through
an armored, flexible fiber cable. The beam quality and wavelength of the Cy Laser
simplifies the cutting of highly reflective materials like aluminum, brass, bronze
and copper efficiently.
Extremely Low Operating Cost
Very Low Power Consumption
340,000 Hour Diode MTBF
4 Times Greater Beam Power Density
No CO2 Gas Turbine System
No Resonator Refurbs
No Mirrors or Alignment – Ever
Expected Minimum Diode Life
Laser cutting - sheetmetal and metal plate

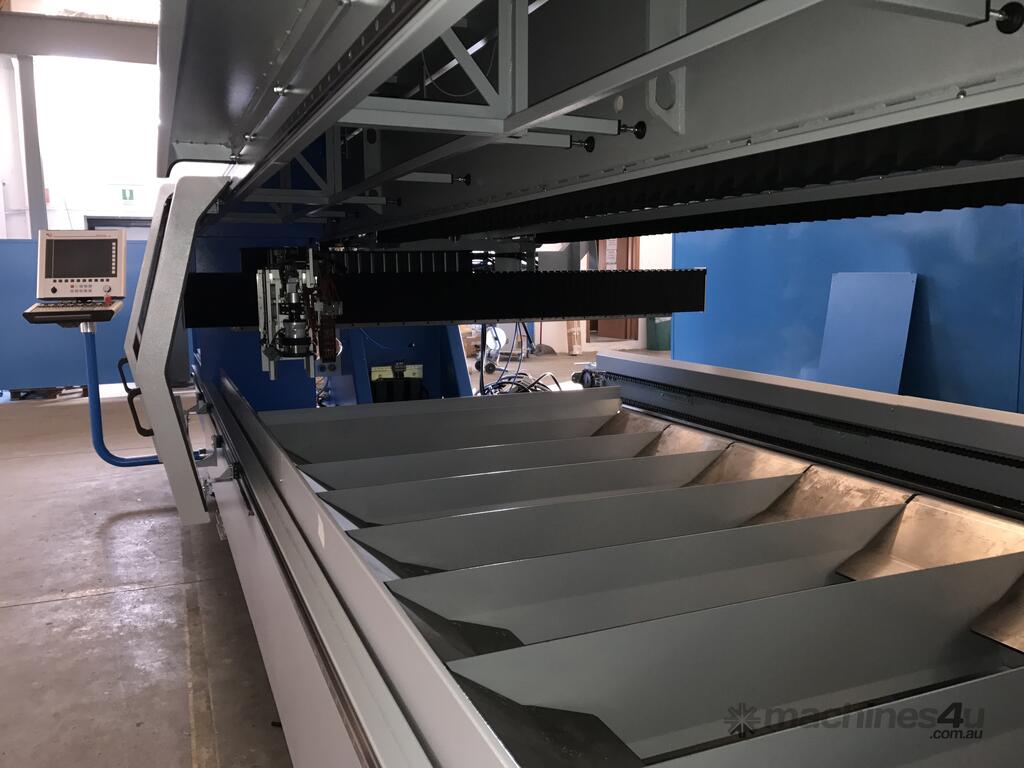

Airplane structure with self-supporting frame motion system

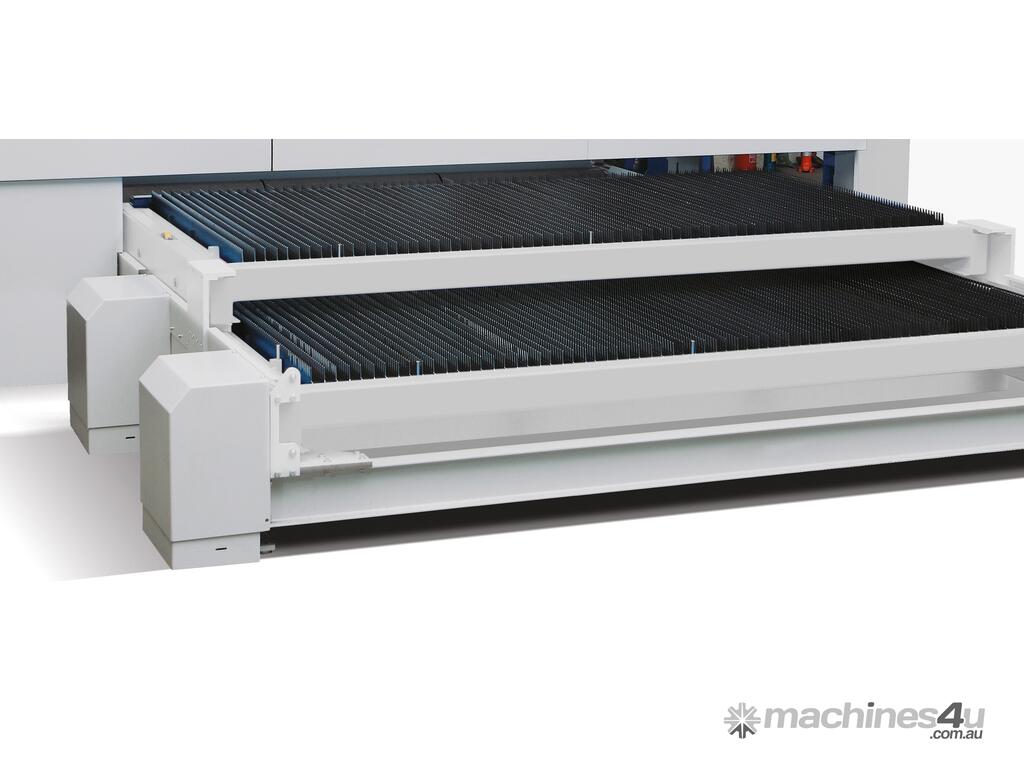

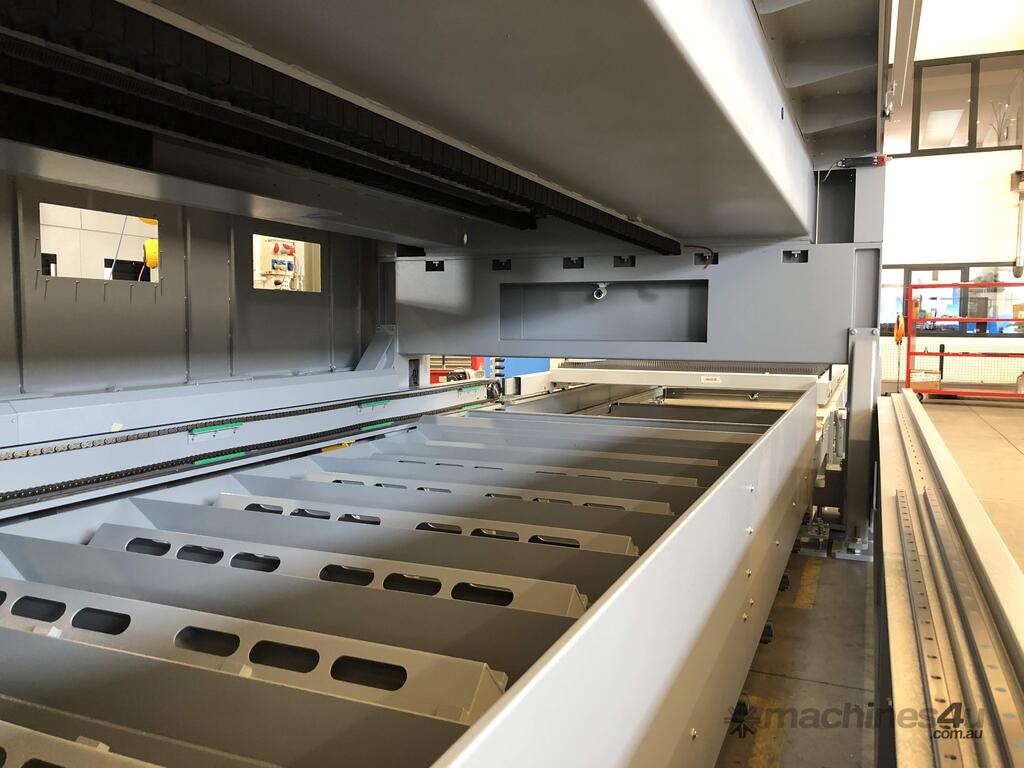

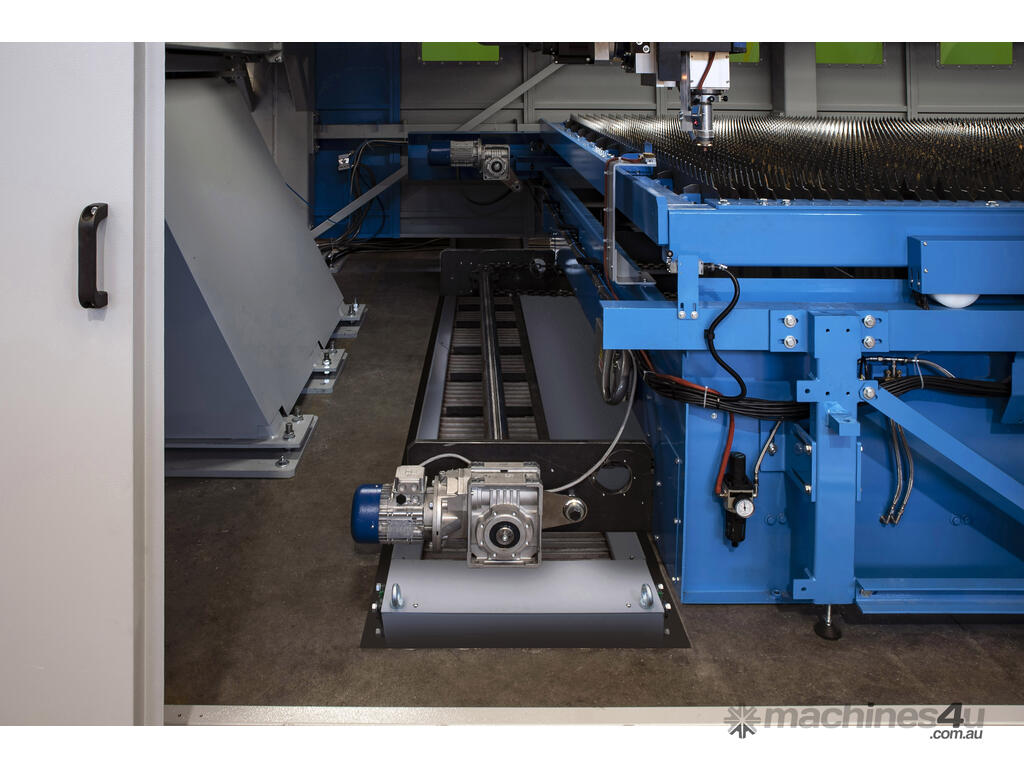

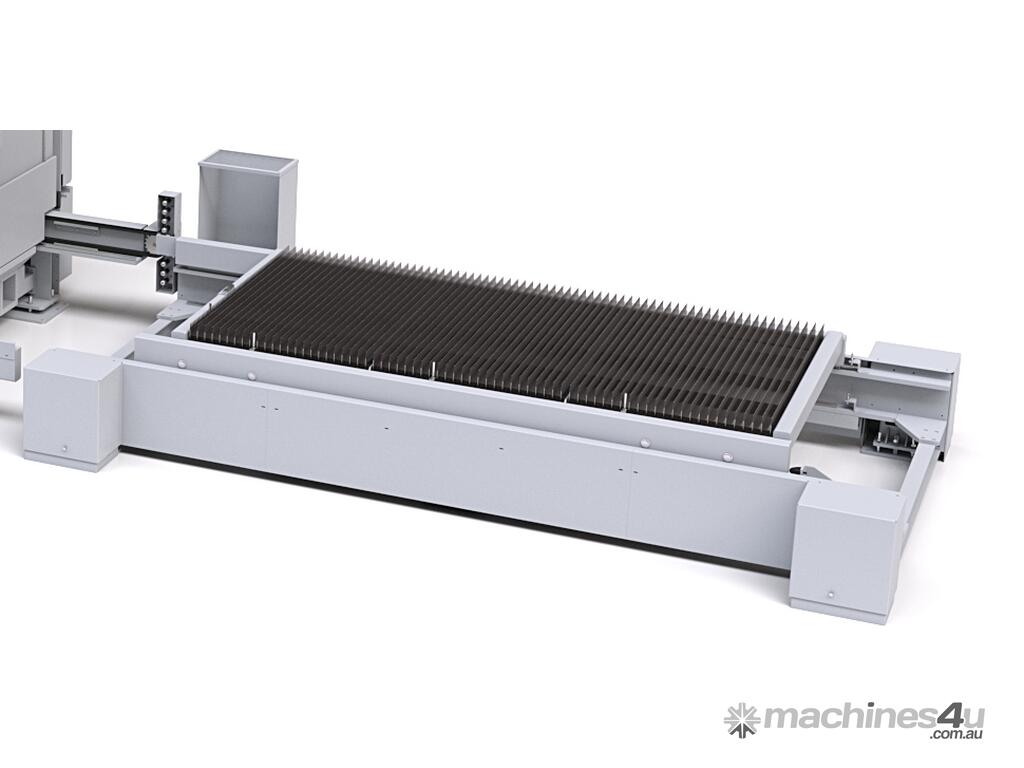

Dual table motorized system, independent from machine frame
Cutting feed rates range 150-50.000 mm\min
Rapid travel 110.000 + 110.000 mm\min
Accuracy of positioning ± 0.03 mm
Repeatiblity over 32 linear inches of table length ± 0.05 mm
Ac c u r a c y o f parallelism and perpendicularity ± 0.05 mm
over any 32 linear inches of table length (Y,X axis)
Model Work Area Overall
Dimensions (mm) Dimensions (mm)
L3015 3100x1550 L 11500 x W 2900 x H 2150
L4020 4100x2050 L 13500 x W 4050 x H 2150
L6020 6100x2050 L 17500 x W 4050 x H 2150
L6025 6100x2550 L 17500 x W 4550 x H 2150
L8025 8100x2550 L 21500 x W 4550 x H 2150
Max Thickness 2 kW 3 kW 4 kW 5 kW 6 kW
Carbon Steel 15mm 20mm 25mm 25mm 25mm
Stainless Steel 6mm 12mm 15mm 18mm 20mm
Aluminum 6mm 12mm 15mm 18mm 20mm
TOTAL installation 20kw 30kw 40kw 50kw 60kw
power requirement
( 400 Volts - includes motion system, laser generator and chiller)
