ChemGrout CG-600 Colloidal grout plant

Supported by Australia's trusted equipment dealer for all things Concrete, Grout and Screed

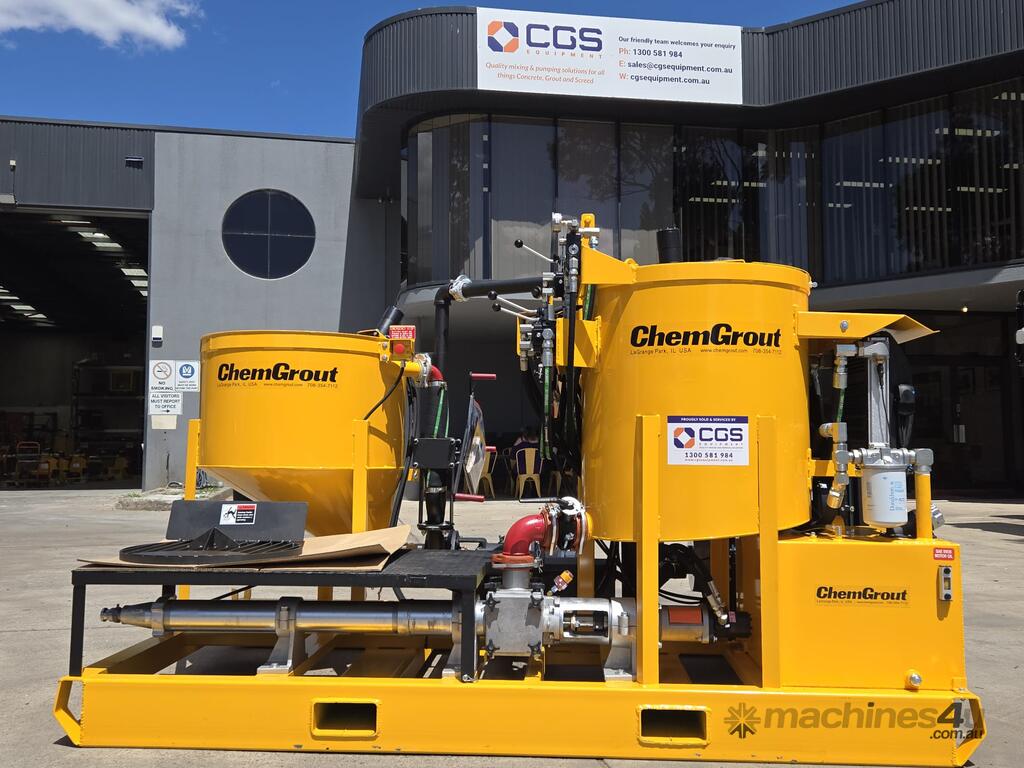

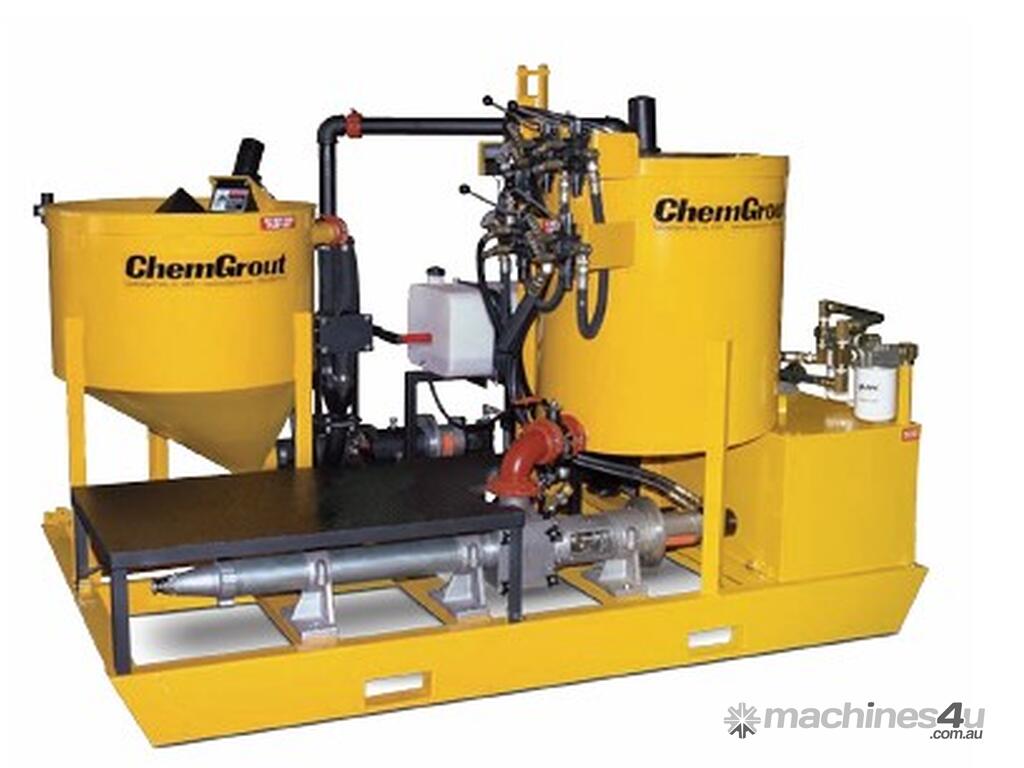

The ChemGrout CG-600 High Pressure series is a skid-mounted, colloidal grout plant. This unit is available with a 13 cubic foot high shear colloidal mixer, an agitated storage tank and a high-pressure plunger grout pump. The colloidal mixer is equipped with a high shear centrifugal diffuser-type pump that disperses the cementitious material down to its finest particle size to achieve complete particle wetness. The mixing tank is equipped with a bridge breaker to break apart the material before entering the colloidal mixer. The agitated storage tank is 13 CF and equipped with a variable-speed high-efficiency paddle mixer that maintains a thoroughly mixed grout while waiting to be pumped. The grout pump is connected to the agitated storage tank to provide a continuous pumping operation. The grout pump is a double-acting, positive-displacement, plunger style that is available in three different sizes, 3X8 and 2X8, offering discharge pressures of 1,000 psi and 2,000 psi, respectively. The double-acting plunger pump is designed so that conversion between the pressure outputs is easy and cost-effective. Operator controls are centrally located for efficient production. The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance.

Applications
Post tensioning
Tunnels
Shafts
Mining
Permeation grouting
Soil & rock grouting
Waterproofing
Soil anchors rock bolts
Soil nails
Tie backs
Earth anchors
