Chisa 7.0 Chisel Morticer 145mm timber width capacity

SCHEPPACH Chisa 7.0 Chisel Morticer 145mm timber width capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W3465

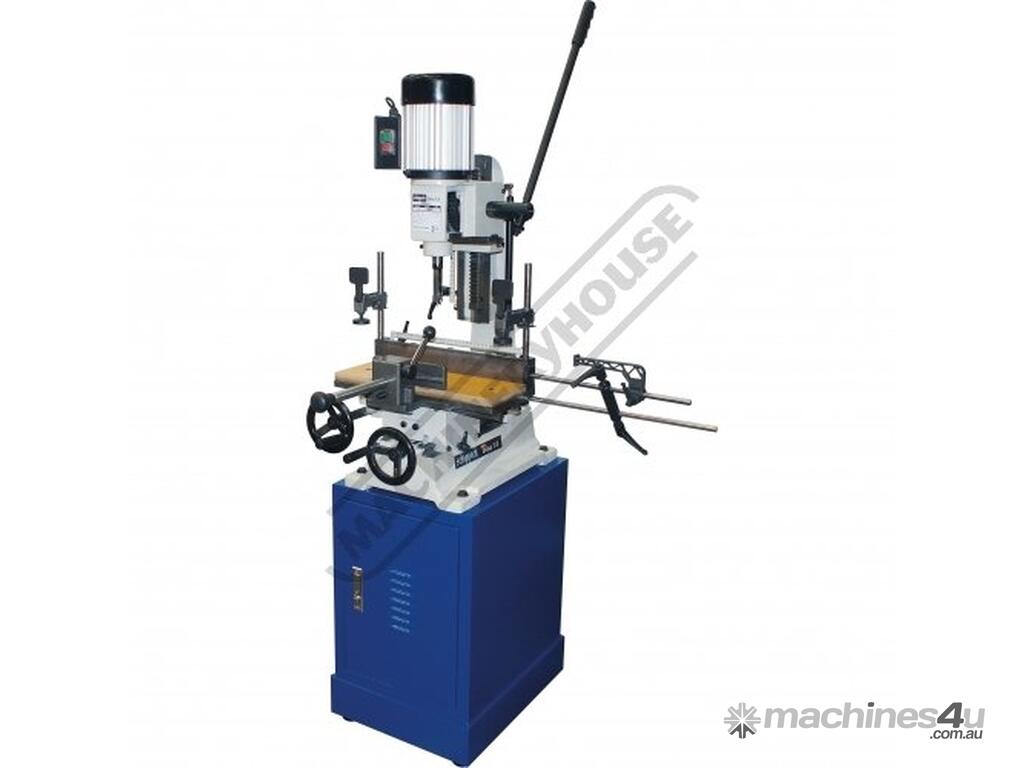

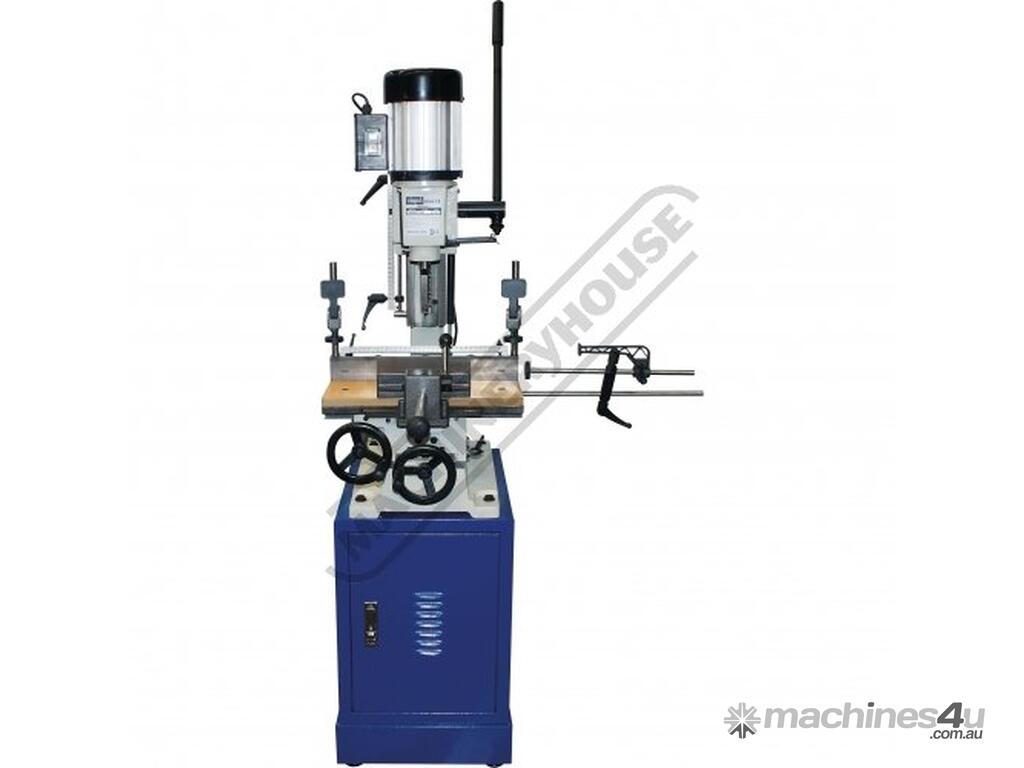

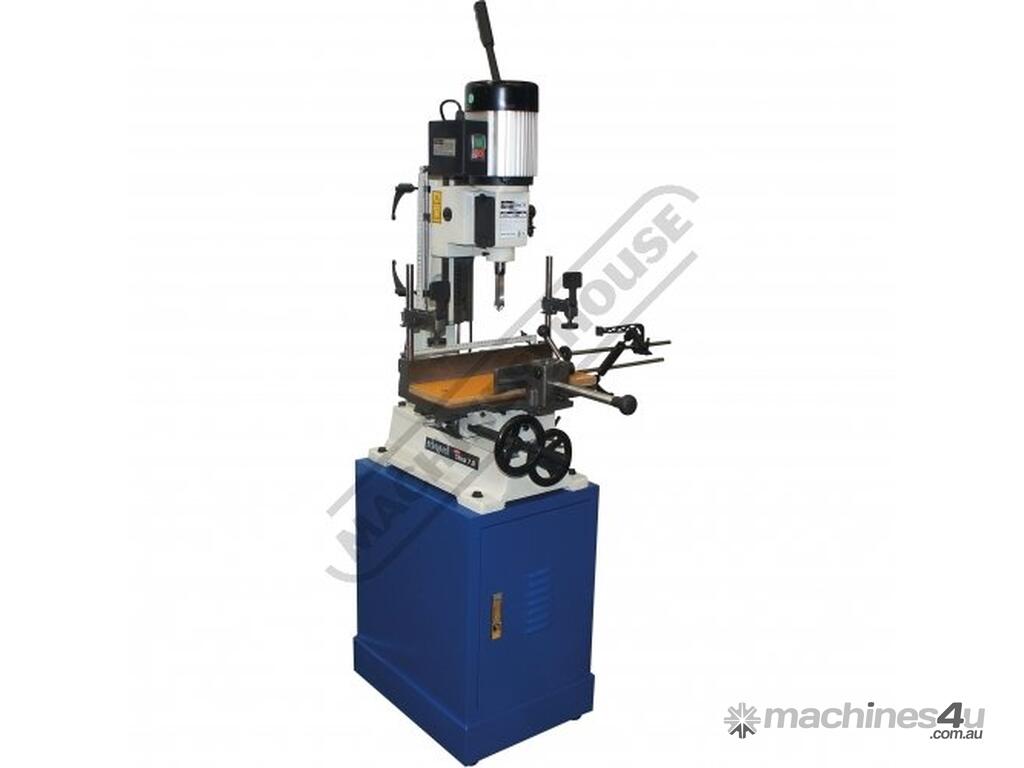

The scheppach Chisa 7.0 is a classic floor standing hollow chisel mortising machine. Due to its robust construction this machine is stable in use and offers the best results at an economic price.

Equipped with a useful cabinet storage base and facility to reverse the headstock for mortising door locks, the Chisa 7.0 is the ideal choice for both professional and amateur workshops.

Morticer Capacity:
25mm chisel in softwood
20mm chisel in hardwood

Features:
Heavy duty cast iron frame
145mm timber width capacity
220mm vertical head stroke
200mm maximum workpiece height
400 x 150mm table size
170 x 140mm table movement

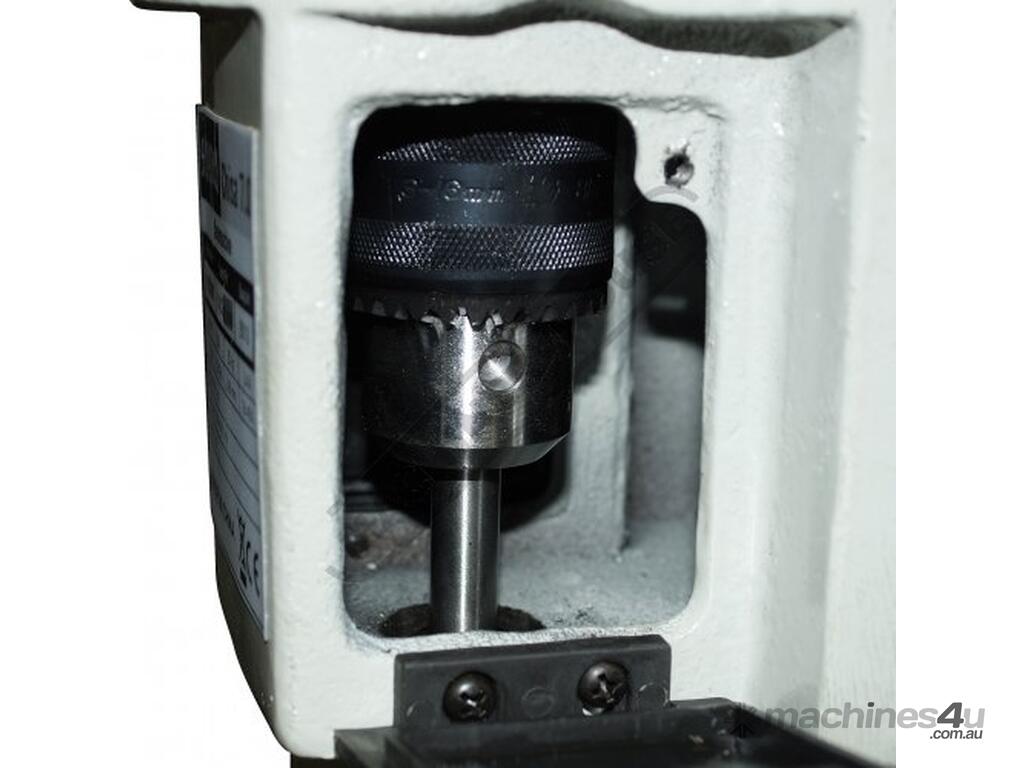

16mm keyed drill chuck

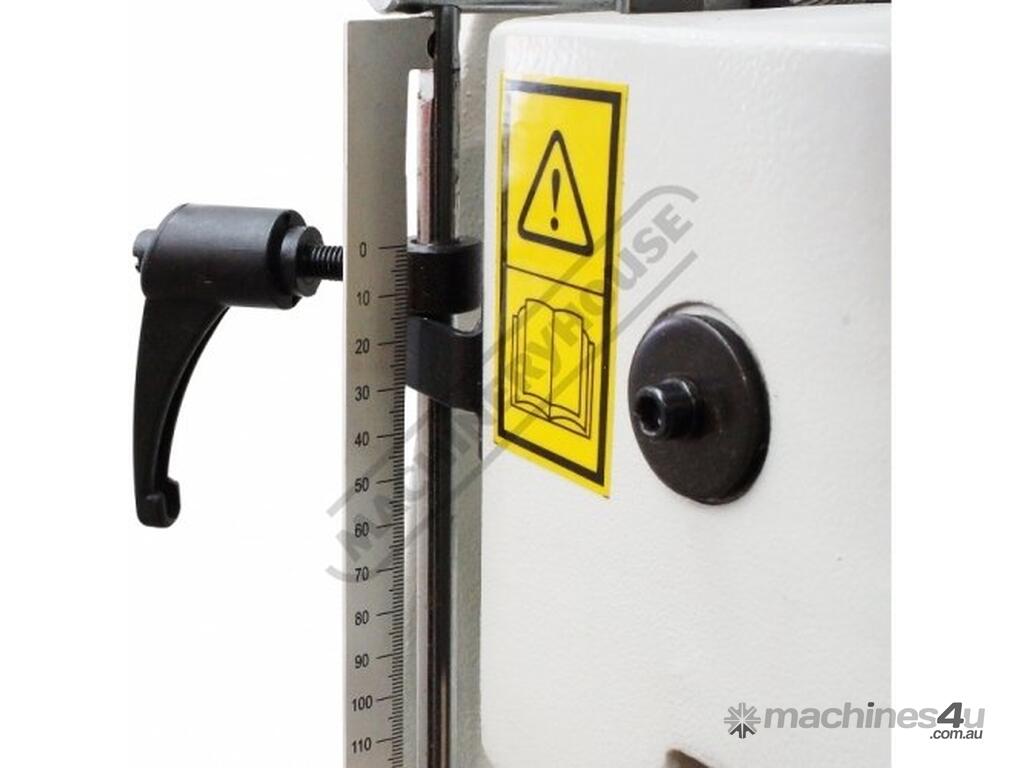

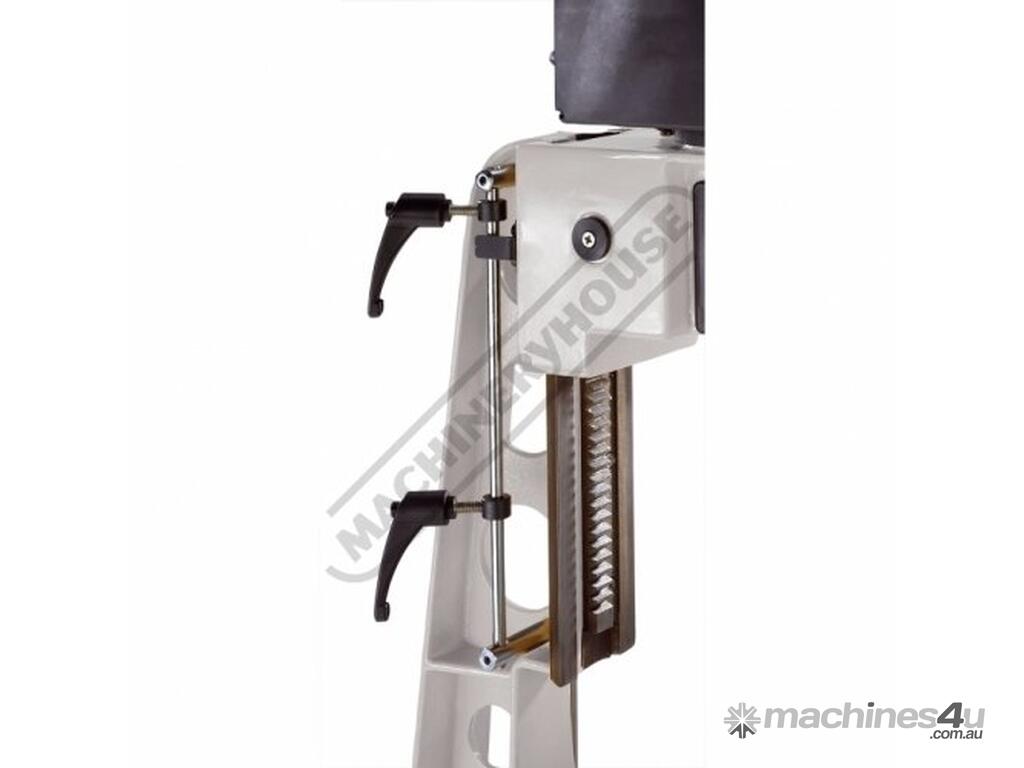

Adjustable depth stop

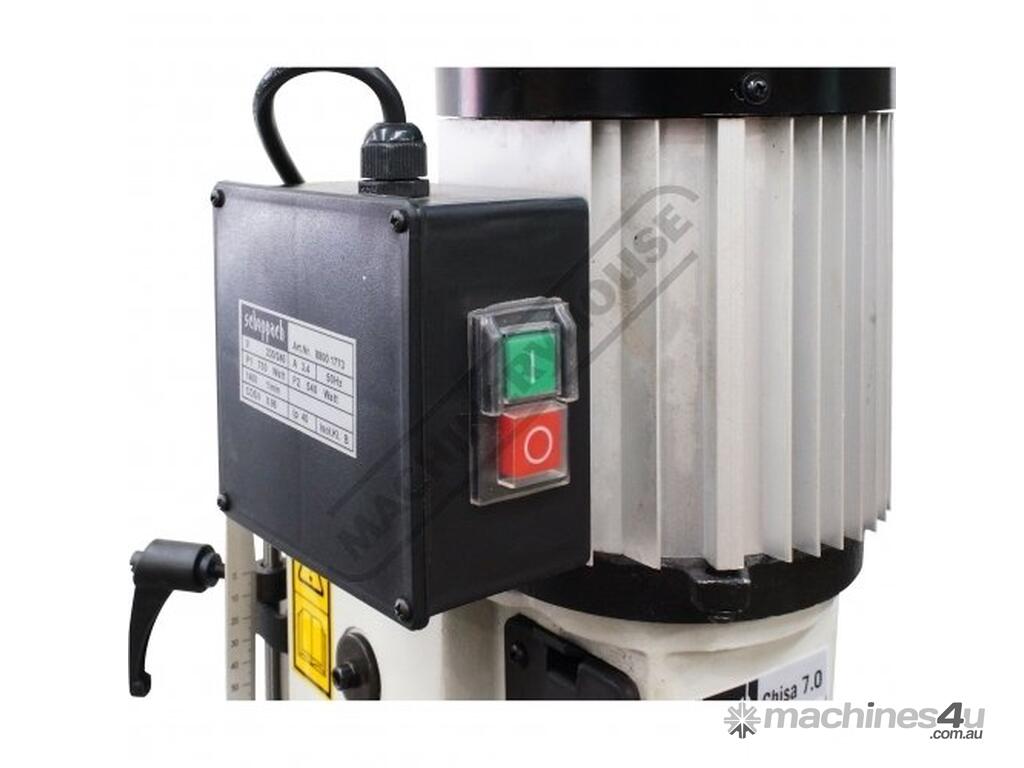

Magnetic safety switch

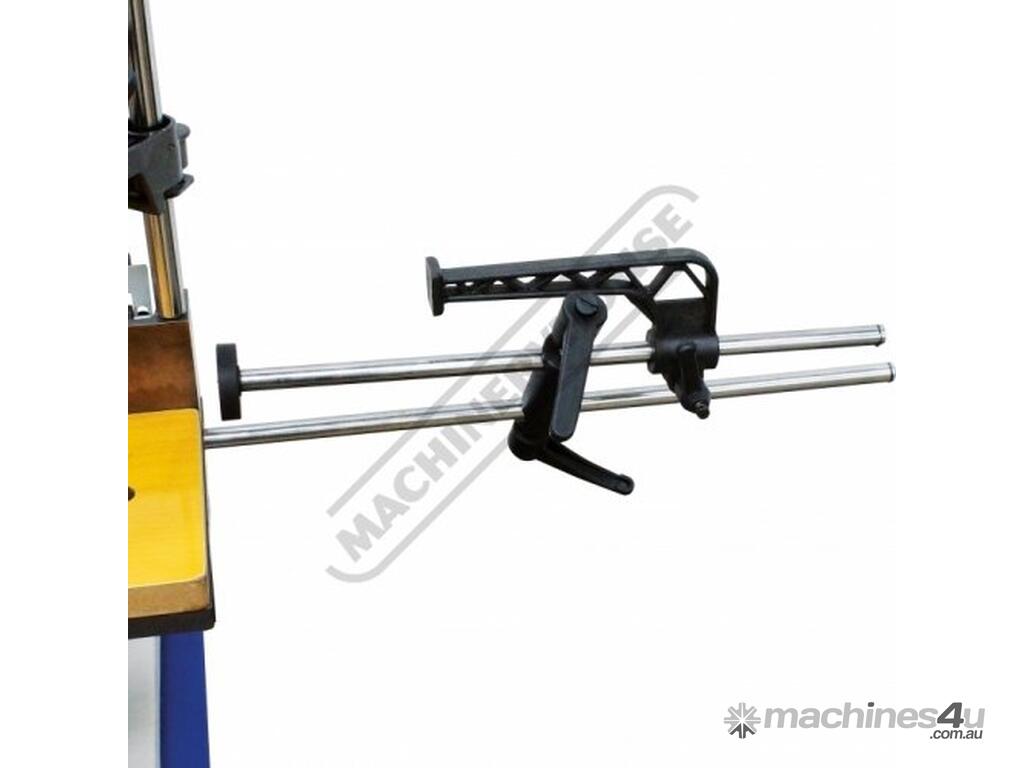

Adjustable material length stop

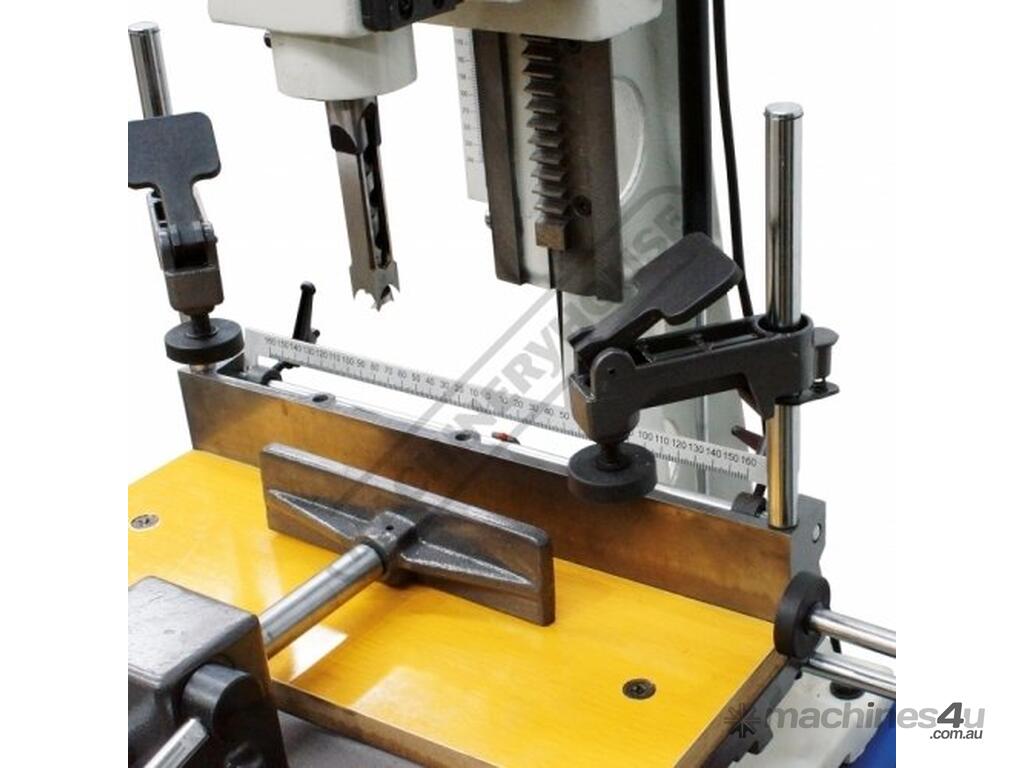

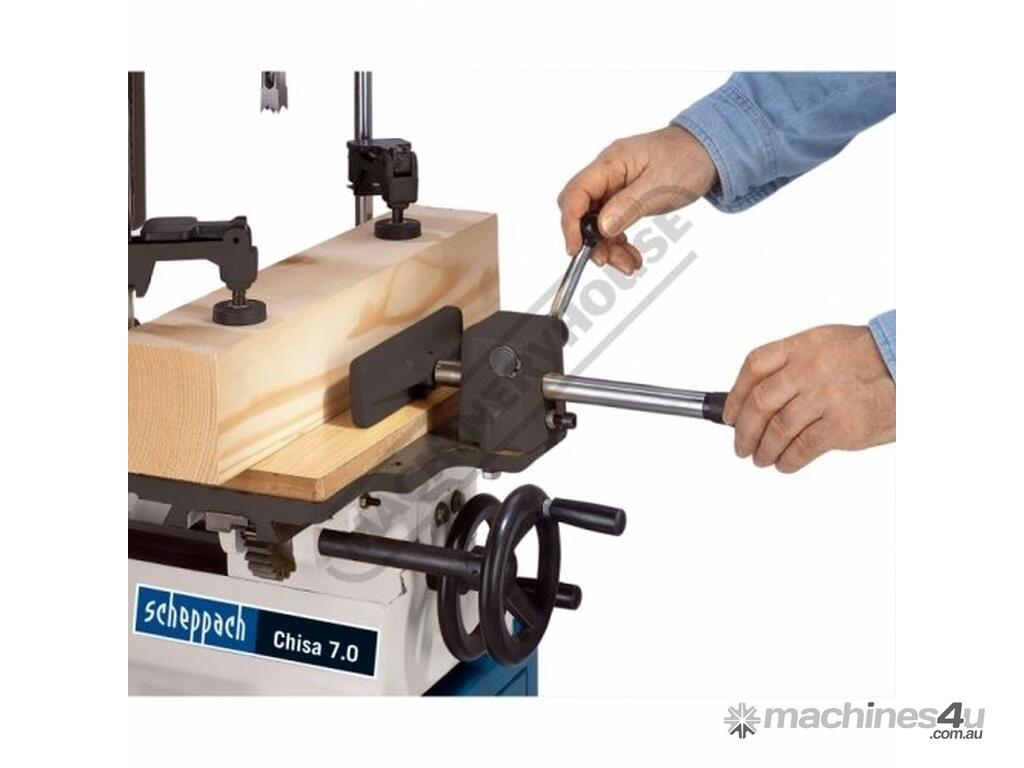

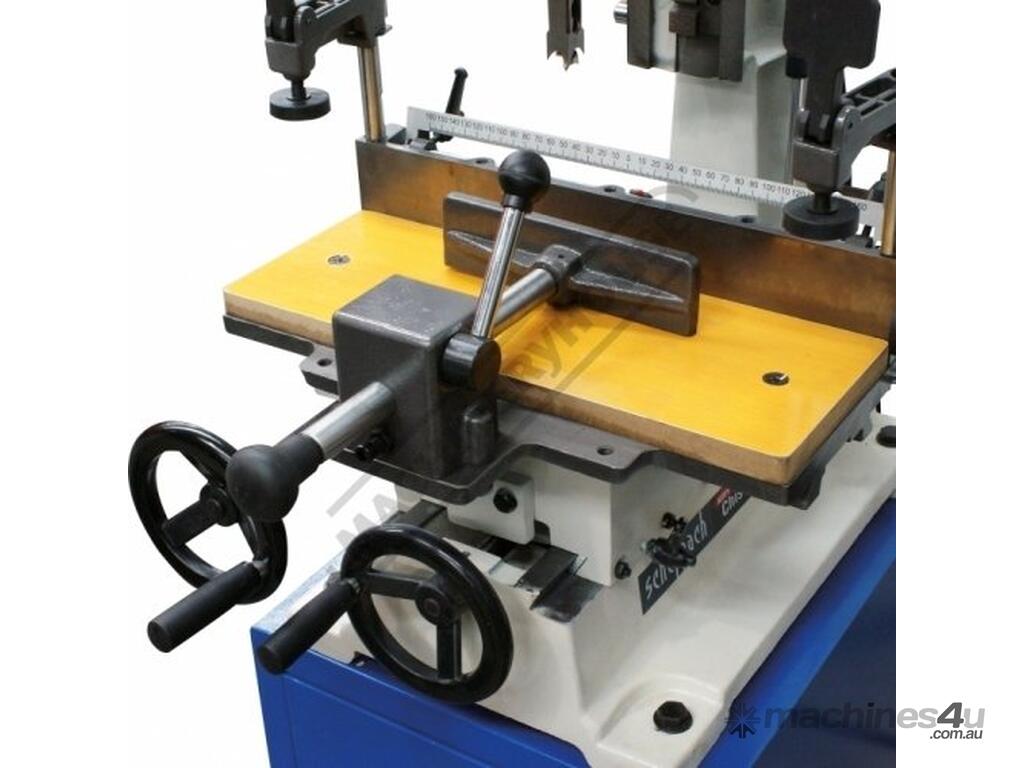

Quick action cam lever material clamp

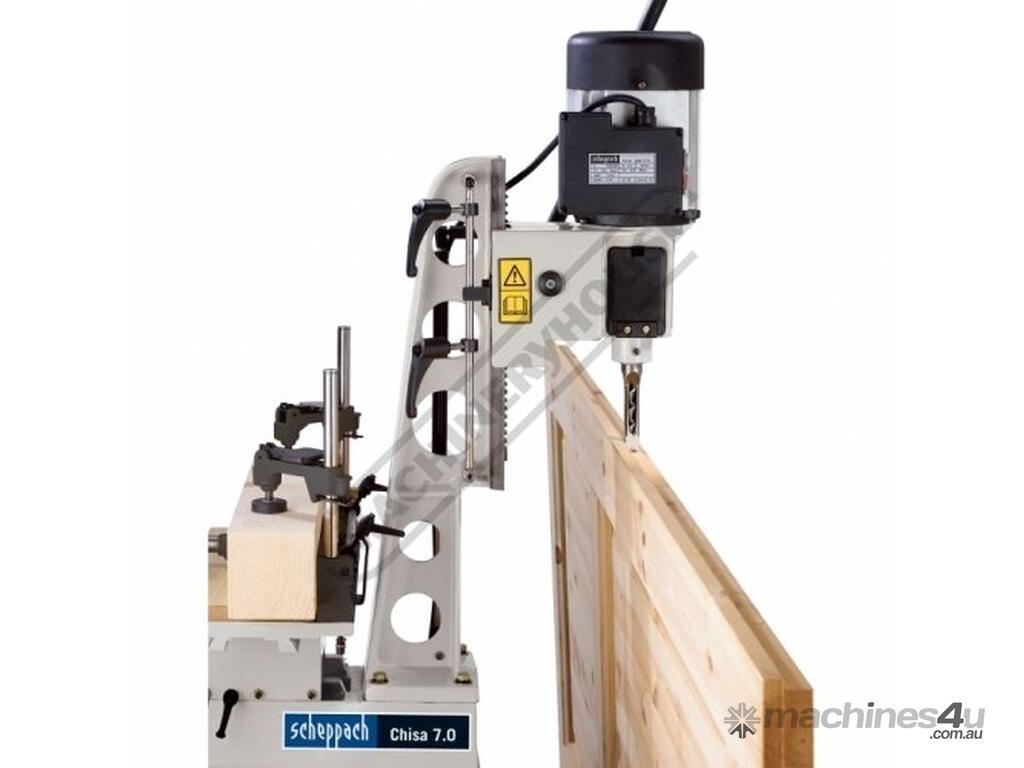

Mortice head can be reversed for door locks or hinge holes
Adjustable overhead cam action lever material clamp

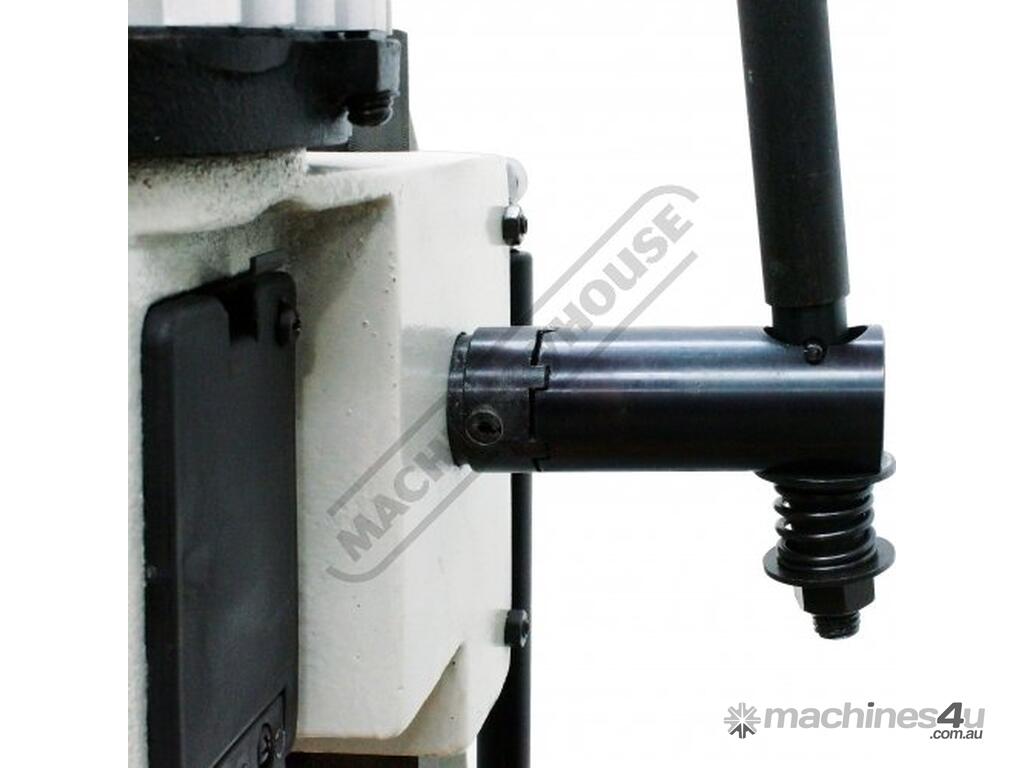

Mortice head lever can be reposition via spring loaded drive dog system
0.75kW / 1hp 240V motor

Includes:

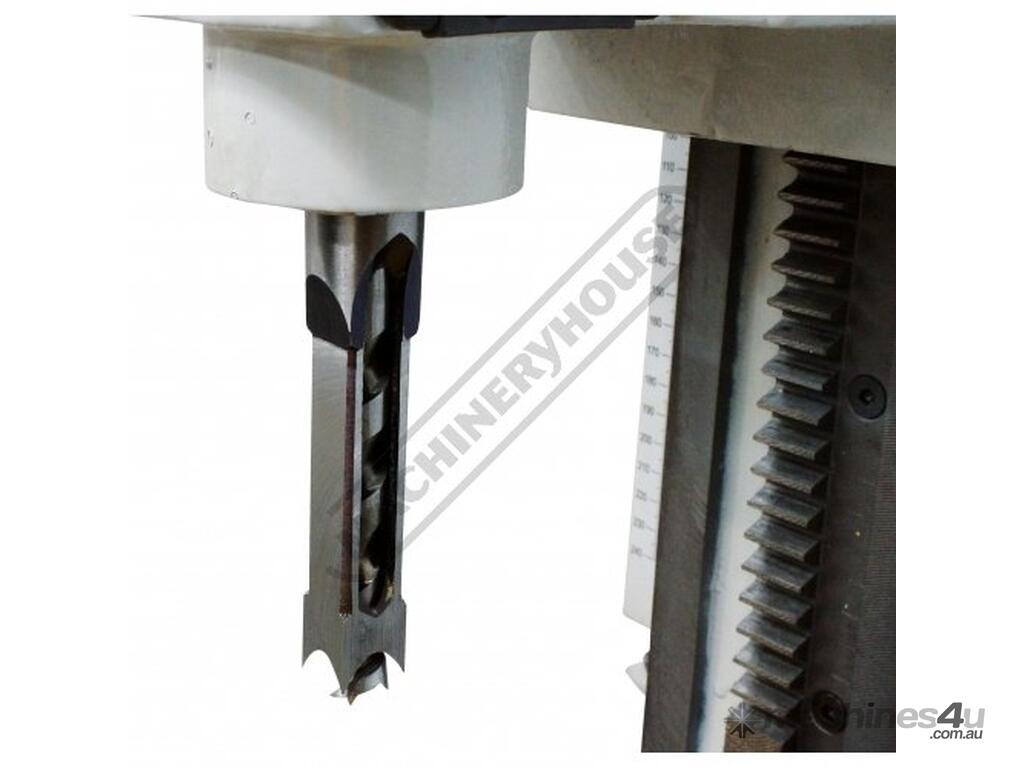

- 1 x Ø5/8" Chisel bit for softwood
- 1 x Ø5/8" Chisel bit for hardwood
- 2 x Collar reducing bushes Ø30.2mm OD - Ø19mm ID & Ø30.2mm OD - Ø20.65mm ID

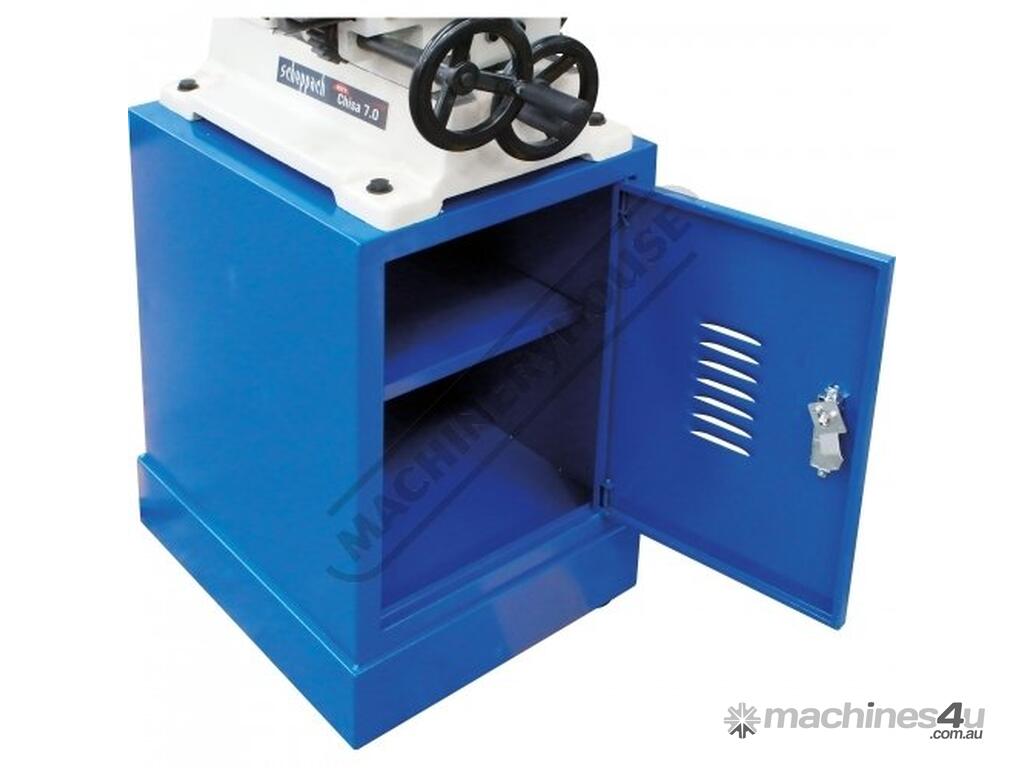

- Storage cabinet with lock



Specifications:
ORDER CODE: W3465
MODEL: Chisa 7.0
Timber Capacity (mm): 145
Table Movement (mm): 170 x 140
Vertical Head Stroke (mm): 220
Collar Reducing Bush (ID) (mm): Ø19 & Ø20.65
Motor Power (kW / hp): 0.75 / 1
Voltage (V): 240
Floor Space (W x D x H) (mm): 1200 x 770 x 1650
Shipping Dimensions (L x W x H) (mm): 560 x 880 x 830
Nett Weight (kg): 98
