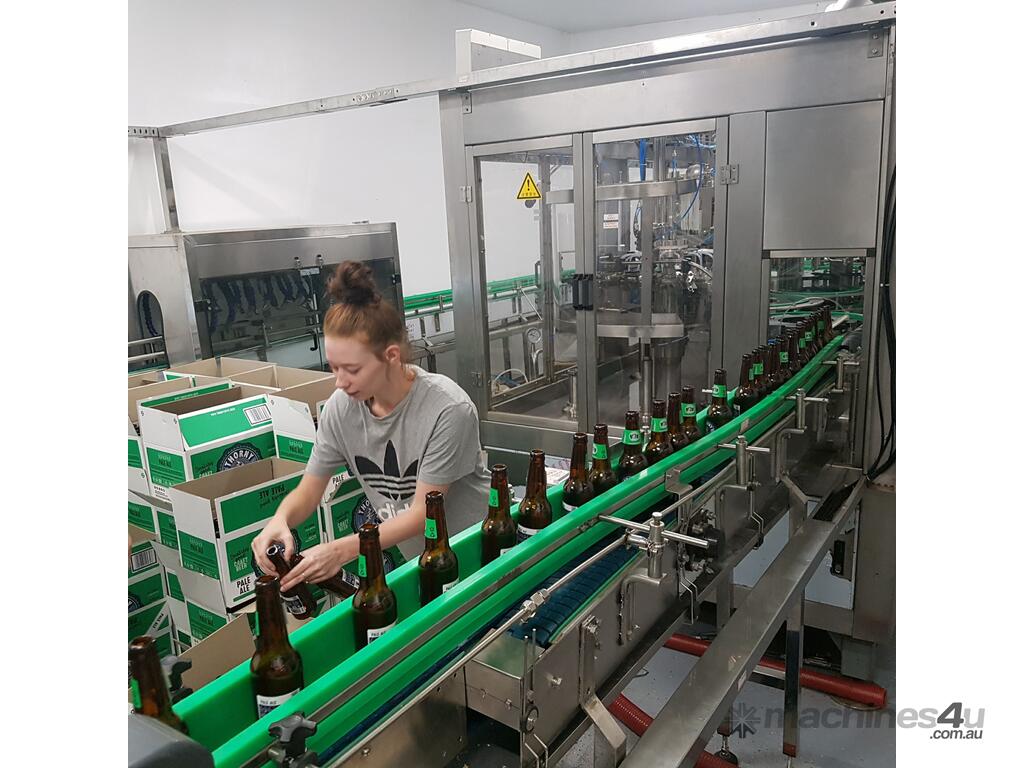

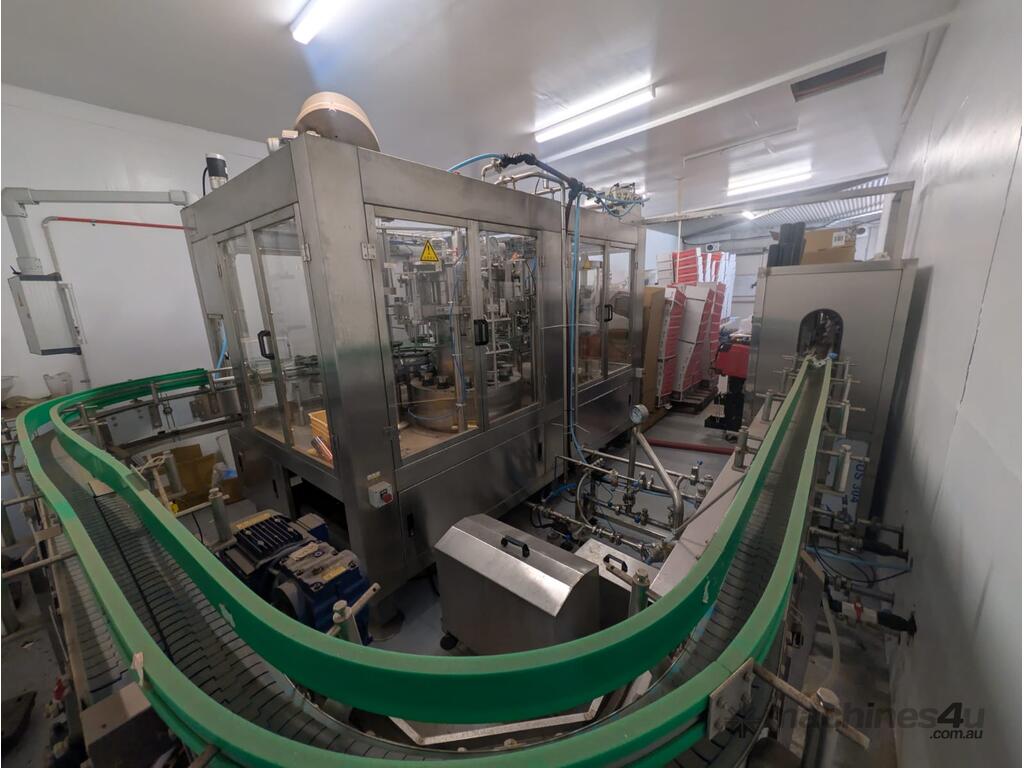

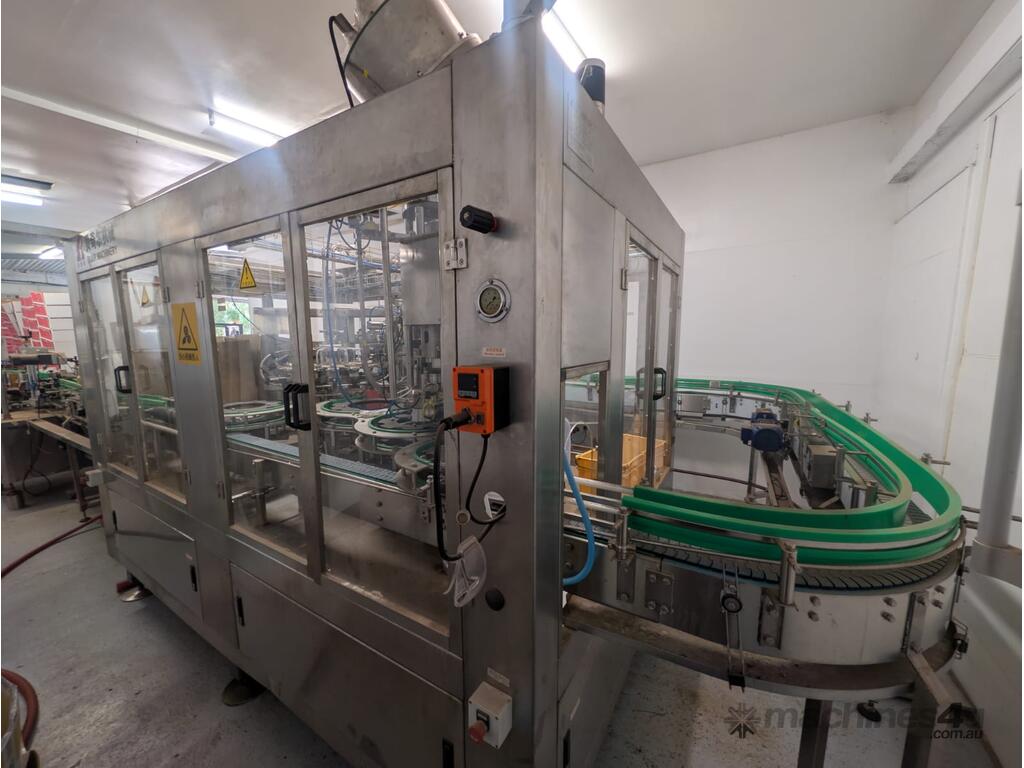

Complete CGY12 Rinser/Filler/Crowner monobloc plus full ancillaries – Krones-inspired built in China.
Key specs:

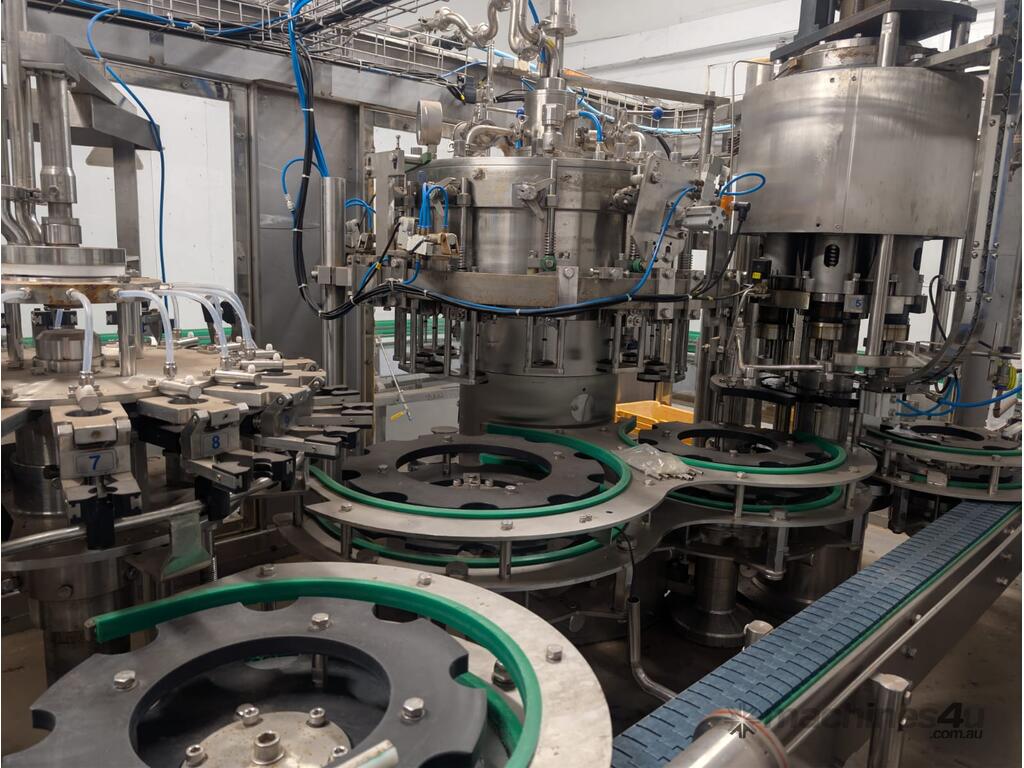

16 rinsing heads / 12 filling heads / 6 capping heads
Rated 3000 BPH (we ran at 3600 BPH)

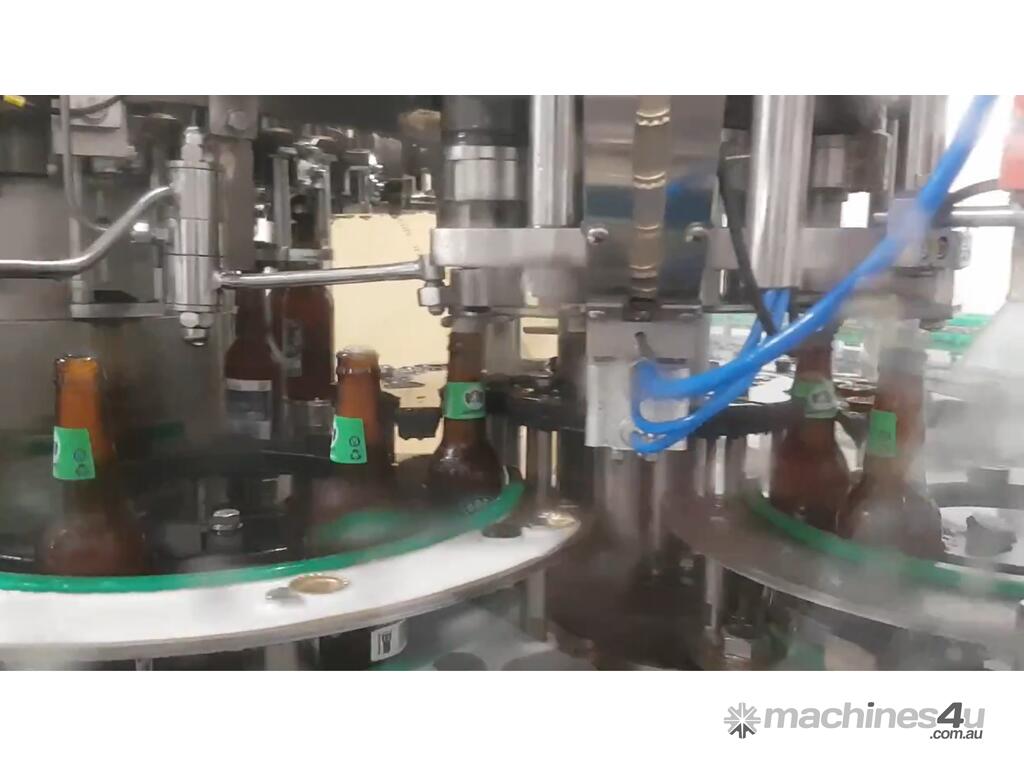

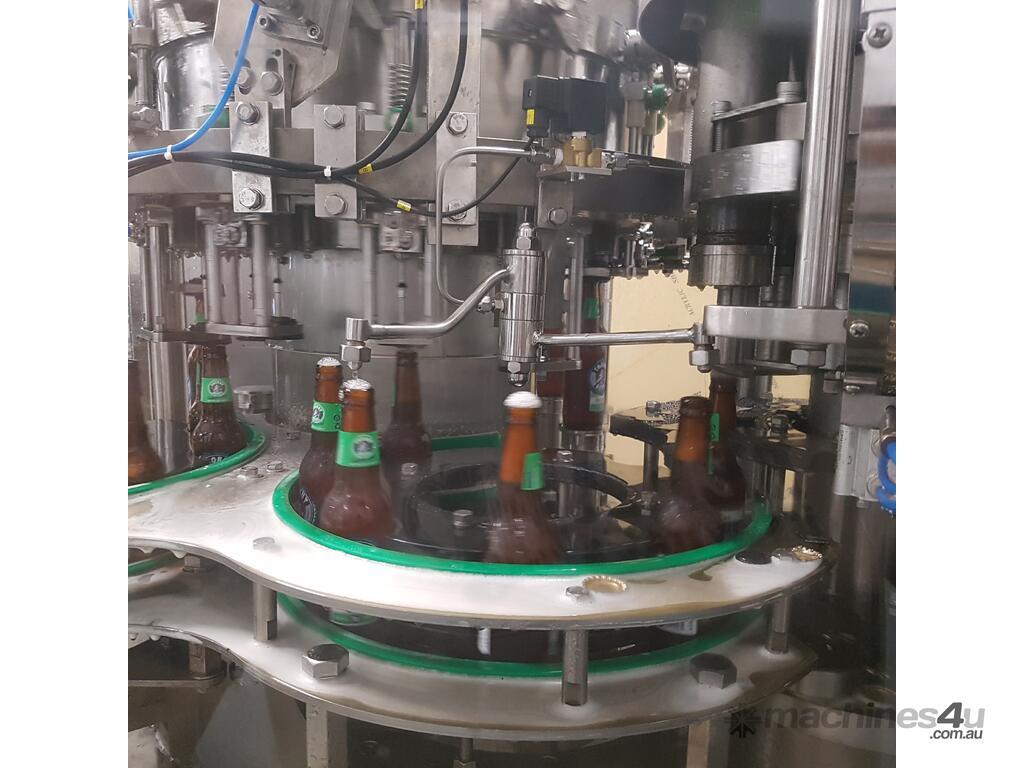

Double-evacuation filler: CO? purge ? vacuum ? CO? fill ? counter-pressure fill ? snift ? double-stage fobbing (80 °C deaerated water, 1 µL into neck) ? crown capping
No-bottle-no-fill, auto valve close + full washdown on bottle explosion

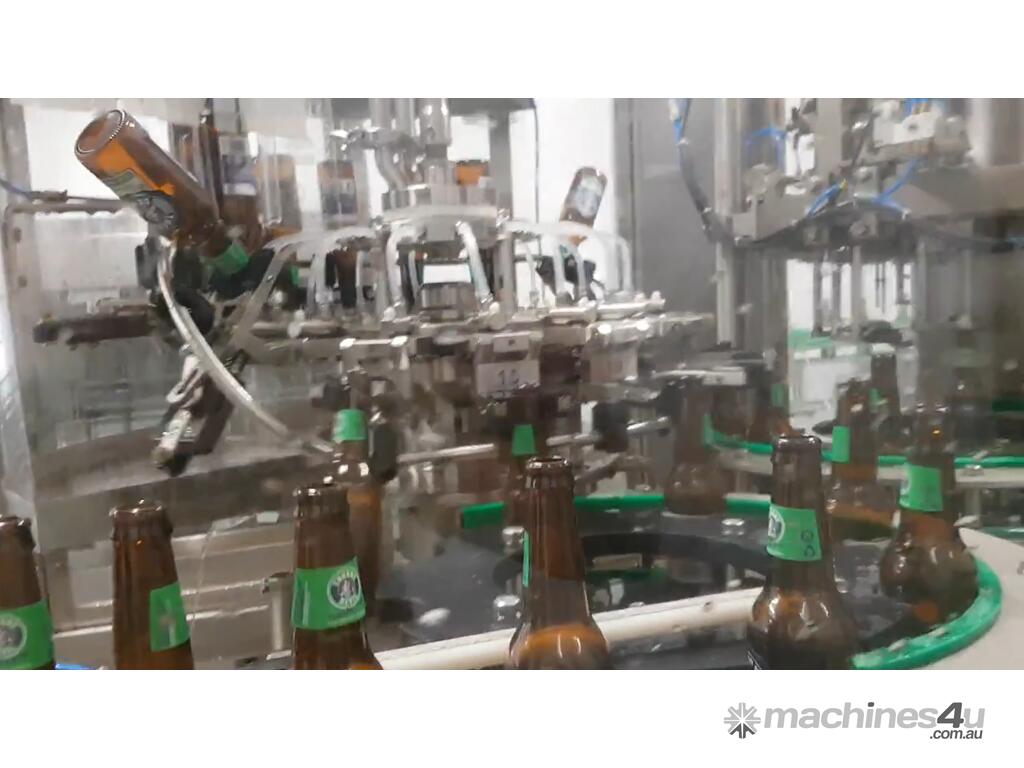

2-stage rinsing (water + steriliser)
Fill level accuracy ±4 mm
Bottle size: height 150–260 mm, diameter 50–100 mm (330 ml glass standard, also accepts aluminum bottles)

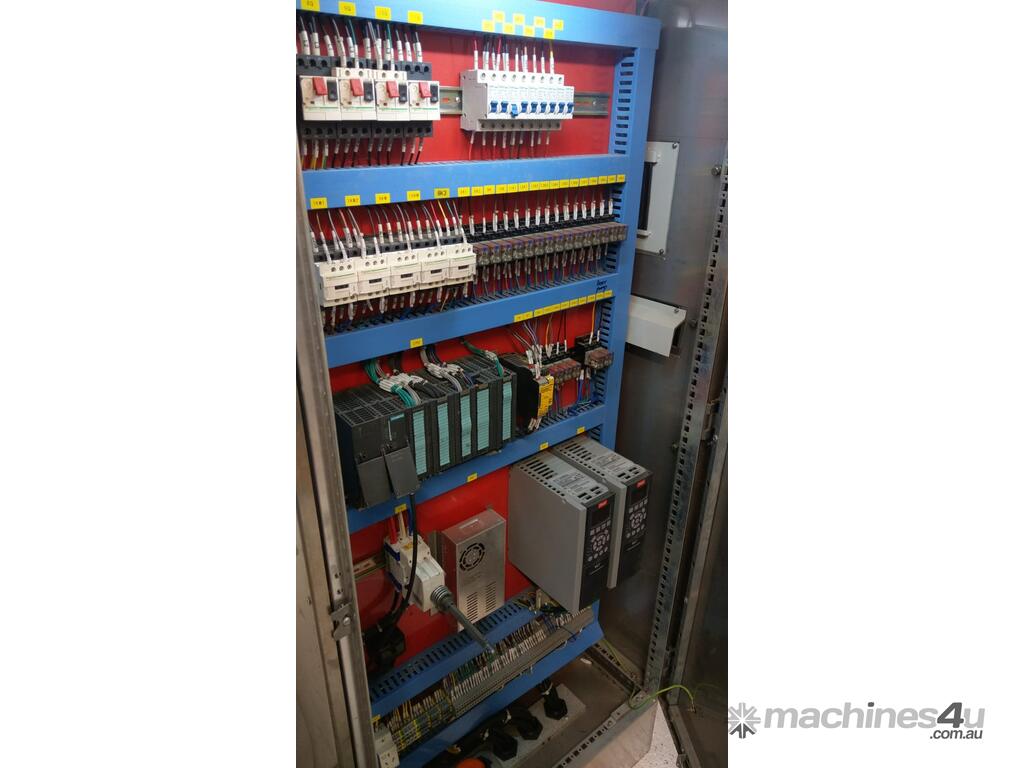

Full touch-screen automation on filler, labeller and entire conveyor system
Automatic oil/grease lubrication on filler + automatic belt lubrication on all conveyors

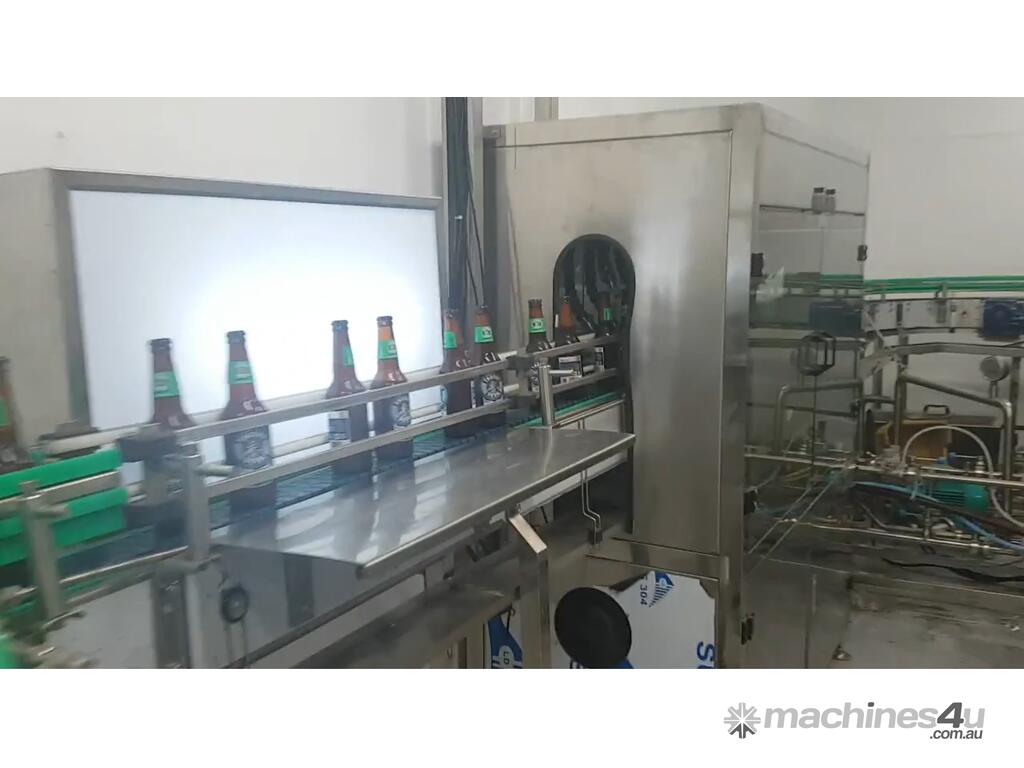

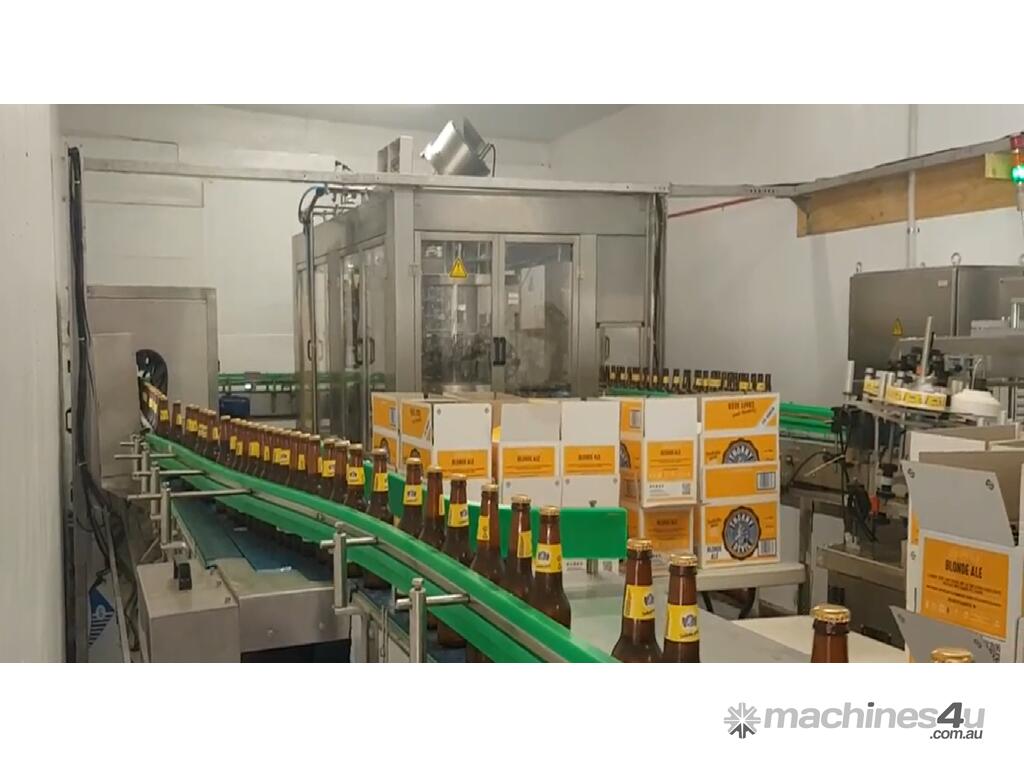

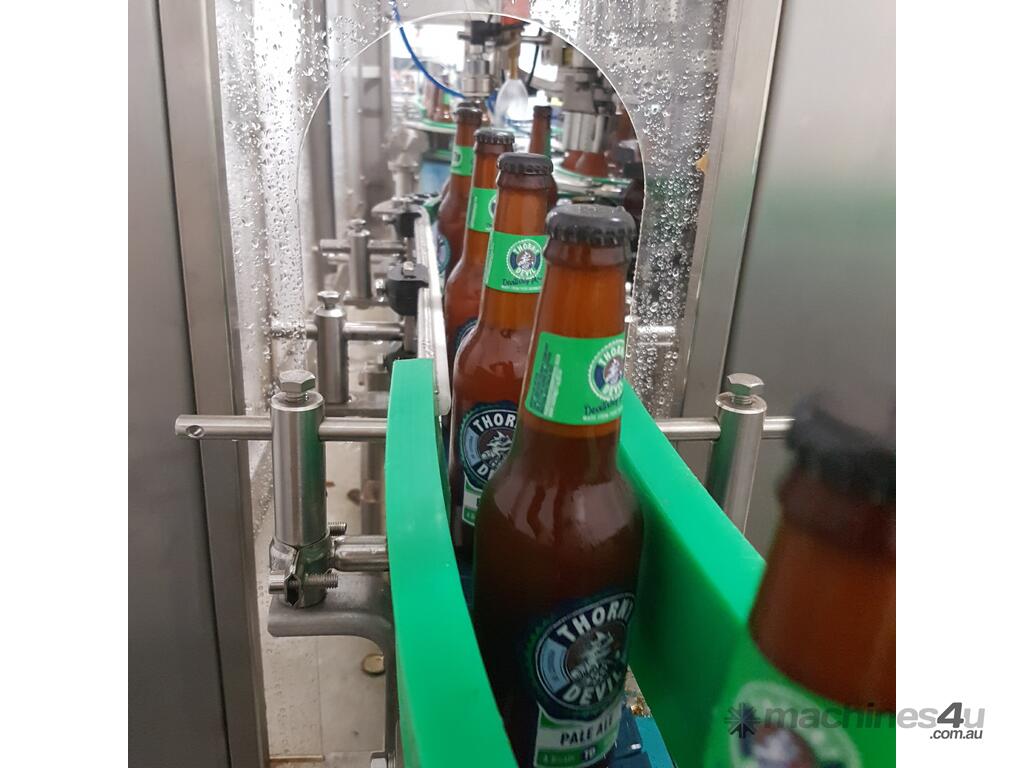

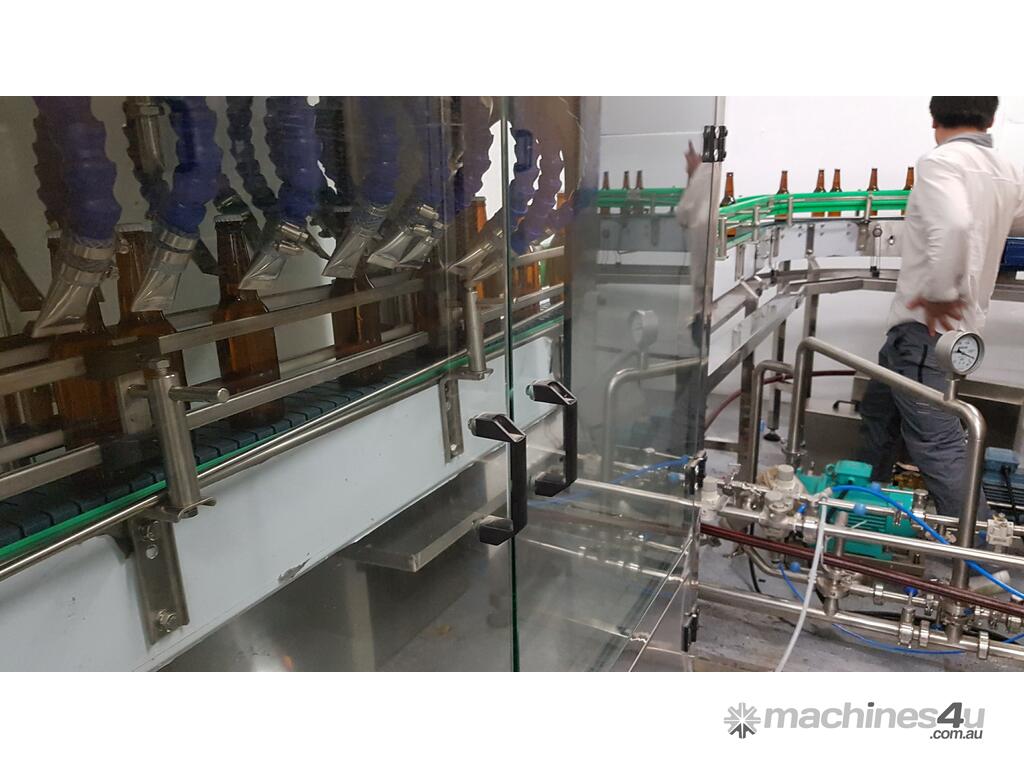

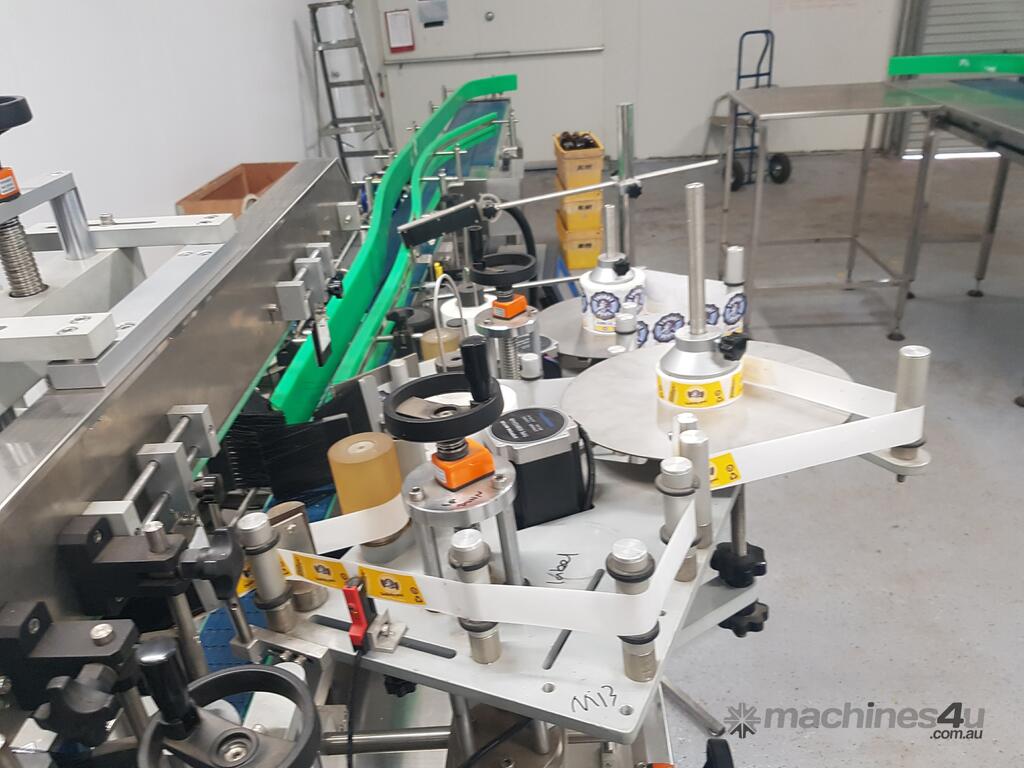

Full line includes: infeed table, accumulation table, blow drier, fill-level light, label machine, inkjet date coder, UV cap sterilisation cabinet, all conveyors with auto start/stop

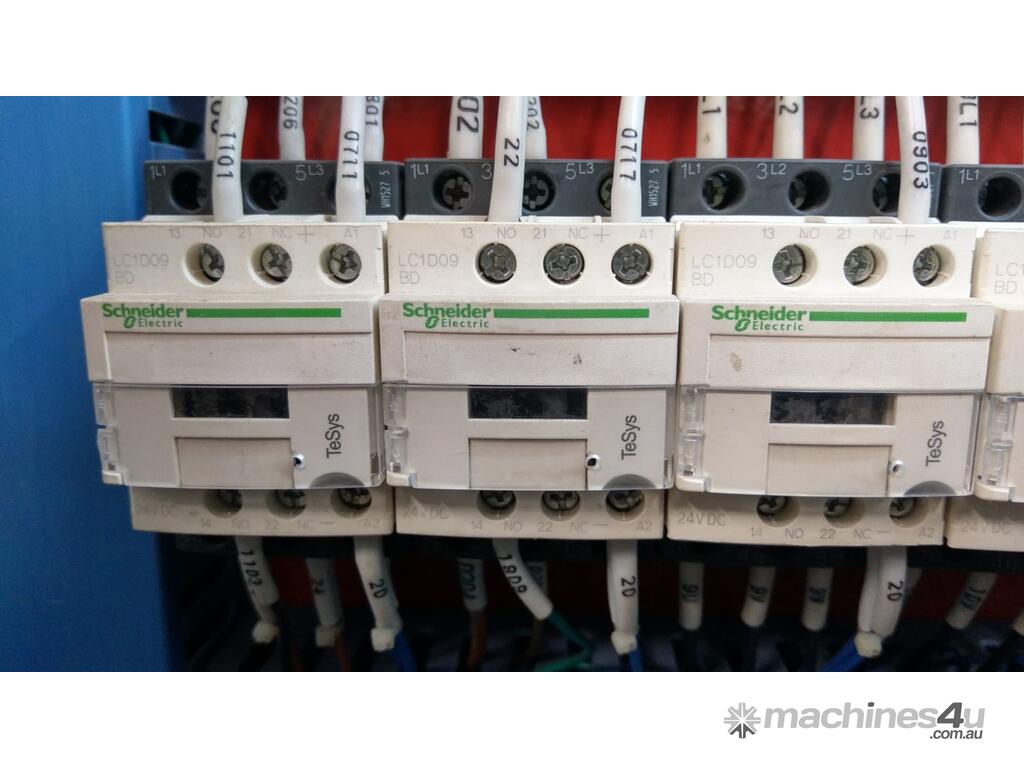

Premium components: ABB pumps, Siemens/Schneider, Danfoss VFDs
~12 kW, 415 V 3-phase 50 Hz
Dimensions (monobloc): ? 2200 × 1450 × 2600 mm
Includes a full range of spare parts

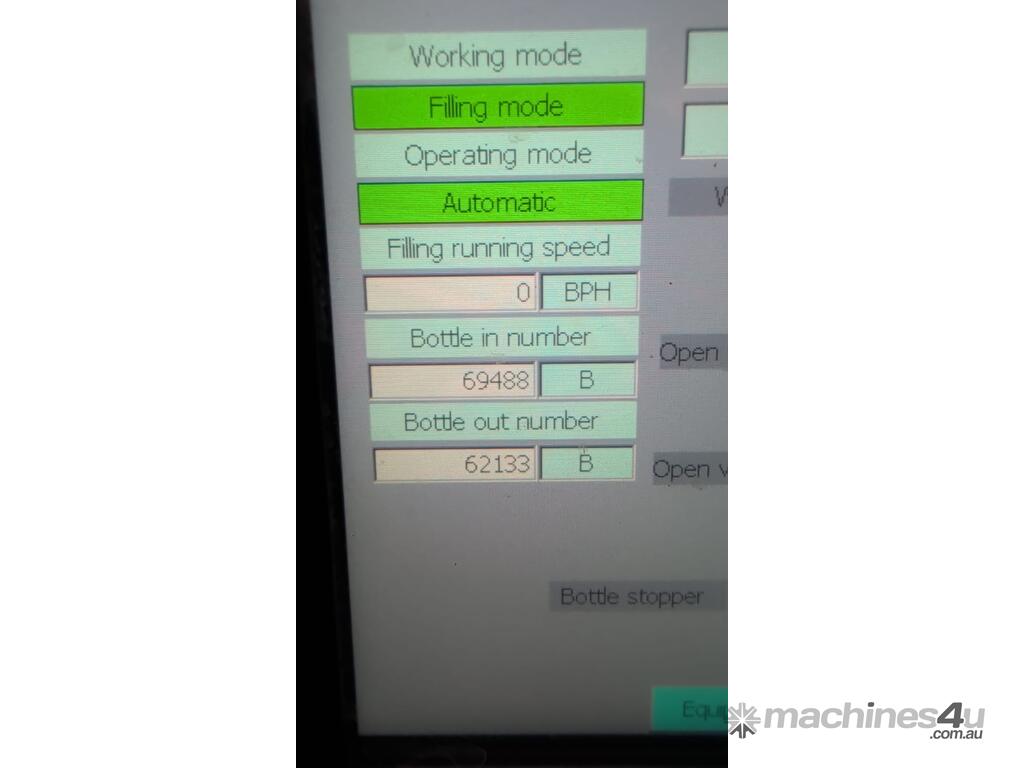

Commissioned ~2017. Less than 69,000 bottles filled (~20hrs) — extremely low usage, still in near-new condition. Manufacturer support still active.

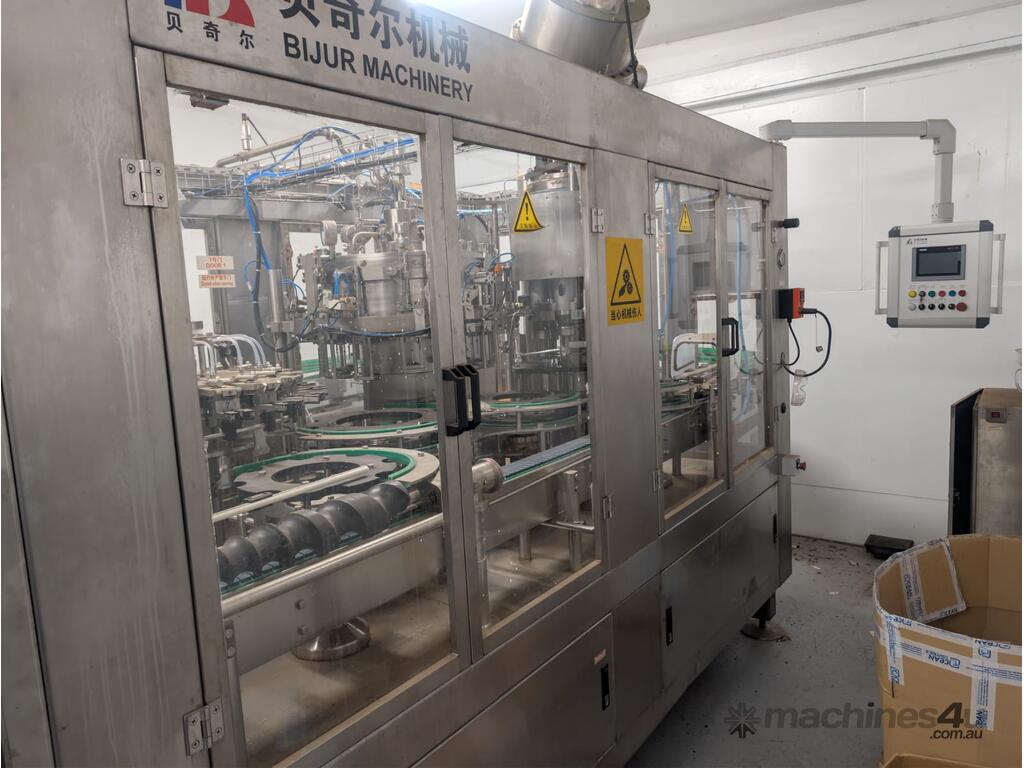

Made by Bijur Machinery Co., Ltd., a spin off of Nanjing Shuohua Machinery Co., Ltd one of the top Chinese manufacturers at the time, making machines up to 36,000bph)
Price: AUD$230,000+GST.
Full specs PDF, photos, and running video available. Located Mandurah, WA. Buyer arranges decommissioning, boxing, collection/shipping.
PM me for video, more pics, or to arrange inspection. Happy to answer any questions!
