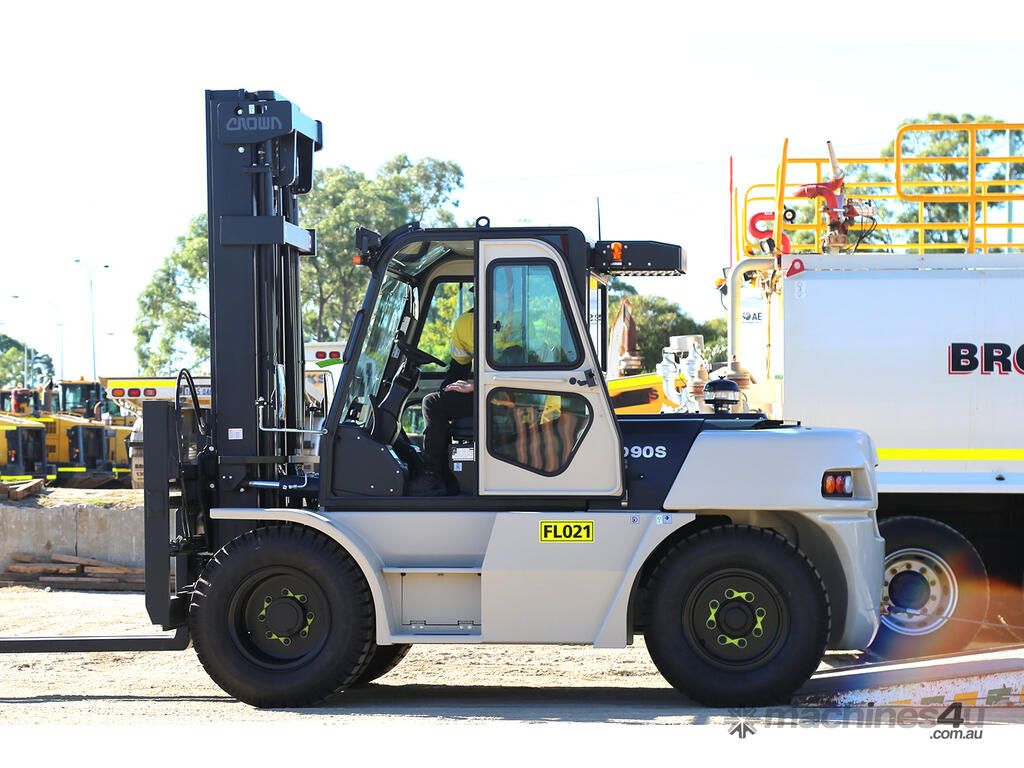

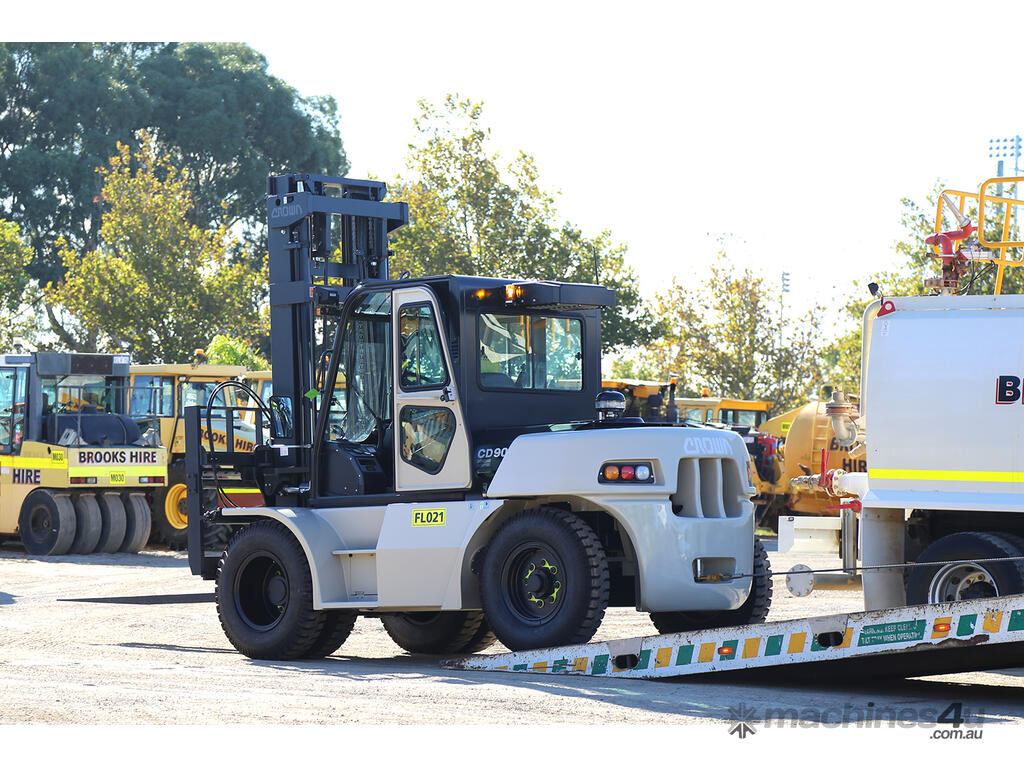

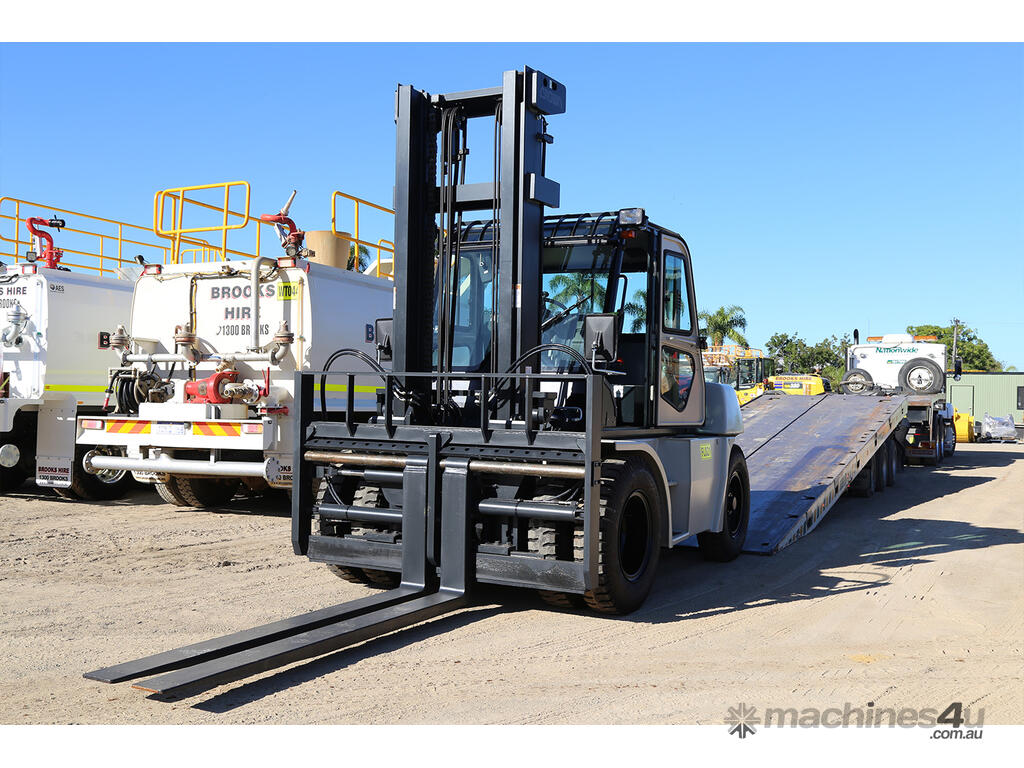

Crown Diesel CD90S-5 - 9 Tonne Forklift for Hire

These lift trucks provide a careful mix of enhanced technology, increased operator comfort levels and easier serviceability that combine to offer the operator higher levels of productivity and lower operating costs.

Optimized Operator Comfort & Safety
Proven and Durable Components
High Powered and Fuel efficient Diesel and LPG Engine for High Performance
Low emissions and Minimal Vibration
Enhanced Maintenance and Serviceability
Virtually Maintenance-free Oil cooled Disc Brakes(Option)
2 or 3 Speed Full Autoshift Transmission
Lift, Tilt Locking, Pilot Operated
Fatigue-less Hydraulic Control Valve and Levers
OSS (Operator Sensing System)
A Variety of Operator Friendly Features

Standard Features

Load capacity - 9000 kg
Mast (lifting height) - 6050 mm
Tyre options - Cushion, Pneumatic
Engine - Doosan 5.8 L Diesel Tier 2 or HMC 3.9L Tier 3
Load centre - 600 mm
Travel speed loaded / unloaded - 27.7 / 33.4 km/h
Weight - 12,195 kg
Thread width front / rear 1,646 / 1,750 mm
Engine model - DB58S
Transmission type - Full Auto
Cylinders - 6
Displacement - 5,785
Engine horsepower kW / RPM- 73.6 2,200
Engine torque Nm / RPM - 363 1,400
Hydraulic pressure - 235 bar
