Machine ready to ship, have on your shop floor in May.
DL S series is designed to offer the best features of heavy-duty cutting, a sufficiently large workspace, a heat distortion prevention system, and highly efficient machining to satisfy customer needs.
Options on this machine:
Air blow
Air gun
Bar feeder interface
Chip bucket
Chip conveyor
Soft jaw
Part catcher with box
Tool setter (removable)
Transformer
CF memory card
Swing over Bed: 610mm
Swing over Cross slide: 480mm
Max. Turning Dia: 400mm
Max.Turning Length: 1,080mm
Max.Spindle Speed: 3,500rpm
Spindle Nose: A2-8 Mill
Spindle Bore: 86mm
Max. Spindle Torque: 39.7kgf
Chuck Size: 10inch
Main Spindle Motor: 15/18.5kW
X-axis Servo Motor: 3kW
Z-axis Servo Motor: 3kW
Mill Spindle Motor: 3.7/5.5kW
X-axis travel: 230mm
Z-axis travel: 1,130mm
Guideway Type(X/Z): BOX Way
X-axis rapid traverse rate: 20m/min
Z-axis rapid traverse rate: 24m/min
Turret Index Type: Servo
Max. No. of Tools: 12 / BMT 65
Turning tool shank size: 25mm
Borning bar diameter: 50mm
Turret Indexing Time: 0.2
Who is FFG DMC
FFG DMC stands as a renowned name in the CNC machining industry, renowned for its precision engineering and innovative solutions. Since its inception, FFG DMC has been dedicated to delivering top-quality machinery to meet the evolving needs of manufacturers worldwide.

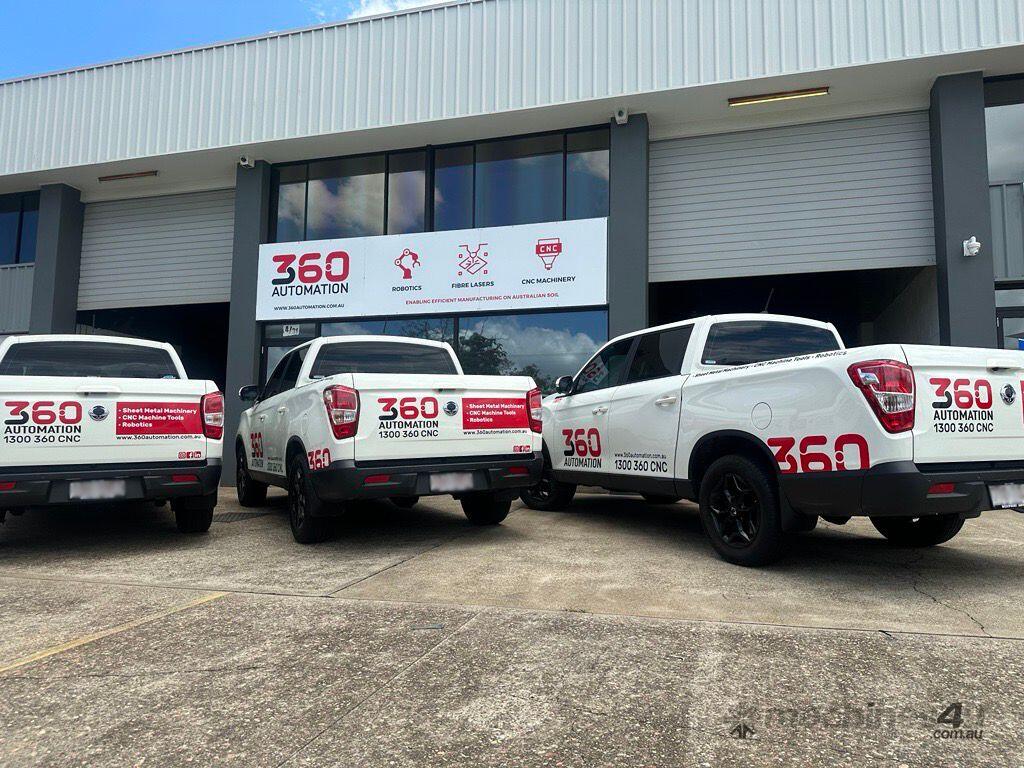

360 Automation and FFG DMC Partnership.
In a significant collaboration, FFG DMC has joined forces with 360 Automation to extend the reach of its advanced CNC machines. As an appointed representative of FFG DMC, 360 Automation ensures businesses receive comprehensive support, from initial consultation to installation and beyond. This partnership underscores a shared commitment to delivering cutting-edge technology and unparalleled service to clients across various industries.
