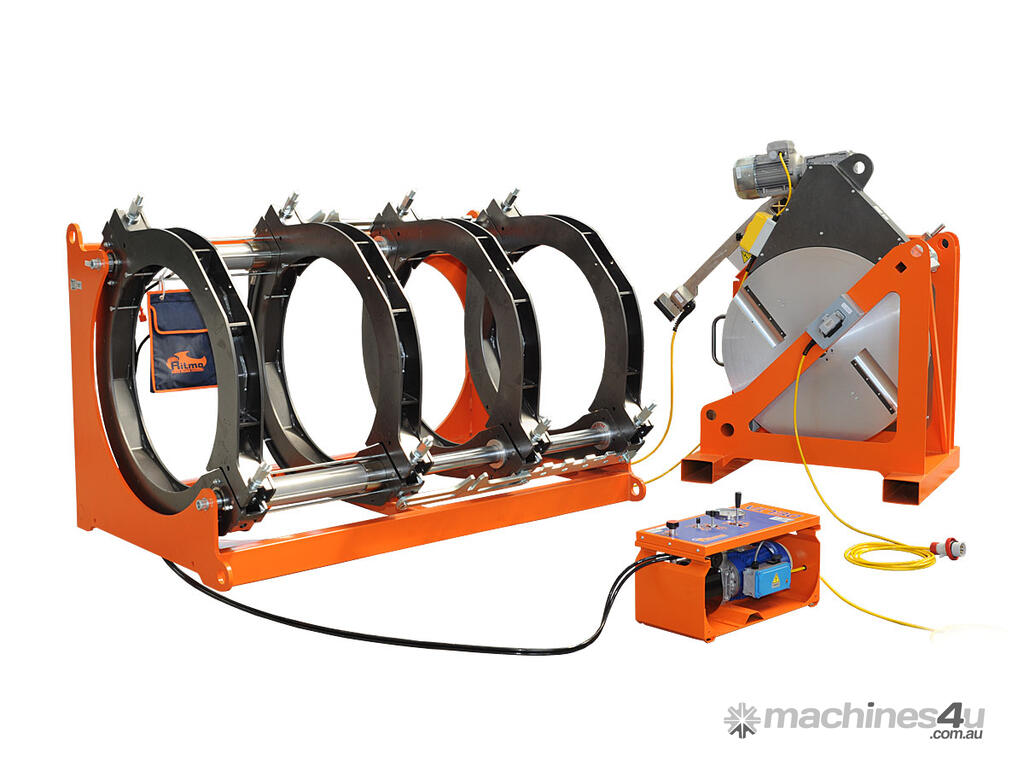

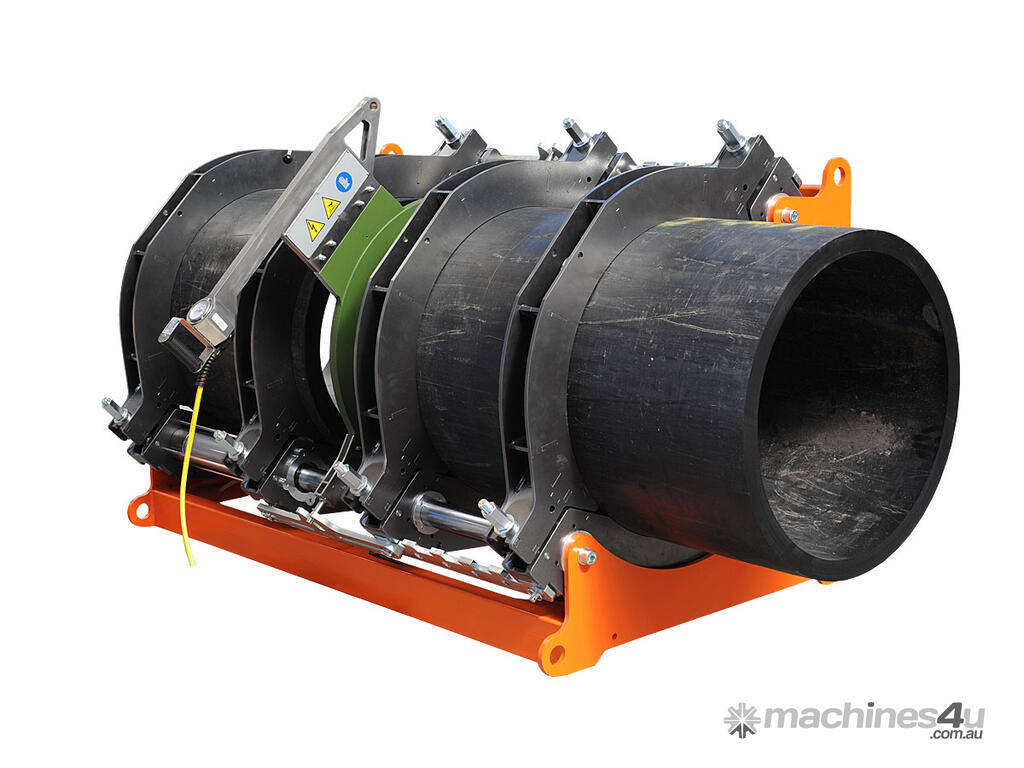

- A machine body with a steel bearing frame
- Self detaching device: helps removing the heating plate during welding procedure
- An extractable heating plate with separate thermometer for reading the working temperature
- An extractable electric milling cutter with a safety microswitch and overload cutout
- An electrohydraulic gearcase
- Digital electric connections box with the temperature controller
- A milling cutter/heating plate support
Materials
HDPE/PB/PVDF
Working range
Ø 500 ÷ 800 mm
Power supply
400 V Three phase 50/60 Hz
Total absorbed power
16500 W
Working temperature
180° ÷ 280° C
Pressure working range
0 ÷ 150 bar
Weight only body machines
821 Kg
Dimension
2100x1350x1300 mm
