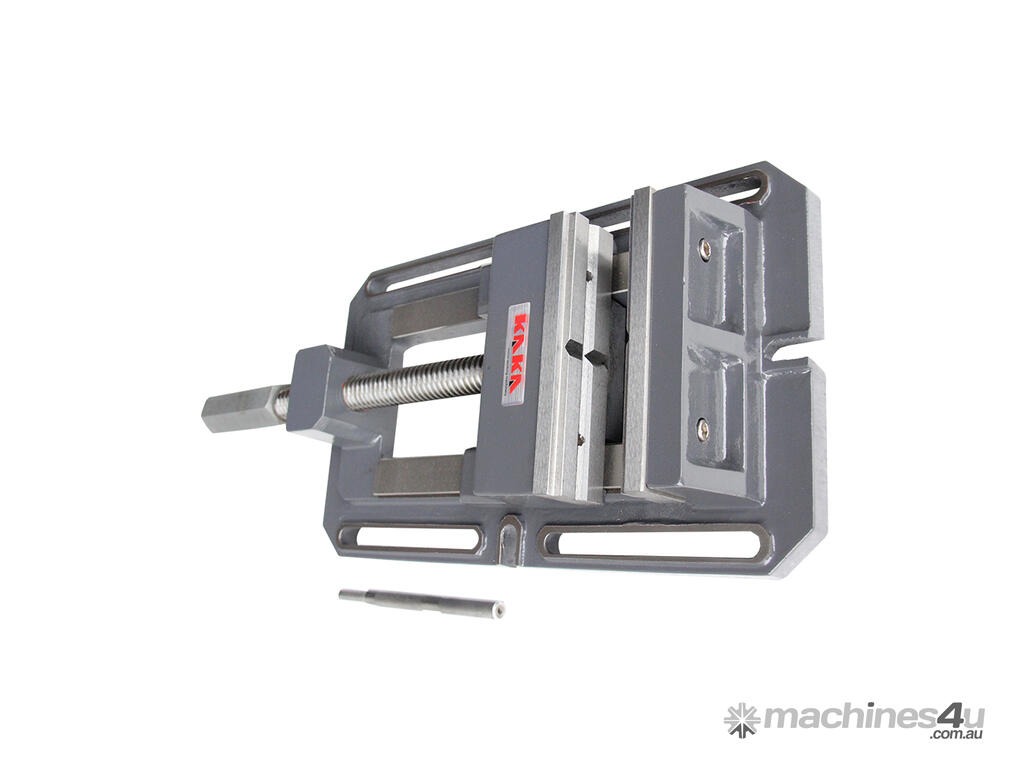

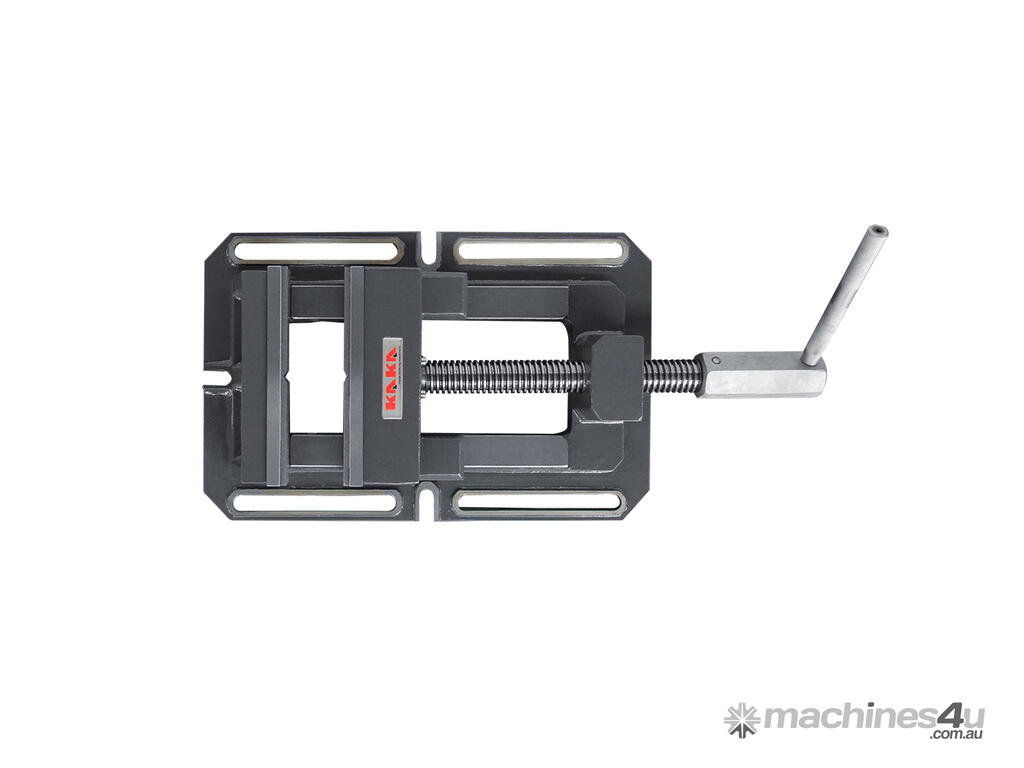

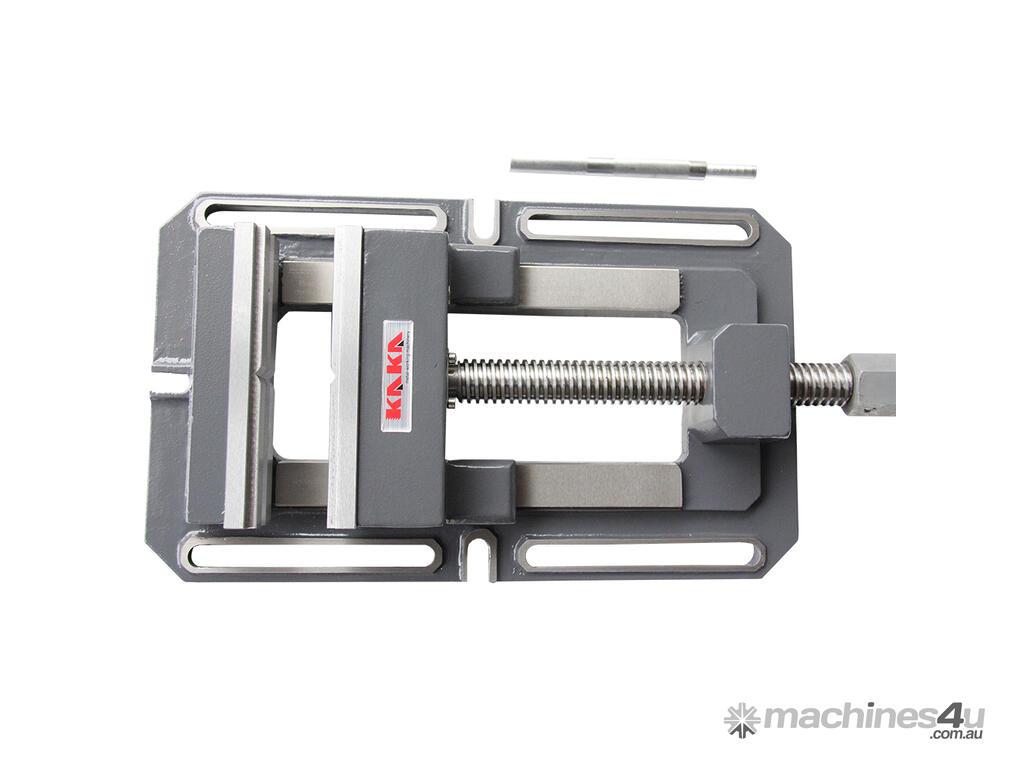

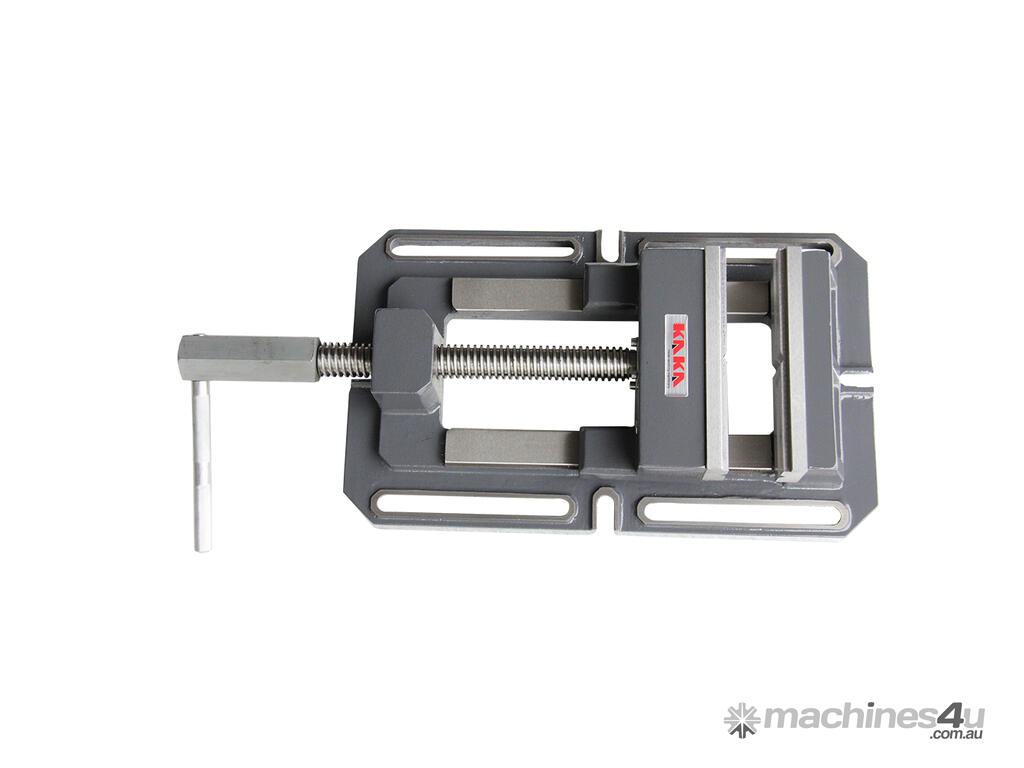

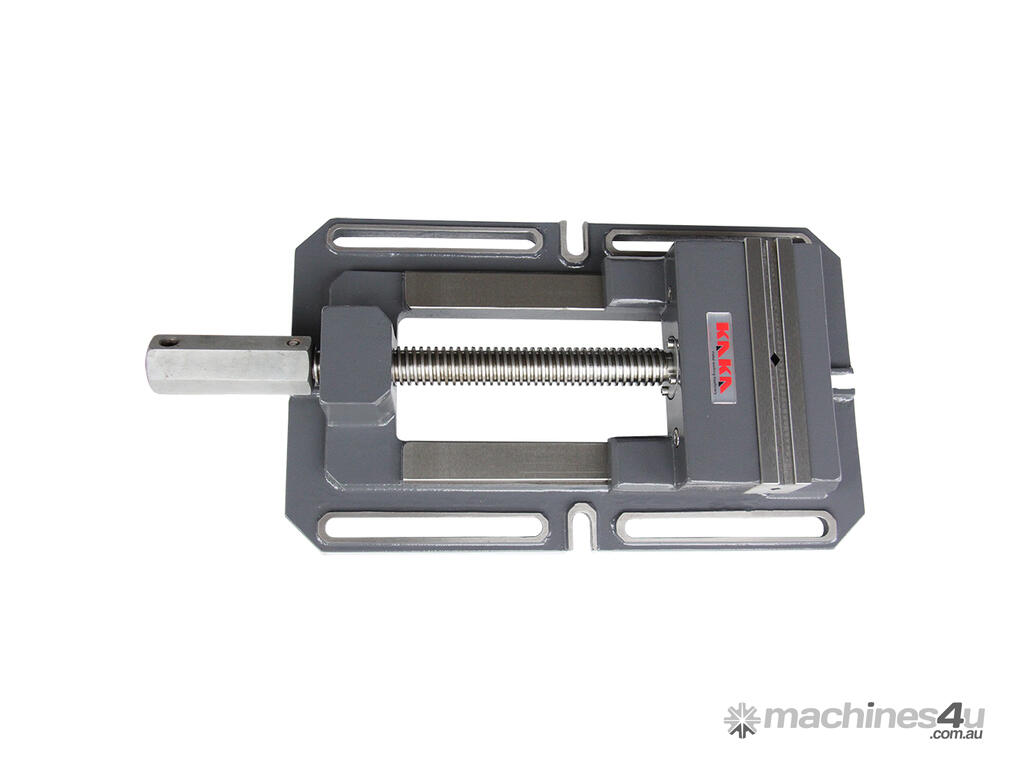

Kang Industrial Drill Press Vice TSL-140
The KANG 140mm Deluxe Drill Press Vice is a professional-grade, heavy-duty clamping tool designed for secure and precise workpiece holding on drill presses, pillar drills, milling machines, and light machining setups. Manufactured from high-quality cast iron, this robust vise delivers excellent rigidity, vibration damping, and long-term durability for demanding workshop environments.
Larger Clamping Capacity Vice. 140mm jaw width provides significantly more holding power and versatility than common 100mm or 120mm drill press vices. It easily handles wider stock, larger round pipes, or multiple smaller pieces, ideal for workshops working on bigger projects.
Prismatic Hardened Jaws for Superior Grip. The stepped steel jaws include a prismatic (V-groove) fixed jaw that securely clamps round workpieces horizontally or vertically. Hardened surfaces resist wear and provide excellent bite on metal, reducing slippage during high-torque drilling or light milling.
Heavy-Duty Cast Iron Construction. Offers outstanding rigidity and vibration control compared to lighter stamped-steel or aluminium alternatives. The solid build keeps the workpiece stable, improving drilling accuracy and safety while extending tool life.
Precision Mounting & Easy Setup Clamp Vice. Precision-ground base ensures flat, stable mounting. Wide slots allow quick bolting to most standard drill press or milling tables.
Versatility Across Tasks. Suitable for drill presses, milling machines, and general workshop use. Great for metal fabrication, woodworking, tapping, reaming, and light machining.
Features
Jaw width 140mm, and 140mm jaw opening

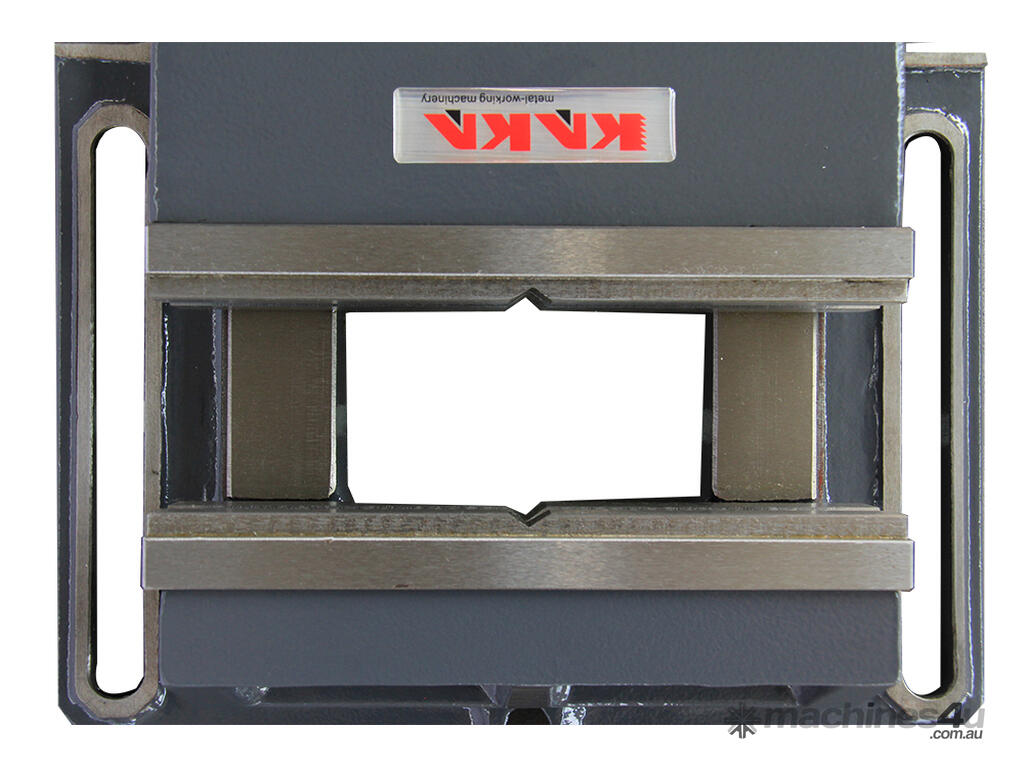

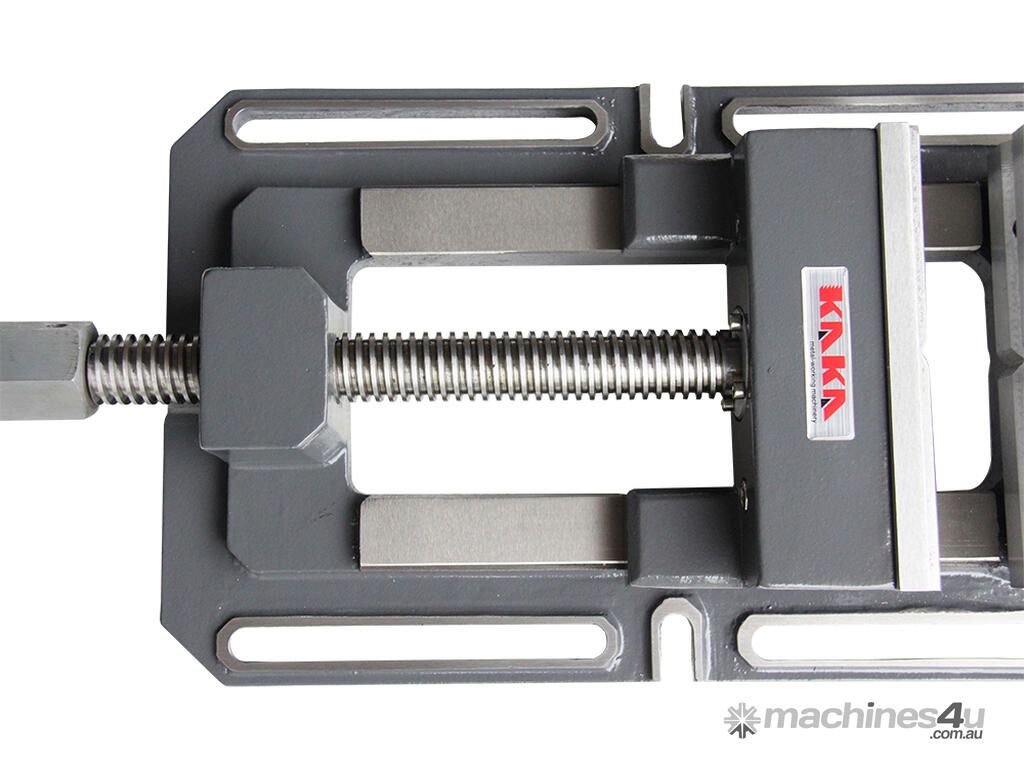

Stepped steel jaws featuring prismatic (V-grooved) fixed jaw for securely gripping round stock, pipes, or bars both horizontally and vertically

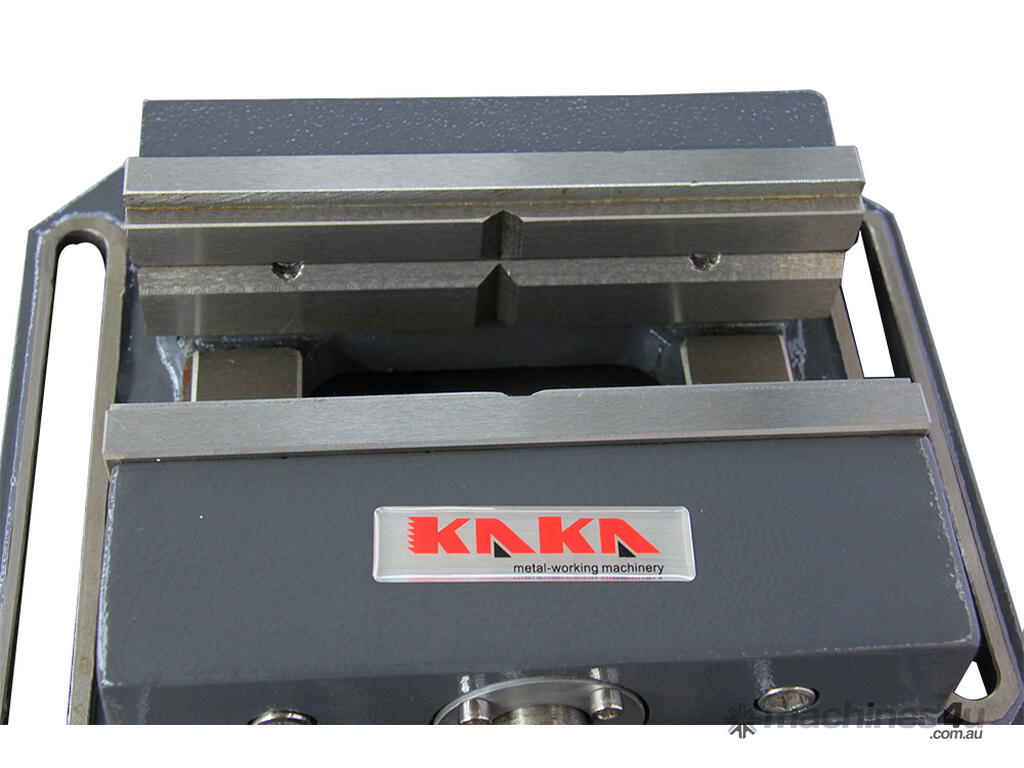

Changeable jaws with cross V-grooves
Jaws slide on the guide for precise alignment
One-piece cast iron body
Precision-ground flat base with wide slotted holes (14mm slot) for easy and stable bolting to machine tables

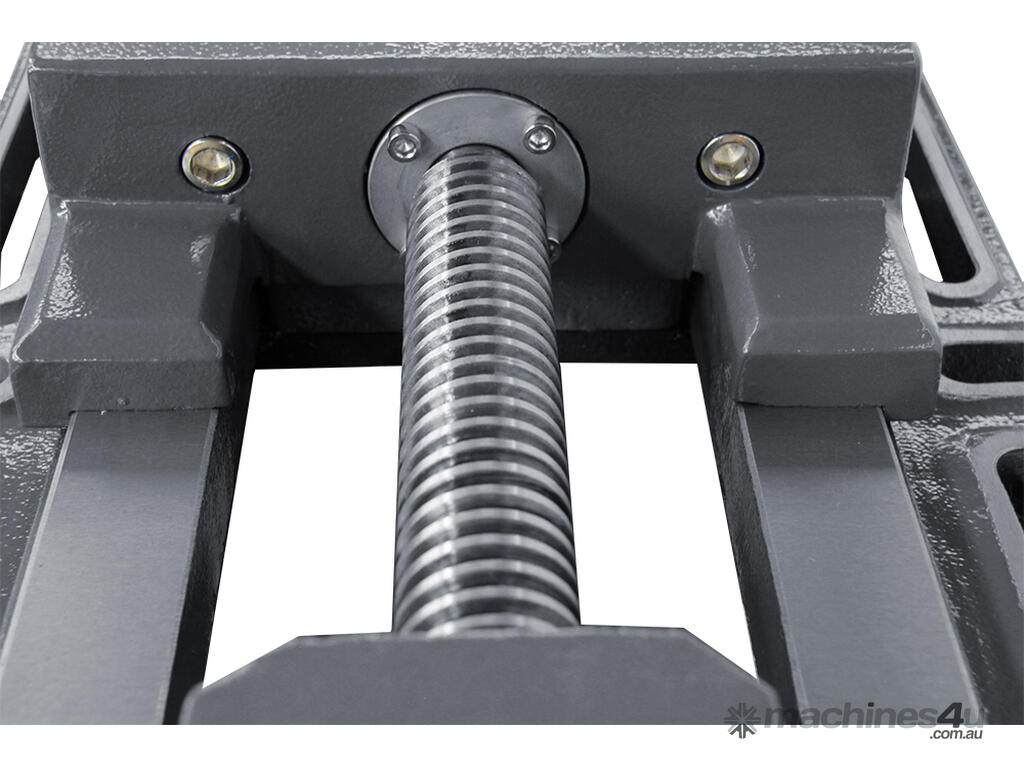

Hexagon handle with lever pin for powerful clamping of the material
Different sizes available: TSL-100, TSL-140 & TSL-200

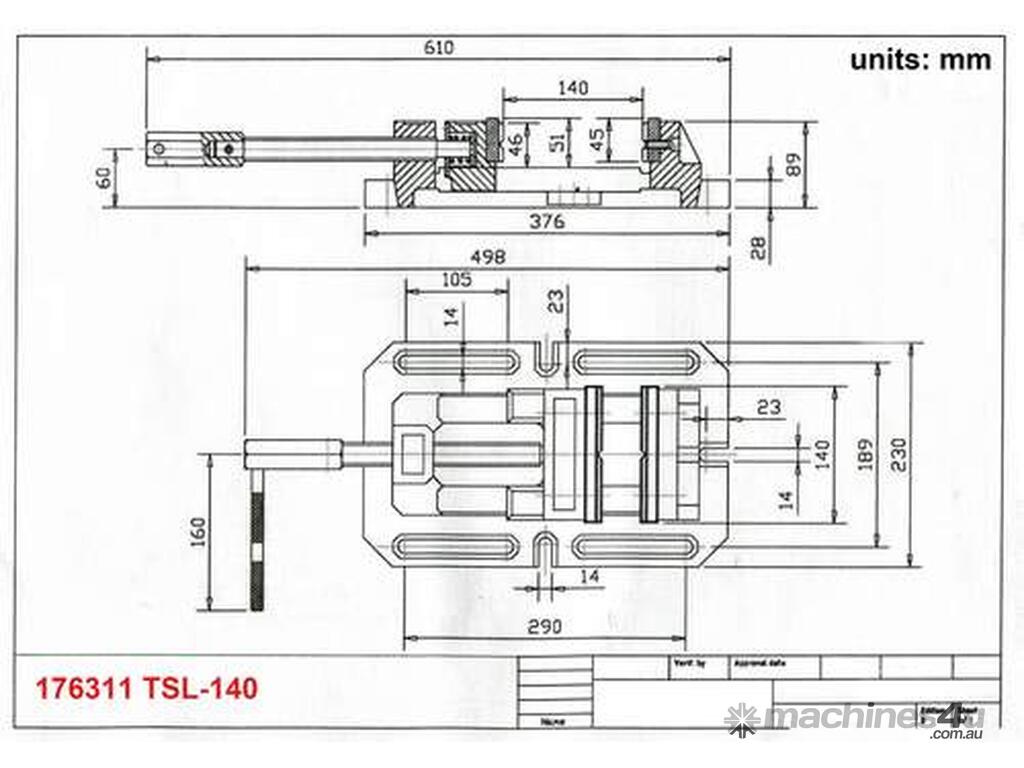

Specifications
SKU 176311
Model TSL-140
Jaw width 140 mm
Jaw height 50 mm
Jaw opening 140 mm
Packing size 49x28x15 cm
N.W./G.W. 18/19 kg
