Digital Position Readout

Digital Position Readout System for retrofit to any motorized or manual linear positioning stop.
Comes as a "Ready to Install" kit.
Various lengths available to suit from 1250mm to 3050mm. (Longer available upon request)

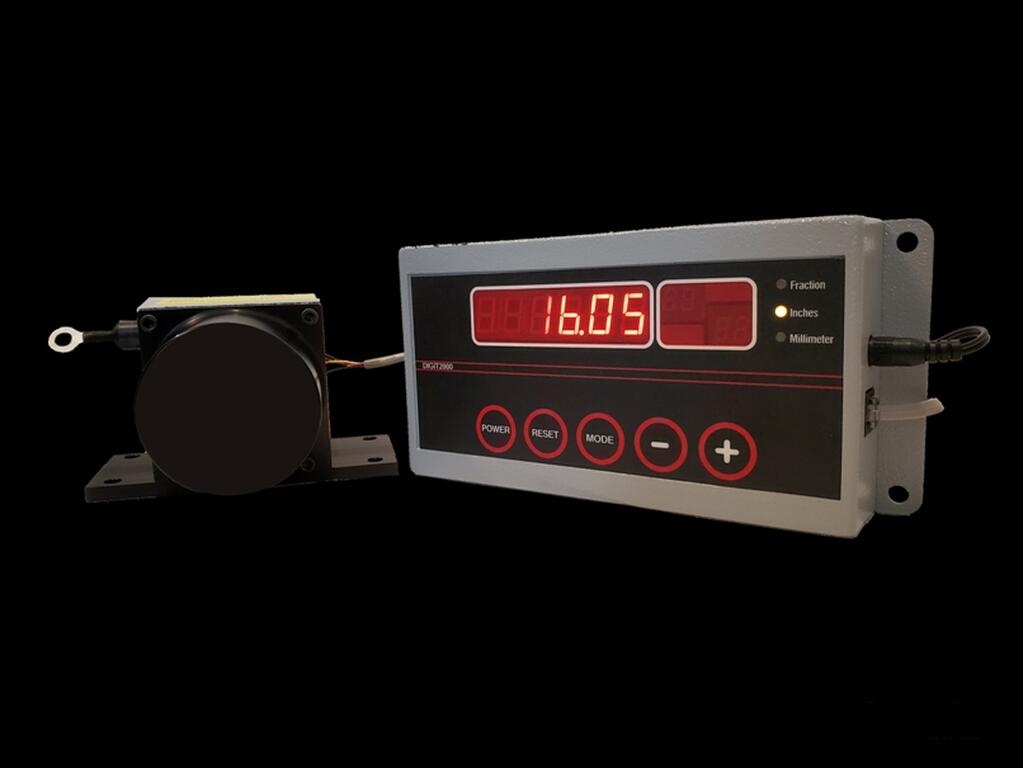

Kit includes:
- Display Unit in powder coated steel enclosure. 216mmL x 130mmH x 40mmD x 3.5kgs
- Rotary Encoder in anodized aluminum. 130mmL x 100mmH x 75mmD 0.9kgs
- 9VDC Power Adapter. (120V-240V input)
- 2.5m Data cable with modular plug and hardware mounting plates.
FEATURES:
- Eliminates inaccurate readings
- fast reading incremental encoder accurate to 0.5mm regardless of drive system wear.
- Can read to fractions and inches if required.
- Large easy to read display.
- Forward or Backward reading possibility.
- Power Memory Failure.

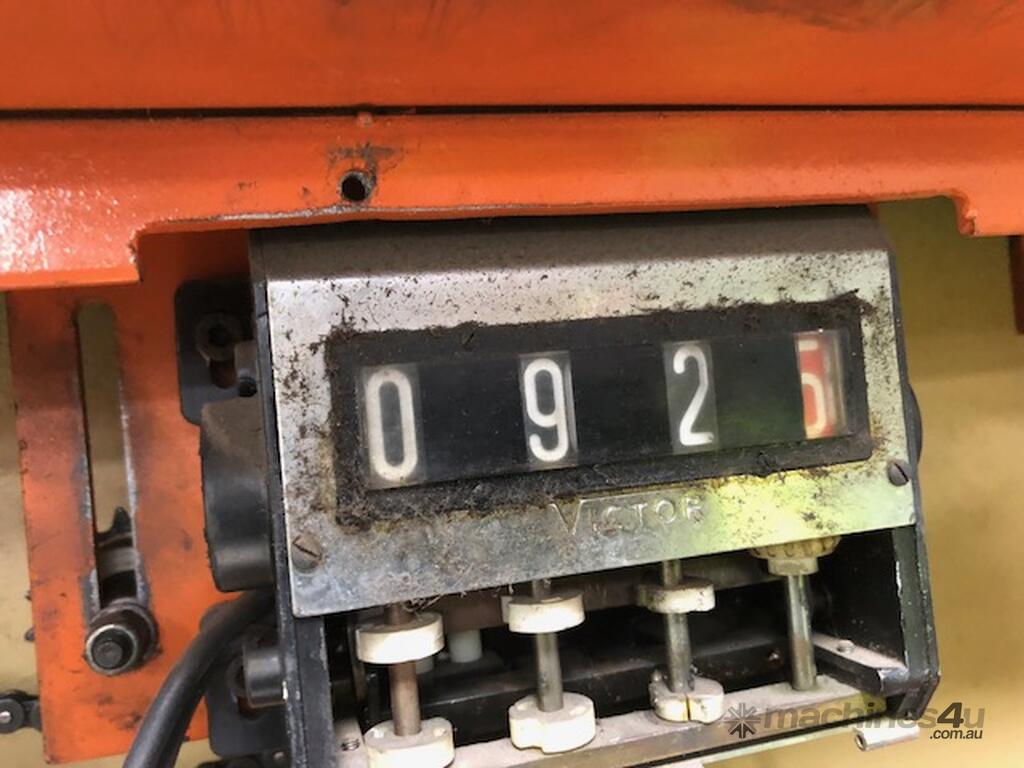

- Low Cost alternative to replace or upgrade damaged glass scales, metal tapes, broken cable drives or damaged mechanical counters.
- Quick and easy to install.
- 12 months warranty
