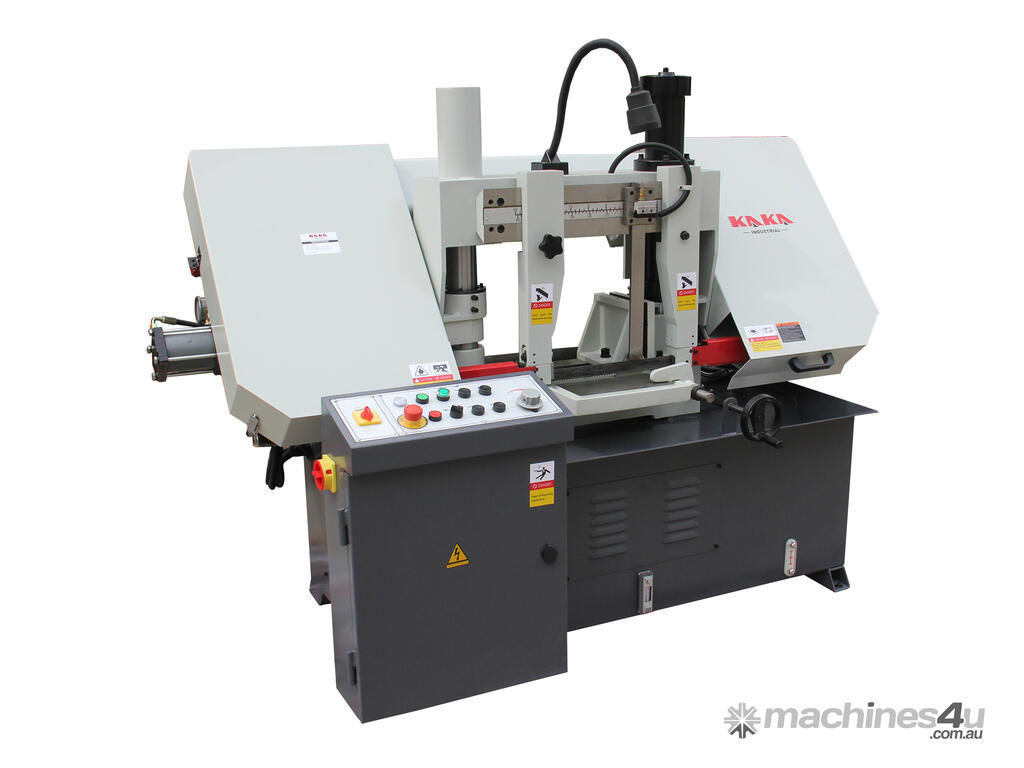

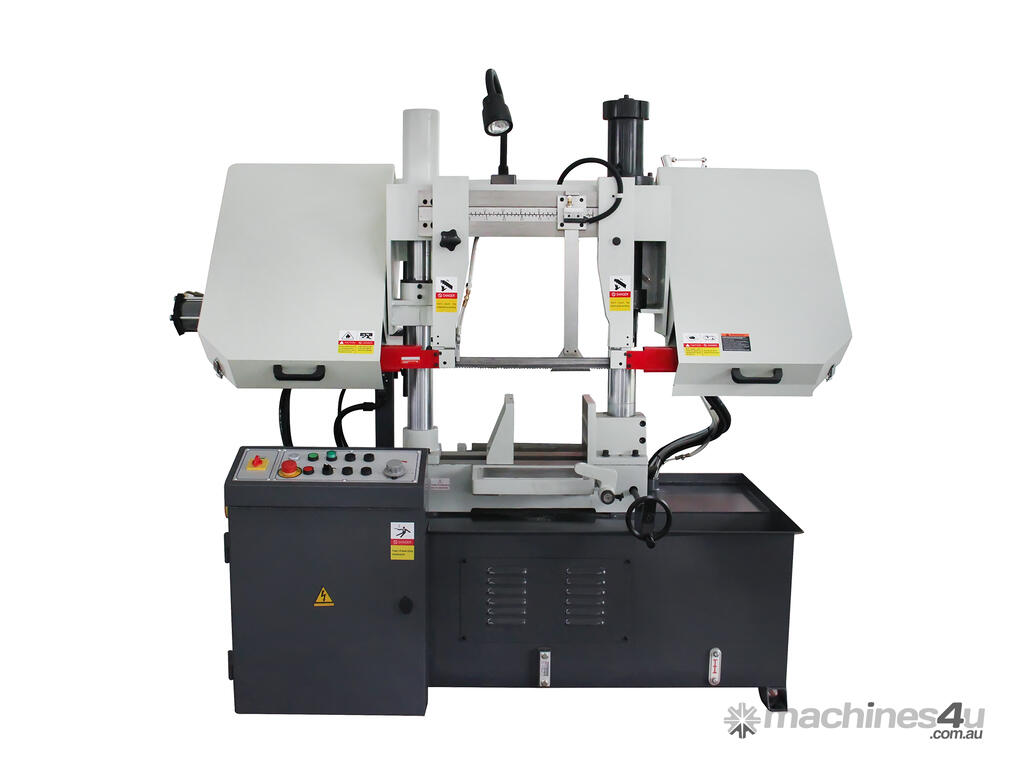

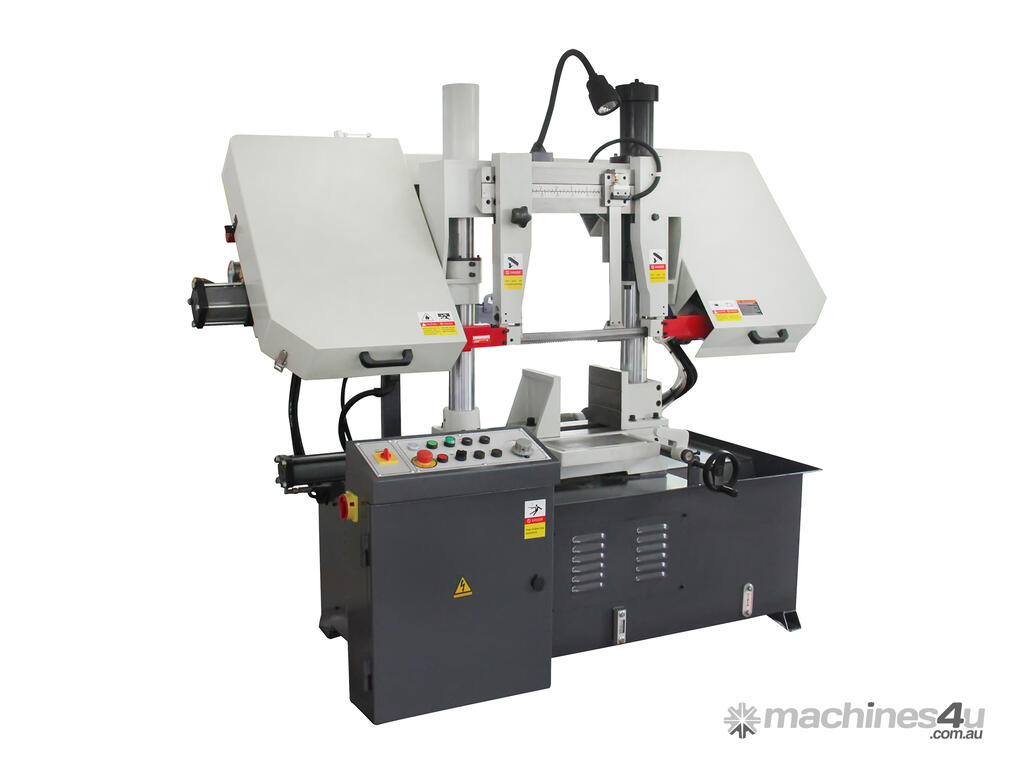

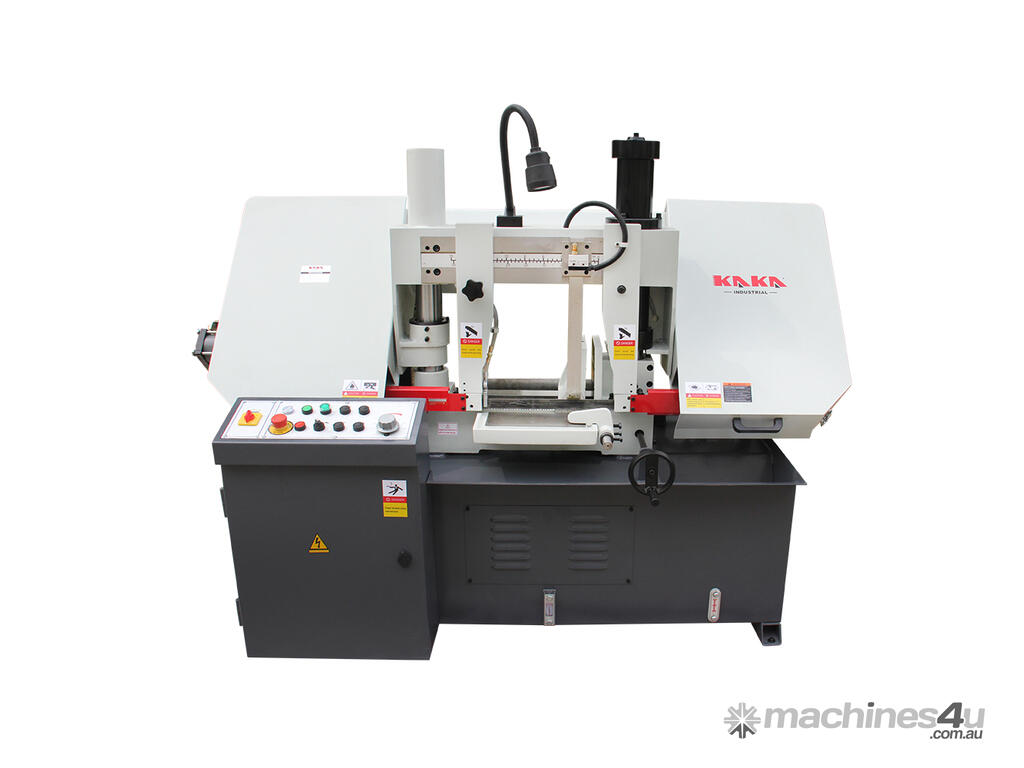

KANG Industrial TGK-14 Double Column Band Saw
The KANG TGK-14 is a robust, semi-automatic double-column horizontal bandsaw engineered for professional-grade metalworking, particularly suited for processing large blocks of solid materials, profiles, pipe, etc. This bandsaw features a precision-ground column-guided saw frame, ensuring versatile performance across materials.
Exceptional Stability and Low-Vibration Operation: The robust double column guidance and heave spheroidal cast iron frame eliminate torsional flex and vibrations, ensuring precise, straight cuts on solid blocks up to 350 mm, reducing blade wear and scrap rates.
Hydraulic Precision for Efficiency: The twin column bandsaw features hydraulic blade tensioning and vice clamping provide secure, repeatable holds.
User-Friendly Semi-Automatic Cycle: Automatic shut-down and frame return to preset height at cut completion reduces cycle time and enhances safety, allowing one operator to handle high volumes.

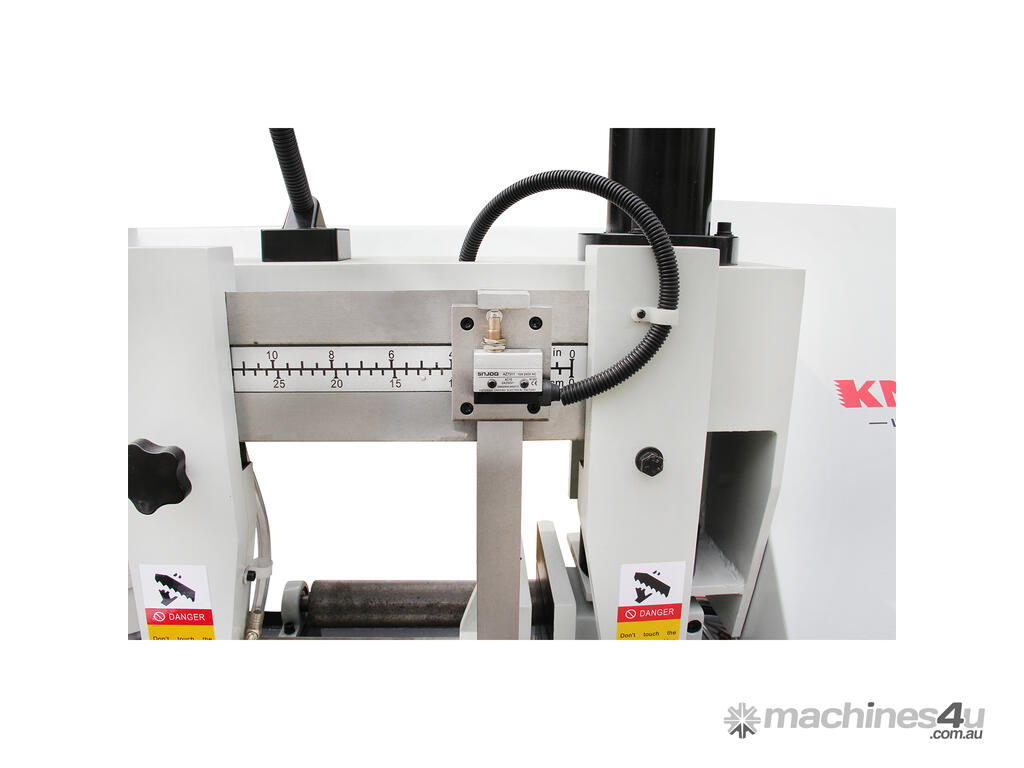

Enhanced Safety and Durability Bandsaw: Features like automatic end-of-cut shut-off, and enclosed components minimise risks in industrial environments, while the blade guides with quick adjustment ensure longevity and compliance with safety standards.
Integrated Accessories for Seamless Workflow: Built-in coolant device, working light, supporting continuous operation on diverse materials without add-ons, a practical edge for fabrication of pipes, profiles, structural steel cutting, etc.
Features
Runs on 415V power, industrial-grade double-column bandsaw

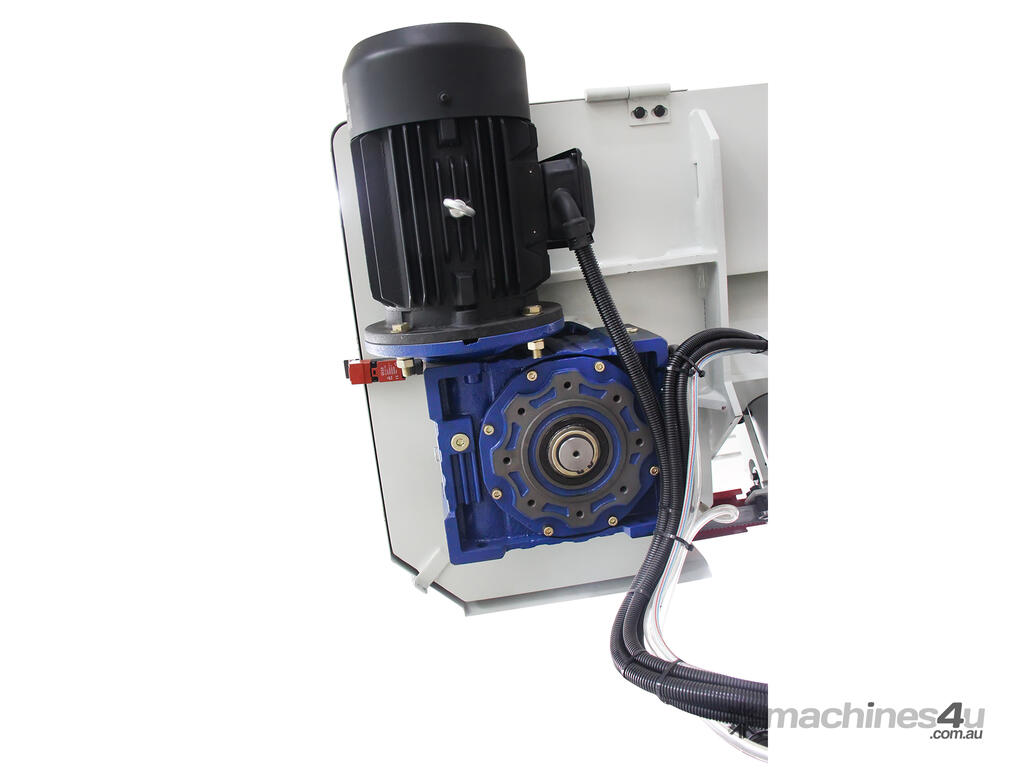

2.2/2.8 kW double speed motor to get two saw blade speeds, 45,69 m/min
Double column structure, saw frame vertical lifting, high stability
Saw frame descent by hydraulic control, variable speed

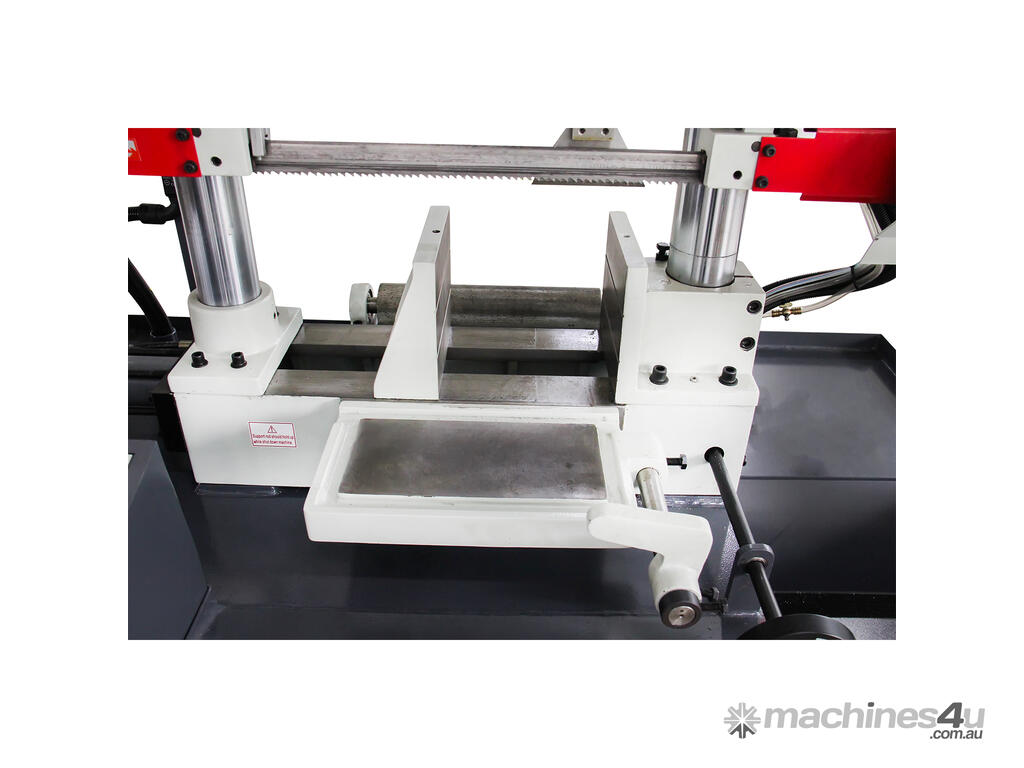

Hydraulic clamping vice and hydraulic blade tension adjustment
Standard Working Light
Standard Coolant pump & brass valves
Bi-Metal Bandsaw Blade (Pre-installed, 34x1.1x4115mm, TPI3/4)
Optional Coolant
Optional Hydraulic Oil
Features
SKU 188302
Model TGK-14
Max. cutting capacity ø350-350x350 mm
Vice table height 665 mm
Cutting speed 45,69 m/min
Feeding speed Hydraulic, variable speed
Balde size 34x1.1x4115 mm
Workpiece clamping Hydraulic
Blade tensioning Hydraulic
Main motor power 2.2/2.8 kW
Oil pump motor power 0.55 kW
Coolant pump motor power 0.04 kW
Drive Gear
Packing size 214x115x150 cm
N.W./G.W. 880/990 kg
