This saw is in great working condition.
It was in production making picture frames.
New replacement price for these machines is around $16000

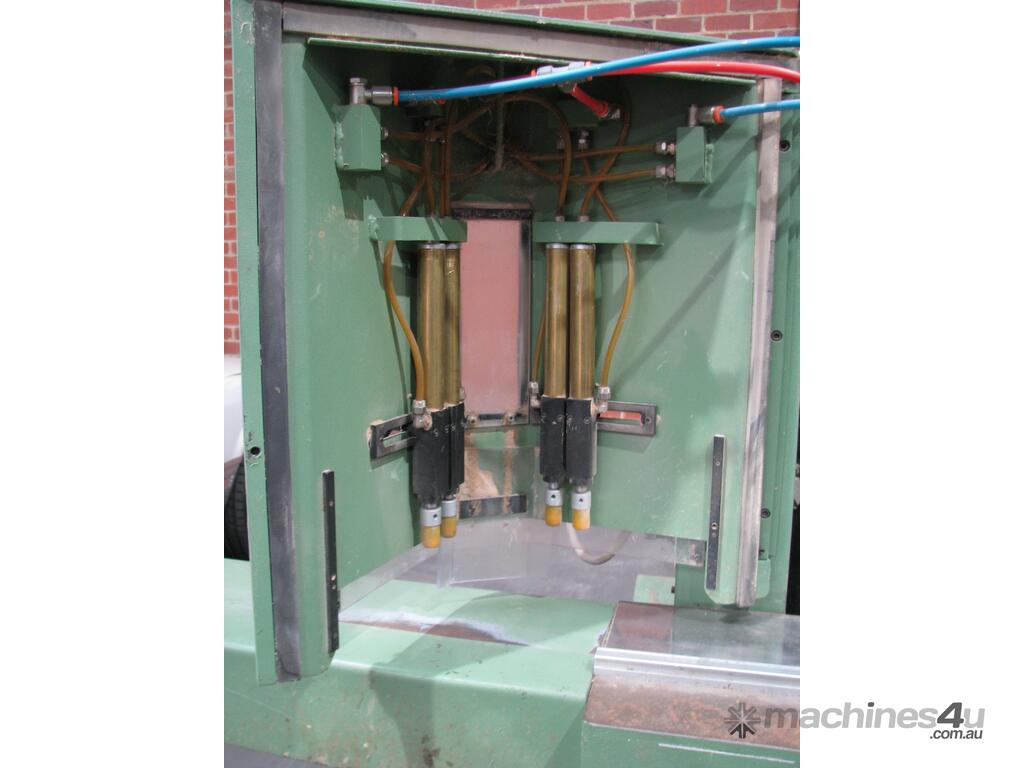

• Moulding is held securely by adjustable twin vertical clamps. The clamps can be operated by a foot switch, or set to engage automatically when the blade descent starts.

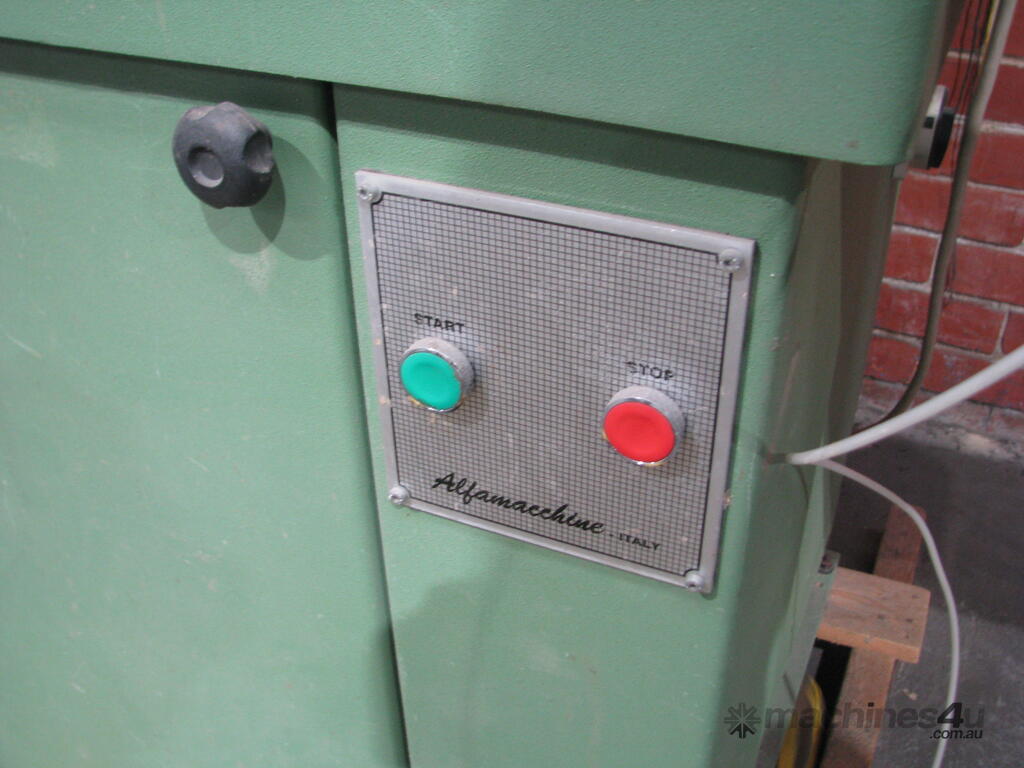

• Twin push buttons activate blade descent
• Blade descent is adjustable - on narrow moulding the descent / stroke can be reduced, speeding the cycle time.
• Cutting cycle time estimated at 700 - 800 per hour, although this in only one factor in production speed.

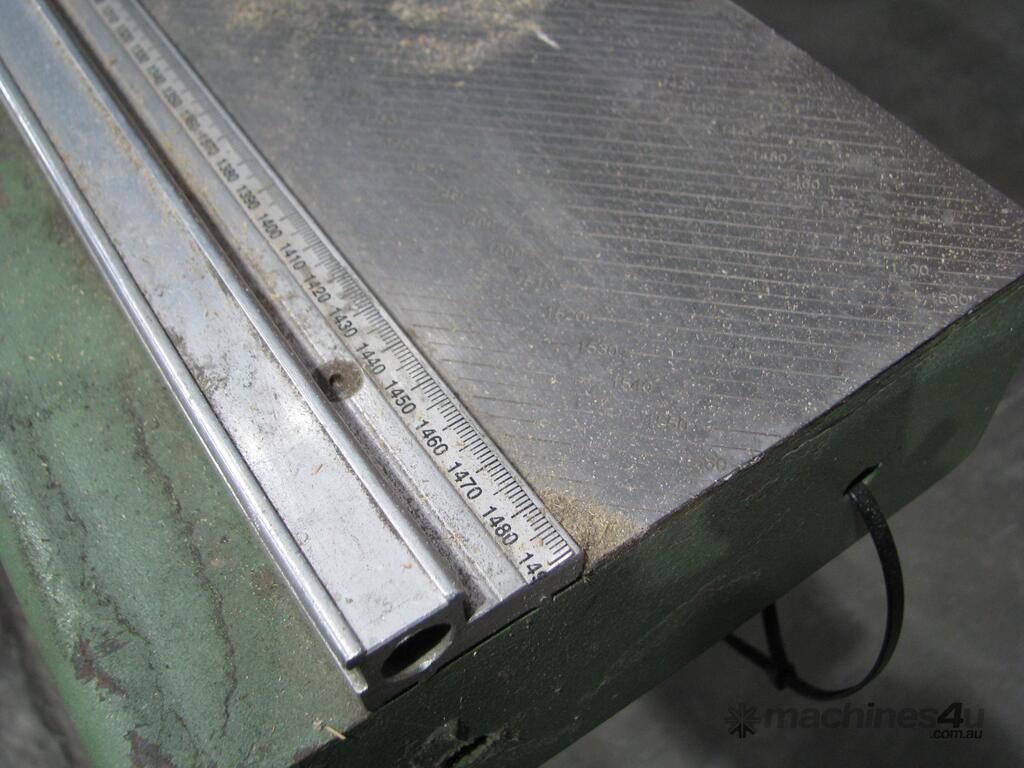

• Left-hand moulding support table

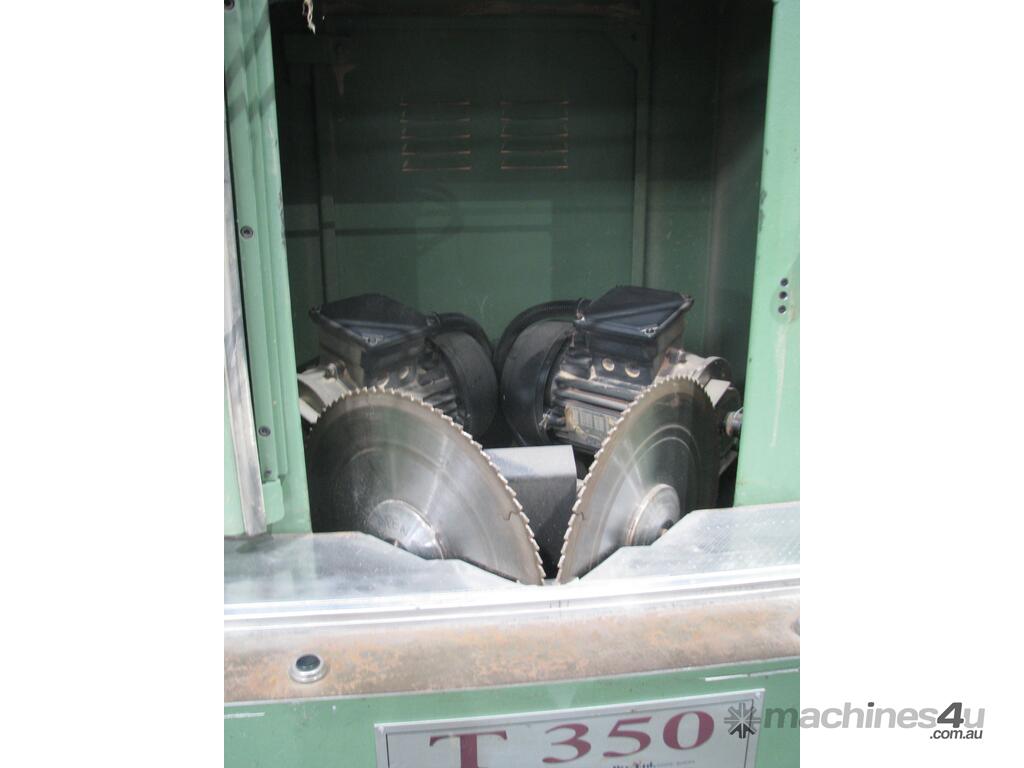

• Blades are fixed to a single chassis, so they travel together with no possibility of movement or misalignment.
• For optimum cut quality it is essential to use correct and well maintained blades. Blade descent speed must also be set correctly - slower for harder woods and faster for polymer.
• T-350 - 350mm blades. Max moulding 80mm wide x 80mm deep• All blades have a 30mm bore and twinpeg arbors
• Blades are mounted as close together on the chassis to give minimal waste

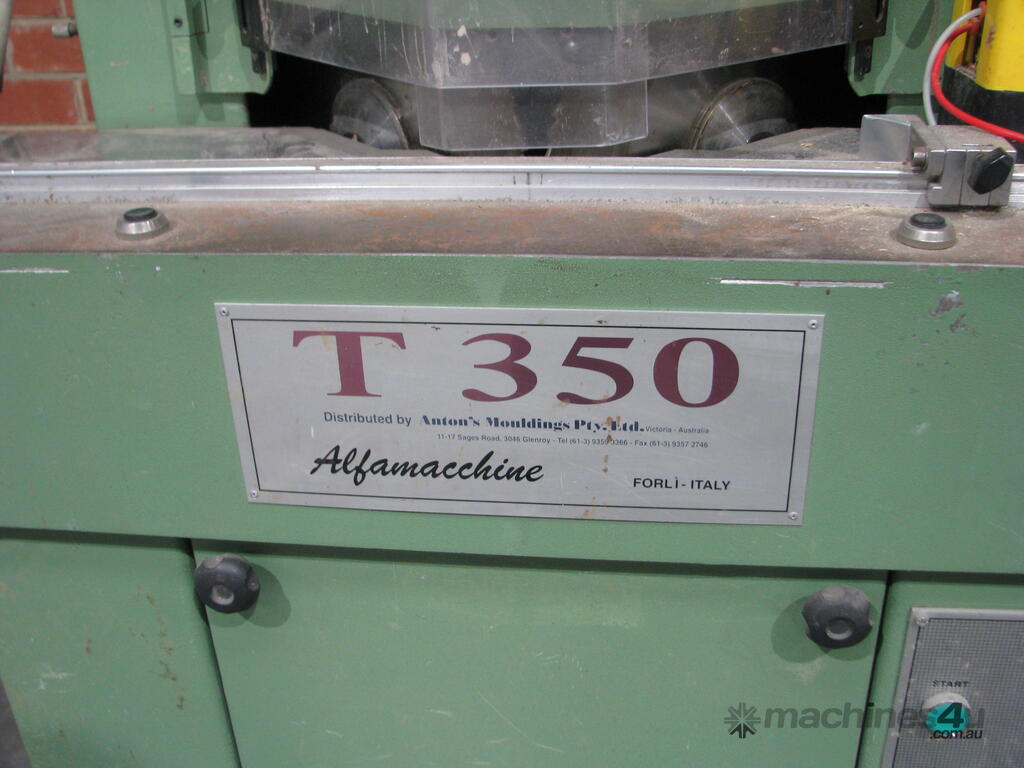

Make: Alfamacchine
Model: T-350
Power: 415V
Motors: 2 x 2HP
Overall Dimensions (mm): 3700 x 710 x 1650mm
