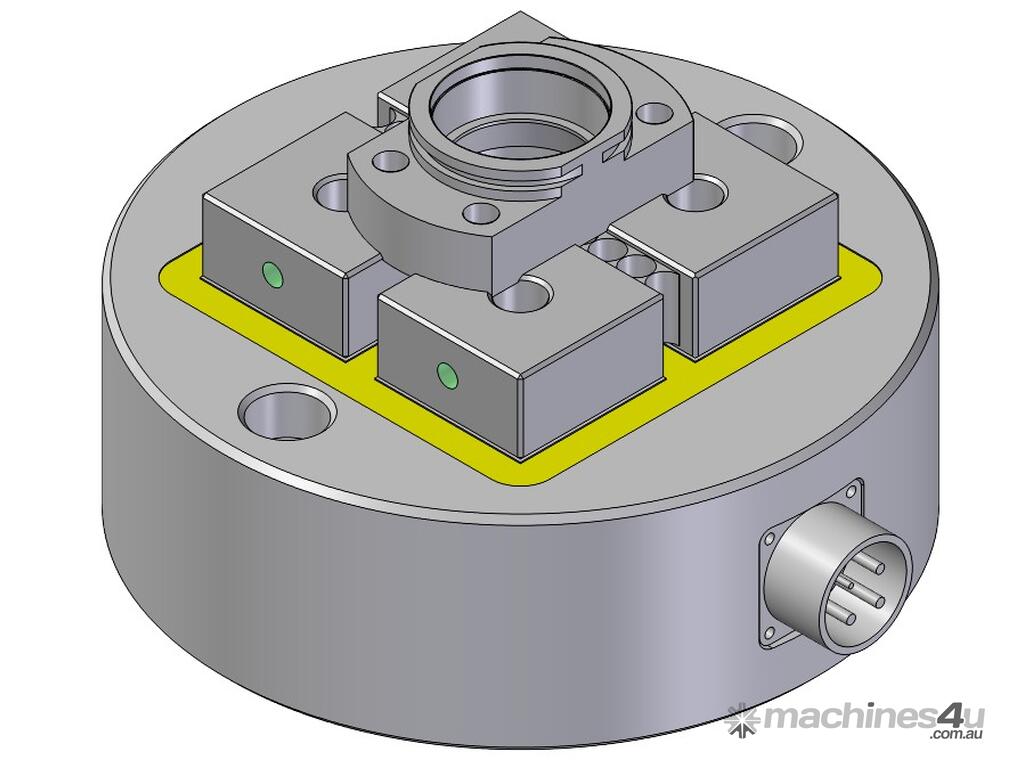

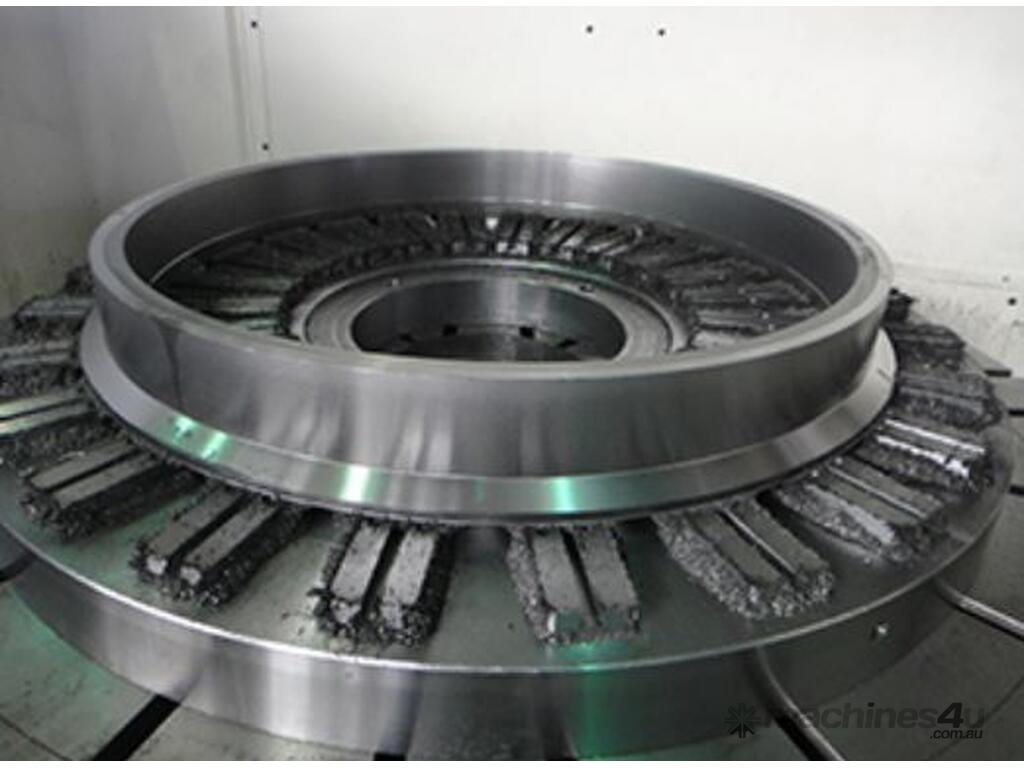

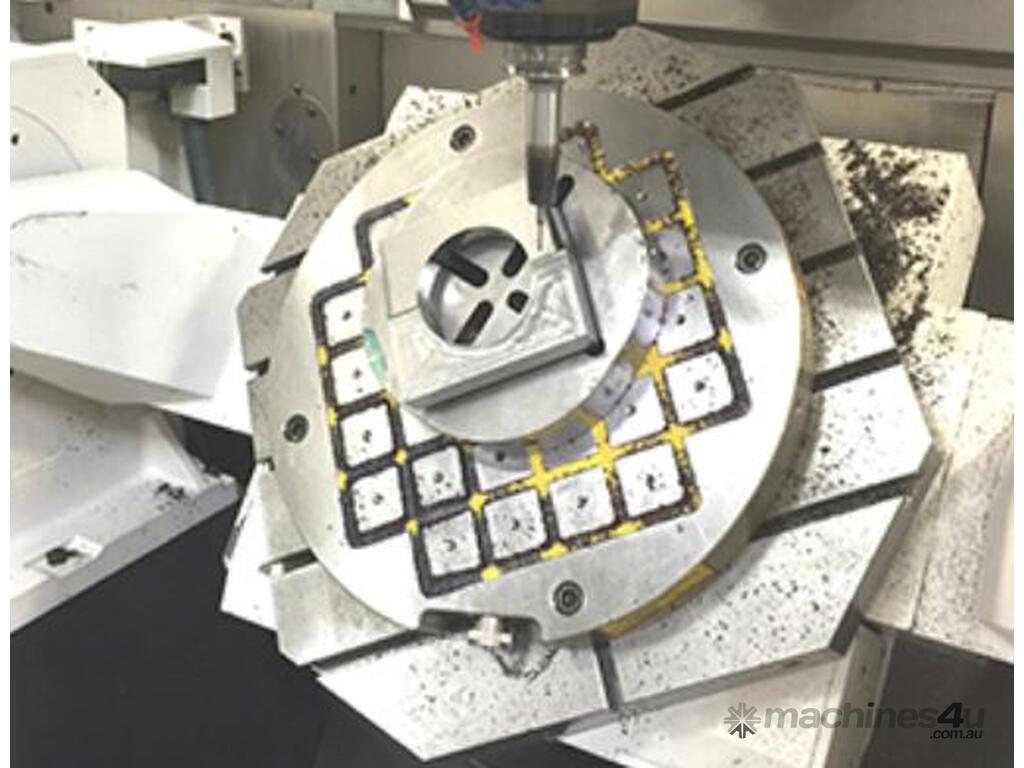

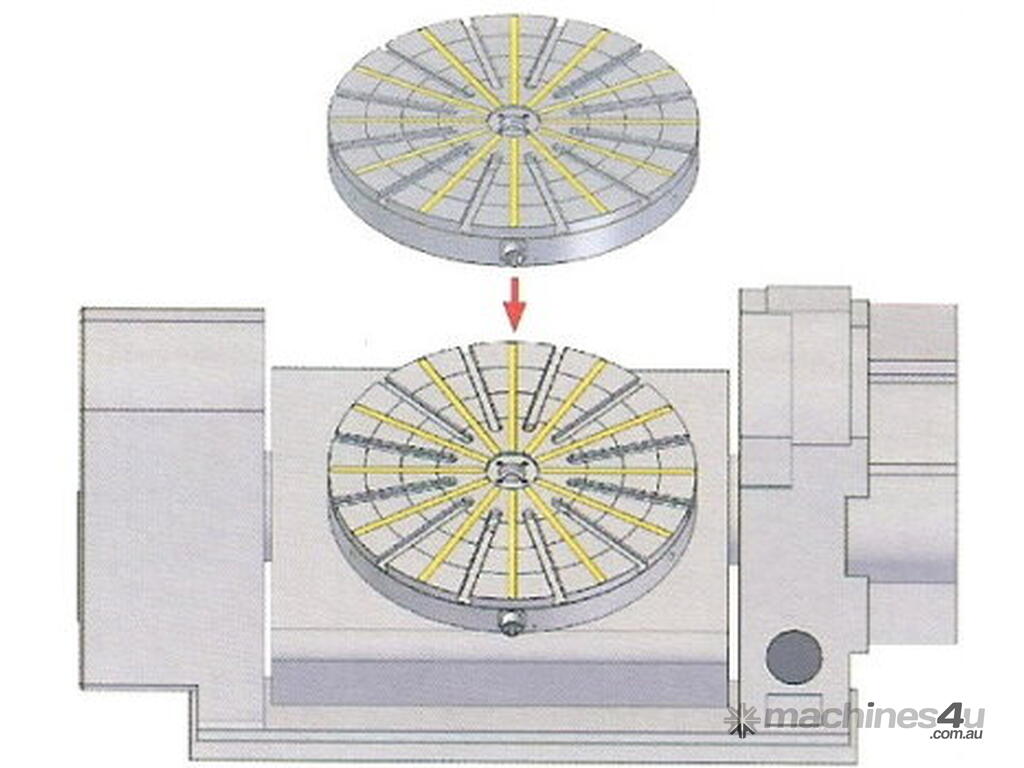

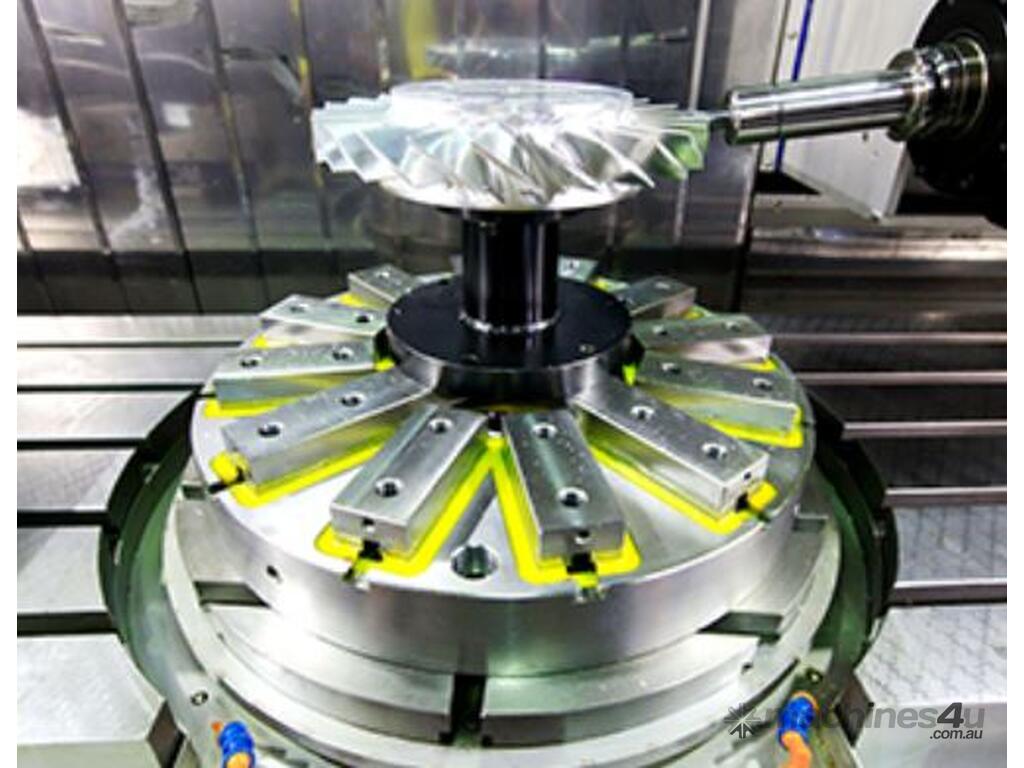

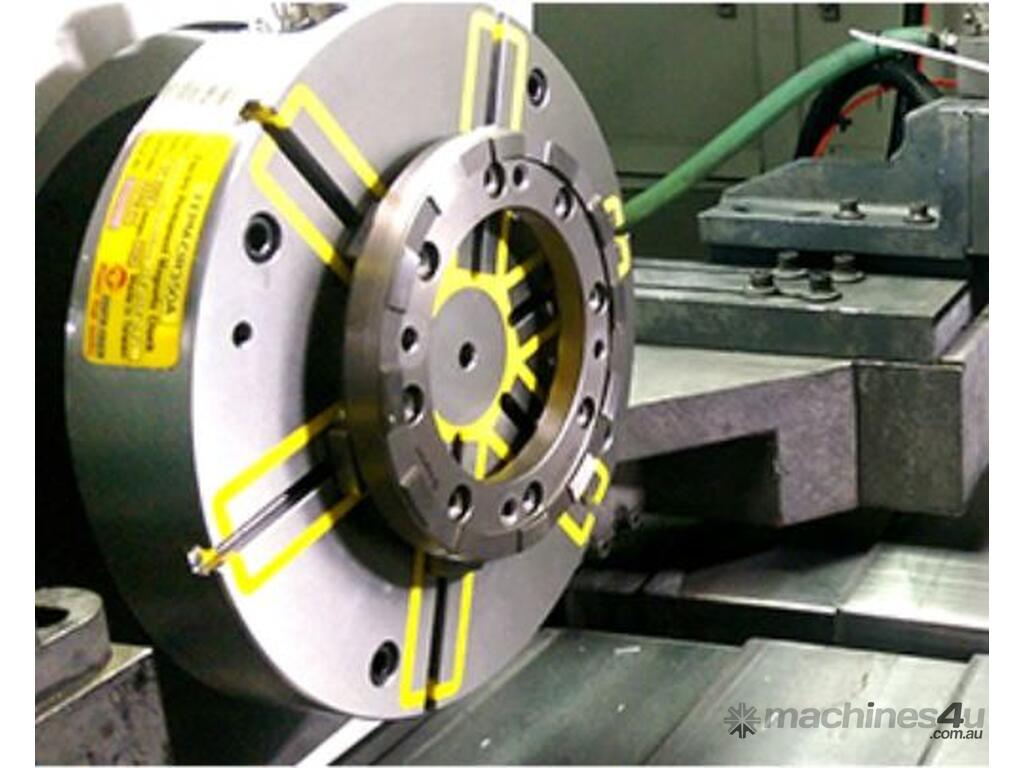

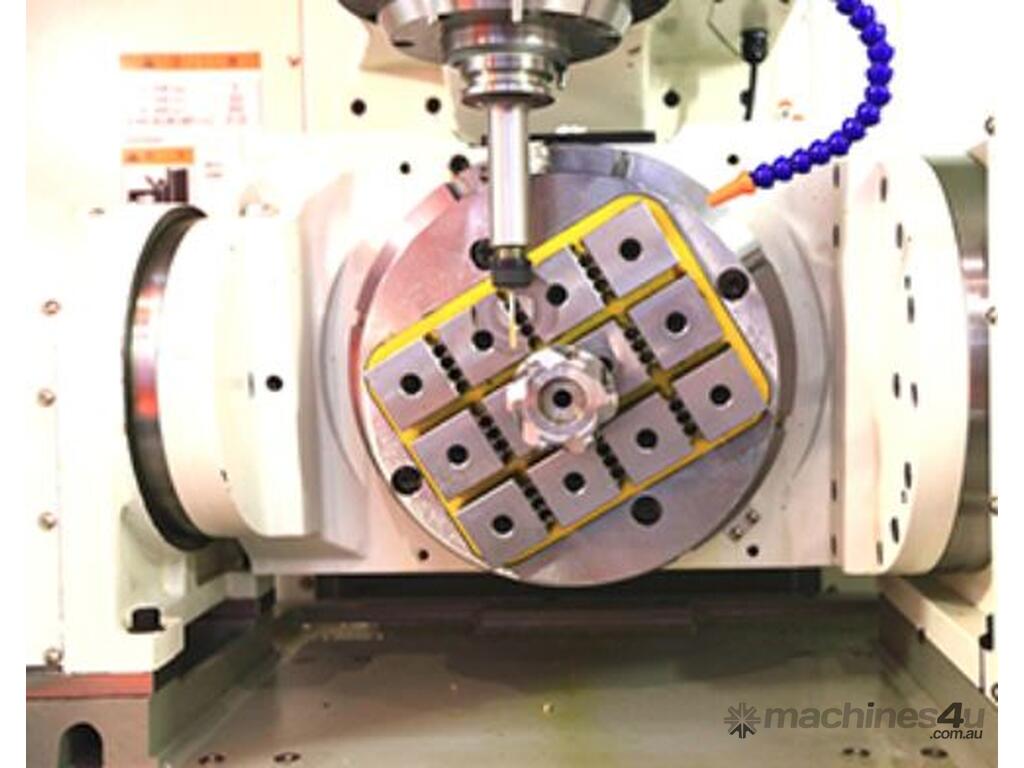

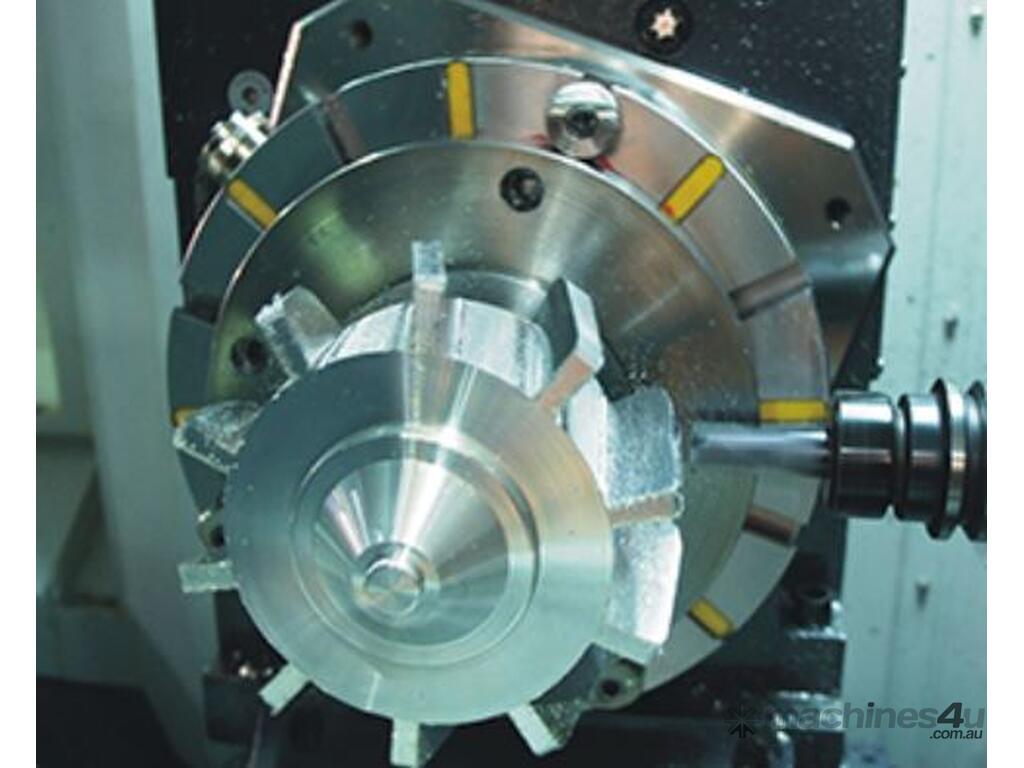

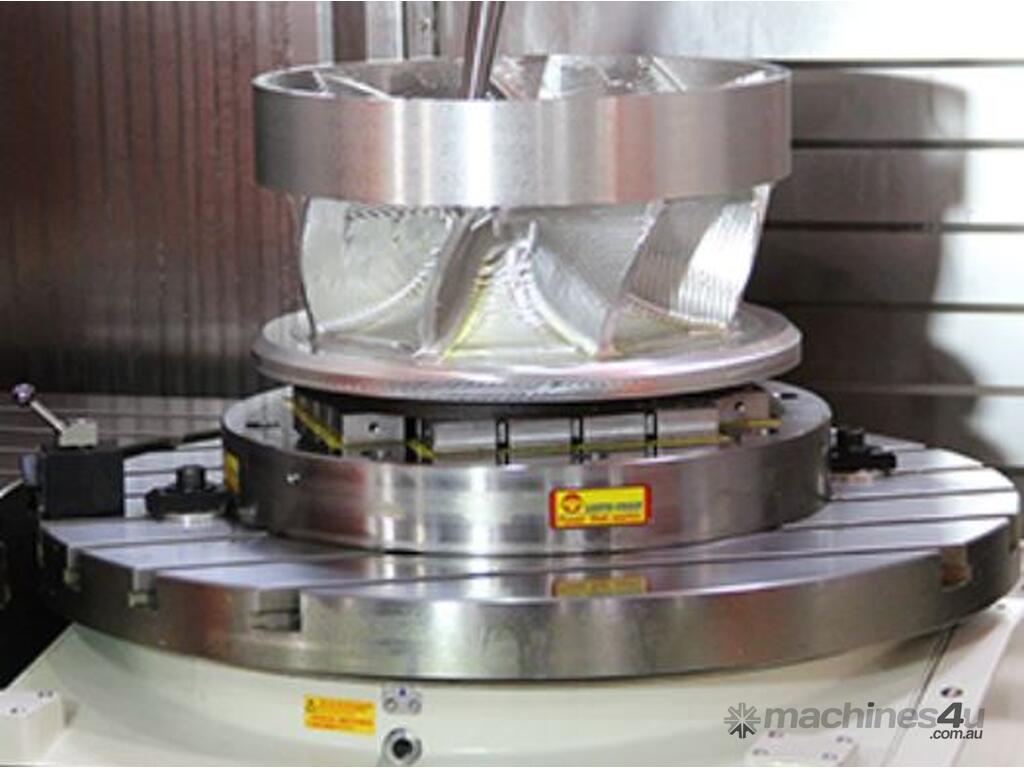

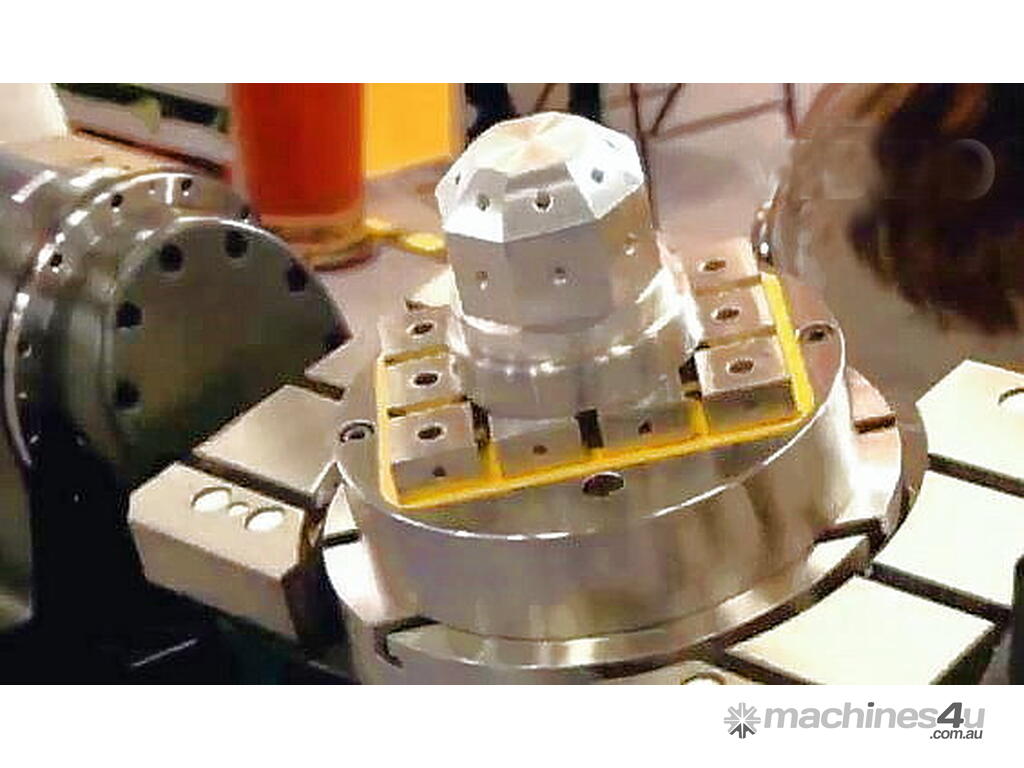

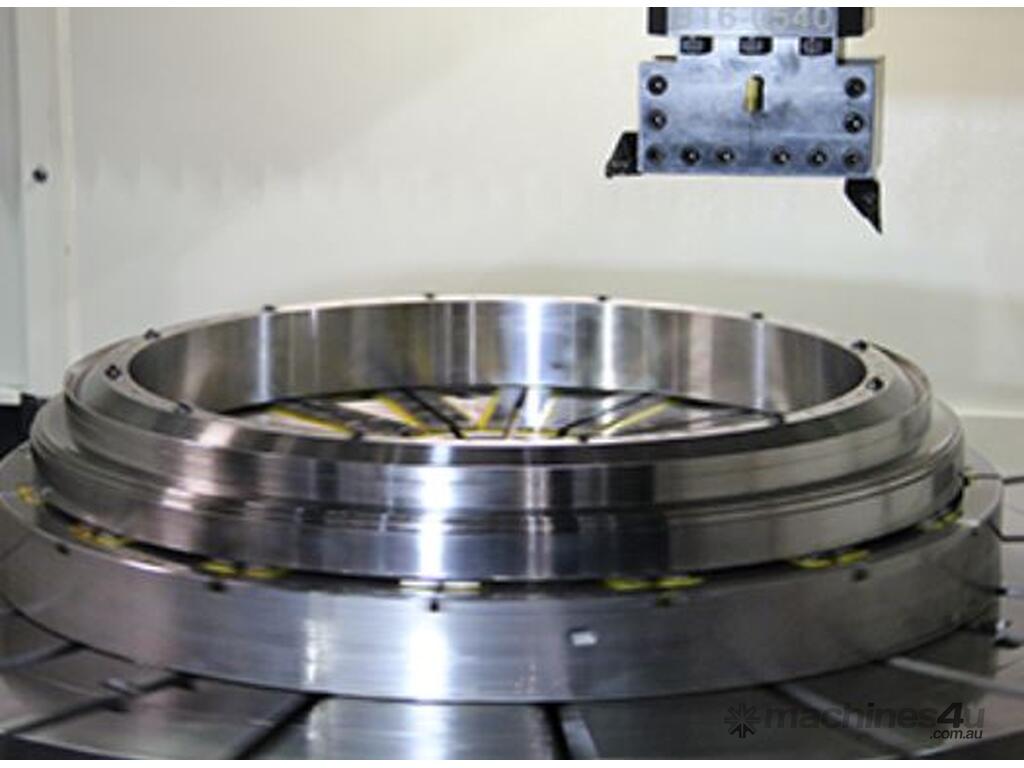

MagVise EEPM-CIR series are suitable for 4 or 5 axis rotary tables, 5 axis machining centres, vertical and horizontal lathes etc.

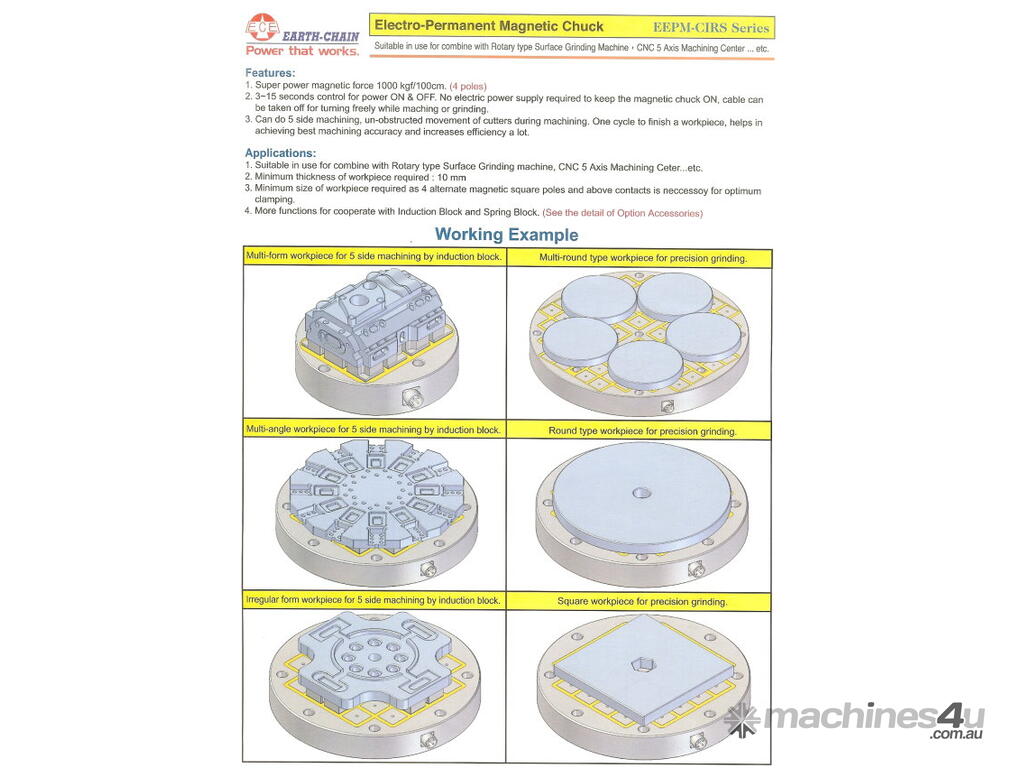

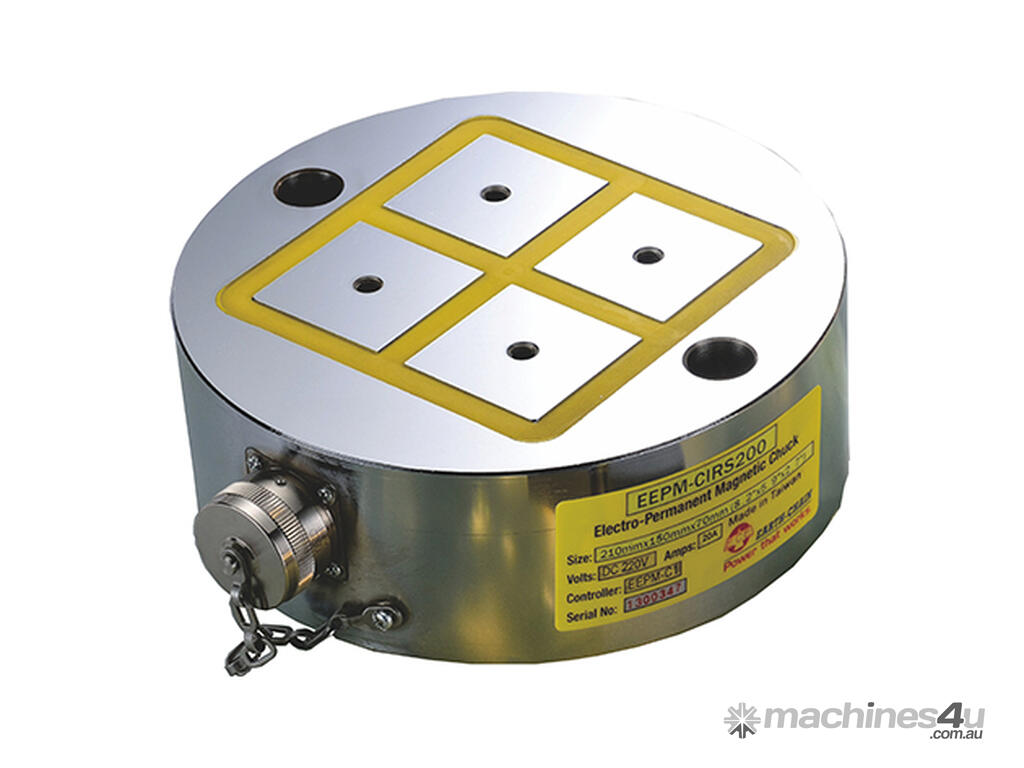

MagVise EEPM-CIRS series are suitable for rotary surface grinders, 5 axis machining centres etc.

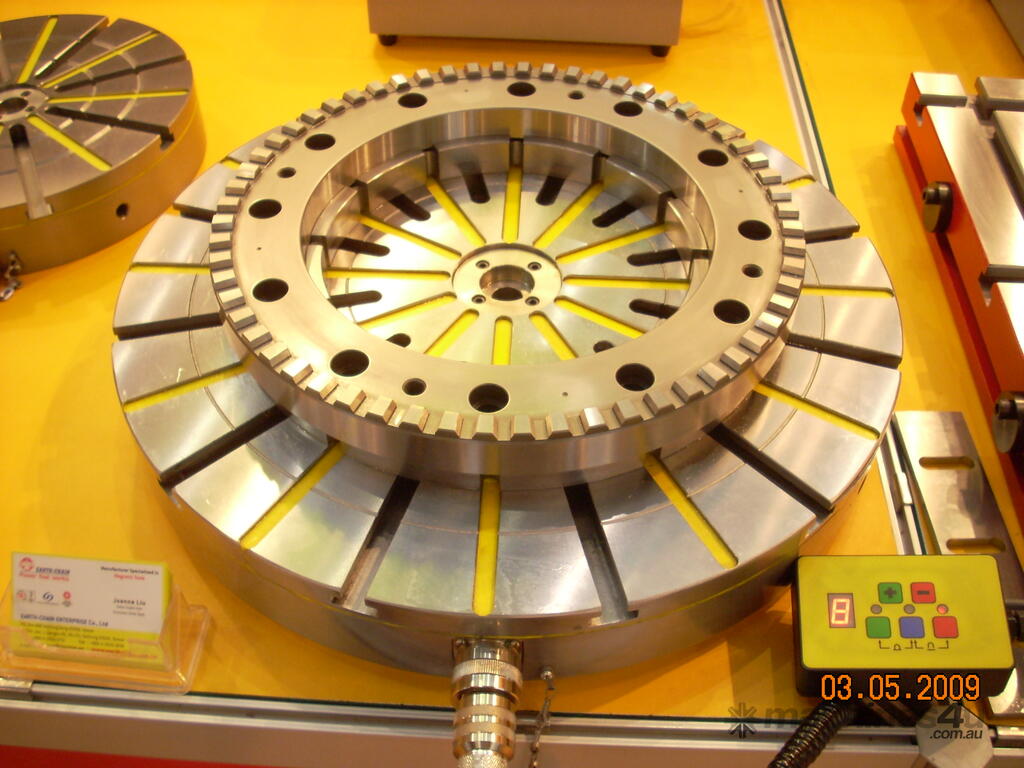

Electro-Permanent Magnetic Chucks
MagVISE EEPM (electro permanent) chucks are used for normal and heavy duty drilling, milling, and boring operations on medium or large sized work pieces. Rough and uneven stock is no problem to hold. Simply use the sliding pole extensions to support uneven work pieces. A minimum contact of 4 alternate poles is necessary for optimum magnetic holding power. Minimum thickness of a job is 12.7mm.
EEPM magnetic workholding chucks drastically reduce set up time while maintaining uniform electro permanent holding power over the entire work piece. Since work piece distortion does not occur, tool chatter is minimized and surface finish and tool life are improved.
No electricity is needed to keep the EEPM chuck ON… the magnet stays on, holding tight even during a complete power loss. Easily integrated with Pallet changing and Flexible Manufacturing Systems.
Please call for additional information.
