ET Series-Initial Lift

Initial Lift

The ETi platform stacker with initial lift provides higher ground clearance for better incline on inclines and uneven surfaces. Initial lift allows you to securely transport stacked pallets and double productivity.

Load Capacity
1200 - 1600 kg

Max Lift Height
5400 mm

Power
24 volt

Head Length (Plaform up)
925 - 980 mm

Head Length (Platform down)
1381 - 1436 mm

Width Overall
800 mm

Fork Length
1200 mm


Built for the Real World
Crown stackers are engineered for harsh and less-than-perfect conditions. They’re built to be rugged, precise and powerful. Put them to the test and you’ll find robust performance, simplified use and excellent control.

More than Lifting
Maximise stacking productivity with features that give operations more control for real-world stacking functions.

Crown ET Series stackers excel at positioning the truck to improve stacking efficiency. This is achieved through proportional lift/lower feature, sturdy mast, rigid chassis, superior visibility, and the centre-mounted tiller.

The ETi Series platform stackers with initial lift add a flexibility advantage by providing higher ground clearance for better handling on inclines and uneven surfaces and to avoid product shifting and unsafe transport conditions. Robust initial lift load arms stand up to the severe pounding caused by uneven floors, dock boards and rough surfaces. They also enable double pallet handling.


Rugged and Nimble

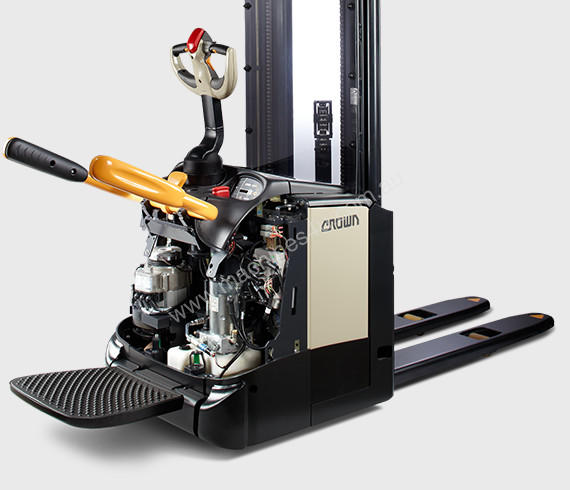

The ET Series’ large Crown-built AC traction motor and a low-noise cast iron gearbox provide reliable power to handle heavy loads.

Nested I-beam rails and thick steel cross bars contribute to a rugged and stable stacker mast with high residual capacities. The reinforced 8 mm thick steel chassis and die-cast aluminum control handle hold up under the toughest conditions.

Crown’s e-GEN Braking System uses the power of the high-torque traction motor to improve overall braking performance while virtually eliminating brake maintenance.


Comfort and Safety
Ergonomic design is a hallmark of Crown. The ET Series, like all forklifts, features intentional design that pays off in both comfort and productivity.

Take for example the fold-up FlexRide platform which reduces shock transfer by more than 80 percent to provide a smooth ride for less operator fatigue. Side restraints are positioned for excellent support and comfort and they easily swing up so operators can quickly exit to the side in congested areas.

Add in the centre-mounted tiller, four-point wheel configuration and optional electronic steering for easier manoeuvrability and less effort.


Precise Control
Performance-enhancing control boosts skill levels, confidence and productivity – whether walking or riding.

The award-winning Crown X10 Handle and precise proportional lift and lower functions provide extraordinary control.

These stackers feature a narrow, contoured chassis, low sight lines and a centre tiller for superior visibility, balanced handling and manoeuvrability – even in close or confided spaces.

The patented brake override function allows operators to navigate in extremely tight spaces with full control.
